Operator manual
for
2-wheel tractor
Series 500
The basis for working with the 2-
wheel tractor is that you read, observe and understand this
operator manual of the utilized accessory equipment and the engine manufacturer.
You may not begin operation before doing so.
Beginning work without observing this manual is prohibited!
Edition / Rev.
-
Date
01-2009 ☺ 11/18/09
Store for future usage!
Types 4H 500, 4K 500, 4M 500

N
OTES
Page 2 Version 01-2009
S500K
Translation of the original operator manual

P
REFACE
Page 3 Version 01-2009
S500K
Preface
Before commissioning the 2-wheel tractor it is absolutely necessary to read
and observe the proper usage and the safety notes!
The guarantee is ensured only for proper operation!
Valued customer! You have made the right decision!
Although the selection is great, you have chosen a 2-wheel tractor.
That pleases us greatly. We will make an effort to keep you satisfied over the years.
As of now, you will hopefully be our best advertiser.
The following points distinguish our product:
- The machine is very stable, one can work effortlessly.
- It is equipped with an outstanding engine.
- The maintenance costs are thus very low.
- The gear shift is easy to operate.
- The spare parts supply is guaranteed and occurs quickly.
- An optimal customer service is available to you at all times.
The 2-wheel tractor has resulted from decades of experience and can therefore be
placed into continuous practice.
is constantly working on advancements of machines and devices. We must
therefore reserve the right to make changes to the scope of delivery in form, tech-
nology and equipment. Please understand that no claims can be made based on
statements and illustrations in this manual.
LET US KNOW YOUR SUGGESTIONS FOR IMPROVEMENT!

T
ABLE OF CONTENTS
Page 4 Version 01-2009
S500K
Table of contents
PREFACE ........................................................................................................................................... 3
TABLE OF CONTENTS ......................................................................................................................... 4
PROPER USA E ................................................................................................................................. 5
1 ENERAL SAFETY NOTES ................................................................................................... 6
1.1 Possible hazards during interaction with the 2-wheel tractor.................................................. 6
1.2 Safety notes and hints ............................................................................................................. 6
1.3 azards due to accessories ....................................................................................................... 7
1.4 Emissions ............................................................................................................................... 8
1.5 azard sources ....................................................................................................................... 9
1.6 Lighting devices on single-axle tractors ....................................................................................... 9
1.7 Workplace ............................................................................................................................ 10
1.8 Authorized operators ............................................................................................................. 10
1.9 Personal protective equipment ................................................................................................ 11
1.10 Safety measures at the work site ............................................................................................. 11
1.11 Protective devices ................................................................................................................. 12
1.12 Leaving the tractor ................................................................................................................ 13
1.13 Safety tool attachments ......................................................................................................... 13
2 TRANSPORT ...................................................................................................................... 14
2.1 Tractor size / machine dimensions ........................................................................................... 14
2.2 Technical data ...................................................................................................................... 15
3 OPERATION ...................................................................................................................... 16
3.1 Commissioning...................................................................................................................... 16
3.2 Starting ............................................................................................................................... 16
3.3 Switching gears in general ...................................................................................................... 17
3.4 Gear switching - steering shaft ................................................................................................ 17
3.5 Shifting – fixed shaft .............................................................................................................. 19
3.6 Shifting – forward/ reverse gear on the shaft ............................................................................ 20
3.7 Clutch .................................................................................................................................. 20
3.8 Power take-off ...................................................................................................................... 21
3.9 Differential gears ................................................................................................................... 22
3.10 Engine ................................................................................................................................. 23
3.11 Gas pedal ............................................................................................................................. 23
3.12 Shaft adjustment ................................................................................................................... 24
3.13 Steering shaft - optionally / for Type 4M standard ...................................................................... 24
3.14 Parking brake / brake - optional .............................................................................................. 26
3.15 Device connection ................................................................................................................. 27
4 MALFUNCTIONS ................................................................................................................ 29
4.1 Malfunctions and their remedy ................................................................................................ 29
5 MAINTENANCE.................................................................................................................. 31
5.1 Maintenance plan .................................................................................................................. 31
5.2 Engine ................................................................................................................................. 32
5.3 Gear box .............................................................................................................................. 32
5.4 Driving wheels ...................................................................................................................... 33
5.5 Steering shaft ....................................................................................................................... 33
5.6 General ................................................................................................................................ 33
5.7 33
5.7 Tool attachments .................................................................................................................. 34
5.8 Safe-keeping and storage ....................................................................................................... 34
6 APPENDIX ......................................................................................................................... 35
6.1 Lubricants / adhesives ........................................................................................................... 35
6.2 Accessories .......................................................................................................................... 35
EU DECLARATION OF CONFORMITY ................................................................................................ 36

Page 5 Version 01-2009
S500K
P
ROPER USA E
Proper usage
The -2-wheel tractors (Type 4H 500 / 4K 500 / 4M 500) as well as the original at-
tachment equipment approved by the manufacturer are exclusively constructed for the usual us-
age and work in agriculture and forestry, such as grass and field mowing. This can also include
snow removal, winter work and sweeping.
The 2-wheel tractor is depending on the shaft position designed for the following work:
Front attachment: For mowing, rotation ploughing, chaffing, soil drilling, cleaning, snow
blowing, snow removal, transport.
only with steering shaft
Hedge construction: Rotary tilling, ploughing, grubbing, one axled trailer (brakes required).
•The conditions set down in the offer and in the "proper usage" are decisive. Every usage ex-
tending beyond this is not proper usage. The manufacturer assumes no liability for damages
resulting from this; the risk is borne solely by the user.
•This work is only allowed in appropriate scope of the engine size, wheel size and relation-
ship of the surroundings.
•The -2-wheel tractor (Type 4H 500 / 4K 500 / 4M 500) may only be used, main-
tained and repaired by persons who are familiar with this and have been instructed about
the hazards.
•The 2-wheel tractor may not be used on strongly sloping territory. For these special
usages there are tool attachments, twin wheels, iron hanging wheels, track widening, etc.
•Unauthorized changes to the construction of the 2-wheel tractor are prohibited for
reasons of safety!
•The relevant accident prevention directives as well as the other general safety, occupational
health, and traffic rules must be complied with.
Important!
The operating and maintenance conditions prescribed in this operator manual for the
2-wheel tractor are the conditions for the proper usage and must be strictly complied
with.
Warning!
Should the machine be used for a purpose other then the intended purpose listed above or
driven at powers greater than allowed, hazardous situations for persons can result or ma-
terial damages occur.
Information!
Improper and prohibited use of the machine are not recognized by the manufacturer. Im-
proper attachment of auxiliary devices and parts, which have not been obtained from
exclude any liability for damages resulting from this.

ENERAL SAFETY NOTES
Page 6 Version 01-2009
S500K
1 General safety notes
1.1 Possible hazards during interaction with the 2-wheel tractor
In the case of improper usage or misuse hazards threaten for
•the life and limb of the operator,
•of the 2-wheel tractor and other property of the operator,
•the efficient work of the -2 -wheel tractor
All persons involved with the commissioning, operation, and maintenance of the -2-wheel
tractor must:
•be accordingly qualified
•observe and follow this operator manual precisely!
It is a matter of your safety!
1.2 Safety notes and hints
The following symbols are used in this operator manual:
Warning!
Points out important safety hints in this operator manual.
When you see this symbol, be aware of possible risks of injury. Read the following note careful-
ly and inform the other operators.
Caution!
Indicates a possibly dangerous situation.
Nonobservance of this note could lead to light injuries.
Information!
Indicates safety tips and other useful information.
Wear protective
glasses
Wear protective
gloves
Wear safety shoes
Wear hearing prote
c-
tion
Before repair, mainte-
nance and cleaning
work, turn off the engine
and remove the spark
plug connector!
Before commissioning,
read and observe the
operator manual and
safety notes!

Page 7 Version 01-2009
ENERAL SAFETY NOTES
S500K
1.3 Hazards due to accessories
Tool attachments, mowing devices and other utilized auxiliary devices may not deactivate the
protective equipment of the
- 2-wheel tractor.
Standing in the hazard zone during work is prohibited.
This zone begins in the middle of the wheel axle, reaches laterally and forwards - depending on
attachment - to various distances:
with
-Mowing beam b
s = 1 m b v = 2 m
-Snow removal sign b s = 0.5 m b v = 2 m
-AZM-S b
s = 2 m b v = 5 m
-AZM-A b s = 25 m b v = 25 m
-Sweeping machine b s = 2 m b v = 5 m
-Snow blower b s = 25 m b v = 25 m
-Rotary tiller b s = 2 m b v = 5 m
Also observe the operator manuals of the respective implements!
Hazard zone

Page 8 Version 01-2009
S500K
ENERAL SAFETY NOTES
1.4 Emissions
1. Noise information (Sound power level EN ISO 3744, noise pressure level EN ISO 11201)
The A-rated sound power and A-rated Emission-noise pressure level of the -2-wheel tractor
is at the ear of the operator without auxiliary devices
Design
Sound power level
[dB (A)]/[ rpm]
Noise pressure level
[dB (A)]/[ rpm]
Vibrations
[m/s²]
506 97.3 84.0 2.5
510 98.8 84.7 3.6
512 98.1 86.5 3.7
505H 102.7 93.4 3.9
508H 104.2 92.5 4.2
512H 103.5 90.1 4.6
Depending on the attachment, an increased noise pressure level from up to 4.5 dB(A) can be ex-
pected - wear hearing protection!
•The measurement is made on the lawn outdoors; Based on EN ISO 3744 (sound power lev-
el) and EN ISO 11201 (noise pressure level).
•The measurement device used, Norsonic Type 116, conforms to the standard DIN IEC 651
- class 1, DIN IEC 804 - class 1, DIN 45657 - class 1.
•Engine speed = highest engine operating speed
•Radius of the half-shaped measurement surface = 4 m.
2. Vibrations - measurements taken in accordance with EN 1033
Measurement device
•Measurement device - CASTEL, GA-2003
•Vibration pickup - MONITRAN LTD, MTN / P100T-10, S/N 203988
Operating conditions
•Fuel filled approx. 50%.
•Steering shaft set to the body size of the operator.
•Machine broken in and warmed up.
•Measured on the steering shaft in accordance with EN 12733.
•Engine speed = highest engine operation speed

Page 9 Version 01-2009
ENERAL SAFETY NOTES
S500K
1.5 Hazard sources
The -2-wheel tractor may be used on commercial and well as private plots.
•Before every start-up, check the machine for traffic and operational safety!
•In addition to the information in this operator manual, observe the general safety and acci-
dent prevention directives!
•During usage of the -2-wheel tractor on public traffic routes (streets) the directives of
the street traffic ordinance apply in its most recent version. (For this also see 1.6)
•Before beginning work, you must be familiar with all equipment and actuating elements
and their functions. Make certain that all protective devices are properly installed!
•The user is responsible to third parties in the work area!
•Standing in the work and hazard zones of the -2-wheel tractor is prohibited!
•Before starting to drive, check the surrounding area - children! Ensure sufficient visibility!
•Do not let engine run in closed rooms!
•The driver's clothing should be close-fitting. Avoid wearing loose clothing. Wear firm
shoes!
•Caution is recommended when working with fuel - increased risk of fire! Never refuel in
the vicinity of open flames, ignitable sparks and hot engine parts. Do not smoke when fuel-
ing!
•Before fueling, switch off the engine and pull out the ignition key (if present). Do not refuel
in closed rooms. Do not spill fuel! Use suitable filling aids.
•To avoid risk of fire, keep the main engine clean!
•Before maintenance and cleaning work, turn off the engine and remove the spark plug
connector!
•When coupling and decoupling tool attachments to or from the main engine, particu-
lar caution is necessary!
•Make certain that all protective devices are properly installed!
1.6 Lighting devices on single-axle tractors
Here one must differentiate whether the one axled tractor
•is guided by a pedestrian on the shafts,
•is driven from a seat cart (single-track trailer) or
•driven from a trailer.
One axled tractors, which are guided by a pedestrian on the shafts, require during darkness - or
when the weather requires – at least one simple lamp with white light, which should be attached
to the left side or carried along manually, so that the light is well visible to oncoming and pass-
ing traffic (§ 50 Para. 2 of the Road traffic act and § 17 Para. 5 of the Road traffic act).
One axled tractors which are driven from a seat cart or a trailer
•must be equipped up to a width of 1000 mm with one headlight,
•beyond a width of 1000 mm with two headlights
, which when pulling a one axled trailer can be fastened to this (§ 50 Para. 2 of the Road traffic
act).
If the one axled tractor is driven from a single-track seat cart, then a triangular reflector and a
taillight must be attached (§ 53 Para. 6 of the Road traffic act), blinking lights (travel direction
indicator) are not required for a seat cart. (§ 54 Para. 5 No. 5 of the Road traffic act).
For one axled tensile or work machines, which are operated by a walk-behind person, no operat-
ing permit or driver's license is required.
During transport of a one axled tractor with trailer on public streets, which is used for lof pur-
poses, the operating permit is sufficient up to a design-related maximum speed of 20 km/h. It

Page 10 Version 01-2009
S500K
ENERAL SAFETY NOTES
must be guided along. The name and domicile of the holder must be indicated by a sign on the
trailer. A class L driver's license is sufficient. A permit is required for design-related speeds over
20 km/h..
1.7 Workplace
The operator position on the -2-wheel tractor is found on both steering shafts (operator
field) in front of the -2-wheel tractor
1.8 Authorized operators
Only authorized persons may work with the -2-wheel tractor.
The minimum age for operators is 16 years.
The operator is responsible to third parties in the work area.
The responsibilities for the various activities on the -2-wheel tractor must be clearly de-
termined and maintained. Unclear competencies are a safety risk.
The operating company must
•make the operator manual available to the operator
•and make certain that the operator has read and understood it.
Operator position
Travel direction
Figure 1. Operator position.

Page 11 Version 01-2009
ENERAL SAFETY NOTES
S500K
1.9 Personal protective equipment
For the operation
Wear firm shoes!
Wear close-fitting clothing
For longer work times, suitable hearing protection should be worn.
For the cleaning
Firm protective gloves (leather) for protection against sharp objects
(auxiliary devices).
For sharpening the mowing blade
Wear protective glasses
1.10 Safety measures at the work site
•When starting the engine, the traction drive and gear box must be decoupled.
•Travel, steering, braking as tilt behavior are influenced by tool attachments. There-
fore ensure sufficient steering and braking capability and adapt the work speed to the
environmental conditions!
•When driving on hills, in valleys or across slopes, avoid sudden curves.
•Driving downhill in neutral gear is prohibited! The machine can roll away due to its
own weight!
•When the engine is running, wearers of pace makers may not touch the current-
carrying parts of the ignition system.
•Before starting to drive, check brakes and brake effectiveness.
•Remove larger objects from the work area (e. g. boards, cables, rocks, etc.).
•Keep hands and feet away from moving parts during operation.
•Ensure sufficient lighting in the work area.
•Work cross-wise along the slope, never up or down it!
•Be particularly careful when changing the travel direction on the slope.
•Never decouple and switch gears on inclines.
•Never leave the operator position during the work.
•Never make changes or repairs to load-carrying and safety-related parts (frames, ax-
les, etc.)
•In case of damages, stop the machine immediately. Pull out spark plug connectors on
the main engine and have damages repaired!
•Should the machine be used for cutting fruits, which are considered food, such places
which come into contact with the food may not be lubricated with machine oil or
grease or protected against rust.
•Should risk of slipping exist in sloping territories, then the -2-wheel tractor
should be held by an assistant with a rod or rope. The assistant must stand above the
vehicle at a sufficient distance from the work tools.

Page 12 Version 01-2009
S500K
ENERAL SAFETY NOTES
1.11 Protective devices
The -2-wheel tractor is equipped with a safety stop lever on the steering shaft (left)
which shuts off the ignition system when released i.e. the engine is stopped - Stop setting, see
figure 3.
Warning!
The engine overtravels due to centrifugal mass!
•During operation of the -2-wheel tractor the safety stop lever must be pressed
down - operating position.
•The safety stop lever must be pressed when the machine is started, the clutch pulled and
blocked with the interlock - starting up, see figure 2.
•It is prohibited by the company to leave the safety stop lever in the starting position
(safety stop lever pressed + clutch pulled + interlock latched) if the machine should be
cleaned, have maintenance performed on it or be abandoned - e.g. cleaning the snow blow-
er - the device must be brought to a stop with the safety stop lever before the tool is
cleaned.
•In the case of machines with a cone clutch (505/506) stop the engine after ending the work
and set the clutch to the start position (see figure 2) so that the clutch cannot stick - due to
humidity.
Deactivating the safety stop lever by binding or taping down is prohibited.
The protective devices
Are installed to protect the operators and may not be changed or removed under any circum-
stances and may not be bypassed by making changes to the -2-wheel tractor.
The safety stop lever serves as an EMERGENCY-OFF SWITCH which should be released in
the case of hazardous situations which require quick deactivation. This then pivots automatically
to the position "STOP".

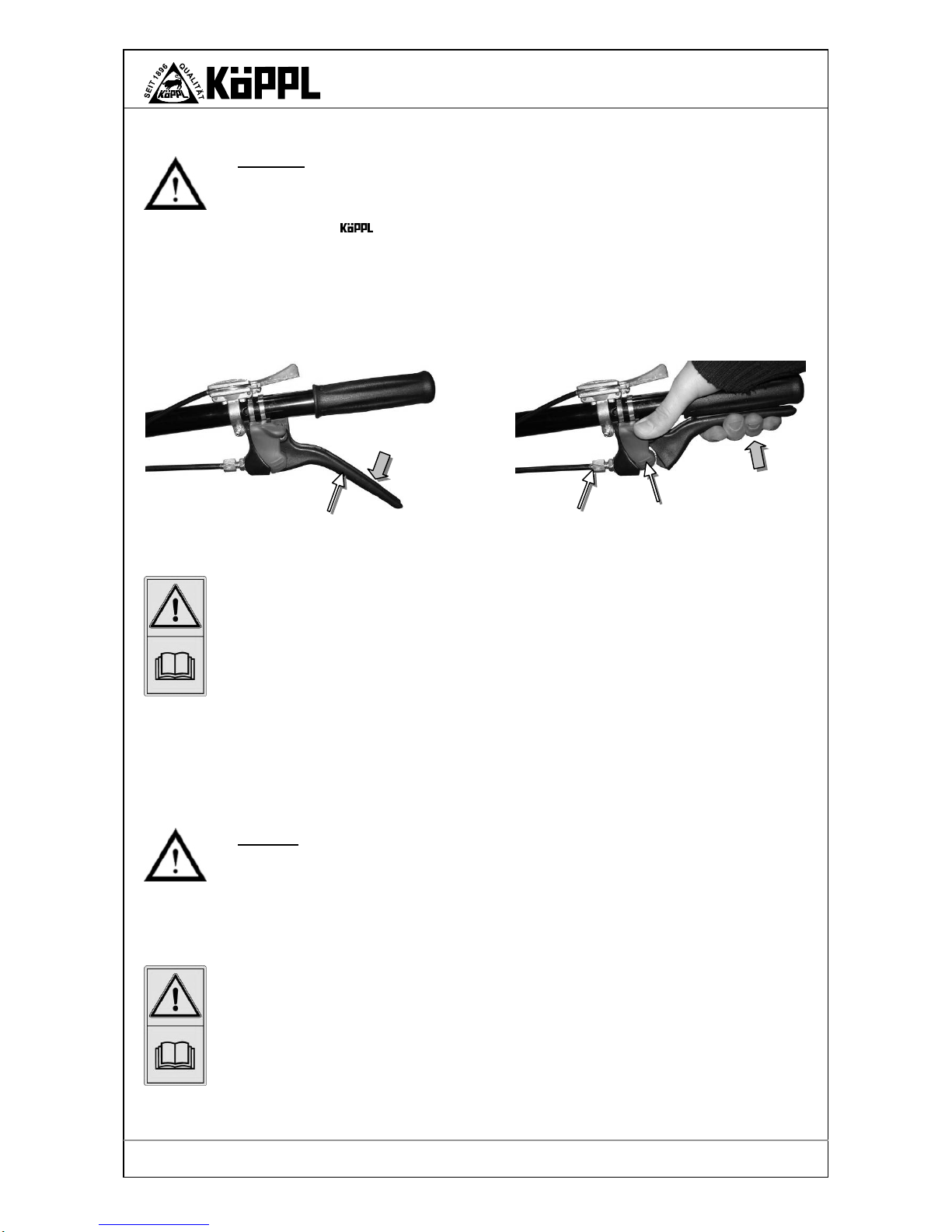

Bild 2. Safety stop lever - start up setting.
Safety stop lever
Setting Start
Interlock latched Clutch control pulled
- decoupled -

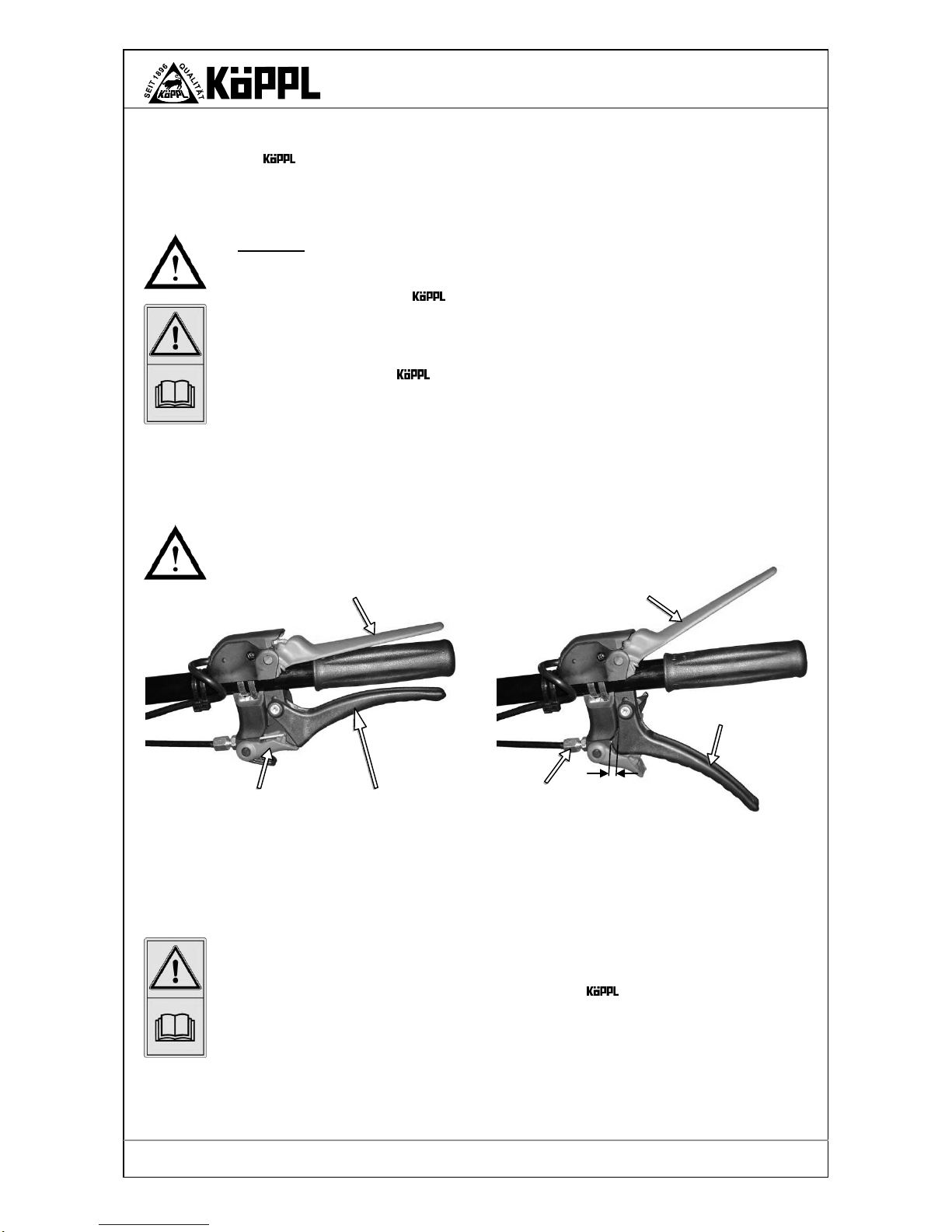

Bild 3. Safety stop lever - stop setting.
Absolutely make certain
of
the clutch clearance
of approx. 10 mm.
Safety stop lever
Setting Stop
Clutch control
Setting screw

Page 13 Version 01-2009
ENERAL SAFETY NOTES
S500K
1.12 Leaving the tractor
•Stop the engine, put into gear and select gear ratio, engage parking brake; remove ignition
key (if present).
•Upon leaving the 2-wheel tractor, secure it against rolling away (parking brake,
wheel chock) and unauthorized usage.
•Never leave the 2-wheel tractor unattended while the engine is running.
•During travel, never leave the operator position on the steering shaft.
•When parking the tractor, close the gasoline valve.
1.13 Safety tool attachments
•When coupling and decoupling tool attachments, a risk of injury exists. Particular
caution is recommended!
•Only attach tool attachments when the engine and gear box are shut off.
•Secure -2-wheel tractor and tool attachments against rolling away (parking brake,
wheel chocks). Attach transport and safety devices and bring into a protected position.
•Couple the tool attachments properly and only attach to the prescribed devices.
•Riding as a passenger during the work and transport trip on the attachment of the -2-
wheel tractor is prohibited.
•Be aware of allowable axle loads, total weights and transport dimensions!
•Check and install transport equipment (lighting, warning devices, protective devices).
•In case of damages, stop the machine immediately. Remove ignition key if present. Have
damages repaired.
•After the repair work, bring the protective and safety devices back to the protected position.
Only now is operation again allowed.
•Check the protective devices and implements for wear.
•External power-actuated parts (e. g. hydraulics) contain crushing and shear zones.
•Standing in the work, rotary and pivotal area is prohibited!
•Before beginning work, foreign bodies should be removed from the area to be worked on.
During operation, beware of foreign bodies!
•Caution in the case of overtraveling tools! Repair work is only allowed during complete
standstill when the engine is shut off (spark plug connectors pulled out).
•Only work if lighting and visibility are good.
•Caution when working on a slope! During excavation of the -2-wheel tractor risk of
tipping! Drive crosswise on the slope as much as possible.
•When driving outside of the area to be worked on, the gear box should be disconnected and
the -2-wheel tractor lifted into the transport position.
•When using a riding car, the -2-wheel tractor may not be driven (operated) in 4th gear.

Page 14 Version 01-2009
S500K
T
RANSPORT
2 Transport
2.1 Tractor size / machine dimensions
Tires
a
[mm]
c
[mm]
d
[mm]
h
[mm]
l
[mm]
4.00 x 8 377 220 210 1,191 1,415
4.00 x 12 377 280 270 1,241 1,415
5.00 x 10 377 270 260 1,241 1,415
18 x 9.5 x 8 377 230 220 1,211 1,415
21 x 11.00 x 008 377 270 260 1,241 1,415
Figure 4. - 2-wheel tractor - position for front attachment.
Steering shaft
Forward
Engine
Quick-change flange
h
a
l
c
d

Page 15 Version 01-2009
S500K
T
RANSPORT
2.2 Technical data
Suitability for
4H 500
all work with not too
heavy
auxiliary devices
4K 500
professional work, fast
work-site change
4M 500
Gardening, landscaping,
trailer transport work
Engine in the rear
Number of gears
Work speed
depending on tire size
4 V , 3 R
1 - 12 km/h 4 V , 3 R
1 - 12 km/h 3 V , 3 R 1 - 5 km/h
Engine in front
Number of gears
Work speed
depending on tire size
3 V , 3 R
1 - 5 km/h 3 V , 3 R 1 - 5 km/h 4 V , 3 R 1 - 12 km/h
Power take-off [rpm] 950 at 3,600 rpm
Engine speed
950
at 3,600 rpm.
Engine speed
950
at 3,600 rpm.
Engine speed
Steering shaft
for front and rear tool attachments as accessory *
as accessory * standard
fixed shaft standard standard -
approx. weight [kg]
depending on engine type, without tires 77 – 90 120 - 157 77 - 140
Differential with block -
standard standard
gear oil SAE-85 W 90 API
GL 4/5
SAE-85 W 90 API
GL 4/5
SAE-85 W 90 API
GL 4/5
Filling quantity gear oil approx. 1.7 Ltr. approx. 1.7 Ltr. approx. 1.7 Ltr.
* When using a rotary tiller a steering shaft is required !
Type
Engine
Version 1 Engine
Version 2
505H
Diesel
Hatz
/ 1B 20
3.6 kW -
508H
Diesel Hatz / 1B 30
5.6 kW -
512H
Diesel
Hatz / 1B 40
7.8 kW -
506
Gasoline
Robin / EH, 17-2D
4.4 kW -
510
Gasoline
Robin /
EX 270
6.6 kW
ACME /
ACT 280
6.6 kW
512
Gasoline
ACME /
ACT 340
8.2 kW
Tires
Tire type Tire size Pressure
Field bar tires 4.00 x 8
5.00 x 10
4.00 x 12 2.0 bar
Lawn tires 18 x 9.5 x 8 2.0 bar
Low pressure tires 21 x 11.00 x 008 1.5 bar
Wide tires AS 18 x 9.50 x 8 AS
16x 6.50 x8 AS 2.0 bar
Multi-disk tires
Snow tires 4.80 x 8 16 x 6.5 x 8 2.0 bar
Twin tires
with intermediate flange
4.00 x 8
4.00 x 12
5.00 x 10 2.0 bar

Page 16 Version 01-2009
S500K
O
PERATION
3 Operation
In order to avoid machine damages or life-threatening injuries during commissioning of the ma-
chine, the following points must be absolutely observed.
You must have read and understood:
•the operator manual according to the engine manufacturer,
•the respective operator manuals for each too1attachment,
•Operator manual for -2-wheel tractor,
•In particular chapter 1, safety and protective devices.
You may not operate the -2-wheel tractor before doing so.
3.1 Commissioning
The following points must be checked before the initial start-up:
•Check of engine oil - see operator manual of the engine manufacturer,
•Check of gear oil,
•Check of all safety devices,
•Check if there is enough fuel in the fuel tank,
•Check all screws and operator parts of the basic and attachment devices for tightness.
•Remove all tools and foreign parts from the machine.
•Set the shaft to body size and intended purpose.
Warning!
Exhaust fumes contain carbon monoxide!
Inhaling causes very serious poisoning which can be fatal.
Important!
During the first 20 operating hours (warm-up time) do not run the engine to the limit of its power
capacity.
After approx. 10 operating hours check all screws and operator parts of the basic and attachment
devices for tightness.
3.2 Starting
Warning!
Activated traction drive and gear box can roll over you and cause serious injuries.
When starting the engine, the traction drive and gear box must be decoupled.
Do not step in the vicinity of the coupled implement.
When starting the tractor, please observe:
Press down the safety start lever with your left hand and pull the clutch. Now you can press
in the interlock with your right hand until it latches - see figure 2, page 12. Please observe
the respective operator manual of the engine manufacturer when starting the engine - start
according to the operator manual of the manufacturer.
When the engine is running, bring the gas lever slowly into the middle position and allow the
engine to warm up briefly. Push the CHOKE-lever slowly back into the operating position - if it
was pulled.
For this, also see the operator manual of the engine manufacturer.
In the case of a diesel engine, the starting device should be followed according to the engine
manufacturer!

Page 17 Version 01-2009
O
PERATION
S500K

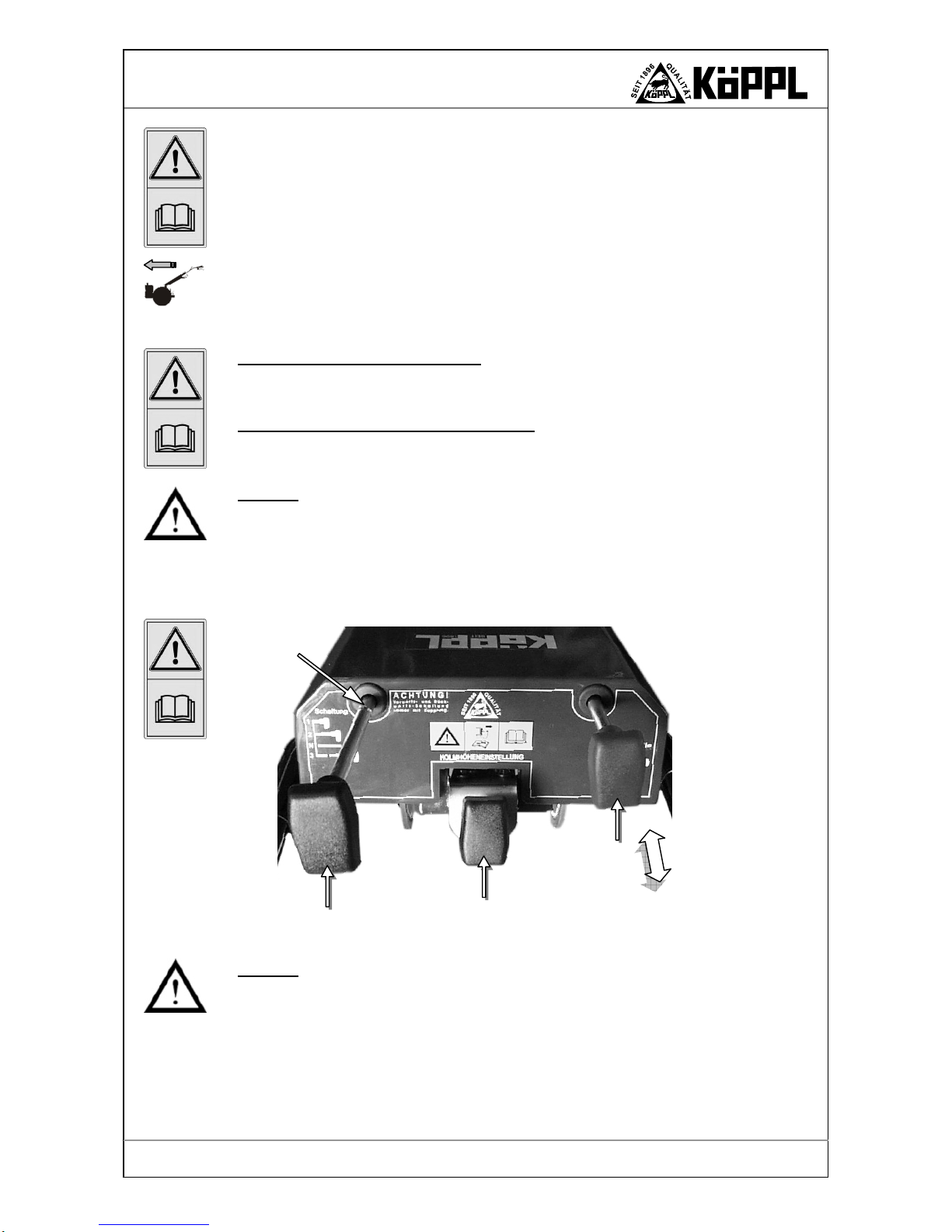

3.3 Switching gears in general
Caution!
When switching gears, particularly on a slope, absolutely engage the parking brake before every
switching procedure (gear shift) – place lever in the braking position - see below. Only then, se-
lect the desired gear. If you switch gears without the parking brake, it is possible that the ma-
chine can roll away.
Carry out the following steps:
•Pull the clutch lever
•Engage parking brake (shaft left)
•Select gear
•Slowly release the parking brake and simultaneously release the clutch (similar to driving a
car).
3.4 Gear switching - steering shaft
Gear switching - front attachment
Caution!
For all gear switching procedures, the clutch must always be pulled first.
B
Figure 6. Gear shift in position - front attachment
Neutral gear mar-
king
LEVER IN
FRONT
Parking brake is
disengaged
LEVER REAR
Parking brake
is
engaged
Figure 5. Parking brake
A
C
Front attach-
ment
Engine
in the
rear
Lever 2
Shaft pivoting
Lever 1
Shaft height adjustment

Page 18 Version 01-2009
S500K
O
PERATION
Gear shift designation (see figure 6)
Lever A Gear shift for various work speeds such as neutral gear (black handle on the gear
shift control).
Lever B Gear shift for power take-off drive shaft - Switching on and off (red handle on the
gear shift control).
Lever C Gear shift for forward and reverse travel (black handle on the gear shift control).
Forward and backward travel (work position front attachment)
use lever A to set the desired gear - always pull the clutch first.
use lever C to select the forward or reverse travel direction.
In the process the following types must be distinguished:
For type 4M 500
Forward gear Press lever B forwards.
Reverse gear Pull lever B backwards.
For type 4H 500 / 4K 500
Forward gear Pull lever B backwards.
Reverse gear Press lever B forwards.
Shifting - rear attachment
– only with steering shaft
Caution!
For all gear shifting procedures, the clutch must always be pulled first.
Before a shifting procedure the clutch must always be pulled.
Figure 7. Gear shift in position – rear attachment.
Engine in
front
Steering shaft
Rear atta-
chment
A
B
C
Lever 2
Shaft pivoting
Lever 1
Shaft height adjustment

Page 19 Version 01-2009
O
PERATION
S500K
Gear shift designation (see figure 7)
Lever A Gear shift for various work speeds such as free travel (black handle on the gear shift
control).
Lever B Gear shift for power take-off drive shaft - Switching on and off (red handle on the
gear shift control).
Lever C Gear shift for forward and reverse travel (black handle on the gear shift control).
Forward and backward travel (work position rear attachment)
use lever A to set the desired gear - always pull the clutch first.
use lever C to select the forward or reverse travel direction.
In the process the following types must be distinguished:
For type 4M 500
Forward gear Pull lever B backwards.
Reverse gear Press lever B forwards.
For type 4H 500 / 4K 500
Forward gear Press lever B forwards.
Reverse gear Pull lever B backwards.
Caution!
The 4th gear may not be used for reverse travel.
Do not in any case remove the safety device installed for this purpose.
3.5 Shifting – fixed shaft
Differential is activated using a lever on the right shaft
Caution!
For all gear shifting procedures, the clutch must always be pulled first.
Gear shift designation (see figure 8)
Lever A Gear shift for various work speeds such as neutral gear (black handle on the gear
shift control).
Lever B Gear shift for power take-off drive shaft - Switching on and off (red handle on the
gear shift control).
A
B
Figure 8. Gear shift fixed shaft.
Neutral gear mar-
king
Lever 1
Shaft height adjustment
OFF
ON

Page 20 Version 01-2009
S500K
O
PERATION
3.6 Shifting – forward/ reverse gear on the shaft
Warning!
A shifting procedure should only occur when the engine is running.
For all shifting procedures, the clutch must be fully pulled!
In the case of the -2-wheel tractor without differential locking forward and reverse shifting
with a switching handle on the lower right of the shaft is possible.
Design Gear box with or without differential locking on the right side of the shaft using the
deflection lever
Forward gear
Shift the forward gear as displaced in figure 9. Leave switching handle Ain the lower position
Reverse gear
For travel in the reverse gear, the switching handle Ashould be pulled completely down and
latched (see figure 9, right).
Setting of the forward and reverse gears
Depending on the stretching of the rope, an adjustment of the Bowden cable can be necessary af-
ter a few hours. In case the reverse gear can no longer be shifted, the setting screw must be
slightly loosened. Subsequently secure with counter nut.
3.7 Clutch
Caution!
Please observe that when shifting the gears (for forward and reverse travel and the switching on
and off of the implements) the clutch must always be pulled.
The clutch is activated with the clutch handle. Pulling the handle causes decoupling, i.e. the en-
gine no longer drives the machine - see figure 10.
In order to prevent the clutch from slipping during the work, a clearance is set at the factory on
the clutch handle. After the first hour of operation, the clutch clearance must be checked and
possibly reset. Adjustable by means of a setting screw on the clutch handle - see figure11.
Cone clutch: approx. 10 mm (must be screwed in so that a clearance exists)
Multi-disk clutch: approx. 10 mm (to allow for complete decoupling, the clutch must be
readjusted, so that not too much clearance is present.)
Figure 9. V/R-switching handle positions.
Forward gear
Switching handle A
Reverse gear
Setting screw Latching
