Kogan KA7VENTDRYA Manual

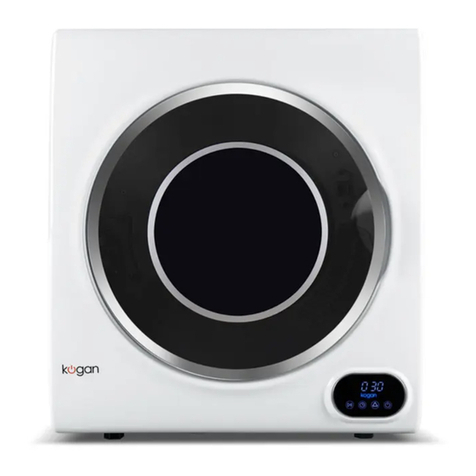

7kg Vented Dryer
INSTRUCTION MANUAL / INSTALLATION MANUAL
MODEL: KA7VENTDRYA

2
THIS PAGE IS INTENTIONALLY LEFT BLANK

3
CONTENTS
Safety Instructions 4
Your Kogan Vented Dryer 5
Before First Use 5
Accessory Kit Contents 6
Control Panel 7
Quick Start guide 7
Installation Instructions 8
Operating Your Vented Dryer 11
Cleaning & Maintenance 13
Troubleshooting 14
Warranty Information 15

4
• This appliance is only intended for use indoors only within a domestic environment.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The dryer is not to be used with any clothing articles which have had industrial chemicals used for
cleaning.
• The lint trap must be cleaned frequently—we recommend after each use.
• Adequate ventilation must be provided.
• Never dry unwashed items with your clothes dryer.
• Items that have been soiled with substances including cooking oils, alcohol, petrol, waxes, etc, should be
thoroughly washed in hot water with detergent before being dried within your clothes dryer.
• Never use your clothes dryer to dry items such as latex, foam rubber, waterproof textiles, rubber backed
articles, or pillows fitted with foam.
• The final cycle of your clothes dryer programs is a cool down cycle to reduce the temperature of your
clothes. This is incredibly important to ensure that your clothing items won’t be damaged. NEVER stop
your clothes dryer before the end of its drying program unless all items are quickly removed and spread
out to ensure the heat is dissipated.
• Ensure all objects are removed from pockets.
• If the power cord is in any way damaged it must be replaced by the manufacturer, its service agent or a
qualified and licensed electrician.
UNPACKING
• During transportation, protective packaging was used to protect the appliance against any damage.
After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the
environment. All materials used for packaging the appliance are environmentally friendly; they are 100%
recyclable and are marked with the appropriate symbol.
Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should
be kept out of reach of children.
DISPOSAL OF THE APPLIANCE
• Old appliances should not simply be disposed of with normal household waste, but should be delivered
to a collection and recycling centre for electric and electronic equipment. A symbol shown on the
product, the instruction manual or the packaging shows that it is suitable for recycling.
• Materials used inside the appliance are recyclable and are labeled with information concerning this. By
recycling materials or other parts from used devices you are making a significant contribution to the
protection of our environment.
• Information on appropriate disposal centres for used devices can be provided by your local authority.
Technical Specifications
Safety Instructions
201603D0001-201603D1428
此处粘贴客户序列号

5
Key
1. Top-board 2. Control Panel 3. Door 4. Front Panel
5. Side panel 6. Filter 7. Power Plug 8. Door lock/switch
9. Tumbling Drum 10. Front vent
Before First Use
Step 1. Power source and grounding
The dryer employs alternative current with the rated voltage and frequency. When the voltage
fluctuates between 6% of rated voltage, the dryer can work normally. Your clothes dryer
should be on a dedicated power socket for both convenience and safety.
Step 2. Precautions
• Ensure all packaging, user manuals, paper and plastic are removed from within the clothes
dryer before operation.
• Ensure the vents aren’t blocked and adequate air-flow exists.
• Always check your clothing articles care instructions to ensure they are suitable for use
within a clothes dryer. Not all clothes are suitable for use within clothes dryers. The table
below explains common symbols on care instructions for clothing:
Your Kogan Vented Dryer

6
Accessory Kit Contents
PART NAME QTY IMAGE/DIAGRAM
ACCESSORY KIT CONTENTS

7
Control Panel
Key 1. Power button
2. Start or Pause drying program
3. Drying program selector: 1 Hour, Synthetic, Cotton, Mixed Items
4. Dryness level selector: Light, Standard, Extra Dry
5. Anti-crease mode
Quick Start Guide
QUICK START:
1. Ensure the dryer is switched on at the power outlet and add your wet clothes into the tumble drum.
2. Press the “Power” button to switch the dryer on.
3. Press the “Program” button to select your desired drying program. The LED light will indicate which
program you select.
4. Press the “Dryness” button to select your desired level of dryness for your clothes.
5. Press the “Anti-crease” button to add the optional mode.
6. Press the “Start/Pause” button to begin your selected drying program.
7. If you would like to activate the Child Lock safety feature, simply press both the “Program” and
“Dryness” button simultaneously for 3 seconds. The LED indicator next to the lock symbol will alight.
8. When your dryer completes its last heating cycle, a buzzer will sound for 1 second and then begin the
cooling cycle. Once this cooling cycle is complete, the dryer’s buzzer will sound once more.
9. Remove your clothes from the dryer, Press the “Power” button to turn the dryer off and for safety
reasons, remove the power cord from the power outlet.
10. Clean the filter and inner tumble drum.
1
2345

8
Installation Instructions
INSTALLATION INSTRUCTIONS

9
Installation Instructions Continued
INSTALLATION INSTRUCTIONS

10
Installation Instructions Continued
INSTALLATION INSTRUCTIONS

11
Operating Your Vented Dryer
DETAILED OPERATION:
1. PREPARATION BEFORE DRYER
• Clothes should be washed before use within the dryer.
• Always ensure the same types of clothes are dried together.
• Try to sort your clothes to be dried into load that take a similar time to dry (for example heavier items
separate from light items).
• Make sure any decorations or buttons on your clothing items are safe for high temperatures and well
protected.
• It is recommended to turn your clothes inside-out.
• Please ensure that the power cord is in perfect condition before use. Should there be any damage
to the power cord or plug, please immediately isolate the dryer from power and contact Kogan on
1300 2 KOGAN (56426).
2. CHECK THE FILTER
• Make sure that the filter is always clean and in the correct position.
• The filter must be cleaned regularly.
3. LOAD THE DRYER
• For faster drying results, load the dryer to 1/2 -> 2/3 capacity of the drum. This will allow the clothes and
air to circulate evenly.
• When drying a small load of clothes or even expensive clothes, it’s best to add some towels that won’t
lose fibers, as this will help the wet clothes to dry more evenly.
• To avoid creases or static charges on your clothes, it’s important to ensure you don’t over-dry your items.
REFERENCE WEIGHTS OF CLOTHING (WHEN DRY):
4. CLOSE THE DRYER DOOR
5. SET YOUR DESIRED DRYER PROGRAM

12
Operating Your Vented Dryer Continued
PROGRAM FUNCTIONS:
Note: At the completion of a drying program, the clothes dryer will circulate cold air.
This ensures that your clothing is left at a temperature and that your clothes aren’t damaged.
The Anti-Crease function adds a short amount of time at the end of your drying program
to shake the clothes and reduce creasing.
Note: The energy rating was calculated using the Cotton program and Extra dryness level
WARNING! Always follow the care instructions on each of your garments.
6. END OF THE DRYING PROGRAM
• At the completion of the program, an audible tone will sound to remind you to remove the clothes from
the dryer.
7. TAKE OUT THE PLUG
• Just to be safe, always unplug the dryer after each use.
8. CLEAN THE FILTER AND INNER DRUM
• Accumulated dust and fibers will effect the air circulation inside the dryer and will cause longer drying
times.
• Always ensure the dryer is switched off and unplugged before cleaning.

13
Cleaning and Maintenance
By ensuring proper cleaning and maintenance of your Kogan Vented Dryer, you can ensure that it will have a
long and fault free operation.
WARNING! To avoid an electric shock, always unplug your dryer before cleaning.
CLEANING THE FILTER
• Remove the lint filter, located within the door opening.
• Clean the filter by wiping it with a damp cloth.
• Once dry, re-fit the lint filter into the door opening.
Important! Clean the filter after each use.
CLEANING THE INNER DRUM
• Use a soft damp cloth to wipe the inner drum and cabinet.
• Ensure that the cloth is only slightly damp and never use excessive amounts of water.
• Do not use scouring pads or other abrasives as these will cause damage to your dryer.
• Do not use alcohol wipes or harsh cleaning chemicals.
Troubleshooting
OPERATION IN CASE OF EMERGENCY
In the event of an emergency you should:
• Switch off the clothes dryer using the Power button
• Switch the clothes dryer off at the power point and unplug the unit. If the power point isn’t accessible,
switch the relevant circuit off at your fuse box/switch board.
• Call the Kogan Support Team on 1300 2 KOGAN (56426).
Some minor faults can be fixed by referring to the instructions given in the Troubleshooting section below
and on the following page.

14
Troubleshooting Continued
Further problem solving:
Safety Reset
1. These dryers have a safety cut out switch which is activated by temperature.
2. The safety reset button is on the backboard. If your dryer not heating this button must be reset before
the dryer will operate again. You may need to wait 10 minutes for cooling to occur.
3. The most common reason for the dryer to overheat is a blocked filter. Clean the lint filter after each load
to prevent overheating of the dryer.
It will only be necessary to press the safety reset button if the dryer not heating. Allow the dryer at least
10 minutes to cool down before pressing the button .Press the white button in until you feel the reset
click. Cleaning the filter after each load will avoid repetitive operation of the safety cut out switch.
The cut out switch may operate for the following reason:
1. Lint filter is blocked.
2. Exhaust outlets blocked at the back of the dryer.
3. Poor ventilation in the laundry or room-open a window or door
4. Lightweight garment eg. Handkerchief, sucked over the filter.
Safety Reset Button:
Use your nger or a pencil to press the button in until you feel it click.
Service agent required to repair
temperature fuse

15
WARRANTY TERMS & CONDITIONS
APPLIANCES: DISHWASHERS, LAUNDRY, REFRIGERATION, COOKING
This document sets out the terms and conditions of the product
warranties for Kogan Australia Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should you require service for
your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Kogan Australia product purchased by
you accompanied by this document;
(d) ‘ASR’ means Kogan Australia authorised service
representative;
(e) ‘Kogan Australia’ means Kogan Australia Pty Ltd of 139
Gladstone St, South Melbourne VIC 3205, ABN 53 152 570
351 (“Kogan Australia”) in respect of Appliances purchased in
Australia;
(f) ‘major failure’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL and includes
a situation when an Appliance cannot be repaired or it is
uneconomic for Kogan Australia, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or
household use (i.e. normal single family use) as set out
in the instruction manual, the Appliance is warranted
against manufacturing defects in Australia for 24
months following the date of delivery of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased and used in
Australia and is in addition to (and does not exclude, restrict, or
modify in any way) any non-excludable statutory warranties in
Australia.
3. During the Warranty Period Kogan Australia or its ASR will, at no
extra charge if your Appliance is readily accessible for service,
without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be
defective. Kogan Australia or its ASR may use remanufactured
parts to repair your Appliance. You agree that any replaced
Appliances or parts become the property of Kogan Australia. This
warranty does not apply to light globes, batteries, filters or similar
perishable parts.
4. Parts and Appliances not supplied by Kogan Australia are not
covered by this warranty.
5. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from
Kogan Australia’s ASR, in all instances, unless the Appliance
is transported by Kogan Australia or its ASR, the Appliance is
transported at the owner’s cost and risk while in transit to and
from Kogan Australia’s ASR.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect
claimed is due to faulty or defective parts or workmanship. Kogan
Australia is not liable in the following situations (which are not
exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain
or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect
power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions
supplied with the Appliance;
(b) the Appliance is modified without authority from Kogan
Australia in writing;
(c) the Appliance’s serial number or warranty seal has been
removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Kogan Australia, an authorised repairer or ASR.
8. This warranty, the contract to which it relates and the relationship
between you and Kogan Australia are governed by the law
applicable where the Appliance was purchased.
9. To the extent permitted by law, Kogan Australia excludes
all warranties and liabilities (other than as contained in this
document) including liability for any loss or damage whether
direct or indirect arising from your purchase, use or non use
of the Appliance.
10. For Appliances and services provided by Kogan Australia in
Australia, the Appliances come with a guarantee by Kogan
Australia that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the Appliance repaired
or replaced if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure. The benefits to you
given by this warranty are in addition to your other rights and
remedies under a law in relation to the Appliances or services to
which the warranty relates.
11. At all times during the Warranty Period, Kogan Australia shall, at
its discretion, determine whether repair, replacement or refund will
apply if an Appliance has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please follow these
steps:
(a) carefully check the operating instructions, user manual and
the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim, Kogan Australia
and its ASR may exchange information in relation to you to enable
Kogan Australia to meet its obligations under this warranty.
IMPORTANT
Before calling for service or spare parts, please ensure that the steps
in point 12 have been followed.
Contact
Please call 1300 2 KOGAN (56426)
Warranty
The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with guarantees that
cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
WARRANTY TERMS & CONDITIONS
APPLIANCES: DISHWASHERS, LAUNDRY, REFRIGERATION, COOKING
This document sets out the terms and conditions of the product
warranties for Kogan Australia Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should you require service for
your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Kogan Australia product purchased by
you accompanied by this document;
(d) ‘ASR’ means Kogan Australia authorised service
representative;
(e) ‘Kogan Australia’ means Kogan Australia Pty Ltd of 139
Gladstone St, South Melbourne VIC 3205, ABN 53 152 570
351 (“Kogan Australia”) in respect of Appliances purchased in
Australia;
(f) ‘major failure’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL and includes
a situation when an Appliance cannot be repaired or it is
uneconomic for Kogan Australia, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or
household use (i.e. normal single family use) as set out
in the instruction manual, the Appliance is warranted
against manufacturing defects in Australia for 24
months following the date of delivery of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased and used in
Australia and is in addition to (and does not exclude, restrict, or
modify in any way) any non-excludable statutory warranties in
Australia.
3. During the Warranty Period Kogan Australia or its ASR will, at no
extra charge if your Appliance is readily accessible for service,
without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be
defective. Kogan Australia or its ASR may use remanufactured
parts to repair your Appliance. You agree that any replaced
Appliances or parts become the property of Kogan Australia. This
warranty does not apply to light globes, batteries, filters or similar
perishable parts.
4. Parts and Appliances not supplied by Kogan Australia are not
covered by this warranty.
5. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from
Kogan Australia’s ASR, in all instances, unless the Appliance
is transported by Kogan Australia or its ASR, the Appliance is
transported at the owner’s cost and risk while in transit to and
from Kogan Australia’s ASR.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect
claimed is due to faulty or defective parts or workmanship. Kogan
Australia is not liable in the following situations (which are not
exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain
or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect
power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions
supplied with the Appliance;
(b) the Appliance is modified without authority from Kogan
Australia in writing;
(c) the Appliance’s serial number or warranty seal has been
removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Kogan Australia, an authorised repairer or ASR.
8. This warranty, the contract to which it relates and the relationship
between you and Kogan Australia are governed by the law
applicable where the Appliance was purchased.
9. To the extent permitted by law, Kogan Australia excludes
all warranties and liabilities (other than as contained in this
document) including liability for any loss or damage whether
direct or indirect arising from your purchase, use or non use
of the Appliance.
10. For Appliances and services provided by Kogan Australia in
Australia, the Appliances come with a guarantee by Kogan
Australia that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the Appliance repaired
or replaced if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure. The benefits to you
given by this warranty are in addition to your other rights and
remedies under a law in relation to the Appliances or services to
which the warranty relates.
11. At all times during the Warranty Period, Kogan Australia shall, at
its discretion, determine whether repair, replacement or refund will
apply if an Appliance has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please follow these
steps:
(a) carefully check the operating instructions, user manual and
the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim, Kogan Australia
and its ASR may exchange information in relation to you to enable
Kogan Australia to meet its obligations under this warranty.
IMPORTANT
Before calling for service or spare parts, please ensure that the steps
in point 12 have been followed.
Contact
Please call 1300 2 KOGAN (56426)
Warranty
The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with guarantees that
cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.

16
