Kogan KAE27CWWT1A User manual

KOGAN SMARTERHOME™ 9W
COOL & WARM WHITE SMART BULB
(E27, WI-FI)
KAE27CWWT1A, KAE27CWWT2A, KAE27CWWT4A

2
Contents
2
Safety & Warnings
3
Installation
4
Connect to SmarterHomeTM App
6
Google Home Control
10
Alexa Home Control
13
Operation
16

3
For bulbs with a weight significantly higher than that of the bulbs for which they are a
replacement, attention should be drawn to the fact that the increased weight may reduce
the mechanical stability of certain light fixtures may impair contact making and bulb
retention.
IEC 60417 -6179-1
Bulb not suitable for use under dust and moisture.
SAFETY & WARNINGS

4
This smart bulb is only suitable for E14 Edison screw type light fixtures. It will not fit into any
other size or type of light fixture. Refer to the table below for the appropriate removal and
installation method.
Light Bulb Types
The oil from your hands can cause damage to certain types of light bulbs. It is highly
recommended to wear gloves while handling light bulbs.
Base Type
Removal/Installation Method
Edison Screw
Remove: Twist bulb counter-clockwise until it comes free.
Install: Twist bulb clockwise until it is securely in place.
Bayonet
Remove: Push the bulb upward then twist counter-clockwise until it
comes free.
Install: Insert the bulb into the fixture and gently twist clockwise until
the pins lock securely in place.
Twist Lock
Bi-pin
Remove: Using your thumbs, gently press the bulb upward and slowly
rotate the bulb counter-clockwise. When the bulb won’t rotate any
further, wiggle it slightly and remove it from the light fixture.
Note: Some bi-pin light fixtures feature a locking clip which will need
to be removed before the bulb.
Install: Insert the bulb into the fixture, lining up the two pins. Using
your thumbs rotate the bulb clockwise until it locks securely in place.
Replace the locking clip (if applicable).
INSTALLATION

5
Step 1: Turn off the power
• Ensure the light switch is in the off position before attempting to install or remove a
light bulb.
• If you are removing an old light bulb, give the bulb a few minutes to cool down before
touching it.
Note: Always test the temperature of globe with your fingertips before grasping it.
Step 2: Use a step ladder or stable chair
• If installing the light bulb in your ceiling, ensure you use a step ladder or stable chair to
reach the light fixture. Do not stand on your tiptoes to reach the light bulb.
• Ensure you are in a comfortable, stable position before installing the bulb.
Step 3: Installing the light bulb
Remove the bulb from the packaging and install it into the light fixture. Do not push or turn
too hard as this may damage the light bulb.
Note:
Ensure that you’re using the correct bulb type and power rating for the light
fixture. If in doubt consult a qualified electrician before installing the bulb.

6
Install App
Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS).
Register
If you do not have a Kogan SmarterHome™ account, register or sign in with a verification
code sent by SMS.
To register:
1. Tap to enter registration page.
2. The system automatically recognises your country/area. You can also select your
country code manually. Enter your email address and tap ‘Next.’
3. Alternatively, you can select ‘Register by mobile number’ and enter the verification
code sent to you by SMS.
4. Create a profile on the next page to define your location and room.
CONNECT TO SMARTERHOME™ APP

7
Set Device in Pairing Mode
Install the bulbs into the appropriate light fitting and power them on.
When the device is first turned on, it may automatically enter pairing mode (light flashing
rapidly, 2 times per second).
If not automatically in pairing mode when powered on, you can manually set the device in
pairing mode by turning the light switch on and off 3 times: the bulb will begin gently
breathing or flashing rapidly.
Note:
This device requires constant power for proper functionality.

8
Add device through network
5. Once registered, tap “+” in the upper right corner of the app’s home page to add a
new device through the network.
6. Select the product type from the list of options in the app (Lighting > Bulbs).
7. Ensure that the device is in pairing mode, with the bulb blinking, and tap “Confirm
light is rapidly flashing”.

9
8. Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important
that your SmarterHome™ device and the app are connected to the same Wi-Fi
network during setup.
9. The device will commence the pairing process and connect to the app. Ensure
your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close
until connection is complete.
10. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Notes:
• The device and the app have to use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.
• The device requires constant power for proper functionality.
• Ensure Bluetooth is enabled on your device during connection.

10
Adding “SmarterHome” to the Google Home app
1. From the home page of the Google Home app, select the “+” icon to access the
‘Add and manage’ page.
2. Select ‘Set up device’, then under the Works with Google banner, select ‘Have
something already set up?’

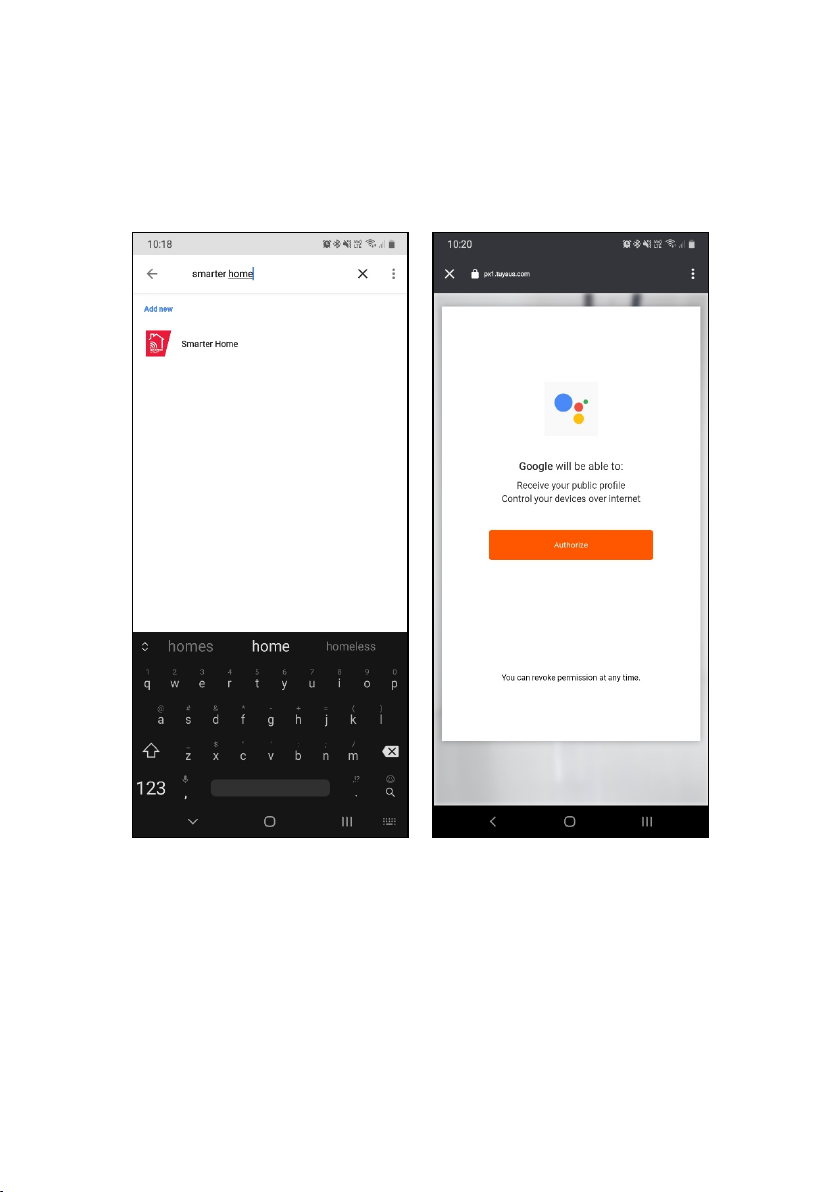

3. Select the search bar and type ‘Smarter Home’ to locate the Kogan
SmarterHome™ service.
GOOGLE HOME CONTROL
Note:
You will need to have set up a Google Home account prior to linking your
Kogan SmarterHome™ device.

11
4. Tap ‘Authorise’ to grant Google permission to access the SmarterHome™ app and
your devices.
5. From here, you will be prompted to sign into your SmarterHome™ account using
either your email or mobile phone number, depending on which method you used
to register your account.

12

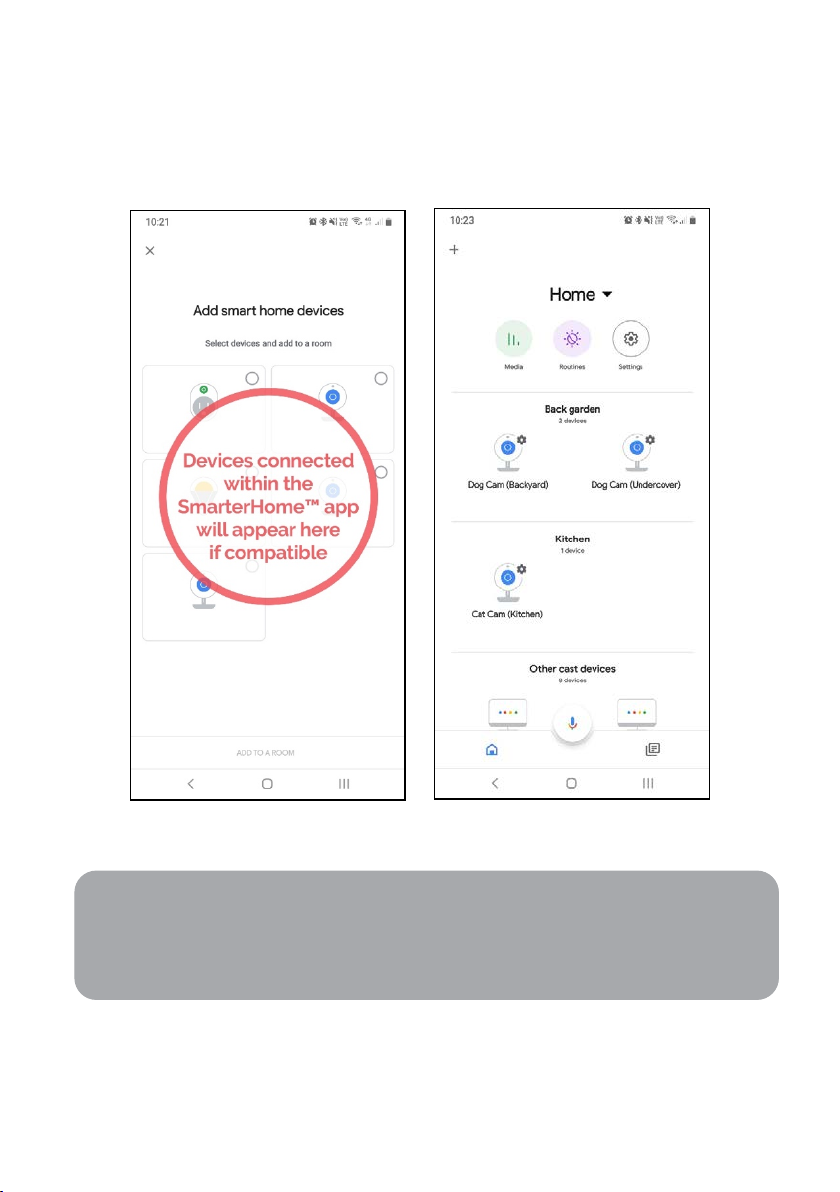

6. Once connected, the app will display any compatible devices linked to your
SmarterHome™ account. From here you can assign them to rooms and set up any
routines.
7. Tap on any of the devices to view a list of available commands.
Note:
Please note that Google Home can only control the base/core functions of any
compatible SmarterHome™ devices. To make full use of this product’s smart
functionality, please use the Kogan SmarterHome™ app.

13

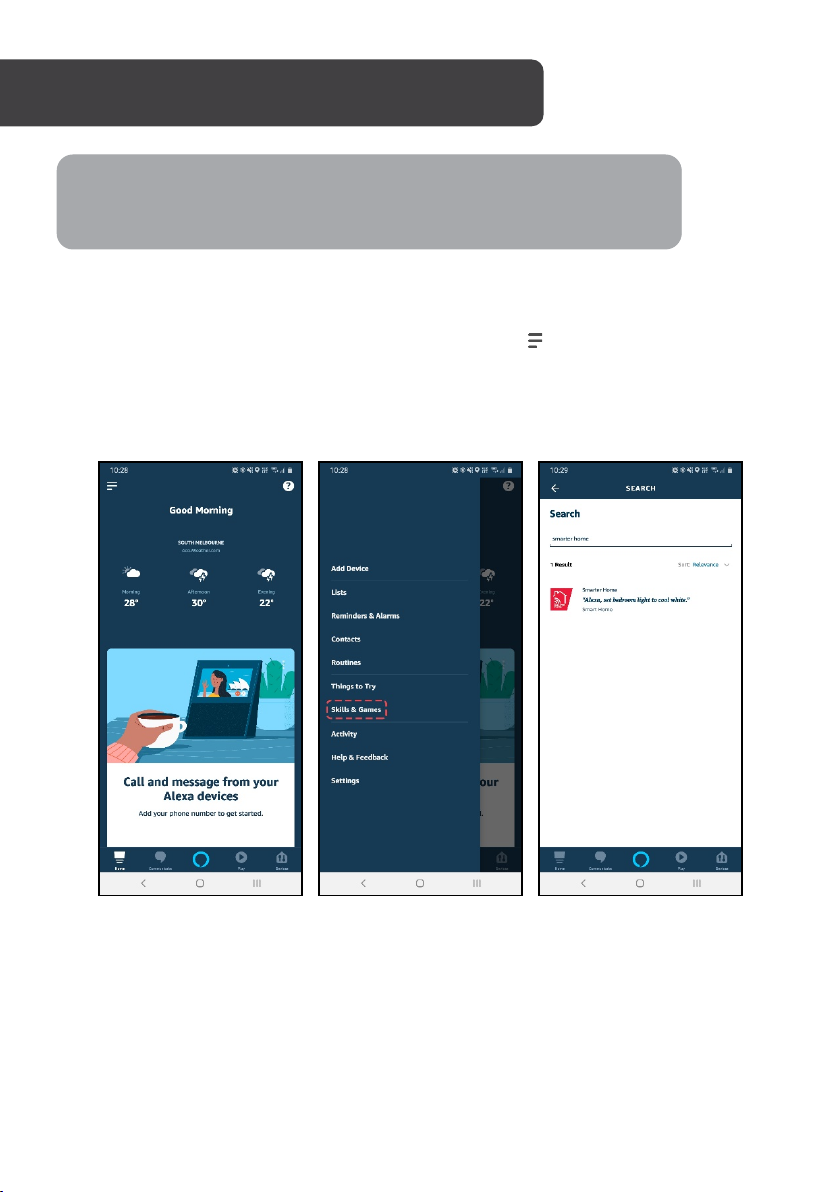

Adding “SmarterHome” to the Alexa app
1. From the home page of the Alexa app, select the “ ” icon in the top-right and
select Skills & Games from the sidebar.
2. Select the search bar and type ‘Smarter Home’ to locate the Kogan
SmarterHome™ skill.
AMAZON ALEXA CONTROL
Note:
You will need to have set up an Alexa account prior to linking your Kogan
SmarterHome™ device.

14
3. Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa.
4. From here, you will be prompted to sign into your SmarterHome™ account using
either your email or mobile phone number, depending on which method you used
to register your account.
5. Tap ‘Authorise’ to grant Alexa permission to access the SmarterHome™ app and
your devices.

15
6. Once connected, the app will perform a search and display the devices linked to
your SmarterHome™ account.
7. When your devices have successfully connected to the Alexa app, you will be able
to control your Kogan SmarterHome™ devices via Alexa’s voice commands.
Note:
Please note that Alexa can only control the base/core functions of any compatible
SmarterHome™ devices. To make full use of this product’s smart functionality,
please use the Kogan SmarterHome™ app.

16
Power On/Off
To q u i c k l y p o w e r t h e b u l b o n o r o f f, t a p t h e p o w e r i c o n t o t h e r i g h t o f t h e d e v i c e n a m e .
Reset
To r e s e t t h e d e v i c e t o i t s default settings, turn the relevant light switch on and off 10 times.
Settings
1. Tap on the name of the device to enter the settings menu.
2. Tap the power icon at the bottom of the screen to turn the bulb on or off.
OPERATION

17

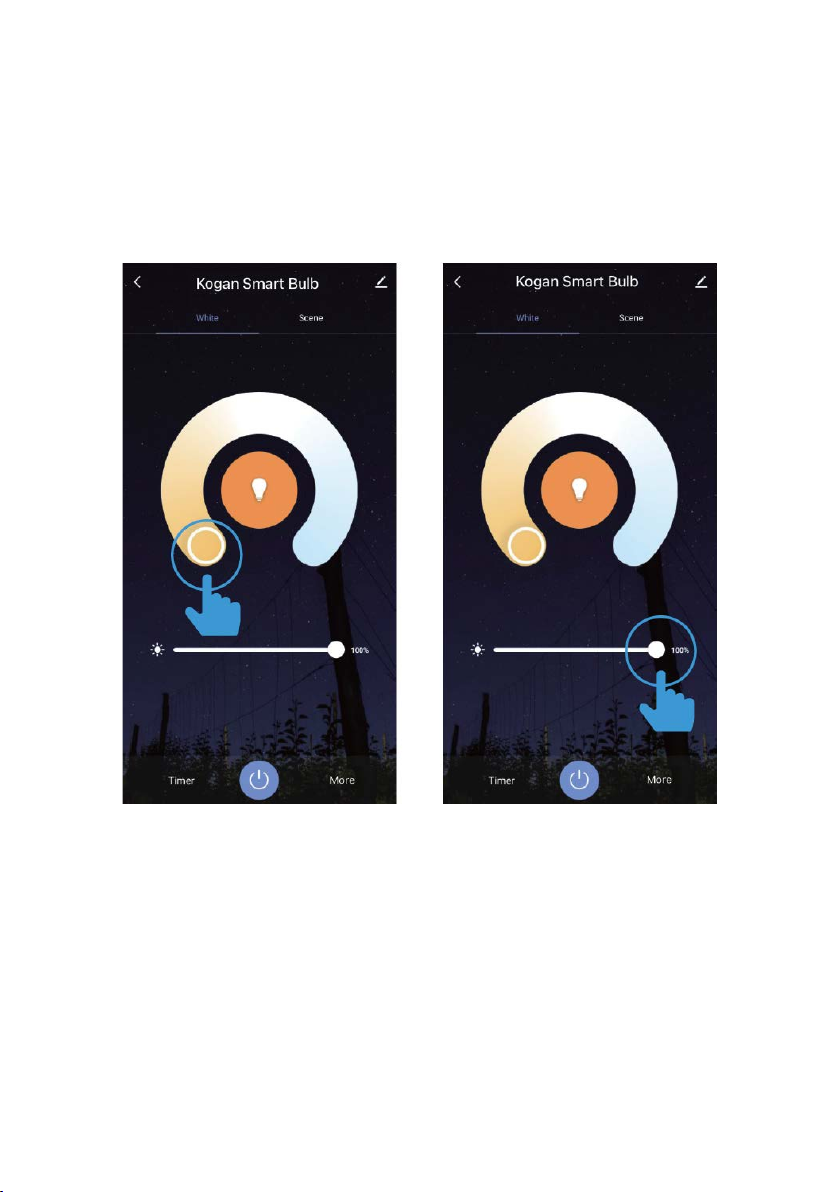

White Adjustment
1. Tap on the “White” tab at the top of the screen to enter the white control menu.
2. Adjust the temperature bar left or right to set the colour temperature from warm
(3000K) to cool (6500K).
3. Slide the horizontal bar left or right to set the desired brightness level.

18

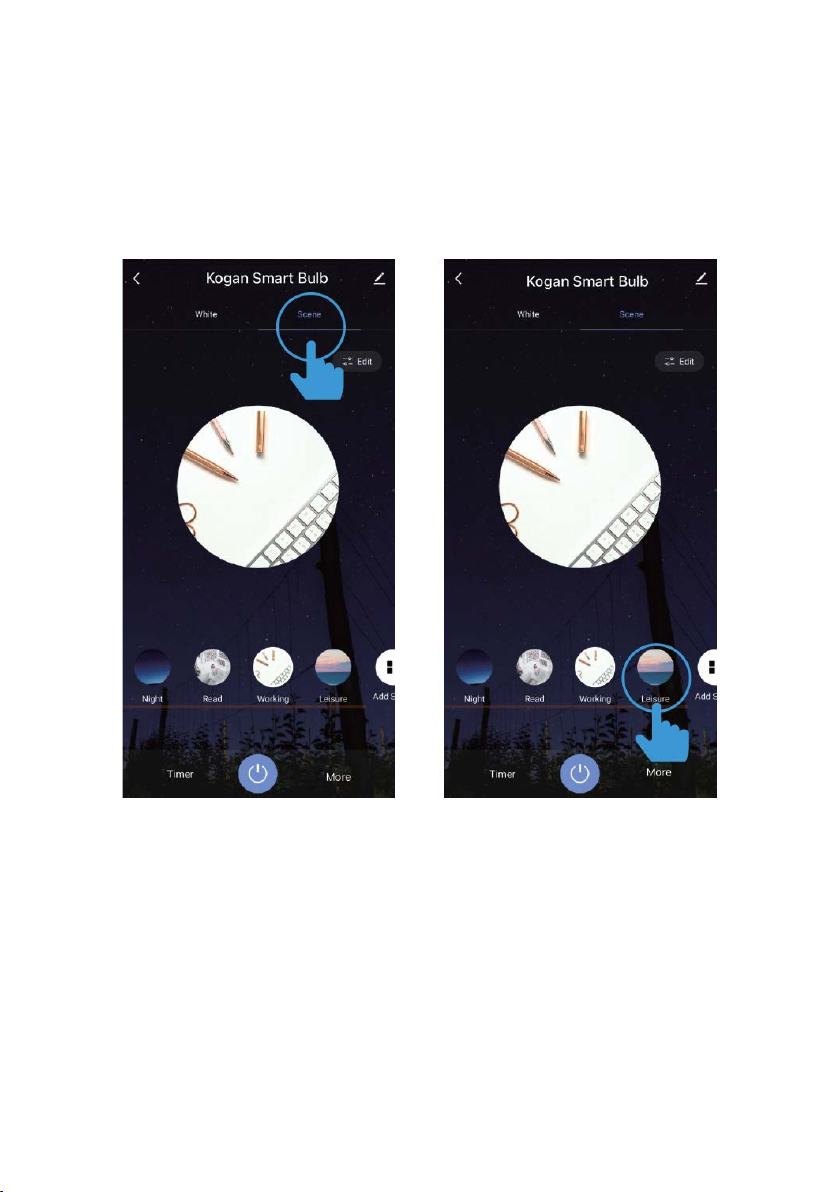

Scene
1. Tap on the “Scene” tab at the top of the screen.
2. Tap on any of the scene icons to select the desired scene.

19

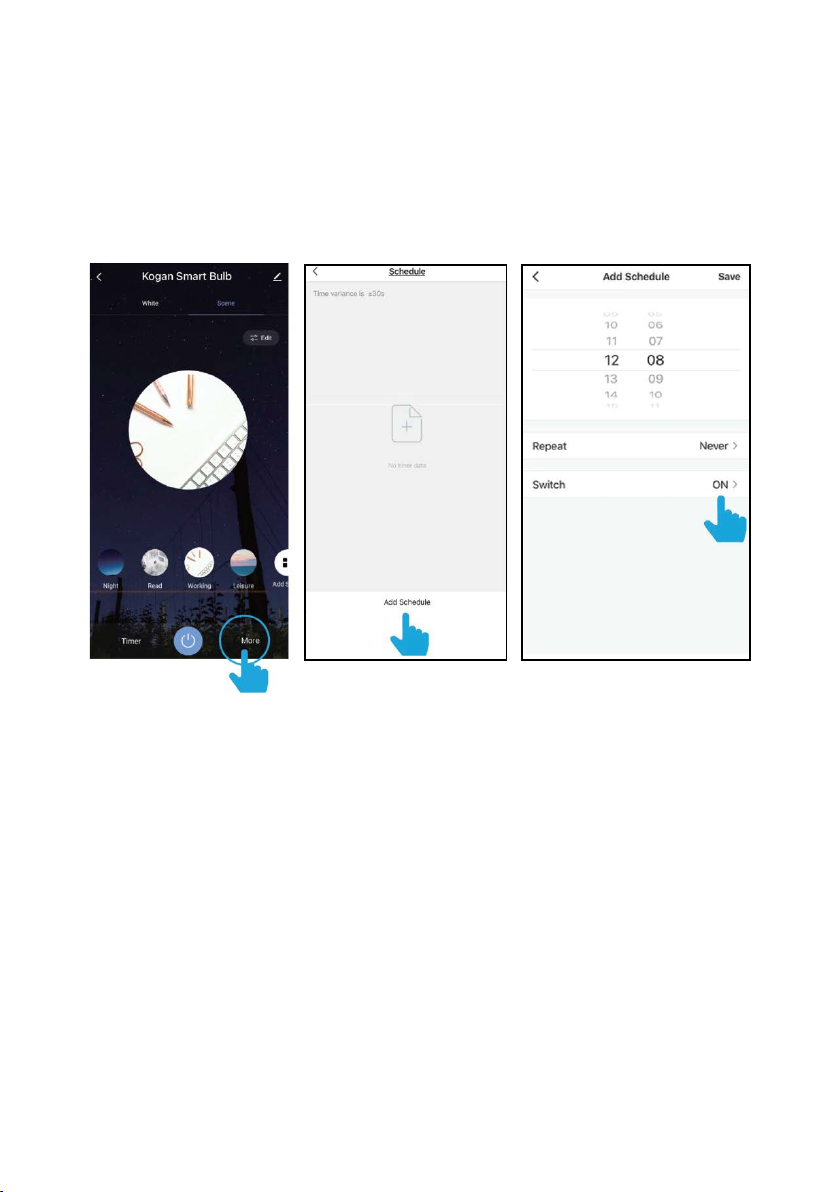

Schedule
1. Tap on the “Schedule” tab at the bottom right of the screen.
2. Tap on the “Add Schedule” tab at the bottom of the screen.
3. Choose a Start Time (on) or End Time (off). To repeat on certain days of the week
tap “Repeat”, or schedule will only occur once.

20

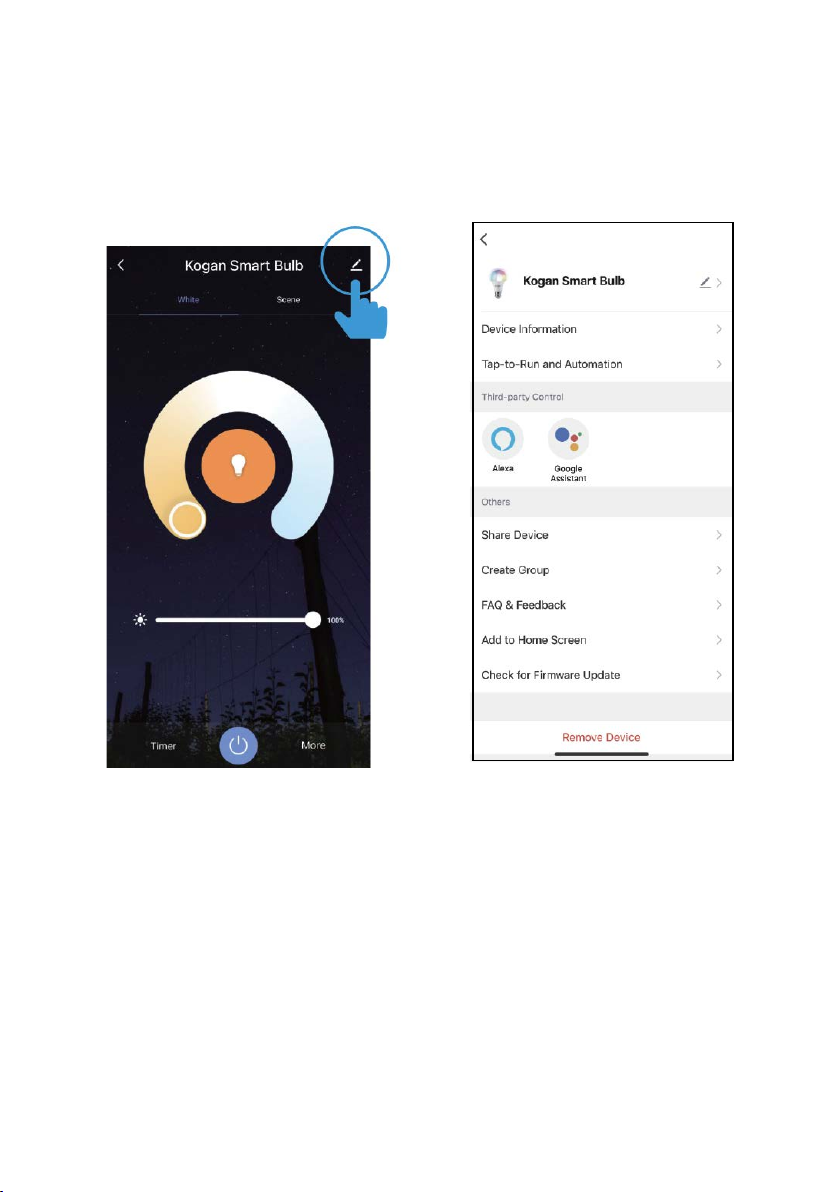

Additional settings
1. Tap the context menu in the upper right corner, represented by the pen icon.
2. Additional features are available in the bulb settings context menu, including
renaming and removing devices.
