Kohler K-9295 Assembly instructions

Homeowners Guide
Fixture-Mount Bidet Faucet
K-9295
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page“ Français-1”
Español, página“ Español-1”
116467-5-A

Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler faucet will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the Care and Cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Your Kohler Bidet Faucet
Your new bidet faucet blends elegant styling and beauty with
exceptional performance and reliability. Each faucet is precision
engineered and constructed of premium quality materials to provide
trouble-free operation even under the hardest water conditions.
Your bidet faucet is used for partial bathing. The user sits on the rim of
the bowl facing the faucet. Fresh water enters the bidet in a stream
from the bidet faucet. A drain retains water in the bowl if desired.
The bidet may also be used as a footbath. It is roomy and low enough
to use easily while sitting on a chair.
Care and Cleaning
Like anything of lasting quality, Kohler faucets and fittings require a
certain amount of periodic care to preserve their lustrous finish. Clean
your new Kohler faucet and fittings with a mild soap, rinse thoroughly
with warm water and dry with a clean, soft cloth. The ideal cleaning
technique is to always blot dry any water from metal surfaces.
Allowing water to evaporate on metal will form water deposits. It is
important to use a dabbing action to dry metal, not an abrasive or
rubbing action.
Never use cleaners containing abrasive cleansers, ammonia, bleach,
acids, or chemicals that can damage the finish. By taking the time to
dry your faucet often, soap and water deposits can be prevented.
If your chrome or Vibrant
®
color/finish faucet gets excessively dirty,
consider using the following cleaners: Windex
®
Original, Fantastik
®
116467-5-A 2 Kohler Co.

Care and Cleaning (cont.)
All Purpose, Spic and Span Pine Liquid, or Mr. Clean
®
Springtime
Fresh Scent. For solid color faucets and fittings, consider using these
cleaners: Fantastik
®
All Purpose, Spic and Span Pine Liquid, or Mr.
Clean
®
Springtime Fresh Scent.
Failure to comply with these cleaning instructions may void Kohler’s
warranty obligations.
Kohler Co. 3 116467-5-A

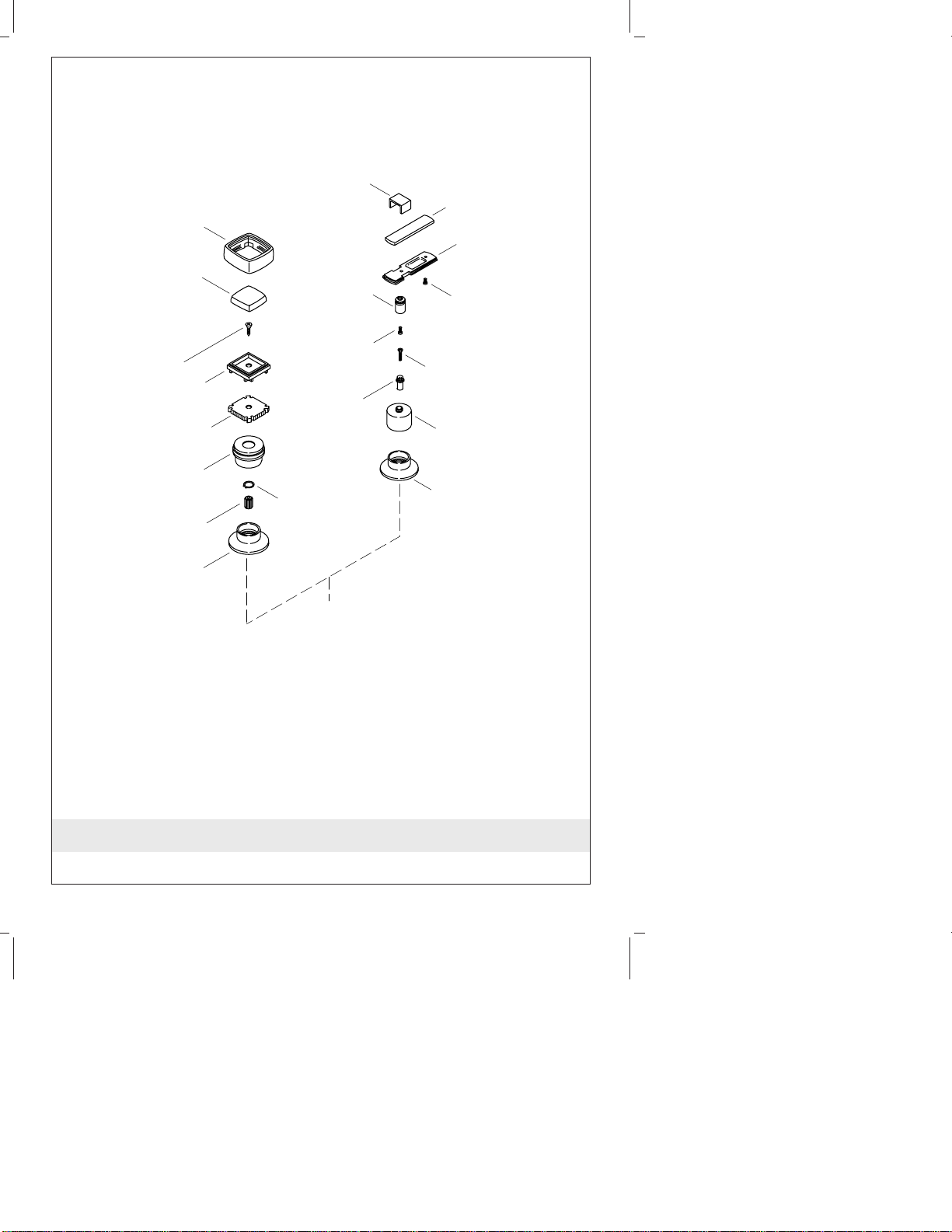

Service Parts
22491**
Shell
22494**
Insert
22859
Screw
22454
Holder
22490
Adapter
22457**
Skirt 46034
RetainingRing
58586
Adapter
58575**
Escutcheon
77302**
Strap 52546**
Insert
52554**
Lever
52779
Screw
53198**
Post
54545
Screw 53414**
Screw
58549
Adapter 53199**
Skirt
58575**
Escutcheon
**Finish/colorcodemustbespecifiedwhenordering.
To Valve
116467-5-A 4 Kohler Co.

57929**
Handle
57930**
Escutcheon
22325
Spline Insert
59707
Valve
32738
Coupling
59615
Hardware
48609**
Spray
Washer
48753
Nut
48754
59435
Hose
48805**
Flange
48755
Washer
56702
Shank 57936
Pipe Fitting
78815
Gasket
78815
Gasket
40013
Gasket
73858**
Tee
40097
Washer
76684
Washer 74790
Hose
32739
Nut 57937
Adapter/Flow Control
**Finish/color code must be specified when ordering.
To Hose
Kohler Co. 5 116467-5-A

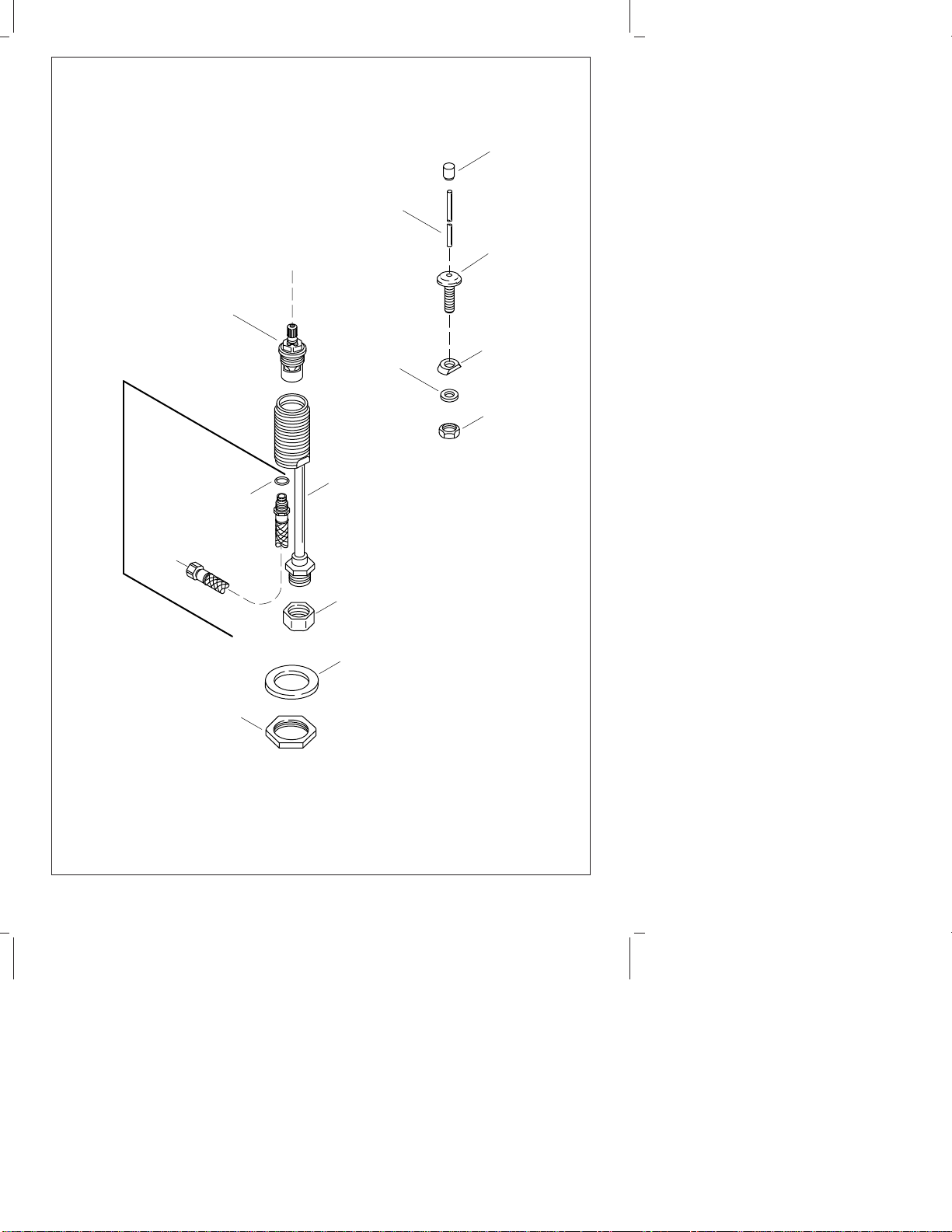

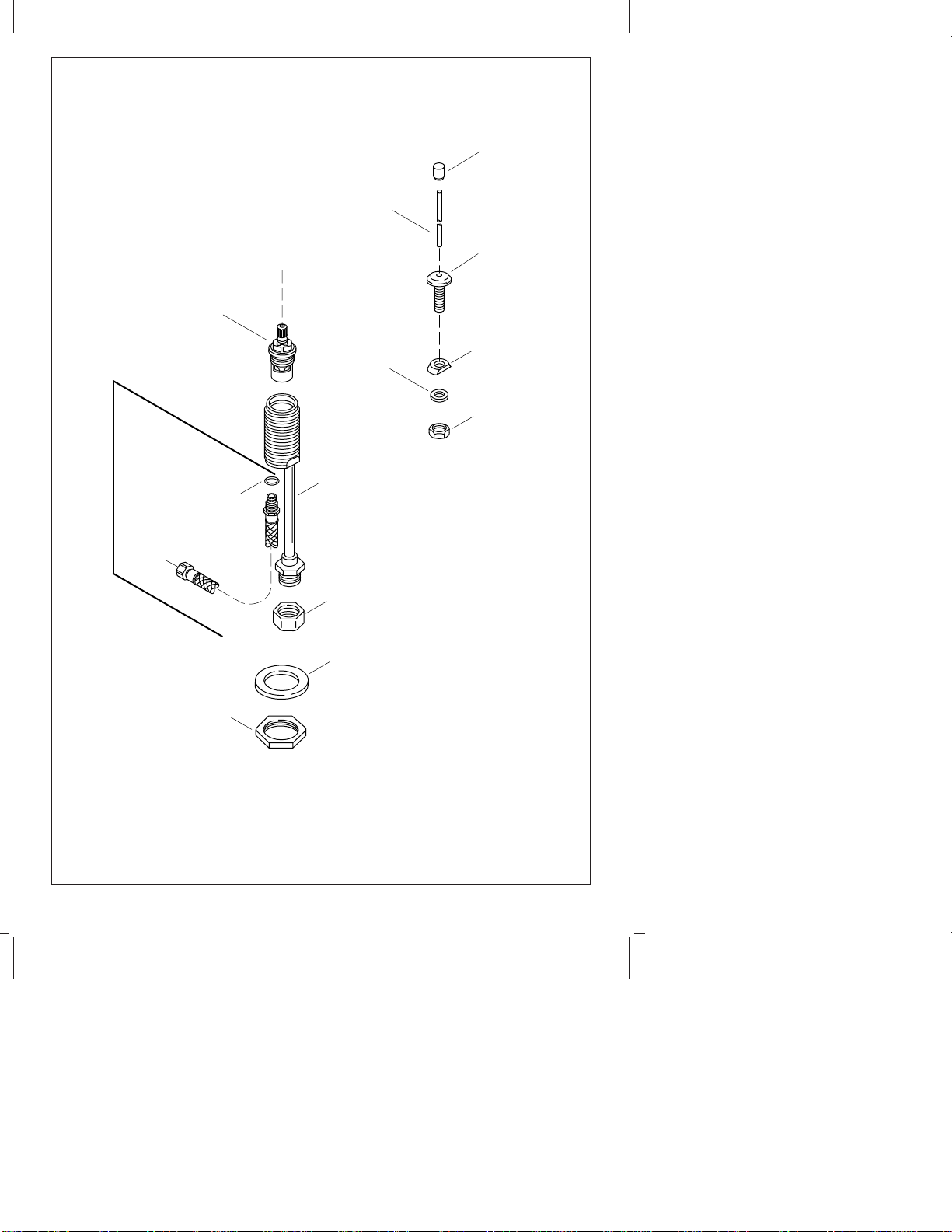

40005
Nut
40001
Washer
32751
Coupling Nut
74369
Valve Body
78824
O-Ring
74789
Hose
40620
Washer
32935
Nut
33843
Washer
59600**
Escutcheon
21220**
Lift Rod
42688**
Lift Knob
**Finish/color code must be specified when ordering.
77005** (Clockwise Close)
77006** (Counterclockwise Close)
Valve
To Tee
To Handle
116467-5-A 6 Kohler Co.

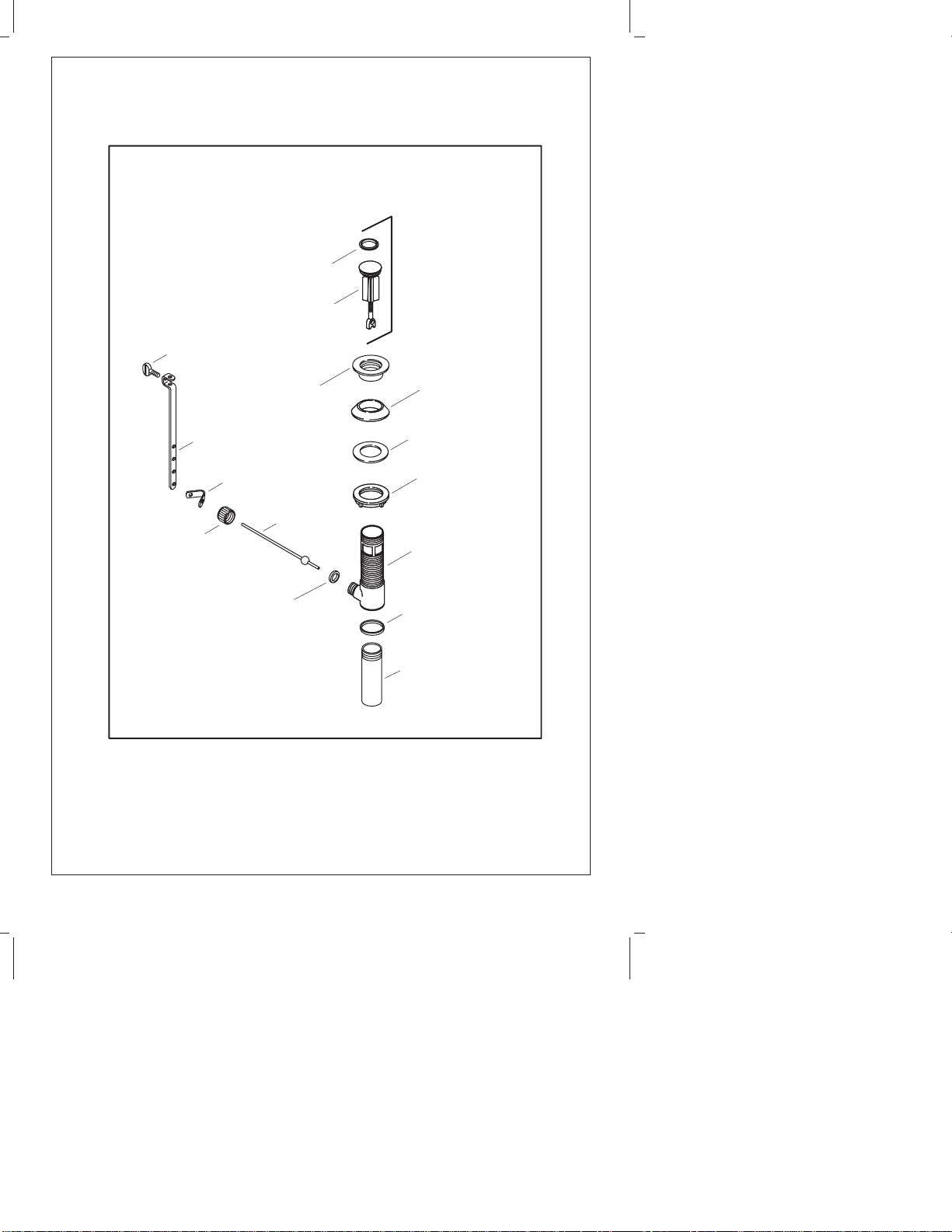

78172**
78084**
78176
78175
78177
78092**
78091**
78089
78086**
78058
78085**
78090**
78057
78087
78063
78072**
**Finish/color code must be specified when ordering.

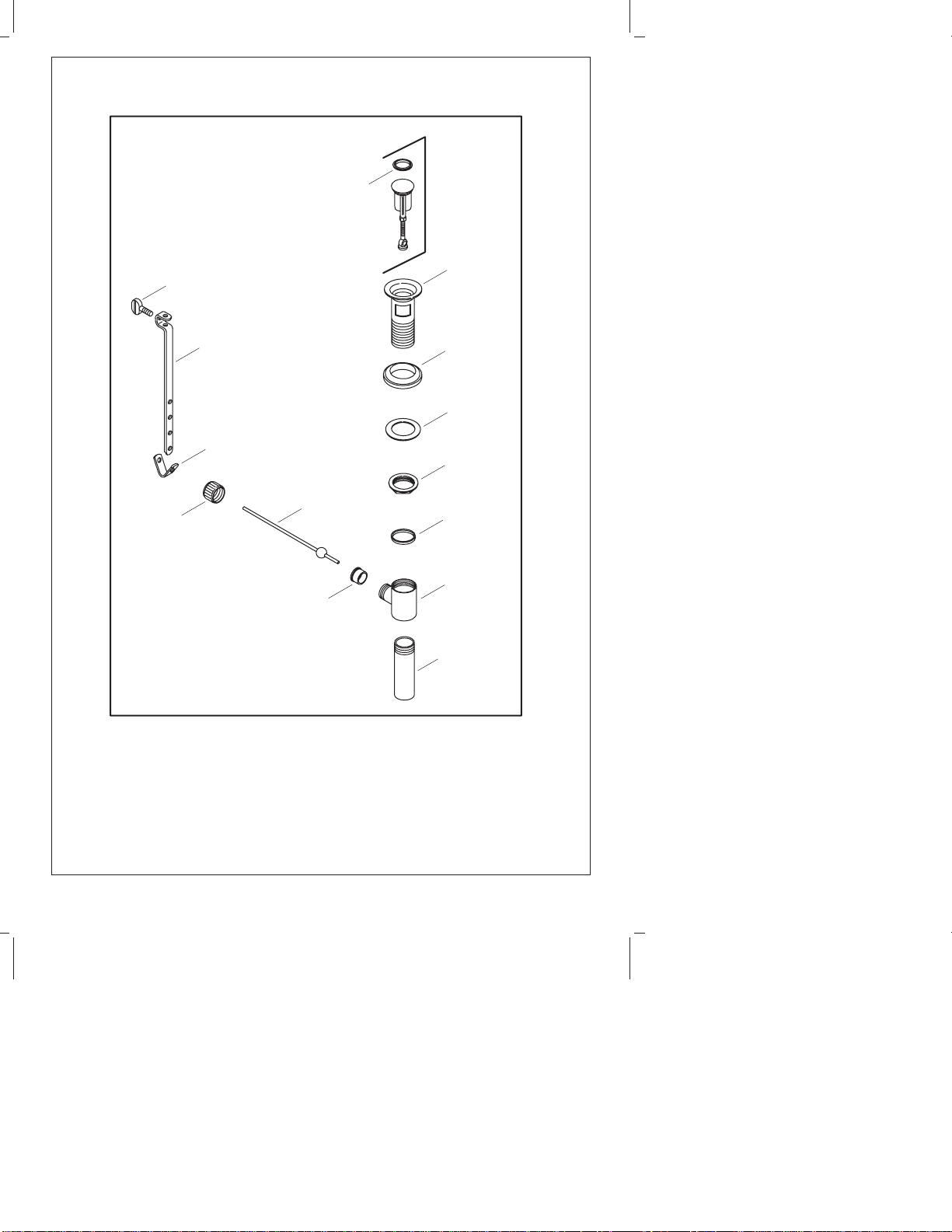

Stopper
Flange
Screw
Link
Clip
Nut
Rod
Seal
Tailpiece
Washer
Body
Nut
Washer
Gasket
Seal
Drain
Kohler Co. 7 116467-5-A

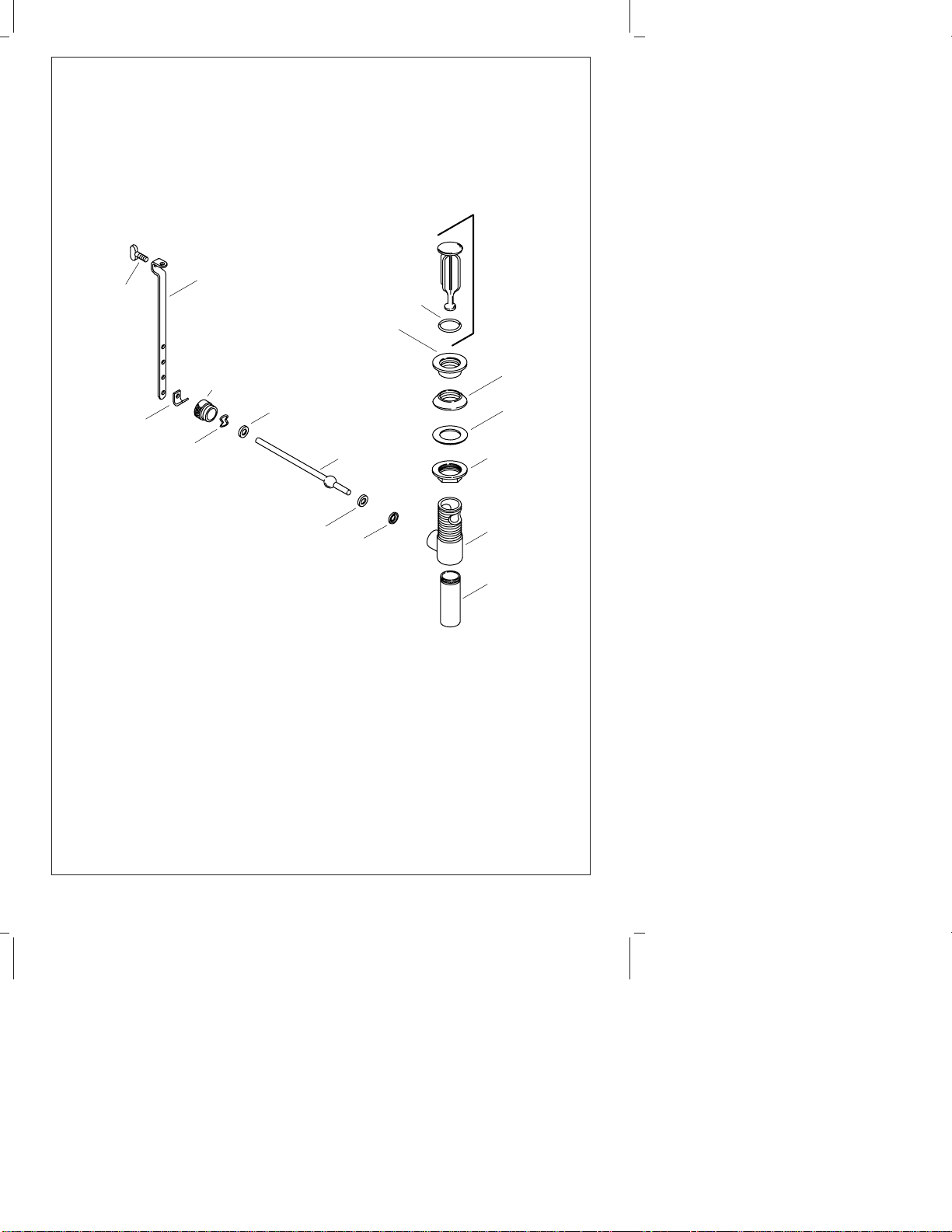

**Finish/color code must be specified when ordering.
1037022**
1036932**
1037346
1035564
40228
1025645**
1037390
1025642
1036351**
1030925
1025639**
1035348**
1025678
1025650
1035350**
Stopper
Trim Ring
Screw
Link
Clip
Nut
Rod
Washer
Tailpiece
Washer
Body
Nut
Washer
Seal
Fin
(Metal stopper fins with overflow)
1037023** (Plastic stopper fins with overflow)
Drain
(Metal)
1037021** (Plastic)
1025656
O-Ring
116467-5-A 8 Kohler Co.

**Finish/colorcodemustbespecifiedwhenordering.
73382
Link 58155**
Stopper
38676
O-Ring
57408**(Gold & Colors)
74732**
Flange 57966
Gasket
40238
Washer
40076
Nut
74410**
Body
41640**
Tailpiece
34917
Gasket
38744
FrictionWasher
41312**
Lever & Ball
38745
Wave Washer
40228
SpringClip
57403**
Nut 38744
FrictionWasher
57422
Screw
Kohler Co. 9 116467-5-A

Lifetime Limited Warranty - USA and Canada
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
116467-5-A 10 Kohler Co.

Lifetime Limited Warranty - USA and Canada (cont.)
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty - Mexico
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
Kohler Co. 11 116467-5-A

One-Year Warranty - Mexico (cont.)
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
116467-5-A 12 Kohler Co.

Guide du propriétaire
Robinet de bidet à montage sur appareil
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la ligne The Bold Look of Kohler. Le travail soigné
des artisans de Kohler vous fera apprécier une rare combinaison de
performances prouvées et une sophistication gracieuse, qui vous
satisferont pour les années à venir. La fiabilité et la beauté de votre
robinet Kohler surpasseront vos plus grandes espérances. Chez Kohler,
nous sommes fiers du rendement de nos produits et nous savons que
vous le serez aussi.
Veuillez prendre s’il vous plait quelques minutes pour consulter ce
guide du propriétaire. Prêter une attention toute particulière aux
instructions d’entretien et de nettoyage.
Tous les renseignements contenus dans ce manuel ont été revus et
corrigés avant sa publication. Chez Kohler, nous veillons constamment
à améliorer la qualité de nos produits. Nous nous réservons le droit
d’apporter des modifications aux caractéristiques, conditionnements et
disponibilités des produits à tout moment, et sans préavis.
Votre robinet de bidet Kohler
Votre nouveau robinet combine un style élégant et une beauté avec une
performance et une fiabilité exceptionnelles. Chaque robinet est conçu
avec précision et fabriqué avec des matériaux de haute qualité, pour
garantir un fonctionnement sans problème, même dans des régions aux
conditions d’eau extrêmes.
Votre robinet de bidet est utilisé pour des toilettes partielles.
L’utilisateur s’asseoit sur le rebord de la cuvette tout en faisant face au
robinet. De l’eau fraîche jaillit verticalement du robinet du bidet dans
la cuvette de ce dernier. Le drain retient l’eau dans la cuvette si désiré.
Le bidet peut aussi être utilisé comme bain de pieds. Il est spacieux et
suffisamment bas pour l’utiliser tout en s’asseyant sur une chaise.
Entretien et nettoyage
Comme tout appareil de qualité durable, les robinets et raccordements
Kohler exigent un certain entretien périodique pour conserver leur
apparence brillante. Nettoyer le nouveau robinet et les raccordements
Kohler avec un savon doux, rincer généreusement avec de l’eau tiède
Kohler Co. Français-1 116467-5-A

Entretien et nettoyage (cont.)
et essuyer avec un chiffon doux et propre. La technique idéale de
nettoyage est de toujours assécher toute eau des surfaces métalliques.
Laisser l’eau s’évaporer sur le métal formera des dépôts visibles. Il est
important d’essuyer le métal par petites touches et non pas de manière
abrasive ou par frottement.
Ne jamais utiliser de nettoyant abrasif qui contenant de l’ammoniac, de
l’eau javellisée, des acides ou des produits chimiques qui pourraient
endommager la finition. En prenant le temps de souvent essuyer le
robinet, on peut empêcher la formation de dépôts de savon et d’eau.
Si la couleur/finition chrome ou Vibrant
®
du robinet devient
excessivement sale, considérer d’utiliser les détergents suivants:
Windex
®
Original, Fantastik
®
Tout Usage, Spic et Span Pin Liquide, or
Mr. Propre
®
Senteur Fraîche Printemps. Pour les robinets et les
raccords de couleur solide, considérer d’utiliser ces détergents:
Fantastik
®
Tout usage, Spic et Span Pin Liquide, ou Mr. Propre
®
Senteur Fraîche Printemps.
La non-observation de ces instructions de nettoyage pourrait entraîner
l’annulation de la garantie Kohler.
116467-5-A Français-2 Kohler Co.

Pièces de rechange
Alavalve
22491**
Enveloppe
22494**
Insert
22859
Vis
22454
Support
22490
Adaptateur
22457**
Jupe 46034
Anneauderetenue
58586
Adaptateur
58575**
Applique
77302**
Attache 52546**
Insert
52554**
Levier
52779
Vis
53198**
Montant
54545
Vis 53414**
Vis
58549
Adaptateur 53199**
Jupe
58575**
Applique
**Vous devez spécifier les codes de la finition et/ou de la couleur
quand vous passez votre commande.
Kohler Co. Français-3 116467-5-A

**Vous devez spécifier les codes de la finition et/ou de la couleur
quand vous passez votre commande.
Adaptateur/
Contrôle du débit
Pièce de
raccordement
Adaptateur à
Cannelures
Joint
d'étanchéité
Joint
d'étanchéité
Joint
d'étanchéité
57929**
Poignée
57930**
Applique
22325
59707
Valve
32738
Raccord
59615
Boulonnerie
48609**
Vaporisateur
Rondelle
48753
Écrou
48754
59435
Tuyau
48805**
Bride
48755
Rondelle
56702
Manche 57936
78815
78815
40013
73858**
T
40097
Rondelle
76684
Rondelle 74790
Tuyau
32739
Écrou
57937
Au tuyau
116467-5-A Français-4 Kohler Co.

40005
Écrou
40001
Rondelle
32751
Écrou de couplage
74369
Corps de la valve
78824
74789
Tuyau
40620
Rondelle
32935
Écrou
33843
Rondelle
59600**
Applique
21220**
Tige de levage
42688**
77005** (Fermeture vers la droite)
77006** (Fermeture vers la gauche)
Valve
Au T
A la poignée
Poignée de
levage
Joint
torique
**Vous devez spécifier les codes de la finition et/ou de la couleur
quand vous passez votre commande.
Kohler Co. Français-5 116467-5-A

78172**
78084**
78176
78175
78177
78092**
78091**
78089
78086**
78058
78085**
78090**
78057
78087
78063
78072**
**Vous devez spécifier les codes de la finition et/ou de la couleur
quand vous passez votre commande.
Bride
Vis
Raccord
Clip
Écrou
Tige
Étanchéité
Rondelle
Corps
Écrou
Rondelle
Étanchéité
Drain
Pièce de
raccordement
Joint
d'étanchéité
Bouchon
d'arrêt
116467-5-A Français-6 Kohler Co.

1037022**
1036932**
1037346
1035564
40228
1025645**
1037390
1025642
1036351**
1030925
1025639**
1035348**
1025678
1025650
1035350**
Bouchon d'arrêt
Vis
Raccord
Clip
Écrou
Tige
Rondelle
Pièce de raccordement
Rondelle
Corps
Écrou
Rondelle
Joint d'étanchéité
Ailette
(Ailettes d'arrêt en métal avec trop-plein)
1037023** (Ailettes d'arrêt en plastique avec trop-plein)
Drain
(Métal)
1037021** (Plastique)
1025656
Joint torique
**Vous devez spécifier les codes de la finition et/ou de la couleur
quand vous passez votre commande.
Bague de
garniture
Kohler Co. Français-7 116467-5-A

73382
Raccord 58155**
Bouchond'arrêt
38676
57408**(Couleurs & or)
74732**
Bride 57966
40238
Rondelle
40076
Écrou
74410**
Corps
41640**
34917
38744
41312**
Levier de la boule
38745
Rondelle ondulée
40228
Clipàressort
57403**
Écrou 38744
Rondelledefrottement
57422
Vis
Rondellede
frottement
**Vousdevezspécifierlescodesdelafinitionet/oudelacouleur
quandvouspassezvotrecommande.
Joint
d'étanchéité
Joint
d'étanchéité
Joint
torique
Pièce de
raccordement
116467-5-A Français-8 Kohler Co.
