Kohler VOLT VK4X1E User manual

Owners Manual
MODEL-VK4X1E
OPEROR'S MANUAL
4 In 1

We want to thank you for your purchase of our state of
the Multi-Functional 4 in 1 Machinery. This manual will
tell you how to use and maintain. Please read the
manual carefully before operating the machine.
Operating the machine in the best conditions will
increase the lifetime of the unit.
If you have any suggestions for the manual please
contact your local dealer. We as a company are
striving to make constant upgrades to our equipment to
provide our customer base with the best units possible.
The specifications for each unit may vary from machine
to machine.

Catalogue
1.Safety…………………………………………..1
2.Specifications…………………………………4
3.Component Identification…………………...5
4.Preparation……………………………….…..9
5.Starting……………………………………….12
6.Operation…………………………………....13
7.Engine Shut down…........………………….14
8.Maintenance…………………………………15
9.Common Faults and troubleshooting…....23
10.Schematic Diagram………………………26

1．Safety Instruction
Please read the manual before operation, failure to comply
with the manual could lead to danger of operator, others and
the machine.
1.1.Protect yourself and others. Welding can make you and
others in danger of many risk factors: Make sure to never weld
without a welding mask. This goes for not only the operator, but
all other bystanders as well. The damages to eyes include:
electric arc, dazzle reflections, dazzle flicker, sparking molten,
metal splashing. Looking at welding arc without eye protection
can inflict great pain and even temporary blindness. Therefore,
this products
owner/operator should ensure the welding machine
operated by a user with prior welding knowledge. Use these
professional protective equipment when operating.
-Face shield
-dedicated heat resistant gloves
-Protective clothing and shoes
1.2. Do not use machine in area where dust pollution,
flammables or explosives are present.
1.3 Power supply and welding current can cause shock
damage. Please do not touch inside or face plate of welding
machine at any time. Make sure operator and all other have

protection. Do not let your body touch the ground and the
electrode at that same time.
1.4 Welding fumes and gasses can cause serious harm to
operator and all other by standards. Please keep your head
away from a place you could possibly breathe in fumes and
make sure to use the machine in a well ventilated area.
1.5 To prevent any fire hazards do not have any residue of
gasoline or kerosene on your person, cylinder or piping you
may be welding.
1.6 Do not operate machinery if you have a pacemaker. This
includes being anywhere near the machine even if someone
else is operating. The magnetic field produced by the
welding machine could have adverse effects on a
pacemaker.
1.7 Welding splatter can cause fire and explosions. Do not
weld in dangerous situations such as around flammables,
explosives, a closed barrel or pipe.
1.8 There is extreme heat produced by the exhaust pipe,
engine, air compressor and muffler. Please do not touch
these parts or have flammables anywhere near the unit. The
high temperature produced by the exhaust is capable of
igniting any flammables or explosives.
1.9. It is important that this unit is installed, used and
maintained by professionals. Do not tamper or remove any
safety or warning signs located on the unit.

1.10. The engine operates on gasoline. It is important to
keep in mind this unit cannot be run indoors. Carbon
Monoxide has no odor and can be fatal in a short period of
time.
1.11. Gasoline is highly flammable and is capable of causing
a large explosion. Please shut down the machine before
ever adding fuel or oil. When adding fuel or oil make sure it
is done in a well ventilated area. When filling the fuel tank be
sure you always leave enough space for natural fuel
inflation. Make sure to not smoke near fuel supply. Keep
away from all other flames, sparks, etc. Make sure to wipe
all leaked fuel on the unit before starting.
1.12 Take care when attaching your welding leads. Ensure
a solid connection at the lead terminals at all times. Inspect
your welding leads for damage before each use and never
allow them to sit in a damp environment. Avoid dragging
your welding leads, as this may cause the insulation to
become damaged.
1.13 Check the oil level prior to each use by removing the oil
dipstick. Do not operate the unit if it has become overfilled
with oil, as this can affect normal operations. In addition
make sure to change the oil on a regular basis.
1.14 Refrain from using the air compressor when welding.
Also, it is recommended that you disconnect all sources
from the generator as well when welding.

Lighting
Engine
Working voltage(V)
Lamp power(W)
Solenoid valve
Lifting gear pressure(MPa)
Lift height(mm)
AC120V/240V ±5%
LED/4×100W
2pcs/DC12V/5W
0.8 ±0.1
1800-4500
50A-200A
Welding
AC120/240V, 60Hz
2.Specifications
168KG

3.
Note: Do not attempt to modify the control panel in any
way. This will void your warranty and could present the
potential for equipment failure and personal injury.
Component Identification
1．Main Switch
2．Air compressor switch
3．Display meter
4．Oil alarm
5．key switch
6．Welding adjustor
7. Socket for welding
8．lighting control switch
9．Push botton for lighting
10．Socket
11．Groud bolt

1. Engine Cover Plate 2. Fuel Tank 3. Fuel Petcock
4. Engine Pull-Start Assembly 5. Engine Choke Lever
6. Air Filter Assembly 7. Handle 8. Water Drain Valve
9. Muffler Assembly 10. Frame
1. Air Compressor Oil Drain Plug 2. Oil Sight Glass
3. AVR Cover Plate 4. Control Panel Case
5. Exhaust Port 6. Oil Fill Port
7. Air Compressor Cylinder Head 8. Air Filter
9. Air Supply Hose 10. Cover Plate

1. Engine Oil Drain Plug 2. Oil Fill Dipstick
3. Air Pressure Relay 4. A/C Switch
5. Safety Valve
1. Pressure Gauge 2. Air Pressure Regulator
3. Air Outlet Connectors 4. Pressure Gauge
5. Air Tank 6. Air Hose
7. Air Valve 8. Wheel Axle
9. Wheel

1.Lighting fixing device
2.Lighting shift device
3.Lift and drop arod assy
4.Lamps assy
1. Air outlet
2.Lighting lock device
3.Lighting fixing device

Oil dipstick
Oil filling port
oil upper
level
4、Preparation
4.1 Read this manual carefully and understand all operating
procedures before using the equipment.
4.2 Make sure the wheel kit is firmly mounted before any
type of movement. Please control the speed to avoid jerking.
4.3 The equipment must be stored horizontally in a clean,
dry, well ventilated place.
4.4 Please check to ensure all components of machine are
securely fastened. If fastener or connectors are loose they
must be repaired before running the machine.
4.5 Make sure to always check engine oil before operating
machine.
4.5.1 Remove and wipe off dipstick.
4.5.2 Insert dipstick and then remove to check exact level of
4.6Engine oil recommendation
4.6.1 Oil is a major factor for overall performance. Please use 4
stroke oil that exceeds the standards for API service
classification SE.

Always check the API SERVICE label on the oil container to
be sure it includes the letters SE.
4.6.2 Check and change the oil in your machine regularly.
This will avoid all problems related to the oil being too low,
too high, dirty or thick.

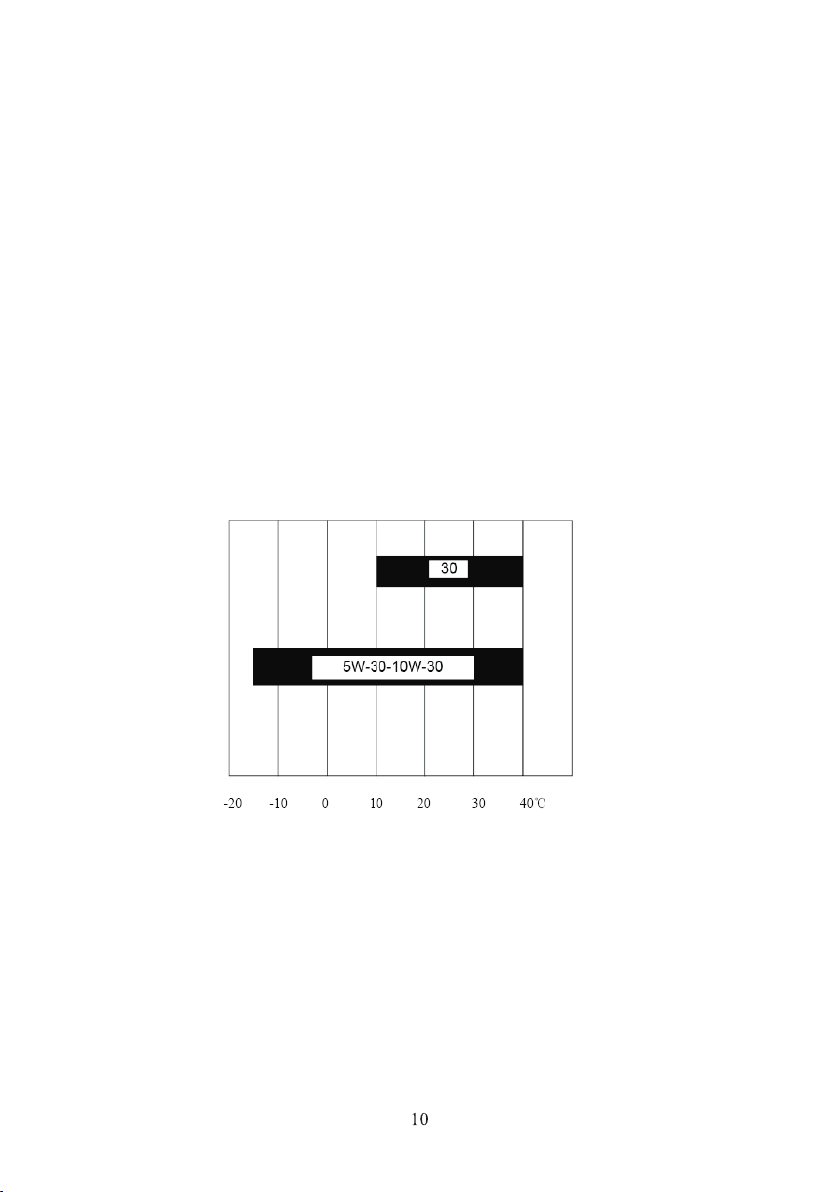

4.6.3 SAE10W-30 oil is recommended. The SAE viscosity
grade shows other viscosities to use in different average
temperatures.

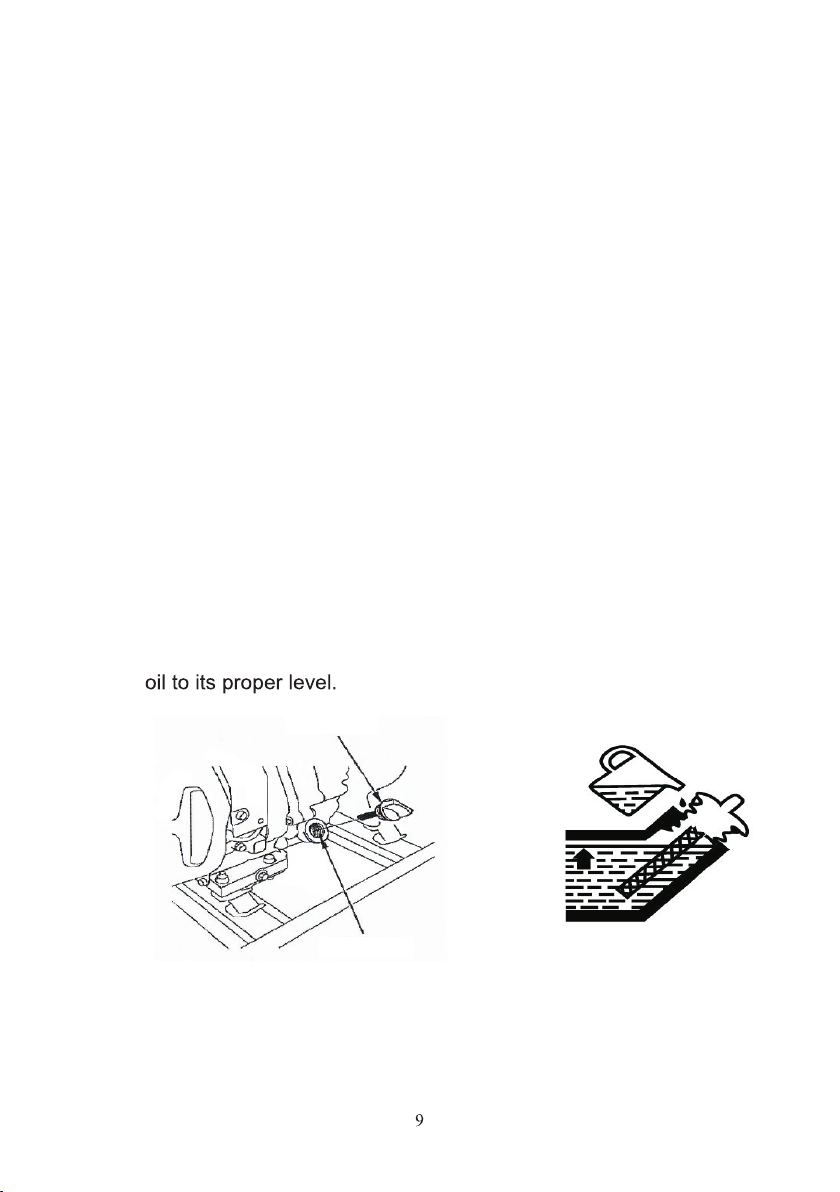

4.5.3 If the oil level is below the minimum level add oil to its
proper level. We recommend the oil is in the middle of
minimum and maximum levels.
Always check the API SERVICE label on the oil container to
be sure it includes the letters SE.
4.6.2 Check and change the oil in your machine regularly.
This will avoid all problems related to the oil being too low,
too high, dirty or thick.
4.6.3 SAE10W-30 oil is recommended. The SAE viscosity
grade shows other viscosities to use in different average
temperatures.

Button air filter cover
Air filter element
foam filtering
core
4.7 Always check the fuel level before operating machinery.
Use a strainer when adding fuel and make sure to always
leave enough room at the top for fuel inflation to occur. Make
sure you securely twist the fuel cap before operating. Do not use
used, polluted or mixed fuel in the machine.
4.8 Check air filter
4.8.1 Open the clip to loosen the filter cover.
4.8.2 Move the clip and filter cover in order to remove the air
filter. Do not damage the cover.
4.8.3 Remove the Filter.
4.8.4 Check the filter. If the filter is dirty, please wash it. If it is
damaged then call local dealer for a replacement.
4.8.5 Install filter back into holder.
4.8.6 Install the filter cover and make sure no gap is in-between
covers. If there is no filter or filter is damaged it will allow dust into
the engine and cause major damages.
4.9 Lighting start
4.9.1Check the battery wires were connected well and the
11

Fuel switch
Fuel switch
OFF
ON
OFF
ON
START
5.Starting
5.1 Start the fuel valve
The fuel valve is between fuel tank
and the carburetor. When running
the unit, the fuel valve is “on” .
when stop the unit ,the fuel valve
turn to “off”.
5.2 Try to drain all fuel and turn the fuel petcock to the off
position when the unit will sit for a long period of time without
use. This will keep the ethanol in gasoline from ruining the
carb.
5.2.1 Electric start on the unit: Operate by turning the
starting key on the control panel. Turn the key in a clockwise
direction to start location until the unit starts. Return the key
to “on” location if failed to start, wait 30 seconds and then try
to restart the unit.
off: stop the unit start：start the unit
on：running the unit
lighting was fixed well
4.9.2 After the operation meet the starting air compressor
start the air compressor.
After the air pressure more than 0.3Mpa,open the lift and drop
switch, the lamp arrive the suitable height,then open the
lighting switch on the control panel.
12

5.2.2 Recoil start: Make sure the unit to the unit is in the “on”
position. Pull the re-cooil handle slightly until you feel
resistance and then pull handle immediately. If failed, repeat
until the unit has started. Gentle let the cord back down to
avoid damaging the pull cord. Do not let the cord have
friction or the cord may wear easily.
5.2.3 Remote control start
Make sure the key is in the “on” location. Then press the
button on the remote control that reads “on”. If failed, retry
after 30 seconds.
6 .Operation
6.1 Ambient temp: welding 14 F- 104 F
6.2 Transport and storage: -4 F- 131F
6.3 Relative humidity: when 104 F < 50%; when 68 F, < 90%.
Max altitude equals < 3280.84 feet.
6.4 Angle of inclination: the unit must be angled less than 10
degrees of the welding supply power.
6.5 If the unit has been overloaded after connecting the
plug, the CB will close itself on the control panel. If this is
13

true pleased check the other equipment is running properly.
Second check if it is overloaded.
Special Warning
1. The CB is not in control of the power of the welder.
2. Do not use the welder and air compressor at the same
time or generator and welder at the same time for best
performance.
6.6 Welding rods and welding leads chart: For your reference
below these are the rods and cables we see the best
performance.
7 Engine Shut Down
7.1 Remove all connections this includes generator, welding
leads and air compressor outputs. Then turn off the circuit
breaker. If the air compressor was in use
14

empty compressor tank of all remaining air. If welding
please remove rod connections. Let the unit run for 2-3
minutes, then turn the key on the control panel to the “off”
position.
7.2 If the unit must be transported a long distance. Make
sure you stop the unit and remove any connections. Try and
drain the unit of all remaining fuel in the tank and turn the
fuel calve to the off position.
7.3 Make sure to inspect the unit after you have shut it down.
Check the bolts and connections are all secure.
8: Maintenance
It is very important to get the best out of the product that you
keep up on all maintenance. Regular oil and fluid changes will
also ensure you are decreasing the amount of pollution being put
into the air. In order to ensure you are maintaining your
equipment we have comprised a list of daily checks procedure to
be sure your unit is running at maximum potential. If any
maintenance procedures need to be conducted by a professional
please do so. And for any questions with these procedures feel
free to contact your local service technician for step by step
directions on how to do so. If the unit is being operated in a dusty
area make sure to maintain these checks more frequently.
15

Daily maintance cycle
each time
the first
month or
every
3month or
every
6month or every 1year
Item: based on the runing target each time month or
20h
3month or
50h
6month or
100h or 300h
check the level ○
change ○ ○
check ○
clean ○
S di t ti l l
ENG oil
Air cleaner filter
month or the runing hour to maintain
Sedimentation glass clean ○
check-adjust ○
replace ○
Valve clearance Check -adjust ○
Combustion chamber clean every 500h
Case and filter clean ○
Spark plug
Fuel hose check ○every two years(if necessar,please replace)
Change oil(when warm the unit, remove the oil to make sure
that the drain the oil completely)
8.1 Changing the oil: Make sure you warm up the unit for a
short period of time to ensure all oil residues will drain.
8.1.1 Make sure the unit is off of the ground to leave enough
space to drain the oil into a container. Remove the oil plug,
oil bolt and the seal.
8.1.2 Make sure the oil is drained completely. Then tighten
the bolt and replace the seal. To purchase a new seal please
contact your local dealer.
8.1.3 Fill the unit with oil into the crankcase to the
recommended level on the oil dipstick plug. Once you have
reached the recommended level tighten the oil plug.
16

1.Soak 2.Squeezing 4.Squeezing3.Oil
CAUTION: In order to protect the environment we
strongly urge all users to drain the oil into a sealed
container. Once finished please dispose of the oil
into an oil waste barrel or to a local company that
handles waste oil.
8.2 Cleaning the air filter
8.2.1 Use warm soapy water when cleaning the air
filter. Make sure you dry the filter before installing.
8.3 Spark Plug Maintenance
In order to keep your 4 in 1 running at peak
performance, the spark plug must be adjusted to
get rid the unit of any carbon laydown. Using the
wrong spark plug will damage the engine. Make
sure to contacting your local service technician
before changing the spark plug. Always remember
to make sure the unit has had ample time to cool
down before you perform any maintenance
17
