KOLEKTOR LIQUISHOT 25.3 User manual

01
Cordless pressure sprayer
PROFESSIONAL
ERGONOMIC DEVICE
FOR APPLYING LIQUIDS
EN

User manual
1. General product information ............................................. 01
Intended use of the product...................................................................... 01
2. Safety warnings............................................................... 01
General safety warnings ........................................................................... 01
Safety instructions for rechargeable battery and charging station....... 01
Safety instructions when using the device................................................ 03
3. Product components........................................................ 05
4. Technical specications ................................................... 06
Rechargeable battery................................................................................ 06
Charging station........................................................................................ 06
Cordless pressure sprayer......................................................................... 07
5. Use of device .................................................................. 09
Charging station and rechargeable battery............................................... 09
Use of the cordless pressure sprayer........................................................ 11
Supply via water supply network .............................................................. 12
Supply via the included bucket – standing medium source ..................... 13
Flow adjustment during operation ............................................................ 13
6. Storing of device.............................................................. 14
Cordless pressure sprayer ........................................................................ 14
Rechargeable battery and charging station .............................................. 14
7. Cleaning of device ........................................................... 15
8. Troubleshooting .............................................................. 15
9. Additional equipment ...................................................... 17
10. Disposal of device ......................................................... 19
11. Warranty conditions ...................................................... 20
Manufacturer and guarantor ..................................................................... 20
Warranty period ........................................................................................ 20
Product return........................................................................................... 21
Costs of repair and replacement of parts.................................................. 21
Maintenance of the device ........................................................................ 21
Failures not covered by the warranty ........................................................ 21

01
1. General product information
Intended use of the product
The product is suitable for outdoor
use. The device is suitable for cleaning
various surfaces that are resistant to
the working pressure of the jet, and
for spraying various agents on various
surfaces. The device can be used for
pumping water or various liquids for
cleaning, degreasing and impregnation.
The device is not suitable for products
that do not withstand compressive loads,
and for cleaning electronic devices and
living beings. It is also not suitable for
use with liquids that can cause self-
ignition, and for use in environments
where self-ignition or explosion may
occur.
2. Safety warnings
General safety warnings
• Repair and replacement of parts may
only be performed by an authorized
service center.
• Persons over the age of eight,
persons with reduced physical,
sensory or mental capacity and
persons with a lack of knowledge
of the product may use the product
only under the supervision and
guidance of a suitably qualied
person. Every user must be familiar
with the possible dangers before use.
Children are not allowed to use the
device without the supervision of a
responsible person.
• The device is not a toy; therefore, it
is forbidden for the children to use it
for play.
• A standard connection must be used
when connecting the device to the
water supply.
• It is forbidden to consume water
pumped through the device.
• The device, battery and charging
station must not be exposed to heat
or direct sunlight.
• Before use, it is mandatory to
read the instructions for use and
safety instructions and save the
documentation.
• Appropriate clothing (long pants,
gloves if necessary) and suitable
footwear (not barefoot or in open
shoes) must be worn during use.
• In case of lending the product to
another user, it is necessary to
enclose safety instructions and
instructions for use.
• The product may only be used with
the supplied attachments and spray
accessories (nozzles).
Safety instructions for
rechargeable battery and charging
station
The device may pose a danger if the
following instructions are not followed:
• The mains voltage must correspond
to the voltage indicated on the
charging station.
• Compatible batteries: all batteries
with a nominal voltage of 18 V by
Robert Bosch Power Tools GmbH
–Professional program (GBA and
ProCore series). An additional
presentation of compatibility is
shown in Table 1. Disposable
batteries should not be recharged
as this may result in spontaneous
combustion, explosion and / or re.
• The charging station and
rechargeable batteries must be kept

02
out of the reach of children.
• Children and persons with reduced
physical, sensory or mental
capabilities should not handle
batteries or charging stations.
• In the event of a battery or charging
station failure, parts may only be
replaced by new original parts from
authorized dealers. Failure to do so
may result in damage to the device.
• The charging station may only be
connected to alternating current
(nominal voltage: 230 V).
• It is necessary to always check the
suitability of the charging station
plug before use.
• The battery is partially charged upon
delivery. To ensure full battery power,
fully charge the battery before using
it for the rst time.
• The battery is partially charged upon
delivery. To ensure full battery power,
fully charge the battery before using
it for the rst time.
• The battery can be charged in the
0-45 ° C temperature range.
• The battery may only be used and
stored at ambient temperatures
between -20 and + 50 ° C. In summer,
do not leave the battery in the car
as it may overheat and, as a result,
get destroyed or its capacity may
be reduced. Performance may be
reduced when used at temperatures
below freezing (<0 ° C).
• It is forbidden to touch the contacts
of the charging station and the
battery.
• It is not permitted to short-circuit
the battery. The battery that is not
in use must not come into contact
with ofce staples, coins, keys, nails,
screws, or other small metal objects
that could cause bridging of the
contacts. Short circuit between the
contacts may result in burns or re.
• Pointed objects, such as nails or
screwdrivers, and external impacts
can damage the battery. A short
circuit may occur, which could cause
the battery to burn, sear, overheat, or
explode.
• It is forbidden to cover the charging
station during use to prevent
overheating.
• The battery and charging station
must be protected against
overheating and excessive moisture
and humidity.
• Never store the battery or charging
station near heaters.
• The device and batteries must not be
exposed to heat and direct sunlight.
• The device and batteries must not be
exposed to wet environment.
• Under no circumstances it is allowed
to open the batteries and the
charging station.
• It is forbidden to use the batteries
and charging stations on flammable
or combustible surfaces.
• In the event of damage to the battery,
substances may start to leak from
the battery. The battery contains
substances which may be harmful
to humans when in contact with skin
or if swallowed. If you notice that
the battery is damaged, use gloves
to remove it and store it in a closed
container.
• Damaged and destroyed batteries
must be disposed of directly at the
dealer, collection centers or specially
marked waste battery collection
containers.
• The battery must be removed from
the device before cleaning and
troubleshooting.

03
• Only the supplied charging station
or charging stations compatible with
the Bosch Power Tool –Robert Bosch
Power Tools GmbH – Professional
Program (Table 1) may be used to
charge the battery of the device.
Safety instructions when using
the device
The device may pose a danger if the
following instructions are not followed:
• Do not touch the device with wet
hands.
• Do not immerse the device in water
or do not clean it with a water jet.
• The device must be protected from
moisture during storage.

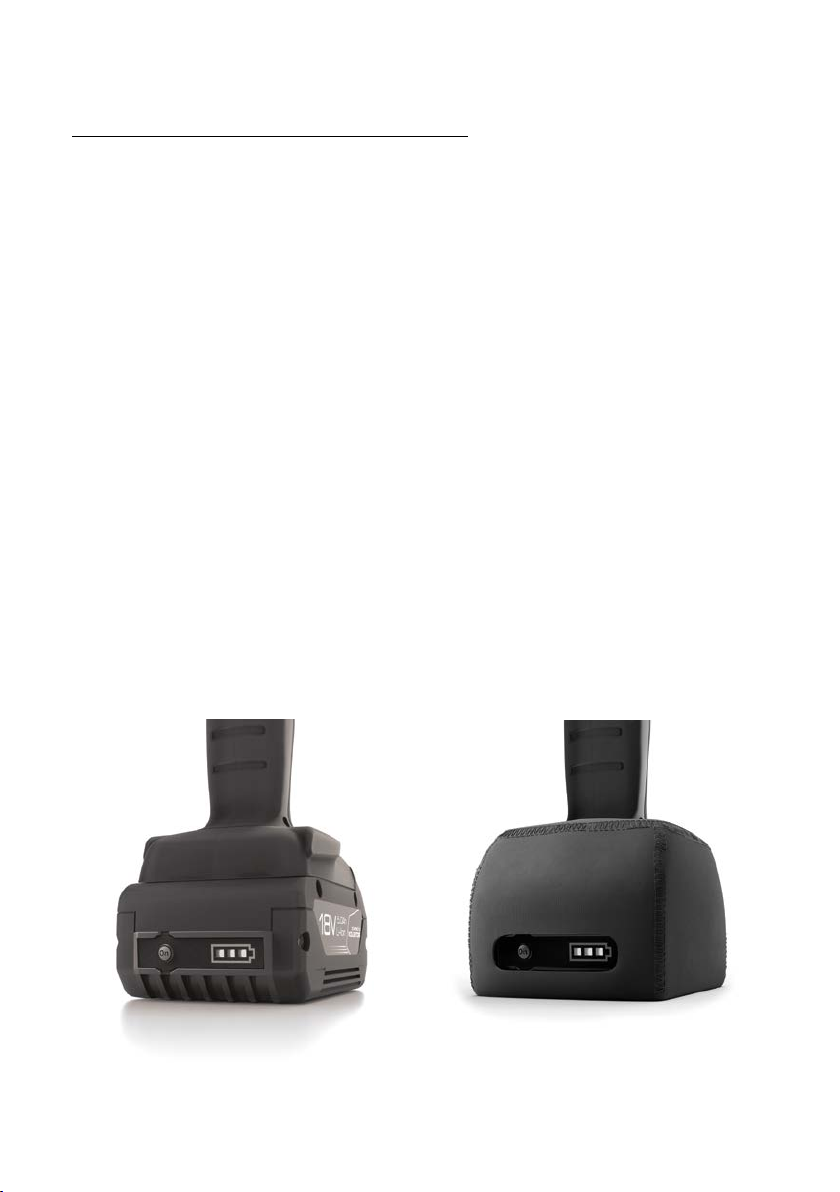

• The included waterproof cover for
battery protection must always be
properly placed on the device during
operation.
• Do not use the device without
medium (dry operation) for more
than 1 minute, otherwise mechanical
damage may occur inside the device.
• If there are obvious creaking noises
when starting the device, the device
must be switched off immediately
and a small amount of water must be
added to the device inlet. Otherwise,
the pump may get damaged. The
device can then be restarted.
• Do not use the device at ambient
temperatures below 0 °C.
• The device may heat up after longer
use, which is normal. Extra care is
required when handling a heated
device.
• The device cannot be used when
heated above 70 °C (overheating due
to prolonged use, hot atmosphere).
In this case, the device stops itself.
Allow the device to cool before using
it again.
• In the event of low voltage
(low battery), the device stops
automatically. In this case, it is
necessary to charge the batteries
with the help of a charging station.
• The device may only be used for
its intended use (General product
information section) and within the
technical specications (Technical
specications section).
• Before each use, it is necessary to
carefully check if all components
are technically flawless (no signs of
damage).
• It is forbidden to direct the jet from
the device to electrical devices or
electrical components.
• Do not use the device to clean
objects that contain toxic
substances.
• Do not pump cleaning agents,
solvents or other flammable
substances, as they may transform
into a mist in the air that can ignite
quickly.
• Remove any stones, pieces of wood
and similar debris from the object of
cleaning, as the pressurized jet can
move these particles uncontrollably,
which can lead to damage to the
device and / or operator.
• Use of the device is allowed only in
daylight or sufcient articial light
and in dry weather with no rain.
• It is forbidden to use the device in the
pools lled with water.
• It is forbidden to use the device in
the immediate vicinity of children or
animals.
• During use, the user must ensure a
stable posture and position.
• When using the push-button lock
function, the device must not be

04
operated without the supervision of
a suitably qualied person, as this
may cause damage to the device,
the environment, or the user or third
parties.
• By changing the fluid flow rate
(rotation of the outlet flow / pressure
adjustment knob), the operating
pressure at the outlet of the cleaning
gun changes. High pressure can
damage sensitive surfaces. It is
forbidden to direct the jet at people
or animals.
• When using a device connected to the
water supply network, it is necessary
to check that the outlet pressure from
the water supply does not exceed the
permissible inlet pressure specied in
the technical specications.
• When using the device with water
supply from the water supply
network, the inlet pressure of the
medium in the pump (outlet pressure
from the water supply network) can
be a maximum of 6 bar (600 kPa or
0.6 MPa).
• During pumping media with higher
temperature, special care should be
taken, otherwise burns and other
injuries could occur.
Special care on the device is
indicated by the symbol.

05
3. Product components
Photo 1: The contents of the case
Photo 2: Product components Photo 3: Product components
Hose adapter
Universal
nozzle
Release button
lock
Release button
Waterproof battery
protection
Cordless pressure sprayer
Rotary knob
for ow
control
Battery
charge
indicator
LED light
Inlet lter for
pumping media
Charging
station
Lithium-ion
rechargeable
battery

06
4. Technical specications
Rechargeable battery
• Type: lithium-ion
• Nominal voltage: 18.0 V
• Capacity: 5.0 Ah
• Weight: 0.61 kg
Charging station
• Input voltage: 220–240 V~// 50/60 Hz
• Output voltage: 14.4–18.0 V/DC
• Charging current: 4 A
• Permissible charging temperature range: 0–45 °C
• Number of battery cells: 4-15
• Protection class:
• Weight according to EPTA-Procedure 01: 2014: 0.55 kg
The charging station and device are compatible with all 18 V professional batteries by
Robert Bosch Power Tools GmbH.
Charging time of various Bosch Power Tools GmbH professional batteries at various
Bosch charging stations [min]
Rechargeable battery capacity State of charge
2Ah 4Ah 5Ah
Bosch battery model Charging station 80% 100% 80% 100% 80% 100%
Battery PROCORE 18V
GAL 18V-160C / / 32 51
/
GAL 18V-160C: Power
Boost function / / 9 21
GAL 1880 CV / / 32 51
GAL 18V-40 (included in
the basic package) / / 48 65
Battery STANDARD
18V (GBA)
GAL 18V-160C 15 25 15 25 20 35
GAL 18V-160C: Power
Boost function xxxxxx
GAL 1180 CV 25 30 25 30 30 45
GAL 18V-40 (included in
the basic package) 35 45 24 35 60 70
Table 1: Presentation of all Bosch Power Tools GmbH batteries and charging stations compatible with the
device and comparison of charging times up to 80% charge and up to 100% charge.

07
Cordless pressure sprayer
• Operating pressure: up to 25 bar = 2.5 MPa = 2500 kPa
• Maximum inlet pressure of the medium: up to 6 bar = 0.6 MPa
• Maximum inlet temperature of the medium: 60 °C
• Maximum flow: up to 250 l / h (without nozzle), up to 180 l / h (with nozzle)
• Suction height: 4 m (water suction time until injection is 20 seconds in this case)
• Hose adapter: 3/4’’ QUICK connect
• Hand/arm vibration: 0,1 m/s2 1) Uncertainty K: 0,6 m/s2
• Sound pressure level LpA:63 dB(A)1) Uncertainty KpA:2 dB(A)
• Sound power level LWA: 74 dB(A)2) Uncertainty KWA: 2 dB(A)
Measuring process: 1) EN 60335-2-54, 2) EN 60335-2-79
Position of the flow adjustment button Min 25% Medium 75% Max
Achieved fluid pressure [bar] 5.50 9.00 12.00 16.00 19.00
Achieved fluid flow [l/min] 1.50 2.00 2.40 2.70 3.00
Achieved fluid flow [l/h] 90.00 120.00 144.00 162.00 180.00
Operating time [min] 176 73 47 30 18
Table 2: Operation of the device when pumping from a free source (from a bucket) at different positions of the
flow adjustment button using the supplied universal nozzle and the supplied fully charged battery.
The tests were performed with water at room temperature of the medium and the environment (22 ° C)

08
Table 3: Operation of the device when pumping from the water supply network (inlet pressure = 5 bar) at
different positions of the flow adjustment button using the supplied universal nozzle and the supplied fully
charged battery.
Position of the flow adjustment button Min 25% Medium 75% Max
Achieved fluid pressure [bar] 6.10 9.90 13.80 18.00 23.60
Achieved fluid flow [l/min] 1.72 2.18 2.56 2.94 3.34
Achieved fluid flow [l/h] 103.20 130.80 153.60 176.40 200.40
Operating time [h] 305 125 63 34 19
The tests were performed with water at room temperature of the medium and the environment (22 ° C)
WARNING! Maximum time of operation in a dry state (without the flow of medium
through the devices): 1 min (failure to do so may result in damage).
MAX HOSE LENGHT from the source of the medium to the device is 30 meters. This
length is also conditioned by the time until injection or dry operating time (the permitted
dry operating time of the device is 1 minute).
DEVICE WEIGHT incl. basic nozzle: 0.85 kg (without battery) // 1.35 kg (with battery).

09
5. Use of device
Charging station and rechargeable battery
The device is partially assembled already in the production process. Additional parts
must be assembled according to the instructions. It is necessary to read the safety
instructions rst:
• The mains voltage must correspond to the specication of the charging station.
• Only the supplied charger may be used to charge the battery. The device must be
charged in a dry place. It is only possible to charge the battery when the temperature
of the battery is within the temperature range 0-45 °C.
• The battery is partially pre-charged. The battery must be fully charged before rst
use.
• While charging the battery, the charging station and the battery may heat up. This is
normal and does not cause a malfunction. The battery can be charged at any time,
regardless of the state of discharge. Charging with a fully discharged battery does
not affect the efciency and life of lithium-ion batteries.
• Signicantly shorter operating time after charging means that the battery is worn out
and needs to be replaced. After repeated use, this is normal and expected.
• Decreased efciency (charge status) of the battery over its lifetime is normal. The
battery can only be replaced with an original battery purchased from an authorized
dealer.
• The battery has three charge indicators. When all three indicators are green, the
battery is fully charged, and when only one indicator is flashing, the battery is nearly
empty. The display of the indicators is shown in Photo 4.
Photo 4: Display of full battery charge without waterproof protection (left) and with waterproof protection (right)

10
• The empty battery is connected to the charging station for charging. The charging
station has an indicator on its bottom right side that flashes green while the
battery is charging. When fully charged, it stops flashing and only glows green, which
means that charging is complete. The rechargeable battery can be removed and used
at any time during charging.
• The charging station has another indicator at the bottom left that warns the
user in case of incorrect charging of the battery. If the indicator is ON continuously,
the battery temperature is outside the allowable temperature range. When the
allowable temperature range is reached, charging starts and the indicator turns off.
If this indicator flashes, an error occurred while charging. This may be due to a fault
in the battery or charging station. In this case, the user should remove the battery
from the charging station and clean the battery contacts with a dry cloth. If the
indicator still flashes, seek professional help or purchase a new set of battery and /
or charger.
Correct placing of the battery from the device to the charging station and vice versa is
shown in Photo 5.
The contacts must be dry and clean when placing and removing the battery on the
cordless pressure sprayer or charging station. After placing the battery on the cordless
pressure sprayer, it is necessary to place the included elastic waterproof protection over
the battery to protect it from water intrusion. It is forbidden to use the device without
the protection. It is recommended to remove the battery from the battery pressure
sprayer after its use, as removing the battery helps to prolong the life of the battery. The
procedure for removing waterproof protection is shown in Photo 6.
Photo 5: The procedure of placing the battery from the device to the charging station

11

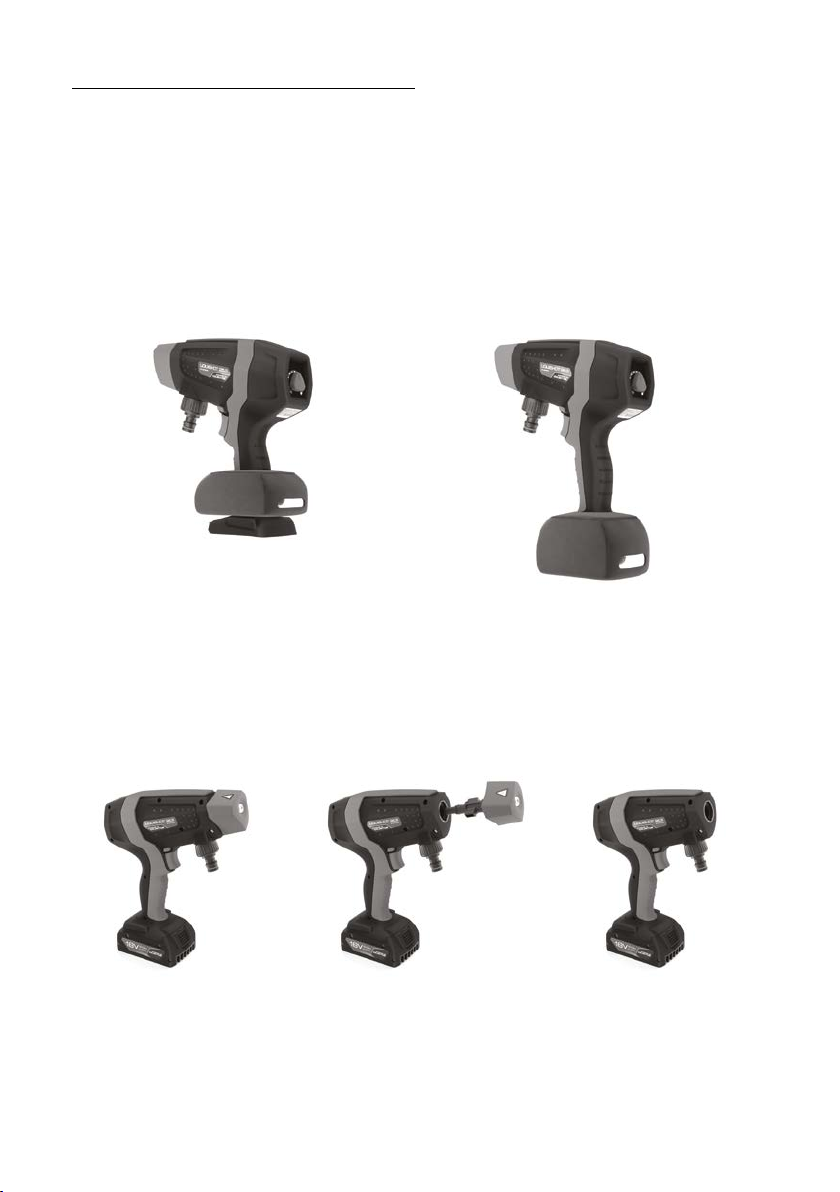

Photo 6: Demonstration of placing the waterproof protection when removing the battery (left) and when using
the device (right)
Use of the cordless pressure sprayer
• The cleaning gun must not operate without the waterproof protection on the battery.
The protection must always be fully placed on the device.
• The waterproof cover is not completely removed from the device when the battery
is replaced. The protection is designed to be carefully lifted and removed from the
battery at the bottom and pushed up towards the release button to allow access to
the battery. The waterproof protection must not be stretched, as you can destroy it
this way. The method of placing the waterproof protection when removing the battery
and when using the device is shown in Photo 6.
• The basic package comes with a universal nozzle (already installed on the device). In
the case of cleaning or replacement, the nozzle can be removed manually by turning
the nozzle by 90° and pulling. The method of removing the nozzle is shown in Photo 7.
• Once the battery is installed, the cleaning gun is activated by the release button.
Above the release button there is a lock button that locks the release button during
the operating mode so that the user does not have to hold it constantly.
Photo 7: Removal of the supplied universal nozzle from the device

12
• Slider in the right position locks the button in the released position to prevent the
device from starting unintentionally. Activation is only possible when the button is
released.
• Slider in the left position locks the button in the pressed position so that the user
does not have to press the button the entire time of use. Activation is only possible
when the button is fully pressed. When using a device with a medium supplied
from the water supply, the activation button may become harder when pressed
due to the water pressure in the water supply. In such a case, the use of the lock is
recommended.
• When the slider is in the middle position, the button is released.
• Slider positions are shown in the Photo 8.
When using the button lock function, the device must not be operated unattended, as if
the battery is discharged, the lock must be released immediately and the battery
disconnected, otherwise the battery may be discharged excessively and damaged.
Supply via water supply network
Photo 8: Slider position options
Slider in the right position Slider in the middle position Slider in the left position
When using a device connected to the water supply network, it is necessary to check that
the pressure and flow do not exceed the permitted values, otherwise the device may be
damaged or malfunction may occur. The connection method is symbolically shown in
Photo 9.
Photo 9: Connection of the device to the water supply network

13
Photo 10: Connection of the device to the standing medium source
When supplying the device with the medium from the enclosed bucket, the outlet
pressure may be lower (in this case, the outlet pressure depends on the suction height
and the length of the hose from the source to the device).
When supplying the device with a medium from a bucket, river, lake or other open source
of water, it is mandatory to install a lter on the hose. If the lter is not used, internal
components may get damaged which results in reduced operating efciency or failure of
the device. The connection method is symbolically shown in Photo 10.
Flow adjustment during operation
During operation, the flow or outlet pressure can be regulated with a rotary knob on the
back of the device.
The effect of rotary knob control on outlet flow / pressure is shown in Table No. 2
(Technical specications section).
Photo 11: Adjustment of the flow and outlet pressure on the device
Supply via the included bucket - standing medium source

14
6. Storing of device
The entire device with battery, charging station and other accessories must be stored in
the enclosed case as shown in Photo 12.
Photo 12: Case with the contents
Cordless pressure sprayer
• Before storage, it is mandatory to drain the water from the sprayer and dry the
battery pressure sprayer completely.
• The place of storage must be dry and at room temperature. It must not be exposed to
the direct sunlight and / or humidity.
• The battery pressure sprayer must be kept out of the reach of children.
• Storage temperature: from 10 to 45 °C.
• The waterproof protection is left on the device during storage.
• If the waterproof protection gets dirty, it must be carefully removed from the device,
washed, dried properly and carefully put back on. When removing / placing back the
waterproof protection, be careful not to damage (tear) the opening in the handle area,
as this may reduce the sealing function between the pressure sprayer housing and
the protection.
Rechargeable battery and charging station
• Batteries must be stored removed from the device in the battery compartment.
• The battery should be stored in the range of charge 40-60%. Storing a completely
discharged battery can cause complete battery failure.
• The place of storage must be dry, at room temperature and not exposed to direct
sunlight.
• The battery and the charging station must be kept out of the reach of children.

15
Problem Cause Solution
• The device does not start
• The device does not start
• The battery is not installed
properly
• The battery is not charged
• The battery is defective
• The battery is overheated
• Blocking of pump parts
• Reinstall the battery
• Charge the battery
• Buy a new battery
• Wait for the battery to cool
down
1An 8 mm Allen key is used to
solve the problem
• The outlet pressure is too low
or pulsating
• Clogged lter at water inlet
• Clogged nozzle
• The connection sucks in air
• Damaged pump due to not
using the lter
• Check and cleaning of lter
and supplied water
• Check and cleaning of nozzle
• Reconnect or replace
connector
• Service required
• Leakage of water from the
device
• Too high water supply
pressure and flow
• Check all adapters for
incorrect connection
• Disconnect the device from the
water supply
• Check if water supply pressure
and flow exceed the permitted
values
• Reduce the water supply flow
7. Cleaning of device
• The battery must be removed before cleaning the device.
• Immersion of the gun in the medium or direct spraying of the gun is not permitted as
it may cause damage, malfunction or failure.
• A damp cloth or a soft brush must be used for cleaning. Mild detergents may be
used. Do not use aggressive or abrasive cleaning agents.
After using the device for pumping a medium other than water, it is necessary to pump
a dedicated detergent through the device (concentration should be prepared according
to the instructions of the detergent manufacturer). After pumping the cleaning agent,
at least 10 l of water should be passed through the entire system, in order to wash
out chemical residues from the entire system and to prevent damage to individual
components.
8. Troubleshooting
The table shows the most common failures that may occur to the user during use, as well
as their causes and solutions. If there is a problem that is not listed in the table, contact
an authorized service center.

16
Problem Cause Solution
• Water in the device • Use in the rain
• Device dropped in the water
• Damaged housing of the
device
• Allow the device to dry
completely in the air
• In the event of a malfunction,
contact an authorized service
center
• The battery is not charging at
the charging station
• The battery is not installed
properly
• Battery contacts are dirty
• The battery is defective
• Reinstall the battery
• Clean the contacts and dry
them completely
• Buy a new battery
• The charging station shows
no signs of operation
• The power cord is not properly
connected to the mains
• Damaged charging station,
cord
• Power supply fault
• Check the plug and its
connection
• Check mains voltage
operation
• Contact an authorized service
center
• The gun starts but the jet
does not come out of the
device / the flow of the jet is
reduced / the pressure at the
outlet is too high
• Clogged nozzle
• Clogged lter at the suction
side (in the event of pumping
from a free source / bucket)
2The nozzle must be cleaned
with a suitable tool
3 The lter must be cleaned
• The release button is stuck
after using the left slider
position lock
• Too high press force on the
release button
• Presence of foreign body
(impurity) between the release
button and the housing
• Shift to the right slider
position lock and back to
neutral position, which
releases the release button in
the neutral position
• Connecting the device to the
water supply network
• Leakage of liquid through the
drainage holes on the device
handle
• Due to improper use, liquid
leaks into the device
• Remove the battery from the
device immediately. Place the
device in a dry place and wait
for it to dry completely
1Blocking of pump parts in the pump can occur due to prolonged non-use or
improper cleaning of the inside of the pump after pumping various media. When
this problem occurs, a soft beep sounds when the device is started. To eliminate
the problem, a long 8 mm Allen key (not included) is used, which is inserted into
the nozzle outlet when the nozzle is removed. The key is then turned clockwise
with the force of a hand. The use of other or additional tools to increase the force
is not permitted as this may damage the device. If the problem cannot be solved,
contact an authorized service center.
The troubleshooting method is shown in Photo 13.

17
Photo 13: Troubleshooting of the blocking of pump
parts
2Jet blockage, reduced flow or increased
outlet pressure may be caused by a
clogged nozzle due to prolonged non-use
or improper cleaning of the inside of the
pump after pumping various media.
A sharp object with a small diameter
(needle) can be used to eliminate the
problem. The troubleshooting method is
shown in Photo 14.
Photo 14: Troubleshooting of the jet blockage
3Jet blockage, reduced flow or increased outlet pressure can be caused by a clogged
lter on the suction side when pumping medium from a free source or bucket (e.g.
stones, dirt ...). The lter must be cleaned regularly and thoroughly. The troubleshooting
method is shown in Photo 15.
Photo 15: Troubleshooting of the lter clogging
9. Additional equipment
For a better user experience, it is possible to purchase additional equipment for the
device. Additional equipment is not included in the basic package.
Optional equipment includes:
• ROTO nozzle: creates a rotating conical jet that helps remove more stubborn dirt. The
nozzle is available in three different lengths.
