Enduraplas STEEL BOOM User manual

OWNER’S MANUAL
Version 1.5 Copyright © Enduraplas. All Rights Reserved.
Product Codes:
ASBS12SS, ASBS20SS, ASBS26SS, ASBS30SS
ASBP13GY, ASBV16, ASBB24, ASBB30, ASBB24L,
ASBB30L, ASBB30P
STEEL BOOM
12
24
26 22
17
1
2
333
25
8
23
Detail View B Detail View A
34
20' Steel Boom
37 36
35
Detail View
3031 32 29 27
POLY BOOM
BOOMLESS
NOZZLE KIT
VERSATILE
BOOM

3Version 1.5
English
2Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
CONTENTS INTRODUCTION
Congratulations! You now own an Enduraplas boom. Durable
design and construction assure you a lifetime of extreme
performance. No boom is tougher. No boom will last longer.
Take a look through this owner’s manual to learn how the pros
use their Enduraplas boom
INTRODUCTION 3
GETTING STARTED  STEEL BOOM 12’, 20’, 26’, 30’ 4 - 23
GETTING STARTED  POLY BOOM 13’ 24- 29
GETTING STARTED  VERSATILE BOOM 30 - 35
GETTING STARTED  BOOMLESS NOZZLE KIT 36 & 37
ATTACHING TO A SPRAYER 38 & 39
CALIBRATING 40 & 41
MAINTAINING 42 & 43
STORING/WINTERIZING 44 & 45
WARRANTY 46 - 49
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas
Order Genuine Enduraplas Parts & Accessories:
parts.enduraplas.com

5Version 1.5
English
4Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
12’ STEEL BOOM OVERVIEW
12" Steel Boom
21 20 19
18 5 3
41
9 8672
23 18
Detail View A
Detail View C
Detail View B
DETAIL VIEW A
Detail A
22
10
12
11
Detail B
19
14
10
12
11
Detail C
16
15
17
16
13
10
12
11
12’ STEEL BOOM
12’ STEEL BOOM

7Version 1.5
English
6Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
DETAIL VIEW B
Detail A
22
10
12
11
Detail B
19
14
10
12
11
Detail C
16
15
17
16
13
10
12
11
12’ STEEL BOOM
DETAIL VIEW C
Detail A
22
10
12
11
Detail B
19
14
10
12
11
Detail C
16
15
17
16
13
10
12
11
12’ STEEL BOOM

9Version 1.5
English
8Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
PARTS LIST
ITEM NO. PART # DESCRIPTION Explode/QTY.
1 ASBS12SSBO 12 Ft Steel Boom Only-Powdercoated 1
2
CHPZFE FB Extension Spring 302 SS 2
3
ASBP002 Poly Pipe Section 44 IN 2
4
CFPP01M 3-8 MPT Poly Hex Plug 2
5
CFPS01M01B 3/8" MPT x 3/8" Hose Barb Straight 2
6
CHBZ031925 .375 x 4.5 Bolt 2
7
CHWZF035 3/8 Flat washer 4
8
CHNZN0325 3/8 Nylock nut 6
9
CHBZ030725 3/8 x 1.5 Bolt 2
10 CNSS100 100 Mesh Nozzle Screen 8
11 CA40290003 Quick Fitting Cap Red 8
12 CNSNP002 Teejet Polymer Spray Tip 0.2 GPM 8
13 CA402235 Poly Boom Nozzle Body 6
14 CA413221 3-8 Single Barb x QA with Check Valve 1
15 CHBZ7010085 M6 - 16MM Hex Head Bolt 8
16 CHNZN0685 6MM Nyloc Nut 20
17
CHCSZ7015085SH M6-22MM Head Cap Screw 12
18
CLUESB020001 3-8 hose from center boom to supply 3
19 CFCC002 CLAMP FOR 3/8 HOSE 8
20 CFBU02WN Union .5 Wing Nut 3
21 CFBU01BW .375 Union Nipple-washer 3
22 CA413211 3-8 Single Barb Qck Cap w/ck 1
23 CLUESB020001 3-8 Hose between center nozzles 1
12’ STEEL BOOM
12’ STEEL BOOM
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas

11Version 1.5
English
10 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
12
24
26 22
17
1
2
333
25
8
23
Detail View B Detail View A
34
20' Steel Boom
37 36
35
Detail View
3031 32 29 27
2) Slide on the first washer, the spring and
the second washer. Then insert the bolt
through the bottom two holes.
3) Insert the pin into the hole on the bolt
just above the top washer and hammer it
into place.
4) Screw the nut onto the bolt.

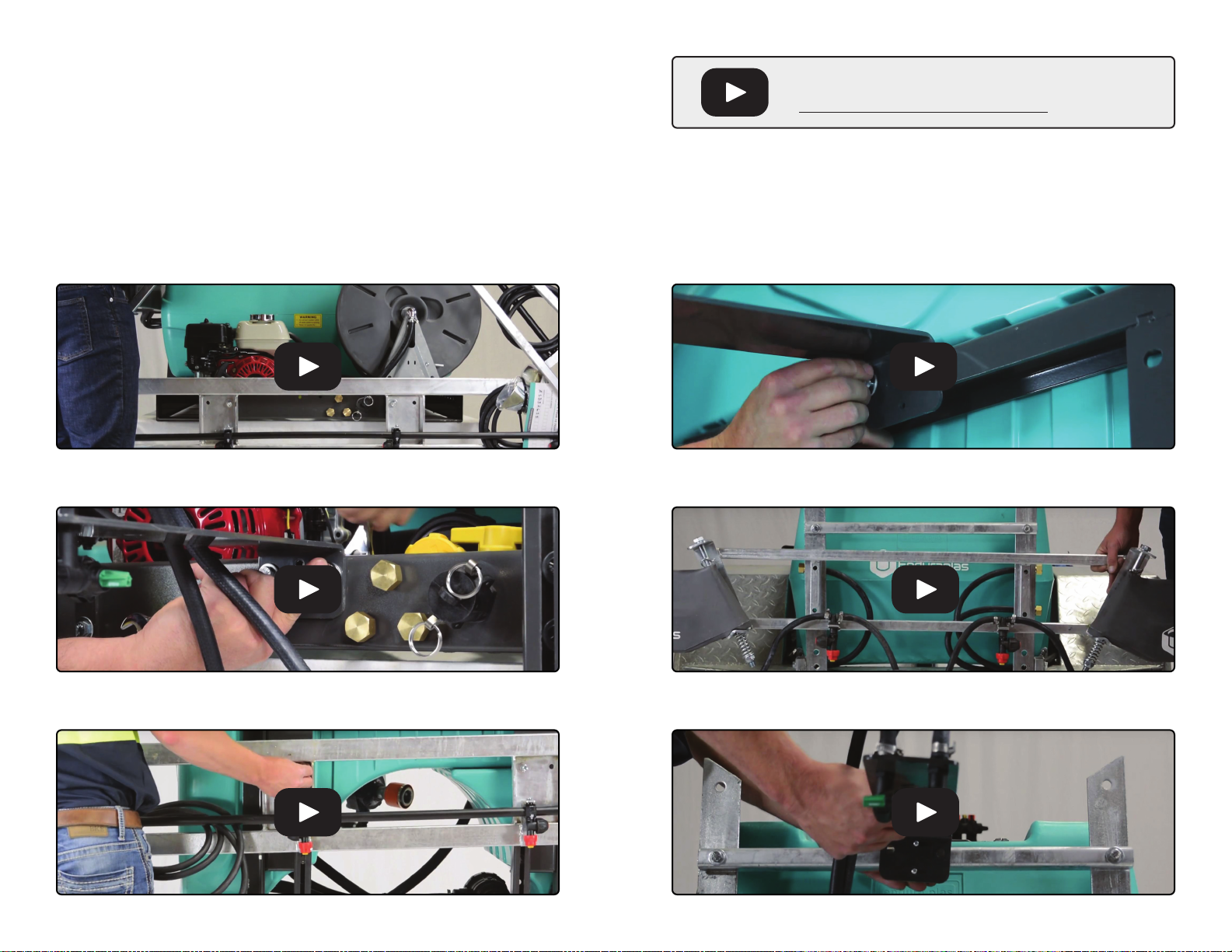

Assembling a 20/26/30’ Steel Boom
GETTING STARTED
1) Lay out the boom arms on each side of
the centerpiece. Insert the bolt through the
top hole of the centerpiece and the top of
the boom.
20/26/30’ STEEL BOOM
6) Slide the arm extension on the existing
arm.
5) Flip the boom arm up to a 90° angle
and tighten each side of the boom until the
spring is compressed.
Watch Instruction Videos:
www.youtube.com/enduraplas
8) Take the hose extension and screw it to
the existing brass fitting. Follow the same
procedure for the boom on the other side.
7) Insert the bolt through the top hole and
tighten the bolt.
ADDING THE 26/30’ EXTENSIONS
20/26/30’ STEEL BOOM

13Version 1.5
English
12 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English

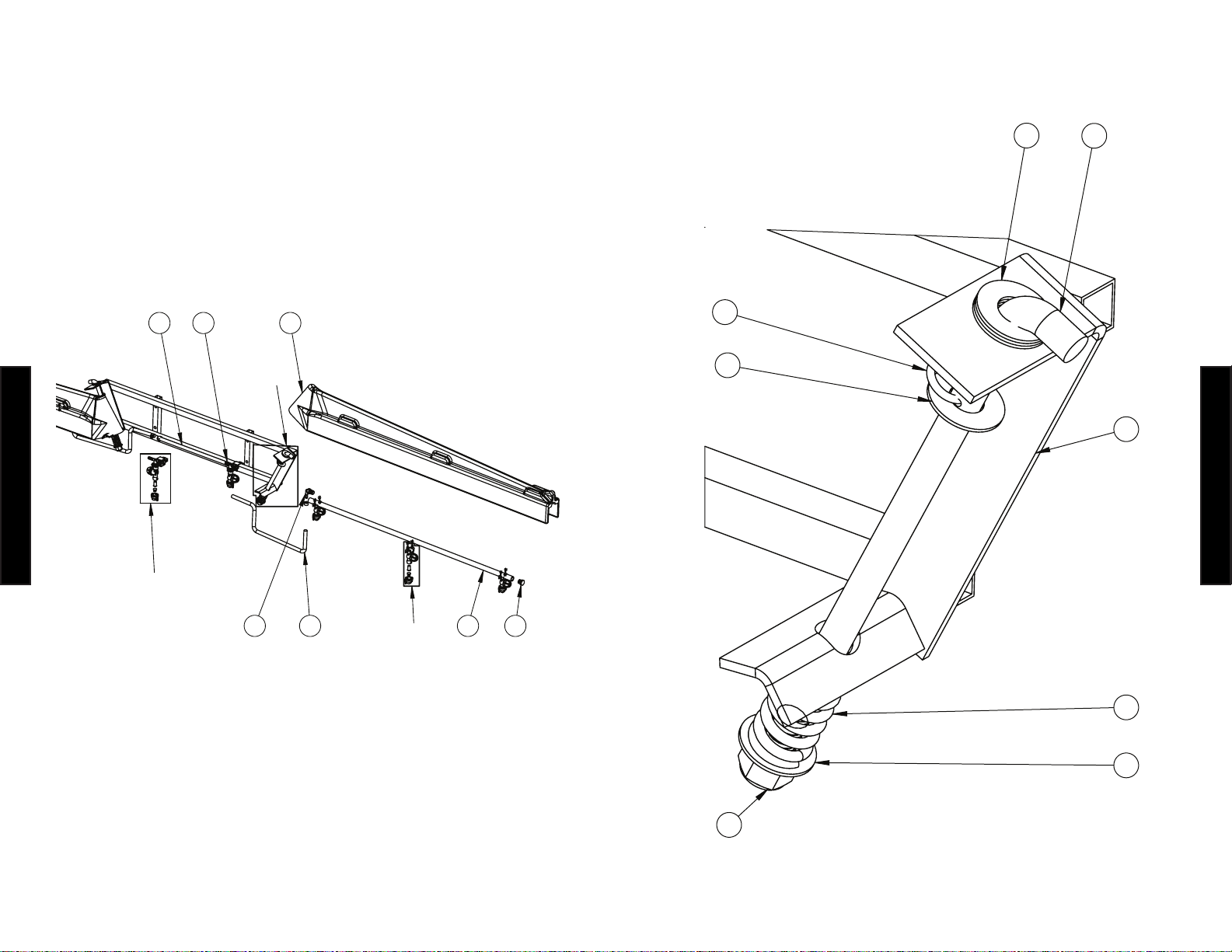

20’ STEEL BOOM OVERVIEW
12
24
26 22
17
1
2
333
25
8
23
Detail View B Detail View A
34
20' Steel Boom
37 36
35
Detail View
3031 32 29 27
20’ STEEL BOOM
DETAIL VIEW A
4 9 11 10
7
5
6
5
Detail A
20
19
18
13
20
14
15
16
Detail B
20’ STEEL BOOM

15Version 1.5
English
14 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
DETAIL VIEW B
4 9 11 10
7
5
6
5
Detail A
20
19
18
13
20
14
15
16
Detail B
20’ STEEL BOOM
ITEM NO. PART # DESCRIPTION QTY.
1 ASBS20SSRC 20 FT Steel Boom Frame Center 1
2
ASBS20SSRL 20 FT Steel Boom Frame Left Wing 1
3
ASBS20SSRR 20 FT Steel Boom Frame Right Wing 1
4
CHBG064525 5-8 Bolt for boom wings 2
5
CHWGF065 5/8 Flat Washer 8
6
CHPZBP Spring for steel boom 2
7
CHCZ0007 1-8 in cotter pin 2
8
CHNZN0625 5-8 Nyloc Nut 2
9
CHBZ030725 3/8 x 1.5 Bolt 4
10 CHWZF035 3/8 Flat washer 16
11
CHNZN0325 3/8 Nylock nut 4
12 ASBP004 Poly Pipe 62 IN 3
13 CA402235 Poly Boom Nozzle Body 12
14
CNSS100 100 Mesh Nozzle Screen 12
15
CA40290003 Quick Fitting Cap Red 12
16
CNSNP002 Teejet Polymer Spray Tip 0.2 GPM 12
17
CPFP05 1 inch square plug 4
18 CHCSZ7015085SH M6-22MM Head Cap Screw 24
19
CHBZ7010085 M6 - 16MM Hex Head Bolt 12
20
CHNZN0685 6MM Nyloc Nut 36
21
CFPP01M 3-8 MPT Poly Hex Plug 1
22 CFPS01M01B 3/8" MPT x 3/8" Hose Barb Straight 2
23 CV3EL38 3/8 mpt x 3/8 HB 90 1
24 CLUESB020001
3-8 Hose from Boom wing to supply-steel
boom
2
25 CLUESB020001
3-8 Hose from Boom center to supply-steel
boom
1
26 CFCC002 CLAMP FOR 3/8 HOSE 6
27 CV904PA .25 by 2in overcenter lynch pin 1
29 AZKB0003 Bracket for SS Booms 1
30 CHBZ010925 .25 x 2 IN Bolt 1
31 CHWZF015 1/4" Flat Washer 2
32 CHNZN0125 1/4 Nylock nut 1
33 CFBU01B02 .375NPT to .5 GH Street Elbow 2
34 CFBU02C Brass Cap-GH 2
35 CFBU02G rubber washer for brass cap 2
36 CFBU02WN Union .5 Wing Nut 3
37 CFBU01BW .375 Union Nipple-washer 3
PARTS LIST
20’ STEEL BOOM

17Version 1.5
English
16 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
26’ STEEL BOOM OVERVIEW
Detail View A
Detail View B
Detail View C
2
1
3
25 24 37
36
22
26
12
33
35
34
27
8
23
12
Detail View
31 30 32 29 27
26’ STEEL BOOM
DETAIL VIEW A
Detail A
1011945
7
5
6
Detail B
20
19
18
16
20
13
14
15
Detail C
39
21
17
41 42 37 36 43
22
40
26
26’ STEEL BOOM

19Version 1.5
English
18 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
DETAIL VIEW B & C
B
C
Detail A
1011 945
7
5
6
Detail B
20
19
18
16
20
13
14
15
Detail C
39
21
17
41 42 37 36 43
22
40
26
Detail A
1011 945
7
5
6
Detail B
20
19
18
16
20
13
14
15
Detail C
39
21
17
41 42 37 36 43
22
40
26
26’ STEEL BOOM
ITEM NO. PART # Description QTY.
1 ASBS20SSRC 20 FT Steel Boom Frame Center 1
2
ASBS20SSRL 20 FT Steel Boom Frame Left Wing 1
3
ASBS20SSRR 20 FT Steel Boom Frame Right Wing 1
4
CHBG064525 5-8 Bolt for boom wings 2
5
CHWGF065 5/8 Flat Washer 8
6
CHPZBP Spring for steel boom 2
7
CHCZ0007 1-8 in cotter pin 2
8
CHNZN0625 5-8 Nyloc Nut 2
9
CHBZ030725 3/8 x 1.5 Bolt 4
10 CHWZF035 3/8 Flat washer 16
11
CHNZN0325 3/8 Nylock nut 4
12 ASBP004 Poly Pipe 62 IN 3
13 CNSS100 100 Mesh Nozzle Screen 16
14
CA40290003 Quick Fitting Cap Red 16
15
CNSNP002 Teejet Polymer Spray Tip 0.2 GPM 16
16
CA402235 Poly Boom Nozzle Body 16
17
CPFP05 1 inch square plug 6
18 CHCSZ7015085SH M6-22MM Head Cap Screw 32
19
CHBZ7010085 M6 - 16MM Hex Head Bolt 16
20
CHNZN0685 6MM Nyloc Nut 48
21
CFPP01M 3-8 MPT Poly Hex Plug 3
22 CFPS01M01B 3/8" MPT x 3/8" Hose Barb Straight 4
23 CV3EL38 3/8 mpt x 3/8 HB 90 1
24 CLUESB020001 3-8 Hose from Boom wing to supply-steel boom 2
25 CLUESB020001 3-8 Hose from Boom center to supply-steel boom 1
26 CFCC002 CLAMP FOR 3/8 HOSE 10
27
CV904PA .25 by 2in overcenter lynch pin 3
29 AZKB0003 Bracket for SS Booms 1
30 CHBZ010925 .25 x 2 IN Bolt 1
31 CHWZF015 1/4" Flat Washer 2
32 CHNZN0125 1/4 Nylock nut 1
33 CFBU01B02 .375NPT to .5 GH Street Elbow 2
34 CFBU02C Brass Cap-GH 2
35 CFBU02G rubber washer for brass cap 2
36 CFBU02WN Union .5 Wing Nut 5
37 CFBU01BW .375 Union Nipple-washer 5
38 ASBS3LSS 3 FT. LH Steel Boom Ext. 1
39 ASBS3RSS 3 FT. RH Steel Boom Ext. 1
40 ASBP001 Poly Pipe 24 IN 2
41 CHBZ020925 5-16 x 2 Bolt 2
42 CHNZN0225 5/16 Nylock nut 2
43 CLUESB020001 .375 hose for wing tip extensions 2
PARTS LIST
26’ STEEL BOOM

21Version 1.5
English
20 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
30’ STEEL BOOM OVERVIEW
Detail View B Detail View A
Detail View C
3
2425
23
8
27
212
2226
1
Detail View
29
30 3231 27
30’ STEEL BOOM
DETAIL VIEW A
Detail A
41 9 11 10
7
5
6
5
30’ STEEL BOOM

23Version 1.5
English
22 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
17
20
17 36 2639 372226
36
20
Detail C
DETAIL VIEW B & C
B
C
19
18
16
19
13
14
15
Detail B
?
21
30’ STEEL BOOM
ITEM NO. PART # DESCRIPTION QTY.
1 ASBS20SSRC 20 FT Steel Boom Frame Center 1
2
ASBS20SSRL 20 FT Steel Boom Frame Left Wing 1
3
ASBS20SSRR 20 FT Steel Boom Frame Right Wing 1
4
CHBG064525 5-8 Bolt for boom wings 2
5
CHWGF065 5/8 Flat Washer 8
6
CHPZBP Spring for steel boom 2
7
CHCZ0007 1-8 in cotter pin 2
8
CHNZN0625 5-8 Nyloc Nut 2
9
CHBZ030725 3/8 x 1.5 Bolt 4
10 CHWZF035 3/8 Flat washer 16
11
CHNZN0325 3/8 Nylock nut 4
12 ASBP004 Poly Pipe 62 IN 3
13 CNSS100 100 Mesh Nozzle Screen 18
14
CA40290003 Quick Fitting Cap Red 18
15
CNSNP002 Teejet Polymer Spray Tip 0.2 GPM 18
16
CA402235 Poly Boom Nozzle Body 18
17
CPFP05 1 inch square plug 6
18 CHCSZ7015085SH M6-22MM Head Cap Screw 36
19
CHNZN0685 6MM Nyloc Nut 54
20
CFPP01M 3-8 MPT Poly Hex Plug 3
21 CHBZ7010085 M6-12MM Hex Bolt 18
22 CFPS01M01B
3/8" MPT x 3/8" Hose Barb Straight 6
23 CFPE01M01B 3/8 mpt x 3/8 HB 90 1
24 CLUESB020001
3-8 Hose from Boom wing to supply-
steel boom
2
25 CLUESB020001
3-8 Hose from Boom center to
supply-steel boom
1
26 CFCC002 CLAMP FOR 3/8 HOSE 7
27 CV904PA .25 by 2in overcenter lynch pin 3
29 AZKB0003 Bracket for SS Booms 1
30 CHBZ010925 .25 x 2 IN Bolt 1
31 CHWZF015 1/4" Flat Washer 2
32 CHNZN0125 1/4 Nylock nut 1
33 CHNZN0225 5/16 Nylock nut 2
34 CHBZ020925 5-16 x 2 Bolt 2
35 ASBS5LSS 5 Ft LH Wing Tip 1
36 ASBS5RSS 5 Ft RH Wing Tip 1
37 ASBP002 Poly Pipe Section 44 IN 2
39 CLUESB020001
3-8 Hose from tips to 5' extension
wings
2
PARTS LIST
30’ STEEL BOOM

25Version 1.5
English
24 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
2) Insert the bolt through the top hole, slide
the washer on and feed the bolt through
the boom arm and bottom hole.
3) Add the spring, the second washer and
the nut onto the bolt.
4) Insert the pin into the hole on the bolt
just above the top washer and hammer it
into place.
Assembling a 13’ Poly Boom
GETTING STARTED
1) Lay the boom arms on each side of the
centerpiece.
13’ POLY BOOM
6) Flip the arm up and down to ensure it
moves smoothly without catching. Follow
the same procedure for the other side.
5) Flip the boom arm up to a 90° angle
and tighten the bolt until the spring is
compressed.
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas
13’ POLY BOOM

27Version 1.5
English
26 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
13’ POLY BOOM OVERVIEW
7
81817 22
2021
Detail A
Detail B
Detail C
13’ POLY BOOM
DETAIL VIEW A
5
3
5
4
6
2
1
5
Detail A
13’ POLY BOOM

29Version 1.5
English
28 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
DETAIL VIEW B & C
19
12
9
11
10
Detail C
13
9
11
10
15
Detail B
B C
13’ POLY BOOM
PARTS LIST
ITEM NO. PART # DESCRIPTION QTY.
1 AZB013 Poly Boom 13FT Frame 1
2
CHBG064525 5-8 Bolt for Boom Wings 2
3
CHCZ0007 1-8 in cotter pin 2
4
CHPZBP Boom Spring 2
5
CHWGF065 5/8 Flat Washer 10
6 CHNZN0625 5-8 Nyloc Nut 2
7
AMABP13S Poly Section of PB13 2
8
ASBP002 Poly Pipe Section 44 IN 2
9
CNSS100 100 Mesh Nozzle Screen 8
10 CA40290003 Quick Fitting Cap Red 8
11 CNSNP002
Teejet Polymer Spray Tip 0.2
GPM
8
12 CA402235 Poly Boom Nozzle Body For Poly 6
13 CA413221
3-8 Single Barb x QA with Check
Valve
2
15 CA413014 25MM Varispacing Clamp 2
17 CFPE01M01B 3/8 mpt x 3/8 HB 90 2
18 CFPP01M 3-8 MPT Poly Hex Plug 2
19 CHSS900643 1.25" SS Phillips Wood Screw 12
20
CFCC002 CLAMP FOR 3/8 HOSE 6
21 CLUESB020001
.375 hose for 13' poly boom
center
1
22 CLUESB020001
.375 Hose for 13' PB from wing to
center
2
13’ POLY BOOM

31Version 1.5
English
30 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
2) Lay out both brackets.
3) Insert the bracket. The nozzles should be
facing down.
Assembling a Versatile Boom
GETTING STARTED
1) Unpack the hardware.
4) Secure the bracket by inserting a screw
through the hole. Then add a washer and
screw on the nut.
VERSATILE BOOM
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas
6) Complete the same procedure for the
second bracket.
5) Tighten using a wrench.
VERSATILE BOOM

33Version 1.5
English
32 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
VERSATILE BOOM OVERVIEW
17
10
13
6
16
12
25
14
15
1
3
7
14
15
14
15
10
13
12
Detail A
28
27
26
Detail View
VERSATILE BOOM
3
5
8
9
11
12
DETAIL VIEW A
VERSATILE BOOM

35Version 1.5
English
34 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
ITEM NO. PART # DESCRIPTION QTY.
1 AZFB16 Versatile Boom Frame 1
3
CA413014 25MM Varispacing Clamp 5
5
CA413211010 .375 Single Barb x .25 Npt 90 degree 2
6
CA413121 .375 HB Tee x QA 1
7
CA413111 .375 Single Barb X QA 90 Degree 2
8
CBNIP025SH .25 Short Poly Nipple 2
9
CA404072N 1/4"NPT X QA Swivel 2
10 CNSS100 100 Mesh Nozzle Screen 3
11 CNSNB001 80 Degree Brass Offset .4 GPM Nozzle 2
12 CA40290003 Quick Fitting Cap Red 5
13 CNSNP002 Teejet Polymer Spray Tip 0.2 GPM 3
14 CVS34BX1
1/4" Female x 1/4"Female T-handle
Ball Valve
3
15 CFPS00M01B .25 MPT x .375 HB 4
16 CFPT01B 3/8 Hose Barb Tee 1
17 CFPT00M01B 1/4" MPT x 3/8" HB Tee 2
25 CFCC002 CLAMP FOR 3/8 HOSE 17
26
CHBZ020925 5-16 x 2 Bolt 4
27 CHWZF025 5/16 Flat washer 8
28 CHNZN0225 5/16 Nylock nut 4
PARTS LIST
VERSATILE BOOM
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas
VERSATILE BOOM

37Version 1.5
English
36 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
24’ BOOMLESS NOZZLE KIT
OVERVIEW
8
65
43
1
2
7
9
3
4
?
1
6
2
5
Boomless Nozzle 30'
Boomless Nozzle 24'
ITEM NO. PART # DESCRIPTION QTY.
1 AZKB0001L BN24 Boomless Nozzle Bracket Bent 1
2
CFPS02M01B .5 MPT X .375 Hose Barb 1
3
CFPE02M02F 1/2" Street Elbow 1
4
CFBS02F00M2 .5 Female x .25 Male Reducer Brass 1
5CVS34BZO
1/4" Female x 1/4" MPT Lever Ball Valve 1
6
CNBN02 #2 Boomless Nozzle .25 FNPT 1
7
CHUZ010925 U Bolt with Plate 1
8
CLUESB020001 .375 Hose 1
9
CFCC002 CLAMP FOR 3/8 HOSE 1
ITEM NO. PART # DESCRIPTION QTY.
1 CA404072N 1/4"NPT X QA Swivel 2
2
CHUZ010925 .25 Steel U-bolt with Plate 1
3
CFCC002 CLAMP FOR 3/8 HOSE 4
4
AXKS0003 Pro Boomless Nozzle Bracket 1
5
CLUESB020001 (3/8 Hose) 1
6
CNBC010 FC Boomextender 1.0 GPM Green 2
7
CFPS00M01B .25 MPT x .375 HB 2
24’ BOOMLESS NOZZLE
5
3
2
7
4
6
1
3
ITEM NO. PART # DESCRIPTION QTY.
1 CA404072N 1/4"NPT X QA Swivel 2
2
CHUZ010925 .25 Steel U-bolt with Plate 1
3
CFCC002 CLAMP FOR 3/8 HOSE 4
4
AXKS0003 Pro Boomless Nozzle Bracket 1
5
CLUESB020001 (3/8 Hose) 1
6
CNBC010 FC Boomextender 1.0 GPM Green 2
7
CFPS00M01B .25 MPT x .375 HB 2
30’ BOOMLESS NOZZLE KIT
OVERVIEW
30’ BOOMLESS NOZZLE

39Version 1.5
English
38 Steel, Poly & Versatile Boom | Boomless Nozzle Kit
English
ATTACHING TO A SPRAYER
Please visit our YouTube channel to learn how to attach your
spray boom or boomless nozzle kit to an Enduraplas sprayer.
Attaching a Boomless Nozzle Kit to a Field Boss™
Attaching a Spray Boom to a Land Champ™
Attaching a Spray Boom to a Field Boss™
Watch Instruction Videos:
www.youtube.com/enduraplas
Attaching a Spray Boom to a Tow Lynx™
Attaching a Boomless Nozzle Kit to a Tow Lynx™
Attaching a Boomless Nozzle Kit to a Land Champ™
