KOLFF Black 1K User manual

USER MANUAL
ONLINE UPS
1-3K/220Vac LCD
Uninterruptible Power Systems

Please comply with all warnings and operating
instructions in this manual and on the unit strictly.
Save this manual properly. Do not operate this unit
before reading through all safety information and
operating instructions carefully.

-1-
1. Safety and EMC instructions
Please read carefully the following user manual and the
safety instructions before installing the unit or using the
unit!
1.1 Installation
Condensation may occur if the UPS is moved directly from a
cold to a warm environment. The UPS must be absolutely dry
before being installed. Please allow an acclimatization time of at
least two hours.
Do not install the UPS near water or in damp environment.
Do not install the UPS where it would be exposed to direct
sunlight or near heat.
Do not block ventilation openings in the UPS’s housing.
Do not connect appliances or items of equipment which would
overload the UPS (e.g. laser printers, etc) to the UPS output.
Place cables in such a way that no one can step on or trip over
them.
Socket-outlets and socket of batteries are earthed by the input
power cord, please insert the power cord into mains socket
before using of UPS.
Connect the UPS only to an earthed shockproof socket outlet.
The building wiring socket outlet (shockproof socket outlet) must
be easily accessible to close to the UPS.
This is operator installable .
Assure to connect with the earth reliably.
With the installation of the equipment,the sum of the leakage
current of the UPS and the connected load does not exceed
3.5mA.

-2-
1.2 Operation
Do not disconnect the mains cable on the UPS or the building
wiring socket (grounded shockproof socket) during operation as
this would remove the ground to the UPS and of all connected
loads.
The UPS features its own, internal current source (batteries).
You may be electric shock when you touch the UPS output
sockets or output terminal block even if the UPS is not
connected to the building wiring socket.
In order to fully disconnect the UPS, first press the Standby
button, then disconnect the mains lead.
Ensure that no liquid or other foreign objects can enter the UPS.
The UPS can be operated by any individuals with no previous
experience.
1.3 Maintenance, servicing and faults
The UPS operates with hazardous voltages. Repairs may be
carried out only by qualified maintenance personnel.
Caution - risk of electric shock. Even after the unit is
disconnected from the mains power supply (building wiring
socket), components inside the UPS are still connected to the
battery which are potentially dangerous.
Before carrying out any kind of service and/or maintenance,
disconnect the batteries. Verify that no current is present and
no hazardous voltage exists in the capacitor or BUS capacitor
terminals.
Batteries must be replaced only by qualified personnel.
Caution - risk of electric shock. The battery circuit is not isolated
from the input voltage. Hazardous voltages may occur between
the battery terminals and the ground. Verify that no voltage is

-3-
present before servicing!
Batteries have a high short-circuit current and pose a risk of
shock. Take all precautionary measures specified below and
any other measures necessary when working with batteries:
remove all jewellery, wristwatches, rings and other metal
objects
use only tools with insulated grips and handles.
When changing batteries, replace with the same quantity and the
same type of batteries.
Do not attempt to dispose of batteries by burning them. It could
cause explosion.
Do not open or destroy batteries. effluent electrolyte can cause
injury to the skin and eyes. It may be toxic.
Please replace the fuse only by a fuse of the same type and of
the same amperage in order to avoid fire hazards.
Do not dismantle the UPS, except the qualified maintenance
personnel.
1.4 Transport


Please transport the UPS only in the original packaging (to
protect against shock and impact).
1.5 Storage
The UPS must be stockpiled in the room where it is ventilated
and dry.

-4-
1.6 Standards
* Safety
IEC/EN 62040-1-1
*EMI
Conducted Emission..........................:IEC/EN 62040-2 Category C1
Radiated Emission.............................:IEC/EN 62040-2 Category C1
Harmonic Current...............................:IEC/EN 61000-3-2
Voltage Fluctuation and Flicker..........:IEC/EN 61000-3-3
*EMS
ESD...................................................:IEC/EN 61000-4-2 Level 4
RS.....................................................:IEC/EN 61000-4-3 Level 3
EFT....................................................:IEC/EN 61000-4-4 Level 4
SURGE.............................................:IEC/EN 61000-4-5 Level 4
Low Frequency Signals.....................:IEC/EN 61000-2-2

-5-
2. Description of commonly used symbols
Some or all of the following symbols may be used in this manual. It is
advisable to familiarize yourself with them and understand their
meaning:

-6-
3. Introduction
This On-Line-Series is an uninterruptible power supply incorporating
double-converter technology. It provides perfect protection specifically
for Novell, Windows NT and UNIX servers.
The double-converter principle eliminates all mains power disturbances.
A rectifier converts the alternating current from the socket outlet to direct
current. This direct current charges the batteries and powers the inverter.
On the basis of this DC voltage, the inverter generates a sinusoidal AC
voltage, which permanently supplies the loads.
Computers and periphery are thus powered entirely by the mains
voltage. In the event of power failure, the maintenance-free batteries
power the inverter.
This manual covers the UPS listed as follows. Please confirm whether it
is the model you intend to purchase by performing a visual inspection of
the Model No. on the rear panel of the UPS.
“S”Model: Extended backup time
Model No. Type Model No. Type
1K 1KS
2K 2KS
3K
Standard
3KS
Extended backup
time

-7-
4. Panel description
The Display Panel
Switch Function
ON-Button
Turn on UPS system:
By pressing the “ON”button the UPS system is turned on.
Deactivate acoustic alarm:
By pressing this Button an acoustic alarm can be deactivated.
OFF-Button
When mains power is normal, the UPS system switches to No
output or Bypass mode by pressing “OFF”button, and the
inverter is off. At this moment, if Bypass is enabled, then the
output sockets are supplied with voltage via the bypass if the
mains power is available.
Select-Button
If the UPS system is No output or Bypass mode, the output
voltage and frequency and Bypass disable/enable could be
selected by pressing Select-Button, and confirmed by pressing
Enter-Button.
Enter-Button
If the UPS system is No output or Bypass mode, the output
voltage and frequency and Bypass disable/enable could be
selected by pressing Select-Button, and confirmed by pressing
Enter-Button.

-8-
The LCD Display
Display Function
Input Information
Indicates the input Line voltage value, which could
be displayed from 0 to 999Vac
Indicates the frequency value of input Line
voltage, which could be displayed from 0 to 99Hz
Indicates the input Line current value, which could
be displayed from 0 to 99.9A
Output Information
Indicates the UPS output voltage value, which
could be displayed from 0 to 999Vac

-9-
Indicates the frequency value of the UPS output
voltage, which could be displayed from 0 to 99Hz
Indicates the UPS output current value, which
could be displayed from 0 to 99.9A
Load Information
Indicates the load or the UPS output is short and
the UPS would shut down
Indicates the load is over the SPEC range
Indicates the load percent, and the lowest grid
represent 30% load, the two low grids represent
60% load, the three low grids represent 90% load,
all the grids represent 100% load.
Battery Information
Indicates the battery voltage value, which could
be displayed from 0 to 999Vdc
Indicates the battery current value, which could be
displayed from 0 to 99.9A
Indicates the battery capacitance percent, and
every grid represent 25% capacitance. All the
grids represent 100% capacitance.
Indicates the UPS is working in the battery mode,
and the battery is discharged for supplying the
load
Indicates the battery is being charged
Indicates the battery is over charged, and the
UPS would be switched to Battery mode
Indicates the battery is weak, and the UPS would
shut down soon
UPS status Information
Indicates some the warning or fault occur in the
UPS, fault code or warning code could be
displayed, and the codes are illuminated in detail
in the following chapter

-10-

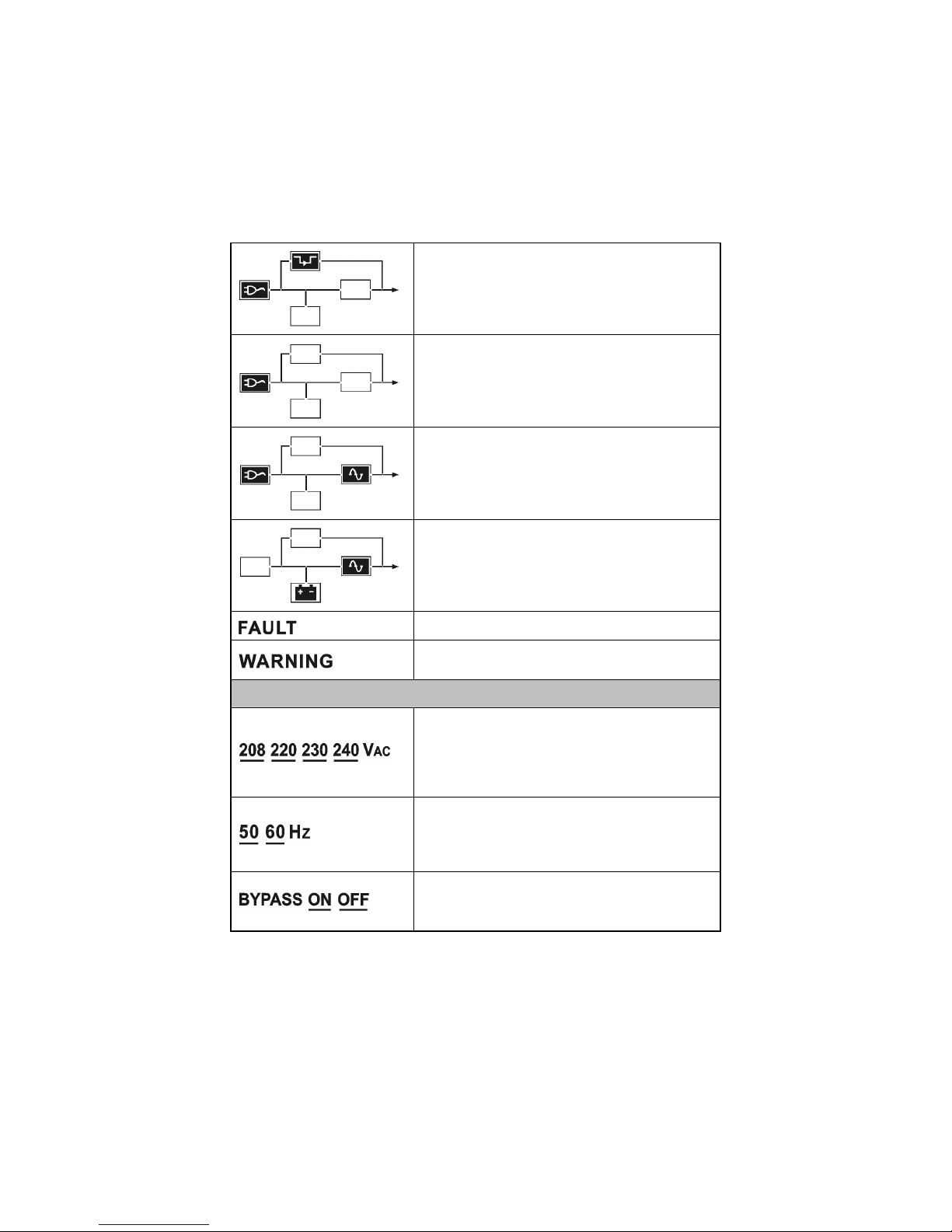

Indicates the UPS is working in bypass mode, the
load is directly supplied by the input power
through bypass
Indicates the UPS is working in no output mode
Indicates the UPS is working in line mode
Indicates the UPS is working in battery mode or
battery test mode
Indicates the UPS is working in fault mode
Indicates some warnings occur which need be
attention
UPS setting Information
The four value of the output voltage could be
selected when the UPS is in No output or Bypass
mode, and only one of them could be active in the
same time. Derating 10% when the output voltage
is adjusted to 208VAC
The two frequency value of the output voltage
could be selected when the UPS is in No output or
Bypass mode, and only one of them could be
active in the same time
Bypass disable or enable could be selected when
the UPS is in No output or Bypass mode, and only
one of them could be active in the same time

-11-
5. Connection and operation
5.1 Inspection:
Inspect the packaging carton and its contents for damage. Please
inform the transport agency immediately should you find signs of
damage.
Please keep the packaging in a safe place for future use.
Note: Please ensure that the incoming feeder is isolated and
secured to prevent it from being switched back on again.
5.2 Connection:
(1) UPS Input Connection
If the UPS is connected via the power cord, please use a proper
socket with protection against electric current, and pay attention to
the capacity of the socket: over 10A for 1K(S) & 2K, over 16A for
2KS& 3K(S).
(2) UPS Output Connection
The output of 1K(S), 2K are socket-types only. Simply plug the
load power cord to the output sockets to complete connection.
Model No. Output Socket (pcs) Terminal Block
1K/1KS 4 Nil
2K 6 Nil
2KS 4 Available
3K/3KS 4 Available
The system may be installed and wired only by qualified
electricians in accordance with a
pp
licable safet
y
re
g
ulations!
When installing the electrical wiring, please note the nominal
am
p
era
g
eof
y
our incomin
g
f
eede
r
.

-12-
Besides output sockets,2KS and 3K/3KS has the terminal block
available for output as well. The wiring configuration is shown as
the following procedure:
a) Remove the small cover of the
terminal block
b) Use AWG14 or 2.1mm2wires for
wiring configuration
c) Upon completion of the wiring
configuration, please check
whether the wires are securely
affixed.
d) Put the small cover back to the
rear panel.
(3) Computer Connection:
Connect your computer to the outlet sockets of the UPS system
following the above diagram.
5.3 Battery Charge:
Fully charge the batteries of the UPS system by leaving the UPS
system connected to the mains for 1-2 hours. You may use the UPS
system directly without charging it but the stored energy time may be
shorter than the nominal value specified.
5.4 Turn On the UPS:
(1) With utility power connecting:
Press “I”button continuously for more than 1 second to turn on the
UPS. Then the UPS will get into self-test status first. After having
Caution!
Do not connect equipment which would overload the UPS
system (e.g. laser printers)
Connection diagram of
2KS and 3K
(
S
)

-13-
finishing the self-test, the UPS will get into the inverter mode, at
this time, the LCD screen will light up and indicate the state of the
UPS.
(2) Without utility power connecting:
Even though utility power is not connected to the UPS, the UPS
still can be turned on by just simply pressing “I”button
continuously for more than 1 second. Then the UPS will get into
self-test status first. After having finishing the self-test, the UPS
will get into the inverter mode, at this time, the LCD screen will
light up and indicate the state of the UPS.
Note: The default setting for bypass mode is no output after UPS
is connecting utility power and breaker is turned on. This can be
configured by monitoring the LCD panel or firmware.
5.5 Test Function:
Test the function of the UPS system by either pressing the “On”
button or disconnecting the input of the UPS system from the power
supply.
5.6 Turn Off the UPS:
(1) In Inverter Mode:
Press “OFF”button continuously for more than 1 second to turn off
the UPS. Then the UPS will get into self-test status first. After
having finished the self-test, the UPS will get into no output or
bypass mode. At this time, the UPS might has output if bypass is
enabled. Disconnect the utility power to turn off the output.
(2) In Battery Mode:
Press “OFF”button continuously for more than 1 second to turn off
the UPS. Then the UPS will get into self-test status first. After
having finished the self-test, the UPS will be turned off completely.

-14-
5.7 Audible Alarm Mute Function:
If the alarm is too annoying in battery mode, you may press “ON”
button continuously for more than 1 second to clear it. Moreover, the
alarm will be enabled when the battery is low to remind you to
shutdown the load soon.
5.8 Operation Procedure of External Battery for Long
Backup time Model (“S”Model)
The units with CE markings—
(1) Use the battery pack with voltage: 36VDC for 1KS (3 pcs of 12V
batteries), 96VDC for 2KS/ 3KS (8 pcs of 12V batteries).
Connection of batteries more than or less than required will cause
abnormality.
(2) One end of the external battery cord is a plug for connecting the
UPS and the other end has a plug for connecting the user battery
cabinet.
(3) Do not connect the UPS to any load yet. Then, connect the power
cord of the UPS to supply utility power to the UPS to make the
UPS operate in utility power mode.
(4) Connect the plug of the external battery cord to the external
battery socket on the rear panel of the UPS to complete the
connection procedure and the UPS will start to charge the battery
pack.
(5) The red wire is connected to the "+" terminal of the battery. The
black wire is connected to the "-" terminal of the battery. (Note: the
green/yellow wire is grounded for protection purpose.)
The Caution!
The output sockets of the UPS system may still be electrically live
even if the power supply system has been disconnected or the
Bypass switch is on “OFF”position.

-15-
6. Operating mode for all models
6.1Linemode
The LCD display in Line mode is shown in the following diagram. The
information about the utility power, the battery, the UPS output and
the load could be displayed.
If output overloaded, the load percent is shown and alarm will keep
twice every second. You should get rid of some unnecessary loads
one by one to decrease the loads connected to the UPS less than
90% of its nominal power capacity.
Note: Please follow the following steps to connect the generator
Activate the generator and wait until the operation is stable before
supplying power of the generator to the UPS (be sure that the UPS
is in idle mode). Then turn on the UPS according to the start-up
procedure. After the UPS is turned on, then the loads can be
connected to the UPS one by one.
The power capacity of the AC generator should be at least twice of
the UPS capacity.


The Line mode

-16-
6.2 Battery mode
The LCD display in battery mode is shown in the following diagram.
The information about the utility power, the battery, the UPS output
and the load could be displayed.
(1) When the UPS is running in battery mode, the buzzer beeps once
every 4 seconds. If the “ON”button on the front panel is pressed
for more than 1 second again, the buzzer will stop beeping (in
silence mode). Press the “ON”button once again for more than 1
second to resume the alarm function.
(2) The display is the same in battery test mode.
6.3 Bypass mode
The LCD display in bypass mode is shown in the following diagram.
The information about the utility power, the battery, the UPS output
and the load could be displayed. The UPS will beep once every 2
minutes in bypass mode.


The Battery mode
