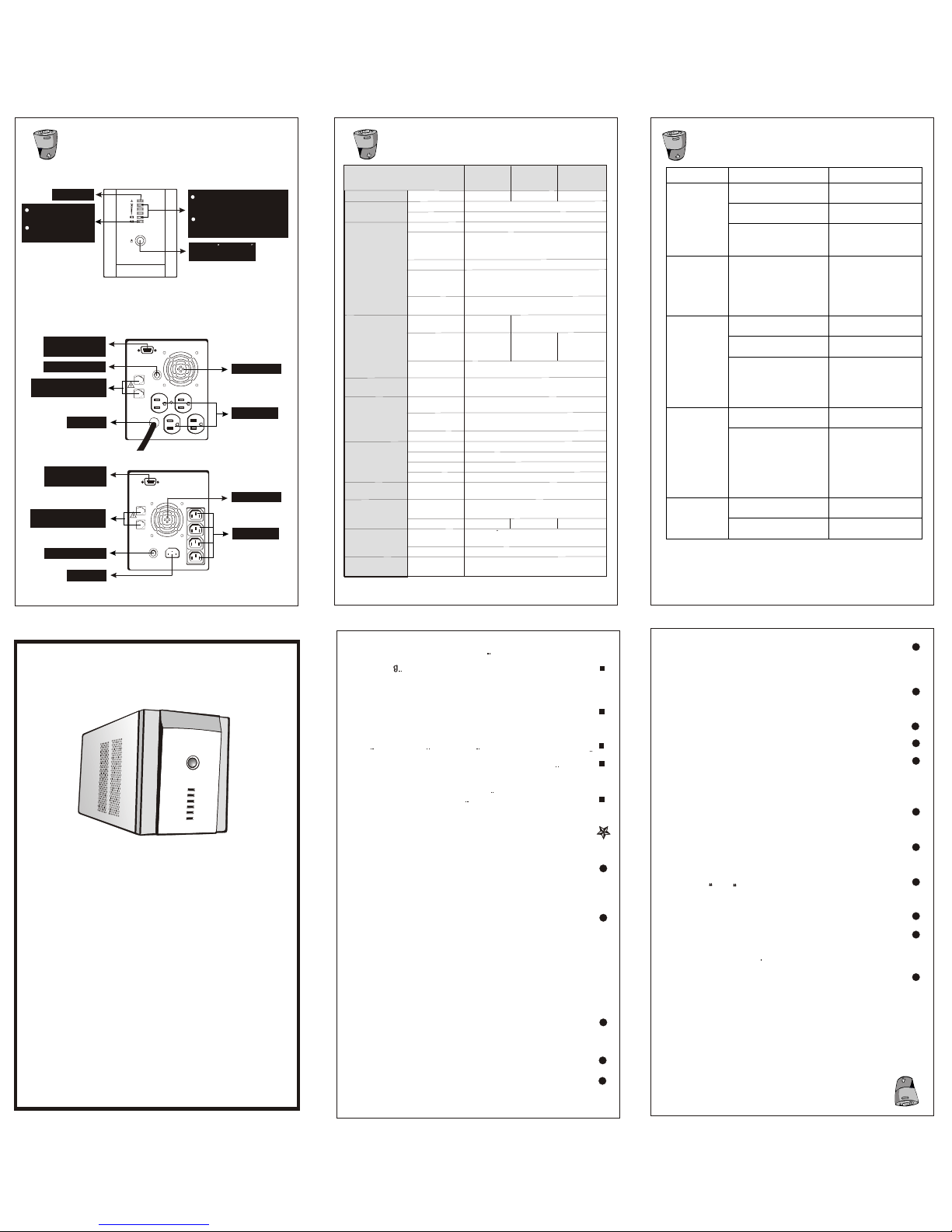

KOLFF Line Interactive 1000 User manual

System Description
Back Panel --
Front Panel --
Trouble Shooting
Specification
Fault LED
Power ON/OFF
Switch
AC Mode--
Green Lighting
Backup Mode--
Green Flashing
AC Mode--
Load Level LEDs
Backup Mode--
Battery Capacity LEDs
NEMA
IEC
Communication
Port
Circuit Breaker
Modem/Phone Line
Surge Protection
Cooling Fan
AC Output
AC Input
Communication
Port
Circuit Breaker
Modem/Phone Line
Surge Protection
AC Input
AC Output
Cooling Fan
User Manual
Line Interactive UPS
1st Edition, 2002
Uninterruptible Power Supply
Safety -- Caution!!
Do not dispose of batteries in a fire as they may explode.
Do not open or mutilate the battery or batteries. Release
electrolyte is harmful to the skin and eyes. It may be
toxic.
A battery can present a risk of electrical shock and high
short circuit current. The following precautions should
be observed when working on batteries:
1) Remove watches, rings, or other metal objects from
the hands.
2) Use tools with insulated handles.
3) Wear rubber gloves and boots.
4) Do not lay tools or metal parts on top of batteries.
5) Disconnect charging source prior to connecting or
disconnecting batteries terminal.
Servicing of batteries should be performed or supervised
by personnel knowledgeable of batteries and the required
precautions. Keep unauthorized personnel away from
batteries.
When replacing batteries, replace with the same number
and type of sealed lead-acid battery.
Wichtige Sicherheitshinweise
Bitte lesen Sie diese Hinweis sorgfaltig durch.
Vor jedem rcinigen ist das Gerat vom Stromnetz zu trennen.
Verwenden Sie Keine Flussig-oder Aerosolreiniger. Am
besten eignet sich ein angefeuchtetes Tuch zur Reinigung.
Das Gerat ist vor Feuchtigkeit zu schutzen.
Offncn Sie niemals das Gerat. Das Gerat darf aus Grunden
der elektrischen Sicherheit nur von authorisicrtem
Servicepersonal geoffnct Wcrdcn.
Bei der Installation is darauf zu achten, das der
Gesamtableitstrom der USV und der and der USV
angeschlossenen Verbraucher den. Maximalwert von 3.5mA
nicht ubershreiten.
VORSICHT: Explosionsgetahr bei unsachgema en Austausch
der Batterie. Ersatz nur durch denselben order einem wom
Hersteller empfoblenem ahnlichen typ. Entsorgung
gebrauchter Batterien nach Angaben des Hertellers.
SAVE THESE INSTRUCTION-This manual contains
important instructions for models Line Interactive
1000, Line Interactive 1400, Line Interactive 2000
that should be followed during installation and
maintenance of the UPS and batteries.
IMPORTANT SAFETY
INSTRUCTION
This UPS utilizes voltage that may be hazardous. Do not
attempt to disassemble the unit. The unit contains no user
replaceable parts. Only factory service personnel may
perform repairs.
Internal battery voltage is 24Vdc.
Connection to any other type of receptacle other than a
two-pole, three-wire grounded receptacle may result in
shock hazard as well as violate local electrical codes.
In the event of an emergency, press the OFF button
and disconnect the power cord from the AC power
supply to properly disable the UPS.
Do not allow any liquids or any foreign object to enter the
UPS. Do not place beverages or any other liquid-
containing vessels on or near the unit.
This unit intended for installation in a controlled
environment (temperature controlled, indoor area free of
conductive contaminants). Avoid installing the UPS in
locations where there is standing or running water, or
excessive humidity.
Do not plug the UPS input into its own output.
Do not attach a power strip or surge suppressor to the UPS.
Do not attach non-computer-related items, such as medical
equipment, life-support equipment, microwave ovens, or
vacuum cleaners to UPS.
To reduce the risk of overheating the UPS, do not cover the
UPS' cooling vents and avoid exposing the unit to direct
sunlight or installing the unit near heat emitting appliances
such as space heater or furnaces.
Unplug the UPS prior to cleaning and do not use liquid or
spray detergent.
Safety -- Caution!!
Symptom Possible Cause Remedy
1. Missing battery. 1. Charge battery up to
8 hours.
2. Battery defect. 2. Replace with the
same type of battery.
No LED display
on the front
panel.
3. Power switch is not
pressed at least 5
seconds.
3. Press power switch
for at least 5
seconds.
Alarm buzzer
beeps
continuously
when AC
supply is
normal.
Overload of the UPS. Verify that the load
matches the UPS
capability specified in
the specs.
1. Overload of the UPS. 1. Remove some
noncritical load.
2. Battery voltage is too
low.
2. Charge battery 8
hours or more.
When power
failure, back-up
time is shorten.
3. Battery defect due to
high temperature
operation environment,
or improper operation
to battery.
3. Replace with the
same type of battery.
1. Software is not
installed well.
1. Check the setting of
the software .
Communication
lost between
UPS and
computer.
2. Cable is not properly
connected.
2. Check the RS-232
cable is firmly
connected to
COM1/COM2 of the
computer and
confirm the setting
again.
1. Circuit breaker is
broken.
1. Reset the circuit
breaker..
Mains normal
but green LEDs
are on. 2. Power cord is loose. 2. Reconnect the power
cord properly.
Line
Interactive
1000
Line
Interactive
2000
MODEL
CAPACITY
115VAC / 220, 230, 240VAC
90-140VAC / 158-290VAC
115VAC / 220, 230, 240VAC
+/- 10%
50Hz or 60Hz
+/- 1Hz
Modified Sinewave
12V/7Ah
x 2pcs
25 minutes
8 hours to 90% after complete discharge
4-6 ms
The 1st green LED lighting, and the 2nd to 5th green
LEDs gradually lighting indicating load level
The 1st green LED flashing, and the 2nd to 5th green
LEDs gradually lighting indicating battery capacity
Red LED lighting
Sounding every 10 seconds
Sounding every second
Sounding every 0.5 seconds
Continuously Sounding
Discharge, overcharge, and overload
protection
368.3mmx140.2mmx180.4mm
14.2kg
0-40 C, 0-90% relative humidity
(non-condensing)
Less than 40dB
Support windows 95/98/NT/2000/XP,
Novell, and Linux
INPUT
OUTPUT
BATTERY
TRANSFER
TIME
INDICATOR
AUDIBLE
ALARM
PROTECTION
PHYSICAL
ENVIRONMENT
INTERFACE
Smart RS-232
Noise Level
Operating
Environment
Net Weight
Dimension
DxWxH
VA/W
Voltage
Voltage Range
Voltage
Voltage
Regulation
(Batt. Mode)
Frequency
Frequency
Regulation
(Batt. Mode)
Output
Waveform
Battery Type &
Number
Backup Time (at
2-PC load with
15" monitor)
Recharge Time
Typical
AC Mode
Backup Mode
Backup Mode
Low Battery
Overload
Fault
Full Protection
26 minutes
16kg
Fault
Line
Interactive
1400
1000VA/600W1400VA/840W
2000VA/1080W
12V/9Ah x 2pcs
23 minutes
13.8kg
28-2BLA1K0018

5Modem/Phoneline Connection
6Serial cable Connection
7Turn On/Off
8DC Start Function
Installation and Operation
1Inspection
2Placement
4Computer Connection
3Charging
Installing the UPS is as easy as following the steps
shown. Be aware of the Power Switch must be kept
in the ON position, otherwise, the UPS will be
disabled and your equipment will not be protected
during a power failure.
Remove the UPS from its package and inspect it
for damage that may have occurred during
shipping. If any damage is discovered, re-pack
the unit and return it to the place of purchase.
This Series will be turned on automatically
at first plug-in. At this moment, press power
switch lightly to turn off the UPS. To turn on
the UPS again, just simply press power switch
again. Please DO NOT punch it for extended
life of the power switch.
DC Start Function enables UPS to be started up
when AC utility power is not available and battery
is fully charged. Just simply press the power
switch to turn on the UPS.
9Green Power Function
This Series are equipped with Green Power
Function. If no load connects to the UPS, it will
automatically shut down in 5 minutes for energy
saving while power failure. The UPS will restart
while ACrecovery.
Install the UPS unit in any protected environment
that provides adequate airflow around the unit, and
is free from excessive dust, corrosive fumes and
conductive contaminants. Do not operate your
UPS in an environment where the ambient
temperature or humidity is high. On the other hand,
place the UPS unit away from the monitor at least
20cm to avoid interference.
This unit is shipped from the factory with its
internal battery fully charged, however, some
charge may be lost during shipping and the
battery should be recharged prior to use. Plug
the unit into an appropriate power supply and
allow the UPS to charge fully by leaving it
plugged in for at least 8 hours.
Connect one computer-related device into each of
the power receptacles supplied on the back of the
UPS.
Plug incoming internet line into the In socket at
the back of the UPS. Use on more Internet line
cable and plug one end of the Internet line cable
to the Out socket at the back of the UPS. Plug
the other end of the modem input socket as
shown below.
To allow for unattended system shutdown for your
operating system, connect the serial cable as per
diagram below.
10 Battery Replacement
Follow Chart 1 to Chart 3 to replace the battery.
Disconnecting all sources of supply before battery
replacement.
Remove the panel
20 cm
Remove the battery cover
Chart 1
Chart 2
Chart 3
After removing the battery cover, gently extract the battery by
disconnecting the two wires connecting it to the UPS. Be sure
replaced the same type of batteries and dispose of old battery
properly at an appropriate recycling facility.
8 hours
Incoming
Internet line
Free Software Download
-- Commander Pro --
Commander Pro is a unique uninterruptible power supply
(UPS) control software that offers you unprecedented
convenience for the control of any UPS.
Features:
Saves files before shutdown occurs
Scheduled system shutdown
Graphic display of UPS status
Warning notification via E-mail
User-friendly interface
Multi-language versions
Download Commander Pro from the internet is a simple
process:
1. Go to Website http://www.ups-software-download.com
2. Click Commander Pro Icon to enter software download
area.
3. Choose operating system you need for your PC and double
click to download software automatically.
4. Type in Serial No: 511C1-01220-0100-478DF2Ato install
the software.
