PRECAUTIONS FOR USE
oThe device may be used by children above 8 years of age and persons with
lesser psychological and mental capabilities or lack of knowledge and
experience in the event that they are supervised or adequately informed about
the safe use of the device and understand the dangers.
oChildren should not play with the device.
oChildren may not carry out cleaning or maintenance of the device unattended.
oUse the device only in accordance with the intended use as described in this
manual. Do not use extra plug-ins if not recommended by the manufacturer.
oNever place or insert objects in the openings.
oSpace (bathroom) in which your massage cabin is located, must be designed
according to the regulations in force in each state. In zones 0, 1, 2 there
should be no switches, sockets or connections placed at your fingertips. They
should be located at least 0.6 m from the massage cabin and of a height of
2.25 m, as shown in Figure 2 - space.
oExcessive retention in hot water or steam can cause hyperthermia. This
occurs when the internal body temperature significantly exceeds the normal
body temperature of 37°C. Signs of hyperthermia are increased internal body
temperature, dizziness, lethargy, drowsiness and fainting. The effects of
hyperthermia are inability for heat-detecting, absence of feeling the need to
leave the hot room, unawareness of the impending danger. It can cause
damage to the foetus in pregnant women, physical exhaustion loss of
consciousness, and general danger.
oAlcohol, drugs or medication before or during the use of massage cabins can
significantly increase the risk of fatal hyperthermia or slipping.
oDo not perform unauthorised interventions that affect the safe and smooth
operation of this product.
oBe careful when entering or leaving the hot tub / cabin.
oAvoid massage or steam bath immediately after hard day's work or after
strenuous exercise. Risk of hyperthermia.
oNo electrical installations, including those which produce steam or moisture
are allowed to be used inside the cab.
oTo remove particles from the pipes, the water supply needs to be drained by at
least 25-50 litres of water before connecting the massage cabin.
oUse of instantaneous water heater may reduce the flow of hot water. Due to
the difference in pressure of the hot and cold water the proper functioning of
the mixing water valve is hampered. In this case claims for improper operation
of the valve are not accepted.
oLow water flow or the use of multiple massage functions at the same time
reduces the effect (power) of jets.
oThe effect of the jet is directly dependent on the flow rate (pressure) of water.
oThe massage cabin is allowed to be connected to the water supply with
minimum pressure of 0.2 MPa (2 bar) but not more than 0,4 MPa (4 bar).
Connection to a higher water pressure is not allowed without the installation of
additional limiters set at 0.4 MPa (4 bar). Kolpa d.o.o. does not recognise any
claims which might arise from a higher water pressure than allowed for this
product.
oParts containing electrical components (except for remote control), must be
placed or fastened so that they cannot fall into the massage cabin. A person in

58 / 120
www.kolpasan.eu
massage cab is not allowed to have access to any parts containing live parts,
except those supplied with safety extra-low voltage (SELV) not exceeding 12 V.
oChildren are allowed to use the appliance without supervision only if
instructed on the safe use massage showers, and if they understand the
potential dangers in the event of improper use.
CLEANING and MAINTENANCE OF A MASSAGE BATH
CABIN
oChildren may not carry out cleaning or maintenance of the device if
unattended.
oAfter completing the massage cycle, massage cabin shall be rinsed with
a jet of clean water and particles which might clog the openings in the
massage nozzle removed. Use a clean cloth to wipe the chrome parts.
oUse only liquid cleansers and a soft cloth to clean.
oTo clean the acrylic and other kerrock or metal surfaces as well as to
remove lime scale KOLPA SAN SPECIAL CLEANER is recommended.
Spray the special cleaner on the surface or apply it with a sponge and
allow a few minutes to operate. Rinse with clean water. For valves with
a distinct sheen wiping the surface is recommended.
oATTENTION: The use of detergents in concentrations higher than
indicated in the appropriate instructions is not allowed.
oATTENTION: Cleaner operating for longer than 60 minutes may HARM
THE SURFACES of coloured elements and high-gloss elements
(chrome).
oDescaling can also be done by using household vinegar which is more
effective when it warms up.
oIt is forbidden to use abrasive cleaning agents containing coarse fillers.
GENERAL WARNINGS ON CONNECTION AND
INSTALLATION
oThe massage cabin is allowed to be connected to the water supply with
minimum pressure of 0.2 MPa (2 bar) but not more than 0,4 MPa (4 bar).
Connection to a higher water pressure is not allowed without the installation of
additional limiters set at 0.4 MPa (4 bar). Kolpa d.o.o. does not recognise any
claims which might arise from a higher water pressure than allowed for this
product.
oConnecting the water inlet hose to the massage cabin or pillar shall be
performed in a way avoiding that a pillar or wall would PRESS directly to the
connecting pipe or any other pipe of the massage system. To install the main
water inlet on the wall connector we recommend using of an ANGLED
connector or a 90° ELBOW for an easier connection and relieved joints.
oKolpa d.o.o. does not recognise any claims which might arise from an
inappropriate installation.
oPositions of electrical outlets, hot and cold water drains and inlets, as shown in
the attached drawings and installation instructions, are showing only one of

59 / 120
www.kolpasan.eu
the possible layouts of these connections. Their position is allowed to change
to any other location within the dimensions of the item, as long as this position
does not interfere with the function / operation of the elements mounted on the
pillar or a massage cabin. Hot and cold water supply pipes can, if necessary,
be extended or replaced with pipes of suitable length. Kolpa d.o.o. does not
recognise any claims which might arise from damage made by replacing or the
quality of the replacing pipes.
oTo remove particles from the pipes, the water supply needs to be drained by at
least 25-50 litres of water before connecting the pillar or massage cabin.
oInlet of each product connected to a water source is recommended to feature
a stop valve. If this valve is already installed in the existing water installation
scheme and is able to stop water just for your apartment or bathroom, then the
installation of an additional valve is not required. CAUTION! Pay attention to
the dimensions of the valve, as the massage pillars leave very little space for
connection to the water network. Angled or straight ball valves of smaller
dimensions are recommended.
oWe recommend the installation of one-way water flow valves on both the hot
and cold water where water pressure between the hot and cold water might
vary occasionally. Most often this happens in the following cases:
oWhen using flow water heater (without the hot water tank).
oIn buildings where hot water is supplied separately from the objects /
devices intended for heating water for a large number of residential
buildings at the same time. Examples: plants in major cities, thermal
springs and the like.
oIn multi-dwelling buildings with a large number of consumers of water.
The purpose of the one-way valves is to prevent return of hot water through
the cold water pipes and vice versa.
For small housing where the water is heated with electric heaters, the one-way
valves are not required.
Where the water is heated through central heating, one-way valves are only
required if property has a very large number of water customers (multi-
apartment block or tower).
oIn areas where the water contains a large quantity of particles (impurities) and
scaling, we recommend to install a device to remove or neutralize
contaminants. This increases the lifetime of massage pillars and greatly
facilitates the cleaning of surfaces and components. To the extent feasible, we
recommend such devices to be installed on the building's main water supply,

60 / 120
www.kolpasan.eu
as this is the most economical and comprehensive solutions for the entire
facility.
Kolpa d.o.o. does not recognise any claims arising from limescale or dirt in the
pipes, if not a filter for impurities and device for reducing the amount of
limescale installed.
oKolpa d.o.o. recognises the complaint only for the defect in the product, rather
than from improper installation.
oAttention: Kolpa is not liable for injuries caused by excessive water
temperatures.

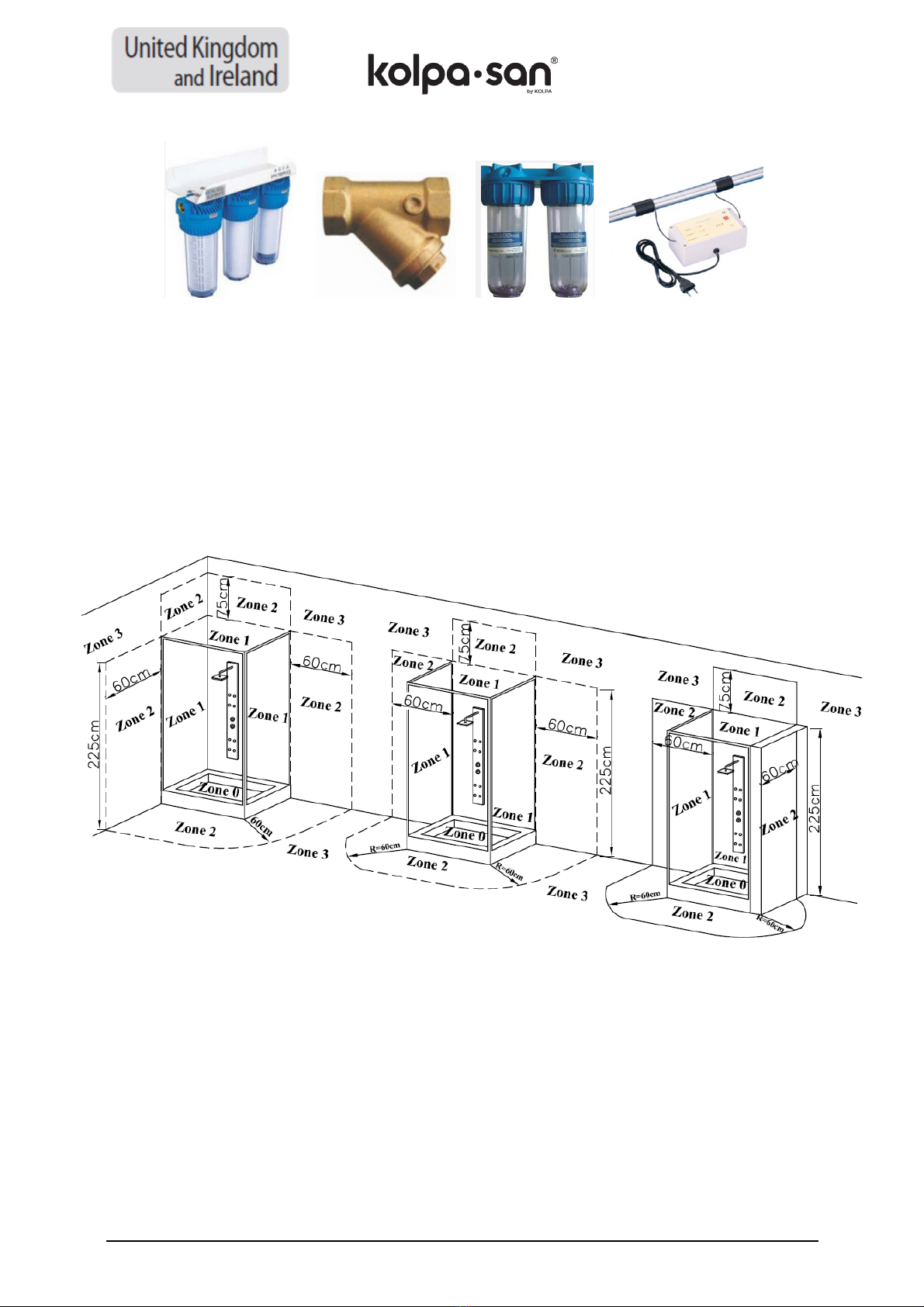

oSpace in which your massage cabin is located (bathroom), must be designed
according to the national regulations in force. In zones 0, 1, 2 there should be
no switches, sockets or connections placed at your fingertips. They should be
located at least 0.6 m from the massage cabin and of a height of 2.25 m, as
shown in figure below:

61 / 120
www.kolpasan.eu
USER MANUAL

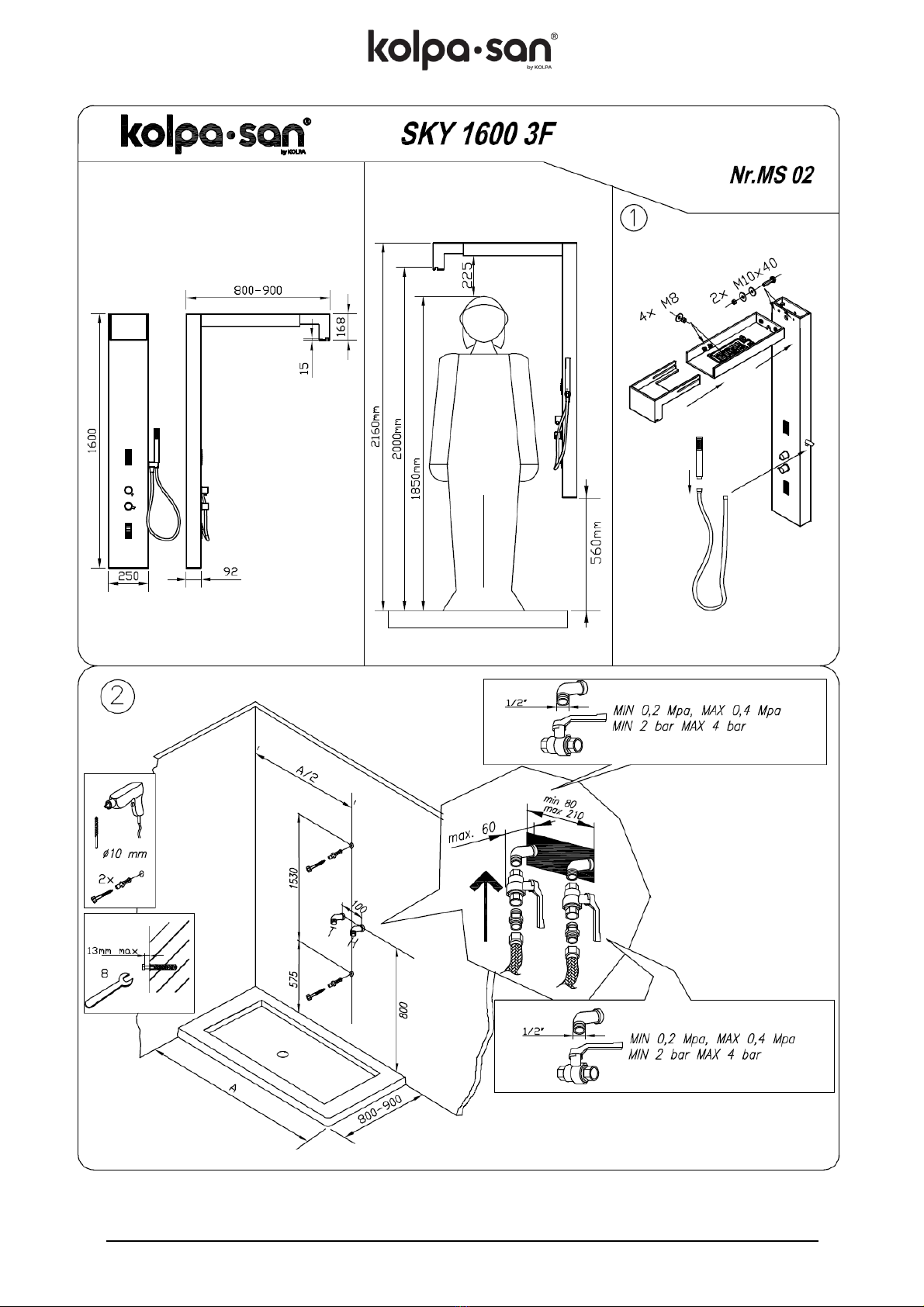

SKY 1600 3F
The SKY massage wall
features a multifunction
mixer.
MASSAGE FUNCTIONS
Functions are set by turning
left or right
the upper part of the mixer.
Power of the jet is set by
lifting the lower lever.

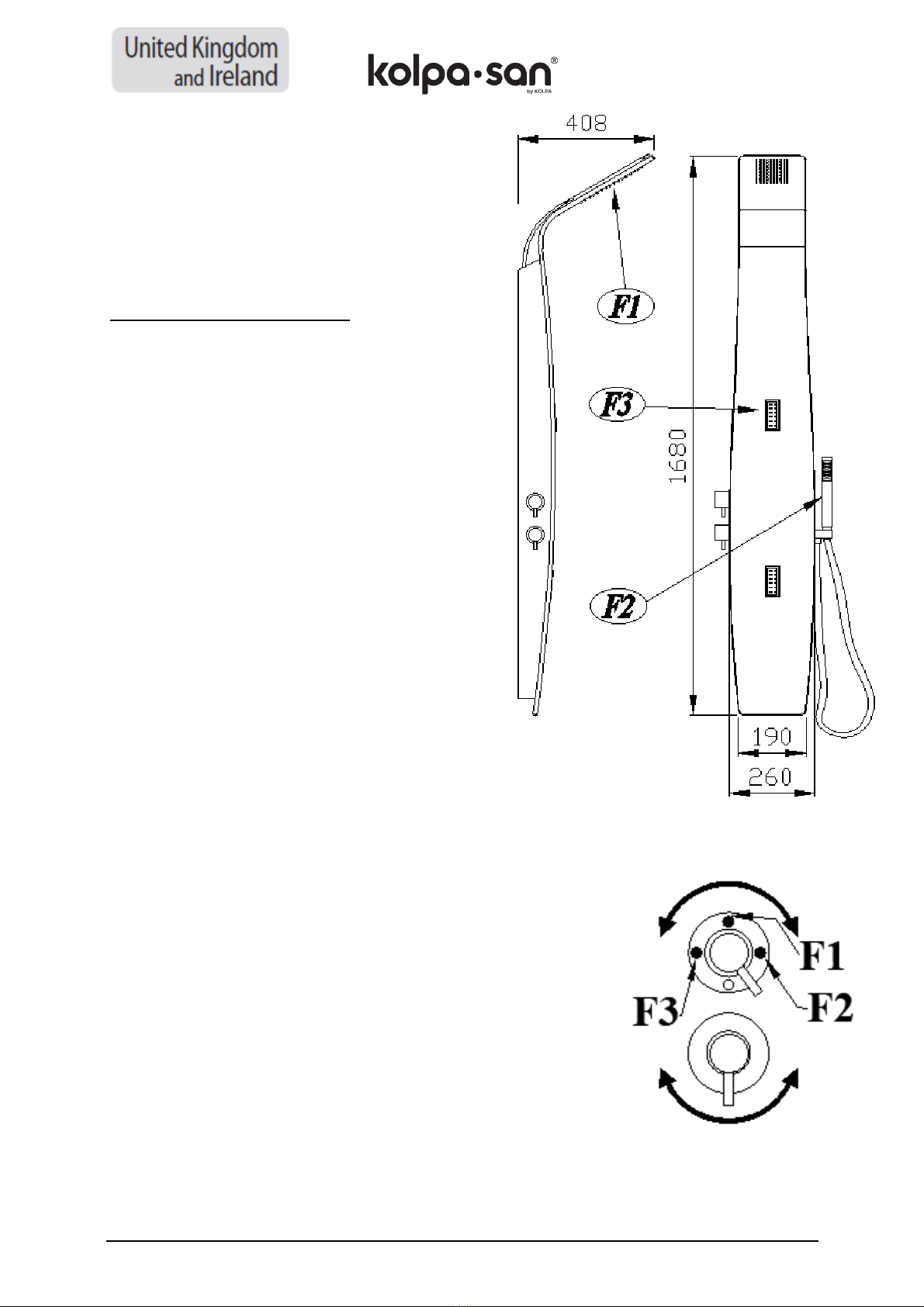

F1 - Head Shower
F2 - Hand-held shower
F3 - Massage nozzles
By turning the lower lever
left or right the water
temperature is set.
Warnings:
Kolpa is not liable for injuries caused by
excessive water temperatures.
Variations and fluctuations of pressure in the
pipes between the hot and cold water interferes
with the normal operation of the mixer. In this
case, Kolpa d.o.o. does not recognise the claims
of improper operation of the mixer.
COLD
WATER
HOT
WATER

62 / 120
www.kolpasan.eu
USER MANUAL

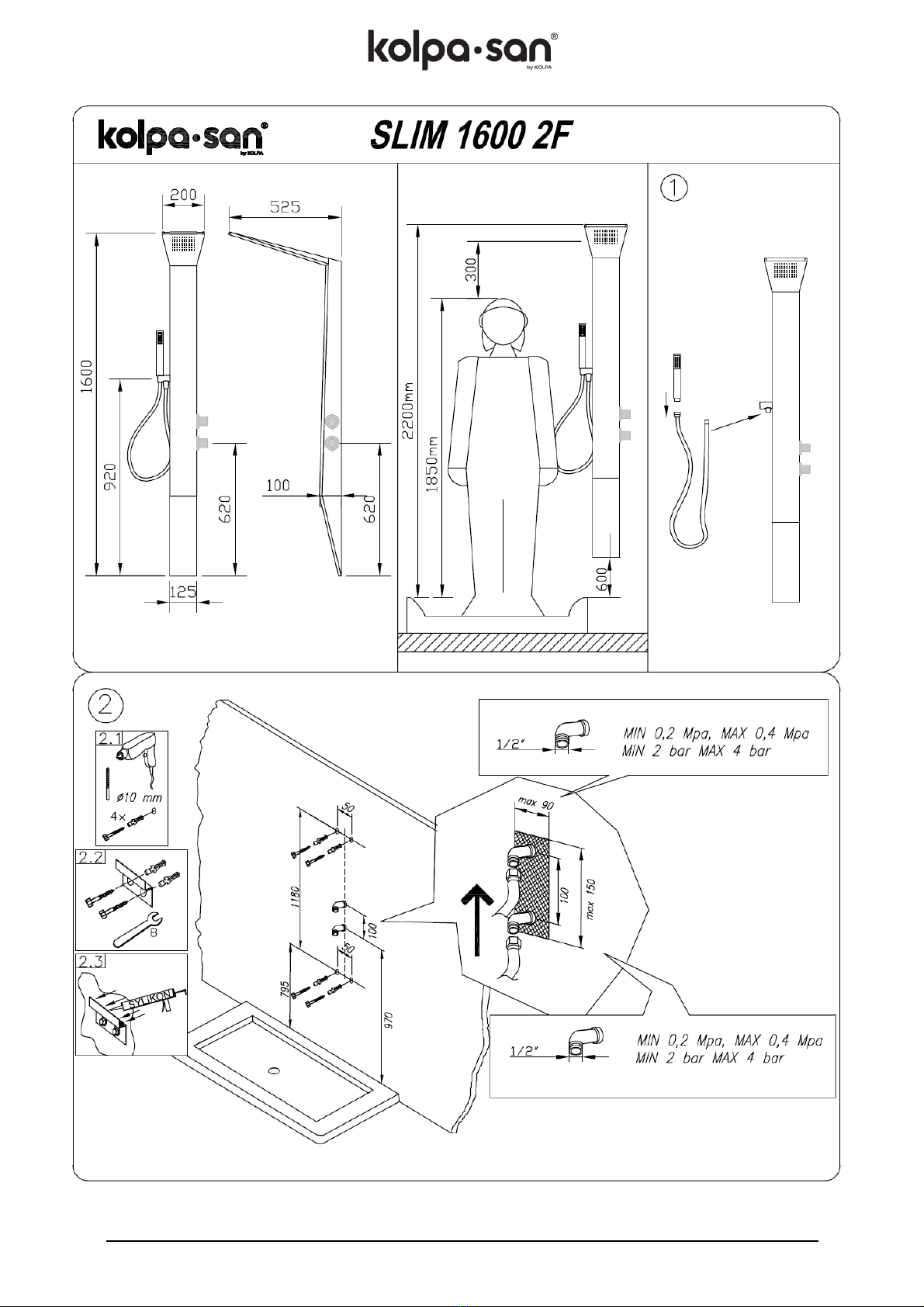

SLIM 1600 2F
The SLIM massage wall features
a multifunction mixer.
MASSAGE FUNCTIONS
Functions are set by turning
left or right
the upper part of the mixer.
Power of the jet is set by
turning the upper part
of the mixer BETWEEN
THE SELECTED FUNCTIONS.
F1 - Hand-held shower
F2 - Head Shower
By turning the lower lever left or right the water temperature is set.
To select water temperature exceeding 38
o
C, the
lock must first be pressed and the lever turned further
left.
Warnings:
Kolpa is not liable for injuries caused by excessive
water temperatures.
Variations and fluctuations of pressure in the pipes
between the hot and cold water interferes with the
normal operation of the mixer. In this case, Kolpa
d.o.o. does not recognise the claims of improper
operation of the mixer.
COLD
WATER
HOT
WATER

63 / 120
www.kolpasan.eu
USER MANUAL

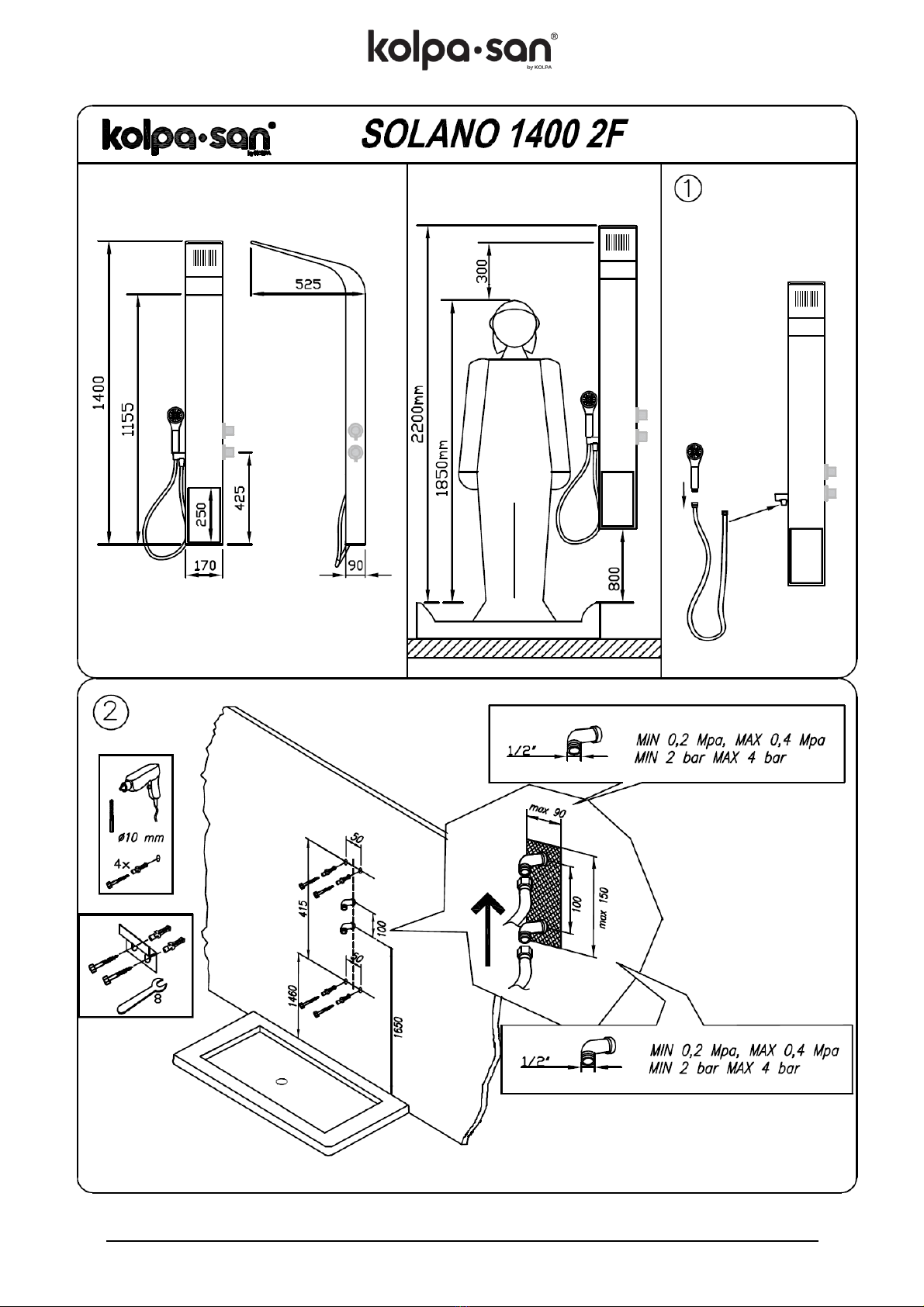

SOLANO 1400 2F
The SOLANO massage wall features
a multifunction mixer.
MASSAGE FUNCTIONS
Functions are set by turning
left or right
the upper part of the mixer.
Power of the jet is set by
turning the upper part
of the mixer BETWEEN
THE SELECTED FUNCTIONS.
F1 - Hand-held shower
F2 - Head Shower
By turning the lower lever left or right the water temperature is set.
To select water temperature exceeding 38
o
C, the lock must first be
pressed and the lever turned further left.
Warnings:
Kolpa is not liable for injuries caused by excessive
water temperatures.
Variations and fluctuations of pressure in the pipes
between the hot and cold water interferes with the
normal operation of the mixer. In this case, Kolpa
d.o.o. does not recognise the claims of improper
operation of the mixer.
COLD
WATER
HOT
WATER

64 / 120
www.kolpasan.eu
USER MANUAL
ZEPHYR 1680 3F
The ZEPHYR massage wall features
a multifunction mixer.
MASSAGE FUNCTIONS
Functions are set by turning
left or right
the upper part of the mixer.
Power of the jet is set by
turning the upper part
of the mixer BETWEEN
THE SELECTED FUNCTIONS.
F1 - Head Shower
F2 - Hand-held shower
F3 - Massage nozzles
By turning the lower lever left or right
the water temperature is set.
To select water temperature exceeding
38
o
C, the lock must first be pressed
and the lever turned further left.
Warnings:
Kolpa is not liable for injuries caused by excessive
water temperatures.
Variations and fluctuations of pressure in the pipes
between the hot and cold water interferes with the
normal operation of the mixer. In this case, Kolpa
d.o.o. does not recognise the claims of improper
operation of the mixer.
HOT
WATER
COLD
WATER

65 / 120
www.kolpasan.eu
USER MANUAL
ZONDA 1500 3F

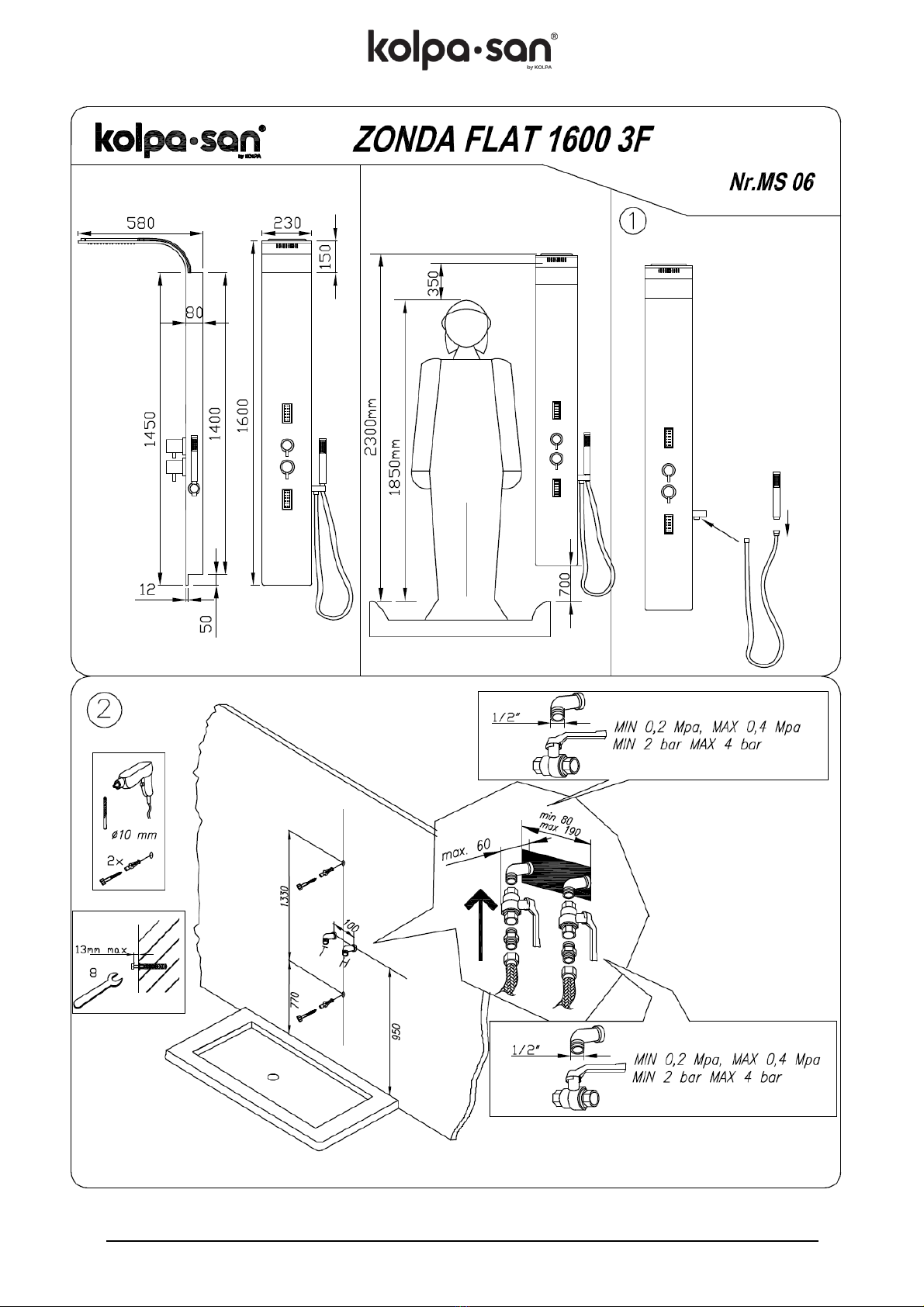

ZONDA FLAT 1600 3F
The ZONDA massage wall
features a multifunction mixer.
MASSAGE FUNCTIONS
Functions are set by turning
left or right
the upper part of the mixer.
Power of the jet is set by
lifting the lower lever.
F1 - Head Shower
F2 - Hand-held shower
F3 - Massage nozzles
By turning the lower lever
left or right the water
temperature is set.
Warnings:
Kolpa is not liable for injuries caused by
excessive water temperatures.
Variations and fluctuations of pressure in the
pipes between the hot and cold water interferes
with the normal operation of the mixer. In this
case, Kolpa d.o.o. does not recognise the claims
of improper operation of the mixer.
COLD
WATER
HOT
WATER

66 / 120
www.kolpasan.eu
USER MANUAL
ZONDA 1500 4F
The ZONDA massage wall
features a multifunction mixer.
MASSAGE FUNCTIONS
Functions are set by turning
left or right
the upper part of the mixer.
Power of the jet is set by
lifting the lower lever.
F1 - Head Shower
F2 - Hand-held shower
F3 - Massage nozzles
F4 - Waterfall
By turning the lower lever
left or right the water
temperature is set.
Warnings:
Kolpa is not liable for injuries caused by
excessive water temperatures.
Variations and fluctuations of pressure in the
pipes between the hot and cold water
interferes with the normal operation of the
mixer. In this case, Kolpa d.o.o. does not
recognise the claims of improper operation of
the mixer.
HOT
WATER
COLD
WATER

www.kolpasan.eu

www.kolpasan.eu

12/2021
KOLPA, d.o.o. Metlika
Rosalnice 5
SI-8330 Metlika
SLOVENIJA
tel.: [phone]
fax.: + 386 07/36-92-166
e-mail: [email protected]
www.kolpa.si
