KONAMI TURTLES Teenage Mutant Ninja Turtles User manual

KONAMI
4, PLAYER UPRIGHT
INSTRUCTION MANUAL
TEENAGE MUTANT NINJA TURTLES
®©Mirage Studios, USA.
All rights reserved. Trademark use granted to Konami under license from Mirage Studios, USA.
Exclusively licensed by Surge Licensing. Inc.
©Konami Inc. 1989
ykonami 'is atrademark of Konami Industry Co., Ltd.
Part Number 963400

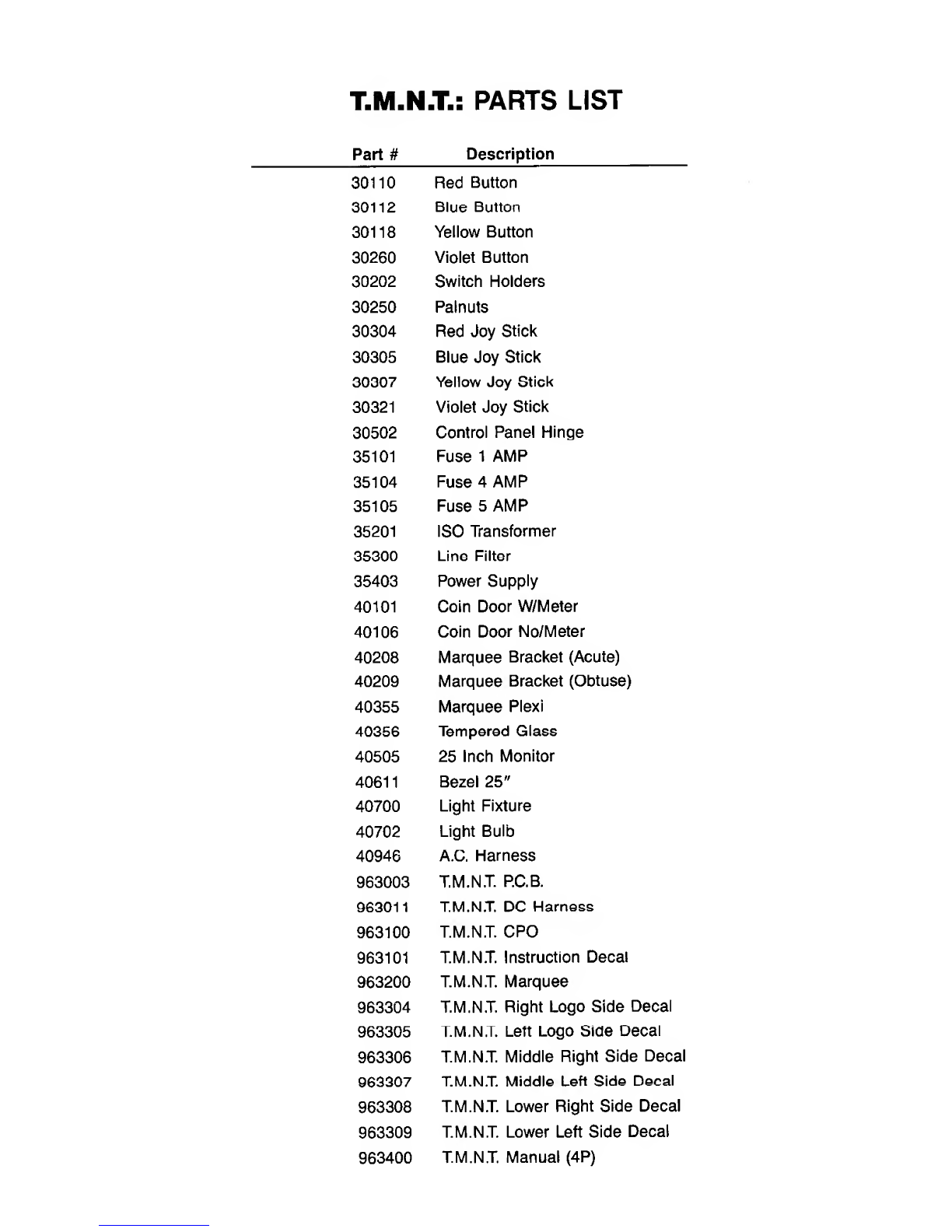

T.M.N.T.: PARTS LIST
Part #Description
30110 Red Button
30112 Blue Button
30118 Yellow Button
30260 Violet Button
30202 Switch Holders
30250 Palnuts
30304 Red Joy Stick
30305 Blue Joy Stick
30307 Yellow Joy Stick
30321 Violet Joy Stick
30502 Control Panel Hinge
35101 Fuse 1AMP
35104 Fuse 4AMP
35105 Fuse 5AMP
35201 ISO Transformer
35300 Line Filter
35403 Power Supply
40101 Coin Door W/Meter
40106 Coin Door No/Meter
40208 Marquee Bracket (Acute)
40209 Marquee Bracket (Obtuse)
40355 Marquee Plexi
40356 Tempered Glass
40505 25 Inch Monitor
40611 Bezel 25"
40700 Light Fixture
40702 Light Bulb
40946 A.C. Harness
963003 T.M.N.T. P.C.B.
96301
1
T.M.N.T. DC Harness
963100 T.M.N.T CPO
963101 T.M.N.T. Instruction Decal
963200 T.M.N.T. Marquee
963304 T.M.N.T. Right Logo Side Decal
963305 T.M.N.T. Left Logo Side Decal
963306 T.M.N.T. Middle Right Side Decal
963307 T.M.N.T. Middle Left Side Decal
963308 T.M.N.T. Lower Right Side Decal
963309 T.M.N.T. Lower Left Side Decal
963400 T.M.N.T. Manual (4P)

T.M.N.T.: AC FLOW CHART
1. GREEN/YELLOW
2. BLACK
3. RED
4. BLUE
5. BROWN
6. RED/BLACK
7.BLACK/WHITE
aWHITE
9. GREEN
10. VIOLET
11. ORANGE
1

T.M.N.T.: WIRING HARNESS
WIRE COLOR KEY:
BLACK
BLACK
RED
RED
ORANGE
YELLOW
WHITE/GREEN
WHITE
VIOLET/WHITE
BLUE/YELLOW
VIOLET/YELLOW
ORANGE/GREEN
ORANGE/YELLOW
BLACK/YELLOW
ORANGE/GRAY
BLACK
BLACK
Solder Side *Parts Side
GND A1GND BLACK
GND B2GND BLACK
+5V DC C3+5V DC RED
+5V DC D4+5V DC RED
NOT USED E5NOT USED
+12V DC F6+ 12V DC ORANGE
*KEY H7‘KEY
(EMPTY) J8COIN COUNTER GREEN/GRAY
(EMPTY) K9(EMPTY)
SPEAKER (-) L10 SPEAKER (+) BLUE
(EMPTY) M11 (EMPTY)
VIDEO GREEN N12 VIDEO RED RED/WHITE
VIDEO SYNC P13 VIDEO BLUE BLUE/WHITE
(EMPTY) R14 VIDEO GROUND BLACK
(EMPTY) S15 (EMPTY)
COIN 2T16 COIN 1BLUE/BROWN
NOT USED U17 NOT USED
2P UP V18 IP UP ORANGE/WHITE
2P DOWN w19 IP DOWN BLACK/WHITE
2P LEFT X20 IP LEFT RED/GRAY
2P RIGHT Y 21 IP RIGHT GRAY/WHITE
£2P JUMP z22 IP JUMP J9 RED/WHITE
2P ATTACK a23 IP ATTACK &GREEN/BROWN
NOT USED t> 24 NOT USED
NOT USED c25 NOT USED
NOT USED d26 NOT USED
GND e27 GND BLACK
GND f28 GND BLACK
(BASE COLOR/LINE COLOR)
2

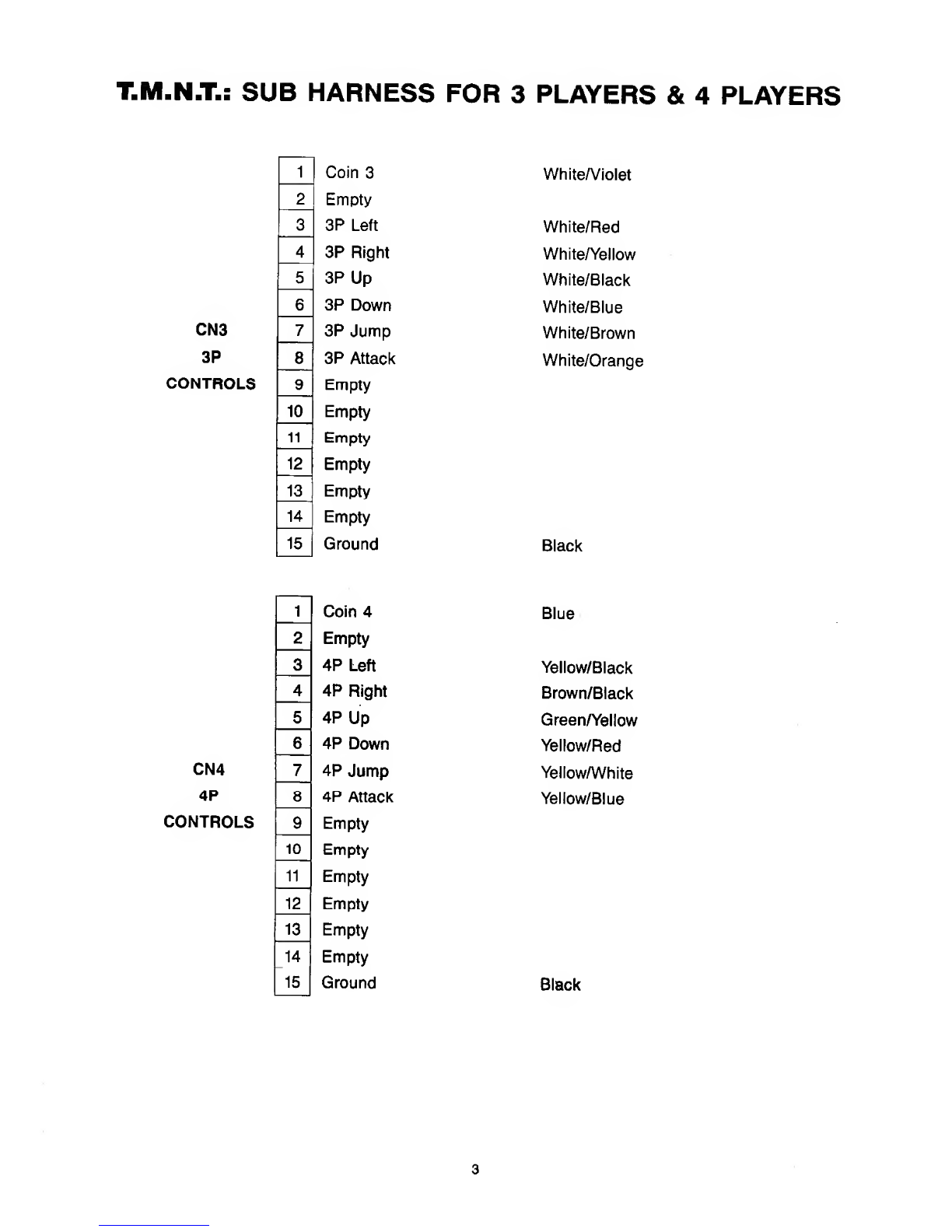

T.M.N.T.: SUB HARNESS FOR 3PLAYERS &4PLAYERS
1Coin 3White/Violet
2Empty
33P Left White/Red
43P Right White/Yellow
53P Up White/Black
63P Down White/Blue
CN3 73P Jump White/Brown
3P 83P Attack White/Orange
CONTROLS 9Empty
10 Empty
11 Empty
12 Empty
13 Empty
14 Empty
15 Ground Black
1Coin 4Blue
2Empty
34P Left Yellow/Black
44P Right Brown/Black
54P Up Green/Yellow
64P Down Yellow/Red
CN4 74P Jump Yellow/White
4P 84P Attack Yellow/Blue
CONTROLS 9Empty
10 Empty
11 Empty
12 Empty
13 Empty
14 Empty
15 Ground Black
3

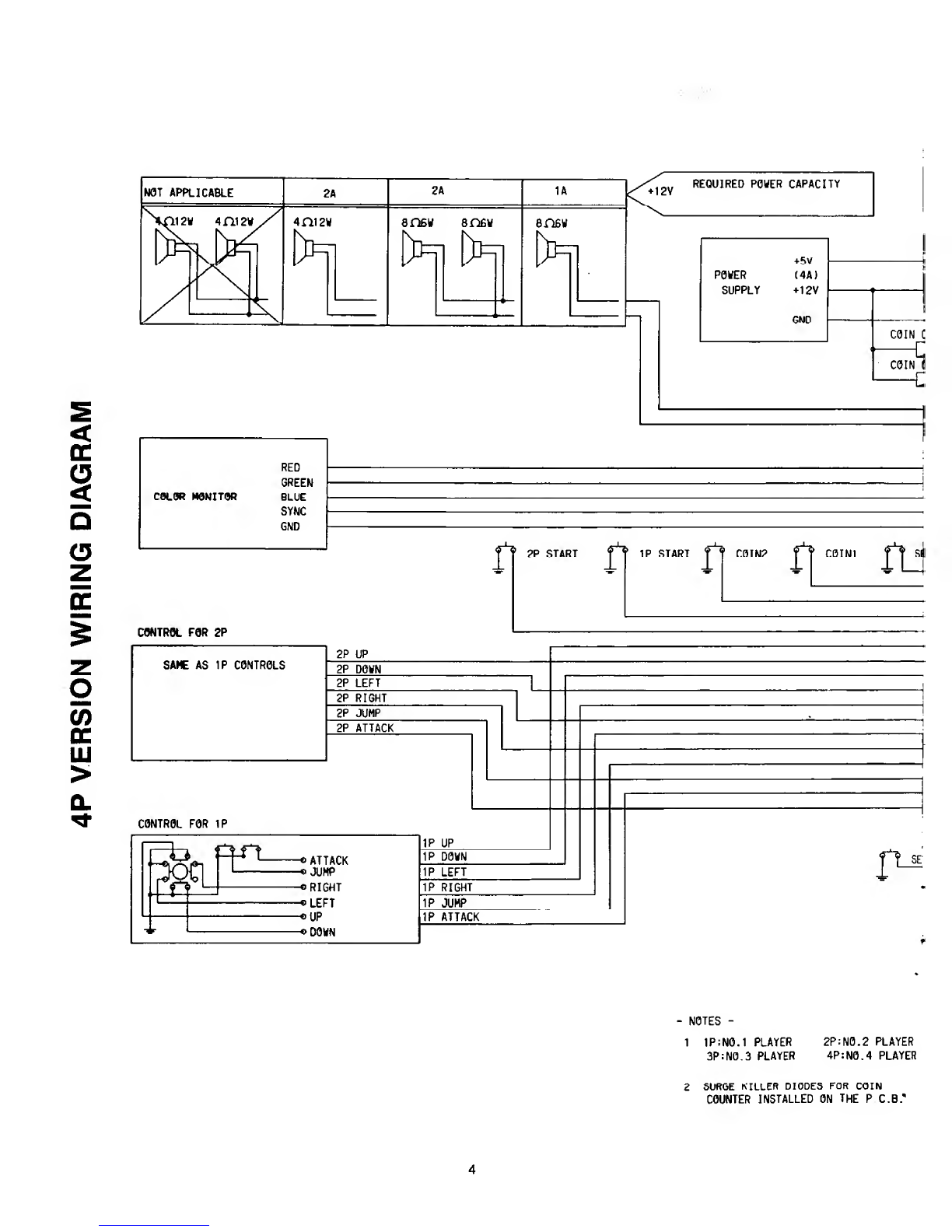

4P
VERSION
WIRING
DIAGRAM
-NOTES -
11P:NO .1PLAYER 2P:N0.2 PLAYER
3P :NO .3PLAYER 4P:N0.4 PLAYER
2SURGE KILLER DIODES FOR COIN
COUNTER INSTALLED ON THE PC.B.'
4

PARTS SIDE
SOLDER SIDE
JAMMA 56PIN EDGE CONNECTOR
5/32 INCH PITCH
CN4 EXTENSION I/O
15P NH CONNECTOR
B15P-SHF-1AA JST
5

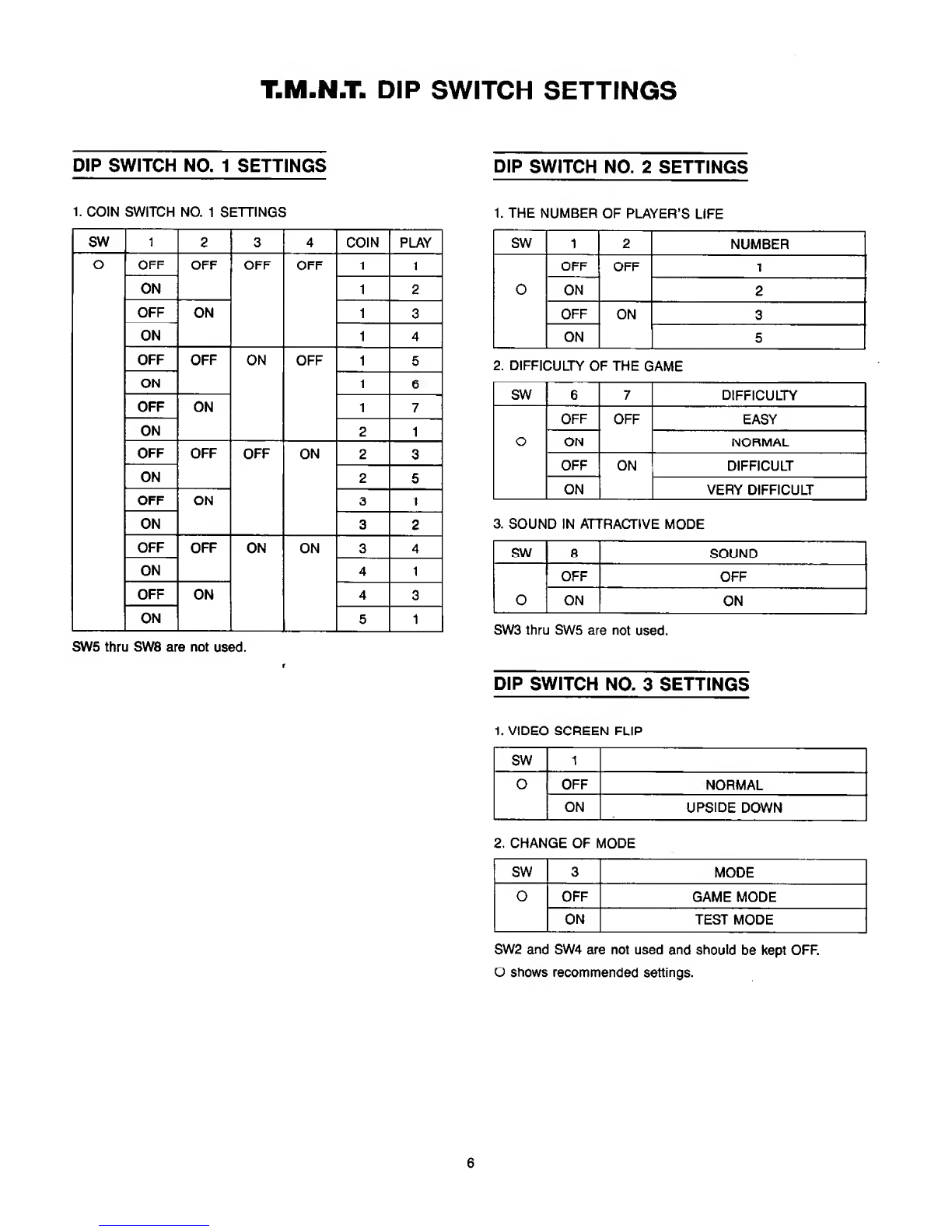

T.M.N.T. DIP SWITCH SETTINGS
DIP SWITCH NO. 1SETTINGS DIP SWITCH NO. 2SETTINGS
1. COIN SWITCH NO. 1SETTINGS
SW 1234COIN PLAY
oOFF OFF OFF OFF 11
ON 12
ON 13
14
OFF OFF ON OFF 15
ON 16
OFF ON 17
ON 21
OFF OFF OFF ON 23
ON 25
OFF ON 31
ON 32
OFF OFF ON ON 34
ON 41
OFF ON 43
ON 51
SW5 thru SW8 are not used.
1. THE NUMBER OF PLAYER'S LIFE
SW 1CM NUMBER
o
OFF OFF 1
ON 2
OFF ON 3
ON 5
2. DIFFICULTY OF THE GAME
SW 6 7 DIFFICULTY
OOFF OFF EASY
ON NORMAL
OFF ON DIFFICULT
ON VERY DIFFICULT
3. SOUND IN ATTRACTIVE MODE
SW 8SOUND
OOFF
ON
SW3 thru SW5 are not used.
DIP SWITCH NO. 3SETTINGS
1. VIDEO SCREEN FLIP
SW 1
OOFF NORMAL
ON UPSIDE DOWN
2. CHANGE OF MODE
SW 3MODE
0OFF GAME MODE
ON TEST MODE
SW2 and SW4 are not used and should be kept OFF.
Oshows recommended settings.
6

Gold Mech
Engineering Data and Parts List
91-3009-00
91-3011-00
91-3029-00
91-3023-00'
91-3022-00 ,91-3003-00
•91-3002-00
91-3026-00
91-3024-00'
91-3013-00-
91-3006-00-
91 -3028-00'
91-3008-00
»'- "-'vli
91-3016-00
91-3025-00
91-3019-00
-91-3001-00
'O- 91-1036-00
90-1030-00
91-3017-00
PARTS LIST
90-1030-00 Retaining Screw (#6-32 'x. 250') 91-3009-00 Gate
91-1036-00 Mounting Stud
91-3001-00 Back Plate
91-3002-00 Reject Lever
91-3003-00 Reject Lever Spring
91-3006-00 Cover Plate
91-3008-00 Anti-Stringing Device
91-3011-00 Cradle
91-3013-00 Magnet Holder with Magnet
91-3016-00 Gate Spring
91-3017-00 Gate Pin
91-3019-00 Separator
91-3022-00 Diameter Adjustment
91-3023-00 Locknut-Magnet Holder
91-3024-00 Screw-Magnet Holder
91-3025-00 Screw Separator
91-3026-00 Washer
91-3028-00 Cotter Pin for Anti-stringing Device
91-3029-00 E-Clip for Cradle
COIN i,oi*
.INLET** *m*i
m1.2
COIN tOMV
OUTLET
TOP VIEW
'MOUNTING STUOS
FITTED UPON REQUEST
«T.j
•wu -* 2
X- 1
3HOLES (EACH SIDE) FOR
MOUNTING STUOS IF KtUUlHtU
—6-32 SCREW

COMPLETE COIN DOOR ASSEMBLY
EXPLODED VIEW
PARTS LIST
12-4050-01 S-10 Acceptor Body 90-1102-00 Washer for Bezel 91-1103-00 Coin Inlet Lamp Side 91-1119-00 Buttton Spring
U.S. 25* Screw 91 1104-00 Coin Inlet Cover Side 91-1120-00 Lockout Spring
12*4050-03 S-10 Acceptor Body 90-1207-00 Nut for Microswitch 91-1105-00 Reject Cup Side Plate 91-1122-00 Retaining Screw lor
Canadian 25' Mounting Screw 91-1106-00 Reject Cup Base Plate Acceptor Body
20-4177-00 Plastic Cash Bax 90-1300-00 Keyhook 91-1107-00 Microswitch Bracket 91-1125-00 Clear Plastic Cover for
20-4179-00 Steel Enclosure 91-0502 OO Zinc Die Cast Frame 91-1108-01 Lockout Flap U.S. 25* Microswitcn
22-1400-00 Locking Bar 91-0503-00 Lower Door 91-1109-00 Reject Flap 91*1127-00 Plastic Switch Adjuster
24-1150-00 Wire Harness 91-0504-00 Upper Door 91-1110-00 Metal Switch Adjuster 91-1141-00 Base Plate With Pivot
90-1000-00 Keyhook Bezel Screw 91-0505-00 Round Lock and Cam 91-1111-00 Black Button Bezel and Stud
90-1001-00 Bezel Screw Assembly 91-1112-00 Black Reject Bezel 91-1144-00 evon dc Lockout con
90-1002-00 Hinge Screw 91-0506-00 Clamp 91-1113-01 Entry /Reject Button Assembly
90-1003-00 Clamp Screw 91-0515-00 Flat Lock and Cam U.S. 25* 91-1211-00 Zinc Plated Button
90-1007-00 Flat Head Microswitch Assembly 91-1116-00 Microswitch (Black Bezel
Mounting Screw 91 0535 00 Hat Lock and Cam End Arm) 91-1Z1Z-00 zinc Plated Reject
90-1008-00 Panhead Microswitch Assembly 91-1117-00 Lampholder Bezel
Mounting Screw 91-0545-00 Round Lock and Cam 91-1118-00 6VWedge Base Lamo
Assembly
8

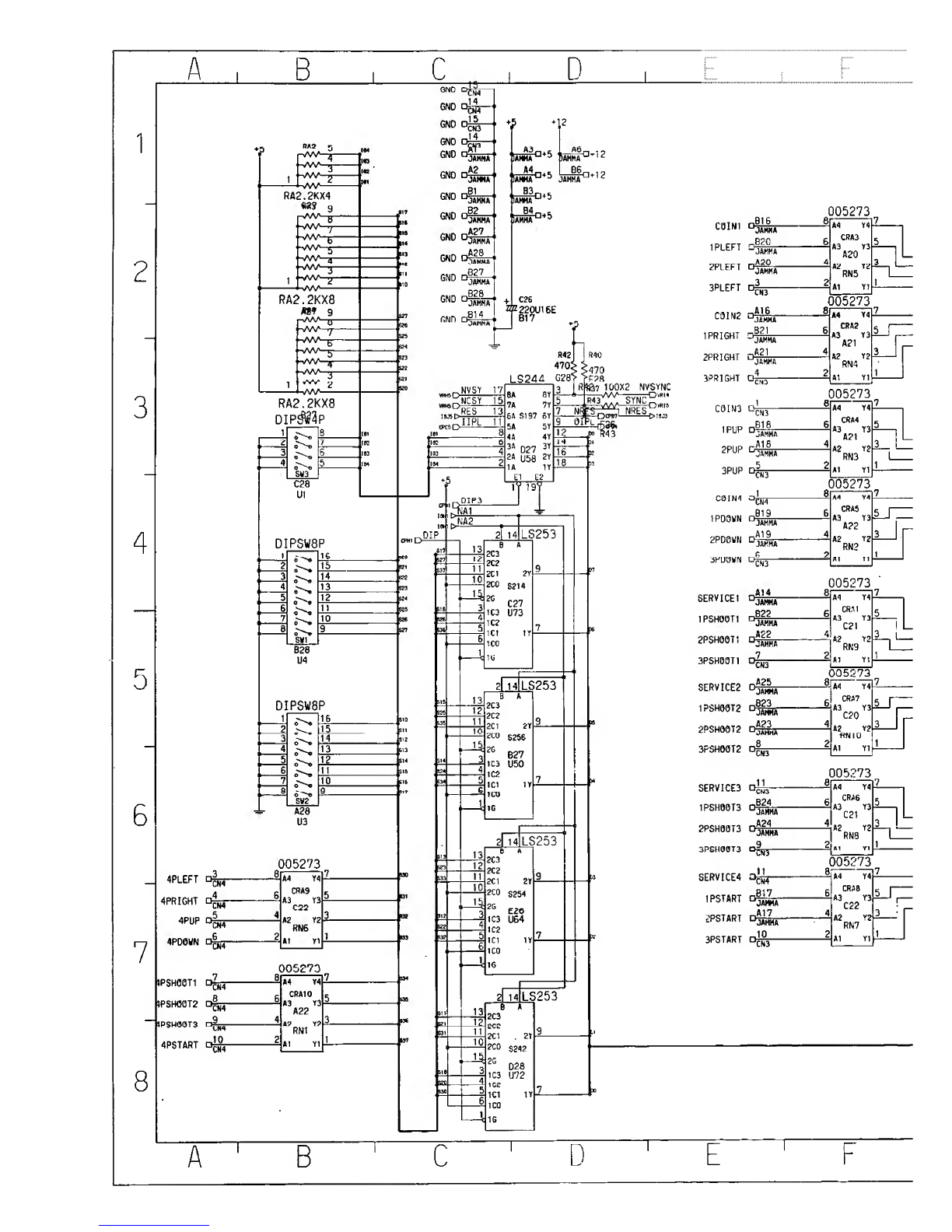

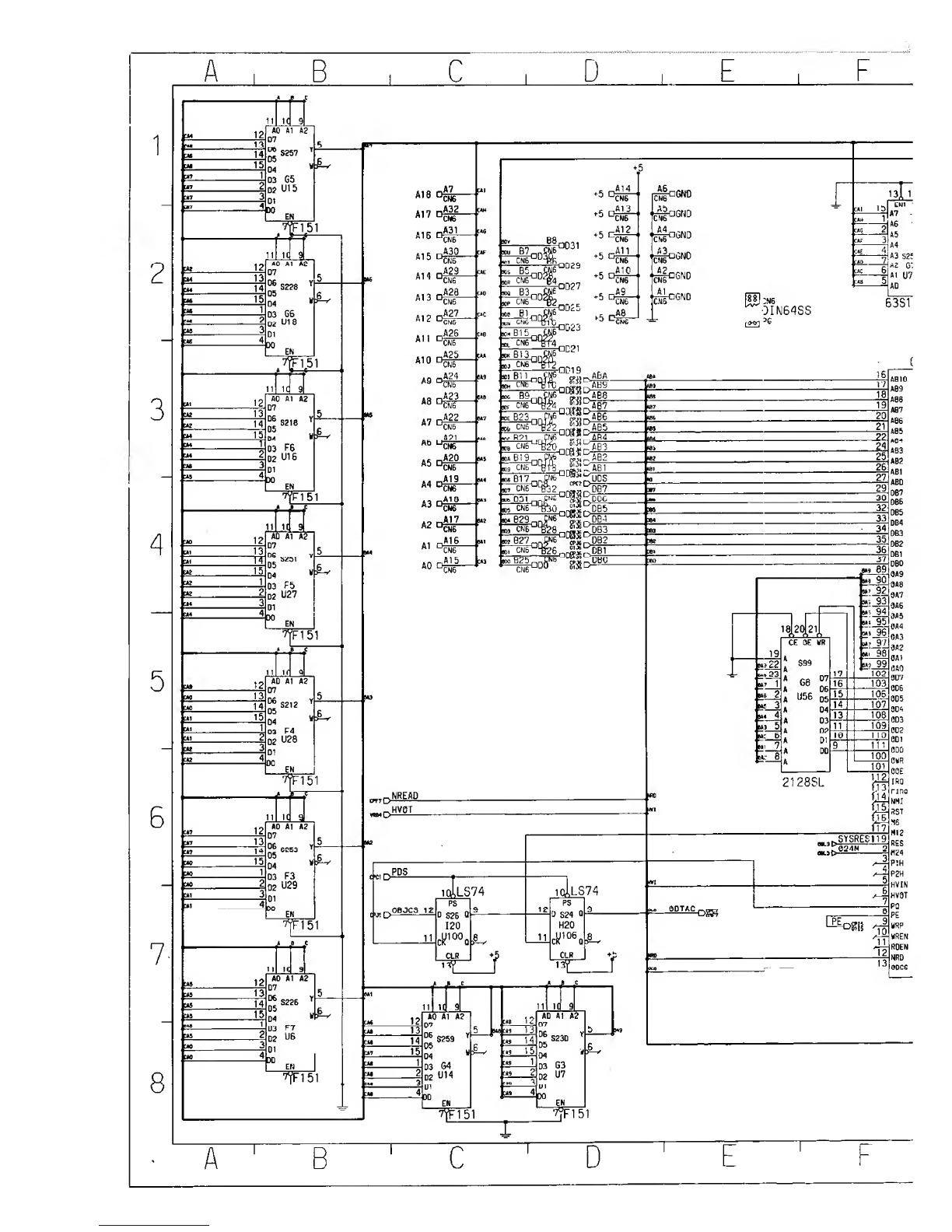

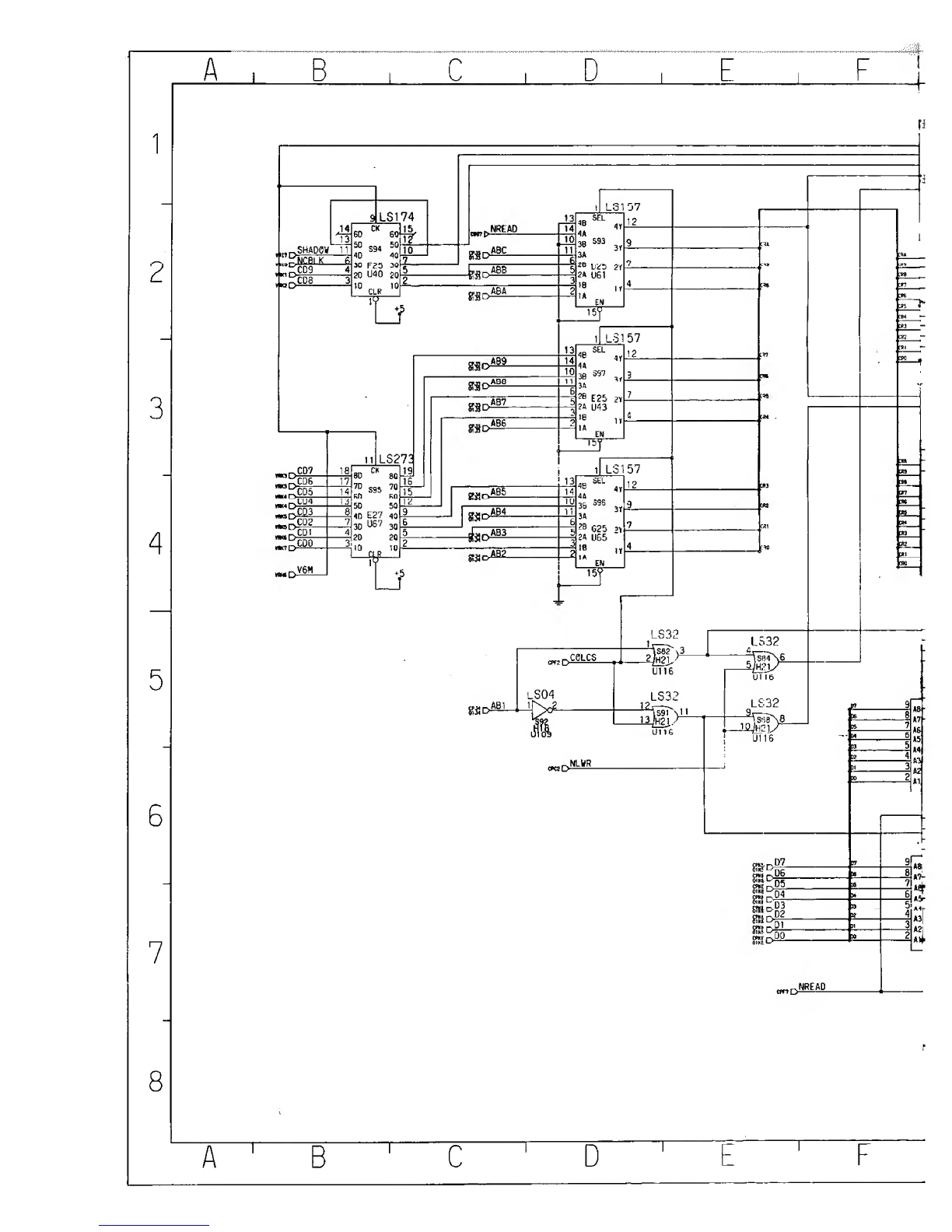

llYM-301
vcc TTls vcc HP
L9A0
SO
BUFF
GND
LA6358
+L C7°
Up 4.7U16T
C9
8LA6358
IK
B7
Cb8
-0.033UM
A8
'R2S
>5. IK <R2A
Fb7 >3K
>B6
eLAG3SS
0.022UM
B8
KONAMI INDUSTRY CO. ,LTD. REG -TYPE SCHEMAT IC DIAGRAM O
PROJEl uninr IRELEASE IMAUr „^
—f— VOICE date GX963 PWB351853A
code no.
12501 58 7/7
knr-

7.V, 10
8n
-^o9
SMI
B28
U4
DIPSW8P
-jTFTtig.
_2
3liL
413
_5 0
^1L
6J_L
_z m.
-_£ 9_
SM2
A28
U3
005273
7*4
j4 6
JCN4
j5 4
JCM4
.6 2
JCN4
,7
(
8
tN4
j§ 6
JCN4
,9 4
uw
JO ; 2\
CftA9
C22
RN6
At Y1
A4 Y4-
CRA10 ,
A3 Y3-
A22
g| m!lS253
13f
®*
?C3
1
2
—2C2
It 9
—2C1 2Y
—ZCO S256
B27
—I1C3 U50
,
—
Jl irp
57
—|ici 1Y~
2114| LS 253
131®*
~2C3
or?
119
2C1 2Y
—2C0 $J54
-!^2G
oE20
—j IC3 U64
“5 !“ ,¥7
214 LS253
13 B A
2C3
Hi —12
11 £C2*
2C1 2Y
_10
ilO 3
S242
2G 028
ir-a || no
320 41Oj ufc.
S3C 51ci 1
Y
L. 6
lo
ICO
1G
SERVICE!
IPSH0OT1
2PSH00T
1
3PSH00T1
SERVICE2
1PSHOOT
2
2PSHO0T2
3PSH00T2
SERVICE3
1PSH00T3
2PSHO0T3
3PEH00T3
SERVICE4
1PSTART
2PSTART
3PSTART
005273
CCRS1
—A3 Y3pi-
C2I
4 3
—] A2 Y2 —
RN9
A1 Y1 —
005273
-§|A4 Y4 —
6|CRA7 g
-^A3 Y3 —
C20
43
—A2 Y2 —
-WIIU
2.. v,1
005273
A<1 71 2_—
CRA6
A3 Y3 —
C21 1L
A2 Y2 —
RN8 —
A1 lip——
005273
,1.1 8j 7
JCN4
,817 eCRAB 51
JJAMMA
,A17 4|
C22 |3r
JJAMHA
JO 2RN7
i
"CM3
