Konica Minolta Digital Still Camera Revio KD-3300 User manual

Digital Still Camera
Thank you for your purchase. For the correct usage of this product,
please read this User’s Manual and warranty card carefully and
keep them in a safe place for future reference.
Before accepting the warranty card, please make sure that the
date of purchase and the dealer’s details have been completed.
User's Manual

EN-2
Before Using Your Camera
Please be sure to read this manual before use.
Test shooting
Be sure to take some test shots before taking important pictures (such as business or weddings)
to make sure that the camera is working properly.
Results are not guaranteed
In the unlikely event that a problem arises in shooting or reproducing pictures due to the camera
or memory card used, please understand that no compensation can be made.
Be aware of copyright
Any pictures that you take of existing images may be used for personal use only. opyright law
prohibits the use of pictures without the permission of the rightful owner. Also, please note that
some occasions of the performing arts, demonstrations and exhibitions may restrict photography
even for the purpose of personal enjoyment.
Caution for extended camera use:
The camera body may become hot when used for a long period of time. This is normal, and does
not mean that the camera is faulty. However, if the camera is in contact with the skin for a long
time, this may cause a cryogenic burn. Please take care to avoid this.
bout trademarks
Windows 98, Windows 98SE, Windows XP, Windows 2000 Professional and Windows Me
are trademarks or registered trademarks of Microsoft orporation in the U.S. and other countries.
Apple, Macintosh, Mac OS, Quick Time and Power P are trademarks or registered
trademarks of Apple omputer in the U.S. and other countries.
Other company names and product names are trademarks or registered trademarks of their
respective owners.
* The illustrations in this guide are for the purpose of explanation and may differ from the actual
design of your camera.

EN-3
Contents
2 Before Using Your Camera
3 Contents
4 Important Safety Precautions
7 Package Contents
8 Compatible Recording Media
9 Getting to Know Your Camera
9 Names of Parts
10 Mode Dial
10 Battery Life Indicator
11 L D Monitor Indicator
13 Getting Started
13 Installing Batteries
14 Using an A Power Adaptor (optional accessory)
14 Attaching the Hand Strap
15 Inserting an SD Memory ard (optional accessory)
15 hoosing the Language
16 Setting the Date and Time
17 Record Mode
17 Taking Pictures
18 Using the Optical Zoom
18 Digital Zoom Photography
19 Self-timer Photography
19 Using the Macro Mode
20 Setting the Flash
21 Setting the Image Resolution and Quality
23 Taking Pictures Manually
24 Playback Mode
24 Viewing Your Images (Single Frame Playback)
24 Displaying Thumbnail Images
25 Zoom Playback
25 Slideshow Display
26 Movie Mode
26 Recording Video lips
26 Viewing Video lips
27 Deleting Images
28 Formatting the SD Memory Card
29 Protecting Images
30 Setting the DPOF
31 Menu Options
31 Record Menu
32 Manual Record Menu
34 Movie Menu
35 Playback Menu
37 Setup Menu
39 Transferring Recorded Images/Video Clips Your Computer
41 Connecting the Camera to Other Devices
42 Care and Storage
43 KONIC KD-3300 Specifications
44 Warranty and fter-sales Service

EN-4
Important Safety Precautions
This product has been designed with safety in mind; however, please read the following display
marks, warnings and cautions for its correct usage.
The following warning and caution symbols are to prevent damage to the user, other persons and
property.
Definitions of the symbols
The following categories explain the degree of danger or damage that may occur if
the displayed content is not followed or the product is misused.
Warning
This symbol indicates that misuse may result in serious injury or even death.
Caution
This symbol indications that misuse may result in bodily injury or physical damage.
The following categories explain the contents to be followed using symbols.
This symbol indicates that the content requires caution when performed.
This symbol indicates that the content is prohibited.
This symbol indicates that the contents must always be followed.

EN-5
Warning
Should any of the following occur, stop using the product immediately. Remove the
batteries from the unit and, if using the A adaptor, disconnect it from the camera and
remove the power plug from the wall outlet. onsult the dealer from whom you bought the
product for further assistance. ontinued use of the product may result in fire or electrical
shock.
If you notice any abnormality such as smoke or an abnormal smell, or if the
camera becomes extremely hot.
If liguid gets inside the camera.
If any foreign object gets inside the camera.
Do not dismantle, modify or repair the camera yourself.
Fire and/or electrical shock may occur as a result.
For repair or internal inspection, consult the dealer from whom you bought the product.
Do not allow the camera to get wet.
Fire, electrical shock and/or malfunction of the unit may occur if internal parts are exposed
to water or other liquids.
Do not drop or insert metal objects or combustible items inside the camera.
Fire, electrical shock and/or malfunction of the unit may occur as a result of metal objects,
etc. getting inside the camera.
Do not use the camera while driving.
May cause traffic accidents.
When using the camera while walking, pay attention to the road surface, surroundings,
etc.
Do not use the camera on unstable ground.
Serious injury and even death may occur as a result especially when falling from high
places.
Do not directly look at the sun through the viewfinder.
loss of or impaired eyesight may result.
Do not touch the metal parts on the camera during thunder and lighting.
Death may occur if lighting strikes the camera.
Do not use C adaptor other than those specified.
Fire may occur as a result of A adaptor other than those specified being used.
Do not dismantle, short-circuit, coat (solder, etc.), apply heat, apply pressure (with
nail, etc.) to the batteries or throw into a fire. Furthermore, do not allow metal
objects (wires, necklaces, etc.) to come into contact with batteries.
Fluid leakage, heat, fire and damage may occur as a result.

EN-6
Caution
Do not point the lens directly at the sun or at a strong light source.
Malfunction of internal parts may occur from concentrated rays of light.
Using the camera in such conditions may cause short circuits and breakdown of insulation,
resulting in overheating and/or fire.
Take care not to get your fingers caught in the battery/card cover.
Personal injury may occur as a result.
When using the camera inside an airplane, follow the directions of the airline
company.
Electric waves emitted from the camera may affect airplane cockpit instruments.
Do not use the flash near eyes.
Eye injury may occur as a result.
When taking a picture, make sure that the flash surface is clean and be careful not to
cover the flash.
If the flash surface is dirty or you take a shot with the flash covered, it is possible for the
flash surface quality or color to change, due to the high temperature of the flash.
Check that the polarity is correct when inserting batteries.
The batteries may heat, become damaged or leak if the polarity is not correct, possibly
causing skin burns and/or personal injury as a result.
Do not use batteries which have become contaminated with oil or perspiration.
If soiled, wipe the contacts with a dry cloth before use.
When cleaning or carrying out non-photographic operations on the camera,
disconnect the C adaptor for safety.
Do not leave the camera in locations such as:
location exposed to direct sunlight or inside a car, etc. where the temperature
may become extremely high.
Fire and/or damage to the unit may occur.
Within the reach of children.
The strap may wrap around the neck causing strangulation, or accessories such as
batteries, Memory ard, etc. may be swallowed.
Unstable surfaces such as on an unstable table or an angled surface.
amera dropping on the head or other body parts may not only cause personal injury
but malfunction of the unit as well.
location exposed to lampblack, steam, high humidity, dust or vibration.
If dust or liquid enters the camera or if the internal parts are damaged by strong vibration,
overheating, fire or electrical shock may occur as a result.

EN-7
Remove the batteries when the camera is not going to be used for an extended period.
Do not use force when operating the camera.
The camera may become damaged, causing personal injury as a result.
Do not rotate the camera when mounting on a tripod.
About battery fluid leakage
Should battery fluid leaks ever come into contact with hands or clothing, wash immediately
with water.
Loss of eyesight may occur if battery fluid enters the eye. Should this happen, do not rub
the eye. Immediately flush the eye with water and seek medical attention.
About the LCD monitor
Due to the characteristics of liquid crystal, the brightness of the LCD monitor may appear
uneven with changes in temperature, etc.
The LCD monitor has been developed using high-precision engineering and is superior in
sharpness and picture quality. Due to the nature of liquid crystals, however, there may be
missing or constantly lit pixels on the monitor. This is not a malfunction of the unit.
If the LCD monitor becomes damaged for some reason, take care to prevent personal injury
from broken glass, etc. Furthermore, take care that liquid crystals do not touch the skin or
enter the eyes or mouth.
Package Contents
Carefully unpack your package and make sure that you have the following items. If any item is
missing or damaged, please contact your dealer without delay.
Digital camera Quick guide
USB cable Camera strap
Video cable Camera pouch
Software CD-ROM 2 x AA alkaline batteries

EN-8
Compatible Recording Media
This camera comes with approximately 16 MB of memory installed, but if you would like to use
additional memory, the following cards are compatible:
SD Memory Card
MultiMedla Card
bout the SD Memory Card/Multi-Media Card
SD Memory Cards and Multi-Media Cards are manufactured using precision electronic
components. Do not perform the following as malfunction or damage may occur as a result.
Do not touch the terminals with hands or metal objects. Damage to the components may
occur as a result of static electricity. Before handling an SD Memory ard or Multi-Media ard,
discharge any static build-up from your body by touching grounded metal, etc.
Do not bend, drop or apply excessive force.
Avoid heat, liquid and direct sunlight when using and for storage.
Do not open the battery/card cover or remove the SD Memory ard/Multi-Media ard while
data is being read or written.
Do not dismantle or modify.
* The SD logo is a trademark.
Important
In the event of malfunction or damage, it is possible that data may be lost. Konica can
not accept responsibility in any way for such data loss.
Always back-up important data.
When using SD Memory ards/Multi-Media ards on a P , do not change the attributes
(read-only, etc.) of the files (image data) on the card. Doing so may prevent the camera from
working properly when deleting images, etc.
Do not change the file names or the directory name of image data saved on an SD Memory
ard/Multi-Media ard using a P or save files other than image data taken by this camera.
Images that have been changed or added will not only play back on the camera but may cause
the camera to malfunction as well.
Always format SD Memory ards/Multi-Media ards using this camera. A card formatted in a
P may not operate properly.
The SD Memory ard includes a write-protect switch.
Sliding this switch downward prevents data from being written to the card and images, etc.
saved on the card are protected.
Please note that pictures cannot be taken or deleted when the writeprotect switch is on.
When using a large-capacity card, card check and deletion may take some time.
When using Multi-Media ards, the operation response time may be longer during shooting
and playback when compared with SD Memory ards. However, this is due to the specification
of the Multi-Media ard and is not a malfunction.

EN-9
Getting to Know Your Camera
Names of Parts
1. Mode dial
2. Shutter button
3. Power switch
4. Self-timer LED
5. Flash
6. Lens/Lens cover
7. Viewfinder window
8. Viewfinder LED
9. Viewfinder
10. L D monitor
11. Wide-angle button
12. Telephoto button
13. Arrow button(up)
Thumbnail button
14. Arrow button(left)
Flash button
15. Arrow button(right)
Self-timer button
16. Arrow button(down)
Pause button
17. SET button
18. Menu button
19. Delete button
Macro button
20. Display button
21. Tripod socket
22. Battery cover
23. Jack cover
-VIDEO OUT jack
-USB connector
24. ard cover
25. D IN jack
26. Strap eyelet

EN-10
Mode Dial
Mode Description
Setup mode Use this mode to choose your preferences on the cameras
settings.
Movie mode Use this mode to record video clips.
Playback mode Use this mode to view your images/video clips. Slide show or
thumbnail display for recorded images is also available in this
mode.
Record mode Use this mode to take still images.
Manual record mode Use this mode to take still images by manually adjusting
camera settings such as white balance and exposure.
Battery Life Indicator
Full battery power
Low battery power
Empty (blinking)
1. Setup mode
2. Movie mode
3. Playback mode
4. Record mode
5. Manual record mode

EN-11
LCD Monitor Indicator
The displayed indicators when recording images:
1. Record mode(this icon will change to in Manual Record mode)
2. Zoom state
3. Battery
4. Hand shake
5. Flash state
(No indicator if Auto flash)
6. Macro
7. Self-timer
8. White Balance
(No indicator if Auto white balance)
9. Image Size
10. Image Quality
11. Possible number of shots
12. ard indicator
13. Time
14. Date
The displayed indicators when recording video clips:
1. White Balance
(No indicator if Auto white balance)
2. Press the shutter button to start
recording video clip
3. Battery
4. Movie mode
5. Zoom state
6. Possible recording time
7. Date
8. Time
0010
2048x1024 12:00
FIN 2003/06/23
00:38
2009/09/11
12:00
8

EN-12
The displayed indicators when playing images back:
1. Battery
2. Image Size
3. Image Quality
4. File number
5. Time
6. Date
The displayed indicators when playing video clips back:
1. Press the button to start
playing video clip back
2. File number
3. First screen of video clip
100-0003
640x480 01:55
NOR 2003/01/01
100-0003

EN-13
Getting Started
You can use either 2 AA size batteries (Alkaline, Ni-MH) or an A power adapter (optional accessory)
to power the camera. Battery power is convenient for capturing images or video clips while an A
adapter power is useful when transferring images to your computer.
Installing Batteries
1. Make sure the camera is turned off.
2. Slide the battery cover in the direction of
the [OPEN] arrow.
3. Insert the batteries, noting correct polarity (+ and -).
4. lose the battery cover firmly.
Note:
A R-V3 Lithium battery pack can also be used as the power supply.
If you will not be using the batteries for an extended period of time, remove them from the
camera to prevent leakage or corrosion.
Never use manganese batteries.
Never use batteries of different type (together) or mix old and new batteries.
Avoid using batteries in extremely cold environments as low temperatures can shorten the
battery life and reduce camera performance.

EN-14
Using an C Power daptor (optional accessory)
1. Make sure the camera is turned off.
2. onnect one end of the A power adaptor to
the jack labeled D IN.
3. onnect the other end to an electrical outlet.
Note:
Make sure to use only the A power adaptor specified for the camera. Damage caused by
the use of an incorrect adaptor is not covered under the warranty.
Using an A power adaptor while transferring images to your computer prevents unexpected
automatic power off of the camera.

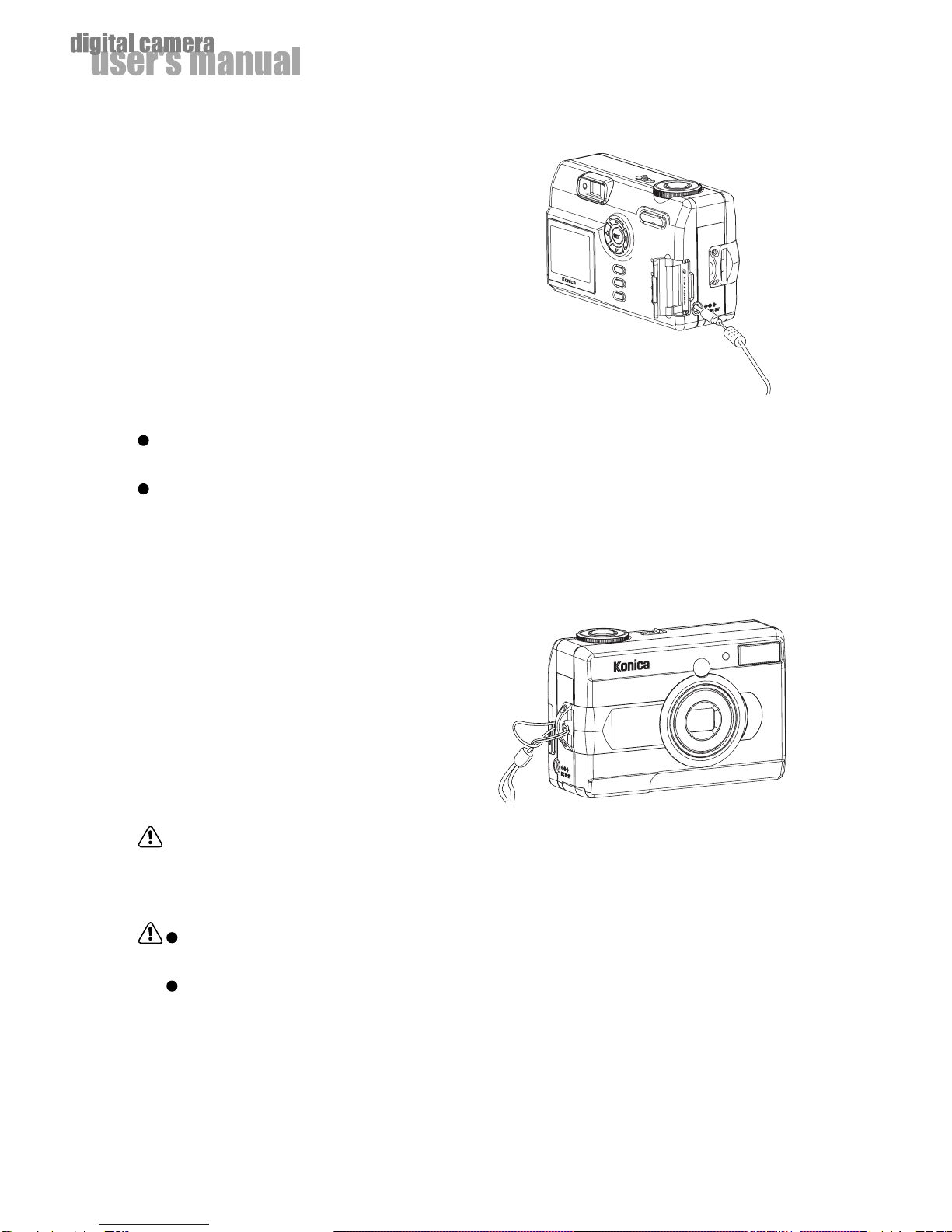

ttaching the Hand Strap
To prevent accidental dropping of the camera, always use the strap.
Attach the hand strap as follows:
1. Thread the small loop of the hand strap
through the strap eyelet on the camera.
2. Pull the large loop through the small loop
until the strap is firmly secured.
Warning:When using the camera with the strap attached, take care so that it does not wrap
around the neck. On no account hang the camera round the neck of small children
and infants. Strangulations may occur as a result if the strap wraps around the neck.
When carrying the camera hanging from the strap, take care that it does not accidentally
hit the nearby objects.
Place the camera on a stable surface before installing the strap, to avoid the possibility of
it being dropped and damaged.

EN-15
Inserting an SD Memory Card (optional accessory)
The camera comes with 16MB of internal memory, allowing you to store images and video clips in
the camera. However, you can expand the memory capacity by using an optional D memory
card so that you can store more images and video clips.
1. Make sure the camera is turned off.
2. Open the card cover.
3. Insert an D memory card:
The front side of the memory card (printed arrow)
should face towards the rear side of the camera.
If the card cannot be inserted, check the orientation.
This camera is also compatible with MultiMediaCard (MMC).
4. Close the card cover.
To remove a memory card:
Make sure the camera is off. Open the card cover. Press lightly on the edge of the memory card
and it will eject.
Note:
To prevent valuable data from being accidentally
erased from an D memory card you can slide the write
protect tab (on the side of the D memory card) to LOCK.
To save, edit, or erase data on an D memory card, you
must unlock the card.
Choosing the Language
When you first turn the camera on, you may need to set the language in which language menus
and messages are to be displayed on the LCD monitor.
Follow these steps below to set the language:
1. Turn the camera on by sliding the switch.
2. et the mode dial to the mode.
3. Move to LANGUAGE by using the or button,
and press the button.
4. elect the language that you require by using the or
button.
5. Press the button to confirm.
LOCK LOCK
Write-protected
tab Write-protected
state

EN-16
Setting the Date and Time
The date/time setting screen will automatically appear:
When first turning the camera on.
When turning the power on after leaving the camera without battery for an extended period
of time.
To adjust the date or time at any other time:
1. Turn the camera on by sliding the switch.
2. Set the mode dial to the mode.
3. Move to the DATE SETUP by using the or button,
and press the button.
To increase the value for each option, press the button.
To decrease the value for each option, press the button.
Press the button to move to the next item field.
4. When all options are set, press the button.

EN-17
Record Mode
Taking Pictures
Your camera is equipped with both an optical viewfinder and a 1.5" L D monitor to compose
images. Taking images using the optical viewfinder will conserve battery power. If your batteries
are low, it is recommended that you only compose images by using the viewfinder. Using the L D
monitor, you can compose images more accurately, but at the cost of battery consumption. The
L D monitor must be used when Digital Zoom is used.
Using the viewfinder
1. Turn the camera on by sliding the switch.
2. Set the mode dial to the mode or the mode.
3. ompose your shot in the viewfinder.
4. Press the shutter button.
Using the LCD monitor
1. Turn the camera on by sliding the switch.
2. Set the mode dial to the mode or the mode.
By default, the L D monitor is ON.
3. ompose your shot on the display screen.
4. Press the shutter button.
Note:
The L D monitor darkens in strong sunlight or bright light. This is not a malfunction.
Using the L D monitor for an extended period of time will decrease the number of images
you can take. To increase battery longevity, turn the L D monitor off and use the viewfinder
instead.
The L D monitor must be on when Digital Zoom is to be used.

EN-18
Using the Optical Zoom
The lens moves when using zoom photography. Zoom photography allows you to take telephoto
and wide-angle shots. The subject appears closer by pressing the button and appears farther
away by pressing the button.
1. Set the mode dial to the mode or the mode.
2. If required, turn on the L D monitor by pressing the
button.
3. ompose the picture using the / button.
Pressing the button zooms in on the subject,
and enlarges the subject on the L D monitor.
Pressing the button provides a wider angle picture.
The lens position moves according to the zoom button setting.
4. Press the shutter button.
Digital Zoom Photography
By using digital zoom, images appear closer. Whereas digital zoom is a compelling feature, the
more an image is enlarged (zoomed), the more grainy the image will appear. The digital zoom
function is only available when you set the L D monitor and the digital zoom to on. To enable the
digital zoom, refer to D.ZOOM in Record/Manual Record menu.
1. Set the mode dial to the mode or the mode.
2. Turn on the L D monitor by pressing the button.
3. To enable the digital zoom:
a. Press the button.
b. Press the or button to select D.ZOOM, and press the button.
c. Press the or button again to select ON, and press the button.
d. Press the button to exit from menu mode.
e. To activate the digital zoom, press the button completely and hold it until the image on
the L D monitor expands.
4. Press the shutter button to capture a zoomed image.
Note:
Digital photography is not possible when the L D monitor display is turned off.
Digital zoom is only available at the resolution of 2048x1536 pixels.
The maximum zoom magnification is 2X for recording an image.
Digital zoom cannot be used in the movie mode.

EN-19
Self-timer Photography
When the self-timer is used, the camera automatically takes a picture after 10 seconds. This
allows you to get into the scene when taking group images.
1. Secure the camera to a tripod or place it on a stable surface.
2. Power on the camera, and set the mode dial to
the mode or the mode.
3. Press the button.
4. ompose the scene.
5. Press the shutter button.
The self-timer function is activated.
The photograph is then taken after 10 seconds.
To cancel the self-timer at any time, press the button or the button.
Note:
After an image is taken using self-timer, the self-timer mode is turned off.
If you wish to take another image using the self-timer, repeat these steps.
Using the Macro Mode
Use the macro (close-up) mode to shoot a close-up of a subject (such as flowers or insects) where
the range is between 15cm~1.0m(WIDE) or 50cm~1.0m(TELE).
1. Set the mode dial to the mode or the mode.
2. Press the button.
The icon appears on the L D monitor.
3. ompose the scene.
4. Press the shutter button. To cancel macro photography
at any time, press the button again.
Note:
In macro mode, the L D monitor is automatically turned on (even if the previous shot was
taken with the L D monitor off).
There is not a distinct point (subject range) at which normal mode is favored over macro
mode; take an image in both optical and macro modes and compare the results.

EN-20
Setting the Flash
The flash is designed to function automatically when lighting conditions warrant the use of flash.
You can take an image using a flash mode suitable to your circumstances.
1. Set the mode dial to the mode or the mode.
2. Press the button repeatedly until your desired
flash mode appears on the L D monitor.
3. ompose the image and press the shutter button.
The camera has five flash modes: Automatic Flash, Red-Eye Reduction, Slow Sync, Forced
Flash (On) and Flash Off. The table below will help choose the appropriate flash mode:
Flash mode Description
Auto flash The flash fires automatically according to the ambient lighting conditions.
(No indicator) Select this mode for general photography.
Red-eye reduction Using this mode can reduce the red-eye phenomenon, which is people
with red glaring eyes caused by the flash.
When you press the shutter button, the pre-flash comes on, followed by
the real flash which finishes the shot.
Until the real flash comes on, do not move the camera or let the subject
move.
If the subject is not facing the pre-flash or final flash, or the distance to
the subject is too far, the red-eye reduction effect may not be apparent.
If flash is in the AUTO flash mode, it will not fire in a bright place.
Slow Sync The flash is fired at a slower shutter speed.This flash mode is effective
when taking pictures so that not only the subject but also the background
are both clearly reproduced in artificial light (backlighting, fluorescent
lighting, etc.) or with people against the night as a background scene.
Shutter speeds will be slower, so use a tripod to prevent shaking.
If the subject is moving, the picture will be blurred.
Forced flash The flash will always fire regardless of the surrounding brightness.
Select this mode for recording images with high contrast (backlighting)
and deep shadows.
Flash off The flash will not fire. Select this mode when taking images in a place
where flash photography is prohibited, or when the distance to the
subject is beyond the effective range of the flash.
Use a tripod to prevent shaking as shutter speeds are slower in the dark.
