SERVICE MANUAL
Color Television Receiver
Model:KP2905QYT1
IMPORTANT SERVICE SAFETY INFORMATION
Operating the receiver outside of its cabinet or with its back removed involves a shock hazard.
Work on these models should only be performed by those who are thoroughly familiar with
precautions necessary when working on high voltage equipment.
Exercise care when servicing this chassis with power applied. Many B plus and high voltage RF
terminals are exposed which, if carelessly contacted, can cause serious shock or result in damage to
the chassis. Maintain interconnecting ground lead connections between chassis, escutcheon, picture
tube dag and tuner when operating chassis.
These receivers have a “polarized” AC line cord. The AC plug is designed to fit into standard AC
outlets in one direction only. The wide blade connects to the “ground side” and the narrow blade
connects to the hot “side” of the AC line. This assures that the TV receiver is properly grounded to the
house wiring. If an extension cord must be used, make sure it is of the “polarized” type.
Since the chassis of this receive is connected to one side of the AC supply during operation, service
should not be attempted by anyone not familiar with the precautions necessary when working on these
types of equipment.
When it is necessary to make measurements or tests with AC power applied to the receiver
chassis, an Isolation Transformer must be used as a safety precaution and to prevent possible damage
to transistors. The Isolation Transformer should be connected between the TV line cord plug and the
AC power outlet.
Certain High voltage (HV) maybe cause X-ray radiation. Receivers should not be operated with
HV levels exceeding the specified rating for their chassis type. Higher voltage may also increase the
possibility of failure in the HV supply.
It is important to maintain specified values of all components in the horizontal and high voltage
circuits and anywhere else in the receive that could cause a rise in high voltage, or operating supply
voltages. No changes should be made the original design of the receiver.

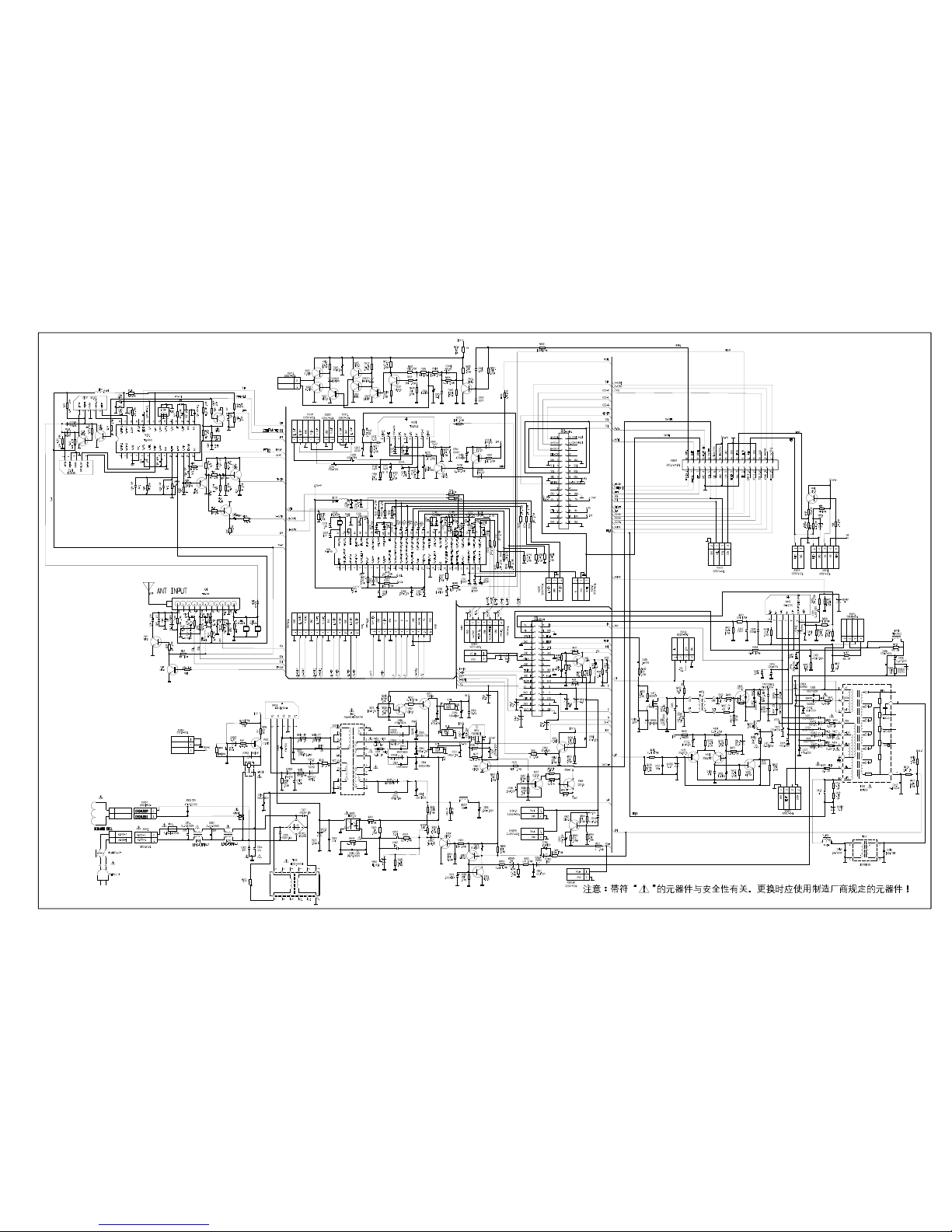

Components shown in the shaded areas on the schematic diagram and/or identified by in the
replacement parts list should be replaced only with exact factory recommended replacement parts. The
use of unauthorized substitute parts man creats may create shock, fire, X-ray radiation, or other
hazards.
To determine the presence of high voltage, use an accurate high impedance HV meter connected
between the second anode lead and he CRT dag grounding device. When servicing the High Voltage
System remove static charges from it by connecting a 10K Ohm resistor in series Wan insulated
wire(such as test probe) between the picture tube dag and 2nd anode lead(Have AC line cord
disconnected from AC supply).
The picture tube use in this receiver employ integral implosion protection. Replace with a tube of
the same type number for continued safety. Do not lift picture tube by the neck. Handle the picture
tube only when wearing shatterproof goggles and after discharging the high voltage completely, Keep
others without shatter proof goggles away.
Before returning the receiver to the user, perform the following safety checks:
1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged
between the chassis and other metal parts in the receiver.
2. Replace all protective devices such as non-metallic control knobs, insulating fishpapers,
cabinet backs, adjustment and compartment covers of shiedls, isolation resistor-capacitor networks,
mechanical insulators etc.
3. To be sure that not shock hazard exists, a check for the presence of leakage current should be
made at each exposed metal part having a return path to the chassis (antenna, cabinet metal, screw
heads knobs and/or shafts, escutcheon, etc.) in the following manner.
Plug the AC line cord directly into a 220V, AC receptacle. (Do not use an Isolation Transformer
during these checks.) All checks must be repeated with the AC line cord plug connection reversed. (If
necessary, a nonpolarized adapter plug must be used only for the purpose of completing these checks.)
If available, measure current using an accurate leakage current tester. Any reading of 0.35mA or more
is excessive and indicates a potential shock hazard which must be corrected before returning the
receiver to owner.
If a reliable leakage current tester is not available, this allernate method of measurement should
be used. Using two clip leads, connect a 1500 Ohm, 10 watt resistor paralleled by a 0.15MF capacitor
in series with a known earth ground, such as a water pipe or conduit and the metal part to be checked.
Use a VTVM or VOM with 1000 Ohms per Volt, or higher, sensitivity to measure this AC voltage
drop across the resistor,. Any reading of 0.35 volt RMS of more is excessive and indicates potential
shock hazard which must be corrected before returning he receiver to the owner.
ALIGNMENT PROCEDURES
PLEASE READ BEFOREATTEMPTING SERVICE
1. Use an Isolation Transformer when performing any service on this chassis.
2. Never disconnect any leads while receiver is in operation.
3. Disconnect all power before attempting an repairs.
4. Do not short any position of the circuit while the power is on.
5. For safety reasons, replacing any components should be according with identical replacement
parts (SEE PARTS LIST).
6. Before testing, warm up the TV for at least 30 minutes and demagnetize the CRT with an
external degaussing coil.
7. When removing a PCB or related component, after unfastening or changing a wire, be sure to
put the wire back in its original position.
8. Inferior silicon grease can damage IC’s and transistors. When replacing IC’s and transistors,
use only specified silicon grease,. Remove all old silicon when applying new silicon.
9. Before removing the anode cap, discharge eiecticity because it contains high voltage.
10.To adjust MCU N602 installed in the chassis, you should write master slice’s data into this
MCU before installing, and no any data except this test manual listed is admitted to be modified
without designer’s agree.
Test environment
1. Temperature: 15~35°C
2. Relative humidity: 45 ~ 75%
3. Air pressure: 86 ~ 106kPa
TEST EQUIPMENT
1. DC Power Suply (14V)
2. Oscilloscope
3. High Voltage meter 40KV
4. Multi-meter(internal resistance:DC≥20kΩ/V,AC≥5kΩ/V)
5. Ammeter(0.5 grade,DC3mA)
6. Degaussing Coil
7. PHILIP Picture Signal Generator(PH5820 or other type)
Factory menu
1. Press MENU button to display the menu, then press RECALL button five times
continuously to enter factory service menu. Press MENU button to call up FACTORY1-6
after entering into the factory service menu.
2. Press PROG. ▲▼button to select the item (the selected item will turn into red),
then use VOL+/VOL- button to adjust the parameter.
3. Press RECALL button again to exit factory service menu.
IF adjustment
1. Disconnect IF end of RF Tuner.
2. Apply 8V stable power supply to PIN of N954(C963 “+”) input.
3. Connect R108 and R156 joint to GND, apply 5V to XS604 pin1, then connect
Signal generator (PH5820) to IF input (R101 and C101 joint) and apply 95dB 38.9MHz
signal.
4. Connect oscilloscope or digital voltmeter anode to Pin22 of N101, and cathode to
GND, adjust IFT T101 until the measured point level reading on the voltmeter is
2.50±0.05V.(Core inside IFT)
5. Apply 5V to R108 and R156 joint, and connect pin 1 of XS604 to GND, then
apply 95dB 33.9MHz signal. Connect oscilloscope or digital voltmeter anode to Pin22 of
N101, and cathode to GND, adjust RP121 until the measured point level reading on the
voltmeter is 2.50±0.05V.
6. Reconnect IF end.
Check power supply and +B DC adjustment.
1. Check if the AC power supply is normal.
2. Receive TV broadcasting signal and adjust picture to standard mode.
3. Check voltage value between Earth and C910 + that is on the main power PCB
board with DC voltmeter.
4. Then receive traditional TV signal, adjust RP950 to make +B voltage at two end
of C961 meets BOM requirement.
High voltage check and filament voltage check
1. Check AC voltage and +B are within the pointed range before calibrating the
high voltage.
2. Connect high voltmeter to anode of CRT (G4).
3. Turn on the receiver and set Brightness and Contrast to the minimum value.
Swap TV to AV mode (no signal applied)
4. The high voltage must be measured below 35Kv under any mode or brightness
condition, or contrast and Tint are adjusted to the maximum or the minimum value,.
5. Filament voltage must be measured within the range of 6.3±0.2Vrms by virtual
value meter.(Beijing Matsushita Tube)
FOCUS adjustment
1. Receive five circles pattern and adjust the pattern to normal status.
2. Adjust focus potentiometer to obtain the best focus of the pattern.
Horizontal scanning, vertical scanning and geometry correction adjustment
Description: 3 sets of horizontal and vertical parameters need to adjust,
including:Under TV/AV mode, PAL 100i，PAL 75i，NTSC 120I；
Receive five circles pattern signal, then enter into factory menu to call up
FACTROY1.
V SCROLL 0-255
V SIZE 0-255 Adjust it so that the vertical picture reproduction
display ratio is 92%±2%
V SCOR 0-255 Adjust it so that upper pane and bottom pane of the
pattern are the same as the middle pane.
V SHIFT 0-255 Vertical center
V LINEAR 0-255 Vertical linearity
ANGLE 0-255 Parallelogram correction
V ZOOM 0-255 Vertical zoom
Call up FACTORY2
H SIZE 0-255 Adjust it so that the horizontal picture reproduction
display ratio is 92%±2%
H SHIFT 0-255 Adjust pattern horizontal center
A LINE ON/OFF Todisplaya horizontal light line on the pattern. (no
adjustment needed at this time)
UP CORNER 0-255 Adjust it so that vertical lines are straight at upper
corner (left and right). (Receive crosshatch signal)
LOW CORNER 0-255 Adjust it so that vertical lines are straight at low corner
(left and right). (Receive crosshatch signal)
V BOW 0-255 Adjust bow distortion. (Receive crosshatch signal)
TRAPEZIUM 0-255 Adjust trapezium distortion to make it just disappeared.
(Receive crosshatch signal).
PARABOLA 0-255 Adjust Parabola distortion to make it just disappeared.
(Receive crosshatch signal).
H SYNC 0-255 Set to 3 under TV/AV mode。
Call up FACTORY4
NICAM ON
V-EHT 30 （No adjustment）
H-EHT 30 (noadjustment)
HBLANK TIME 0-63 (Adjust horizontal blank time.)
HBLANK PHASE 0-63 (Adjust horizontal blank phase.)
AFCEHT 0
AFCON/OFF ON
PROGRAM NUMB 00 Set program number when turn TV on.
G-AV-ON 00 SetTV/AVstatuswhenturnTVon
FREQ XX （Check data and no adjustment needed）
Grid voltage adjustment
Enter into the menu firstly and set color to normal status (9300K).
1. Enter into factory menu, call up FACTORY5 and set the initial value as technics
card shown:
Settings: MAX BRIGHTNES XX
MIN BRIGHTNES XX
MID BRIGHTNES XX (When you adjust sub-brightness, you
need to adjust this value)
MAX CONTRAST XX
MIN CONTRAS XX
MID CONTRAST XX
P60Hz MODE ON/OFF On or off 60P mode
HOTEL MODE ON/OFF On or off hotel mode
SECAML’ ON/OFF HasSECAMLsystemornot
WPON_OFF ON
2.Call up FACTORY3 to confirm the following values:
RED GAIN 55
BLUE GAIN 55
GREEN GAIN 55
RED LEVEL 196
GREEN LEVEL 196
BLUE LEVEL 196
3.Under standard status, please adjust flyback transformer SCREEN potentiometer
to the minimum position. Call up FACTORY2 and set A LINE ON/OFF to ON position,
then adjust flyback transformer SCREEN potentiometer to make a horizontal light line
just appears on the screen.
White balance adjustment
Enter menu firstly to set COLOR to NORMAL. (9300K)
1. Receive left black right white signal which with color sync signal, adjust
brightness, contrast to make brightness in dark area is 5 Nit, in bright area is 80 Nit.
2. Enter factory service menu, call up FACTORY 3
Adjust RED GAIN 0-63
GREEN GAIN 0-63
BLUE GAIN 50-63
RED LEVEL 0-255
GREEN LEVEL 0-255
BLUE LEVEL 196 (it usually uses factory value, no
adjustment needed)
Adjust black and white at chromaticity coordinate to satisfy the requirement
(X=0.283, Y=0.297), or plug auto test jack to adjust white balance automatically.
3. Set COLOR to COLD and adjust COLOR TEMPERATURE is 12000K.
(X=0.272,Y=0.279)
4. Set COLOR to WARM and adjust COLOR TEMPERATURE is 6500K.
(X=0.313,Y=0.329)
Sub-brightness adjustment
Enter FACTORY5 again, adjust MID BRIGHTNES XX (adjust within 30~38),
when picture is normal status, the gray scale is eight panes and a half.
Check sound effect parameters. (no adjustment)
Enter factory service menu, call up FACTORY6 to check parameters settings:
DBE STRENGTH 115
DBEHARMONIC 30
SURROUNDSPATIA 63
SURROUND STRENG 63
DBELIMIT 22
VOLMAX 60
VOLMIN 25
VOLMID 50
FMPRESCALE 30 Setpower amplifier scale under TV mode
HOTEL MAXVOLUME 90 Set the maximum volume under hotel mode
Teletext OSD language setting
Enter into factory menu and call up FACTORY 7 to set language for the following 24
items:
PRILAN0
PRILAN1
PRILAN2
PRILAN3
PRILAN4
PRILAN5
PRILAN6
PRILAN7
SECLAN0
SECLAN1
SECLAN2
SECLAN3
SECLAN4
SECLAN5
SECLAN6
SECLAN7
X26LAN0
X26LAN1
X26LAN2
X26LAN3
X26LAN4
X26LAN5
X26LAN6
X26LAN7
Electron beam test
Apply white signal, adjust brightness and contrast to the maximum value, voltage at
two ends of test resistor R415 (100 ohm) should be measured below 0.22V (Beijing
Matsushita CRT).
HF AGC adjustment
1. Receive signal (U channel)
2. Set input field strength to 60dBµV (PAL DK) gray scale signal.
3. Adjust RP120 until value of C119 anode is just 4.0V±0.1V。

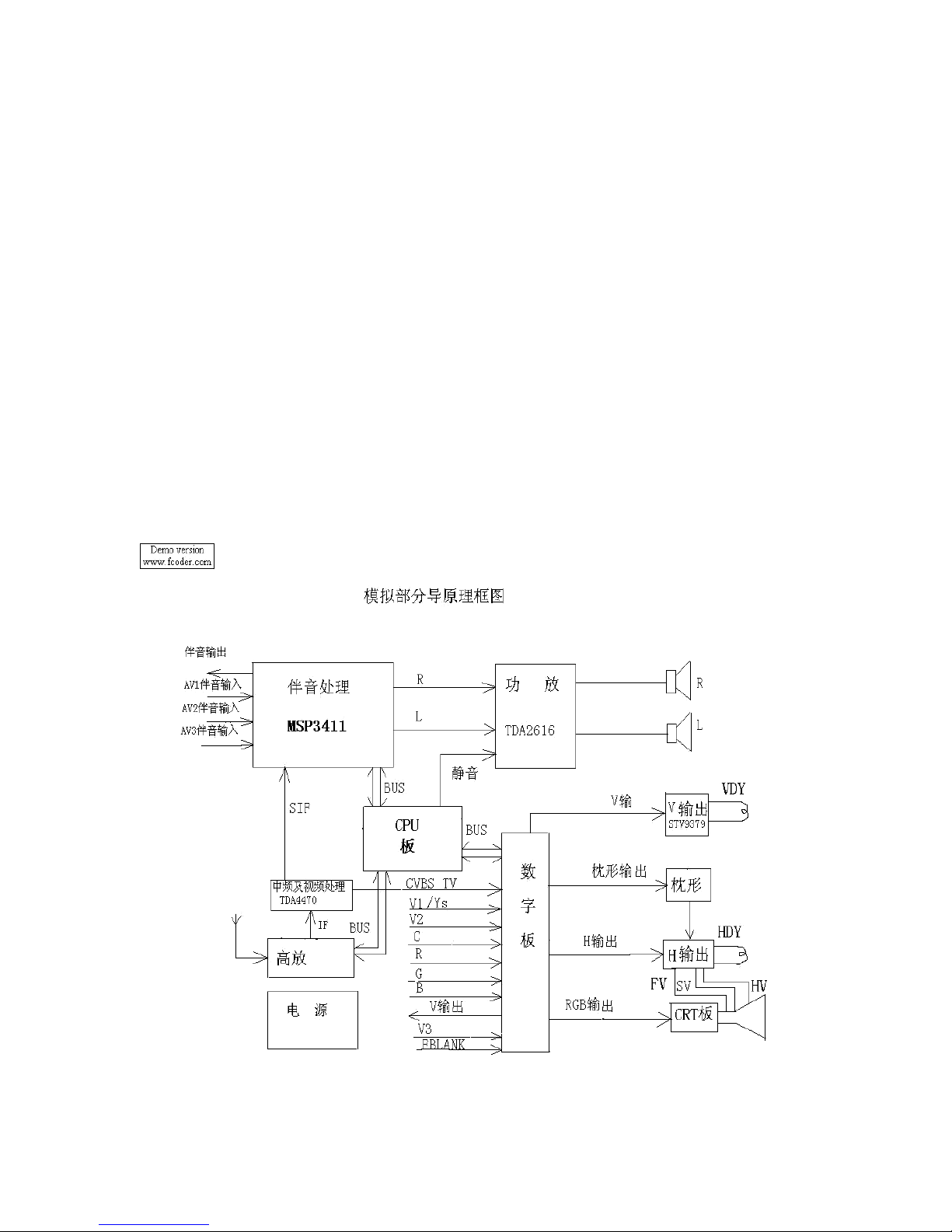

12345678
A
B
C
D
87654321
D
C
B
A
Title
NumberRevisionSize
D
Date:4-Jul-2005 Sheet of
File:D:\ 机E盘\mk14\ 理图\KK833EM_EX_1st.DDBDrawn By:
R005
680
R004
4K7
C00347n
C005
47n
C015
100n
L001
1u
R003
100
R002
100
C007
47n
C001 47n
C018
33p
C00447n
C00847n
C01147n
C016
100n
DNC6
1
AI41
2
AGND
3
VSSA4
4
AI42
5
AI4D
6
AI43
7
VDDA4
8
VDDA4A
9
AI44
10
AI31
11
VSSA3
12
AI32
13
AI3D
14
AI33
15
VDDA3
16
VDDA3A
17
AI34
18
AI21
19
VSSA2
20
AI22
21
AI2D
22
AI23
23
VDDA2
24
VDDA2A
25
AI24
26
AI11
27
VSSA1
28
AI12
29
AI1D
30
AI13
31
VDDA1
32
VDDA1A
33
AI14
34
AGNDA
35
AOUT
36
VDDA0
37
VSSA0
38
DNC13
39
DNC14
40
DNC18
41
DNC15
42
EXMCLR
43
CE
44
VDDD1
45
LLC
46
VSSD1
47
LLC2
48
/RES
49
VDDD2
50
VSSD2
51
CLKEXT
52
ADP8
53
ADP7
54
ADP6
55
ADP5
56
ADP4
57
ADP3
58
VDDD3
59
ADP2
60
ADP1
61
ADP0
62
VSSD3
63
INT_A
64
VDDD4
65
SCL
66
VSSD4
67
SDA
68
RTS0
69
RTS1
70
RTCO
71
AMCLK
72
VDDD5
73
ASCLK
74
ALRCLK
75
AMXCLK
76
ITRDY
77
DNC0
78
DNC16
79
DNC17
80
DNC19 81
DNC20 82
FSW 83
ICLK 84
IDQ 85
ITRI 86
IGP0 87
VSSD5 88
IGP1 89
IGPV 90
IGPH 91
IPD7 92
IPD6 93
IPD5 94
VDDD6 95
VSSD6 96
IPD4 97
IPD3 98
IPD2 99
IPD1 100
VDDD7 101
IPD0 102
HPD7 103
VSSD7 104
HPD6 105
VDDD8 106
HPD5 107
VSSD8 108
HPD4 109
HPD3 110
HPD2 111
HPD1 112
HPD0 113
VDDD9 114
DNC1 115
DNC2 116
DNC7 117
DNC8 118
DNC11 119
DNC12 120
DNC21 121
DNC22 122
DNC3 123
DNC4 124
DNC5 125
XTRI 126
XPD7 127
XPD6 128
VSSD9 129
XPD5 130
XPD4 131
VDDD10 132
VSSD10 133
XPD3 134
XPD2 135
VDDD11 136
VSSD11 137
XPD1 138
XPD0 139
XRV 140
XRH 141
VDDD12 142
XCLK 143
XDQ 144
VSSD12 145
XRDY 146
/TEST 147
TCK 148
TMS 149
TDO 150
VDDD13 151
TDI 152
VSSD13 153
VSS(xtal) 154
XTALI 155
XTALO 156
VDD(xtal) 157
XTOUT 158
DNC9 159
DNC10 160
IC101
SAA7118H
C002 47n
C010 47n
X001
24.576MHz
C019
33p
L0021u
C006
47n
L003
1u
C01247n
TVin
Vin3
Cin
V2/Yin
B
R
G
Vo
SDA
SCL
+3V3A
+3V3D
GND
GNDGNDGNDGND
GND
GNDGND
GND
GND
PD
SRCK
R001
100
C013
100n
C014
100n
C017
100n
GND
C020
220n
GND
C021
100n
+3V3D
+3V3D_7118_1
+3V3A_7118
+3V3D_7118_2
1
3
2
IC108
GND
C024
100n
C023
10u
GND GND
L004
1u
C022
10u
GND
1
3
2
IC109
GND
C027
100n
C026
10u
GND GND
L005
1u
C025
10u
GND
+5V +3V3D
+3V3A
+3V3D
+3V3A
SCL
SDA
+8V
HFB
BOSD
+5V
FBLOSD
GND
Hout
+12V-1
+5V(CPU)
Cin
GNDV2/Yin
B
G
R
GND
TVin
Vin3
V+
V-
ROSD
GOSD
RESET
Vo
ABL
VPROT
EW
GND
+5V +5VD
+5VA
C009
47n
CLK1 1
X1 2
X2 3
CLEXT 4
TEST 5
SUBST 6
RESN 7
SCL 8
SDA 9
VDD 10
VSS 11
HD 12
H35K 13
H38H 14
PWH 15
VSYNC 16
FHI 17
HSYNC 18
VDD 19
VSS 20
PH2 21
VDD 22
VSS 23
E/W 24
D/A 25
V+ 26
V- 27
VDD 28
VSS 29
VPROT 30
HPROT 31
Hsafe 32
BSO
33
IBEAM
34
PROTON
35
VREFH
36
VBLO
37
VREFN
38
VREFC
39
DCI
40
VDD
41
YIN
42
UIN
43
VIN
44
VSS
45
R/Yp
46
G/Pb
47
B/Pr
48
FBL1
49
FBLOSD
50
ROSD
51
GOSD
52
BOSD
53
VDD(8V)
54
ROUT
55
GOUT
56
BOUT
57
SCP
58
VSS
59
SVM
60
VDD
61
VSS
62
SSD
63
SW
64
IC106
SDA9380
X101
22.1184MHz
C10215p
C10115p
GND
GND
R101
100
GND
R102
100
SDA
SCL
+3V3
C103
100n GND
V101
BC848
R1041K R103
510
R105470+5V
+12V-1
Hout
R1451K
R1441K
+3V3
GND
C104
100n
R107
2k7
R109
4K7
GND
D113
1N4148
D111
1N4148
D112
1N4148
GND
+5V
HFB
+3V3
GND C105
100n
R110
620
R1121K
R111
56
C106
47n
V106
BC858
GND
GND
+12V-1
L105
10u
EW
C110
10n
R11910K
GND
GND
R118
1K
GND
R113
1K
R114
1K
+3V3
C107
100n
GND
C109
470p
R117
680
D114
5V1
R108
1K
R116
3K3
L106
10u
R115
5K6
C10847n
V+
V-
VPROT
C111
68n
R120
330 R121
27K
L107
10u
C112
100n
ABL
R122
27K
R123
33K C113
D115
6V2
R146
160K
+3V3
C115
22n
C116
22n
C117
22n
C114
100n
GND
R131R129 R130
Vout
Yout
Uout
R124
1K
C121
22nC122
22nC123
22n
R125100
R126
R127
R128
FBLOSD
ROSD
GOSD
BOSD
GND GND GND
GND
C125
100n
+3V3
C126
100p
V109
BC848
R139
1K GND
C127
100n C128
47u
GNDGND
+12V
1
2
XS103
SVM
GND
GND+8V
C124
100n
R138240
R136240
R137240
1
2
3
4
5
6
7
8
XS102
RGBout
D103
1N4148 D102
1N4148 D101
1N4148
D104
1N4148 D105
IN4148 D106
1N4148
+12V
GND GND
HD-TV
VD-TV
VDD01
1
RSTR2
2
RE2
3
OIE2
4
VSSO1
5
RSTW2
6
DI10
7
DI11
8
DI12
9
DI13
10
DI14
11
DI15
12
DI16
13
DI17
14
VSSD1
15
LLC1
16
VDDD1
17
VDDP
18
DI20
19
DI21
20
DI22
21
DI23
22
DI24
23
DI25
24
DI26
25
DI27
26
VSSD2
27
LLC2
28
VDDD2
29
TCK
30
TDI
31
TMS
32
/TRST
33
n.c.
34
n.c.
35
n.c.
36
n.c.
37
n.c.
38
n.c.
39
n.c.
40
n.c.
41
TDO
42
VDDA1
43
YOUT
44
VSSA1
45
UOUT
46
VDDA2
47
VOUT
48
VSSA2
49
AGND
50
BGEXT
51
VDDA3
52
VSSO2
53
HD
54
VD
55
VSSA3
56
VDDI
57
OSCI
58
OSCO
59
CLKEXT
60
VDDD3
61
CLK32
62
VSSD3
63
VDDO2
64
UVI0 65
UVI1 66
UVI2 67
UVI3 68
UVI4 69
UVI5 70
UVI6 71
UVI7 72
YI0 73
YI1 74
YI2 75
YI3 76
YI4 77
YI5 78
YI6 79
YI7 80
REI 81
VSSO3 82
IE 83
REO 84
YO7 85
YO6 86
YO5 87
YO4 88
VDDO3 89
YO3 90
YO2 91
YO1 92
YO0 93
VSSD4 94
UVO7 95
UVO6 96
UVO5 97
UVO4 98
VDDO4 99
UVO3 100
UVO2 101
UVO1 102
UVO0 103
VSSD4 104
VDDD4 105
ADS 106
SNCL 107
SNDA 108
VSSO5 109
SNRST 110
SDA 111
SCL 112
P1.5 113
P1.4 114
P1.3 115
P1.2 116
VDDO5 117
RST 118
n.c. 119
n.c. 120
n.c. 121
n.c. 122
n.c. 123
n.c. 124
n.c. 125
n.c. 126
n.c. 127
BCE 128
IC102
TDA4979H
L008
1u
X002
12MHz
L007
1u
R007
100
R006
100
L006
1u
SDA
SCL
GND
+3V3D
GND GND
+5V
GND
+3V3A
GND
GND
GNDGND
SRCK
RESETBE
PD
SRCK
GND
GNDGND
Yout
Uout
Vout
HD-TV
VD-TV
R009
1K
GND
RESET R008330
R010
100
C028
100n
C029
100n C030
10n C031
100n C032
100n C033
100n
C034
10n
C040
100n C041
100n
C038
12p C039
18p
GND
GND
DPIP5 1
DPIP4 2
VDDE 3
VSSE 4
DPIP3 5
DPIP2 6
DPIP1 7
DPIP0 8
QPIP7 9
QPIP6 10
QPIP5 11
QPIP4 12
QPIP3 13
LLC 14
VSSE 15
SWCK2 16
QPIP2 17
QPIP1 18
QPIP0 19
RSTW2 20
OEI2 21
IE2 22
VDDP 23
WE2 24
RE2 25
RSTR2 26
TRSTN 27
TMS 28
TDI 29
TDO 30
TCK 31
RST 32
SNRST 33
SNDA 34
VDDE 35
PIPON 36
VSSM 37
VDDM 38
VSSM 39
VDDM 40
SNCL 41
UVA0 42
UVA1 43
UVA2 44
UVA3 45
UVA4 46
UVA5 47
VDDD 48
VSSD 49
TWOFMON 50
VDDS
51
VSSS
52
UVA6
53
UVA7
54
YA0
55
YA1
56
YA2
57
YA3
58
YA4
59
YA5
60
YA6
61
YA7
62
REA
63
IE
64
VDDD
65
VSSD
66
REF
67
YF7
68
YF6
69
VSSE
70
YF5
71
YF4
72
YF3
73
YF2
74
YF1
75
YF0
76
VDDE
77
UVF7
78
UVF6
79
UVF5
80
UVF4
81
VSSE
82
CLK32
83
VDDS
84
VSSS
85
VDDD
86
VSSD
87
UVF3
88
UVF2
89
VSSA
90
VDDA
91
UVF1
92
UVF0
93
VD
94
DPIP7
95
VDDM
96
VSSM
97
VDDM
98
VSSM
99
DPIP6
100
IC103
SAA4998H
IE
RE
REI
GND
+3V3D_EM
+3V3D
L010
1u
C048
100n C049
100n
GND GND
C050
100n C051
100n
GND GND
+5V_4979
+3V3D_4979
+3V3A_4979
C044
100n C045
100n
L009
1u
+1V8
GND GND
C046
100n C047
100n
GND GND
GND
C043
100n
C042
10u
GND GND
1
3
2
IC110
+1V8D
L011
1u C052
100n C053
10n
GND GND
+1V8A
R-OSD
1
G-OSD
2
B-OSD
3
BLK-OSD
4
GND
5
SCL
6
SDA
7
GND
8
RESET
9
10
GND
11
+5V-P
12
13
14
15
GND
16 GND 17
+12V 18
+8V 19
20
+5V-P 21
GND 22
GND 23
+5V(CPU) 24
GND 25
SDA 26
SCL 27
GND 28
29
30
CON 31
CPU1 32
XS01
Va
1
Vb
2
VPROT
3
GND
4
5
GND
6
Vin3
7
GND
8
TVin
9
GND
10
FBL
11
V1/S
12
GND
13
Cin
14
GND
15
V2/Yin
16 GND 17
G18
GND 19
B20
R21
GND 22
Vout 23
GND 24
25
26
GND 27
ABL 28
HBLK 29
Hout 30
GND 31
EW 32
XS02
+5V(CPU)
+5V
+8V
+12V-1
C146
47u
C145
47u
C148
47u
C147
47u
L104
10u
L103
10u
GND
+3V3
+5V
GND
+8V
GND
+12V
GND
Rout
Gout
DCI
Bout
+5V
ROSD
GOSD
BOSD
FBLOSD
GND
SCL
SDA
GND
RESET
GND
+5V
GND
GND
SCL
SDA
GND
+5V(CPU)
GND
GND
+8V
+12V-1
GND
V+
V-
VPROT
GND
GND
Vin3
GND
TVin
GND
GND
Cin
GND
V2/YinGND
G
GND
B
R
GND
Vo
GND
GND
ABL
HFB
Hout
GND
EW
R16510K
R16610K
GND
+1V8
+1V8
L012
1u +5VD1
C054
10u
GND
C056
10p
R012
100
R011
100
C055
10p
GND
C151
100n
C150
10u
1
3
2
IC111
GND GND GND
+3V3
+5V_HOP
D0
D1
D2
D3
D4
D5
D6
D7
D0
D1
D2
D3
D4
D5
D6
D7
R17110K
R170
10K
GND
R175
18
R176
18
R17718
R18118
R18318
R184
18 R185
56 R186
56 R182
56
R178
56 R179
56 R180
56
GND GND GND
GND GND GND
V1/S R132
18 R133
56
GND
V1/S
FBL
GND
TUNER

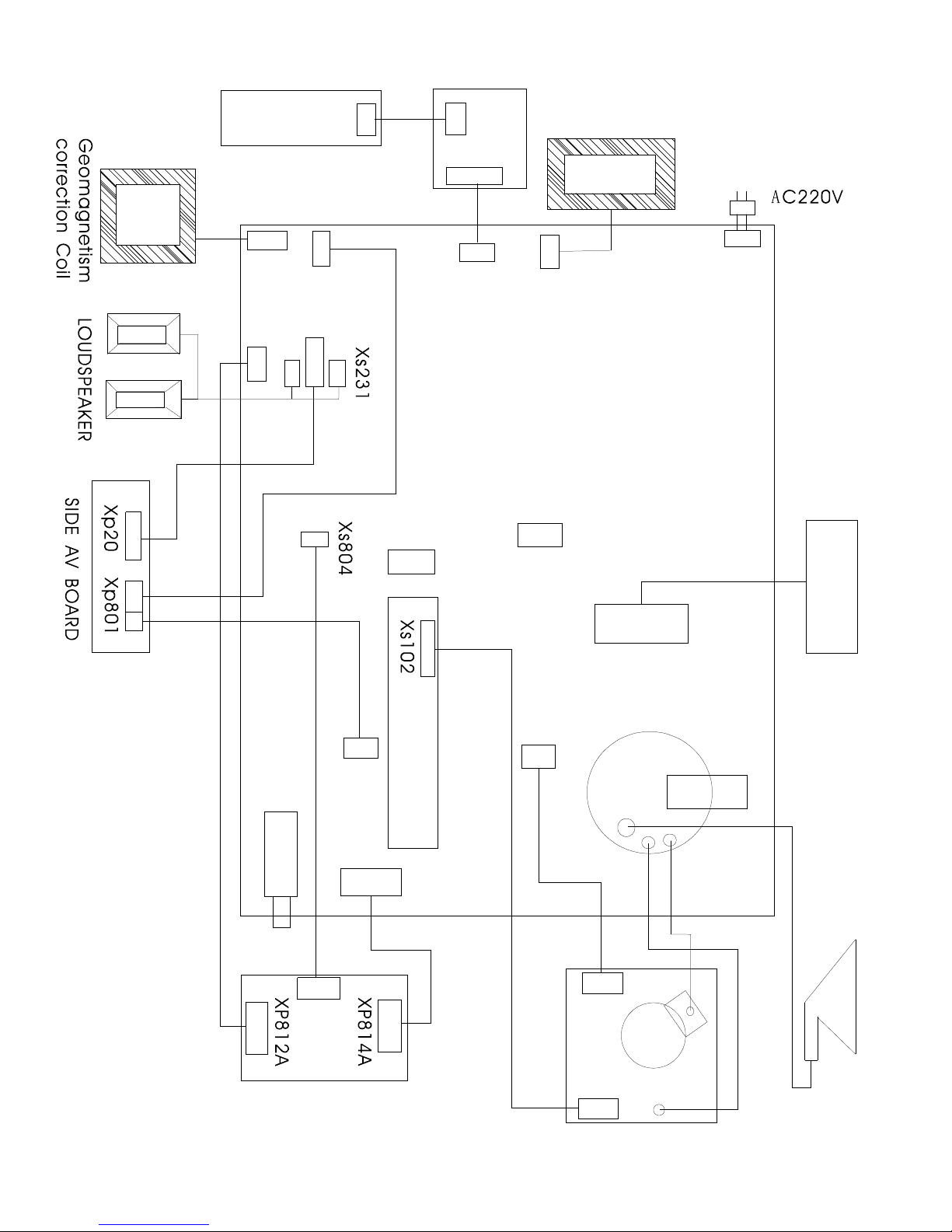

SCARTBOARD
CRTBOARD
CAP
F.B.P
LAMPBOARD
DEGAUSSINGCOIL
Xs902 Xs901
Xs601
Xs230
XSX01
Xs410
Xs401
XP801B
Xs403
Xs802
Xs803
Xs801 Xs220
Xs202
Xs502
Xp501
XP813A
Xp602
Xs603
Xp603
TOCRTDEFLECTIONCOIL

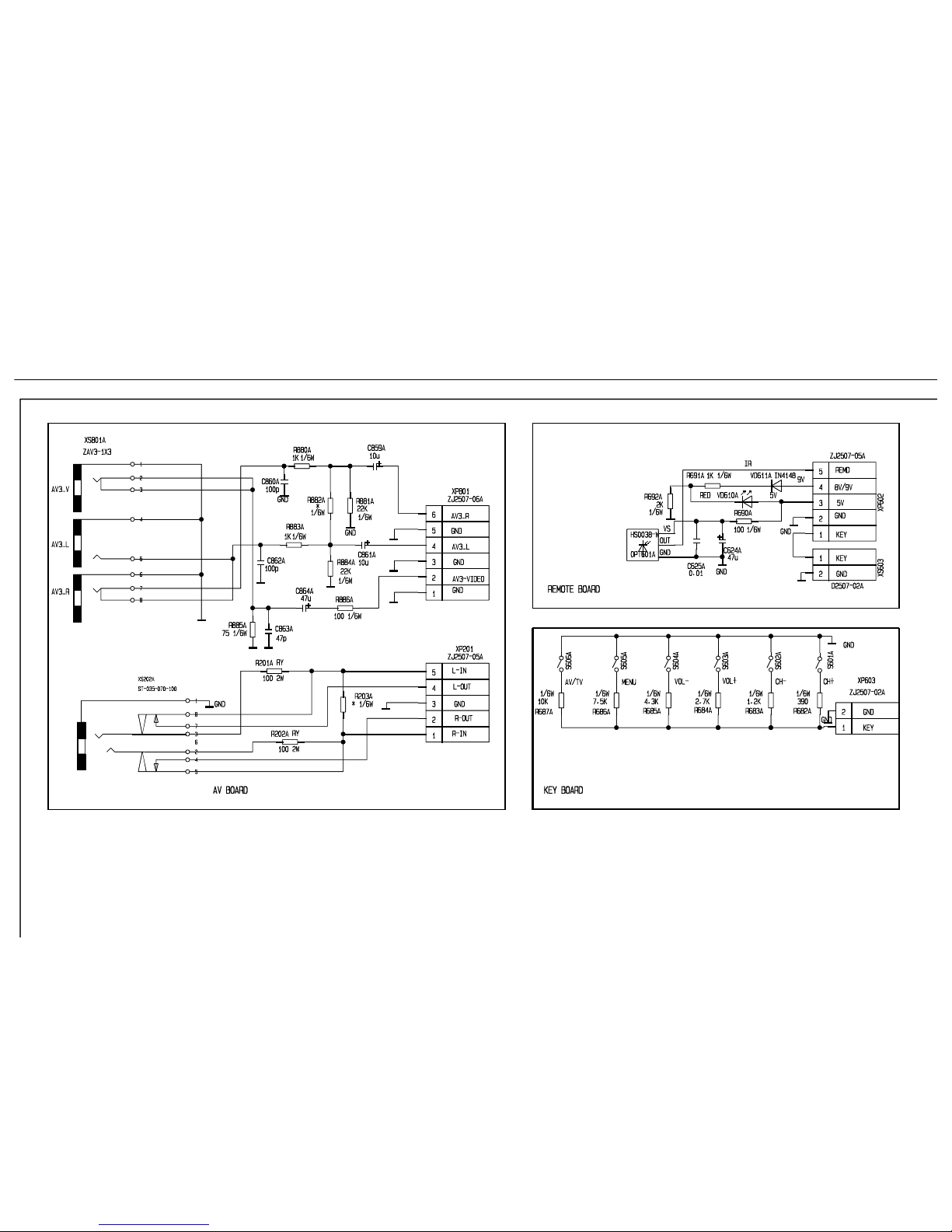

KEYBOARD
Table of contents
