Koolatron KTCF155 User manual

ChestFreezer
UserManual
KTCF155 KTCF195 KTCF99

GENERAL SAFETY RULES
WARNING: Read all of the instructions before using this appli-
ance. When using this appliance, always exercise
basic safety precautions, including the following:
NOTE: If the freezer has been placed in a horizontal or tilted position
for any period of time wait 24 hours before plugging the unit in.
1. Use this appliance only for its intended purpose as described in this use
and care guide.
2. This freezer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in
the installation section.
3. Never unplug your freezer by pulling on the power cord. Always grasp
the plug firmly and pull straight out from the outlet.
4. Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length, the plug or the connector
end.
5. Unplug your freezer before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6. Do not use any electrical device or any sharp instrument in
defrosting your freezer.
7. If your old freezer is not being used, we recommend that you remove
the doors. This will reduce the possibility of danger to children.
8.
WARNING: After your freezer is in operation, do not touch the
cold surfaces in the freezer compartment, particularly when hands
are damp or wet. Skin may adhere to these extremely cold
surfaces.
9. Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: “…You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold-below 40˚F”.
“…Thawed ground meats, poultry, or fish that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat.”
1

“…Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is aected less than that of many other foods.
Use refrozen foods as soon as possible, to save as much of its eating
quality as you can.
10. This freezer should not be recessed or built-in an enclosed
cabinet. It is designed for freestanding installation only.
11. Do not operate your freezer in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take o the doors. Leave the shelves
in place so that children may not easily climb inside.
Staple your receipt to your manual.
You will need it to obtain warranty service.
2
WARNING! This product contains chemicals known to
the State of California to cause cancer, and birth defects
or other reproductive harm. www.P65Warnings.ca.gov

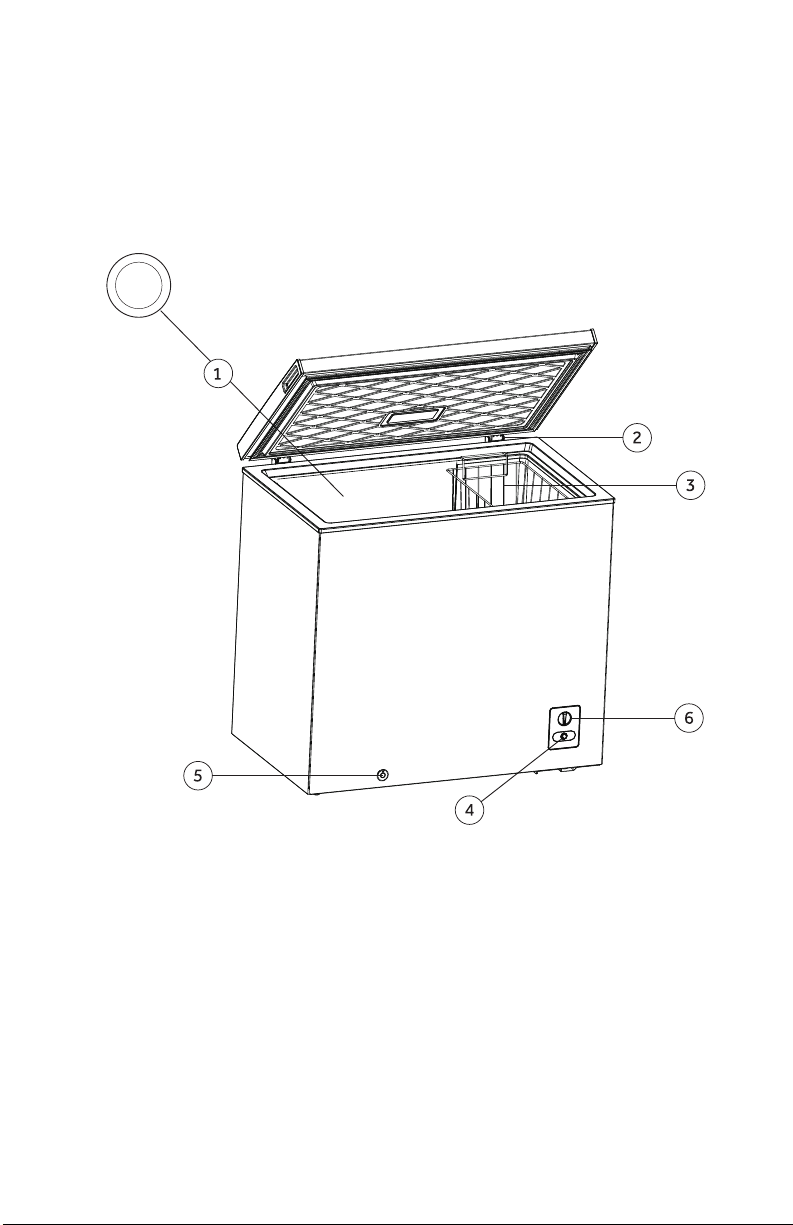

Parts And Features
3
1. Interior Drain Plug (See Insert)
2. Hinges
3. Vinyl Coated Wire Basket
4. Temperature Control
5. Exterior Drain Plug
6. Compressor On Indicator

1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the freezer accessories inside and
outside.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the freezer.
• Your freezer is designed for freestanding installation only.
It should not be recessed or built-in.
• Place the freezer on a floor strong enough to support it fully loaded.
• When moving the freezer, never tilt it more than a 45-degree angle.
This could damage the compressor and the sealed system.
• If the freezer is tilted let it stand in an upright position for at least 24
hours prior to plugging. This is to allow the refrigerant to settle.
• To assure your freezer works at the maximum efficiency it
was designed for, you should install it in a location where there
is proper air circulation, plumbing and electrical connections.
• The following are recommended clearances around the freezer:
Sides……………4” (102mm)
Back..................4” (102mm)
Top....................Do not block
Unpacking Your Freezer
Adjusting Your Freezer
Proper Air Circulation
Installing Your Freezer
4

Electrical Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps
outlet) with proper grounding to power the freezer.
• Avoid the use of three plug adapters or cutting off the third grounding
in order to accommodate a two plug outlet. This is a dangerous
practice since it provides no effective grounding for the freezer and
may result in shock hazard.
• Avoid the use of an extension cord because of potential safety haz-
ards under certain conditions. If it is necessary to use an extension
cord, use only a 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot outlet that will accept the plug. The marked rating of
the extension cord must be equal to or greater than the electrical rat-
ing of the appliance. DO NOT USE EXTENSION CORD LONGER
THAN 12 FT.
• Do not install your freezer in any location not properly insulated or
heated e.g. garage etc. Your freezer was not designed to operate in
temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the freezer on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc. Any floor unevenness
should be corrected.
Install Limitations
Use of Extension Cord
WARNING: ELECTRICAL REQUIREMENT - SHOCK HAZARD
5

Freezer Features and Use
6
• Boiling water, gurgling sounds or slight vibrations that are the result
of the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.
Normal Operating Sounds You May Hear
General Features
Adjustable temperature dial:
Your freezer will automatically
maintain the temperature level you
select. The temperature control dial has
7 settings plus MAX. “1” is the
warmest, “7” is the coldest. Set the
dial to “4” and allow 24 hours to pass
before adjusting the temperature to
your needs.
For faster freezing capability:
The rst time you turn the unit on, turn
the temperature control dial to “MAX”
and run for at least 2 hours, then turn
dial to “4”.
(Note: If the freezer has been
placed in a horizontal or
tilted position for any period
of time wait 24 hours before
plugging the unit in.)
• Once the freezer is in its proper place, plug it in an electrical outlet
having 115 volts and 15 amps.
• Set the temperature, on the temperature control knob. “1” being the
warmest and “7” being the coldest. Initially set the temperature on
“4”. Place food inside the freezer. After using the freezer for 24 hours
set the freezer to your desired setting.
• In case you unplug your freezer or experience an electrical outage,
allow 5 minutes before plugging it back in.
Operating Your Freezer
(see g. # 1)
Compressor on
indicator (green)
g. # 1

• Your freezer has a basket. Removable basket allows you
to store food more accessibly or you can remove it if not needed.
Power Run
0
1
2
3
4
5
6
7
Food Storage Basket
• Remove frozen food from the freezer and place it in a cooler to
protect the food.
• Unplug the unit. Defrosting usually takes a few hours. To defrost faster
keep the freezer door open.
• For draining, place a tray beneath the outer drain plug. Unscrew and
remove drain plug. This will let the water flow out in the tray. When
done, screw on the drain plug in place.
Note: monitor the container under the drain to avoid overflow.
• When draining is complete, wipe the interior of the freezer with a soft
cloth. Plug in power cord back into the electrical outlet.
• Reset the temperature control to the desired setting.
• Return the food into the freezer.
Defrosting and Draining
7
• For most efficient operation and minimum energy consumption, defrost
whenever the frost becomes 1/4” thick. Never use a sharp or metal-
lic instrument to remove the frost, as it may damage the cooling coils.
(A punctured coil will void the warranty).
it may damage the unit. Do not use boiling water as
It is advisable to let ice and frost melt naturally.

Frozen Food:
• Wipe containers before storing to avoid needless spills.
• Hot food should be allowed to cool before storing in the freezer.
This will prevent unnecessary energy use.
• When storing meats, keep in the original
packaging or rewrap as necessary.
• Proper freezer storage requires correct packaging. All foods must be
in packages, which do not allow the flow of air or moisture in, or out.
Improper storage will result in odor and taste transfer and will result
in the drying out of the improperly packaged food.
• Follow package or container instructions for proper storage.
• Packaging Recommendations:
Plastic containers with air tight lids
Heavy duty aluminum foil
Plastic wrap made from saran film
Self-sealing plastic bags
• Do not refreeze defrosted/thawed foods.
• It is recommended that the freezing date be marked on the
packaging.
These are some suggestions for safe storage:
• TV Dinners 3 - 4 Months
• Fresh Shrimp, scallops, crawfish 3 - 6 Months
• Hamburger & stew meats 3 - 4 Months
• Ground Turkey, veal, pork 3 - 4 Months
• Chops 4 - 6 Months
• Steaks 6 - 12 Months
• Chicken or turkey, whole 1 year
For detailed storage chart visit FDA website:
www.cfsan.fda.gov/~dms/fttstore.html
Food Storage Information
8

Cleaning and Maintenance
Warning: To avoid electric shock always unplug your freezer before
cleaning. Ignoring this warning may result in death or injury.
Caution: Before using cleaning products, always read and follow
manufacturer’s instructions and warnings to avoid personal
injury or product damage.
General: • Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or soft
cloth, dampened with the cleaning solution, to wipe down
your freezer.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine
bleach,concentrated detergents, solvents or metal scouring
pads. SOME of these chemicals may
dissolve, damage and/or discolor your freezer.
• Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and pliable
to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of gaskets
will keep the gasket pliable and assure a good seal.
Proper Freezer Care and Cleaning
Door Gaskets:
9

• Occasionally there may be power interruptions due to thunderstorms
or other causes. Remove the power cord from AC outlet when a
power outage occurs. When power has been restored, replug power
cord to AC outlet. If outage is for a prolonged period, inspect and
discard spoiled or thawed food in freezer. Clean freezer before
reusing.
• For long vacations or absences, empty food from freezer, unplug the
unit and clean the door gaskets according to “General cleaning”
section. Prop doors open, so air can circulate inside. When moving
always move the freezer vertically. Do not move with the unit lying
down. Possible damage to the sealed system could occur.
Power Interruptions
Vacation and Moving Care
WARNING: IF OUTAGE IS FOR A PROLONGED PERIOD, INSPECT
AND DISCARD SPOILED OR THAWED FOOD IN
FREEZER. CLEAN FREEZER BEFORE REUSING.
10

Freezer Does Not Operate:
• Check if freezer is plugged in.
• Check if there is power at the ac outlet, by checking the
circuit breaker.
• Wait for 30-40 minutes to see whether freezer will start. Compressor
cycle must be complete to operate.
Food temperature appears too warm:
• Frequent door openings.
• Allow time for recently added warm food to reach
freezer temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Too much frost build-up inside unit:
• Make sure temperature control is not set to “ON”
setting for extended period of time.
Food temperature is too cold:
• If temperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust.
Compressor runs too frequently:
• This may be normal to maintain constant temperature during
high temperature and humid days.
• Doors may have been opened frequently or for an extended
period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
• Check freezer compartment for blockage from
frozen food packages, containers, etc.
Freezer has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
Troubleshooting
11

H1S314 05/2023-v5-KCW
Warranty
Koolatron Corporation warrants that this product will be free from defects in materials
or workmanship under normal household use for a period of 1 year from the date of
retail purchase. During this time, defective products will be repaired or replaced at
the discretion of the retailer and/or Koolatron Corporation.
This warranty covers normal household usage and does not cover damage which
occurs in shipment or results from accident, misuse or abuse, unauthorized repair or
alteration, improper maintenance, commercial use, or use with a voltage converter or
aftermarket accessories. A Koolatron Master Service Centre must perform all
warranty work.
WARRANTY AND SERVICE PROCEDURE
Keep your original, dated, sales receipt with this manual. If this product proves to
be defective within the warranty period, please contact Koolatron Corporation at
1-800-265-8456 (North America) or email [email protected] for assistance.
Register online at www.koolatron.com and add another 6 months of warranty
protection.
www.koolatron.com
©2023Koolatron, Inc. All rights reserved.
All specification are subject to change without notice.

Congélateur
Guide de l’utilisateur
KTCF155 KTCF195 KTCF99

INSTRUCTIONS DE
SECURITE IMPORTANTES
Lisez toutes les instructions avant d’utiliser cet appareil. Lorsque vous
utilisez cet appareil, respectez les consignes de securite de base y
compris les suivantes:
1. Utilisez cet appareil uniquement pour l’usage auquel il est destine
comme indique dans ce manuel d’utilisation et d’entretien
2. Cet appareil doit etre installe proprement et conformement aux instruc-
tions d’installation avant d’etre utilise . Consultez les instructions de
mise a terre dans la section d’installation.
3. Ne debranchez jamais votre congelateur / refrigerateur convertible en
tirant sur le cordon d’alimentation . Saisissez la fiche fermement et tirez
tout droit de la prise murale.
4. Reparez ou remplacez immediatement , toutes les cordes electriques qui
sont devenues frangees ou autrement endommagees .N’utilisez pas un
cable representant des craquelures ou des abrasions a la longueur du
cordon, de la fiche ou de l’extremite du connecteur.
5. Debranchez votre congelateur / refrigerateur avant de le nettoyer ou
avant de le reparer. Note: Si pour n’importe quelle raison cet appareil
exige un service de reparation, nous recommandons avec force qu’un
technicien certifie execute le service.
6. N’utilisez aucun dispositif electrique ou aucun instrument aigu pour
degriver votre congelateur / refrigerateur convertible.
7. Si vous n’utilisez plus votre congelateur /refrigerateur convertible,
nous vous recommandons de retirer les portes. Cela reduira les risques
d’accident aux enfants.
8. Apres avoir mis en marche votre congelateur / refrigerateur , ne tou-
chez pas aux surfaces froides specialement si vos mains sont mouillees
ou humides. La peau peut adherer aux surfaces extremement froides.
9. Ne congelez pas de nouveau la nourritue qui a ete degelee com-
pletement . Le service des Etats Unis d’Agriculture dans le bulletin de
Maison et Jardin N0 69 lisent “……Vous pouvez sans risque congeler
de nouveau la nourriture degelee si elle contient des cristaux de glace
ou si la temperature est restee froide au dessous de 40degres F.
Français
1

Agrafer le ticket de caisse au guide.
Il devra être présenté pour tout service après-vente sous garantie.
“La viande hachee, le volaille,ou le poisson degeles, qui ont n’importe
quelle odeur ou couleur ne doivent pas etre congeles de nouveau ou
manges. La glace degelee doit etre jetee . Si l’odeur ou la couleur de
n’importe quelle nourriture est incertaine, jetez la. Il peut etre dan geureux
de manger cette nourriture.
“Meme une decongelation partiale et recongelation peuvent reduire la
qualitee de la nourriture, particulierement, les fuits, les vegetables et
les plats prepares en avance. La qualitee de la viande rouge est moins
afectee que celle que d’autres nourritures. Utilisez la nourriture qui a ete
recongelee au plus tot possible pour garder sa qualite.
10. Ce refrigerateur ne doit pas etre encastre ou incorpore dans un placard
enclos. Il est concu pour une installation sans encastrement.
11. N’operez pas votre unite en presence des fumees explosives.
VEUILLEZ CONSERVER CES INSTRUCTIONS
DANGER
Risque d’occlusion d’enfant. Avant que vous jetiez votre vieux
réfrigérateur ou congélateur, enlevez les portes. Laissez les
étagères en place de sorte que les enfants ne puissent pas
facilement s’élever à l’intérieur. Selon Des Normes UL 250
Français
2
AVERTISSEMENT! Ce produit contient des produits
chimiques qui, de l’avis de l’État de Californie, causent
des cancers ou des anomalies congénitales ou d’autres
problèmes de reproduction. www.P65Warnings.ca.gov

Français
3
Sommaire
PAGE
Mesures de Sécurité......................................................................... 1
Pièces et Caractéristiques................................................................. .4
Installer le Congélateur..................................................................... 5
Déballer le Congélateur.................................................................. ..5
Régler le Congélateur..................................................................... ..5
Assurer une Bonne Circulation de L’air.............................................. .5
Installation Électrique....................................................................... .6
Limitations d’installation .................................................................... 6
L’usage de Rallonge......................................................................... 6
Caractéristiques du Congélateur et Utilisation...................................... 7
Utiliser le Congélateur ...................................................................... 7
Caractéristiques Générales ............................................................... 7
Casiers de Rangement pour Aliments ................................................. 8
Dégivrage et évacuation de l’eau ...................................................... 9
Informations sur le Rangement des Aliments ........................................ 9
Bruits de Fonctionnement lors d’une Exploitation Normale ................9-10
Entretien et Nettoyage du Congélateur............................................. 10
Nettoyage et Maintenance.............................................................. 10
Coupures de Courant ..................................................................... 11
Entretien lors des Vacances ou d’un Déménagement.......................... 11
Guide de Dépannage..................................................................... 12

Piéces et Caractéristiques
1. Le Bouchon intérieur d’Egout
(Voir l’insertion)
2. Charnières
3. Le vinyle A Revêtu le Panier de Fil
4. Ajustement de Régulation de la
température
5. Le Bouchon extérieur d’Egout
6. Compresseur sur l’indicateur
4
Français

1. Retirez tout le matériau d’emballage y compris la base en mousse et le
ruban adhésif retenant les accessoires du congélateur à l’intérieur et à
l’extérieur.
2. Examinez et retirez tous les restes de l’emballage, de la bande ou des
matériaux imprimés avant d’actionner sur le congélateur.
• Ce congélateur a été conçu en tant qu’appareil autostable. Il ne doit pas
être encastré ni être placé en retrait dans une niche ou un renfoncement.
• Placez le congélateur sur un sol suffisamment résistant et
capable de le soutenir lorsque ce dernier est complètement rempli.
• Lorsque vous déplacez le congélateur, veillez à ne jamais le pencher
plus de 45∞. En effet, vous risquez d’endommager le compresseur et le
dispositif scellé.
• Si le congélateur a été penché, laissez-le debout (en position verticale)
pendant au moins 24 heures avant de le brancher afin qu’il revienne à son
état de fonctionnement normal.
• Afin de vous assurer que le congélateur fonctionne à plein rendement,
installez-le dans un endroit largement ventilé et où il existe des prises pour
le raccordement électrique et la plomberie.
• Les dimensions suivantes sont les distances recommandées autour du
congélateur.
Côtés...........4 po. (102 mm)
Derrière.......4 po. (102 mm)
Installer le Congélatuer
Déballer le Congélatuer
Régler le Congélatuer
Assurer une bonne circulation de l’air
Français
5

Installation Électrique
• Assurez-vous qu’il existe une prise murale adéquate (prise électrique 115
volts, 15 ampères) avec mise à la masse afin d’alimenter
le congélateur.
• Ne pas utiliser de fiche à trois broches et ne pas couper la troisième
broche (broche de mise à la masse) afin de brancher la fiche sur une prise
à deux broches. Ceci est très dangereux car ce système n’offre aucune
mise à la masse au congélateur et vous risquez de
vous électrocuter.
• Ne pas installer le congélateur dans un endroit non chauffé et ne
présentant aucune isolation (par ex: garage, etc.). Ce congélateur n’a pas
été conçu afin de fonctionner à une température inférieure à 55˚F (12˚C).
• Choisissez un endroit adéquat présentant une surface dure à l’écart des
rayons du soleil et de toute source de température telles que radiateurs,
radiateurs de plinthe, appareils de cuisson, etc. Corrigez toute inégalité du
sol.
• Eviter l’usage d’une rallonge à cause des dangers de sûreté potentiels
sous les certaines conditions. S’il est nécessaire utiliser une rallonge, utilise
seulement un à 3 fils qui a un 3-mettre à terre et un 3-slot qui acceptera le
bouchon. L’évaluer marqué de la rallonge doit être égal à ou plus grand
que l’évaluer électrique de l’appareil.
Restrictions pour l’installation
L’usage de Rallonges
Français
6
