Kowa C-880N STAY-ON-CASE User manual

FITTING INSTRUCTIONS
G
F
C-880N STAY-ON-CASE

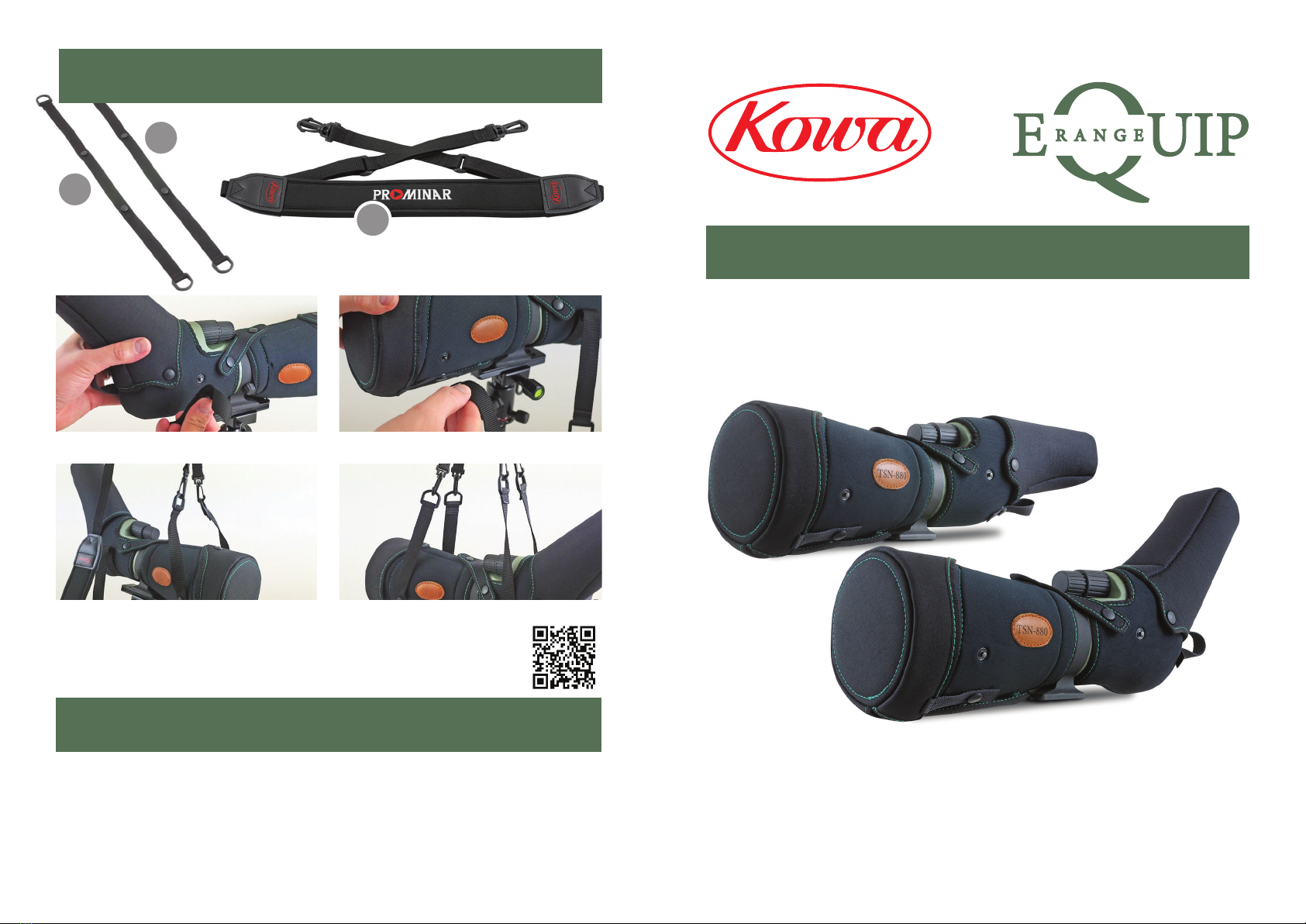

FITTING THE STRAP
Need more help? Scan the QR code opposite or visit our Youtube
channel for an instruc onal video.
F
A ach strap (F) to both sides of part (B) using the
press studs.
Repeat this process with the other strap (F) on to
both sides of part (A).
Connect main strap (G) to straps (F) with both clips
on either side of the front of the scope.
Repeat this process at the rear of the scope.
