Quick Start Guide
MODEL:
K-Cam4K
4K PTZ Camera
P/N:
2900- 301530QS
Rev:
1
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
For the latest information on our products and a list of Kramer distributors, visit our
Web site where updates to these installation instructions may befound.
We welcome your questions, comments, andfeedback.

2
K-Cam4K 4K PTZ Camera
K-Cam4K 4K PTZ Camera
Congratulations on purchasing your Kramer K-Cam4K 4K PTZ Camera (Pan Tilt Zoom camera). K-Cam4K includes an ultra-
low, 8.51Mpixel CMOS image sensor that together with 3D DNR technology, delivers high image quality of up to 4K at 30fps.
K-Cam4K includes HDMI, RJ-45 and USB 3.0 outputs for easy plug-and-play and features x12 zoom, a ±30° tilt, a 71° field of
view and a ±170° pan. Control K-Cam4K via the IR remote controller, OSD or embedded webpages. Go to
www.kramerav.com/downloads/K-Cam4K to download the latest user manual and check if firmware upgrades are available.

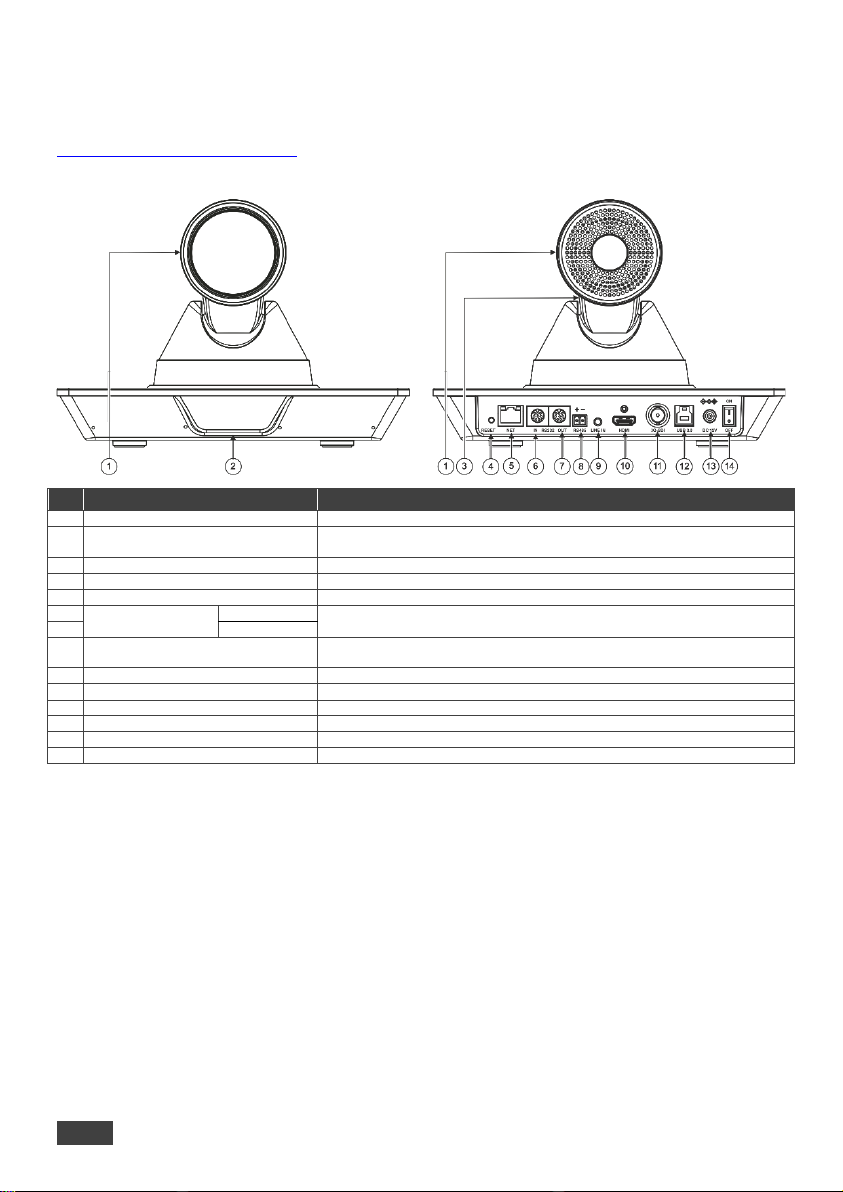

Get to know your K-Cam4K
#
Feature
Function
1
Camera
Front and rear views.
2
Front Panel OLED
Displays frame rate and resolution for HDMI and SDI output signals, as well as
the IP address.
3
Tilting Mechanism
Can be set to any of 255 preset positions.
4
RESET
Press for 5 seconds to reset to factory default parameters.
5
NET RJ-45 Connector
Connect to your network or directly to a computer (supports PoE).
6
RS-232 8-pin DIN
Connector
IN
RS232 8-pin DIN Connector
7
OUT
8
RS-485 2-pin Terminal Block
Connector
Connect to a controller.
9
LINE IN 3.5mm Mini Jack
Connect to a microphone.
10
HDMI Out Connector
Connect to a recording/streaming device.
11
3G-SDI Out BNC Connector
Connect to a recording/streaming device.
12
USB 3.0 Type-B Connector
Connect to computer or collaboration device using the USB-3 cable (included).
13
DC12V Power Connector
Connect to the 12V power adapter.
14
ON/OFF Switch
Turn the unit on and off.

Installation Instructions
3
Mounting K-Cam4K
You can mount K-Cam4K on the wall, the ceiling or place it on a tabletop. The built-in gravity sensor automatically corrects the
image orientation.
•Ensure that the environment (e.g., maximum ambient temperature, humidity & air flow) is compatible for the device.
•Avoid exposingthe productto direct sunlight or any other heat source.
•Keep away from children –product includes small accessories and components.
•Avoid uneven mechanical loading.
•Do not insert any sharp objects into the product.
•Avoid dropping or hitting the product to avoid damaging the product.
•For maintenance, call tech support.

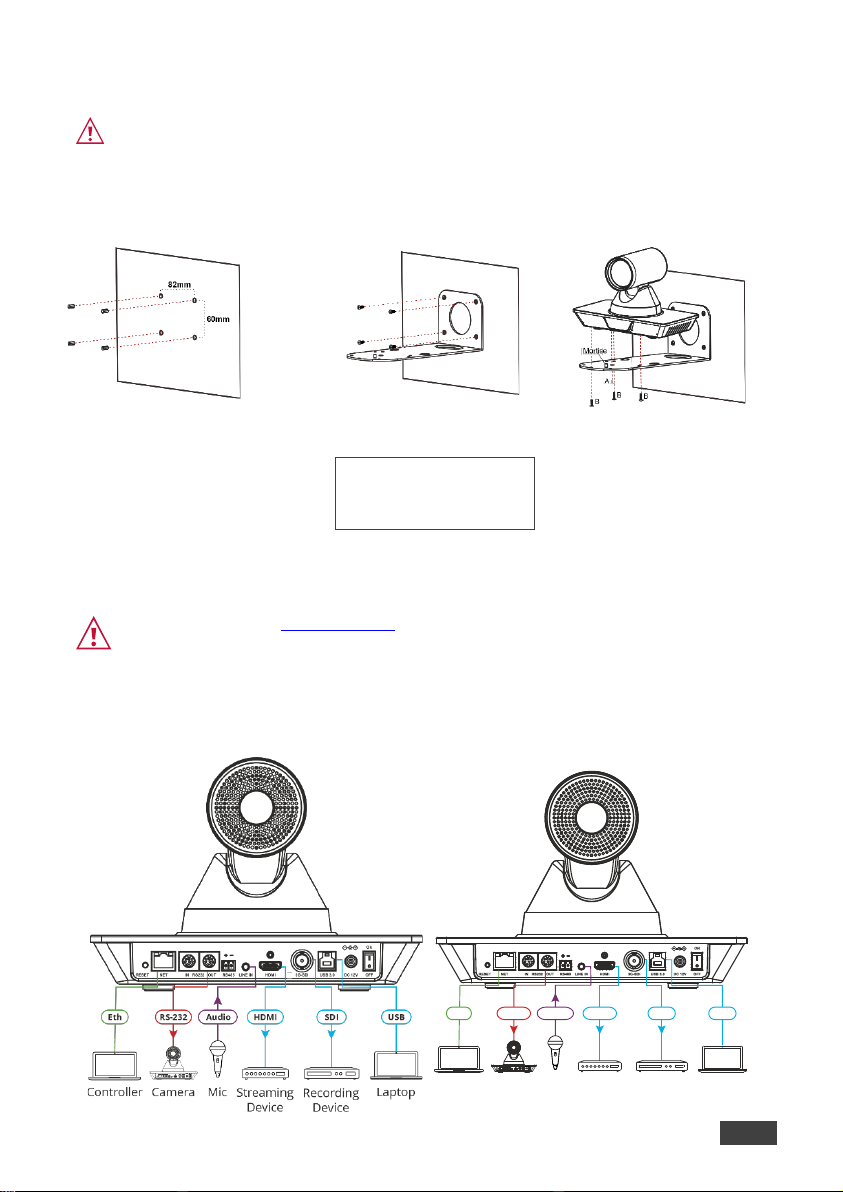

To attach K-Cam4K onto a wall:
1. Find the correct location on the wall.
2. In the desired location, mark the hole
locations, then drill 4 holes 82mm and
60mm apart (using a 6mm drill-bit) to fit
the 4 holes of the wall-mounting bracket.
3. Insert the four expansion-plugs into the
holes.
4. Attach the wall bracket to
the wall, using the four wall-
bracket screws.
5. Attach the device to the wall bracket
by fitting the mortise (on the bracket)
into the tenon (on the camera).
6. Fix the camera by screwing (A)
Nickel screw to the center and (B)
then tighten with 3 black screws.
Note that you can also attach
the device upside down, from
under the bracket.
Connecting K-Cam4K
Always switch OFF the power on each device before connecting it to your K-Cam4K.
Connect the power cord to K-Cam4K and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
•There are no operator serviceable parts inside the unit.
Warning:
•Use only the power cord that is supplied with the unit.
•Disconnect the power and unplug the unit from the wall before installing.
•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.
•To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which
locatedon the bottom of the unit.



















 






4
K-Cam4K 4K PTZ Camera
Controlling K-Cam4K via the IR remote controller
#
Key
Function
Shortcut Keys
*+＃+1: OSD default (English)
*+＃+3: OSD default (Chinese)
*+＃+4: Display current IP address
*+＃+6: Quickly recover the default
*+＃+8: View the camera version
*+＃+9: Quickly set up inversion
*+＃+MANUAL: Restore default IP
address
1
Power
Press once to enter standby mode. Press again to enter
normal operation mode.
2
Number (0 to 9)
Configure or edit a preset.
3
* Key
Use together with other keys for various functions.
4
PRESET
Press PRESET + a numerical key (0 to 9) to save the
current configuration to that preset number.
5
HOME
Press to return K-Cam4K to its default position.
When in the OSD, press to enter a submenu or confirm
menu.
6
Return
Return to previous item on the menu.
7
ZOOM
SLOW
Press for slow zoom in (+) or out (-).
FAST
Press for quick zoom in (+) or out (-).
8
L/R Set
STD (1)
Press L/R +STD (1) keys to set Pan-Tilt to same direction
as L/R setting.
REV (2)
Press L/R +REV (2) keys to set Pan-Tilt to the direction
opposite to the L/R setting.
9
FOCUS
AUTO
Press to automatically set the focus to the
center of the image.
MANUAL
Press to enter manual focus mode. Then
press FAR or NEAR.
FAR
When in MANUAL mode, press to focus on
a far object
NEAR
When in MANUAL mode, press to focus on
a near object.
10
CAMERA SELECT
Select the camera to configure and control (1 to 4).
11
# Key
Use together with other keys for various functions.
12
IR RC
Press * + # + (F1 to F4) to assign a camera address to the
remote. For example, point the remote to a camera, press
*+#+F1. The remote assigns CAMERA SELECT 1 key to
this camera. To use the remote to control camera 1 press
the CAMERA SELECT 1 key.
Press F4 to freeze the image.
13
RESET
Press RESET+ a key number (0 to 9) to delete a preset
configuration. Press *+#+RESET to delete all preset
configurations.
14
PTZ Control
Control camera panning and tilting using arrow keys (left,
right, up and down).
15
MENU
Enter/exit OSD menu.
16
BACKLIGHT
Press to turn backlight compensation on or off.
Available when exposure mode is set to Auto (via the
OSD menu).
17
P/T RST
Press to self-check preset Pan/Tilt on camera.
Default Communication Parameters
RS-232
Baud Rate:
9600
Data Bits:
8
Stop Bits:
1
Parity:
None
Command Format:
ASCII
Ethernet
To reset the IP settings to the factory resetvalues go to: Menu->Setup -> Factory Reset-> press Enter to confirm
IP Address:
192.168.100.88
Subnet mask:
255.255.0.0
Default gateway:
192.168.1.2
Default username:
admin
Default password:
admin
Full Factory Reset
OSD
Go to: Menu-> RESTORE DEFAULT -> confirm
Reset button
Press the RESET button for 5 seconds to reset the machine
