OWNERS MANUAL
GV180
KRENDL MACHINE COMPANY • 1201 SPENCERVILLE RD
DELPHOS, OHIO 45833 • TELEPHONE [phone] • FAX [phone]
E - MAIL: [e-mail] • WEB SITE: www.krendlmachine.com
60 YEARS OF AMERICAN INGENUITY

CONGRATULATIONS ON YOUR PURCHASE OF KRENDL EQUIPMENT
MODEL GV180
OWNER'S MANUAL
FOR ASSURED SAFETY AND CONFIDENCE, PLEASE READ THIS
MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING
YOUR MACHINE.
E-MAIL ADDRESS IS: [email protected]
WEB SITE IS: www.krendlmachine.com

Table of Contents
Preface 1
General Safety Information 1
Decals 3
Returned Goods Procedure 5
Service 5
Specifications 5
Warranty 6
Basic Components 7
Theory of Operation 7
Operating Instructions 8
Machine Hook-up . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Machine Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Machine Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . 9
Trouble Shooting 10
Maintenance 11
Fan Removal for Replacement . . . . . . . . . . . . . . . . 13
Fan Installation for Replacement . . . . . . . . . . . . . . . 13
Exploded Parts List 14

Rev.Date:11/11/20 Page 1
Thank you for purchasing KRENDL INSULATION MOVING EQUIPMENT. With over sixty years experience
inmanufacturinginsulationmovingequipment,wehavedesignedandbuiltyourequipmentwiththehighestqualitytoprovide
years of reliable service.
This manual has been prepared to help you obtain the maximum efficiency and service from your Krendl equipment.
The machine is designed to move insulation with the utmost in dependable performance. Our primary objective is to build
equipment which will provide complete satisfaction.
SinceKrendlMachine Companydoes not manufactureor sellinsulation,our interestliesonly inthe proper performanceof
the equipment we manufacture. We make no recommendations or guarantees concerning various insulations.
CAUTION:
This manual contains important information regarding the safe assembly and operation of your machine. We urge
you to read it carefully and follow the instructions provided. If your questions are not answered in this manual,
please contact us. We want you to be able to operate this unit safely and confidently.
FILL IN AND RETAIN:
Krendl Machine Company Telephone: [phone]
1201 Spencerville Rd Fax: [phone]
Delphos, Ohio 45833 U.S.A. E-mail: [email protected]
Web Site:
www.krendlmachine.com
For your protection in the event of theft or loss, please fill in the information requested for your own records. This
information will be needed for warranty repairs. You may also want to attach a copy of your invoice.
Machine model number _
Serial number _
Date of purchase _ Supplier / Distributor _
Important: Readallinstructionsbeforeoperatingthisequipment. Thisequipmentcanbepotentiallydangerousand
must be used in strict accordance with instructions.
Disclaimer Notice: The manufacturer will not be legally responsible for any injury or damage resulting from the
improper use of this equipment or the failure to follow instructions.
Preface
General Safety Information

Rev.Date:11/11/20 Page 2
General Safety
• Read this manual carefully and become familiar with your equipment. Know its applications, limitations, and any
operationalhazards.
• Thisequipmentwasdesignedandmanufacturedforspecificapplications. Donotattempttomodifytheunitorutilize
itforanyapplicationinwhichitwasnotintended. Ifyouhaveanyquestionsaboutyourintendeduseorthemachines
suitability, ask your supplier/distributor or consult the factory. Krendl Machine Company can not anticipate every
circumstancethatmightinvolveahazard. Forthatreason,warningsinthemanualandwarningtagsanddecalsaffixed
totheunit,arenotall-inclusive. Donothandle,operate,orservicetheunitbyaprocedureormethodnotspecifically
recommended by the manufacturer.
Electrical Safety
•The National Electric Code (NEC) in the United States and many international electrical codes require frame
and external electrically conductive parts of this machine to be properly connected to an approved earth ground.
Local electrical codes may also require proper grounding of machine. Consult with local electricians for grounding
requirements in your area.
• Takecareandfollowtheseinstructionswhenremovingorinstallingthebatteryorelectricalburncouldoccur. When
removingbattery,disconnectnegativecablefirstfollowedbypositivecable. Wheninstallingbattery,connectpositive
cable first followed by negative cable.
• Reference NFPA 79, 70E, or OSHA safe work practices when performing energized work procedures.
Safety/Caution
• Be Safe - ALWAYS remove key from ignition and shut off gas before performing any maintenance on vacuum.
• Be Safe - Keep hands, loose clothing, jewelry and hair away from moving parts.
• Be Safe - Make sure all guards are in proper placebefore operating vacuum. Guards and safety devices/switches
should not be removed, modified or by-passed.
• Be Safe - Do not remove safety pins located in output tube, as injury may result.
• Be Safe - Do not remove fan chamber cover when key is in the on position.
• Be Safe - Keep work area clear of debris. Do not use vacuum to move stones, nails, or any other foreign debris.
• Be Safe - Consultaqualifiedtechnician toanswerquestionsbeforeattemptingtoserviceunit,asinjurymayresult.
• Be Safe - Wear proper safety equipment, including protective gear, such as respirators, eye and ear protection.
• Be Safe - Useproperandsecureclampingmethodforallinsulationhosestopreventuncontrolledinsulationstream
bursts around operator.
• Be Safe - Do not operate machine alone.
• Be Safe - Do not leave machine unattended and energized.
• Be Safe - Turn machine off and disconnect battery before clearing and feeding jam or attempting to remove any
object in the fan chamber.
• Be Safe - Use properliftingwhenmovinginsulation andloadingmachine.
• Be Safe - Violation of the Owner's Manual or safety precautions may void warranty.

Rev.Date:11/11/20 Page 3
Make Sure!
•Vacuum is sitting on level surface.
•Both inlet and outlet hoses are attached and pushed on all the way to actuate safety switches, then secured with
hose clamps before operating.
•Fan chamber is empty of foreign debris before starting as this can bind and stall your machine or damage the fan.
•Fan chamber cover is in place and properly secured before turning vacuum on.
•Vacuum is turned off immediately if hose is plugged.
•Vacuum is turned off immediately if there is excessive vibration as the fan may be out of balance.
• Vacuum is placed in an open area so that it receives "fresh air" and allows hot air from the engine to exhaust.
• Vacuum is used in a ventilated area. Do not operate vacuum inside an enclosed truck, trailer or building structure.

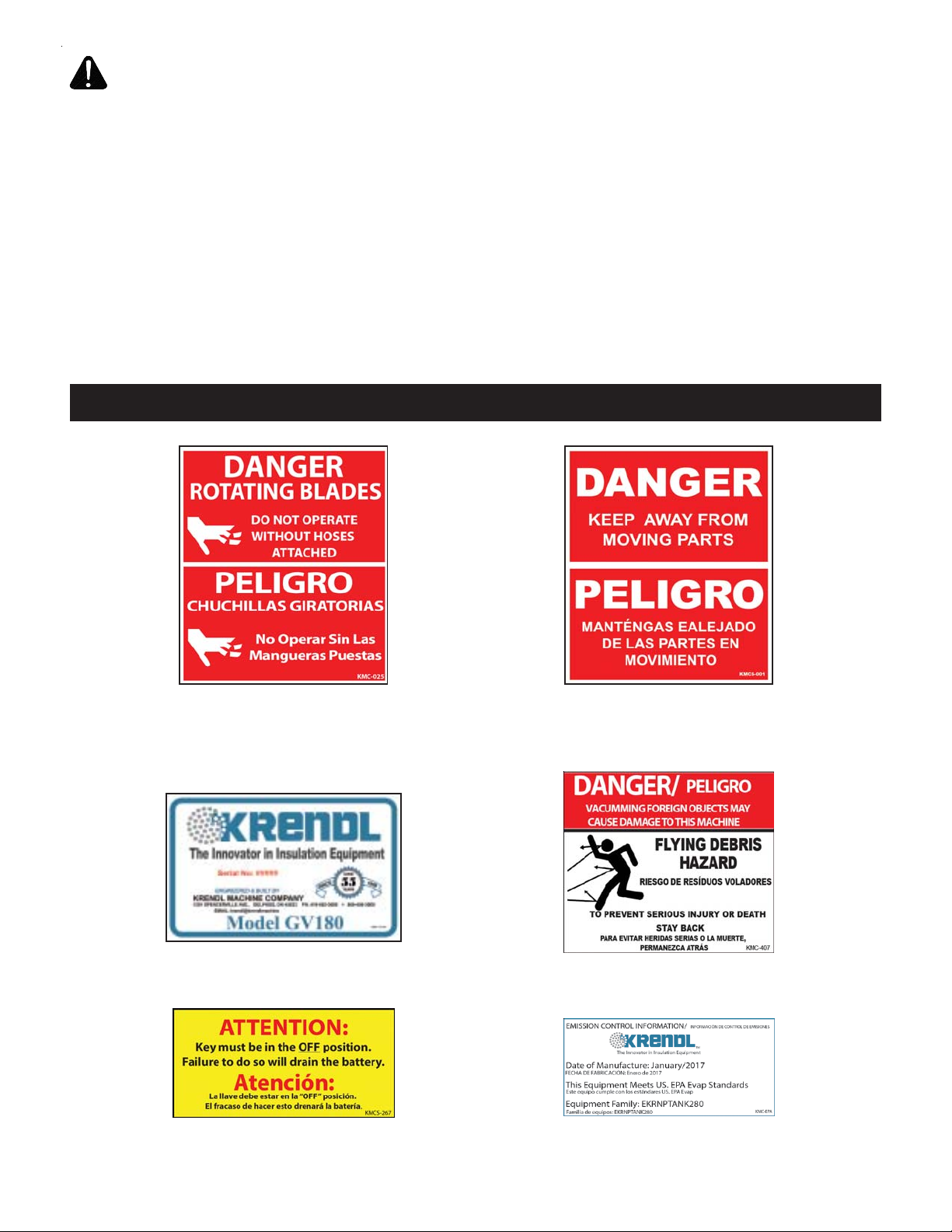

Decals
Manufacturer information is provided here along
withmachine modelandserialnumber.
Rotating fan can be dangerous! Clothes, hair,
hands, etc. can get sucked into vacuum chamber.
Properly attach hoses before operation. Failure
to do this could cause serious injury or death.
Rotating parts can be dangerous! You can snag
clothes, hair, hands, etc. This can cause serious
injury or death.
During operation machine can eject flying debris.
Wear appropriate safety equipment.
Indicates that the Krendl Machine Company is in
compliance with EPA codes.
During operation if engine is off, key should be in
off position to perserve battery.

Rev.Date:11/11/20 Page 4
Hoses must be against the lever to
depress safety switch for machine
to run.
During operation, this area of
machine is hot! Be careful not
to touch. This can cause seri-
ous burns.
Do not smoke around machine.
Machine contains a flammable
liquid. Failure to do this could
cause serious injury or death.
Indicatesthatthe enginerequires
fresh air. Supplying the engine
with fresh air will result in better
performance and longer life.
KMC-01234
Part number for identification and tracking.
Rotating parts move in this direction.
During operation, this machine is
loud. Wear hearing protection.
Failure to do this could result in
hearing loss. During operation machine must
be on a level surface or engine
failure may occur.
Identifies what type of insulation should be used with
thismachine andthat themanualshouldberead before
operating. Warns to be careful around electrical com-
ponents! This can cause serious injury or death.
Indicateswhichemployeeinspected
equipment and on what date.

Rev.Date:11/11/20 Page 5
IFMACHINE WAS NOT PURCHASED DIRECTLY FROMKRENDLMACHINECOMPANY,CONTACT
YOURSUPPLIER/DISTRIBUTOR.
When returning products to Krendl for repair, first obtain a return goods authorization, at which time you will be given
shipping instructions. The product must be shipped PREPAID:
Krendl Machine Company Telephone: [phone]
1201 Spencerville Rd Fax: [phone]
Delphos, Ohio 45833 U.S.A. E-mail: [email protected]
Web Site: www.krendlmachine.com
Once the unit is received, it will be inspected. In-warranty units will be repaired and returned immediately. An estimate
of repair charges will be provided for out-of-warranty units.
Service
See an Authorized Briggs & Stratton Service Dealer. Each one carries a stock of Genuine Briggs & Stratton Parts and
is equipped with special service tools. Trained mechanics assure expert repair service on all Briggs & Stratton engines.
Only dealers advertising as “Authorized Briggs & Stratton” are required to meet Briggs & Stratton standards.
You may locate your nearest Authorized Briggs & Stratton Service Dealer on the web at www.briggsandstratton.com
or your local phone directory under “Engines, Gasoline” or “Gasoline Engines,” or “Lawn Mowers” or similar category.
Returned Goods Procedure
MODELS: GV180
HEIGHT: 46” (117 cm)
WIDTH (DEPTH): 32” (81 cm)
LENGTH: 36” (91 cm)
WEIGHT: 262 pounds (119 kg)
PRODUCTION RATE: 7000 pounds (3175 kg)
Extracts on average 233 bags per hour
BEFORE YOU RUN THIS MACHINE...PLEASE READ THE REST OF THIS MANUAL!!
Specifications

Rev.Date:11/11/20 Page 6
WARRANTY
Krendl Machine Company (Company) warrants to each original purchaser (Buyer) of its machines that such
products will be free of manufacturing defects for a period of 2 years from the date of shipment to the Buyer.
(This does not include accessories, pumps, blowers, wall scrubbers, etc.)
No warranty is made with respect to:
1. Components or accessories manufactured and warranted by others. Warranties for purchased compo-
nent parts as supplied from vendor such as engine, electric motor, blower, gearbox, transmission, etc.,
if furnished by the manufacturer of the component, are on file at the Company’s main office and copies
will be furnished at request of Buyer. Component(s), shipping costs prepaid, shall be sent to Company
who in turn shall forward to vendor for evaluation and warranty determination.
2. Any defect caused by repair, alteration and/or adjustment performed by Buyer or customer/vendor of
Buyer without the express written authorization of the Company.
3. The labor costs of replacing parts by parties other than the Company.
4. Any machine that has not been operated and / or maintained in accordance with normal industry practice
and the written recommendations of the Company. (e.g. machine operated with an improperly sized, worn
or damaged hose, improper or inattention to preventative maintenance, etc.)
5. The product has been subjected to misuse, negligence or accident or results of any application or use
of the blowing equipment not in accordance with the Company recommendations.
This limited warranty does not cover the free replacement of component parts that become inoperative due
to wear and usage and need to be replaced on a regular basis, including but not limited to: airlock seal(s),
agitator(s), shredder(s), auger(s), fuse(s), switch(es), clutch(es), hose(s), shaft seal(s), chain(s), belt(s),
sprocket(s), pulley(s), bearing(s), cable(s), battery(ies), filter(s), fan(s), etc.
The Company’s obligation under this warranty is limited to repairing or replacing (at Company option) any
partthat isdeterminedbytheCompanytobesuffering fromamanufacturingdefect. TheCompany (atCompany
option) will provide any required parts and labor to the Buyer. If the equipment or parts must be returned to
the Company for repair, all transportation costs shall be the Buyer’s responsibility.
THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY OTHER GUARANTEES AND / OR
WARRANTIES, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITA-
TION, THE IMPLIED WARRANTY OF MERCHANTABILITY. NO WARRANTY, EXPRESS OR
IMPLIED, OTHER THAN THE AFORESAID WARRANTY IS MADE OR AUTHORIZED BY COMPANY.
COMPANY SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES TO PROPERTY OR INJURY TO ANY PERSON OR COSTS ASSOCIATED WITH LOSS
OFPRODUCTIONRESULTINGINLOSSOFREVENUE,PROFITSORLOSSOFEQUIPMENTTHROUGH
THE USE OF THIS EQUIPMENT.
Note: Special job circumstances incurring costs for specialized repair and next day delivery of parts will not
be reimbursed by the manufacturer unless authorized by factory.
Warranty

Rev.Date:11/11/20 Page 7

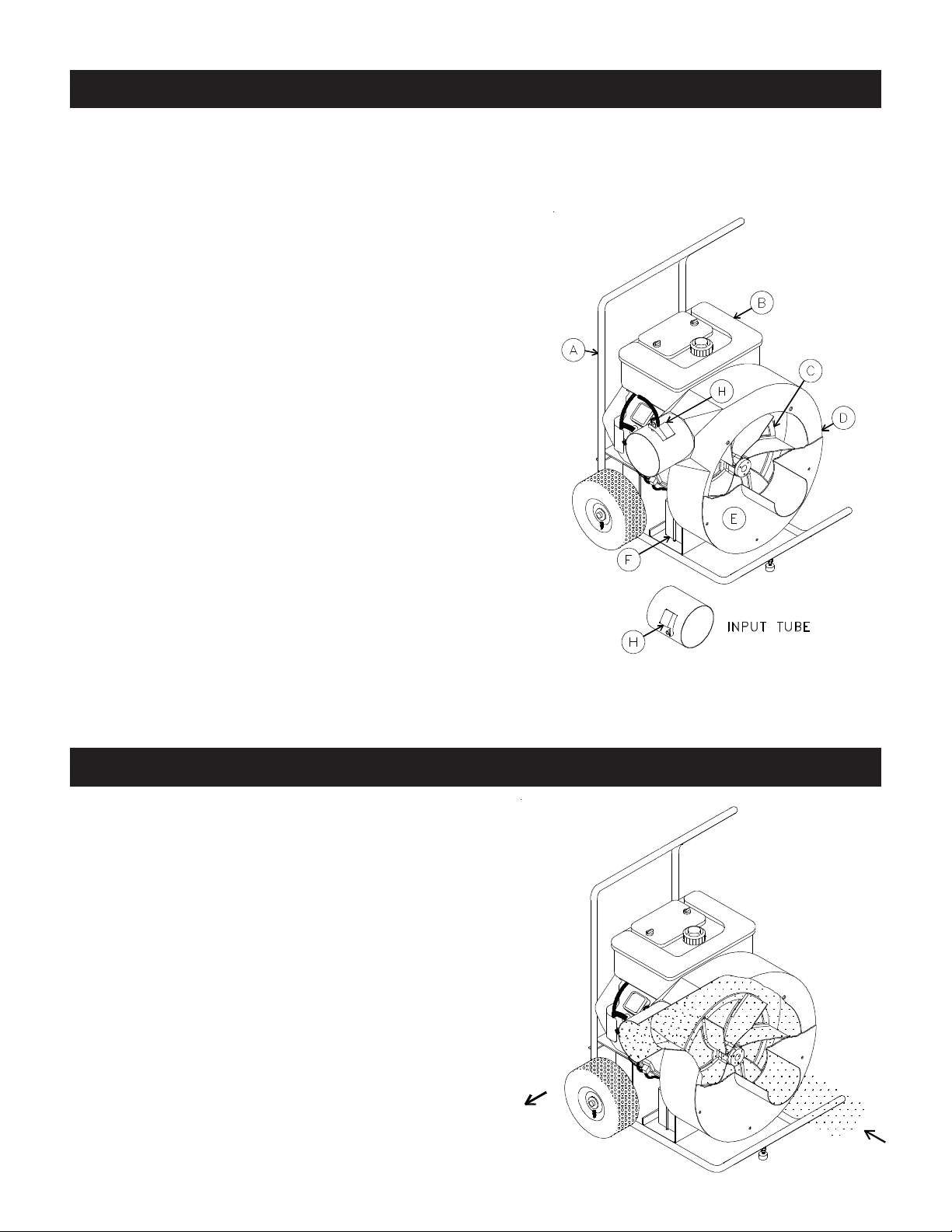

This is a view of the basic components of your vacuum. It shows the location of each item and gives the function of
each. Use this as a guide throughout the manual. (See Illust. A)
A) STAND—Mobile frame unit that supports the motor, battery,
and fan chamber.
B) ENGINE—18HP engine provides power to the fan.
C) FAN—Unit that produces air current or vacuum.
D) FAN CHAMBER—Protective housing that provides an en-
closed air space for the fan to create a vacuum.
E) FAN CHAMBER COVER—Provides access to the fan for
general maintenance.
F) BATTERY—Suppliespowerfortheelectricstartontheengine.
G) HOUR METER / TACHOMETER—Monitors the use and
speed of the engine. (Note: LUBE/CHG OIL will flash every 25
hours) (Not Shown)
H) LIMIT SWITCHES (2) — Safety devices located on the input
and output tubes to ensure hoses are attached properly. These
switches must be engaged to allow engine to start.
Theory of Operation
BasicComponents
(Illust. A)
Thisunitisdesignedtomoveallrecycledandnewinsulationfrom
the job site and deliver it directly to a designated area such as a filter
bag, vacuum hopper, etc. (See Illust. B)
Acommonapplicationforthisunitisthevacuumhoppersystem.
Oncetheinsulation hasbeendepositedinto thehopper,theairpasses
through the perforated mesh screen in the vacuum hopper, where it
is filtered, and exhausted. (See Illust. C on page 8.)
(Illust. B)

Rev.Date:11/11/20 Page 8
Machine Hook-up
This unit comes ready for connection to the VH550 (vacuum hopper), VH550-B (vacuum hopper with bin level) and
Vacuum Defender. Note: A bin level indicator and blastgate are not used with the model VH550 (vacuum hopper).
This unit provides a direct connection to 4" or 6" insulation hose depending on the use of a 6" to 4" reducer shown in
(Illust. C & D). Slide hose on to the inlet and outlet of the gas vacuum and secure with hose clamps. Note: Hose
clamps are to be utilized with all hose connections to prevent air leakage and insure operator safety. Correct
use of clamps also helps to prevent hose plugging. All hoses must be pushed on completely until safety limit
switches are depressed.
1.) For hook-up to the VH550 (vacuum hopper) only. Connect hose from gas vacuum outlet to vacuum hopper
inlet. Slide hose on to the gas vacuum inlet. Secure all hose connections with hose clamps. (See Illust. C)
2.) For hook-up to the VH550-B (vacuum hopper with bin level) only. Connect hose from gas vacuum outlet
to vacuum hopper inlet. Connect hose from gas vacuum inlet to blastgate outlet. Connect hose to the blastgate
inlet. Secure all hose connections with hose clamps. (See Illust. C)
(Illust. C)
3.) For hook-up to the Vacuum Defender and GV100 (bag removal). Connect 5' to 10' of hose from gas
vacuum outlet to reclaim bag inlet. Connect 10' to 15' of hose from gas vacuum inlet to vacuum defender outlet.
Connect hose to the vacuum defender inlet. Secure all hose connections with hose clamps. (See Illust. D)
OperatingInstructions

Rev.Date:11/11/20 Page 9
At all times keep your hands, clothing, foreign objects, etc. away from inlet and discharge of your gas vacuum.
Never operate vacuum without hoses attached.
Note: The end user should perform a risk assessment when first using this equipment. The end user has
knowledge of conditions the equipment is used in. Therefore, the end user can ensure that necessary
control measures be implemented before equipment use. (Follow all local, state, federal, and/or DSEAR
requirements.)
Machine Start-up
1.) Place vacuum on level surface.
2.) Hook up hoses to the inlet and discharge, secure with clamps before operation.
3.) Move choke control to choke position.
4.) Move throttle control to fast position.
5.) Turn fuel shut-off valve on.
6.) Turn key to start position (repeat until engine starts).
7.) Move choke control to off position after start up.
8.) Move throttle to appropriate operating speed.
Machine Shutdown
1.) Allow plenty of time for insulation hose to empty.
2.) Move throttle control to slow position (give the fan time to slow down).
3.) Let engine cool down for 2 minutes before shutting off.
4.) Turn key to off position and remove from switch.
5.) Close fuel shut-off valve. Note: If fuel shut-off valve is not closed,
leakage may occur especially when transporting unit.
See Briggs & Stratton
operation manual for
additional starting and
stopping instructions.

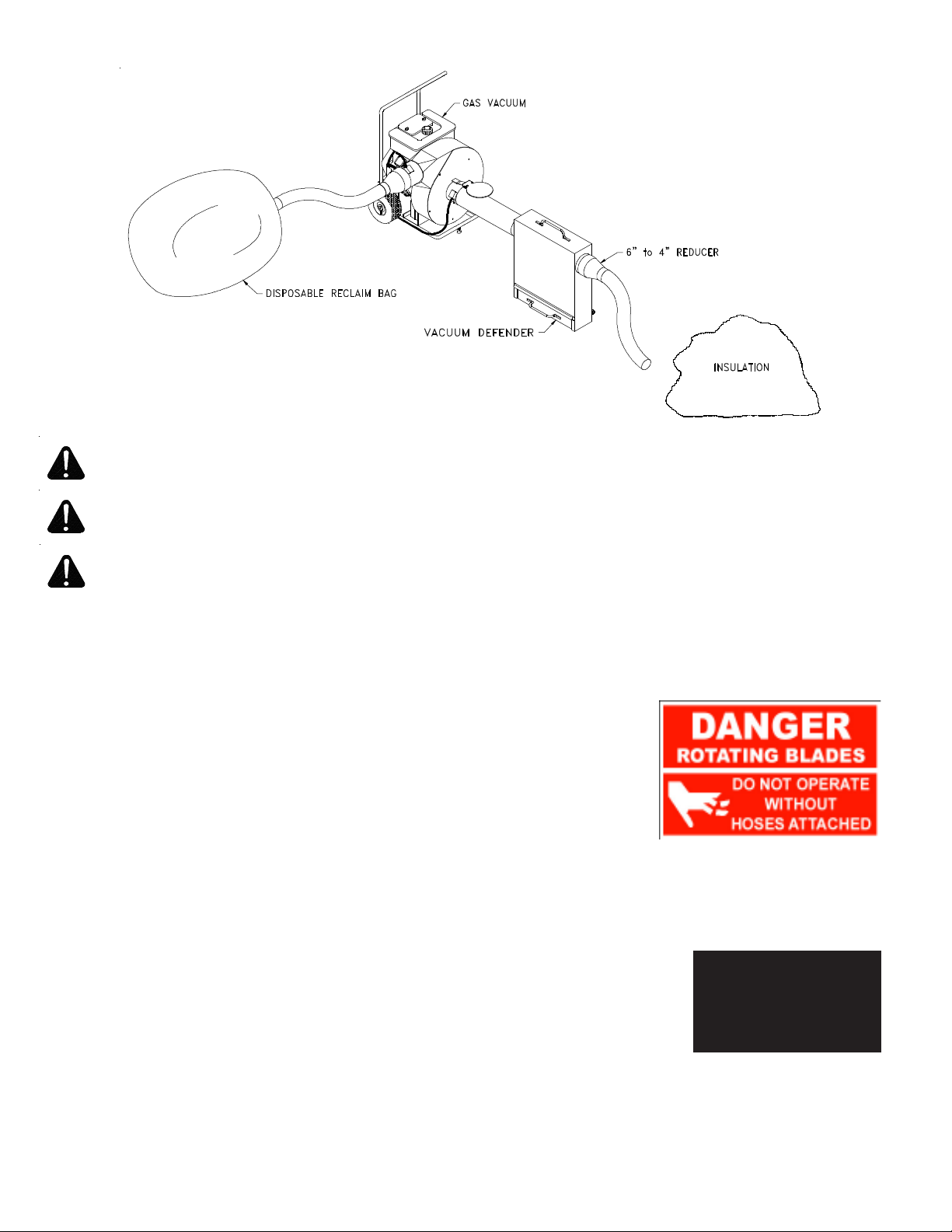

(Illust. D)

Rev.Date:11/11/20 Page 10
TROUBLE SHOOTING
Note: Whenever vacuum chamber cover is off, make sure key is taken out of the ignition switch.
Problem Corrective Action
1) Gas vacuum will not start. • Check engine oil level - (if low, unit will not start).
• Check engine fuel level.
• Makesurethereisnoforeign debrisinthe fanchamber impeding the motion
of the fan.
•
Battery is low or dead. Manually start vacuum with rewind starter. If
vacuum runs, battery may need charged or replaced. If the battery is ok,
electric starter may need serviced. (See Briggs & Stratton manual.)
• Make sure spark plug wires are attached.
• Make sure fuel shut off valve is open.
• Verify hoses are installed and limit switches are engaged.
• Make sure spark plugs are clean and the correct plug for the appropriate
engine is used.
(See Briggs & Stratton manual.)
2) Excessive vibration. • Make sure unit is sitting on a level surface.
• Make sure fan is properly secured to motor shaft.
• Check fan for damaged fins.
•
Make sure there is no excessive insulation build up on the fan and in the
fan chamber.
• Fan may be out of balance and need replaced.
• Loose bolts on fan chamber cover.
3) Loudknocking. • Make sure fan is properly secured to motor shaft.
•
Make sure there is no foreign debris or fiber build up in the fan chamber.
4) Gas vacuum loses horsepower. •
Make sure there is no debris in fuel tank and fuel filter. Clean or replace .
•
Make sure there is no major insulation build up on the fan and in chamber.
• Make sure air filter is clean, replace if necessary.
5) Gas vacuumengineisstalling, smoking, • Check engine fuel level - (Low fuel or no fuel).
orrunningirregularly. • Make sure fuel shut off is completely open.
• Make sure gas vacuum is setting on level ground.
• Improper fuel may have been used. Use lead free gasoline with a
minimum of 85 octane. Do not use gasoline which contains Metha-
nol. This will deteriorate the fuel line. Refer to owners manual.
•Checkforcorrosion,buildup,orforeigndebrislodgedin thefloat,pin,orseat.
Thiswouldcauseinadequateperformance. (ContactBriggs&Strattondealer)
• Make sure engine oil level is not overfilled.
• Make sure air filter is clean, replace if necessary.
TroubleShooting

Rev.Date:11/11/20 Page 11
See Briggs & Stratton
operation manual for
additional engine main-
tenance instructions
and illustrations.
Cooling
Fins
Debris
Cooling
Fins
Air Intake
Cooling
Fins
Periodic preventive maintenance will add years of life to your equipment. Reviewing the information in this manual
will go a long way in reducing downtime and lost income.
Krendl Machine Maintenance:
Daily
• Clear insulation away from engine and muffler to avoid fire, ensure proper
ventilation and reduce the chance of insulation getting in the fuel tank.
•Do not run vacuum inside of an enclosed box truck, trailer or building. Doing
this will result in engine damage, exposure to carbon monoxide or fire.
Note: Debris can be sucked into the engine through the air intake
and clog the cooling fins. (See Illust. E)
Briggs & Stratton
Illust. E
• Blow out engine cooling fins with compressed air. (See Illust. F) Note: Failure to keep motor cooling fins
clear of debris could result in catastrophic engine failure and voids warranty. (See Illust. G)
Briggs & Stratton
Illust. F
• Make sure vacuum is on a level surface outside where the engine can receive fresh air and expel hot exhaust.
Maintenance
Illust.G

Rev.Date:11/11/20 Page 12
CHECK OIL LEVEL X
CLEAN AROUND MUFFLER, SPRINGS AND LINKAGES X
INSPECT AND BLOW OUT AROUND COOLING FINS ON
CYLINDER HEADS X
REPLACE SPARK PLUGS X
SERVICE AIR FILTER AND PRE-CLEANER X
(Clean more often under dusty conditions, or when airborne
debris or chaff is present.)
SERVICE EXHAUST SYSTEM X
CHANGE ENGINE OIL AND FILTER
(See engine manufacturer’s manual for recommended maintenance schedule of when oil and filter shoud be changed)
CHECK VALVE CLEARANCE AND ADJUST IF NECESSARY X
VERIFY TORQUE RATINGS ON CAPSCREWS OF TAPER
LOCK BUSHING TO BE 192 INCH POUNDS X
(Refer to operator's manual)
REPLACE AIR FILTER X
REPLACE FUEL FILTER X
SERVICE COOLING SYSTEM X
CLEAN OIL COOLER FINS X
(Refer to operator's manual)
(Clean more often under dusty conditions)
DESCRIPTION 8 250 400
HOURS HOURSHOURS HOURS
75-100
Weekly
• Remove air filter and blow with compressed air.
• Cleanoutfanchamber. Removeinsulationbuild uponfan andinsideof chamber.
• Inspect fan for wear and bent blades.
Note: Do not remove fan for general maintenance.
Monthly
• Check fuel tank and filter for debris and clean if necessary.
Engine Maintenance:
SAFETY NOTE
WHENMAINTENANCE ISTO BEPERFORMEDONTHEMACHINEALWAYS:
1) STOPTHEENGINE COMPLETELY.
2) TURN THE IGNITION TO THE “OFF” POSITIONAND REMOVE THE KEY.
3) DISCONNECTRED(POSITIVE)BATTERYCABLEFROMBATTERYPOST.
Note: Clean out defender box when changing bag or as needed.
Note: When further maintenance is needed, please refer back to other manufacturer’s manuals for additional assistance!
Hour / Tachometer Reset Instructions:
1) Toggle to the appropriate FlashAlert menu to be cleared.
2) Press and hold button until "00000" appears. (approx. 3 sec)
Note: Hour glass will flash repeatedly while holding button down during service reset.

Rev.Date:11/11/20 Page 13
Fan Removal for Replacement:
1. Remove fan chamber cover. (See Illust. H)
2. Remove cap screws and insert them in tapped holes in bushing flange.
3. Tighten cap screws progressively in a clockwise rotation placing equal
amounts of torque until bushing disengages.
4. Remove fan from engine shaft.
Fan Installation for Replacement:
1. Be sure the tapered cone surfaces of the bushing and the inside of the fan are clean.
2. Place bushing loosely into hub on fan. (See illust. I)
3. Start capscrews by hand, turning them just enough to engage the threads. Note: Do not use a wrench at this time.
4. With key in shaft keyway, slide fan and bushing on to engine shaft. Note: Make sure fan blades are facing
outward and that the bushing is seated against the back step of the engine shaft. There should be
approximately an 1/8" gap between the fan and chamber so they don't rub. (See Illust. J)
5. Tighten capscrews progressively with a wrench in a circular direction to ensure equal tension as fan draws down on
shaft to achieve 192 inch pounds torque. Note: Do not attempt to pull bushing flange flush with hub end;
some gap must remain between flange and hub after tightening.
6. Install fan chamber cover and secure with bolts. (See Illust. H)
(Illust. I) (Illust. J)
(Illust. H)

Rev.Date:11/11/20 Page 14
GV180Exploded PartsView
GASVACUUM
Item#
1
2
3
4
5
6
7
7-1
8
9
9-1
10
10-1
10-2
10-3
11
12
13
14
Description
Gas Vacuum Stand
Motor, Gas Vacuum, 18HP
Key,1/4"x1/4"x13/4"
Cover Plate, Fan Chamber
18" Fan f/Gas Vacuum, Spoked
Chamber, Fan, Gas Vacuum
W 3/8" Lock Washer (5)
5/16" Flat Washer (5)
3/8-16x1"Hex Head Cap(5)
Battery
Pad, Battery
Bracket, Hold Down, Battery
HoldDownBolt,SB1/4-20 x 7 1/2"(2)
W 1/4" Lock Washer (2)
N1/4-20Nut (2)
Battery Cable, Black, 15 1/4"
Battery Cable, Red, 10"
Vibration Isolater, Cart
Hour Meter
Part#
GV180-1-R1
GV180-5
150311
GV230-4-R1
GV180-3-R4
GV230-2-R4
FW006
FW007
FSB050
GV100-13
GV230-17
GV180-BHD
FSB232
FW004
FN007
GV180-15
GV180-16
GV100-8-R1
GV100-11
Item#
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Description
WheelAxle
Pin, Cotter, 1/8" x 1" (2)
Wheel, 11", Flat Free (2)
3/4" FlatWasher-SAE (2)
SB5/16 - 18 x2"HMS(2)
SB5/16 - 18 x11/2"HMS (2)
5/16" FlatWasher (8)
N5/16- 18 Lock Nut-Crimped(4)
N 3/8 - 16 Nut
Guard, Inlet
N1/4-20Lock Nut-Crimped
SB1/4-20x31/4"HMS
W1/4" Flat Washer (4)
Drain Valve, Hose & Cap Kit
SB7/16 - 14x13/4" FHSCS (4)(NotShown)
Note: Bolts connect the chamber to the motor.
U-Nut Spring Clip Steel (5)
Actuator Lever, Safety (2)
Switch,Limit(2)
Part#
GV180-17-R1
FSB078
W-12
FW030
FSB045
FSB042
FW007
FN014
FN016
GV180-18
FN005
FSB067
FW003
4000-27/28
FSB011
FC001
GV180-13-R1
LS200

KRENDL MACHINE COMPANY • 1201 SPENCERVILLE RD
DELPHOS, OHIO 45833 • TELEPHONE [phone] • FAX [phone]
E - MAIL: [e-mail] • WEB SITE: www.krendlmachine.com
60 YEARS
OF AMERICAN INGENUITY
Made in the U.S.A.
