KRESS KG343 User manual

Cordless Pruning Saw
Sierra de podar inalámbrica
Scie d’élagage sans l
KG343 KG343.X
EN
ES
F
P02
P18
P35

2
EN
TABLE OF CONTENTS
Introduction.........................................................................................................................................................2
Component List.................................................................................................................................................3
Product Safety...................................................................................................................................................5
Assembly & Operation...................................................................................................................................10
Maintenance....................................................................................................................................................14
Troubleshooting...............................................................................................................................................16
Technical Data.................................................................................................................................................17
INTRODUCTION
Dear Customer,
Thank you for buying this Kress product. We are dedicated to developing high quality products
to meet your landscaping requirements.
The Kress brand is synonymous with premium quality service. Over the years of your product's
life, if you have any questions or concerns about your product, please contact your location of
purchase or our Customer Service Team for assistance.
We are condent you will enjoy working with your Kress product for years to come.
INTENDED USE
The mini pruning saw is intended for cutting only wood and branches up to a diameter
corresponding to the length of the pruning saw guide bar.
The mini pruning saw must be used at ground level or from a suitable platform that is
completely stable and secure.
The mini pruning saw is intended for outdoor use only.
The mini pruning saw is not intended for any other use.
Mounting of parts on the mini pruning saw is authorized only for original or manufacturer-
approved spare parts (chain guides or saw chains for example) as well as for authorized
chain guide / saw chain combinations as indicated in the manual.
The user is responsible for any accident resulting from improper use or unauthorized
modication of the mini pruning saw.

EN
3
3
1
1011
2
4
5
9
8
14 15
16
17
18
6
7
13
12

4
EN
COMPONENT LIST

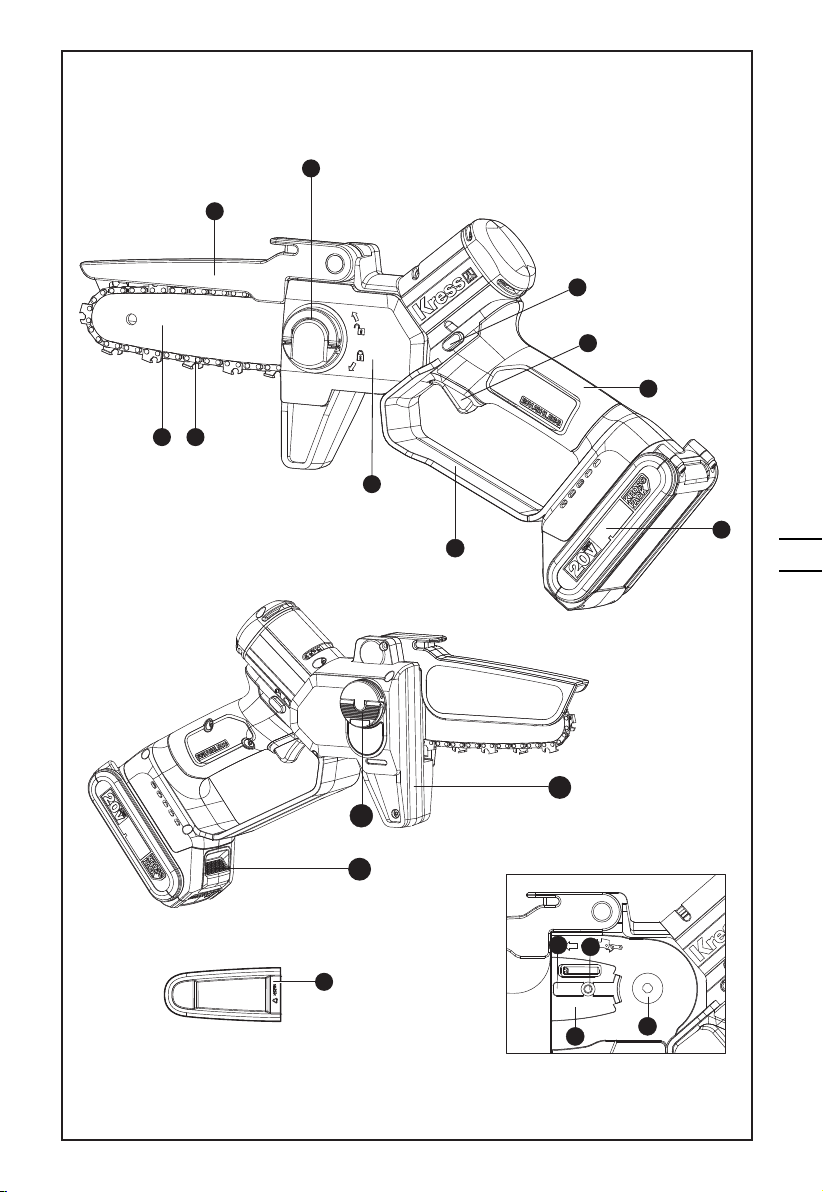

1. CHAIN GUARD
2. DRIVE COVER KNOB
3. LOCK-OUT BUTTON
4. ON/OFF TRIGGER
5. THROTTLE HANDLE
6. BATTERY PACK *
7. BATTERY PACK RELEASE BUTTON *
8. HAND GUARD
9. DRIVE COVER
10. CHAIN
11. GUIDE BAR
12. BASE PLATE
13. OIL FILL CAP
14. BAR PAD
15. DRIVE SPROCKET
16. BAR STUD
17. BAR LOCATING TAB
18. BAR AND CHAIN SCABBARD
* Not all the accessories illustrated or described are included in standard delivery.

EN
5
PRODUCT SAFETY
WARNING: Some dust created by power
sanding, sawing, grinding, drilling and
other construction activities contains chemicals
known to the State of California to cause cancer,
birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and
other masonry products;
• Arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a
well ventilated area, and work with approved
safety equipment, such as those dust masks that
are specially designed to filter out microscopic
particles.
WARNING: This product can expose you to
chemicals including lead and Di(2-ethylhexyl)
phthalate (DEHP) which are known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING Read all safety warnings,
instructions, illustrations and
specifications provided with this power tool.
Failure to follow all instructions listed below may
result in electric shock, re and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk
of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply . Use of an RCD reduces
the risk of electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medi-
cation. A moment of inattention while operating
power tools may result in serious personal injury.
b) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your nger on the switch or energising power
tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
h) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.

6
EN
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have
the power tool repaired before use. Many
accidents are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow
for safe handling and control of the tool in
unexpected situations.
5. BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified by
the manufacturer . A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and re.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a re.
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
e) Do not use a battery pack or tool that is
damaged or modified. Damaged or modied
batteries may exhibit unpredictable behaviour
resulting in re, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to re or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not
charge the battery pack or tool outside
the temperature range specified in the
instructions. Charging improperly or at
temperatures outside the specied range may
damage the battery and increase the risk of re.
6. SERVICE
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
b) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
1) GENERAL PRUNING SAW
SAFETY WARNINGS:
a) Keep all parts of the body away from the saw
chain when the pruning saw is operating.
Before you start the pruning saw, make sure
the saw chain is not contacting anything. A
moment of inattention while operating pruning
saws may cause entanglement of your clothing or
body with the saw chain.
b) Hold the pruning saw by insulated gripping
surfaces only, because the saw chain may
contact hidden wiring . Saw chains contacting a
“live”wire may make exposed metal parts of the
pruning saw “live”and could give the operator an
electric shock.
c) Wear safety glasses protection. Further
protective equipment for hearing, head,
hands, legs and feet is recommended.
Adequate protective clothing will reduce personal
injury by ying debris or accidental contact with
the saw chain.
e) Do not operate a pruning saw, on a ladder,
from a rooftop, or any unstable support.
Operation of a pruning saw in this manner could
result in serious personal injury.
f) Always keep proper footing and operate the
pruning saw only when standing on fixed,
secure and level surface. Slippery or unstable
surfaces may cause a loss of balance or control
of the pruning saw.
g) When cutting a limb that is under tension , be
alert for spring back. When the tension in the
wood bres is released , the spring loaded limb
may strike the operator and/or throw the pruning
saw out of control.
h) Use extreme caution when cutting brush and
saplings. The slender material may catch the saw
chain and be whipped toward you or pull you off
balance.
i) Carry the pruning saw by the Throttle Handle
with the pruning saw switched off and away
from your body. When transporting or storing
the pruning saw , always fit the guide bar
cover. Proper handling of the pruning saw will
reduce the likelihood of accidental contact with

EN
7
the moving saw chain.
j) Follow instructions for lubricating,
chain tensioning and changing the bar
and chain. Improperly tensioned or
lubricated chain may either break or
increase the chance for kickback.
k) Cut wood only. Do not use pruning saw for
purposes not intended. For example: do not
use pruning saw for cutting metal, plastic,
masonry or non-wood building materials . Use
of the pruning saw for operations different than
intended could result in a hazardous situation.
l) This pruning saw is not intended for tree
felling. Use of the pruning saw for operations
different than intended could result in serious
injury to the operator or bystanders.
m) Do not operate a pruning saw in a tree unless
you have been specifically trained to do so.
Operation of a pruning saw in a tree without
proper training could increase the risk of
serious personal injury.
n) Follow all instructions when clearing
jammed material, storing or servicing
the pruning saw. Make sure the switch
is off and the battery pack is removed.
Unexpected actuation of the pruning saw while
clearing jammed material or servicing may result
in serious personal injury.
o) Recommendation that the first-time user
should, as a minimum, practice cutting logs
on a saw-horse or cradle.
p) Recommendation to have sharpening and
maintenance of the saw chain performed by
authorised service centers.
2) CAUSES AND OPERATOR
PREVENTION OF KICKBACK :
Kickback may occur when the nose or tip of the
guide bar touches an object, or when the wood
closes in and pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden
reverse reaction, kicking the guide bar up and
back towards the operator. Pinching the saw chain
along the top of the guide bar may push the guide
bar rapidly back towards the operator.
Either of these reactions may cause you to lose
control of the saw which could result in serious
personal injury.
Do not rely exclusively upon the safety devices
built into your saw. As a pruning saw user, you
should take several steps to keep your cutting jobs
free from accident or injury.
Kickback is the result of pruning saw misuse and/or
incorrect operating procedures or conditions and
can be avoided by taking proper precautions as
given below:
a) Maintain a firm grip, with thumbs and fingers
encircling the pruning saw handles, and
position your body and arm to allow you to
resist kickback forces. Kickback forces can be
controlled by the operator, if proper precautions
are taken. Do not let go of the pruning saw.
b) Do not overreach and do not cut above
shoulder height. This helps prevent unintended
tip contact and enables better control of the
pruning saw in unexpected situations.
c) Only use replacement bars and chains
specified by the manufacturer. Incorrect
replacement guide bars and saw chains may
cause chain breakage and/or kickback.
d) Follow the manufacturer’s sharpening and
maintenance instructions for the saw chain.
Decreasing the depth gauge height can lead to
increased kickback.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or fire.
Avoid storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
drawer where they may short-circuit each other
or be short-circuited by other metal objects.
When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or fire.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not allow the
liquid to come in contact with the skin or eyes.
If contact has been made, wash the affected
area with copious amounts of water and seek
medical advice.
f) Do not use any battery pack which is not
designed for use with the equipment.
g) Keep battery pack out of the reach of children.
h) Always purchase the battery pack
recommended by the device manufacturer for
the equipment.
i) Keep battery pack clean and dry.
j) Wipe the battery pack terminals with a clean
dry cloth if they become dirty.
k) Battery pack needs to be charged before use.
Always use the correct charger and refer to
the manufacturer’s instructions or equipment
manual for proper charging instructions.
l) Do not leave battery pack on prolonged charge
when not in use.
m) After extended periods of storage, it may
be necessary to charge and discharge the
battery pack several times to obtain maximum
performance.
n) Recharge only with the charger specified by
Kress. Do not use any charger other than
that specifically provided for use with the

8
EN
equipment.
o) Retain the original product literature for future
reference.
p) Use only the battery pack in the application for
which it was intended.
q) Remove the battery pack from the equipment
when not in use.
r) Dispose of properly.
s) Do not mix cells of different manufacture,
capacity, size or type within a device.
t) Keep the battery away from microwaves and
high pressure.
SAVE THESE INSTRUCTIONS
Instructions concerning the proper techniques
for limbing and cross-cutting (bucking)
1. Limbing a tree
Limbing is removing the branches from a fallen
tree. When limbing leave larger lower limbs to
support the log off the ground. Remove the small
limbs in one cut as illustrated in Figure 1. Branches
under tension should be cut from the bottom up to
avoid binding the pruning saw.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 1
2. Bucking a log
Bucking is cutting a log into lengths. It is important
to make sure your footing is rm and your weight
is evenly distributed on both feet. When possible,
the log should be raised and supported by the
use of limbs, logs or chocks. Follow the simple
directions for easy cutting.
When the log is supported along its entire length
as illustrated in Figure 2, it is cut from the top
(overbuck), avoid contacting ground as this will
greatly reduce the chain sharpness.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 2
When the log is supported on one end, as
illustrated in Figure 3, cut 1/3 the diameter from
the underside ( underbuck) (1). Then make the
nished cut by overbucking (2) to meet the rst
cut.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 3
When the log is supported on both ends, as
illustrated in Figure 4, cut 1/3 the diameter from
the top (overbuck) (1). Then make the nished cut
by underbucking (2) the lower 2/3 to meet the rst
cut.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 4
When bucking on a slope always stand on the
uphill side of the log, as illustrated in Figure 5.
When “cutting through”, to maintain complete
control release the cutting pressure near the
end of the cut without relaxing your grip on the
pruning saw handles. Don’t let the chain contact
the ground. After completing the cut, wait for the
saw chain to stop before you move the pruning
saw. Always stop the motor before moving from
tree to tree.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 5

EN
9
SYMBOLS
To reduce the risk of injury, user
must read instruction manual
Wear ear protection
Wear eye protection
Wear dust mask
Beware of pruning saw kickback and
avoid contact with bar tip
Do not expose to rain
Wear protective gloves
Li-Ion battery, battery must be
recycled
Do not burn
Batteries may enter water cycle if
disposed improperly, which can be
hazardous for ecosystem. Do not
dispose of waste batteries as
unsorted municipal waste.
Unlock
Lock
Positec Inc. has established a partnership with
the RBRC Corporation to recycle any Positec
batteries with the RBRC-call2recycle seal. For
environmental protection, please do not discard
batteries in the trash.
After the batteries' life cycle is ended, then
please call 1-800-822-8837 for a free service that
will properly dispose of the battery.

10
EN
ASSEMBLY
WARNING! Do not install the battery pack
before it has been completely assembled.
Always use gloves when handling the chain.
Maintain proper chain tension always. A loose
chain will increase the risk of kickback. A loose
chain may jump out of guide bar groove. This
may injure operator and damage chain. A loose
chain will cause chain, bar, and sprocket to
wear rapidly.

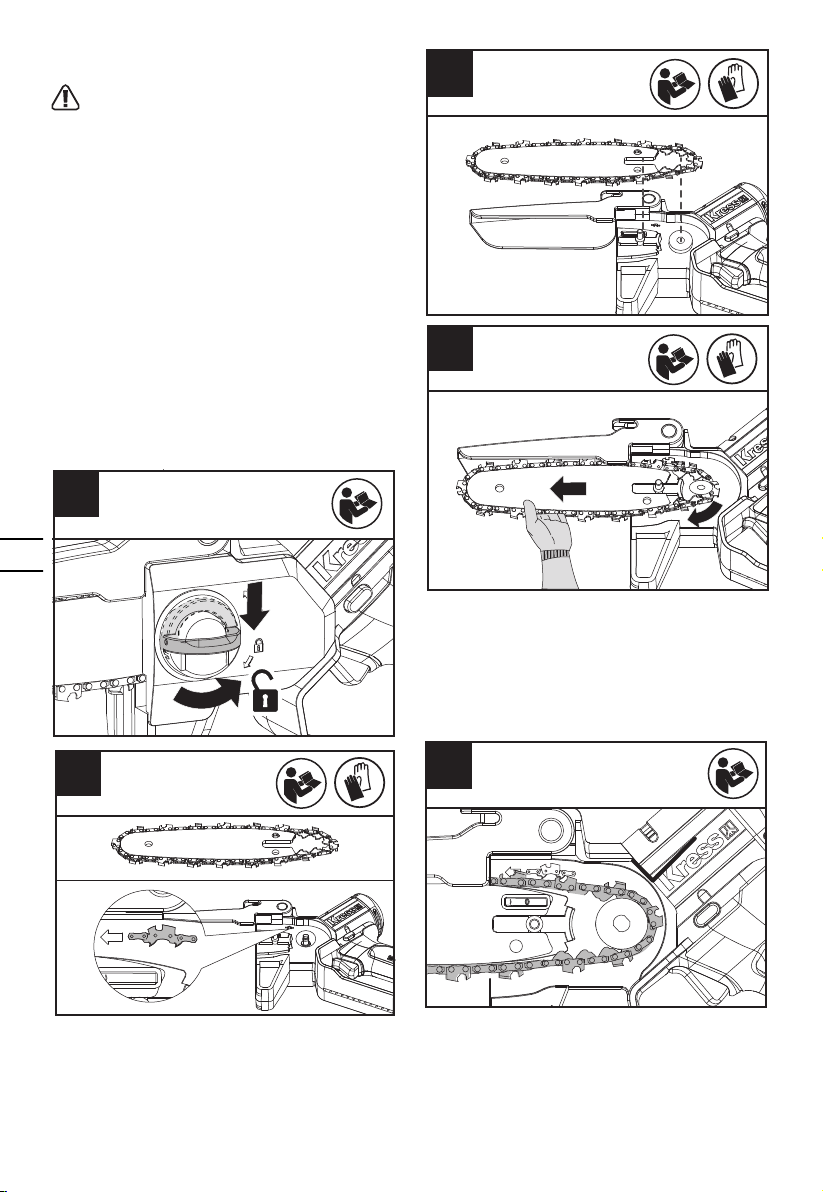

MOUNTING THE SAW CHAIN
1. Unpack all parts carefully. Remove the Drive
Cover by turning the Drive Cover Knob in a
counterclockwise direction. (See Fig. A1)
2. Place the pruning saw on a solid, level surface.
3. Use only genuine Kress Chains or those
recommended for Guide Bar.
4. Slide the Chain in the slot around the Guide Bar.
Ensure the Chain is in correct running direction
by comparing it to the chain icon on the Guide
Bar, or referring to the chain direction symbol
found on the saw body. (See Fig. A2)
A1
F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
5. Fit the Chain onto the Drive Sprocket, so that
the Bar Stud and the Bar Locating Tab on the
Bar Pad t into the keyway of the opening on the
Guide Bar. (See Fig. B1, B2)
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
6. Assure all parts are seated properly. Make
sure the drive links are fully seated in the Drive
Sprocket (See Fig. C1), avoiding a kink as shown
in Fig. C2. If kink occurs, pick up the Chain at
the Guide Bar just ahead of the kink and then
pull the kink out.
NOTE: Chain should rotate freely and be free
of kinks.
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K

EN
11
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
7. Fit the Drive Cover. Tilt the guide bar forward
where the guide bar tip is pushed in an vertically
downward direction. This will remove slack from
the chain. The correct chain tension is reached
when the chain can be raised approx. Half the
drivelink depth from the guide bar in the center.
This should be done by using one hand to raise
the chain against the weight of the machine.
Then tighten the Drive Cover by turning the
Drive Cover Knob clockwise until it is tight. (See
Fig. D)
NOTE: The chain is properly tensioned when
it can be lifted off of the Guide Bar and the
drivelink is within the rail of the Guide Bar. (See
Fig. E)
NOTE: The chain will stretch while cutting and
lose proper tension. When the chain becomes
loose, completely unscrew the Drive Cover
Knob or turn the knob around three full turns in
a counter-clockwise direction, then retighten the
Drive Cover Knob to properly reset the chain
tension by repeating Steps 1-7 listed above.
NOTE: New saw chains will stretch. Check the
chain tension frequently when rst used and
tighten when the Chain becomes loose around
the Guide Bar.
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K

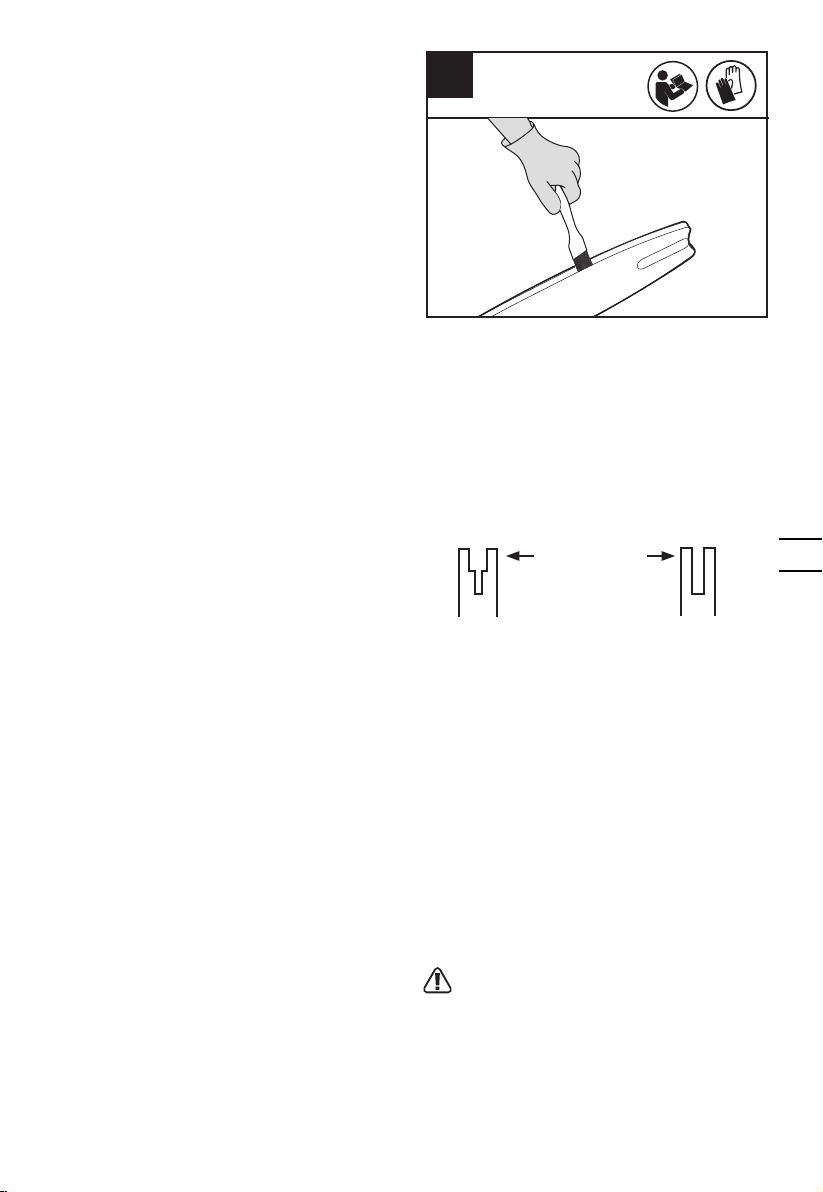

LUBRICATION (See Fig. F1, F2)
Important: The Pruning Saw is not filled with oil.
It is essential to fill with oil before use. Never
operate the Pruning Saw without chain oil or
at an empty oil tank level, as this will result in
extensive damage to the product.
NOTE: Chain life and cutting capacity depend
on optimum lubrication. Therefore, the chain
should be oiled before operation.
Hold downward and lift the Chain Guard to the
maximum position for lubrication after fill up of
the oil tank.
A1
F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
Bar

12
EN
FILLING OIL TANK:
WARNING: Removing the battery pack
before filling the oil tank.
1. Set Pruning Saw on any suitable surface with
Oil Fill Cap facing upward.
2. Clean area around the Oil Fill Cap with cloth
and unscrew the cap by turning it counter-
clockwise.
3. Add bar and chain oil until tank is full.
4. Avoid dirt or debris entering oil tank, ret Oil Fill
Cap and tighten by turning clockwise until hand
tight.
IMPORTANT: To allow venting of the oil tank,
small breather channels are provided
between the Oil Fill Cap and the strainer, to
prevent leakage, and ensure machine is left in a
horizontal position when not in use.
It is important to use bar and chain lubricant (not
provided) that is formulated to perform over a
wide temperature range with no dilution required.
This can be found at the location where you
purchased this saw or your local hardware store.
Do not use dirty, used or otherwise contaminated
oils. Damage may occur to the bar or chain.Use
of non approved oil will void the warranty.
Do not swallow. If swallowed, call a physician
immediately. Keep out of reach of children. Store
away from heat or open flame.
CHECKING THE AUTOMATIC OILER
WARNING:Cutting edges on chain are
sharp. Use protective gloves.
Put downward the pruning saw and lift the Chain
Guard to the maximum position for lubrication
after lling up the oil tank. (See Fig. F2) Proper
functioning of the automatic oiler can be checked
by running the Pruning Saw and pointing the tip of
the guide chain bar towards a piece of cardboard
or paper on the ground. If an increasing oil pattern
develops on the cardboard, the automatic oiler is
operating ne. If there is no oil pattern, despite a full
oil reservoir, contact Kress customer service agent
or Kress approved service agent.
Caution: Do not touch the ground with the
chain. Ensure safety clearance of 40cm.
OPERATION
1. BEFORE USING YOUR CORDLESS
TOOL
WARNING! The charger and battery pack are
specially designed to work together so do not
attempt to use any other devices. Never insert or
allow metallic objects into your charger or battery
pack connections because of an electrical failure and
hazard will occur.
NOTE: Your battery pack is UNCHARGED and you
must charge once before use.
The battery charger supplied is matched to the
Li-ion battery installed in the machine. Do not use
another battery charger.
(1) CHARGING YOUR BATTERY PACK (See
Fig. G1, G2)
The Li-ion battery is protected against deep
discharging. When the battery is empty, the
machine is switched off by means of a protective
circuit.
In a warm environment or after heavy use, the
battery pack may become too hot to permit
charging. Allow time for the battery to cool down
before recharging.
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K

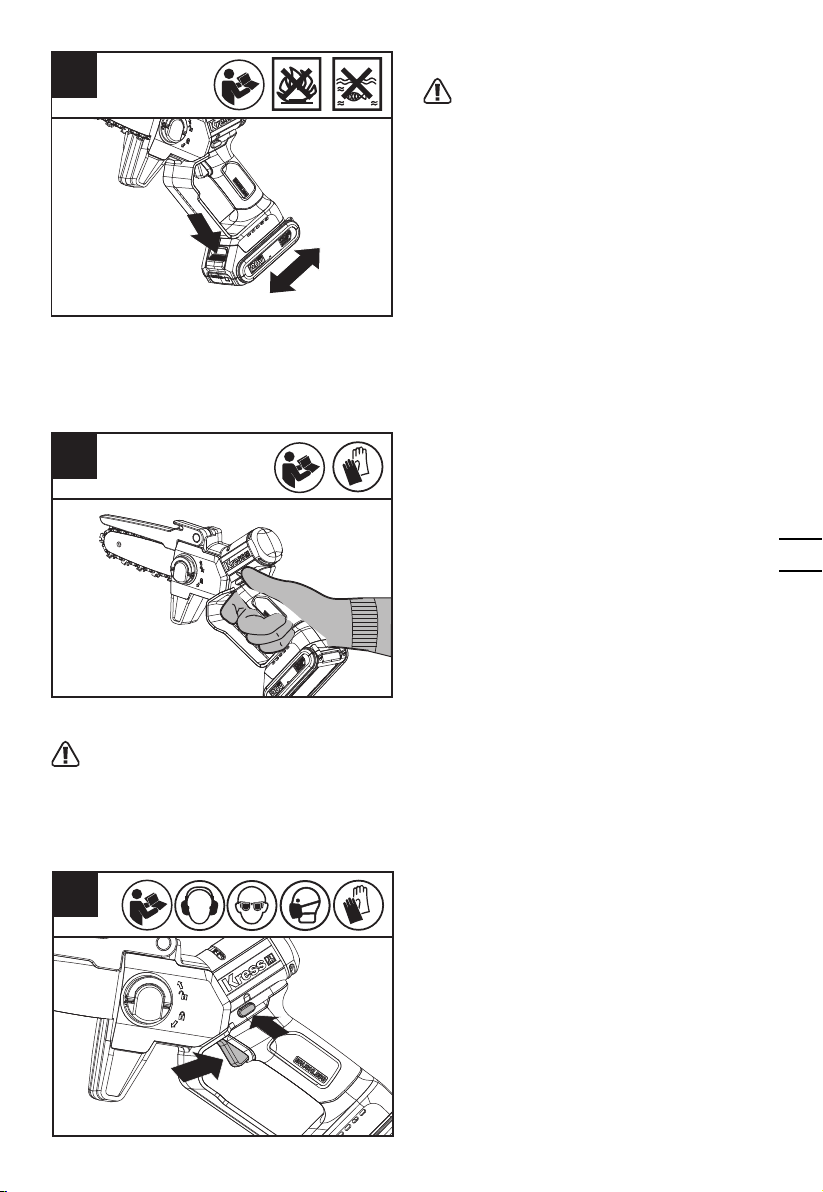

(2) TO REMOVE OR INSTALL BATTERY
PACK (See Fig. H)
Depress the Battery Pack Release Button to
remove the Battery Pack from your tool. After
recharging, insert the Battery Pack into the battery
port. A simple push and slight pressure will be
sufcient until a click is heard. Check to see if the
battery is fully secured.
NOTE: When removing the battery pack, hold it
firmly to avoid dropping and injury.

EN
13
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
(3) HOLDING AND CONTROLLING THE
PRUNING SAW (See Fig. I)
Hold and control the pruning saw with one hand on
the Throttle Handle – wrap your thumb around the
Throttle Handle.
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
2. SWITCHING ON AND OFF (See Fig. J)
ATTENTION: Check the battery pack before
using your cordless tool. Only use the battery
pack listed in the accessories section.
For switching on the tool, press the Lock-Out
Button, then fully press the On/Off Trigger and hold
in this position. The Lock-Out Button can now be
released.
For switching off, release the On/Off Trigger.
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
3. CUTTING
IMPORTANT: Check recent replaced chain
tension about every 10 minutes during
operation.
(1) Installing the battery pack into the machine.
(2) Make sure section of log to be cut is not laying
on the ground. This will keep the chain from
touching the ground as it cuts through the log.
Touching the ground while the Chain is moving
is dangerous and will dull the Chain.
(3) When ready to make a cut, push the Lock-
Out Button completely in with the right thumb
and squeeze the trigger. This will turn saw on.
Releasing the trigger will turn the saw off. Make
sure the saw is running at full speed before
starting a cut.
(4) When starting a cut, slowly place moving chain
against the wood. The wood should be as close
to the saw body as possible. Hold saw rmly
in place to avoid possible bouncing or skating
(sideways movement) of saw.
(5) Guide the saw using light pressure and do not
put excessive force on the saw, letting the saw
do its work. The motor will overload and can
burn out. It will do the job better and safer at the
rate for which it was intended.
(6) Remove the saw from a cut with the saw running
at full speed. Stop the saw by releasing the On/
off Trigger. Make sure the chain has stopped
before setting the saw down.
(7) Keep practicing on scrap logs in a secure
working area until you are comfortable, using a
uid motion and a steady cutting rate.
KICKBACK SAFETY DEVICES ON THIS
SAW
This saw has a low-kickback chain and reduced
kickback Guide Bar. Both items reduce the chance
of kickback. However, kickback can still occur with
this saw.
The following steps will reduce the risk of kickback.
• Keep all safety items in place on saw. Make sure
they work properly.
• Do not overreach or cut above shoulder height.
• Keep solid footing and balance at all times.
• Stand slightly to the left side of saw. This keeps
your body from being in direct line with chain.
• Do not let Guide Bar nose touch anything when
chain is moving.
• Never try cutting through two logs at same time.
Only cut one log at a time.
• Do not bury the Guide Bar nose or try plunge
cut (boring into wood using Guide Bar nose).
• Watch for shifting of wood or other forces that
may pinch chain.
• Use extreme caution when reentering a previous
cut.
• Use only the low-kickback chain and Guide
Bar that were supplied with this pruning saw or
recommended.
• Never use a dull or loose chain. Keep chain
sharp with proper tension.

14
EN
HOW TO USE SAW SAFELY
1. Use the pruning saw only with secure footing.
2. Hold the pruning saw at the right-hand side of
your body (See Fig. K).
A1 F1
A2
B1
F2
G1
B2
2
1
1
2
1
C1
C2
Kink/Kink
Pils
D
E
3-5 mm
(0.12-0.2’’)
G2
1
2´
2
H
1
2
I
J
1
2
1
K
3. The Chain must be running at full speed before
it makes contact with the wood.
4. Use the Base Plate to secure the saw onto the
wood before starting to cut.
5. Use the Base Plate as a leverage point while
cutting. (See Fig. L)
Z
Z
Y
Y
L
M
N
P
6. Do not operate the saw with arms fully extended,
attempt to saw areas which are difcult to reach,
or stand on a ladder while sawing. (See Fig. M)
Never use the pruning saw above shoulder
height.
Z
Z
Y
Y
L
M
N
P
CUTTING WOOD UNDER TENSION (SEE
FIG. N)
WARNING: When cutting a limb that is under
tension, use extreme caution. Be alert for
wood springing back. When wood tension is
released, limb could spring back and strike
operator causing severe injury or death.
When sawing logs supported on both ends, start
the cut from above(Y) about 1/3 of the diameter into
the log (overbuck) and then nish the cut (Z) from
below, in order to avoid contact of the pruning saw
with the ground. When sawing logs supported on
only one end, start the cut from below (Y) about 1/3
of the diameter into the log (underbuck) and nish
the cut from above (Z) in order to avoid log splitting
or jamming of the pruning saw.
Z
Z
Y
Y
L
M
N
P
REMOVING A LIMB (SEE FIG. O)
1. Undercut the limb no more than 1/3 through
(33%).
2. Remove the limb from the top with a bucking cut.
3. Trim the remaining piece of the limb from the
tree.
O
1
2
3
CLEAN RESIDUAL OIL AFTER OPERATION
Lift the Chain Guard to the maximum position for 3
to 5 times. (See Fig.F2)
NOTE: The Oil Outlet cannot be faced towards
people. The Chain and Guide bar should be
faced down.

EN
15
SAW MAINTENANCE
Follow maintenance instructions in this manual.
Proper cleaning of saw and chain and Guide Bar
maintenance can reduce chances of kickback.
Inspect and maintain saw after each use. This will
increase the service life of your saw.
NOTE: Even with proper sharpening, risk of
kickback can increase with each sharpening.
MAINTENANCE AND STORAGE OF
PRUNING SAW
1. Remove the battery pack
• When not in use
• Before moving from one place to another
• Before servicing
• Before changing accessories or attachments,
such as saw chain and guard
2. Inspect pruning saw before and after each
use. Check saw closely if guard or other part
has been damaged. Check for any damage
that may affect operator safety or operation of
saw. Check for alignment or binding of moving
parts. Check for broken or damaged parts. Do
not use pruning saw if damage affects safety or
operation. Have damage repaired by authorized
service center.
3. Maintain pruning saw with care.
• Never expose saw to rain or direct moisture.
• Keep chain sharp, clean, and lubricated for
better and safer performance.
• Follow steps outlined in this manual to sharpen
chain.
• Keep handles dry, clean, and free of oil and
grease.
• Keep all screws and nuts tight.
4. When servicing, use only identical replacement
parts.
5. When not in use, always store pruning saw
• in a high or locked place, out of children’s reach
• in a dry place
• with Bar and Drive Cover in place
BAR MAINTENANCE
To maximize bar life, the following bar maintenance
is recommended.
The bar rails that carry the chain should be cleaned
before storing the tool or if the bar or chain appear
to be dirty.
The rails should be cleaned every time the chain is
removed.
TO CLEAN THE BAR RAILS.
1. Remove Drive Cover, Bar and Chain. (see
section ASSEMBLY)
2. Using a wire brush, screwdriver or similar tool,
clear the residue from the inner groove of the
bar. (See Fig. P)
3. Make sure to clean oil passages thoroughly.
Z
Z
Y
Y
L
M
N
P
Conditions which require Chain and Guide Bar
maintenance:
• Saw cuts to one side or at an angle.
• Saw has to be forced through the cut.
• Inadequate supply of oil to the bar and chain.
Check the condition of the Guide Bar each time the
chain is sharpened. A worn Guide Bar will damage
the chain and make cutting difcult.
After each use, remove the battery pack, clean all
sawdust from the Guide Bar and sprocket hole.
When rail top is uneven, use a at le to restore
square edges and sides.
File Rail Edges
and Sides
Square
Worn Groove Correct Groove
Replace the Guide Bar when the groove is worn,
the Guide Bar is bent or cracked, or when excess
heating or burring of the rails occurs. If replacement
is necessary, use only the Guide Bar specied for
your saw in the repair parts list or on the decal
located on the pruning saw.
REPLACING BAR & CHAIN
Replace chain when cutters are too worn
to sharpen or when chain stops. Only use
replacement chain noted in this manual.
Inspect Guide Bar before sharpening chain. A
worn or damaged Guide Bar is unsafe. A worn or
damaged Guide Bar will damage chain. It will also
make cutting harder.
SHARPENING SAW CHAIN
WARNING:
Remove the battery pack before servicing.
Severe injury or death could occur from
electrical shock or body contact with moving
chain.
Cutting edges on chain are sharp. Use
protective gloves when handling chain.
Select a diameter of 0.12'' (3mm) round le to suit
the chain pitch. The le is held at the correct ling
angle of 30° to the guide bar.

16
EN
Keep chain sharp. Your saw will cut faster and more safely. A dull chain will cause undue sprocket, Guide
Bar, chain, and motor wear. If you must force chain into wood and cutting creates only sawdust with few
large chips, chain is dull.
FOR BATTERY TOOLS
The ambient temperature range for the use and storage of tool and battery is 32 °F-113 °F (0 oC-45 oC).
The recommended ambient temperature range for the charging system during charging is 32 °F-104 °F
(0 oC-40 oC).
TROUBLESHOOTING TABLE
The following table gives checks and actions that you can perform if your machine does not operate
correctly. If these do not identify/remedy the problem, contact your service agent.
WARNING: Switch off and remove the battery pack before investigating fault.
Symptom Possible Cause Remedy
Pruning saw fails to
operate
Out of battery.
Fuse faulty.
Charge the battery pack.
Replace fuse.
Pruning saw
operates
intermittently
Over heating
Applying too much pressure
while cutting.
Loose connection.
Internal wiring defective.
On/Off Trigger defective.
Place the machine in a cool, ventilated
place to cool it down
Applying relatively less pressure while
cutting
Contact service agent.
Chain/chain bar
over-heats
Chain is over tensioned
Dull chain
Adjust chain tension
Sharpen chain or replace
Pruning saw rips,
vibrates, does not
saw properly
Chain tension too loose
Dull chain
Chain worn out
Chain teeth are facing in the
wrong direction
Adjust chain tension
Sharpen chain or replace
Replace chain
Reassemble with chain in correct
direction

EN
17
TECHNICAL DATA
Type KG343 KG343.X (3 - designation of machinery, representative of battery-operated pruning
saw)
KG343 KG343.X ***
Voltage 20 V Max.**
Bar length 5''（12 cm）
Chain speed 32.8 ft/s (10 m/s)
Chain pitch 0.30'' (7.6 mm)
Number of chain drive links 28
Chain gauge 0.043'' (1.1 mm)
Adaptive chain type KA2632
Adaptive guide bar type KA2612
Machine weight (chain & bar included) (bare tool) 2.4 lbs (1.1 kg)
** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal
voltage is 18 volts.
*** X may be followed by one or two characters. All models are the same except model number and
trademark. The suffix in models may be number from “1” to “999” or English letter “A” to “Z” or “M1” to”
M9” which means different package or the various of accessories packed in the package.
SUGGESTED BATTERIES AND CHARGERS
Category Type Capacity
20V Battery KAB02 2.0 Ah
20V Charger KAC02 2.0 A
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the
accessory packaging for further details. Store personnel can assist you and offer advice.

18
ES
TABLA DE CONTENIDO
Introducción.....................................................................................................................................................18
Lista de componentes....................................................................................................................................19
Instrucciones de seguridad.....................................................................................................................21
Ensamble&Funcionamiento........................................................................................................................26
Mantenimiento.................................................................................................................................................32
Tabla de resolución de problemas..............................................................................................................33
Datos técnicos................................................................................................................................................34
INTRODUCCIÓN
Estimado Cliente,
Gracias por comprar este producto Kress. Nos consagramos a desarrollar nuestros productos
de calidad para satisfacer sus altas exigencias.
Kress respalda un servicio de calidad superior. Le garantizamos años de soporte de servicios.
Si tiene cualquier duda o necesita consejo sobre este producto, puede buscar ayuda con
nuestro Equipo de Servicios al Cliente.
Esperamos que disfrute trabajar con su producto Kress.
USO DESTINADO
La mini sierra de cadena para podar está diseñada para cortar únicamente madera y ramas
hasta un diámetro correspondiente a la longitud de la barra guía de la sierra de cadena para
podar.
La mini sierra de podar debe utilizarse a nivel del suelo o desde una plataforma adecuada que
sea completamente estable y segura.
Durante el uso, la mini sierra de cadena para podar debe sostenerse con ambas manos, la
mano derecha en el mango del gatillo y la mano izquierda en el mango superior.
La mini sierra de cadena para podar está diseñada únicamente para uso en exteriores.
La mini sierra de cadena para podar no está diseñada para ningún otro uso.
El montaje de piezas en la mini sierra de cadena para podar solo está autorizado para piezas
de repuesto originales o aprobadas por el fabricante (guías de cadena o cadenas de sierra,
por ejemplo), así como para combinaciones autorizadas de guía de cadena / cadena de sierra
como se indica en el manual.
El usuario es responsable de cualquier accidente resultante del uso inadecuado o de
modicaciones no autorizadas de la mini sierra de cadena para podar.

ES
19
3
1
1011
2
4
5
9
8
14 15
16
17
18
6
7
13
12

20
ES
LISTA DE PARTES
1. PROTECTOR DE CADENA
2. PERILLA DE LA CUBIERTA DE LA CARCASA
3. ESPUELA DE TOPE
4. INTERRUPTOR DE GATILLO
5. MANGO DEL REGULADOR
6. PAQUETE DE BATERÍAS*
7. LENGÜETAS DE LIBERACIÓN DE LAS BATERIAS*
8. GUARDA DE MANO
9. CARCASA – CUBIERTA
10. CADENA SERRADA
11. BARRA DE GUÍA
12. PLACA DE LA BASE
13. OIL FILLER CAP
14. ABRAZADERA DE LA BARRA
15. CADENA DENTADA IMPULSORA
16. PERNO DE LA BARRA DE FIJACIÓN
17. ALETAS DE GUÍA DE LA BARRA DE CADENA
18. FUNDA DE BARRA Y VAINA DE CADENA
* Tenga en cuenta que todos los accesorios ilustrados o descritos se encuentran incluidos en
una entrega estándar.
