Kronoterm HM-130 S1 Parts list manual

Instructions for installation, use
and maintenance
Hydro module
HM-130 S1
HM-140 S1
HM-180 S1
The manual has to be handed over to the end user after installation.
Id.: 17-17-46-4358-01 | 09.2017

2
Content
1Important information 4
1.1 Symbols 5
1.2 Definitions 5
1.3 General warnings 5
1.4 Safety warnings and instructions 6
1.5 Obligations of the end user 7
1.6 Obligations of the installer 8
1.7 Obligations of the authorised contractor for commissions 8
1.8 Package and worn-out device management 8
1.9 Delivery package 9
2INSTRUCTIONS FOR THE END USER 10
2.1 Controlling the device and heating system 11
2.2 Maintaining the device and heating system 11
2.2.1 Operation malfunctions 11
3Instructions for the installer 14
3.1 Transport and storage 15
3.2 Installation space 15
3.3 Wall mounting 16
3.4 Connection with the outdoor unit 17
3.4.1 Cooling connection with the outdoor unit - HM-140 S1 and HM-130 S1. 20
3.4.2 Cooling connection with the outdoor unit - HM-180 S1 22
3.4.3 Make a leak test, drain and fill the cooling connection. 23
3.5 Hydraulic connection 24
3.5.1 General 24
3.5.2 Buffer tank for DHW connection 25
3.5.3 Connecting the heating system 27
3.5.4 Filling the heating system 35
3.6 Electrical connection 36
3.6.1 Description of elements in the electrical cabinet 37
3.6.2 Electrical connection with the outdoor unit 38
3.6.3 Cable installation 39

3
3.6.4 Power connection 39
3.6.5 Connecting the communication with the external device 41
3.6.6 Connecting the external temperature sensor 42
3.6.7 Connection KT-1 and/or KT-2 42
3.6.8 Connecting the heating for DHW 43
3.6.9 Heating cycle connection 43
3.6.10 External additional source connection 46
3.6.11 Connecting the valve for switching between cooling / heating 47
3.6.12 Connecting the signal for PV signal 48
3.6.13 Connecting the signal for remote off 48
3.7 Commissioning of the device 48
4Technical characteristics 49
4.1 Dimensions and characteristics 50
4.1.1 HM-130-S1 and HM-140-S1 50
4.1.2 HM-180-S1 51
4.1.3 Features 52
4.1.4 Machine scheme 52
4.1.5 Electrical scheme 53
4.2 Technical data 54
4.3 Legend of serial labels 56
4.4 Accessories 57
4.4.1 Installation of the Expansion vessel 57

4
1 IMPORTANT INFORMATION
The manual describes the process of installation, maintenance and safe use. The
installation and maintenance can only be performed by qualified personnel. Read this
manual carefully before installation, maintenance or use.
The manual has to be handed over to the end user after installation.
In case the product shall be given to a third person for use, the manual has to be
handed over to them as well.

5
1.1 Symbols
Incorrect installation, maintenance or use can cause a malfunction of the device, damage
the user o property. For limiting risks, the important information in this manual is highlighted
with symbols.
These symbols mark various risks for the user or the device.
DANGER: Risk of situations which can lead to serious physical injuries.
WARNING: Risk of situations which can lead to minor physical injuries.
CAUTION: Risk of situations which can lead to damage or malfunction
of the device.
This symbol marks information for the user.
NOTE: A notice which holds important information regarding
requirements of the manufacturer and the device.
1.2 Definitions
An informed person is a person who reads this manual.
A qualified person is a professionally qualified person.
An authorised commission contractor is trained by the manufacturer and
authorised to perform commission.
An authorised technician is trained and authorised by the manufacturer to
perform maintenance and servicing of the device.
The user uses the device according to its use.
The installer is a person professionally trained for performing hardware and/or
electro-installation work and mounting of the device.
1.3 General warnings
NOTE
Read the instructions for use and installation before installation.
NOTE
Any remaking or replacement of original components of the device eliminates the
manufacturer’s guarantee for safe and functional operation. In the case of
undesignated and incorrect use of the device, the manufacturer is not responsible for
the consequences and will not acknowledge claims for damages in these cases. The
user is solely responsible for injuries and damages on the device itself or on other
objects resulting from undesignated and incorrect use of the device.
NOTE
The installation of the device has to be performed in accordance with the manual;
otherwise the manufacturer does not acknowledge the warranty.

6
NOTE
High pressure in the heating system can cause water dripping from the safety valve.
Make sure the drainage pipe on the side of atmospheric pressure is open.
CAUTION
A yearly inspection of the safety valve is necessary to ensure its proper operation;
when performing it, remove lime scale and make sure the safety valve is not blocked.
CAUTION
The drainage hole of the safety valve must be directed downwards. Make sure it does
not freeze.
DANGER
Failure to comply with the manual and good practise while connecting the device to
the power supply can lead to serious injury or death.
WARNING
Connecting the device to the power source can only be performed by a qualified
installer.
1.4 Safety warnings and instructions
DANGER
It is prohibited to move, shift, clean or service the device while in operation.
WARNING
It is prohibited to play with the device. Children are not allowed to clean the device
without supervision.
WARNING
The device can be operated independently only by informed persons who are familiar
with the safe operation of the device and understand possible hazards of its operation.
Children older than 8 and people with reduced physical and mental capacities and
with lack of experience and knowledge can only operate the device under the
supervision of an informed person.
WARNING
Before installation and any further adjustments to the device, it is necessary to
consider the instructions for safe use and maintenance.
WARNING
Installation has to be performed in accordance with national regulations on electrical
installations and with the instructions of the manufacturer. It has to be performed by a
professionally trained person.
WARNING
It has to be made sure that the device does not endanger anybody. Access to the
device has to be denied to children and persons who are not informed about the
operation of the device.
WARNING
The device must never be cleaned with cleaning agents containing sand, soda, acid
or chlorides because these might damage the surface of the device.
WARNING
The device contains the refrigerant HFC which is classified as a greenhouse gas
according to the Kyoto protocol. This is why tampering with the cooling cycle is only
allowed to persons authorised for working with the coolant as defined by the national

7
legislation in force. While performing works on the device, it is necessary to prevent
the coolant to leak into the atmosphere.
WARNING
It is necessary to consider all technical data and instructions in this manual as well as
all warnings and notes during planning, design, installation and use of the device.
WARNING
Electrical installations have to be inspected in accordance with regulations on the
requirements for low voltage electrical installations in buildings by the installer of
electrical installations.
DANGER
Connecting the devices power cable must be performed by a qualified electrician.
During the procedure, the device must not be live.
WARNING
In case the power cable of the device is damaged it has to be immediately replaced.
The replacement can only be performed by the installer or authorised maintenance
worker.
WARNING
Before opening the device, disconnect all electrical circuits and make sure the device
is not live.
CAUTION
Putting any kinds of items on or next to the device is prohibited.
CAUTION
The device must not be placed in a room where it cannot be removed. Later walling or
setting up of other obstacles next to the device is forbidden.
CAUTION
For the correct operation of the device, the electrical distributor has to provide
electricity of adequate quality (SIST EN 50160). In normal conditions, this is within ±
10 % of the rated voltage. The data about the state of the electrical grid have to be
acquired from the electrical distributor.
CAUTION
Connecting the device to the electrical network has to be performed in accordance
with the standards for connecting devices to the electrical network. Connect the
device to the electrical network via the power supply cut-off which is installed into the
electrical installation under the regulations in force.
1.5 Obligations of the end user
The user must ensure uninterrupted and efficient operation of the device by considering the
following instructions:
To thoroughly study the instructions for use and installation accompanying the
device before use.
To have a qualified and authorised installer perform the installation of the device.
To have a contractor for commissions perform the commission.
Allow the authorised contractor for commissioning or ask him or require him to
thoroughly explain the functioning and how to operate the device.
Ensure regular yearly inspections and maintenance of the device by the authorised
maintenance worker.

8
Store this manual in an appropriate dry place close to the device.
1.6 Obligations of the installer
The installer is responsible for installing the device in accordance with the following
requirements:
To thoroughly study the instructions for use and installation accompanying the
device before installation.
To install the device in accordance with the instructions and national legislation,
policies and standards in force.
1.7 Obligations of the authorised contractor for
commissions
CAUTION
The first commission can only be performed by the contractor of commissions
appointed by the manufacturer in accordance with the instructions for commission.
The contractor for commissions is responsible for commissioning the device in accordance
with the following requirements:
The contractor performs the first commission and eliminates all eventual
irregularities found during commission.
Trains the user for operating the device and settings.
Alerts the user to regularly maintain the device for keeping the device functioning
properly throughout its entire lifespan.
To give the user all the documentation accompanying the device.
1.8 Package and worn-out device management
Sort the package according to cardboard, wood and foil and dispose of it in
appropriate containers.
After the lifespan of the device ends it has to be disposed of in accordance with the
legislation in force on waste electrical and electronic devices and devices with F-
gasses.
Refrigerant
The device has to be connected to the outdoor unit which holds the HFC coolant which is a
fluorinated greenhouse gas covered in the Paris protocol. You have to prevent leakage of
the gas into the atmosphere. During a maintenance procedure or removal of the device it
has to be made sure that the gas is removed in accordance with the current regulations on
the use of fluorinated greenhouse gasses.

9
1.9 Delivery package
The package includes:
1. Hydro module.
2. Instructions for management and instructions for installation, use and maintenance.
3. Wall bracket for the device,
4. Accessories:
oOutdoor air temperature sensor (only HM-140 S1),
oDHW buffer tank temperature sensor,
oSecond mixing cycle temperature sensor,
oEqualisation screw -2x
Picture 1: Delivery package

10
2 INSTRUCTIONS FOR THE END USER

11
2.1 Controlling the device and heating system
Use the device and heating system in accordance with this manual and instructions for use
of the heat pump which explains the use off the device and heating system.
2.2 Maintaining the device and heating system
The device must be visually inspected once a year. The electrical and hardware installation
of the device have to be inspected. In the case of detected irregularities, contact the
authorised technician.
CAUTION
The servicing and maintenance of the device can only be performed by a person
authorised by the manufacturer. In case of a malfunction, first contact the installer
who installed the device.
NOTE
Cleaning of water filters on the return into the device is advised to be performed at
least once yearly.
CAUTION
A blocked water purifying component and magnetic filter can lead to a malfunction
of the device or incorrect functioning of the device. In case the display displays a
warning of flow malfunction (”Caution, flow!”).
NOTE
Periodically, once yearly, check the water temperature in the heating system.
NOTE
In case the pressure falls (i.e. Leakage of the system) the display displays a
warning of flow malfunction (”Caution, flow!”).
2.2.1 OPERATION MALFUNCTIONS
In case of a malfunction during the operation of the device, the display of the
TERMOTRONIC controller displays the warning “Caution, malfunction”.
Find the malfunction description in the “Owner’s manual”. For error correction call the
installer who installed the device.
2.2.1.1Resetting the thermal protection of the built-in electrical
heater
The thermal protection of the electrical heater is an additional safeguard protecting the
device in the following cases:

12
The electrical contactor which turns on the electrical flow heater can be
permanently short-circuited.
At commission, air is in the system, which causes heating without heat extraction.
The easiest way to determine whether the thermal protection of the electrical heater is
turned off is to turn on the operation of the auxiliary source on the TERMOTRONIC control
unit. If the electric heater is operational, the water temperature in the heating system will
start to rise.
In case the electrical heater does not work because of one of the before mentioned
reasons, the safety thermostat has to be reset after the problem is resolved. It is reset by
pushing the red button. If the reset is successful, you will hear a “CLICK”.

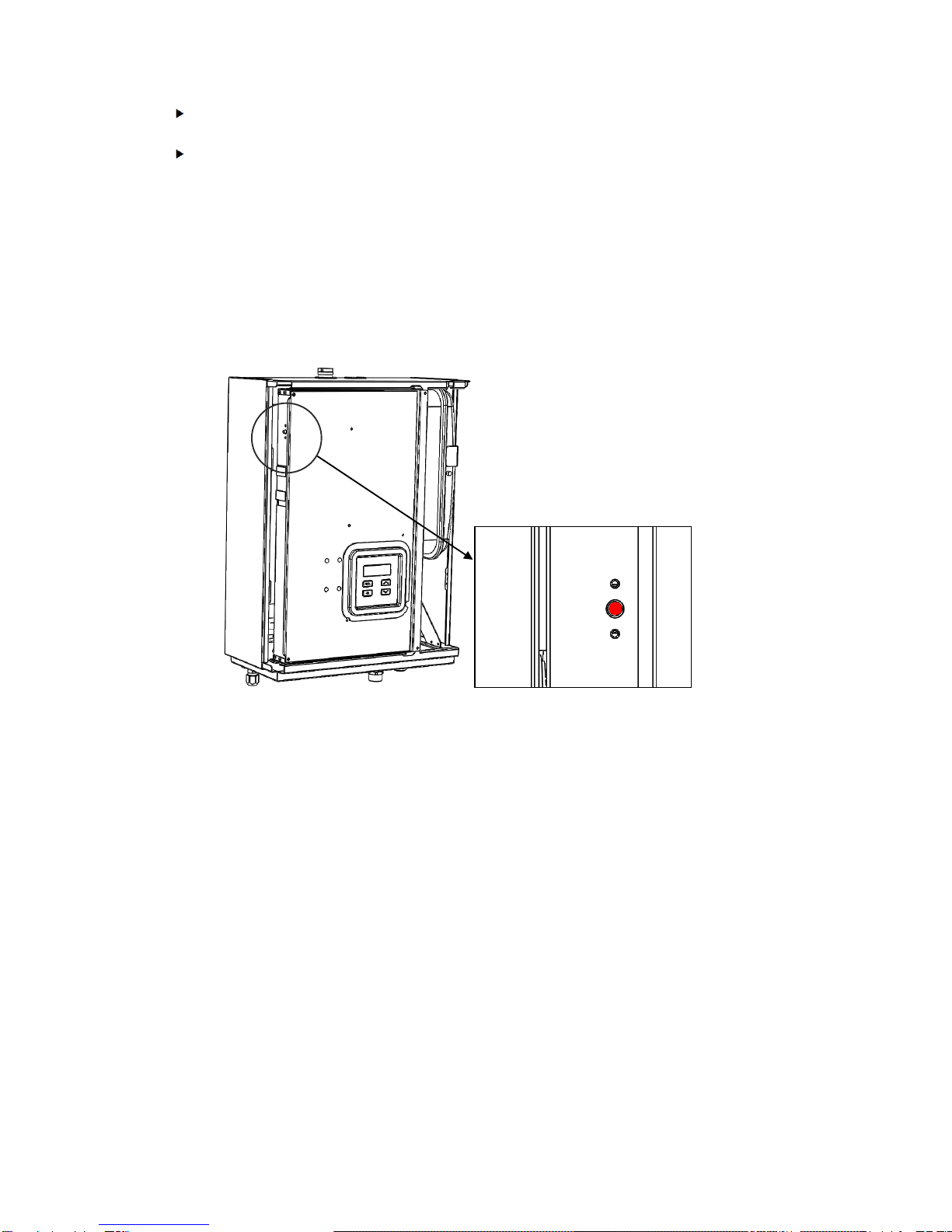

Picture 2: Resetting the safety thermostat of the built-in electrical heater

13

14
3 INSTRUCTIONS FOR THE INSTALLER

15
3.1 Transport and storage
WARNING
Valves, safety elements and pipes must be checked, calculated and
determined by the system or hardware installations contractor.
WARNING
Before connecting the device, it is necessary to rinse the pipe system
thoroughly and remove impurities (solid particles, oils, greases ...).
Use suitable detergents if necessary.
NOTE
The device must be connected via closing valves.
CAUTION
The device must be transported with transport devices.
Secure the device during transport to prevent damage.
The device must not be stacked and other objects must not be placed on it.
CAUTION
Appropriate transport equipment must be used for installing the device. Safety
regulations and good practise have to be used.
CAUTION
The device has to be stored in a dry and clean place. The allowed storing
temperature is between 10 °C and 45 °C, for a short period (up to 24h) also up to
50 °C.
3.2 Installation space
The device must be installed in a space which meets the following requirements:
NOTE
The installation space must be accessible by manual transport devices for the
purposes of installation, maintenance and servicing.
Costs connected with hiring special equipment for installing the device,
servicing and maintenance are charged to the operator separately and are
not subject of the warranty.
NOTE
The location of the internal unit must be dry and in the temperature range between
+10 °C and 40 °C.
WARNING
The space has to be fitted with a drain.
CAUTION
It is forbidden to install the device under water pipes; in case of leakage water
could enter the device and cause a malfunction.
NOTE
It is obligatory to consider the minimal clearance from obstacles for ensuring
unobstructed access for maintenance and service of the device.

16

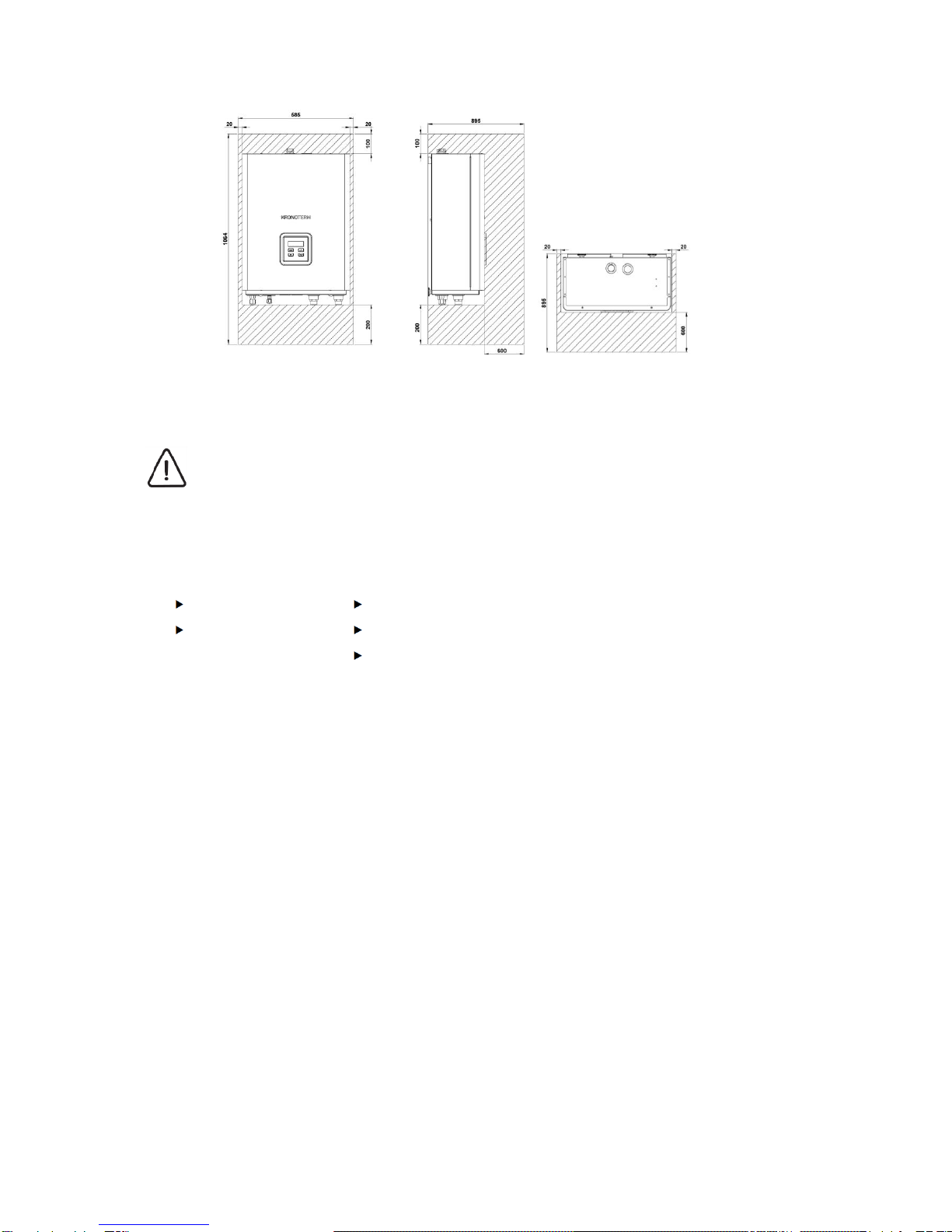

Picture 3: Minimal clearance between the device and obstacles
3.3 Wall mounting
CAUTION
For wall mounting, you need to use wall plugs and screws suitable for the wall.
Take into account the mass of the device. For technical information, see section
on technical information.
For wall mounting, you will need:
Spirit level,
Drilling machine,
Plugs and screws suitable for the wall,
Pencil or pen for marking the places for holes and screws,
Device wall mount (part of the delivery package).
1. Attach the wall mount:
a. Mark the position of holes for
attaching the wall mount - use the wall
mount of the device and the spirit
level.
b. Drill holes suitable for selected
mounts and screws.
c. Insert the plugs, fasten the wall mount
and level it.

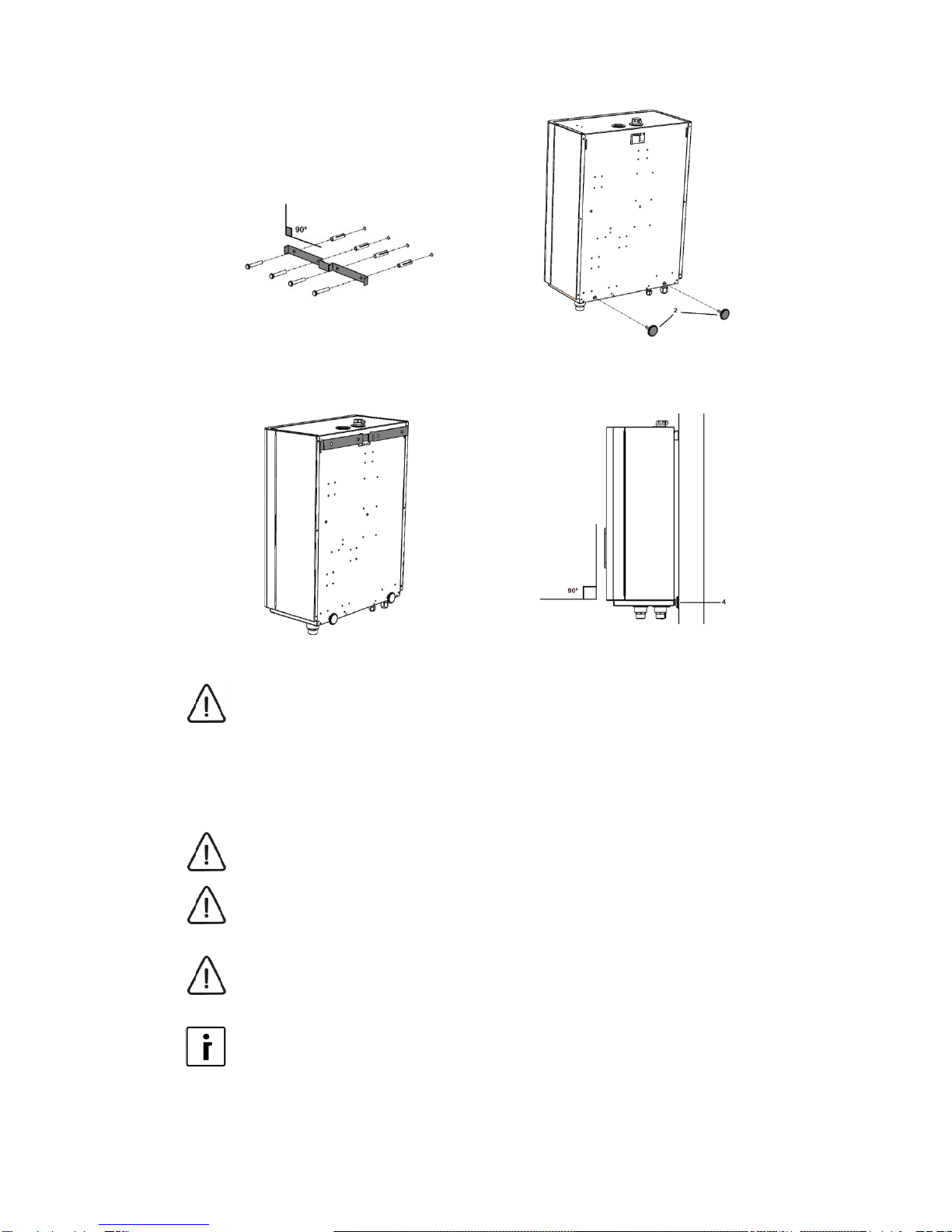

2. Tighten the equalisation screws in the
device - 2x.

17
Picture 4: Fastening the device’s wall mount
to the wall
Picture 5: Installation of equalisation screws.
3. Hang the device on the wall mount.
4. Level the device using the spirit level
and equalisation screws.
Picture 6: Hang the device on the wall mount.
Picture 7: Level the device using the
equalisation screws.
CAUTION
The mass of the device, safety regulations and good practise have to be followed
when lifting the device. For technical information, see section 4.2.
3.4 Connection with the outdoor unit
CAUTION
Connection with the outdoor unit must be performed by a refrigeration expert.
CAUTION
The pipeline and electrical cables have to be protected with heat and waterproof
insulation in a protective pipe.
CAUTION
The device is filled with pressurised N2. Before attaching the pipe, it must be
released from the device.
NOTE
For making the connection with the external device, see Instructions for
Installation of the external device.

18

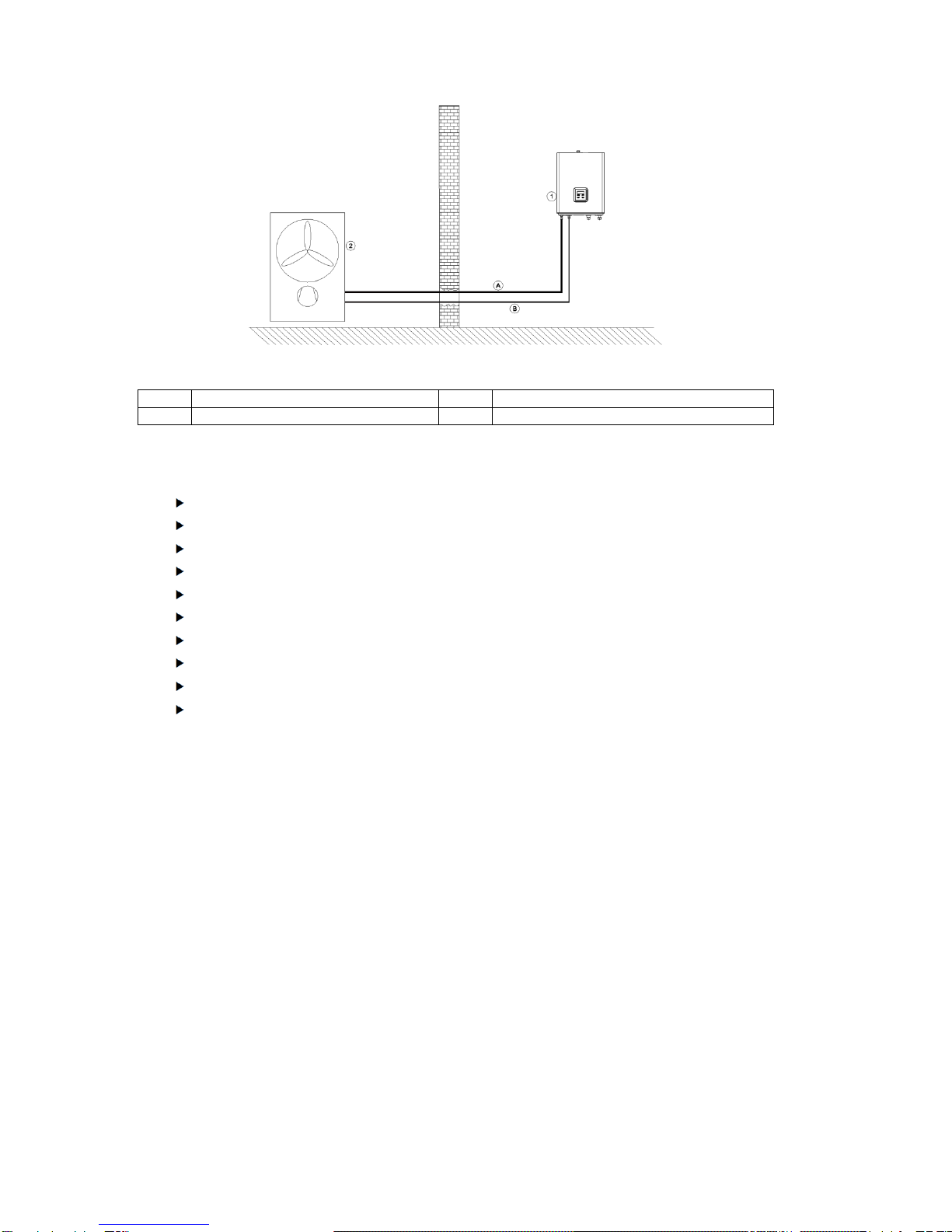

Picture 8: Coolant connection between the exterior and interior device.
1
Hydro module
A
Gas pipe
2
Outdoor unit
B
Liquid pipe
You will need the following tools:
Screwdriver.
Coolant service manometer.
Tool for cutting pipes.
Tool for deburring pipes.
Fork wrench and fork torque wrench - for HM-140 S1 and HM-130 S1.
Tool for pipe edging - for HM-140 S1 and HM-130 S1.
POE oil is suitable for cooling systems - for HM-140 S1 and HM-130 S1.
Pipe expander - for HM-180 S1.
Acetylene burner, oxygen - for HM-180 S1.
Wet towel.

19
For making a cooling connection with the external device, follow these steps:
1. Remove the front cover of the device.
Picture 9: Removal of the device cover.
2. Unscrew the screws of the electrical cabinet and open it to ensure access to the
cooling pipes. Unscrew the lid of the service valve.
Picture 10: Opening the electrical cabinet.

20
3. If you are installing HM-140 S1 or HM-130 S1, continue on chapter 3.4.1. If you
are installing HM-180 S1, continue on chapter 3.4.2.
3.4.1 COOLING CONNECTION WITH THE OUTDOOR UNIT - HM-
140 S1 AND HM-130 S1.
4. Connect the manometer and drain the N2from the device.
5. Unscrew the bolts on the end of the pipe and save them. You will use them to
mount the pipes.
6. Cut the connecting pipes to the required length. When cutting, consider the
following:
Use a pipe cutter which does not leave chips to cut the pipe.
The cut must be perpendicular to the pipe’s axis and straight.
1
Copper pipe
3
Uneven
2
Inclined
4
Rough
7. Deburr the end of the pipe:
Remove all chips from the part where the pipe was cut.
Hold the pipe downwards during deburring so that the chips do not fall into
the pipe.
1
Copper pipe
3
Deburring tool.
