KRUUSE ART-SP2 User manual

Instruction Manual
KRUUSE ART-SP2 Piezo scaler
and micromotor
Cat. No 271390
JØRGEN KRUUSE A/S
Havretoften 4
DK-5550 Langeskov.
Tlf: + 45 7214 1511
Fax: + 45 7214 1400
www.kruuse.com
I

The publication should be used solely for the purpose of reference, operation,
maintenance, or repair of BONART equipment. No part of this document may be
reproduced or disseminated in any form or by any means, electronically or
mechanically for other purposes.
In the event of inadvertent or deliberate publication, BONART intends to enforce
its rights to this manual under copyright law. No one may copy the materials
presented in this manual without the express written permission of BONART
MEDICAL TECHNOLOGY INC.
Product specifications, as well as information presented in this manual, are subject
to change without prior notice.
PROPERTY OF BONART MEDICAL TECHNOLOGY INC.
ALL RIGHTS RESERVED
ART-SP2 is trademark of BONART MEDICAL TECHNOLOGY INC.
Other brands and product names are trademarks or registered trademarks of their
respective holders.
II

Operator Safety
Read this page carefully before installation and use the instrument.
The instrument described in this manual is designed to be used by properly trained
personnel only. Only qualified personnel shall carry out adjustment, maintenance
and repair of the equipment.
NOTE, CAUTION AND WARNING STATEMENTS
NOTE: Indicates some tips
.
CAUTION: Indicates correct operating or maintenance procedures in order to
prevent damage to or destruction of the equipment or other property.
WARNING: Calls attention to a potential danger that requires correct procedures
or practices in order to prevent personal injury.
SYMBOLS:
“BF” symbol, indicates the ART-SP2 was
manufactured according to the degree of
protection against electric shock for this type BF
equipment.
Grounding Terminal
Attention, Reading the instructions
!
III

Thank you for choosing Bonart Scaler/Polisher Combo Unit. Before using the
Scaler, please carefully read this User Manual since it contains important
information, including installation procedures and operation tips, about the
Scaler. Especially, please refer to the section "Cleaning and Sterilization" to
sterilize the Scaler before applying on human subject.
Warnings
Important Notes!
The equipment is only to be used by a qualified doctor, dentist, hygienist or other
qualified personnel.
A patient with pacemaker cannot be treated with the equipment.
A shielded AC power cord must be used with this equipment.
ART-SP2 should be powered from a separate wall outlet with grounding point.
Attention!
Avoid use of this machine around Pacemakers.
!
It has been shown that electronic appliances including razors, hair dryers,
microwave ovens, TV receptors, and some electronic medical equipment may
interfere with the normal operations of pacemakers. It is suggested that patients
who have pacemakers avoid treatment with this Scaler. For further readings on
the subject, please refer to:
− "Advances in Cardiac Pacemaker", The New York Academy of Sciences, Vol.
167, Article 2, pp. 515-1075
− "Electromagnetic Radiation Interference with Cardiac Pacemaker", U. S.
Department of Health, Education and Welfare
− "The Individual with a Pacemaker in the Dental Environment", Journal of the
American Dental Association, Vol. 91, No. 6, pp. 1224-1229
IV

Note before using:
• The electric power used must be grounded. If this
requirement is not met, it could cause damage to the
Scaler and more importantly harm to the user.
• The machine should be placed on a steady and
stabled platform or table. Placing the machine on
an unstabled, tilted table may degrade the
performance and/or may accidentally cause damage
to the system.
• Do not dismantle the machine on your own or by
uncertified technicians. Violation of the
requirement may cause harm to the user and/or
damage to the machine.
• For electrical safety, the power cord should not be
placed under heavy objects, and should also be kept
away from avoid high temperature heat sources.
• If you observe any abnormal situations while the
machine is in use, unplug the power cord for
precaution.
V

VI
Preface
Scaler /Polisher unit is developed based on the Principle of piezoelectric
Ultrasonic waves are generated in the handpiece by 4 ceramic piezoelectric plates
subjected to high frequency alternation current. The Tip is vibrated back and forth
in high speed to perform tooth calculus and/or tartar cleaning task. Particularly,
the high speed vibrated Tip can remove the toughest calculus and tartar easily, and
in conjunction with syringe (or saliva ejector), the scaler can conveniently and
swiftly clean teeth and most importantly it is proven to be electrically safe. The
electric-mechanical efficiency of this piezoelectric system is much greater than that
of traditional magnetostrictive systems. There is very little heat released, and it is
possible to work with very little spray. It’s sufficient to ensure excellent cavitation
but more comfortable for both the patient and the dental surgeon.
The ART-SP2 is a very powerful apparatus. There are linear scales of
power adjustment for removing prostheses and condensing gutta-percha. This
allows very fine adjustment to suit each clinical situation.
With a large range of Tips, the ART-SP2 is suitable for different kinds of work.
ART-SP2
 Operation Frepuency:29 KHz
 Stable and Fine Power Setting
 Various Types of TIP Available
 No Heat Generation of Handpiece
 Automatic Feedback Control and Powerful Torque
 High Torque Feature even at the Speed condition
 0~2,000 RPM of Speed Control
 Scaler and Polisher in one Equipment
Special notes to doctor:
Since the TIP of scaler is made of stainless steel, avoid direct contact to patient's
teeth; it may damage to the enamel of the teeth. To better utilize all the functions
and maximize the performance of the scaler, it is suggested that before using on
patients, doctors should practice on models/aluminum plates to familiarize
themselves with the usage of the scaler tips and the subtle motion and force of the
insert, etc.

Contents
Contents .....................................................................................................................1
I. Descriptions and Functionalities of Components...................................................2
Descriptions of Components..................................................................................2
Description of Control Panel .................................................................................4
II. Installation Guide..................................................................................................6
III. Preparation and Practice before the First Use......................................................9
IV. Operation Procedures.........................................................................................11
V. Maintenance........................................................................................................13
VI. Cleaning and Sterilization..................................................................................14
VII. Accessories......................................................................................................16
VIII. Specifications..................................................................................................17
1

I. Descriptions and Functionalities of Components
Descriptions of Components

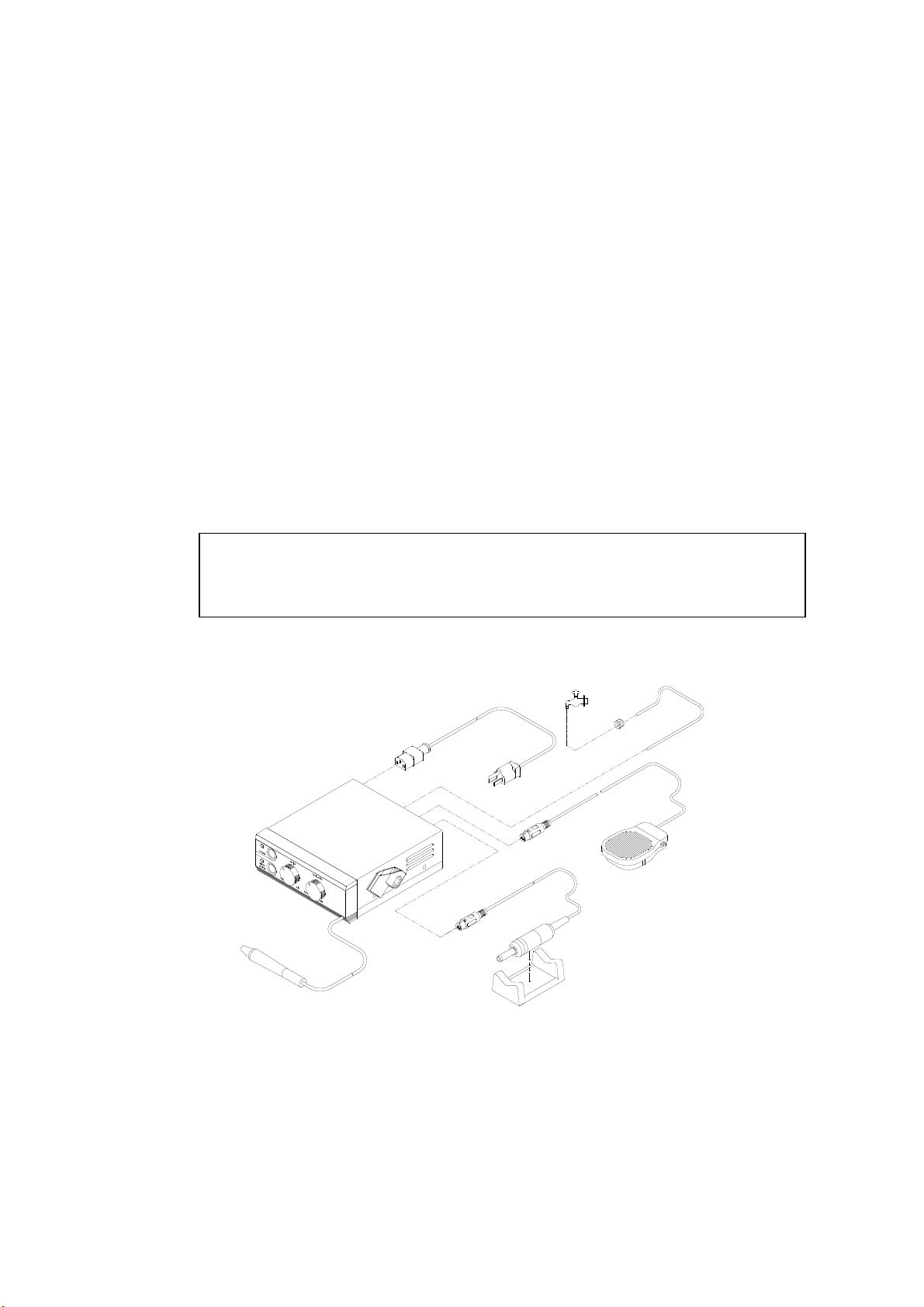

Figure 1. ART-SP2 Outlook diagram
1. Main Unit
It is the heart of the scaler. Functionally, the main unit generates the
needed 29KHz-operation-signal and passes it on to the Handpiece, and
thus induces power to vibrate the Insert inside the Handpiece accordingly.
Due to pressure variations, a signal from the Handpiece will be fed back to
the main unit so that the main unit can track the variation of the loading
and adjust the intensity of the controlling signal accordingly.
2. Handpiece
The Handpiece consists of vibrator and a Tip. The vibrator is composed
of four pieces of piezoelectric plates. It generates displacement when
driven by the electrical signal from the Main Unit . The vibrator will
move the Tip back and forth in high speed based on the waveform change
of the controlling signal. In addition, the movement of the Tip will
induce current on the feedback circuit and the induced signal is then fed
back to the Main Unit to complete the control loop. In accordance with
the movement of the Tip, a powerful water stream (working like a
syringe) will also come out to a) wash away the tooth calculus and tartar,
and b) cool down the temperature of the Tip (heat generated from the
vibration of the Tip).
Caution: Make sure that new Tip is fully seated.
7
2
2

3. Footswitch
The convenient footswitch helps doctors to easily turn on/off the scaler
without interrupting the cleaning process at hand.
4. Water Tubing
5. AC Line Socket Seat
6. Micro-Motor
This is a DC micro-motor. Micro-motor speed will be reacted from input
voltage reacted. Please see page “10” “Operation Procedure”.
7. Forward / Reverse
Control the micro-motor revolving direction.
3

Description of Control Panel
The function of each button or knob on the control panel is listed detail below.
1
2
Figure 2. ART-SP2 Front-panel
1.MAIN POWER SWITCH
Indicating the main power switch. When pushed, the AC power is sent to
the Main Unit, and the power indicator (LED) will be lit up. If pushed
again, the power is then turned off and the power indicator will be
extinguished.
Before turning the unit on, be sure the footswitch is in
the“OFF”position
2.WATER
Indicating the water volume control knob. When turned clockwise, the
water volume comes out of the Handpiece will be smaller. On the other
hand, if turned counter-clockwise, the water volume will increase. With
this water volume control knob, doctors can conveniently adjust water
volume based on the operation needs. It is noted that not only washing
away the dirt left from the calculus and/or tartar, water here is also used to
cool down the temperature of the Tip to avoid overheating. Adjustment of
water flow rate controls water temperature. The greater the water flows,
the lower the water temperature, vice versa.
Warning: Don’t adjust water knob in anti-clockwise direction
over three circles
3.POWER
Indicating the output power intensity control knob. When turned
clockwise, the output power intensity will be smaller. On the other hand,
when turned counter-clockwise, the output power intensity will increase.
This power intensity control knob gives doctors the flexibility to adjust the
output power intensity based on the difficulty of the cleaning job (e.g.,
toughness of the calculus).
3 4
!
4

4.MICRO MOTOR
Indicating Scaling/Polishing model change switch. When pushed the
button, the indicator (LED) will be lit up. It means the operation is under
“Polishing” model. During this model, the micro-motor output power
will increase. If pushed the button again, the operation model will back to
“scaling” model.
5. “BF” symbol, indicate that the ART-SP2 was according to the degree
of protecting against electric shock for type BF equipment.
5

II. Installation Guide
1. Unpacking
When unpacking the box, check this unit for any damages. If damaged,
please contact your dealer immediately. Enter the unit serial number on your
warranty card mail it within 10 days after setting up the machine.
2. Storage
A. Environment:
The unit should be stored in a clean , dry environment. The following
environmental limitations apply to both storage and shipping:
Temperature: 0℃to 60℃
Humidity : 10%~90% (at 40℃)
Atmospheric pressure: 860~1060 hPa
B. Labels:
The meaning of labels printed on the outside of the package box are listed below:
FRAGILE
KEEPAWAY FROM WATER
DON’T HOOK
THISSIDEUP
3. Safety Instructions
A. Grounding:
Before any connection to the output connectors is made, the unit must be
grounded. The main plug shall be inserted only into a wall socket provided
with a protective ground.
Note: The unit must be positioned so that the plug is accessible.
6

B.Main voltage range and fuse:
Before inserting the main plug into the wall socket, make sure that the unit is
compatible with local main voltage.
Warning: The equipment shall be disconnected from all voltage sources
when a fuse is to be replaced.
The main (line) fuseholder is located on the rear panel in the main (line)
input socket. When the main (line) fuse needs replacing, proceed as follows:
- Disconnect the unit from the line.
- Remove the cover of the fuseholder by means of a small screwdriver.
- Fit a new fuse of the correct rating and refit the cover of the fuseholder.
The fuse will be 2A/250V delay action type.
4. Setting Up
It is fairly simple to install this equipment. Just unpack the Bonart
Scaler and connect the components as shown in the figure below.
Note:
When unpacking the box, check ART-SP2 for any damages. If damaged,
please contact your dealer immediately. Enter the unit serial number on your
warranty card mail it within 10 days after setting up the machine.
Figure 3. ART-SP2 setting up diagram
7

1.Check ART-SP2 and make sure the both power and power indicator is off
when the switch is off.
2.Put the scaler into a grounded outlet.
3.Choose the correct scalering Tip for desired procedure, and insert it into the
handpiece. Make sure the insertion is complete.
Caution:When screwing the Tip into the handpiece, DO NOT FORCE.
4. Make sure the water PU tube is connected well.
5. Connect the proper micro-motor
Several installation suggestions are listed below.
1. Because patients may experience some tissue trauma during the treatment,
it is suggested that the operator use purified or distilled water. This will
significantly reduce the possibility of infection.
2. After installation, the extra length of the power cord should be neatly
arranged to avoid any tripping accidents.
3. The footswitch should be firmly placed at position where the users/doctors
can easily access it. Any extra cord to the footswitch extension should also be
neatly arranged to avoid any tripping accidents.
8

III. Preparation and Practice before the First Use
To better utilize all the functions and maximize the performance of the Bonart
Scaler, it is suggested that before treating patients, users/doctors should practice on
models/aluminum plates to familiarize themselves with the system. Maneuver the
head of the Tip to make gentle touch on an aluminum plate. Try to familiarize
and observe the subtleties of the force strengths under different Tips head angles,
positions, etc. Closely examine the scratches left on the aluminum plate after each
practice, and try to match each scratch to its originated head position and angle.
In addition, adjust the output power intensity by turning the power knob.
Familiarize yourself with the differences when changing the output power intensity.
Finally, adjust the water volume by turning the water volume control knob.
Familiarize yourself and observe the subtleties among different water volume
situations. Observe the temperature of the Handpiece when changing the water
volume. Do not overheat the Handpiece. Perform the above practice procedures
several times to prepare yourself operating on human subjects.
Belows are some applications and ultrasonic movement of the Tip.
A. Tangential application (E5 TIP)
Do not apply E5 Tip directly on the tooth.
It may damage the enamel. Let the
hand piece follow a slow and regular movement.
B.Frontal application (E2 TIP)
Apply E2 tip against the tartar directly,
do not against the tooth directly. Put slight
pressure for movement
9

C.Tangential Application (E3 TIP)
Contact on the enamel with the rounded
Ttip without pressure when movement.
10

IV. Operation Procedures
When preparing to treat a patient:
Step1: Push the POWER SWITCH to light the ON indicator (LED).
Step2: Check the water.
Step3: Select the needed Tip, make sure it is fully seated with the Handpiece.
Step4: Set the POWER KNOB to the suitable level for the insert.
Step5: Hold the Handpiece with the Tip end pointing up over a suitable
drain. Step on the foot control and allow water to run from the
handpiece for a few seconds until it flows without spurting.
Caution: The above procedure should be repeated each time when an
Tip is replaced into the handpiece.
Caution: Make sure that the water spray is at the desired temperature
and is reaching the working edge of the tip.
Step6: Place the tip into the patient’s mouth and use the foot control to
activate the handpiece and water flow.
When treating a patient:
1. First position the patient comfortably on the patient chair. Adjust the chair
angle and/or position so that you can easily access to the patient's oral cavity.
2. Put the saliva ejector into patient's mouth to evacuate away excessive saliva
and cleaning remainders.
3. Gently move patient's head so that the oral can be easily accessed with good
direction as shown in the figure below.
During the treatment, keep the angle between patient's tooth surface and the
Handpiece Insert as close to 15 degree as possible. If the patient is not
comfortable during the treatment, try the following steps.
A. When treating place where patient is very sensitive, try to increase the
Handpiece movement speed on the surface.
B. Treat less sensitive place first, return to sensitive areas later.
C. If problem persist, reduce the output power intensity of the Handpiece.
4. Control the handpiece with the foot switch: The Foot control is designed to
control the functions of the Handpiece in two ways as below:
A With the foot held down on the foot control, the Handpiece is activated
and water flows from the Handpiece .
B.With the foot control released, both Handpiece and water flow are shut
off.
11

5. Water and Temperature
The WATER KNOB control the volume and temperature of water flowing
from the Handpiece by turning the WATER KNOB clockwise or
counterwise until the desired rate of flow is obtained.
When preparing to execute “Polishing” model:
1. Check the micro-motor connection and pushed the “MICRO MOTOR”
change to “Polishing” model.
2. The “Forward / Reverse” that locates rear panel is controlling the micro-
motor revolving direction.
Note: The greater the water flow, the cooler the temperature and vice versa.
Caution: When operating, a continuous flow of water is required to keep the
Handpiece cool.
12

V. Maintenance
The Bonart unit does not need special maintenance routines but it does need to be
regularly and thoroughly cleaned and sterilized (as described in next section).
Daily start-up
When starting the unit at the beginning of the day:
*Open the water supply shut-off valve.
*Push the MAIN POWER SWITCH to light the on indicator (LED)
Note: If no water come out, please check the water supply.
Note: If power LED does not light, please contact local authorized agent.
Daily shut-off
When stopping the unit at the end of the day:
*Push the POWER SWITCH to turn the unit off.
*Turn off the water supply shut-off valve.
Preparing to treat a patient
*Make sure the TIP has been sterilized.
The following suggestions are also useful in extending the product life of the unit.
A. Place the Main Unit in an open area where air can flow freely around it.
B. If need to move the Main Unit, handle with care.
C. Before leaving the operatory, make sure the AC power is turned off and the
water faucet is tightly closed.
D. After six months or if you find the output power of the Handpiece is not
enough to perform treatment, it is very possible that the Tip is worn out. If the
Tip is worn out, replace it with a new one, otherwise, have your authorized agent
service the system.
E. Customer Service: if service is needed, please contact local authorized agent.
Trouble shooting
Product requires any maintenance should be returned to the customer service
department or authorized service facility. Bonart will repair or replace any
product under warranty at no charge.
13

VI. Cleaning and Sterilization
In this section we describe the procedures to clean and sterilize the scaler. It is
important to follow these procedures before using the machine, otherwise, patients
and/or doctors may have the possibility of getting infection. It is mandatory
that doctors wear sterilized gloves during these procedures at all time to avoid
any possibilities of incomplete sterilization and/or infection. Below we detail
the infection control procedures for the Handpiece, the Tip, and the Main Unit,
respectively.
Handpiece
Before cleaning, remove the Tip from the Handpiece. Let the Handpiece run
for a couple of seconds to drain out the water and any possible contamination
left inside the Handpiece. The outer surface of the handpiece should be
cleaned with anantiseptic soap or solution. Rinsed off with water and wiped or
sprayed with a chemical disinfectant that is compatible with the handpiece
material, such as a 1:6 dilute solution of Sporicidin brand disinfectant. A
sterile insert or TIP is then reassembled to the handpiece in preparation for the
next patient.
Warning: Do not put the Handpiece and the extension wire directly into
the sterilized fluid. Any left such fluid inside the machine
will interfere with the normal operations of the system.
At the end of the day with the Tip remove, the handpiece and cable should be
scrubbed with an antiseptic soap or solution and rinsed off with water. The
handpiece should be scrubbed a second time with an antiseptic soap or
solution and rinsed off with water.
Warning: The chemical disinfectant should not be allowed to remain on
the surface longer than the recommended time or material
damage may result.
Note: Cleaning of the Hand-piece is suggested after each patient use.
Tip
After each usage, there will be saliva and/or blood or other debris left on the
Tip, consequently, it is necessary to clean the Tip with a supersonic cleaner
first. This can be done manually by scrubbing with a brush or by use of an
ultrasonic cleaner with a solution of detergent and water. After scrubbing. The
Tip should be rinsed thoroughly with water to remove all detergent. Then dry
the rinsed Tip. Finally, put the Tip in a bag and then put it into a medical-
equipment autoclave and sterilize the Tips at 260℉(127℃) for 30 minutes or
as recommended by the manufacturer of the particular sterilizer used.
An alternative, but less desirable method of sterilization is the use of a
compatible chemical sterilant such as Sporicidin brand disinfectant. In this
method, the Tips is immersed at room conditions in the disinfectant at the
appropriate strength and for the recommended period by the manufacturer. The
thoroughly rinsed with sterile water and completely dried.
14
