KSB KSB Leakage Sensor Installation instructions

Monitoring System
KSB Leakage Sensor
Installation/Operating Manual

Legal information/Copyright
Installation/Operating Manual KSB Leakage Sensor
Original operating manual
All rights reserved. The contents provided herein must neither be distributed, copied, reproduced,
edited or processed for any other purpose, nor otherwise transmitted, published or made available to a
third party without the manufacturer's express written consent.
Subject to technical modification without prior notice.
© KSB SE & Co. KGaA, Frankenthal 27/11/2020

Contents
3 of 34
KSB Leakage Sensor
Contents
1 General.................................................................................................................................................... 5
1.1 Principles ...........................................................................................................................................................5
1.2 Target group.....................................................................................................................................................5
1.3 Other applicable documents............................................................................................................................5
1.4 Symbols .............................................................................................................................................................5
1.5 Key to safety symbols/markings.......................................................................................................................5
2 Safety...................................................................................................................................................... 7
2.1 General..............................................................................................................................................................7
2.2 Intended use .....................................................................................................................................................7
2.3 Personnel qualification and personnel training.............................................................................................7
2.4 Consequences and risks caused by non-compliance with this manual .........................................................7
2.5 Safety awareness ..............................................................................................................................................8
2.6 Software changes .............................................................................................................................................8
2.7 Explosion protection ........................................................................................................................................8
3 Transport/Storage/Disposal .................................................................................................................. 9
3.1 Checking the condition upon delivery............................................................................................................9
3.2 Transport...........................................................................................................................................................9
3.3 Storage..............................................................................................................................................................9
3.4 Disposal ...........................................................................................................................................................10
4 Description............................................................................................................................................ 11
4.1 General description ........................................................................................................................................11
4.2 Name plate......................................................................................................................................................11
4.3 Operating limits..............................................................................................................................................11
4.4 Fluids handled.................................................................................................................................................12
5 Installation at site ................................................................................................................................ 15
5.1 Safety regulations...........................................................................................................................................15
5.2 Checks to be carried out prior to installation...............................................................................................15
5.3 Installing the sensor .......................................................................................................................................15
5.3.1 Installing a KSB Leakage Sensor that has been supplied but not fitted ........................................16
5.3.2 Installing a pre-mounted KSB Leakage Sensor ................................................................................16
5.4 Electrical connection ......................................................................................................................................17
5.4.1 Standard design .................................................................................................................................17
5.4.2 Variant for use in potentially explosive atmospheres .....................................................................18
5.4.3 Connecting the power supply and message signals ........................................................................18
5.4.4 DIP switch configuration ...................................................................................................................19
5.5 Display functions during operation...............................................................................................................20
5.5.1 Display ................................................................................................................................................20
5.5.2 Analog output....................................................................................................................................20
6 Commissioning/ Start-up.................................................................................................................... 22
6.1 Carrying out a functional test........................................................................................................................22
6.2 Measures to be taken for shutdown.............................................................................................................23
7 Servicing/Maintenance........................................................................................................................ 24
7.1 Safety regulations...........................................................................................................................................24
7.2 Maintenance/inspection.................................................................................................................................24
7.2.1 Cleaning the drop capillary ...............................................................................................................24
7.3 Dismantling and reassembly..........................................................................................................................25
7.3.1 Dismantling and reassembling the KSB Leakage Sensor.................................................................25
7.3.2 Rotating the upper half of the sensor housing ...............................................................................25
7.3.3 Removing and re-mounting the inductive sensor ...........................................................................25
7.3.4 Resetting the analysing unit .............................................................................................................26

Contents
4 of 34 KSB Leakage Sensor
8 Trouble-shooting.................................................................................................................................. 27
9 Related Documents.............................................................................................................................. 28
9.1 General assembly drawing with list of components ....................................................................................28
9.2 Layout / connection diagram.........................................................................................................................29
9.2.1 Standard design .................................................................................................................................29
9.2.2 Variant for use in potentially explosive atmospheres .....................................................................30
10 EU Declaration of Conformity............................................................................................................. 31

1 General
5 of 34
KSB Leakage Sensor
1984.8/02-EN
1 General
1.1 Principles
This operating manual is valid for the type series and variants indicated on the front
cover.
The operating manual describes the proper and safe use of this equipment in all
phases of operation.
The name plate indicates the type series, the main operating data and the serial
number. The serial number uniquely describes the product and is used as
identification in all further business processes.
In the event of damage, immediately contact your nearest KSB service facility to
maintain the right to claim under warranty.
1.2 Target group
This operating manual is aimed at the target group of trained and qualified specialist
technical personnel.
1.3 Other applicable documents
Table1: Overview of other applicable documents
Document Contents
Sub-supplier product literature Operating manuals and other product literature
describing accessories and integrated machinery
components
For accessories and/or integrated machinery components observe the product
literature of the relevant manufacturer.
1.4 Symbols
Table2: Symbols used in this manual
Symbol Description
✓Conditions which need to be fulfilled before proceeding with the
step-by-step instructions
⊳Safety instructions
⇨Result of an action
⇨Cross-references
1.
2.
Step-by-step instructions
Note
Recommendations and important information on how to handle
the product
1.5 Key to safety symbols/markings
Table3: Definition of safety symbols/markings
Symbol Description
!DANGER
DANGER
This signal word indicates a high-risk hazard which, if not avoided,
will result in death or serious injury.
!WARNING
WARNING
This signal word indicates a medium-risk hazard which, if not
avoided, could result in death or serious injury.

1 General
6 of 34 KSB Leakage Sensor
1984.8/02-EN
Symbol Description
CAUTION
CAUTION
This signal word indicates a hazard which, if not avoided, could
result in damage to the machine and its functions.
General hazard
In conjunction with one of the signal words this symbol indicates a
hazard which will or could result in death or serious injury.
Electrical hazard
In conjunction with one of the signal words this symbol indicates a
hazard involving electrical voltage and identifies information about
protection against electrical voltage.
Machine damage
In conjunction with the signal word CAUTION this symbol indicates
a hazard for the machine and its functions.

2 Safety
7 of 34
KSB Leakage Sensor
1984.8/02-EN
2 Safety
!DANGER
All the information contained in this section refers to hazardous situations.
In addition to the present general safety information the action-related safety
information given in the other sections must be observed.
2.1 General
▪This operating manual contains general installation, operating and maintenance
instructions that must be observed to ensure safe operation of the system and
prevent personal injury and damage to property.
▪Comply with all the safety instructions given in the individual sections of this
operating manual.
▪The operating manual must be read and understood by the responsible specialist
personnel/operators prior to installation and commissioning.
▪The contents of this operating manual must be available to the specialist
personnel at the site at all times.
▪Information and markings attached directly to the product must always be
complied with and kept in a perfectly legible condition at all times. This applies
to, for example:
– Markings for connections
– Name plate
▪The operator is responsible for ensuring compliance with all local regulations not
taken into account.
2.2 Intended use
▪The values specified in the technical product literature for the mains voltage and
ambient temperature must not be exceeded. The device must only be operated
in accordance with the instructions provided in the operating manual and other
applicable documents.
2.3 Personnel qualification and personnel training
All personnel involved must be fully qualified to install, operate, maintain and
inspect the equipment this manual refers to. The responsibilities, competence and
supervision of all personnel involved in transport, installation, operation,
maintenance and inspection must be clearly defined by the operator.
Deficits in knowledge must be rectified by means of training and instruction
provided by sufficiently trained specialist personnel. If required, the operator can
commission the manufacturer/supplier to train the personnel.
Training on the device must always be supervised by specialist technical personnel.
2.4 Consequences and risks caused by non-compliance with this manual
▪Non-compliance with these operating instructions will lead to forfeiture of
warranty cover and of any and all rights to claims for damages.
▪Non-compliance can, for example, have the following consequences:
– Hazards to persons due to electrical, thermal, mechanical and chemical
effects and explosions
– Failure of important product functions
– Failure of prescribed maintenance and servicing practices
– Hazard to the environment due to leakage of hazardous substances

2 Safety
8 of 34 KSB Leakage Sensor
1984.8/02-EN
2.5 Safety awareness
In addition to the safety information contained in this operating manual and the
intended use, the following safety regulations shall be complied with:
▪Accident prevention, health regulations and safety regulations
▪Safety regulations for handling hazardous substances
▪Applicable standards, directives and laws
2.6 Software changes
The software has been specially created for this product and thoroughly tested.
Making changes or additions to the software or parts of the software is prohibited.
2.7 Explosion protection
!DANGER
Always observe the information on explosion protection given in this section when
operating the product in potentially explosive atmospheres.
The standard design of the KSB Leakage Sensor is not approved for use in potentially
explosive atmospheres.
The KSB Leakage Sensor may be used in potentially explosive atmospheres (II2GT5-
T1) provided that an inductive sensor1) approved for use in potentially explosive
atmospheres and a switching amplifier1) are used.
In this case, it must be ensured that the switching amplifier and the display unit are
located outside of the potentially explosive atmosphere. (ðSection9.2.2,Page30)
This operating manual’s additional sections containing information on use in
potentially explosive atmospheres must be observed. In addition, observe the
operating manuals provided by the manufacturers of components supplied with this
product that are marked as explosion-proof.
The KSB Leakage Sensor does not have its own marking (mechanical part: housing
parts and balance scale without inductive sensor) as it is considered an integral part
of the pump.
KSB Leakage Sensors fitted on pumps of a make other than KSB must not be used in
potentially explosive atmospheres.
1Only to be purchased from KSB

3 Transport/Storage/Disposal
9 of 34
KSB Leakage Sensor
1984.8/02-EN
3 Transport/Storage/Disposal
3.1 Checking the condition upon delivery
1. On transfer of goods, check each packaging unit for damage.
2. In the event of in-transit damage, assess the exact damage, document it and
notify KSB or the supplying dealer and the insurer about the damage in writing
immediately.
3.2 Transport
DANGER
Improper transport of the pump with fitted KSB Leakage Sensor
Risk of injury from falling parts!
▷Never use the piping, leakage sensor or its fastening elements as attachment
points.
CAUTION
Improper transport
Damage to the device!
▷Always transport the device properly and in its original packaging.
▷For transport, observe the transport instructions on the original packaging.
▷Do not throw the device.
1. Upon receipt, unpack the device and check for in-transit damage.
2. Report any in-transit damage to the manufacturer immediately.
3. Dispose of packaging material in accordance with local regulations.
3.3 Storage
If the ambient conditions for storage are met, the function of the device will be
ensured even after a prolonged period of storage.
CAUTION
Damage during storage due to humidity, dirt or vermin
Corrosion/contamination of the device!
▷For outdoor storage cover the (packed or unpacked) device and accessories with
water-proof material.
Table4: Ambient conditions for storage
Ambient condition Value
Relative humidity 85% max. (non-condensing)
Ambient temperature -30°C to +60°C
1. Store the device in dry conditions and in its original packaging.
2. Store the device in a dry room in which the atmospheric humidity is maintained
at a constant level (as far as this is possible).
3. Prevent excessive fluctuations in atmospheric humidity.

3 Transport/Storage/Disposal
10 of 34 KSB Leakage Sensor
1984.8/02-EN
3.4 Disposal
Electrical or electronic equipment marked with the adjacent symbol must not be
disposed of in household waste at the end of its service life.
Contact your local waste disposal partner for returns.
If the used electrical or electronic equipment contains personal data, the operator is
responsible for deleting it before the equipment is returned.
NOTE
Due to certain components it contains, the device is classified as special waste and
meets RoHs 2011/65/EC requirements.
Once decommissioned, the device must be properly disposed of in accordance with
local regulations.

4 Description
11 of 34
KSB Leakage Sensor
1984.8/02-EN
4 Description
4.1 General description
The device is an intelligent leakage sensor for pumps with mechanical seal.
The following information is provided by the device:
▪The statuses “ready for operation”, warning and alarm are shown as light signals
(LEDs) on the display unit.
▪An acoustic signal is emitted when the device changes to alarm status.
▪“Ready for operation”, warning and alarm statuses are output as an open
collector signal (24V).
▪The leakage rate is output as an analog signal (4-20mA).
4.2 Name plate
KSB Leakage Sensor
SN V12 01 0001
KSB 5052360
1
2

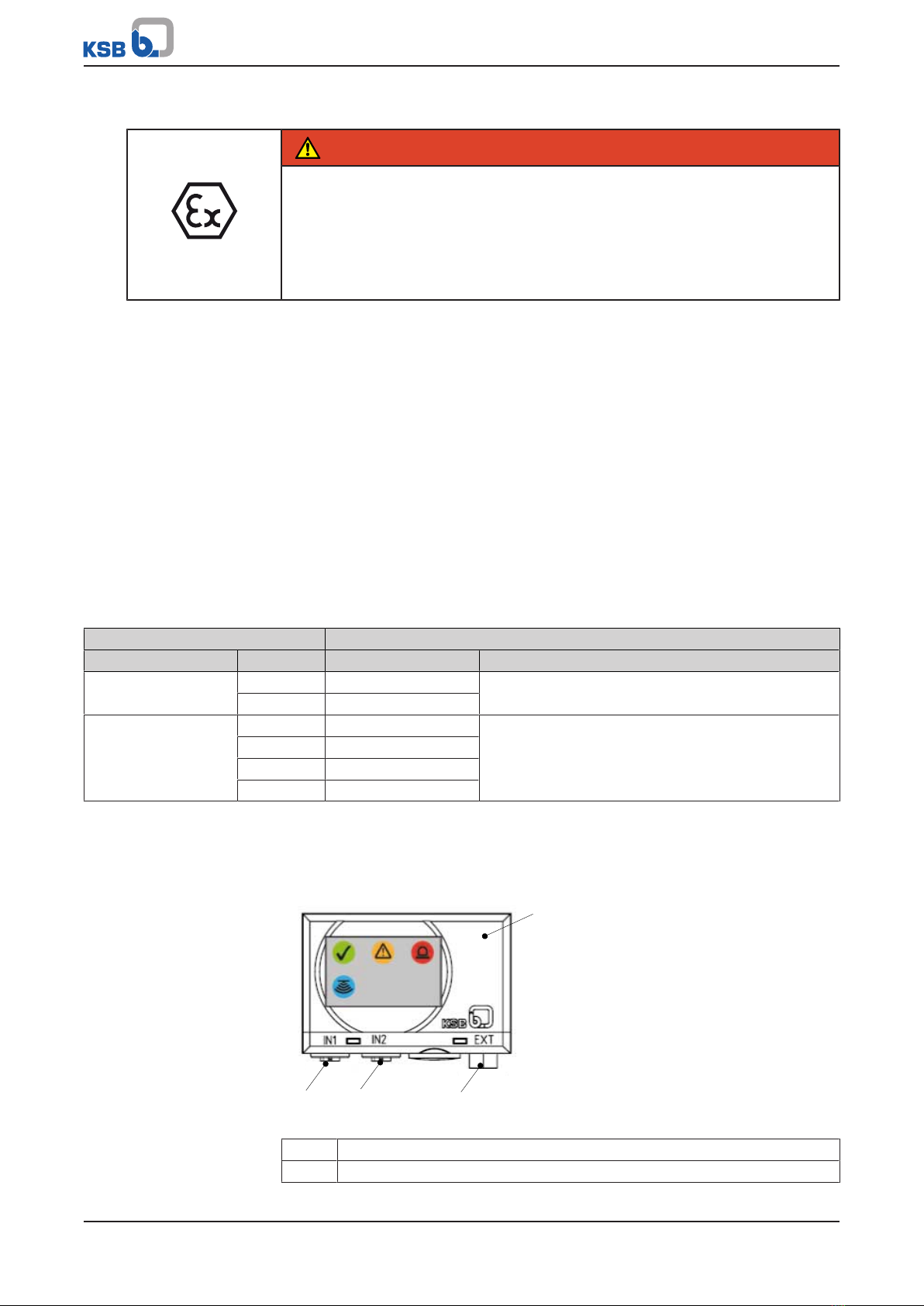

Fig.1: Name plate (example)
1 Serial number 2 KSB ident. number
4.3 Operating limits
DANGER
Use in potentially explosive atmospheres
Explosion hazard!
▷The device in standard design must not be used in potentially explosive
atmospheres.
▷For use in potentially explosive atmospheres refer to the information in the
corresponding section. (ðSection2.7,Page8)
CAUTION
Improper handling
Damage to property!
▷Only use the device with solids-free fluids handled which are not liable to stick,
encrust, solidify, crystallise or polymerise.

4 Description
12 of 34 KSB Leakage Sensor
1984.8/02-EN
CAUTION
Leakage temperature in the sensor housing exceeded
Damage to the measurement transmitter!
▷If the permissible leakage temperature in the sensor housing is exceeded, the
inductive measurement transmitter 69-8 can become damaged and must be
replaced as a precautionary measure. (ðSection7.3.3,Page25)
▪IP65 enclosure2)
▪Permissible in-service ambient temperature: -10°C to + 60°C
▪Permissible fluid temperature of the pump: -30°C to +350°C
▪Permissible leakage temperature in the sensor housing -20°C to +100°C (the
fluid handled must not solidify inside the sensor.)
▪Resistant to oil mist and alkaline industrial cleaning agents
▪Free from paint-wetting impairment substances (silicone-free)
4.4 Fluids handled
DANGER
Leakage caused by chemically or mechanically affected material
Hot and/or toxic fluid may escape!
Hazard to persons and the environment!
▷Only use the equipment for fluids which are neither chemically nor
mechanically aggressive to the equipment materials.
▷Only use the equipment for the fluids indicated in the operating manual or the
data sheet, or consult KSB.
NOTE
The fluids handled must be clean when entering the leakage sensor. If there is any
risk of the drop capillary in the upper sensor housing becoming clogged (e.g. by
crystallisation), its free passage has to be checked regularly.
Table5: Overview of fluids handled
Fluid handled Concentration Temperature3)
Minimum Maximum
[%] [°C] [°C]
Alum 3 0 80
Alkaline solution, bottle rinsing 10 0 80
Alcohol – 0 60
Ammonium bicarbonate 10 0 40
Ammonium sulphate 20 0 60
Beer mash, beer wort - 0 80
Calcium acetate 10 0 80
Calcium nitrate 10 0 30
Ferric sulphate (II) 5 0 80
Emulsion - 0 80
Degreasing solution 10 0 80
2Applies to the analysing unit incl. inductive sensor, closed service interface (DIP) and external connections (EXT,
IN1, IN2)
3Permissible temperatures at the inlet into the sensor housing. The fluid temperatures inside the pump have to
comply with the pump's temperature limits.

4 Description
13 of 34
KSB Leakage Sensor
1984.8/02-EN
Fluid handled Concentration Temperature3)
Minimum Maximum
[%] [°C] [°C]
Condenser water (sugar production) - 0 60
Antifreeze on ethylene glycol basis or propylene
glycol basis with inhibitors, closed or open system
30 -10 80
Beverages, alcoholic - 0 80
Beverages containing carbon dioxide - 0 40
Glycerine 90 10 80
Glycols, pure - 0 80
Potassium hydroxide 10 -10 80
Potassium nitrate 5 0 60
Potassium sulphate 3 0 20
Cooling lubricants - 20 60
Copper sulphate 5 10 30
Magnesium sulphate 10 10 20
Sodium carbonate 6 0 60
Sodium hydrogen carbonate 6 0 20
Sodium hydroxide 20 20 80
Sodium nitrate 10 20 90
Sodium sulphate 5 20 60
Oil, mineral-based thermal oil - -10 90
Oil, synthetic-based thermal oil - -10 90
Oil, hydraulic oil - 0 80
Oil, mineral oil - 0 80
Oil, cutting oil - 0 80
Oil, silicone oil - 0 80
Oil, vegetable oil - 0 90
Oil, lubricating oil - 20 80
Paraffin - 20 40
Kerosene - 20 60
Acid, butanoic acid - 10 30
Acid, citric acid 25 10 30
Acid, acetic acid 10 0 30
Acid, tannic acid 50 0 30
Acid, maleic acid 10 0 30
Acid, lactic acid 50 0 30
Acid, oxalic acid 10 0 40
Acid, tartaric acid 50 0 40
Trisodium phosphate 4 20 85
Water, desalinated - 0 90
Water, fire-fighting water - 0 40
Water, heating water - 0 90
Water, hot water - 0 90
Water, boiler feed water - 0 90
Water, condensate - 0 90
Water, seawater, brackish water - 0 25
Water, surface water - 0 40
Water, process water - 0 90
Water, rainwater - 0 40

4 Description
14 of 34 KSB Leakage Sensor
1984.8/02-EN
Fluid handled Concentration Temperature3)
Minimum Maximum
[%] [°C] [°C]
Water, raw water - 0 40
Water, swimming pool water, bathing water - 0 50
Water, drinking water, tap water - 0 50

5 Installation at site
15 of 34
KSB Leakage Sensor
1984.8/02-EN
5 Installation at site
5.1 Safety regulations
WARNING
Sensor housing and piping take on the same temperature as the fluid handled
Risk of burns!
▷Fit protective equipment/devices if necessary.
WARNING
Mechanical loads acting on the connections between pump (set) and sensor
Fluid could spurt out!
Burns, scalding!
▷Never subject the connections and piping between the pump (set) and sensor
housing to mechanical loads.
▷Verify proper installation of the sensor.
NOTE
Comply with all safety regulations of the corresponding pump (set).
5.2 Checks to be carried out prior to installation
NOTE
The KSB Leakage Sensor can be supplied pre-mounted on the pump (set) or
supplied but not fitted.
Observe the operating conditions of the pump (set).
Always contact the manufacturer if the device is to be used under ambient
conditions other than specified.
5.3 Installing the sensor
Observe the following:
▪No forces must act on the sensor housing via the leakage lines.
▪Do not insulate the piping to the leakage sensor. Ensure sufficient leakage
cooling.
▪The inside diameter of the leakage drain line must be equal to or greater than
that of the leakage inlet line. Otherwise large quantities of leakage can cause
backflow in the sensor housing and a malfunction of the sensor.
▪The inside diameter of the leakage lines must not be smaller than 6mm.
▪Never cover the vents in the upper housing half.

5 Installation at site
16 of 34 KSB Leakage Sensor
1984.8/02-EN
5.3.1 Installing a KSB Leakage Sensor that has been supplied but not fitted
üThe operating manual for the pump (set) is available.
üAssembly tools are available.
üAll safety instructions have been observed and carried out.
üThe pump (set) has been taken out of service and secured against unintentional
re-start.
üThe pump (set) has cooled down to room temperature.
1. Position sensor housing 105 on a level surface next to the pump, e.g. on the
baseplate of the pump.
ðSelect a sensor housing position that keeps the line leading from the pump
to the sensor as short as possible.
ðSelect a sensor housing position that keeps the distance to any hot pump
components and system components as large as possible.
ðIf the leakage inlet 8E is positioned on the same side as the leakage drain 8B,
the upper half of the sensor housing can be taken off, rotated by 180° and
mounted in this position. (ðSection7.3.2,Page25)
2. Mark the position of the drilled holes at the two lower recesses of sensor
housing 105 on the pump baseplate.
3. Carefully place aside sensor housing 105. Drill holes (M5) into the pump
baseplate.
4. Position the sensor housing again. Fasten it to the pump baseplate with
hexagon socket head cap screws 914.2.
5. Verify the levelling of sensor housing 105 with measuring instrument 690
(bullseye level). If necessary, undo hexagon socket head cap screws 914.2 and
level the sensor housing with suitable shims. Re-tighten hexagon socket head
cap screws 914.2.
6. Use the supplied compression fittings and L-pipe to connect the leakage drain
hole of the pump (set) with leakage inlet 8E of the sensor housing.
ðIf necessary, shorten the leakage line (pipe) accordingly.
7. Use the supplied compression fittings and L-pipe to connect the leakage drain
hole 8B of the sensor housing to the site-supplied leakage collector.
ðFit the leakage line with a continuously falling slope towards the site-
supplied leakage collector.
5.3.2 Installing a pre-mounted KSB Leakage Sensor
üThe operating manual for the pump (set) is available.
üAssembly tools are available.
üAll safety instructions have been observed and carried out.
üThe pump (set) has been taken out of service and secured against unintentional
re-start.
üThe pump (set) has cooled down to room temperature.
1. After the pump set has been installed, verify the levelling of sensor housing 105
with measuring instrument 690 (bullseye level). If necessary, loosen hexagon
socket head cap screws 914.2 and level the sensor housing with suitable shims.
Re-tighten hexagon socket head cap screws 914.2.
2. Use the supplied compression fittings and L-pipe to connect the leakage drain
hole 8B of the sensor housing to the site-supplied leakage collector.
ðFit the leakage line with a continuously falling slope towards the site-
supplied leakage collector.

5 Installation at site
17 of 34
KSB Leakage Sensor
1984.8/02-EN
5.4 Electrical connection
CAUTION
Improper electrical connections
Damage to the device!
▷Check the electrical connection.
▷Observe the wiring diagrams.
5.4.1 Standard design
The KSB Leakage Sensor is supplied with two pre-configured cables of 10m length
each.
▪The power cable (connection EXT) is supplied with an open cable end.
▪The sensor cable is supplied with two M12 connectors.
Optionally, a third cable is supplied for transmitting the leakage rate to an external
analysis device. (10m length, 4-core, open cable end and M12 connector, KSB
material number 05059190)
Table6: Pin assignment of the display unit
Illustration Power supply and signals to external device
M12 connector EXT
1: Power supply 24VDC (+VB-IN)
2: Signal 1 red (open collector signal)
3: GND (-VB-IN)
4: Signal 2 yellow (open collector signal)
5: Signal 3 green (open collector signal)
M12 socket IN1
1: Power supply 24VDC (+VB-OUT)
2: Signal sensor
3: GND(-VB-OUT)
4: (not connected)
5: (not connected)
M12 socket IN2
1: OUT 4-20 mA (+) leakage rate
2: (not connected)
3: OUT 4-20mA (-) leakage rate
4: (not connected)
5: (not connected)
Colour coding of the power
cable cores
1: BN = brown
2: WH = white
3: BU = blue
4: BK = black
5: GY = grey

5 Installation at site
18 of 34 KSB Leakage Sensor
1984.8/02-EN
5.4.2 Variant for use in potentially explosive atmospheres
DANGER
Use in potentially explosive atmospheres
Explosion hazard!
▷The device in standard design must not be used in potentially explosive
atmospheres.
▷For use in potentially explosive atmospheres refer to the information in the
corresponding section. (ðSection2.7,Page8)
The KSB Leakage Sensor is supplied with three pre-configured cables.
▪The power cable (connection EXT) is supplied with an open cable end, cable
length 10m.
▪The blue sensor cable from the switching amplifier (blue terminals) to the
inductive sensor in potentially explosive atmospheres is supplied with open cable
ends, cable length 25m.
▪The black sensor cable from the display unit (connection INT1) to the switching
amplifier (green terminals) is supplied with an open cable end, cable length
10m.
Optionally, a third cable is supplied for transmitting the leakage rate to an external
analysis device. (10m length, 4-core, open cable end and M12 connector, KSB
material number 05059190)
Pin assignment
Pin assignment of the display unit see (ðTable6)
Table7: Terminal configuration of the switching amplifier
Switching amplifier Connection cable
Terminal colour Terminal Core colour Cable
Blue 1 Brown Blue sensor cable, 2-pole connection to inductive
sensor
2 Blue
Green 5 White Black sensor cable, 4-pole connection to display unit
6 Not connected
9 Brown
10 Blue
The DIP switches of the switching amplifier remain in their factory-set position
(switches 1, 2, 3 and 4 in positionI).
5.4.3 Connecting the power supply and message signals
1
234
Fig.2: Connection to the analysing unit
1 Analysing unit
2 M12 socket IN1

5 Installation at site
19 of 34
KSB Leakage Sensor
1984.8/02-EN
3 M12 socket IN2
4 M12 connector EXT
▪The analysing unit is connected via a 5-pin M12 plug-type connection for the
power supply and message signals.
– Use the M12 connector EXT.
▪The leakage sensor is connected via a 3-pin M12 plug-type connection.
– Use the M12 socket IN1.
▪The optional analog output signal “leakage rate” can be connected via a 3-pin
M12 plug-type connection.
– Use the M12 socket IN2.
1. Precisely align the M12 plug-type connections and completely screw them into
the analysing unit.
2. Tighten the screwed connections hand-tight. Observe a tightening torque of
0.4-0.6Nm.
3. Fasten the analysing unit to a level surface with an M5 screw, screw length =
8mm. Observe a tightening torque ≤ 2Nm.
5.4.4 DIP switch configuration
NOTE
Behind the service interface a leakage rate for analysis can be configured using the
four micro switches. After this configuration, securely close the access with the
screw plug. Enclosure IP65 only applies when the service interface is closed and the
sensors are connected correctly.
NOTE
The setting of the DIP switches must only be adjusted after the analysing unit has
been de-energised.
Table8: Setting 8 fixed warning levels and alarm levels using the DIP switches:
ON_ECE Level Warning threshold Alarm threshold
1 2 3 4 g/h g/h
X 1 0,1 2
X 2 0,2 3
X 3 0,3 3
X 44) 0,3 5
X 5 0,3 8
X 6 0,5 8
X 7 1 12
X 8 2 30
X X X Mute Acoustic signal deactivated
4Factory setting

5 Installation at site
20 of 34 KSB Leakage Sensor
1984.8/02-EN
5.5 Display functions during operation
5.5.1 Display
The display of the analysing unit indicates the status of the leakage sensor with light
signals (LEDs).
Table9: Overview of light signals and open collector signals
Display Light signal (LED) Open collector signal Description
GREEN lit continuously Signal 3, green,
connected
Ready for operation, leakage
monitoring active
GREEN lit continuously
YELLOW lit continuously
Signal 3, green,
connected
Signal 2, yellow,
connected
Warning, set warning threshold
exceeded
RED lit continuously
Acoustic warning
Signal 1, red, connected Alarm, set alarm threshold
exceeded
BLUE lit for 1second - Inductive sensor triggered
BLUE lit continuously
YELLOW flashing
Signal 2, yellow, flashing
frequency applied
Warning, contact to inductive
sensor interrupted
or balance scale jammed/ in
incorrect position
5.5.2 Analog output
The analog output supplies a 4-20mA signal, indicating the averaged leakage rate
depending on the sensitivity level set via the DIP switches (ðSection5.4.4,Page19)
as per the following table.
Table10: Calculation factors
Level Leakage rate at
4mA
Leakage rate at
20mA
Calculation factors
[g/h] [g/h] A B
1 ≤ 0,02 ≥ 4 269730 13432,5
2 ≤ 0,04 ≥ 6 134820 6705
3 ≤ 0,06 ≥ 6 89820 4455
45) ≤ 0,06 ≥ 10 89892 4473
5 ≤ 0,06 ≥ 16 89932,5 4483,125
6 ≤ 0,1 ≥ 16 53932,5 2683,125
5Factory setting
