Loadrite PRO User manual

Pro
Weighing System
MANUAL
OPERATORS

Pro Weighing System
Model LR918
Document No. MAN-80664-00
Software No. 60270 Version 1.0
Issue Date: October 2002
Distributed Worldwide by:
93 First Avenue, PO Box 13-115, Tauranga, New Zealand
[phone]
℡[phone]
[email protected]
www.loadritescales.com
Designed & Manufactured by:
8 Walls Road, PO Box 12-607, Penrose, Auckland, New Zealand
www.actronic.com
This manual is copyrighted with all rights reserved. Under copyright laws, this manual may not be
copied in whole or in part or reproduced in any other media without the express written permission
of Actronic Ltd. Permitted copies must carry the same proprietary and copyright notices as were
affixed to the original. Under the law, copying includes translation into another language.
Please note that while every effort has been made to ensure that the data given in this document is
accurate, the information, figures, illustrations, tables, specifications, and schematics contained
herein are subject to change without notice.
Actronic Ltd assumes no liability in connection with the use of any Loadrite branded product.
© 2002 ACTRONIC LIMITED

i
Contents
1Introduction .........................................................................................................................1
Indicator Lights .............................................................................................................................................. 2
Keypad ............................................................................................................................................................ 2
2Quick Start Guide ...............................................................................................................5
Switching On ................................................................................................................................................. 5
Standby............................................................................................................................................................ 5
The Warm Up Screen .................................................................................................................................. 5
The Ready Screen ......................................................................................................................................... 6
Weighing a Load ........................................................................................................................................... 6
Static Weigh function................................................................................................................................... 7
Adding a Load ............................................................................................................................................... 7
Clearing the Short Total............................................................................................................................... 8
Zeroing............................................................................................................................................................ 8
3Weighing Overview...........................................................................................................10
Weighing Modes......................................................................................................................................... 10
Short and Long Totals ................................................................................................................................ 11
Accurate Weighing..................................................................................................................................... 11
General Method of Weighing.................................................................................................................. 12
4Weighing Procedures ........................................................................................................13
Adding a Load ............................................................................................................................................. 13
Auto Add....................................................................................................................................................... 14
Subtracting a Load...................................................................................................................................... 14
Zeroing.......................................................................................................................................................... 15
Recalling Last Load ..................................................................................................................................... 18
Viewing Long Total..................................................................................................................................... 19
Clearing Totals ............................................................................................................................................. 19
Tare Function ............................................................................................................................................... 21
5Product Management .......................................................................................................23
6Data ....................................................................................................................................25
Data Edit........................................................................................................................................................ 25
Automatic Data Prompt ............................................................................................................................ 30
Data Suspend............................................................................................................................................... 30
7Target Mode.......................................................................................................................32
8Batch Mode........................................................................................................................35
The Batch Screen ........................................................................................................................................ 36
Viewing the Current Recipe ..................................................................................................................... 37
Changing the Recipe.................................................................................................................................. 38
Entering the Batch Total ............................................................................................................................ 39
Batch Weighing ........................................................................................................................................... 40
Clearing the Batch Totals .......................................................................................................................... 41
Returning to Total Mode........................................................................................................................... 41
9Mix Mode...........................................................................................................................42
The Mix Screen............................................................................................................................................ 43
Mix Weighing .............................................................................................................................................. 43
Clearing the Mix Totals.............................................................................................................................. 45
Returning to Total Mode........................................................................................................................... 45
10 Blend Mode........................................................................................................................46
The Blend Screen ........................................................................................................................................ 46

ii
Blend Weighing ...........................................................................................................................................47
11 Split Mode ..........................................................................................................................49
12 Tip Off.................................................................................................................................52
13 Menu Options....................................................................................................................56
Setup ..............................................................................................................................................................57
Clock Setting (Clock) ................................................................................................................................57
Changing Scale Number (Scale#) ..........................................................................................................57
Clear All Long Totals (ClearAll) ................................................................................................................58
Auto Add On/Off Setting (Auto Add)....................................................................................................58
Rotary Trigger Position Screen (TrigScrn)..............................................................................................58
LD941 Data Module Properties (Module)...........................................................................................59
Data Edit (DataEdit) ....................................................................................................................................59
Data List (DataList)......................................................................................................................................60
Alarm Clock On/Off...................................................................................................................................61
Alarm Time Set ............................................................................................................................................61
Self Test (Selftest) .......................................................................................................................................62
Uplink (Uplink).............................................................................................................................................62
14 Print Functions...................................................................................................................63
Printed Data .................................................................................................................................................64
Print Menu ....................................................................................................................................................64
15 Obtaining the Best Accuracy............................................................................................70
Lifting Speed.................................................................................................................................................70
Trigger Point .................................................................................................................................................70
Bounce...........................................................................................................................................................70
Centre of Gravity.........................................................................................................................................70
16 Error Messages...................................................................................................................71
Bouncing Load.............................................................................................................................................71
Check Power................................................................................................................................................71
Check Transducer .......................................................................................................................................71
Check Trigger...............................................................................................................................................71
Check Zero...................................................................................................................................................71
Lift Under Range .........................................................................................................................................72
Module Data Lost .......................................................................................................................................72
Module Error ................................................................................................................................................72
Module Full...................................................................................................................................................72
No Lock.........................................................................................................................................................72
Over Target ..................................................................................................................................................72
Overload .......................................................................................................................................................73
Poor Lift .........................................................................................................................................................73
Printer Disabled ...........................................................................................................................................73
Printer Error ..................................................................................................................................................73
Return Under Range...................................................................................................................................73
Speed Changed ...........................................................................................................................................74
Too Heavy, Zero Aborted.........................................................................................................................74
Warm Up Lift................................................................................................................................................74
17 Specifications .....................................................................................................................75
18 Output / Input Connections.............................................................................................77
Appendix i Time and Date ...........................................................................................................78
Appendix ii Span Calibration Adjustment..................................................................................81

LOADRITE PRO OPERATING MANUAL
1
1 Introduction
The Loadrite Weighing System measures the weight of loads lifted by front-
end loaders, log loaders, forklift trucks and similar machines that use
hydraulic rams to lift the load. The Loadrite is installed in the cab of the
loading machine and is connected to sensors on the lifting arms.
As the machine raises the load, the Loadrite measures the hydraulic
pressure in the lift cylinders, converts pressure into a weight reading and
displays the result. An electronic trigger device mounted on the lift arms
ensures that the pressure readings are always taken at the same position
on every lift.
The weight of the bucket or forks and associated structures is zeroed out
when the system is calibrated so that only the weight of the payload is
displayed. While operating the loader, the driver can add each weight lifted
to a running total.
LCD display
Indicator lights
Keypad
Main Operating Keys

LOADRITE PRO OPERATING MANUAL
2
The Loadrite has internal memory which stores settings and production data
even when switched off.
Indicator Lights
Four indicator lights are provided below the LCD screen.
Trigger Check Auto-Add Tip-Off
Trigger Illuminates when a load is lifted past the
trigger point. When this light is on, the lifted
weight may be added.
Pages 7
and 12
Check
Function
Illuminates when the Loadrite is in the user-
selected function. Possible options are
Interlock, Tare mode, and Safe-to-weigh
mode for rotary trigger. Configuration is set
during installation.
-
Auto-Add Illuminates when the Loadrite is in Auto-Add
mode. In this mode, the Loadrite will
automatically add the lifted weight.
Page 14
Tip-Off Illuminates when the Tip-Off function is
operating.
Page 52
Keypad
The table below shows the special functions that the keys have in addition
to their numeric values used for entering data.
Adjusts the brightness of the screen back light. -
A B C
Displays time and date. -
+
L
D E F
Displays the long total for the current product. Page 19
G H I
Recalls the previous load. Page 18

LOADRITE PRO OPERATING MANUAL
3
J K L
Allows you to enter a tare weight. Page 21
M N O
Accesses the menu Page 56
P Q R S
Subtracts the current load from the total. Page 15
T U V
Toggle language. -
W X Y Z
Accesses conversion. -
View alarm settings. -
i
Decimal point. Also view system information. -
Enter key for accepting data or changes. -
Exits an operation without changing the data.
When pressed on the Ready screen, puts the
Loadrite into standby mode. To return to the
Ready screen, press any key.
-
Allows you to enter additional Data. Page 25
Scroll down. Also enter Total mode. Page 10
Scroll up. Also enter Target mode. Page 32
Scroll left. Also selects the Print functions. Page 64
Scroll right. Also change Product. Page 23
Tip-off weighing. Page 52

LOADRITE PRO OPERATING MANUAL
4

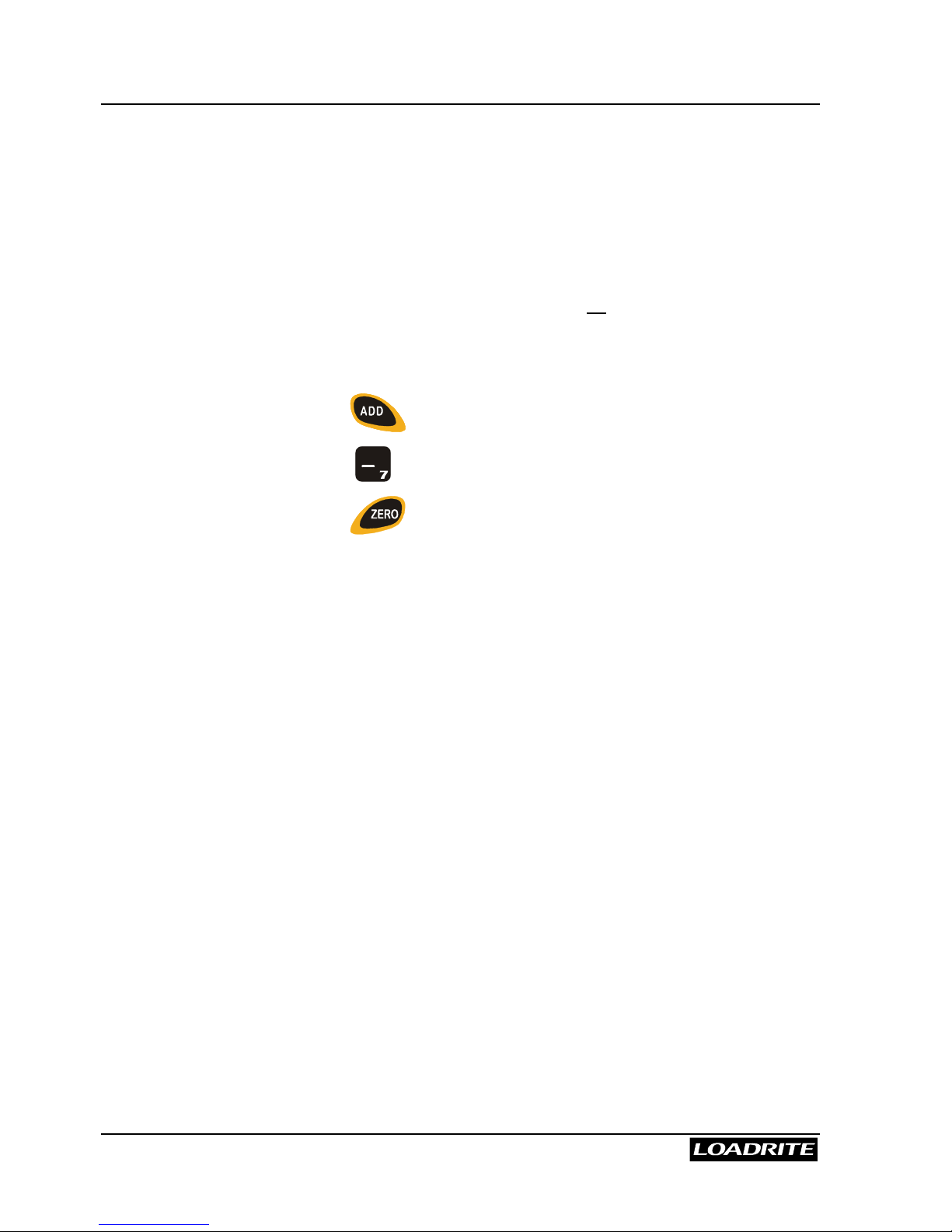

Adds the current load to the total. Also toggles
into Auto Add mode.
Page 13
Clears the short total for the current product. Page 19
Zeroes out the current load. Page 15

LOADRITE PRO OPERATING MANUAL
5
2 Quick Start Guide
This section summarises the common Loadrite procedures. For full details
of weighing methods, see Weighing Overview on page 10 and Weighing
Procedures on page 13.
Switching On
The Loadrite powers up automatically when you switch on the ignition of the
loading machine.
If the Loadrite has been switched off for more than 1 hour, it displays the
Warm Up screen when powered up.
Standby
The Loadrite has a ‘standby’ mode which is similar to turning the Loadrite
off.
To put the Loadrite into standby press
, the EXIT key, when in the Ready
mode.
To restart the Loadrite, press any key.
Standby
The Warm Up Screen
For best weighing accuracy, the hydraulic fluid in the lift cylinders should be
at normal operating temperature. This is achieved by raising and lowering
the empty bucket or forks a few times.
The Warm up screen is displayed if the machine has been turned off over
an hour.
Raise the empty bucket or forks past the
trigger point three times. Warm up
Lift 3
The Loadrite beeps at each lift and
displays the count down from 3. After the
third lift, the Ready screen is displayed
and the screen may look like this.
Ready
Sand
0

LOADRITE PRO OPERATING MANUAL
6
If it is time to check zero, the Loadrite will
display the Check Zero message to
remind you.
More information about Ready screen and
Check Zero screen will be covered later
in this manual.
Check
Zero
The Ready Screen
The Ready screen shows the product name and the short total for that
product. The short total is simply the sum of loads since you last cleared
the total.
When the Ready screen is displayed, the Loadrite is in Total mode and is
ready to weigh. Note that Sand in the below example represents the
current product of choice. Your Loadrite may be configured differently, and
hence, a different product name may appear on the screen.
Ready
Sand
3400
The Loadrite is ready to weigh
Current product to be loaded
Current total loaded
Weighing a Load
(Weights shown are examples only)
Loadrite is ready to
weigh sand.
(Current total 3400)
Ready
Sand
3400
Raise the load
smoothly past the
trigger point using
normal engine revs.
The bucket must be
fully rolled back
during weighing.
Weighing
3400

LOADRITE PRO OPERATING MANUAL
7

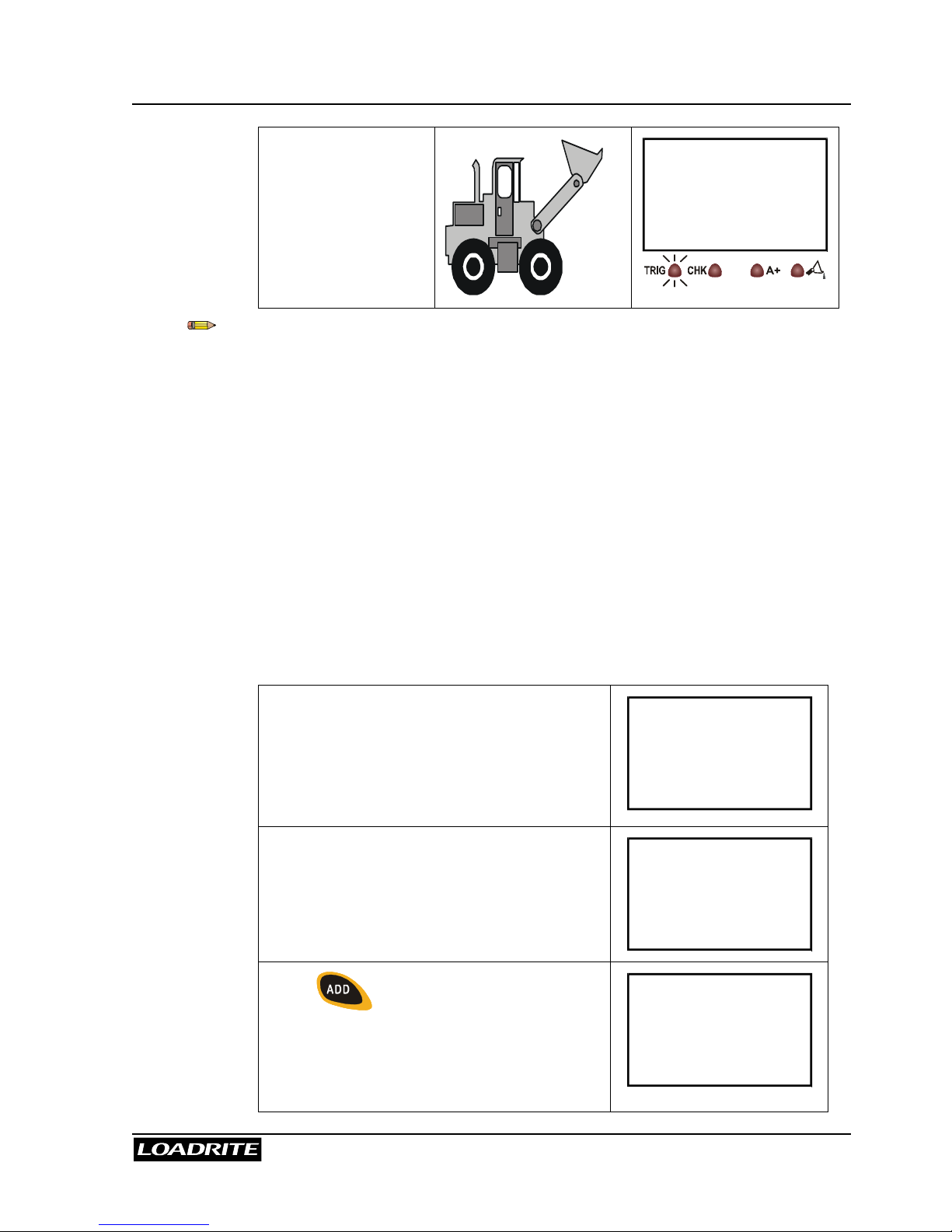

A short time later,
the Loadrite beeps,
turns the TRIG
indicator light on
and displays the
load lifted (2200).
Sand
3400
2200
The trigger point is where the metal plate passes the body of the trigger.
Static Weigh function
The Loadrite has an option known as ‘Static Weigh’. When this is used, the
weight display is always ‘live’ and no trigger is used.
The ‘Trigger’ light is used to indicate that the weight being measured is
‘stable’ (not changing too much) and therefore can be Added, Subtracted or
Zeroed.
Your Loadrite dealer will have configured the Static Weigh function if
required. Other functions described in this manual operate in a similar
manner, regardless of whether Static Weigh is being used.
Adding a Load
(Weights shown are examples only)
Before lifting:
(Current total 5600)
Ready
Sand
5600
Raise the load smoothly past the trigger
point using normal engine revs.
The Loadrite beeps and displays the load.
(Weight of load 2200)
Sand
5600
2200
Press .
The Loadrite updates the total and returns
to the Ready state.
(New total 7800)
Ready
Sand
7800

LOADRITE PRO OPERATING MANUAL
8
Clearing the Short Total
(Weights shown are examples only)
When you want to reset the short total to
zero (e.g. after loading a truck) ready for
another loading operation,
Press .
Ready
Sand
7800
The Loadrite displays Total Cleared for
a few seconds, clears the short total for the
current product and then …
Total
Cleared
7800
…returns to the Ready screen. Ready
Sand
0
Zeroing
It is required to zero the Loadrite from time to time. This is to avoid
inaccurate readings due to build up of material in the bucket.
(Weights shown are examples only)
Before lifting:
Make sure that the bucket is empty and
fully rolled back.
Ready
Sand
0
Raise the bucket smoothly past the trigger
point.
The Loadrite beeps and displays the load.
Sand
0
20

LOADRITE PRO OPERATING MANUAL
9
Press .
The Loadrite performs the zero adjustment
and returns to the Ready state.
Ready
Sand
0
More detailed information about Zeroing can be found on page 15.

LOADRITE PRO OPERATING MANUAL
10
3 Weighing Overview
Weighing Modes
While individual bucket weight can be measured, the Loadrite also has an
ability to accumulate how much weight you have loaded on to a truck. The
main weighing modes are shown in the following table. The modes that are
available in a particular Loadrite depend on the installation.
Mode Description
Total As you add bucket loads, the weights are added to the totals.
The short total is displayed.
Target A target weight is entered into the Loadrite. As you add bucket
loads, the remaining value to reach the target is displayed.
Batch Allows you to weigh and load different products according to a
predefined recipe that specifies the required proportions. You
enter the grand batch target. Loadrite will work out individual
product weights needed.
Mix Similar to Batch mode except that the grand target is not
required. You load the first product to a certain amount.
Loadrite will work out how much you need for the other
products in the mix, based on the predefined recipe.
Blend Allows you to load fixed numbers of bucketful's of different
products according to a predefined recipe.
The normal mode of operation is Total mode, which uses the Ready
screen. To return to Total mode from any of the other modes, press .
For Batch/Mix/Blend mode, you will return to Total mode when you clear the
grand total, or when you select a product that is not in the recipe.
Changing to Target, Batch, Mix or Blend mode
If more than one of the above modes are enabled, you must first select the
mode you want to enter.

LOADRITE PRO OPERATING MANUAL
11

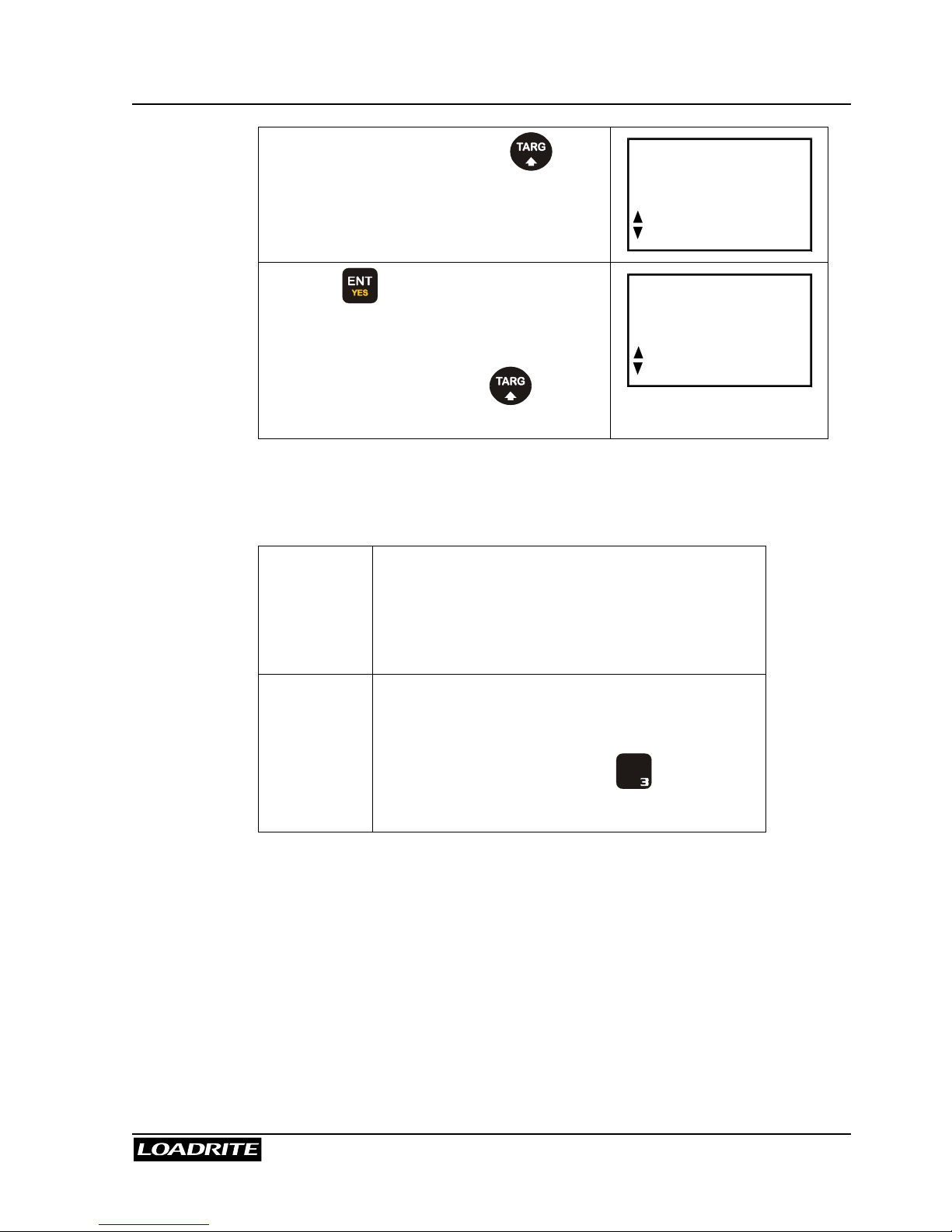

From the Ready screen, press .
Press 56to scroll to the required mode
and then …
Target
Mode?
… press to accept.
Note: if your Loadrite has only one of
Target, Batch or Blend mode, there is no
need to scroll - simply press to
access the required mode.
Batch
Mode?
Short and Long Totals
The Loadrite keeps a total of the bucket weights that you add. For each
product, two independent totals are stored.
Short Total Typically used to display the total weight lifted
onto a truck.
As you add successive loads, the Loadrite
displays the updated Short Total (sum of the
loads so far) on the Ready screen.
Long Total Typically used to accumulate the weights lifted
over a longer period, for example a shift or a
day.
To view the Long Total, press
+
L
D E F
.
(See page 19.)
Accurate Weighing
For accurate weighing, make sure that:
• The bucket or forks are fully rolled back for each lift.
• The loader is stationary (for best accuracy).
• The lift arms start well below the trigger point. This ensures that all
acceleration and load bounce has been eliminated well before the
weighing sequence begins.
• The Loadrite is correctly zeroed. (Zeroing is described on page 15).

LOADRITE PRO OPERATING MANUAL
12
General Method of Weighing
1. BUCKET BACK. After picking up material into the bucket, roll the
bucket back.
2. LIFT. Raise the load smoothly past the trigger point using normal
engine revs. (The trigger point is where the metal plate passes the
body of the trigger). For best results, operate the lift lever before
accelerating the engine so that the machine does not rock as it lifts.
The Loadrite beeps, turns the TRIG light on and displays the load.
(See also page 6).
3. ADD. The Loadrite waits for a few seconds for you to take one of the
following actions:
• Press to add the weight to the long and short totals, or
• Press
P Q R S
to subtract the load from the totals, or
• Press to zero the measuring system.
If you don’t press a key, the Loadrite beeps and prompts you to take
action. The Loadrite then counts down and if you still don't press a
key, it discards the weight and goes back to the Ready state.

LOADRITE PRO OPERATING MANUAL
13
4 Weighing Procedures
Adding a Load
This function adds the lifted weight to the short and long totals for the
current product.
To Add a load
(Weights shown are examples only)
Before the load is lifted:
(Current total 5600)
Ready
Sand
5600
Raise the load smoothly past the trigger
point.
The Loadrite beeps and displays the load.
(Weight of load 2200)
Sand
5600
2200
Press .
The Loadrite updates the total and returns
to the Ready state.
(New total 7800)
Ready
Sand
7800
The Loadrite has an option to use a remote add button. If fitted, the remote
add button is normally mounted on the lift lever.
In Target mode, the display is different. For details, see Target Mode on
page 32.

LOADRITE PRO OPERATING MANUAL
14
Auto Add
Auto Add is an optional feature that is selected during installation. If Auto
Add is enabled, the Loadrite can automatically operate the ADD function
every time a load is lifted past the trigger point.
The Auto Add indicator light illuminates
when the Loadrite is in Auto-Add mode. Ready
Sand
5600
To turn on/off auto add function
1. Press
M N O
to access user menu.
2. Use
56to scroll to Auto Add.
3. Press to select.
4. Use
56to adjust the setting.
5. Press to accept the setting.
If Auto Add is on:
• The procedure for zeroing is different. See page 17.
Subtracting a Load
This function can be useful when only part of a final bucket load of loose
material is required. You can add the full bucket load and then re-weigh
and subtract the amount remaining in the bucket.
Another example is when a log has been added and then removed from a
truck.
