INTRODUCTION
The work described in these setup instructions must be performed before the vehicle is delivered to the customer.
Read the setup instructions in their entirety before beginning work.
These setup instructions were written to correspond to the latest state of this series. We reserve the right to make changes in the interest
of technical advancement without at the same time updating this manual.
We shall not provide a description of general workshop methods. Likewise, safety rules that apply in a workshop are not specified here. It
is assumed that the work will be performed by a fully trained mechanic.
All specifications are non-binding. KTM Sportmotorcycle GmbH specifically reserves the right to modify or delete technical specifications,
prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt these to
local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery options, devi-
ations from illustrations and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that does not
belong to the regular scope of supply.
© 2015 KTM Sportmotorcycle GmbH, Mattighofen Austria
All rights reserved
Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright owner.
ISO 9001(12 100 6061)
According to the international quality management standard ISO 9001, KTM uses quality assurance processes that lead to
the maximum possible quality of the products.
Issued by: TÜV Management Service
KTM Sportmotorcycle GmbH
5230 Mattighofen, Austria
This document is valid for the following models:
250 SX‑F EU (F8101P5)
250 SX‑F US (F8175P5)
250 XC‑F US (F8175P0)

1 MEANS OF REPRESENTATION 2
1.1 Symbols used
The meaning of specific symbols is described below.
Indicates an expected reaction (e.g. of a work step or a function).
Indicates an unexpected reaction (e.g. of a work step or a function).
Indicates a page reference (more information is provided on the specified page).
Indicates information with more details or tips.
Indicates the result of a testing step.
Denotes a voltage measurement.
Denotes a current measurement.
Denotes a resistance measurement.
1.2 Formats used
The typographical formats used in this document are explained below.
Proprietary name Identifies a proprietary name.
Name®Identifies a protected name.
Brand™ Identifies a trademark.
Underlined terms Refer to technical details of the vehicle or indicate technical terms, which are explained
in the glossary.

2 SETUP 3
2.1 Unpacking and setting up the vehicle
M00075-10
Package 2
–Remove the box and the plastic packaging.
Info
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of supply
is complete on the basis of the enclosed packing list.
–Have a lift stand available.
Lift stand (78129955100)
–Carefully loosen and remove the tension belt of the footrest mount.
Info
An assistant prevents the motorcycle from falling over.
402050-01
–Together with an assistant, take the vehicle off the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
M00075-11
Package 12
–Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of supply
is complete on the basis of the enclosed packing list.
402051-01
–Have a lift stand available.
Lift stand (78129955100)
–Together with an assistant, take the vehicle off the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
M01063-10
–Remove the cardboard from around the shock absorber.
–Position the angle lever and linkage lever.
–Mount and tighten fitting .
Guideline
Nut, frame to linkage lever M14x1.5 80 Nm (59 lbf ft)
–Mount and tighten screw .
Guideline
Screw, bottom shock
absorber
M10 60 Nm
(44.3 lbf ft)
Loctite®2701™

2 SETUP 4
M01064-10

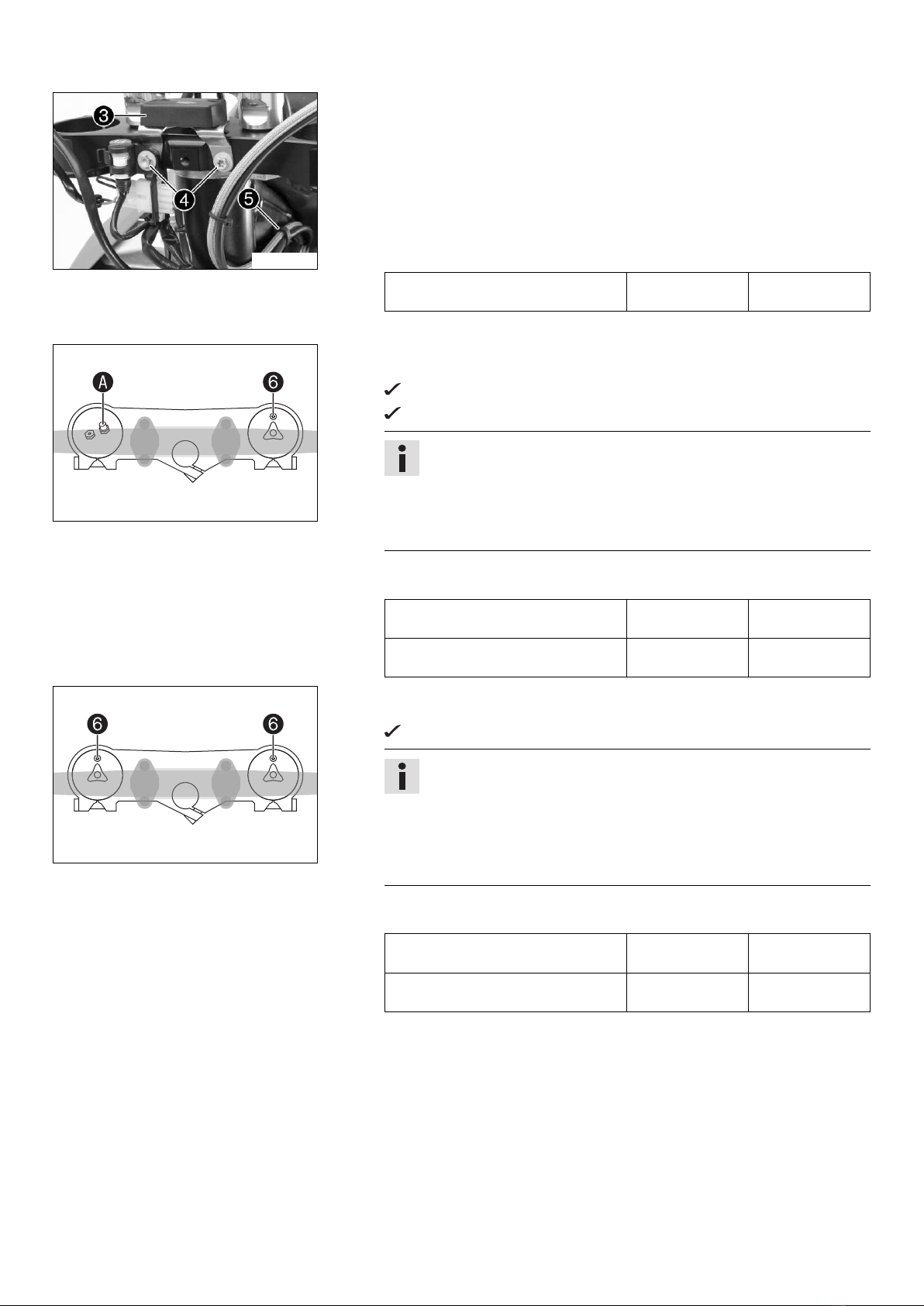

–Connect the plug-in connector for the FI warning lamp. Position FI warning lamp
in the holder.
–Wind the cable for the service hour counter (optional) around the ignition
wire as described in the instructions enclosed, and secure using a cable tie.
–Mount the service hour counter (optional) on the holder.
–Position the holder for the FI warning lamp and holder for the service hour
counter (optional).
–Mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
–Mount cable holder to the frame.
S00867-12
(SX‑F EU)
–Position the fork legs.
Bleeder screw of the right fork leg is positioned to the front.
Left fork leg valve is offset by approx. 20° to the front.
Info
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
The air suspension is located in the left fork leg. The pressure and
rebound damping is located in the right fork leg.
–Tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
Screw, bottom triple clamp M8 12 Nm
(8.9 lbf ft)
402556-13
(SX‑F US, XC‑F US)
–Position the fork legs.
Bleeder screws are positioned toward the front.
Info
The rebound damping is located in the right fork leg (red adjusting
screw). The compression damping is located in the left fork leg (white
adjusting screw).
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
–Tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
Screw, bottom triple clamp M8 12 Nm
(8.9 lbf ft)

2 SETUP 5
K00377-10

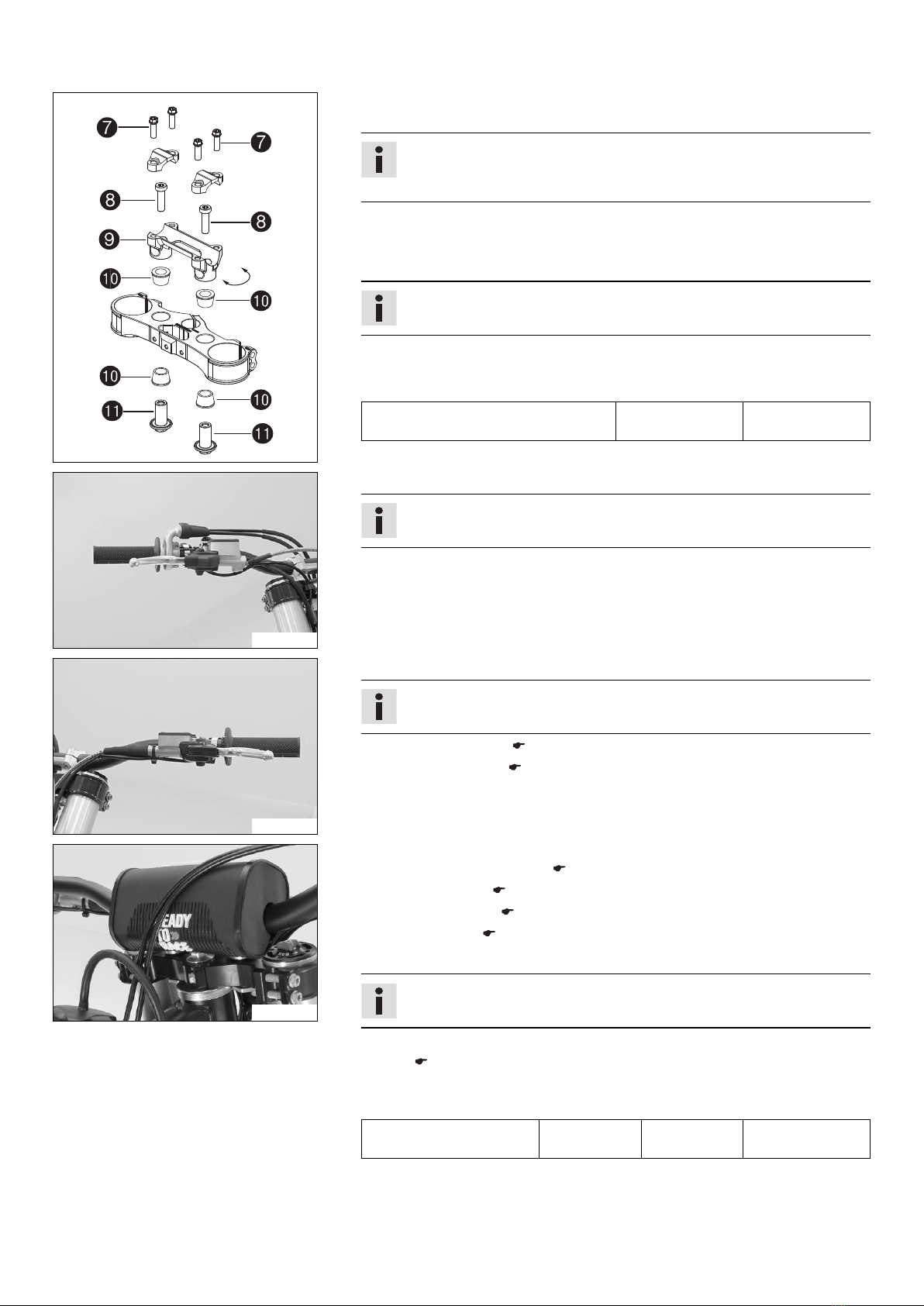

–Remove screws . Take off the handlebar clamps. Remove the handlebar and lay
it to one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–Remove screws . Remove handlebar support .
–Position rubber bushings  and push through nuts  from below.
–Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
–Position the handlebar clamps. Mount screws . Screw the handlebar clamps so
that both parts touch at the front and tighten all of the screws.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
M01067-01
–Position the controls on the right half of the handlebar.
Info
The routing of the cables can be seen in the figure.
M01068-01
–Position the controls on the left half of the handlebar.
Info
The figure shows how to route the clutch line and wiring harness.
–Install the front fender. ( p. 7)
–Install the front wheel. ( p. 6)
–Mount the fuel tank breather correctly.
M01069-01
–Mount the handlebar cushion.
–Install the start number plate. ( p. 7)
–Install the footrests. ( p. 8)
–Recharge the battery. ( p. 10)
–Install the battery. ( p. 9)
–Unpack and mount the KTM PowerParts included in the delivery (optional).
Info
Read the accompanying KTM PowerParts fitting instructions.
–Apply the label included in the delivery (optional).
–Refuel. ( p. 12)
–Position all controls in their exact positions on the handlebar. Tighten all screws.
Guideline
Screw, handle bar fixed
grip, left
M4 5 Nm
(3.7 lbf ft)
Loctite®243™
–Prepare the vehicle according to the specifications in the KTM Dealer.net for han-
dover to the customer.

3 WORK 6

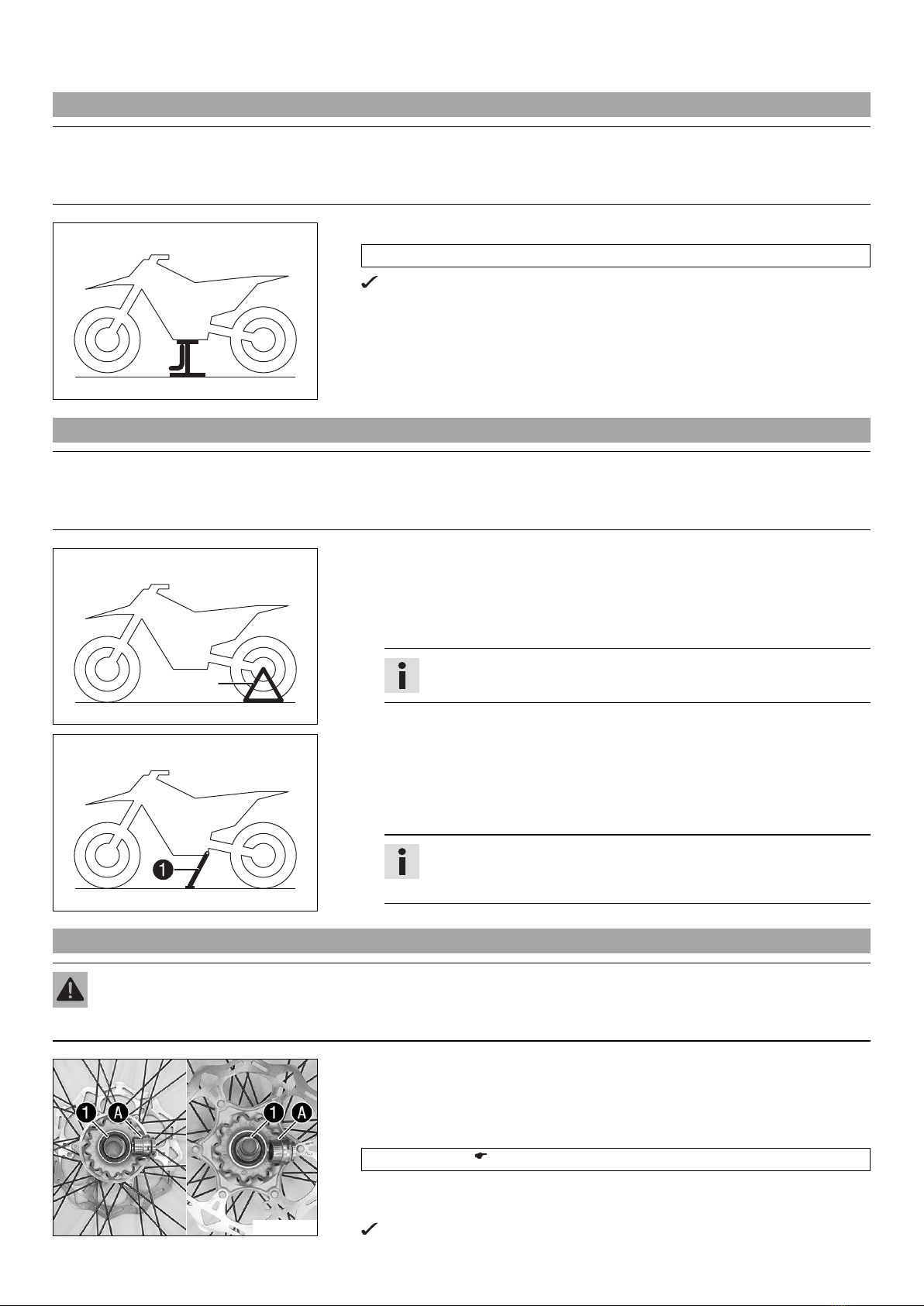

3.1 Raising the motorcycle with a lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
401942-01
–Raise the motorcycle at the frame underneath the engine.
Lift stand (78129955100)
Neither wheel is in contact with the ground.
–Secure the motorcycle against falling over.
3.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
0
0
11
402001-10
(All SX‑F models)
–Remove the motorcycle from the lift stand.
–Remove the lift stand.
–To park the motorcycle, insert plug-in stand into the left side of the wheel
spindle.
Info
Remove the plug-in stand before starting on a trip.
401943-10
(XC‑F US)
–Remove the motorcycle from the lift stand.
–Remove the lift stand.
–To park the motorcycle, press side stand to the ground with your foot and
lean the motorcycle on it.
Info
When you are riding, the side stand must be folded up and secured with
the rubber band.
3.3 Installing the front wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
–Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
H00003-11
–Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
–Change the front wheel bearing.
–Clean and grease shaft seal rings and bearing surface of the spacers.
Long-life grease ( p. 16)
–Insert the spacers.
–Position the front wheel and insert the wheel spindle.
The brake linings are correctly positioned.

3 WORK 7
H00002-11
–Mount and tighten screw .
Guideline
Screw, front wheel spindle M20x1.5 35 Nm
(25.8 lbf ft)
–Operate the hand brake lever several times until the brake linings are lying correctly
against the brake disc.
–Remove the motorcycle from the lift stand. ( p. 6)
–Operate the front brake and compress the fork a few times firmly.
The fork legs straighten.
–Tighten screws .
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
3.4 Installing the front fender
102162-10
Main work
–Position the front fender. Mount and tighten screws and .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
–Install the start number plate. ( p. 7)
3.5 Installing the start number plate
102161-10
–Attach the start number plate to the brake line.
–Position the start number plate. Mount and tighten screw .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
The holding lugs engage in the fender.

3 WORK 8
3.6 Removing the seat
102173-10
–Remove screws .
102174-01
–Raise the rear of the seat, push the seat back, and lift it off.
3.7 Mounting the seat
102174-01
–Hook in the front of the seat at the collar bushing of the fuel tank, lower it at the
rear and simultaneously push it forward.
The seat is correctly engaged.
102173-10
–Mount and tighten the seat fixing screws .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
3.8 Installing the footrests
Info
The procedures are the same on both footrests.
Condition
The frame protectors have been removed on the left and right.
D00674-10
–Position the new footrest and pin.
Info
Only insert the pin to the extent that the spring can still be mounted.
