2.1 Unpacking and setting up the vehicle
M00075-10
Packaging 2
–Remove the box and the plastic packaging.
Info
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of supply
is complete on the basis of the enclosed packing list.
–Have a lift stand available.
Lift stand (54829055000)
–Carefully loosen and remove the tension belt of the footrest mount.
Info
An assistant prevents the motorcycle from falling over.
402050-01
–Together with an assistant, take the vehicle off the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
M00075-11
Package 12
–Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of supply
is complete on the basis of the enclosed packing list.
402051-01
–Have a lift stand available.
Lift stand (54829055000)
–Together with an assistant, take the vehicle off the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
M00077-10
–Remove the cardboard from around the shock absorber.
–Position the angle lever and linkage lever.
–Mount and tighten screw cap .
Guideline
Nut, linkage lever to angle lever M14x1.5 80 Nm (59 lbf ft)
–Mount and tighten screw .
Guideline
Screw, bottom shock
absorber
M10 60 Nm
(44.3 lbf ft)
Loctite®2701™

2 SETUP 4
B00534-10
–Position FI warning lamp with holder . Mount and tighten screw.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
–Attach connector to the wiring harness.
–Mount cable holder to the frame.
B00535-10
–Route the clutch line with the clutch master cylinder toward the front between
the upper and lower triple clamps.
–Position the fork legs and tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
Screw, bottom triple clamp M8 12 Nm
(8.9 lbf ft)
Info
Grooves are milled into the side of the top end of the fork legs. The sec-
ond milled groove (from the top) in the fork leg must be flush with the
upper edge of the upper triple clamp.
Position bleeder screws toward the front.
0
0
88
0
0
77
0
0
88
77
B00375-11
–Remove screws . Take off the handlebar clamps.
–Remove screws . Remove the handlebar holders.
–Place the handlebar holders in the required position. Mount and tighten
screws .
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite®243™
Info
Position the left and right handlebar holders evenly.
101020-10
–Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
–Position the handlebar clamps. Mount and tighten the screws evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Info
The markings on the handlebar should be at the center of the handlebar
clamps.
Keep the gap widths equal when tightening.
101017-01
–Position the controls on the right half of the handlebar.
Info
The routing of the cables can be seen in the figure.

2 SETUP 5
101018-01
–Position the controls on the left half of the handlebar.
Info
The figure shows how to route the clutch line and wiring harness.
–Install the front fender. ( p. 7)
–Install the front wheel. ( p. 6)
–Correctly mount the fuel tank breather.
C00138-01
–Mount the handlebar cushion.
–Install the start number plate. ( p. 7)
101019-01
–Mount the footrests with the springs and pins. Secure the pins using the washers
and cotter pins.
Pliers for footrest spring (58429083000)
800035-10
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and goggles.
–Avoid contact with battery acid and battery gases.
–Keep sparks and open flames away from the battery. Only charge in
well-ventilated rooms.
–In the event of skin contact, rinse with large amounts of water. If battery
acid gets in the eyes, rinse with water for at least 15 minutes and con-
tact a physician.
–Fill the battery.
Info
Read the notes in the battery package.
–Charge the battery. ( p. 9)
–Install the battery. ( p. 8)
–Unpack and mount the KTM PowerParts included in the delivery (optional).
Info
Read the accompanying KTM PowerParts fitting instructions.
–Apply the label included in the delivery (optional).
–Refuel. ( p. 11)
–Position all controls in their exact positions on the handlebar. Tighten all screws.
–Print out the current PDI form found on KTM DEALER.NET and perform the delivery
inspection.

3 WORK 6

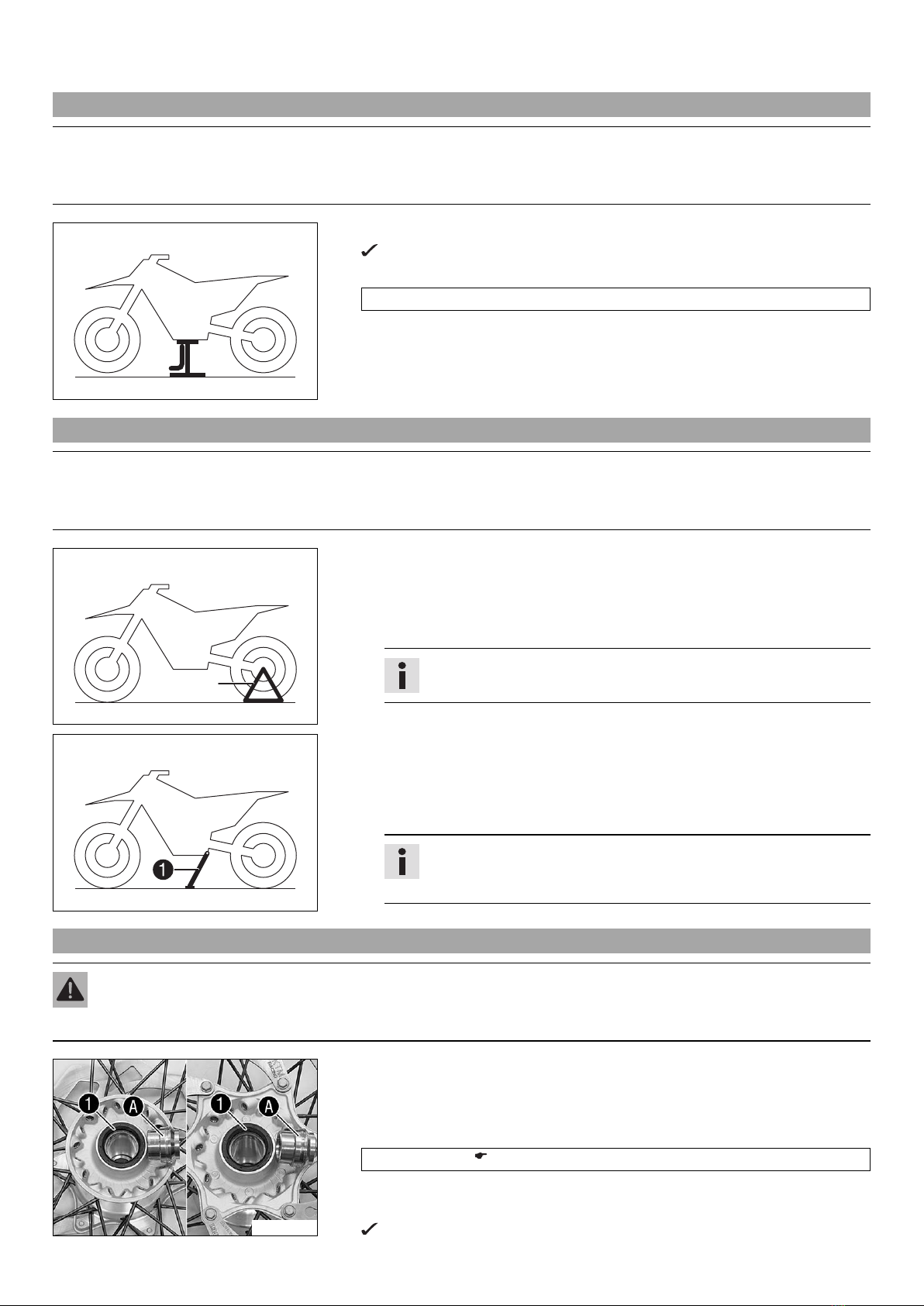

3.1 Raising the motorcycle with the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
401942-01
–Raise the motorcycle at the frame underneath the engine.
The wheels must no longer touch the ground.
–Secure the motorcycle against falling over.
Lift stand (54829055000)
3.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
0
0
11
402001-10
(All SX‑F models)
–Remove the motorcycle from the lift stand.
–Remove the lift stand.
–To park the motorcycle, insert plug-in stand into the left side of the wheel
spindle.
Info
Remove the plug-in stand before riding.
401943-10
(XC‑F US)
–Remove the motorcycle from the lift stand.
–Remove the lift stand.
–To park the motorcycle, press side stand to the ground with your foot and
lean the motorcycle on it.
Info
When you are riding, the side stand must be folded up and secured with
the rubber band.
3.3 Installing the front wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
–Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
M00064-11
–Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
–Change the wheel bearing.
–Clean and grease the shaft seal rings and contact surface of the spacers.
Long-life grease ( p. 14)
–Insert the spacers.
–Position the front wheel and insert the wheel spindle.
The brake linings are correctly positioned.

3 WORK 7
M00024-11
–Mount and tighten screw .
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
–Activate the hand brake lever multiple times until the brake linings are in contact
with the brake disc.
–Remove the motorcycle from the lift stand. ( p. 6)
–Pull the front brake and compress the fork powerfully a few times.
The fork legs straighten.
–Tighten screws .
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
3.4 Installing the front fender
B01470-10
Main work
–Position the front fender. Mount and tighten screws and .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
–Install the start number plate. ( p. 7)
3.5 Installing the start number plate
C00418-10
–Position the start number plate. Mount and tighten screw .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
The holding lugs engage.
–Position the brake line and clamp. Mount and tighten screw .

3 WORK 8
3.6 Removing the seat
M00035-10
–Remove screw .
–Lift up the seat at the rear, pull it back and then remove it from above.
3.7 Mounting the seat
M00036-01
–Hook in the front of the seat at the collar bushing of the fuel tank, lower it at the
rear and simultaneously it push forward.
–Make sure that the seat is correctly locked in.
–Mount and tighten the screw of the seat fixing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
3.8 Installing the battery
C00246-10
Main work
–Insert the battery into the battery compartment with the terminals facing to the
front.
(All SX‑F models)
Battery (YTX4L-BS)
(XC‑F US)
Battery (YTX5L-BS)
–Reconnect rubber band .
Info
Contact disk must be mounted between screw and cable lug 
with the claws facing down.
–Position the positive cable and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
–Slide positive terminal cover over the positive terminal.
–Position the negative cable and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Finishing work
–Mount the seat. ( p. 8)

3 WORK 9
3.9 Charging the battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and goggles.
–Avoid contact with battery acid and battery gases.
–Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
–In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Warning
Environmental hazard The battery contains elements that are harmful to the environment.
–Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner.
Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries.
Warning
Environmental hazard Hazardous substances cause environmental damage.
–Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Even when there is no load on the battery, it still loses power steadily.
The charging level and the method of charging are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the battery's service life.
If the charging current, charging voltage and charging time are exceeded, electrolyte escapes through the safety valves. This
reduces the battery capacity.
If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfate, destroying the
battery.
The battery is maintenance-free, which means that the acid level does not need to be checked.
Preparatory work
–Switch off all power consumers and switch off the engine.
–Remove the seat. ( p. 8)
–Disconnect the negative cable of the battery to avoid damage to the onboard elec-
tronics.
400240-10
Main work
–Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (58429074000)
You can also use the battery charger to test the open-circuit voltage and starting
voltage of the battery, and to test the alternator. With this device, you cannot over-
charge the battery.
Info
Never remove lid .
Charge the battery with a maximum of 10% of the capacity specified on the
battery housing .
–Switch off the battery charger after charging. Disconnect the battery.
Guideline
The charge current, charge voltage and charge time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use
3 months
Finishing work
–Mount the seat. ( p. 8)

3 WORK 10
3.10 Opening the filler cap
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Store fuel properly in a suitable canister and keep away from children.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to get into the ground water, the ground, or the sewage system.
B01452-10
(All SX‑F models)

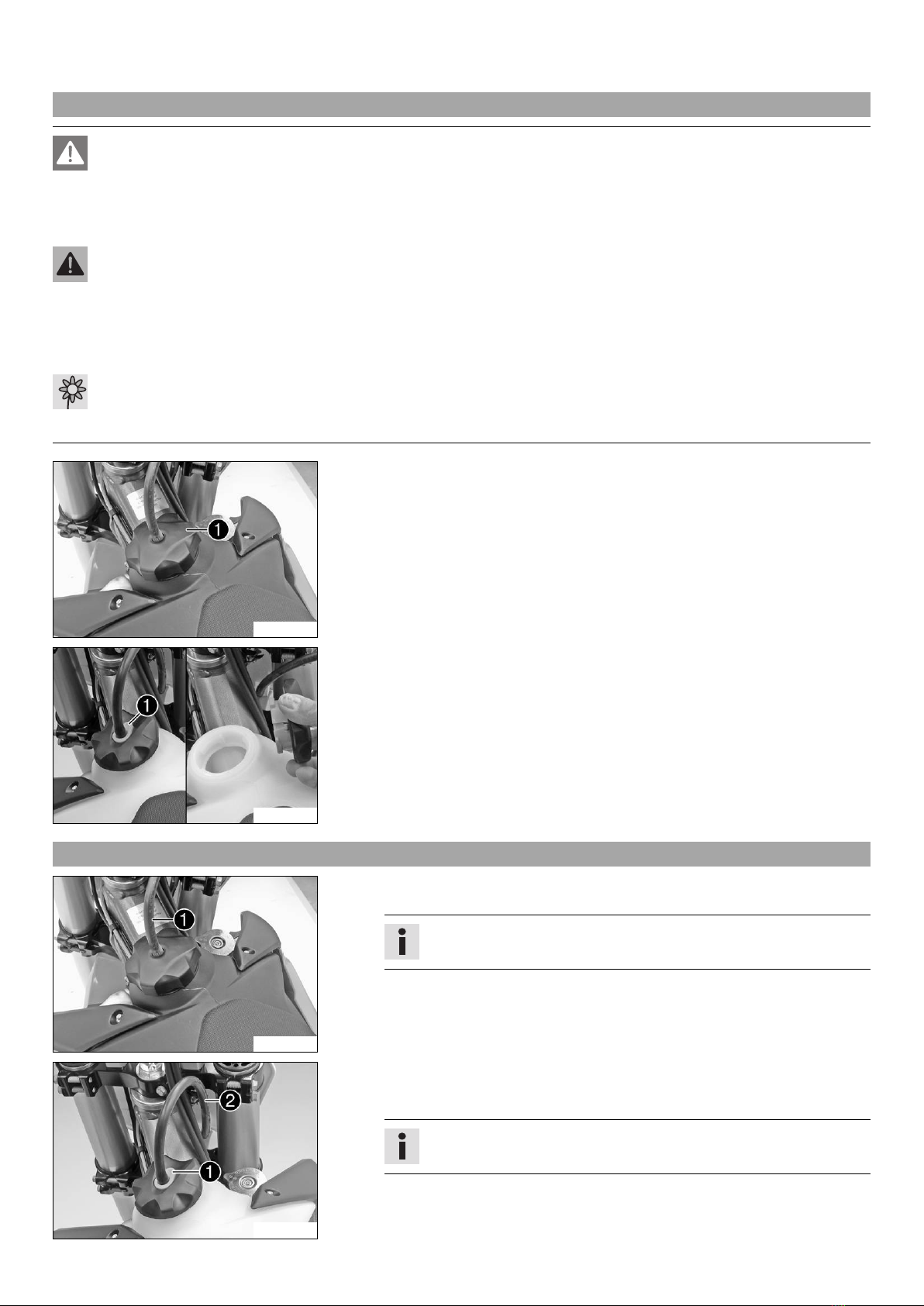

–Turn filler cap counterclockwise and lift it off.
B01453-10
(XC‑F US)
–Press release button , turn the filler cap counterclockwise, and lift it free.
3.11 Closing the filler cap
B01452-11
(All SX‑F models)
–Mount the filler cap and turn it clockwise until the tank is firmly closed.
Info
Run the fuel tank breather hose without kinks.
B01454-10
(XC‑F US)
–Replace the filler cap and turn clockwise until the release button locks in
place.
Info
Run the fuel tank breather hose without kinks.

3 WORK 11
3.12 Refueling
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Note
Material damage Premature clogging of the fuel filter.
–In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with
the fuel system.
–Only refuel with clean fuel that meets the specified standards.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to get into the ground water, the ground, or the sewage system.
–Switch off the engine.
–Open the filler cap. ( p. 10)
AA
401522-10
–Fill the fuel tank with fuel up to measurement .
Guideline
Measurement of 35 mm (1.38 in)
Total fuel tank
capacity, approx.
(All SX‑F models)
7.5 l
(1.98 US gal)
Super unleaded (ROZ 95/RON 95/PON
91) ( p. 13)
Total fuel tank
capacity, approx.
(XC‑F US)
9.5 l
(2.51 US gal)
Super unleaded (ROZ 95/RON 95/PON
91) ( p. 13)
–Close the filler cap. ( p. 10)

4 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS 12
Screw, air filter box lid EJOT PT®K60x20-Z 3 Nm (2.2 lbf ft) –
Screw, pressure regulator EJOT PT®K60x25‑Z 3 Nm (2.2 lbf ft) –
Spoke nipple, front wheel M4.5 6 Nm (4.4 lbf ft) –
Spoke nipple, rear wheel M4.5 6 Nm (4.4 lbf ft) –
Screw, battery terminal M5 2.5 Nm (1.84 lbf ft) –
Screw, intake air temperature sensor M5 2 Nm (1.5 lbf ft) –
Screw, shock absorber adjusting ring M5 5 Nm (3.7 lbf ft) –
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft) –
Remaining screws, chassis M6 10 Nm (7.4 lbf ft) –
Screw, ball joint of push rod on foot
brake cylinder
M6 10 Nm (7.4 lbf ft) Loctite®243™
Screw, chain sliding guard M6 6 Nm (4.4 lbf ft) Loctite®243™
Screw, electric starter cable connec-
tion
M6 4 Nm (3 lbf ft) –
Screw, front brake disc M6 14 Nm (10.3 lbf ft) Loctite®243™
Screw, rear brake disc M6 14 Nm (10.3 lbf ft) Loctite®243™
Screw, throttle grip M6 5 Nm (3.7 lbf ft) –
Fuel connection on fuel tank M8 10 Nm (7.4 lbf ft) –
Nut, foot brake lever stop M8 20 Nm (14.8 lbf ft) –
Nut, rear sprocket screw M8 35 Nm (25.8 lbf ft) Loctite®2701™
Nut, rim lock M8 12 Nm (8.9 lbf ft) –
Remaining nuts, chassis M8 25 Nm (18.4 lbf ft) –
Remaining screws, chassis M8 25 Nm (18.4 lbf ft) –
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft) –
Screw, chain sliding piece M8 15 Nm (11.1 lbf ft) –
Screw, engine brace M8 33 Nm (24.3 lbf ft) Loctite®2701™
Screw, fork stub M8 15 Nm (11.1 lbf ft) –
Screw, front brake caliper M8 25 Nm (18.4 lbf ft) Loctite®243™
Screw, handlebar clamp M8 20 Nm (14.8 lbf ft) –
Screw, side stand attachment
(XC‑F US)
M8 45 Nm (33.2 lbf ft) Loctite®2701™
Screw, subframe M8 35 Nm (25.8 lbf ft) Loctite®2701™
Screw, top steering stem M8 17 Nm (12.5 lbf ft) Loctite®243™
Screw, top triple clamp M8 17 Nm (12.5 lbf ft) –
Engine carrying screw M10 60 Nm (44.3 lbf ft) –
Remaining nuts, chassis M10 45 Nm (33.2 lbf ft) –
Remaining screws, chassis M10 45 Nm (33.2 lbf ft) –
Screw, bottom shock absorber M10 60 Nm (44.3 lbf ft) Loctite®2701™
Screw, handlebar support M10 40 Nm (29.5 lbf ft) Loctite®243™
Screw, top shock absorber M10 60 Nm (44.3 lbf ft) Loctite®2701™
Nut, fuel pump M12 15 Nm (11.1 lbf ft) –
Nut, seat fixing M12x1 20 Nm (14.8 lbf ft) –
Nut, frame to linkage lever M14x1.5 80 Nm (59 lbf ft) –
Nut, linkage lever on swingarm M14x1.5 80 Nm (59 lbf ft) –
Nut, linkage lever to angle lever M14x1.5 80 Nm (59 lbf ft) –
Nut, swingarm pivot M16x1.5 100 Nm (73.8 lbf ft) –
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft) –
Screw-in nozzles, cooling system M20x1.5 12 Nm (8.9 lbf ft) Loctite®243™
Screw, front wheel spindle M24x1.5 45 Nm (33.2 lbf ft) –
Nut, rear wheel spindle M25x1.5 80 Nm (59 lbf ft) –

5 SUBSTANCES 13
Super unleaded (ROZ 95/RON 95/PON 91)
Standard/classification
–DIN EN 228 (ROZ 95/RON 95/PON 91)
Guideline
–Only use unleaded super fuel that matches or is equivalent to the specified fuel grade.
–Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use.
Info
Do not use fuel containing methanol (e. g. M15, M85, M100) or more than 10 % ethanol (e. g. E15, E25, E85, E100).

6 AUXILIARY SUBSTANCES 14
Long-life grease
Recommended supplier
Motorex®
–Bike Grease 2000

*3213194en*
3213194en
06/2014
KTM-Sportmotorcycle AG
5230 Mattighofen/Austria
http://www.ktm.com
Photo: Mitterbauer/KTM
