Kuchef KYS-366A User manual
N13275
Model Number KYS-366A
Electric Barbeque
INSTRUCTION MANUAL
AFTER SALES SUPPORT
1300 886 649
AUS MODEL: KYS-366A PRODUCT CODE: 43485 11/2014
2
Welcome
Congratulations on choosing to buy a Kuchef®product.
All products brought to you by Kuchef®are manufactured to the highest
standards of performance and safety and, as part of our philosophy of
customer service and satisfaction, are backed by our comprehensive
3Year Warranty.
We hope you will enjoy using your purchase for many years to come.
3
Contents
02 Welcome
04 Warranty Details
05 General Safety Instructions
08 Product Overview
09 Getting Started
14 Instructions
16 Frequently Asked Questions
17 Other Useful Information
19 Recipes
23 Repair and Refurbished Goods or Parts Notice
YEAR WARRANTY
3
4
Warranty
Details
Electric Barbeque
The product is guaranteed to be free from defects in workmanship and parts
for a period of 36 months from the date of purchase. Defects that occur
within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion, solely at our option with no charge for
parts and labour. The benefits conferred by this warranty are in addition
to all rights and remedies in respect of the product that the consumer
has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and to compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
5
General Safety Instructions
Read this manual thoroughly before first use, even if you are familiar with this
type of product. The safety precautions enclosed herein reduce the risk of fire,
electric shock and injury when correctly adhered to. Keep the manual in a safe
place for future reference, along with the completed warranty card, purchase
receipt and carton. If applicable, pass these instructions on to the next owner of
the appliance.
Always follow basic safety precautions and accident prevention measures when
using an electrical appliance, including the following:
Electrical safety and cord handling
• Voltage: Make sure your outlet voltage and circuit frequency correspond
to the voltage stated on the appliance rating label and your outlet socket is
properly earthed. If this is not the case, do not use the appliance.
• Connection: Insert the plug properly into a mains socket with an earthing
contact. Make sure the socket is within easy reach so the plug can easily be
removed if necessary. To avoid an electrical circuit overload do not use a high
wattage appliance on the same circuit with the appliance.
• Protect from moisture: To protect against electric shock, do not immerse the
cord, plug or the detachable temperature regulator in water or other liquid.
Do not expose the electrical connections to water. Do not touch the plug or
temperature regulator with wet or damp hands, or use the appliance on a wet
floor. Do not expose the appliance to high humidity or rain.
• Do not use near water: Do not use the appliance where it could fall into
water. Should it fall into water while it is plugged in, immediately turn off the
power at the outlet and remove the plug. Do not reach into the water to
retrieve it. Before reuse, make sure to have the appliance inspected by a
qualified technician.
• Power cord: The power supply cord should be run in such a way that there
will be no risk of anyone pulling it inadvertently or tripping over it. Do not kink
or damage the power cord. Do not let it hang over sharp edges or touch hot
surfaces. Do not carry or pull the appliance by the cord.
• Extension cord: We strongly recommend not to use this appliance with an
extension cord. If you must use an extension lead, make sure it is in perfect
condition and contains an earth wire with a minimum capacity of 10A. Arrange
the extended cord so that unintentional touching or drawing is impossible.
• Damaged power cord: Check the power cord regularly for signs of damage.
If it is damaged, do not use it. The cord must be replaced by the manufacturer,
its authorised service centres or similarly qualified personnel in order to avoid
any hazards. Contact our after sales support line for advice.
6
General Safety Instructions (Cont.)
• Damaged product: Do not pick up or operate an appliance with a damaged
cord or plug, or after the appliance malfunctions or has been dropped or
damaged in any manner.
In case of damage, call our after sales support line for advice on repair or
return of the damaged product.
• Unattended: Do not leave the appliance unattended when plugged in.
• After use: Turn the control knob to MIN and unplug the appliance after use.
Wait until it has cooled completely before attempting to move or clean it.
• Disconnect: Before cleaning or moving the appliance, and if the appliance
fails during use, switch off the appliance and unplug it. Grip the plug when
disconnecting the temperature regulator, do not pull by the cord.
• RCD: This appliance must be supplied through a residual current device with a
rated residual operating current not exceeding 30mA. See your electrician for
professional advice.
Usage conditions and restrictions
• Domestic and outdoor use: This appliance is intended for domestic use only.
It is suitable for outdoor use.
• Intended purpose: This product is only intended for cooking domestic
quantities of food. It is not intended for use with any non-food materials or
products. Do not use it for anything other than its intended purpose, and only
use it as described in this manual. Any other use may cause fire, electric shock
or injury.
• Before use: Always ensure that the appliance is fully and correctly assembled.
The drip tray and the base must be properly installed before use.
• Temperature regulator: Only use the electric barbeque with the supplied
temperature regulator/connector.
• Accessories: Do not use accessories not supplied with this product. Improper
use or installation may result in the risk of fire, electric shock or injury.
• Usage restrictions: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for
their safety.
• Children: Supervise children to ensure they do not play with the appliance.
Close supervision is necessary when any appliance is used by or near children.
7
General Safety Instructions (Cont.)
• Location: To ensure efficient operation and avoid overturning, always position
the appliance on a level, stable, dry and heat resistant surface, keeping at
least 10cm space from any walls or other objects.
• Protect from heat: Do not position the appliance on or near a hot surface. Do
not use the appliance in a heated oven or on a hot stovetop.
• No timer: Do not connect this appliance to an external switching device such
as a timer or a separate remote control system.
• Repair: If you experience problems with the electric barbeque, contact the
after sales support line for advice on service. Only trained personnel should
repair electrical appliances. Unskilled repairs can cause considerable danger
to the user.
• WARNING: Do not use charcoal or similar combustible fuels with this
appliance.
• Do not cover: Never cover the grill plate with aluminum foil or trays; this
might damage the non-stick coating.
• WARNING: Make sure that the grill plate does not touch the heating element.
• Liability: We accept no liability for any damages or injury caused by improper
use, incorrect handling or noncompliance with these instructions.
CAUTION: Hot!
• The grill plate will get very hot during use and will stay hot for a long time after
it has been switched off. Do not touch any hot surfaces; always take utmost
care to prevent burns.
• Beware of hot fat spitting while grilling fat or juicy meat.
8

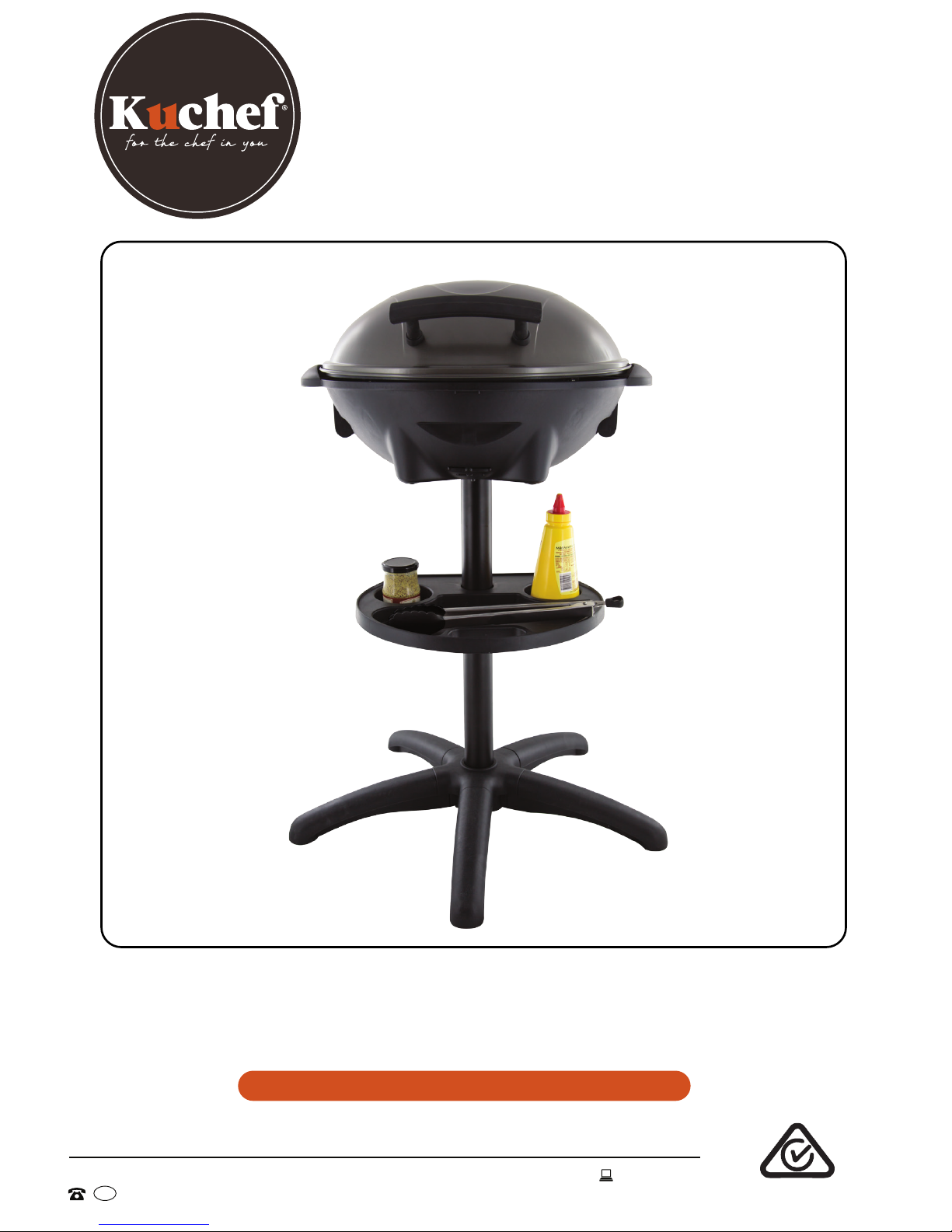

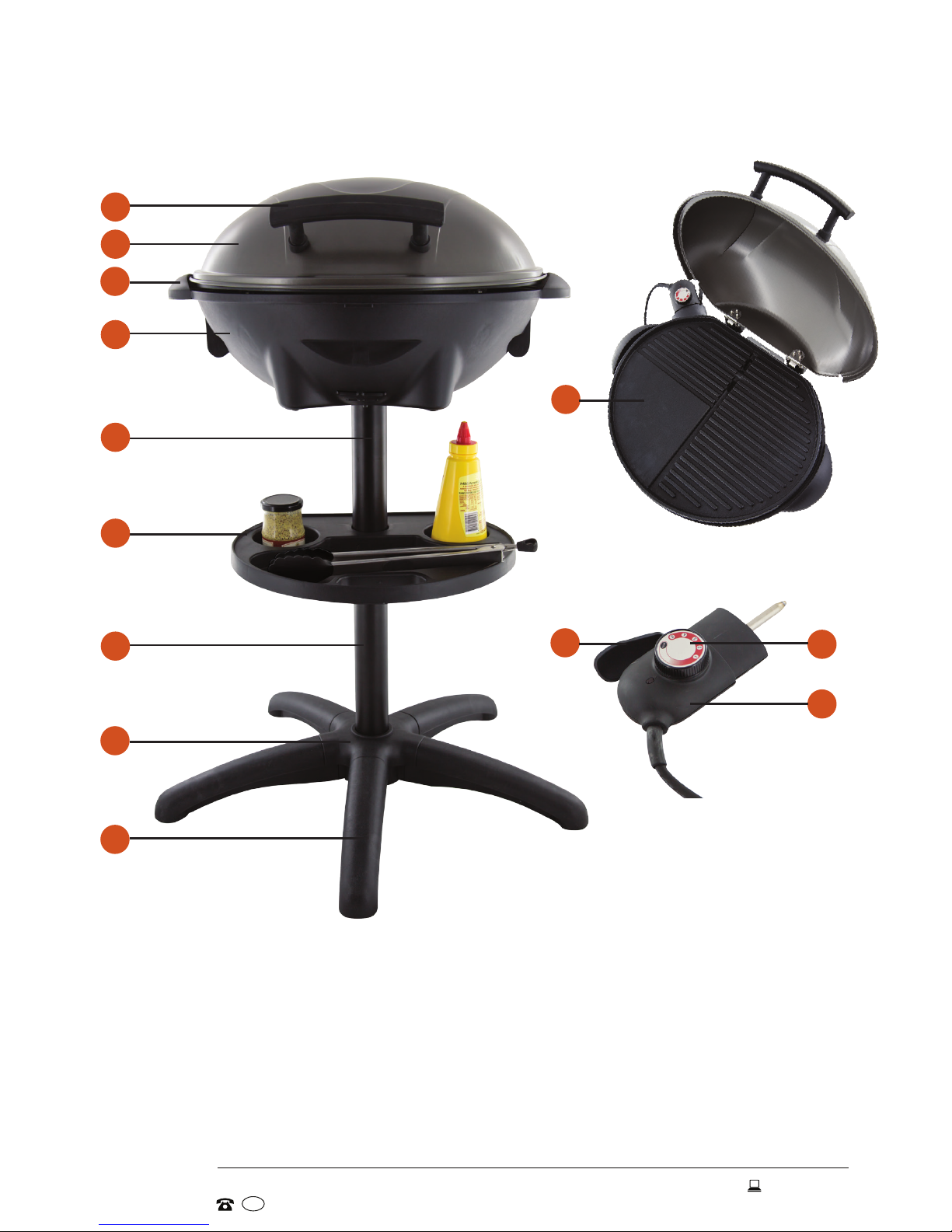

Product Overview
A Hood handle
B Metal hood
C Base handle (one on each side)
D Base of appliance
E Upper stand tube
F Condiment tray
G Lower stand tube
H Stand base
I Stand feet (x5)
J Grill plate (¼ flat, ¾ ribbed)
K Quick release lever
L Temperature control knob
(with 5 heat settings)
M Detachable temperature regulator
(with probe, indicator light, power
cord and plug)
A
B
C
E
F
G
H
I
D
J
KL
M
Condiments and tongs not included.
9
Before you start
• Unpack: When unpacking the appliance, keep all packaging materials until
you have made sure your new Electric Barbeque is undamaged and in good
working order. Plastic wrapping can be a suffocation hazard for babies and
young children, so ensure all packaging materials are out of their reach.
• Inspect: Unwind the cord of the temperature regulator to its full length and
inspect it for damage. Do not use the appliance if any part has been damaged
or is not working properly. In case of damage, contact our after sales support
line for advice on examination, repair or return of the damaged product.
• Read: Make sure you read the manual to familiarise yourself with the
appliance. Pay particular attention to the safety instructions on the previous
pages.
• Wash and dry: To remove any dust from transport, wash the grill plate, drip
tray and grill hood, then rinse and dry thoroughly. Make sure all parts are
completely dry. This applies especially to the appliance socket.
CAUTION: Never immerse the temperature controller in water!
• Assemble: Detailed assembly illustrations follow on the next few pages.
• Set up: Place the Electric Barbeque on a dry, level, heat-resistant surface,
leaving enough space around the appliance for air circulation. Insert the
temperature regulator into the appliance socket and the plug into an
appropriate wall outlet.
• Heat: After assembly and before first use, heat the Electric Barbeque on the
maximum heat setting for about 3-5 minutes with the hood closed and without
any food on it to burn off any residues left from the manufacturing process.
This may produce some fumes or odour and can be disregarded safely. It is
entirely harmless. Leave the unit powered on for a few minutes until all odour
and/or smoke has dissipated. Ensure there is adequate ventilation.
• Condition: Before using the Electric Barbeque for the first time, we
recommend you condition the non-stick coated grill surface for long-term
protection. To do this, brush or spray a small amount of cooking oil onto the
plate with a paper towel and wipe off any excess.
• Ready! Your new Electric Barbeque is now ready for use.If you do not want to
grill food at this stage, turn the heat off, disconnect the temperature regulator
and let the appliance cool.
Getting Started
10
Getting Started (Cont.)
Assembly
Your new Electric Barbeque has been shipped unassembled to reduce wastage of
packaging material, paper cartons and weight. It is easy to assemble, just follow
the instructions on the next pages. You will need a Phillips head screwdriver.
The illustration below shows how all the parts fit together.
1 Metal hood
2 Hood handle
3 Grill plate
4 Drip tray
5 Base of appliance
6 Condiment tray
A Bolt (1x M6x10)
7 Upper stand tube
8 Decorative ring
A Threaded rod
9 Lower stand tube
10 A Stand feet (x5)
B Stand base
11 Base handle (one on each side)
12 Opening for appliance socket
13 Detachable temperature regulator
(with indicator light, power cord
and plug)
14 Temperature control knob
15 Appliance socket
16 Washer
17 Screws (5x ST4.0x16mm)
The numbers in brackets throughout this
manual are the part numbers as listed in
this illustration.
Electric shock hazard!
Before assembly, cleaning or storage,
ensure the temperature regulator
is switched to MIN and disconnected
from the barbeque.
1
2
3
4
5
6
7
9
10B
16
17
11
12
13
14
15
10A
8A
6A
8
11
Getting Started (Cont.)
1. Firmly insert the five feet (10A) for the stand
into the stand base (10B); they should click
securely into place (Fig. 1).
2. Place the washer (16) onto the stand base,
and then insert the screws (17) into the
washer and screw them firmly into place to
secure the stand feet to stand base (Fig. 2).
3. Insert the threaded rod (8A) in the lower
stand tube (9) and screw half of the rod into
the tube. Put the decorative ring (8) on the
lower tube, assemble the upper (7) tube
on top and screw it onto the other half the
threaded rod (Fig. 3). Make sure both upper
and lower tubes are securely assembled.
10A
10B
16
2
3
1
17
7
8
9
8A
12
Getting Started (Cont.)
4. Connect the grill stand base (10) and the
lower stand tube (9) together to form the
complete grill stand (Fig. 4). The upper
stand tube (9) slots firmly into the stand
base (10B).
(The grill can be used with or without this
stand. However, when using it on the
benchtop, take particular care with the lid
so the appliance does not tip over.)
5. Insert the bolt (6A) into one of two holes
in the upper stand tube (7) and screw it
securely into place. This is to hold the
condiment tray – you can choose at which
height you want to install it. Then put the
condiment tray (6) on the upper tube,
making sure that the tray sits securely on
the bolt (Fig. 5).
6. Place the grill stand on a dry, flat and stable
surface, then place the bowl-shaped base
of the appliance (5) onto the grill stand
(Fig. 6).
4
5
6
9
10
10B
6
6A
5
13
7. Slide the drip tray (4) into the bracket
supplied for it in the base of the appliance
at the back (Fig. 7). Guide the little hole
at the end of the bowl frame onto the
protrusion to hold the tray in place.
(For easy cleaning, fill a little water into the
drip tray to cover the surface before using
the barbeque.)
8. Place the grill plate (3) on the base of
the appliance (5). First of all, insert the
appliance socket (15) into the opening
intended for it (12), then carefully lower the
grill plate onto the appliance base.
9. To attach the grill hood (1) to the base (5),
insert the two metal tabs into the
corresponding holes at the back of the
base (Fig. 9).
10. Push the temperature
regulator (13) as far
as it will go into the
appliance socket at the
side of the barbeque
(Fig. 10).
Your Electric Barbeque is
now fully assembled.
Getting Started (Cont.)
1
3
15
12
4
13
9
8
7
10
Back view
Front/side view
14
Instructions
Using the Electric Barbeque
• Place the barbeque on a flat, level surface, protected from wind, rain and water
splashes. (If using the barbeque in the open, position the grill hood so it acts as
a windbreak.)
• Insert the temperature regulator into the appliance socket and the plug into an
appropriate wall outlet.
• Turn the temperature control knob (14) to the required temperature setting:
The temperature indicator lamp comes on and will stay illuminated until the set
temperature is reached. (It usually takes about three minutes to heat up.)
• Place the food to be grilled on the grill plate (3) and cook, turning it once.
• If appropriate for the type of food you are cooking, close the hood to
accelerate the cooking time.
• When the food is cooked to your liking, turn the temperature control knob to
the MIN position and remove the cooked food with a nonmetallic spatula.
CAUTION: Do not use metal utensils. To prevent scratching the non-stick
coated grill plate, only use wooden, silicone or heatproof plastic
utensils.
• Press the quick release lever and disconnect the temperature regulator.
Remove the plug and let the appliance cool down before cleaning.
Setting Temperature (+/- 20°C)
1 120°C
2 160°C
3 190°C
4 220°C
5 250°C
15
Instructions (Cont.)
Tips for grilling
• Grilled meat will become more tender if you marinate it before cooking.
Marinades generally include some oil (to moisten), vinegar or wine (to
tenderise) and seasonings (to flavour).
• Always use tongs or some form of heat-resistant scoop to turn the grilled food
over. Using a fork to turn the food will dry it out and damage the non-stick
coating.
• Only turn meat and fish once during grilling. You do not need to turn it more
than once, and too much turning dries food out.
• Never cook meat for too long. Fast cooking cuts of beef, lamb, even pork are
more juicy and tender when they are still a little pink inside.
• If cooked food sticks to the grill plate, rub the plate with a piece of kitchen
paper soaked in oil from time to time.
Grilling times
The temperature settings and cooking times for the foods listed below are
suggested for your reference only; amend as required. Cooking times will depend
on the size and weight of the food to be grilled, the type/cut of meat, and on
factors such as use of the grill hood.
Food Temperature Setting Grilling Time (min)
Beef (steak) 5 15 – 20
Lamb (cutlet/chop) 5 12 – 18
Chicken (drumstick) 5 25 – 30
Pork (cutlet/chop) 5 20 – 25
Chicken (wings) 5 15 – 20
Pork (fillet) 4 – 5 9 – 10
Whole fish 5 12 – 15
Skewered meat (kebabs) 3 – 4 10 – 12
Sausages (various types) 3 – 4 12 – 15
16
• Why is the temperature indicator lamp sometimes on and sometimes off
while I’m using the barbeque?
When the temperature of the grill plate drops below the set level, the
thermostat will switch on the heating element and the temperature indicator
lamp will come on. It will stay illuminated until the plate has reached the set
temperature again.
• Do the grill surfaces have to be oiled, and if so, what oil should I use?
The grill plate is non-stick coated to prevent food sticking to it. It is not
necessary to oil the plate. For best results, we therefore recommend you only
brush a little oil onto the food to be grilled.
• Can I use steel wool or a metal brush for cleaning the barbeque?
No. Do not use steel wool or metal cleaning utensils as these can damage the
non-stick coating of the grill plate. Use a plastic spatula to scrape off excess
fat and food particles baked onto the grill plate, then use a nylon scrubbing
pad to remove stubborn stains.
• Do I have to close the metal hood when grilling meat?
No. You can barbeque food with the hood open. However, closing the hood
will enable convection cooking and accelerate the cooking time for roasts. And
when the barbeque is not being used, the closed hood will keep it clean and
protected.
• Can I use the barbeque indoors?
Yes. The grill can be used with or without the stand. However, when using it
on the benchtop, take particular care with the lid so the appliance does not tip
over.
• Do I have to disassemble the barbeque during storage?
No. When you are not going to use your barbeque for a long time, we
recommend covering it with a large plastic bag to protect it from dust and dirt.
Store it, with the temperature regulator disconnected, in a dry place, out of
children's reach. Make sure the grill is clean and dry before storing.
Frequently Asked Questions
17
Other Useful Information
Cleaning the appliance
• Take the detachable temperature regulator (13) out of the appliance socket.
• Drip tray: Allow the accumulated liquid in the drip tray (4) to cool before
removing the tray from under the grill. Wash and dry the drip tray after each
use.
• Easy clean-up: The grill plate is non-stick coated for easy clean-up.
• Grill plate: Use a plastic (or other nonmetallic) spatula to scrape off any excess
fat and food particles left on the grill plate (3). Then use a warm, soapy sponge
to wipe the plate clean. Rinse the sponge and wipe again to remove any soapy
residue. To remove stubborn build-up, use a nylon or nonmetallic scrubbing pad.
CAUTION: Do not use steel wool pads, metal brushes or abrasive cleaners to
avoid damaging the non-stick coating.
• Base: Wipe the base of the appliance (5) with a damp cloth. Fat splashes can
be removed with a mild detergent.
Storage
If you are not going to use the appliance for a long time, we recommend covering
it with a large plastic bag to protect it from dust and dirt. Store it in a dry place,
out of children's reach. Make sure the grill is clean and dry before storing.
CAUTION!
• Before cleaning, moving or storing the appliance, and when it is not in use,
always disconnect the temperature regulator.
• To avoid accidental burns, allow the grill plate to cool before cleaning.
• Never immerse the grill in water or other liquids for cleaning.
18
Other Useful Information (Cont.)
Technical Specifications
Power: 2000-2400W
Power cord: 2.8m
Grill plate: Die-cast aluminium, detachable, non-stick coated
3/4 ribbed surface, 1/4 flat surface
Heat settings: 5 (120, 160, 190, 220, 250°C)
Drip tray: Removable
Metal hood: Included
Stand and base: To be assembled
Condiment tray: Included
Responsible disposal
At the end of its working life, do not throw this appliance out with your household
rubbish. Electrical and electronic products contain substances that can have
a detrimental effect on the environment and human health if disposed of
inappropriately. Observe any local regulations regarding the disposal of electrical
consumer goods and dispose of it appropriately for recycling. Contact your local
authorities for advice on recycling facilities in your area.
19
Recipes
Honey Soy Chicken Wings
Ingredients
500g chicken wings
2-3 cloves garlic, crushed
3 tbsp soy sauce
2 tbsp honey
2 tbsp tomato sauce
2 tsp grated ginger
Method
• Cut the chicken wings on the joints into easily manageable pieces.
• Combine the remaining ingredients in a bowl and stir until smooth.
• Brush the chicken wings with the marinade and place in a large, shallow dish.
Refrigerate, covered, for at least one hour.
• Preheat the grill on heat setting 5 and lightly oil the grill plate.
• When the grill has reached the set temperature, place the chicken wings, skin
side up, on the heated grill plate and cook for 10 – 15 minutes, or until golden
and thoroughly cooked through. Turn the wing pieces once halfway through the
cooking time.
Barbequed Prawns
Ingredients
16 large green prawns, peeled and deveined (leaving tails intact)
2 cloves garlic
1 small red chilli, finely chopped
2 tbsp olive oil
For serving: aioli, herb mayonnaise, sweet chilli sauce, or seafood sauce
Method
• Combine the prawns with the garlic, chilli and olive oil, and refrigerate, covered,
for 2 hours.
• Preheat the grill on heat setting 3 – 4.
• Drizzle prawns with a little more oil and cook, turning occasionally, for 2 minutes,
or until the prawns change colour and curl.
• Serve immediately with your preferred condiment.
20
Recipes (Cont.)
Marinated Pork Ribs
Ingredients
1 – 1½ kg pork ribs
Smoky Barbeque Marinade
3/4 cup barbecue sauce
1/2 cup tomato sauce
1/2 cup apple cider vinegar
1/3 cup brown sugar, firmly packed
1 tsp red chilli, finely chopped
1 tsp garlic, crushed
2 tsp smoked paprika
2 sprigs rosemary, crushed
100ml red wine (optional)
Method
• Combine the marinade ingredients in a large shallow dish and stir until smooth.
• Cut the pork ribs into chunks that will fit onto the grill plate.
• Smear the spice mix on the pork ribs and marinate, covered, in the refrigerator
for at least 4 hours.
• Preheat the barbeque on heat setting 5 and lightly oil the grill plate.
• When the grill has reached the set temperature, place the pork ribs onto the
grill plate and close the hood.
• Grill for about 20 – 30 minutes, or until the ribs are cooked through, turning the
ribs halfway through the cooking time.
Sweet & Spicy Marinade
250ml maple syrup
100g ginger, grated
100g garlic, crushed
1 – 2 tsp chilli powder
1 tsp salt
2 sprigs sage
100ml dark beer (optional)
Table of contents
Popular Grill manuals by other brands
Megamaster
Megamaster 720-0983C operating instructions
PARRY
PARRY PGC6 Product instructions
Napoleon
Napoleon P500RSIBNK-3-PHM owner's manual
SILESIA VELOX
SILESIA VELOX CG1 Operating instructions and general guide
Clatronic
Clatronic EBG 3760 instruction manual
Outback
Outback Excel 100T Assembly and operating instructions
