Kunft KGS2981 User manual

instructions manual
manual de instrucciones
manual de instruções
KGS2981
KGS3048
cooker
Fogoes-KGS2981-Kunft-Manual-3.indd 1 16/09/06 20:04

2
3
Dear client,
We thank you for purchasing this product.
This appliance was submitted to several laboratorial tests,
which certify its quality. To simplify the use of this appliance,
this instruction manual has been provided.
The instructions must ensure a quick and safe use.
Please read carefully the instructions and safety measures
described in this manual.
We wish our clients great satisfaction in using their new
appliance.
Fogoes-KGS2981-Kunft-Manual-3.indd 2 16/09/06 20:04

2
3
KGS2981
KGS3048
INDEX
1. SAFETY INSTRUCTIONS...................................... 4
1.1. Power Supply ................................................. 5
1.2. Power Cord and Other Cables........................ 6
1.3. Humidity and Water ........................................ 6
1.4. Cleaning.......................................................... 6
1.5. General Precautions ....................................... 6
2. OPERATING INSTRUCTIONS............................. 12
2.1. Using the Product ......................................... 12
2.2. Maintenance ................................................. 16
3. TECHNICAL SPECIFICATIONS........................... 18
4. POST-SALE SERVICE......................................... 20
5. ENVIRONMENTAL PROTECTION ...................... 20
EN
cooker
Fogoes-KGS2981-Kunft-Manual-3.indd 3 16/09/06 20:04

4
5
1. SAFETY INSTRUCTIONS
WARNING
Risk of Electric Shock
Do Not Open
Warning: to avoid the risk of electric
shock, do not remove the cover.
The interior does not contain any parts
that can be repaired by the user. Ask for
assistance by qualied personnel.
Important Warnings
Before using your appliance read this ins-
tructions manual carefully and keep it in a
safe place as you may need to consult it in
the future.
Before turning on your appliance, and to
ensure a safe and correct operation, do not
use if:
- It has fallen to the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation.
To avoid hazards or deterioration of your ap-
pliance through incorrect use it is advisable
to read these instructions thoroughly.
Your appliance may not be used for other
purposes than the ones intended and sole-
ly for household use. Any damage resulting
from using the appliance outside this sco-
pe, any incorrect use, as well as any ma-
Fogoes-KGS2981-Kunft-Manual-3.indd 4 16/09/06 20:04

4
5
KGS2981
KGS3048
nual modications to the product will not be
covered and automatically voids the war-
ranty.
Assistance
In case of malfunction, take your appliance
to a qualied technician for assistance.
This appliance can be used by
children from the age of 8 and by
peoplewithreducedphysical,sen-
sorial or mental capabilities and/
or lack of experience and know-
ledge if they have been given ins-
tructions on using the appliance
safely and if they understand the
hazards involved. Children may
not play with the appliance. Cle-
aning and maintenance must not
be carried out by children without
supervision.
These instructions are also available at
www.suporteworten.pt
1.1. Power Supply
Make sure the main voltage is compatible
with the appliance’s. If this is not the case
please consult the Customer Support Ser-
vice.
EN
cooker
Fogoes-KGS2981-Kunft-Manual-3.indd 5 16/09/06 20:04

6
7
1.2. Power Cord and Other Cables
Do not tangle the cord or pull it to discon-
nect the appliance. Also, keep the cord
away from warm surfaces.
Never use the appliance if it has a damaged
cable or socket.
Take it to the Technical Support Service for
replacement.
1.3. Humidity and Water
Do not use your appliance in humid places.
Do not allow the appliance to become wet
under any circumstances as this may be
dangerous. To avoid re hazard or electric
shock do not expose your appliance to humi-
dity or water. Furthermore, do not place your
appliance under water (e.g. for cleaning).
1.4. Cleaning
Before cleaning, be sure to switch off the ap-
pliance and remove the plug from the main
power supply. Always allow the unit to cool
down before cleaning.
To clean the exterior of the product use a
dry soft cloth only.
1.5. General Precautions
• Please follow the instructions in the user
manual which help to properly install and
operate this product and enjoy its advan-
ced features. Please keep the instructions
for future reference.
Fogoes-KGS2981-Kunft-Manual-3.indd 6 16/09/06 20:04

6
7
KGS2981
KGS3048
• Read all instructions before using the pro-
duct.
• Maintenance and service operations are
only to be carried out by authorized pro-
fessionals.
• Any damage caused by manual modica-
tions to the product is not covered by the
warranty.
• If this product is used for other purposes
than the ones originally intended, or if it is
not correctly connected, the product may
become damaged and the warranty will be
voided.
• This appliance belongs to class 1 (gas
equipment) isolated kitchen appliance with
free installation, and is designed for non-
professional use by private adults, and wi-
thin installations.
• This appliance must be installed and con-
nected according to the installation rules
in force.
• The gas conditions are indicated on the la-
bels near the gas inlets.
• The installation of the cooker should be
executed only by qualied and authorised
personnel.
• The walls of the sided furniture must re-
sist to a temperature 75 ºC higher than the
room temperature.
• The back wall must be of non-combustible
material.
EN
cooker
Fogoes-KGS2981-Kunft-Manual-3.indd 7 16/09/06 20:04

8
9
• Combustible materials such as curtains,
must be at a minimum distance of 500 mm.
• The furniture on the side of the cooker, if
higher than the cooking surface, must be
at a minimum distance of 150 mm from the
side of the appliance.
• In case there is a suspended element
over the cooker, it must be placed at a
minimum distance of 700 mm from the
cooking surface.
• The furniture over and on the sides of the
appliance must have a minimum clear spa-
ce of 420 mm from the cooking surface.
• Any range hood above the cooker must be
installed according to the manufacturer’s
instructions, with a minimum distance of
650 mm from the cooking surface.
• The walls adjacent to the appliance must
have a minimum distance of 10 mm from
the sides.
• The appliance must be installed in a lo-
cation with proper conditions regarding di-
mensions, ventilation and exhaust of com-
bustion products.
• This appliance is not designed to be con-
nected to a device for exhaust of combus-
tion products.
• The airow should be
exited directly through
permanent openings
made in the walls,
separating the com-
Fogoes-KGS2981-Kunft-Manual-3.indd 8 16/09/06 20:04

8
9
KGS2981
KGS3048
partment with the outside or the air supply
ducts. The airow can also be obtained in-
directly from the place of installation, provi-
ded that such places have a direct vent, do
not present re dangers and are not slee-
ping rooms.
• The air ow between the adjacent site and
the place of installation must be carried out
freely through permanent openings (which
can be obtained by increasing the space
between the door and the oor, for exam-
ple). The air intake openings must have a
minimum section of 200 cm2and must not
be blocked accidentally.
• For devices without safety valves on the
top, the air intake openings must have a
minimum section of 200 cm2.
• Before installing the device, please remo-
ve the adhesive plastic lm protecting the
metal parts.
• If the appliance is placed on a base, plea-
se ensure that the base does not slide.
• The accessible parts of the cooker can be
hot, especially when the oven is operating.
• Do not let children get close to the applian-
ce.
• The cooker should always be installed by
qualied and authorised personnel. This
appliance is of type X: category for overhe-
ating. Before switching on the appliance,
check that it is correctly regulated for the
type of gas available.
EN
cooker
Fogoes-KGS2981-Kunft-Manual-3.indd 9 16/09/06 20:04

10
11
• When the burners are on, check if the a-
mes are always regular.
• Turn off the burners before removing sau-
cepans from the cooker.
• The use of a gas appliance requires re-
gular air ventilation. Make sure that the
installation complies with the respective
instructions.
• Before using the oven for the rst time, pre-
heat an empty oven at maximum tempera-
ture for about 30 minutes to remove any
residual smells and smokes caused by the
manufacturing process, without passing
them to the food.
• Gas appliances produce heat and the pro-
ducts of combustion get moist.
• Be sure that the location is well ventilated:
keep a window open or install a range hood
or exhaust fan which vents to the outside.
• In case of intensive and prolonged use, it
may be necessary to increase the venti-
lation by opening the windows or increa-
sing the speed setting of the range hood or
exhaust fan, if one is installed.
• The materials surrounding this appliance
must be resistant to a temperature of 90º C.
• Use the cover only to protect the cooker
and for no other purpose.
• Pay special attention when cooking with
grease or oil, as these can ignite if overhe-
ated.
Fogoes-KGS2981-Kunft-Manual-3.indd 10 16/09/06 20:04

10
11
KGS2981
KGS3048
• During cooking the appliance becomes
very hot. Never touch any parts on the top
or inside of the oven without wearing pro-
tective heatproof gloves.
• All waste resulting from oil spills should be
removed before closing the lid.
• WARNING: The glass lid must always be
opened when the cooker is operating and
also while the burners are hot.
• Use exclusively pots and pans with a at
base.
• Use containers that do not exceed the ed-
ges of the cooking surface.
• The glass lid has the screen-printed sym-
bol , which means you must not close
the lid while the burners are functioning or
when they have not been cooIed.
• The manufacturer does not recommend
the use of table protections, and warns
that the use of these may cause accidents
when inappropriate.
EN
cooker
Fogoes-KGS2981-Kunft-Manual-3.indd 11 16/09/06 20:04

12
13
2. OPERATING INSTRUCTIONS
2.1. Using the Product

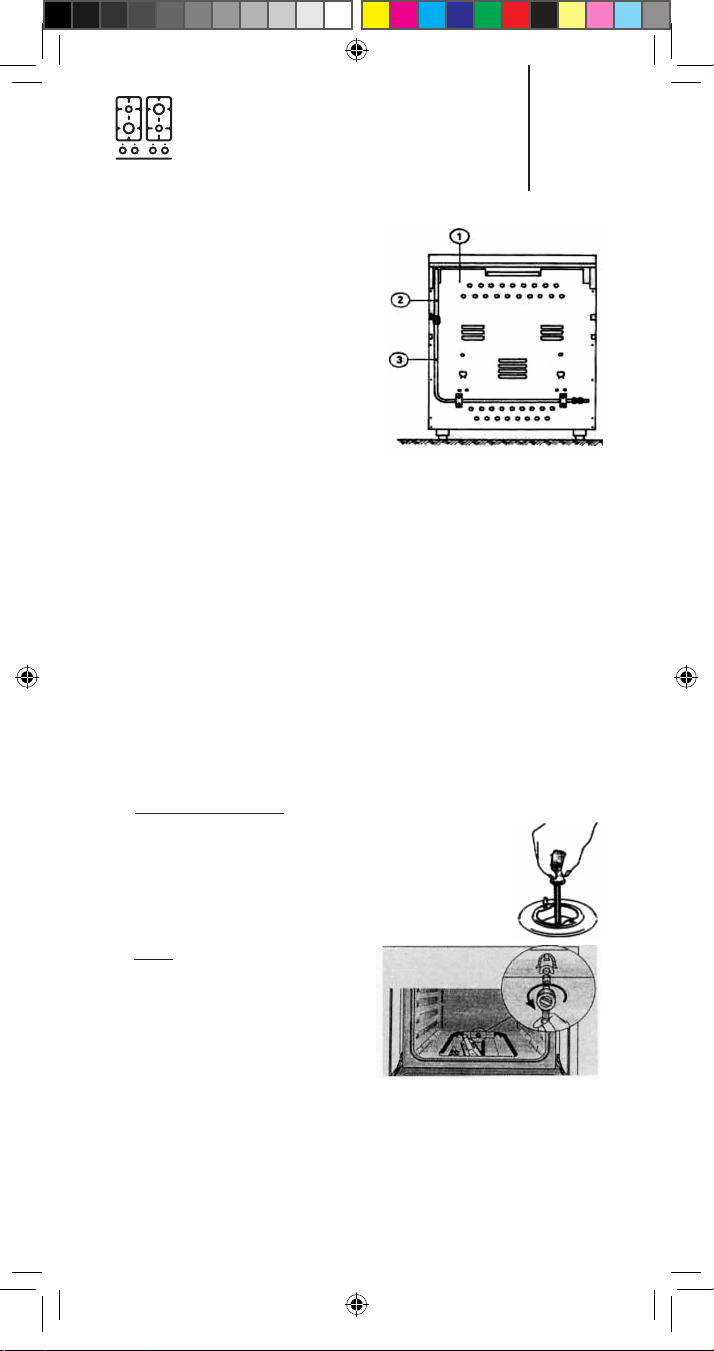

Gas Connection
• The cooker is provided with a label placed on the rear panel near
the gas inlet showing the type of gas and pressure for which the
appliance has been originally adjusted.
• Before connecting this appliance, check if it is prepared for the type
of gas and pressure available in your home. If not, it is necessary to
convert the appliance to another gas type as indicated in section 2.2.
• All possible gas types and pressures are shown on the data plate
and in table no. 1.
• Butane gas bottles are unable to function in places with low
temperatures, in this case it is advisable to replace the Butane for
Propane gas (operation to be carried out by a qualied installer).
Never place a propane gas bottle inside a building.
• You may connect the appliance to a gas bottle tted with its
respective regulator or to a gas network tap. Since this is a movable
unit, the following types of tubes can be used:
- Flexible rubber or elastomeric tube certied according to the
applicable standards, xed to an adequate inlet gas connection
and held tight by a clamp on both ends.
- Flexible stainless steel tube certied according to the applicable
standard, with threaded connections.
- Flexible rubber or elastomeric tube certied according to the
applicable standard, with threaded connections.
Notes:
• Ensure that the tube is not bent or twisted.
• Ensure that the tube is not in contact with the rear panel.
• The tube must be replaced before the expiry date.
• Check that the cable goes along the whole length of the tube.
• The clamps should be adequate for a good tight.
• The maximum length of the exible rubber tube must be of 1500 mm
The connection lo the cooker must be done
on the same side of the point of feeding, in a
way that the tube does not cross the back of
appliance. If necessary, change the gas inlet
or request technical assistance to adapt the
tube so that the gas entrance is done on the
correct side of the appliance.
After connecting the unit, check for eventual
leaks with a frothy product. Never use a ame.
Fogoes-KGS2981-Kunft-Manual-3.indd 12 16/09/06 20:04

12
13
KGS2981
KGS3048
1. Back Shield
2. Commutator
3. Commutator Extension
Cookers with Bottle
Compartment
The maximum high of the bottle
with reducer must be of 610 mm
and the maximum width of 310 mm.
In these cookers, the exible rubber tube must have a minimum of
400 mm and a maximum of 1150 mm and must never touch the left
side of the bottle compartment.
Conversion to other Type of Gas
This appliance has been designed to function with Butane Propane
or Natural Gas.
This appliance is provided with a label on the rear panel, near the gas
inlet, indicating the type of gas and pressure for which the cooker has
been adjusted.
The indication of the gas and pressure to which cooker has been
adjusted to can also be found on the data label or on the package of
the appliance.
In order to convert from one type of gas to another, proceed as
follows:
a) Choose the inlet gas connection according to the type of gas
available in your home.
b) Cooking top burners:
• Remove the pan supports from the hob, the burner
covers, the burner spreaders and the burner skirts.
• Unscrew and remove the injectors and replace
them with those corresponding to the available gas
(see table 1).
• Replace all burner components and pan supports.
c) Oven
• Open the over door and remove
all the internal accessories and
the oven bottom.
• Remove the burner by losing
the screw placed in the front
and turning it up
• Unscrew and remove the injector and replace it with those
corresponding to the available gas (see table 1).
• Screw the burner and place the oven bottom and the internal
accessories.
EN
cooker
Fogoes-KGS2981-Kunft-Manual-3.indd 13 16/09/06 20:04

14
15
d) Regulating the primary air - oven burner only
• Turn on the burner for a few minutes at maximum.
• Loose the screw xing the burner with a screwdriver.
• Move the burner forward or backward until the ame is present
with a bluish colour, stable, without noise and without yellow tips.
• Tighten the screw to x the burner.
e) Low ow adjustment
• Turn on the burner and put the knob in
the Low Position.
• In this position, remove the knob from
the tap.
• Adjust the tap screw with a screwdriver
until the ame is conveniently regulated
to the low position and stable.
• Reassemble the knob and pass quickly from the Full On Position
to the Low Position, several times, to ensure that the ame
remains stable.
f) After connecting the unit, check for gas leaks with a soap and water
solution. Never use a ame.
g) Near the inlet gas connection, place a label indicating the type of
gas for which the appliance is now prepared. “Appliance prepared
for...”
How to Use the Gas Burners
If the gas supply is decient or if the ame is extinguished
accidentally, the gas circuit will be automatically closed. To restart
it, user intervention is necessary. In this case and after verifying that
there isn’t a gas supply problem, wait at least one minute and repeat
the lighting.
To ignite this type of burner it is necessary to maintain the knob
pressed for 10 seconds. After this time, release the knob of the
burner which must be in function.
Cooking Surface Burners
If you use the burners properly, the effect will be maximum efciency,
thus saving energy. The power of the burners is shown on table 1.
In order to obtain this, you must choose pans according to the size
of the burner (see table 2). If the ame is wider than the pan you are
wasting energy.
IMPORTANT - In models with triple burner, pay attention to this point:
place the middle cover spreader in the correct position and screw
down the cover spreader, to ensure good burning.
Fogoes-KGS2981-Kunft-Manual-3.indd 14 16/09/06 20:04

14
15
KGS2981
KGS3048
Ignition of the Hot Plate Burners
To ignite the burners, proceed as follows:
• Turn on a burner ame.
• Select the burner to use, push the corresponding knob and turn it
anticlockwise to the “full position”, indicated by a large ame and
keep the knob pressed for about 10 seconds.
• By the end of this time, release the knob and it should remain lit.
Otherwise, repeat the operation.
• To reduce the power, turn the Knob
to the “low position”, indicated by a
small ame.
• To switch off the burner, turn the
knob clockwise to the “off position”,
indicated by a black circle in the
upper position of the panel.
Gas Oven Burner
If you use the burners properly, the consequence will be a maximum
efciency, thus saving energy. To achieve this, during the oven
operation the oven door must rest completely closed. The power of
the oven burner is shown on table 1.
Ignition of the Oven Gas
To ignite the burners, proceed as follows:
• Bring a burner ame.
• Press the knob of the oven valve placed under the symbol □ and
tum it anticlockwise to the maximum position indicated by a large
ame and keep the knob pressed for about 10 seconds.
• By the end of this time, release
the knob and it should remain lit.
Otherwise repeat the operation.
• To reduce the power, turn the knob
to the “low position”, indicated by a
small ame.
• To switch off the burner, turn the
knob clockwise to the “off position”,
indicated by a black circle in the
upper position of the panel.
Recommendations for Use
• The accessible parts of the cooker can be hot if
the oven is in operation. Do not let children get
close to the appliance.
• Do not let children sit on or play with the oven
door.
EN
cooker
YES NO
Fogoes-KGS2981-Kunft-Manual-3.indd 15 16/09/06 20:04

16
17
• Do not use the open door as a stool to reach above cabinets.
• Pre-heat the oven until it reaches the temperature before placing
the food in the oven.
• Never use low-edged containers or trays such as
baking pans for roasts, in order to avoid soiling
the oven walls, thus preventing fat splashes,
sauce burning and smoke production.
• If the grease falls down into the oven burner it
could iname.
• When the food is placed directly on the grate, you
must place the collection basin.
• Never use the oven without the rubber seal.
• During the functioning of the oven, the oven door
must be completely closed.
• It is advisable to place the cooking tray on the
middle section of the oven.
• Avoid opening the door during cooking, since the temperature
changes will affect your cooking and increase energy consumption.
• The oven can be turned off a few minutes before the food is
completely roasted; the residual temperature will be enough for
completing the roasting.
• Before maintaining or cleaning the cooker, switch off the circuit
breaker, turn off the isolating gas valve or the gas mains and allow
the cooker to cool down.
• Adequate maintenance and cleaning will prolong the life of the
appliance, as well as ensure trouble-free service.
• Cleaning and maintenance procedures should be performed when
the appliance is cold.
• Never use scouring powder, steel wool or acids to clean the cooker.
• The stainless steel parts should be washed with water after use,
and dried with a soft cloth. If the spots still persist, it is necessary to
use a non-abrasive detergent or warm vinegar.
• Avoid scrubbing the front panel as this will erase the designs
stencilled over each knob.
• The enamelled grids of the knob can be washed in the dishwasher.
• The cooker must not be cleaned with steam cleaning equipment.
2.2. Maintenance
Gas Valves Maintenance and Cleaning
If the gas valve is hard to turn, do not force it. It might need lubrication.
This operation must be executed always by qualied and authorised
Fogoes-KGS2981-Kunft-Manual-3.indd 16 16/09/06 20:04

16
17
KGS2981
KGS3048
personnel. To access the valves, pull the burner heads and remove
the cooking top. To lubricate the valves, follow these instructions:
• Remove the cover with a screwdriver.
• Pull the cone out of its housing.
• Clean the cone with a dry lint-free cloth.
• Lubricate the cone carefully, with recommended grease (Molykote,
Staburgs N32, Rocol HT, Optitemp HT2 EP), and remove the
excess grease to avoid obstructing the gas passages.
• Place the cone and the spring and screw the cover.
• Turn the cone several times, to ensure it is not stuck.
• Check for gas leaks, with the tap opened and dosed. Never use
a ame.
Cleaning the Burners
• The burners should be cleaned with soapy warm water and well
rinsed and dried.
• Ensure that they are completely dry before use.
Cleaning the Oven
• The oven should be washed with warm water and a nylon pad
soaked in ordinary detergent.
• The oven has an “Easy to Clean” enamel, so no abrasive detergents
will be needed to clean it.

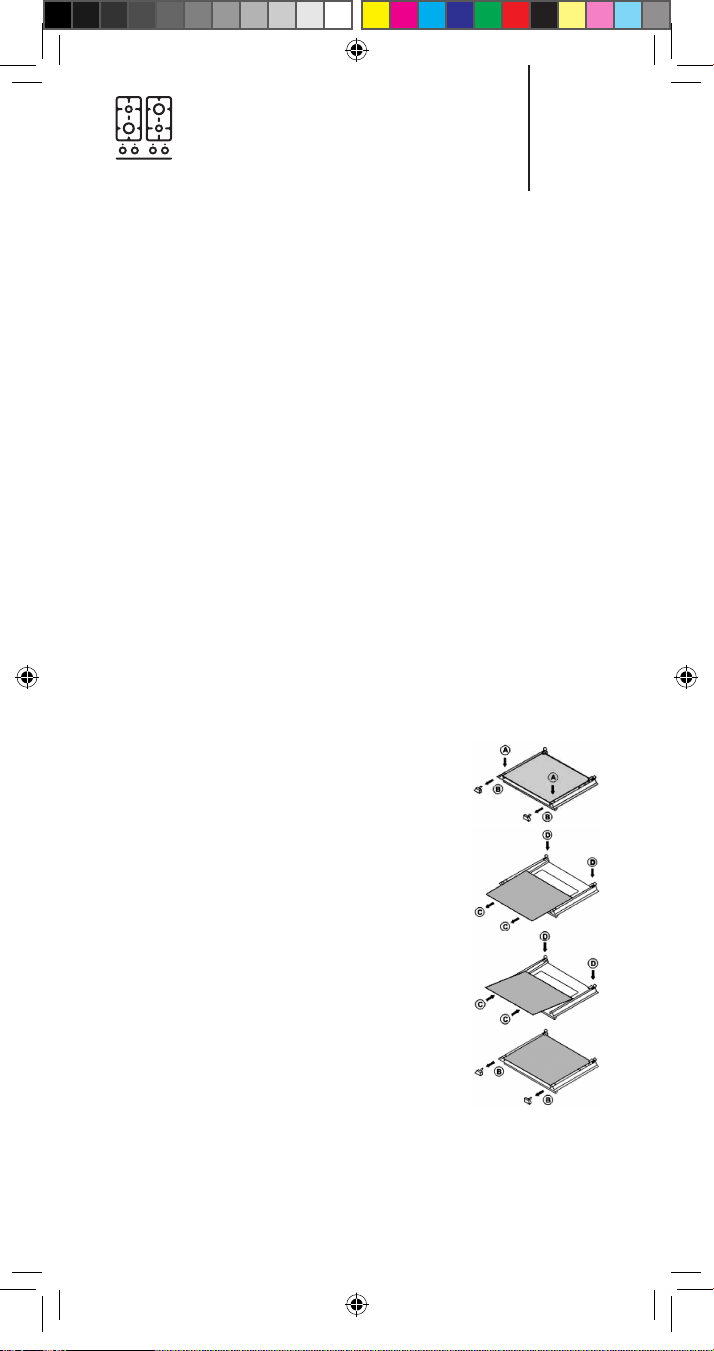

How to Remove the Interior
Glass of the Oven Door
for Cleaning
• Press the (A) point and remove the superior
tops (B).
• Release the interior glass (C) from the interior
tops (D).
• Remove the interior glass.
• Clean the glass with warm water and a nylon
pad soaked in ordinary detergent.
• Place the glass in the supports.
• Slide in the guide till it engages the groove (D)
of the interior tops.
• Insert the superior tops (B).
EN
cooker
Fogoes-KGS2981-Kunft-Manual-3.indd 17 16/09/06 20:04

18
19
3. TECHNICAL SPECIFICATIONS
Table 1 - Burners
GAS
Butane Propane Natural
Nominal working pressure, mbar 23-30 37 20
Nominal working pressure, mbar 35 45 25
Nominal working pressure, mbar 20 25 17
Power W (P.C.S.) Rate Injector Rate Injector Rate
Burners Normal Minimum g/h mm g/h mm L/h
Auxiliary 1000 500 73 0,50 72 0,72 95
Semi-rapid 1750 500 127 0,65 125 0,97 167
Rapid 3000 1250 218 0,85 215 1,15 286
Wok 4000 1500 295 0,100 236 1,50 314
Oven 2750 1100 200 0,80 197 1,20 262
Table 2 - Table of recipients
(Use pots with a flat base)
Recommended diameters (cm)
Burners Minimum Maximum
Auxiliary ø 42 10 16
Semi-rapid ø 62 15 22
Rapid ø92 22 28
Wok ø130 24 30
Important: The containers used must not exceed the edge of the
cooking surface.
Fogoes-KGS2981-Kunft-Manual-3.indd 18 16/09/06 20:04

18
19
KGS2981
KGS3048
Power (W) Models
BURNERS EE Burner % GAS
S 5050 BR S 5055 BL A
Auxiliary 67 1000 1 1
Semi-rapid 66 1750 2 1
Rapid 64 3000 1 1
Wok 61 4000 --- ---
Oven --- 2750 G G
Oven volume (I) 54 54
EE Gas Work table (%) 66 66
Maximum gas power KW (PCS) 10,25 8,5
Maximum consumption butane gas
- G 30 (g/h) 745 418
Maximum consumption propane gas
- G 31(g/h) 734 412
Maximum consumption natural gas
- G 20 (L/h - 1013 mbar, 15° C) 977 548
Dimensions: L x F x A mesa (mm) Cocker 535x565 x 850
Dimensions: L x F x A mesa (mm) Package 570x610x900
Weight: Net/Gross (kg) 45/48
EE Burner - EE Table - According with EU 66/2014
EN
cooker
Fogoes-KGS2981-Kunft-Manual-3.indd 19 16/09/06 20:04

20
21
4. POSTSALE SERVICE
KUNFT has designed this appliance in order to guarantee maximum
reliability. However, if a problem occurs do not attempt to open the
appliance - there is a risk of electrical shock. If you are not able to
solve the problem, please contact the Costumer Support Service
of any Worten, Modelo or Continente store in order to be assisted.
Worten Equipamentos para o Lar provides a 2-year warranty for
manufacturing defects from the date of purchase of the appliance.
WARNING: Any attempt to repair the appliance without contacting
the manufacturer or seller will void the warranty.
All users must be familiar with these instructions. Knowing what
could go wrong can help prevent problems from occurring.
5. ENVIRONMENTAL
PROTECTION
In order to protect the environment we strive to reduce
the volume of packaging used, limiting it to three easily
sorted materials: cardboard, paper and plastic. The
appliance is manufactured using recyclable materials
after disassembled by a specialized company. Please
comply with local regulations concerning the recycling of
all materials.
Fogoes-KGS2981-Kunft-Manual-3.indd 20 16/09/06 20:04
