DCS25 Manual
2
Table of Contents
General Description 3
Safety Precautions 4
Technical Data 8
Standard Accessories 9
Applications 10
Description of the Main Parts 10
Motor Top with Suction Motor and HEPA-lter 10
Motor Top with Alarm and Shock Valve 11
Collection Container and Collection Bag 12
Adjustment of the Telescopic handle 12
Mounting the Collection Bag 13
Mode of Operation 14
Assembling 15
Starting the BONA DCS25 and Collecting Dry Dust 15
Electrical Outlet with Automatic Start/Stop 15
Cleaning the Pre-Filter / Membrane Filter during Operation 17
(as needed or when the alarm beeps)
Emptying 18
Asbestos and Dust Hazardous to Health 19
Cleaning and Maintenance 20
Maintenance of the Motor Top 20
Change of Filters 21
Check and Replacement of the Membrane Filter 21
Replacing the HEPA-lter (item no. 84.67.5006) 21
Disposal of Used Filters 22
Troubleshooting 23
Declaration of Conformity 24
Disposal 25

DCS25 Manual
3
EN
General Description
BONA DCS25 is an industrial vacuum cleaner developed for
the collection of very ne and health hazardous dust. BONA
DCS25 meets the requirements for vacuum cleaners within the
industry and the construction industry today.
The machine is ideal for the collection of ne and health
hazardous dust, such as wood dust or dust from grinding/
sanding machines. The machine is also ideal for use in
connection with hand tools.
The user manual is to ensure a secure operation of the
vacuum cleaner, and to secure that the user is in no way
uncertain as to the use. The manual must be stored near the
vacuum cleaner. Does any uncertainty arise as to the use of
the vacuum cleaner or the material collected, the work should
be stopped until all questions have been cleared.
Pictures and drawings are for illustrative purpose and will make
the understanding of the manual easier. The pictures shown
may therefore be different from the actual.
• Teon-coated pre-lter (BIA dust class “M”)
• Filter cleaning during operation with back ush valve
• HEPA-lter (BIA/IFA dust class ”H”
• Protection level IPX4 (IEC 60 529)
• Satises the demands of EN 60 335-2-69 Annex AA, for collection of
health hazardous dust in dust class ”H”se H
• Electrical outlet with automatic start/stop
• Beeper alarm in case of too low air ow
• Soft start of motor
• Post-suction when using automatic
Before using the machine, please read this manual.
This user manual must be kept available for the operator at all times.

DCS25 Manual
4
Safety Precautions
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• The appliance is NOT approved for collection of ammable,
explosive, poisonous or extremely health hazardous dust,
uids or gasses.
• DO NOT USE THE VACUUM CLEANER WITHOUT A
PROPER GROUND CONNECTION. This vacuum cleaner
is designed to be used with a grounding connection, in
an installation with HFI or HPFI. The user is responsible
for ensuring that the wall outlet is grounded. The ground
connection of the plug must NOT be removed.
• BONA DCS25 must be connected to 230 V power supply.
Make sure that the voltage and safety fuse of the power
supply correspond with the data of the data plate and the
information given in this manual.
• BONA DCS25 may be used for collection of dust hazardous
to health according to CEI/IEC 60335-2-69 Annex AA, dust
class
• The appliance must be emptied after use.
• The user must ensure that the appliance is adjusted to the
task and that regulatory requirements are met.
• When collecting dust hazardous to health you must use
a collection bag, and disposal must comply with the legal
requirements for material (closed container, plastic bag etc.).
• Avoid damaging the supply cord. When replacing the supply
cord, only use an original supply cord (see the spare parts
list). The replacement must be carried out by an authorized
dealer or an equally qualied person in order to avoid
danger. Regularly check the mains connection for damage,
such as ssures or ageing. If damage is found, the supply
cord must be replaced before further use.
• The plug must be removed from the power supply before
repair and maintenance or cleaning operations.
• The mains socket of the machine is to be used only for the
purposes specied in the user manual.
• This machine is intended for commercial use, e.g. in hotels,
schools, hospitals, factories, shops, ofces and rental
businesses.
• Before use operators should be provided with information,
instruction and training for the use of the appliance and the
substances for which it is to be used, including the safe
method of removal and disposal of the material collected.
• For user servicing, the appliance must be dismantled,
cleaned and serviced, as far as is reasonably practicable,
without causing risk to the maintenance staff and others.
Suitable precautions include decontamination before
dismantling, provision for local ltered exhaust ventilation
where the appliance is dismantled, cleaning of the
maintenance area and suitable personal protection.
• In the case of class H appliances the outside of the
appliance should be decontaminated by vacuum cleaning
methods and wiped clean or treated with sealant before
being taken out of a hazardous area. All the appliance parts
shall be regarded as contaminated when removed from the
hazardous area and appropriate action taken to prevent
dust dispersal.
• The manufacturer, or an instructed person, shall perform
a technical inspection at least annually, consisting of, for
example, inspection of lters for damage, air tightness of the
appliance and proper function of the control mechanism.
On class H appliances the appliance ltration efciency
should be tested at least annually, or more often, according
to national requirements. The test method that may be
used for the verication of the appliance ltration efciency
is given in AA.22.201.2. If the test is not passed, it must be
repeated with a new essential lter.
• When carrying out service or repair operations, all
contaminated items, which cannot be satisfactorily cleaned,
are to be disposed of. Such items shall be disposed of in
impervious bags in accordance with any current regulation
of the disposal of such waste.
• The upper part of the motor top is not a dust proof
compartment, and when cleaning, the covers of this
compartment are removed by loosening the screws xing
the covers.

DCS25 Manual
5
EN
5
Safety Precautions
IMPORTANT!
The vacuum cleaner must not be started with covers removed
When the automatic start/stop is activated in connection with electrical hand tools, you must ALWAYS turn off the hand tools
before you turn off the machine.
IMPORTANT!
The motor top must not be covered when the vacuum cleaner is in use.
Does the safe use or maintenance of the appliance raise any questions; do not hesitate to contact either your dealer or BONA AB.
The product you have purchased is subject to Directive 2002/96/EC of the European Parliament
and the Council of the European Union on waste electrical and electronic equipment (WEEE)
and should not be disposed of as unsorted municipal waste. Please utilize your local WEEE
collection facilities in the disposition of this product and otherwise observe all applicable
national requirements.
Guidelines in Connection with Disposal of the Machine

DCS25 Manual
6
Safety Precautions
When using electrical equipment the necessary safety precautions must be taken in order to avoid the risk of re, electrical
shock and damage to persons. The below safety instructions are to be read and followed when the vacuum cleaner is being
used.
1. Keep the working area clean. Slippery and greasy surfaces
increase the risk of accidents.
2. Be aware of the surroundings.
Do not expose the vacuum cleaner to rain. Do not use the
vacuum cleaner in moist or wet surroundings. Do not use
the vacuum cleaner near ammable gasses or liquids.
3. Protect against electrical shock.
Avoid bodily contact with earthed building parts, such
as radiator, water pipes and the like and also electrical
appliances with their own earth connection.
4. Keep children and unauthorized persons away from the
workplace.
Do not let unauthorized persons touch the vacuum cleaner
or the supply cord. All unauthorized persons should be
kept at a distance.
5. Put the vacuum cleaner away, or make it ready for
transport after use.
Keep the vacuum cleaner in a dry place and inaccessible
to children.
6. Do not use force.
Do not use force when operating the vacuum cleaner.
Do not step on the hose, or the electrical cord.
7. Choose the correct tool, accessories for the task.
Do not use badly proportioned or light tools for heavy
tasks. Do not use tools for anything they are not intended
for.
8. Choose suitable working clothes.
9. Personal protective equipment.
Put on eye and/or ear protection, if necessary.
10. Protect the electrical cord.
Never carry the vacuum cleaner in the electrical cord.
Do not remove the plug from the socket by pulling the
electrical cord. Keep the electrical cord away from heating
sources, oil and sharp edges.
11. Choose a safe working position so that there will be no risk
of falling in the hose and cord.
12. Keep the machine and equipment in good repair.
Keep the vacuum cleaner clean and dry and follow the
instructions of the chapter about maintenance.
13. Cut off the electricity supply when the vacuum cleaner is
not in use.
Remove the plug from the socket before maintenance,
repair and when the vacuum cleaner is not in use.
14. If extension cords are used outdoors, they must be
approved for this.
If extension cords are used, the following guidelines must
be observed:
15. Show attention and be rested.
The vacuum cleaner must not be used, if the user is tired,
sleepy or sick or under the inuence of alcohol or drugs /
medicine.
16. Check for damage.
Check the vacuum cleaner for damage. Check that
the shields etc. have been properly fastened. Check
the electrical switches, and have an authorized service
mechanic replace them, if they are damaged. Do not use
the vacuum cleaner, if it cannot be started and/or stopped
at the switch.
Length of cord in
metres
Cross section
< 16 A < 25 A
Up to 20 m Ø 1,5 mm² Ø 2,5 mm²
20 – 50 m Ø 2,5 mm² Ø 4,0 mm²

DCS25 Manual
7
EN
7
Safety Precautions
BONA DCS25 is H-classied in accordance with the demands
of EN 60335-2-69 Annex AA for collection of dust hazardous
to health.
BONA DCS25 is furthermore in accordance with the
Machinery Directive (2006/42/EC).
Three labels are enclosed. One in Danish, one in English and
one in French.
The standard language of the label on the machine is German.
Therefore the label with the language of the country in
question is to be placed on the H-label, with the text as shown
above.
WARNING:
This appliance contains dust hazardous to health. Emptying
and maintenance operations, including removal of the dust
collecting means, must only be carried out by authorized
personnel wearing suitable personal protection. Operate only
after the full ltration system has been tted and checked.
H H

DCS25 Manual
8
Technical Data
8
The machine is connected to 230 V power supply.
The survey below shows the technical data of
BONA DCS25.
Make sure that the voltage and fuse of the power
supply correspond with the data of the data plate
of the machine and the data of this manual.
EU
Voltage
Suction motor
Power outlet, max.
Vacuum
Air volume, max.
*Suction power, max. ((P2)based on IEC 60312)
Filter area, membrane lter
Filter area, HEPA
Collection capacity (bag)
Height (max/min)
Length
Width
Weight without accessories
Container coupling
Length of supply cable
Noise
Based on ISO 11201
Machine pressure level : uncertainty KpA=3dB
(Measured only as machine)
Based on EN 60704-1:2010 and EN60704-2-1:2001
Max. Sound Power Level LWA=
uncertainty KWA=3dB
(Measured with hose, pipes and oor accessory)
Vibrations
230
1450
2000
3000
29,5
54
194
450
0,12
1,1
16
1070/830
550
500
20,5
Ø 50
8
< 70
< 85
≤ 2,5
Volt
Watt
Watt
mmWS
kPa
l/s
m3/h
W
m2
m²
l
mm
mm
mm
kg
mm
m
dB(A)
dB
m/s²
*Data of the machine with 4 metres ø 38
In connection with extraction from tools (dust extractor) it is necessary to ensure a sufcient
rate of air renewal (L) in the room. According to the instructions from The Danish Working
Environment Service, recirculation of extracted air is forbidden.
Please refer to national regulations.

DCS25 Manual
9
EN
Standard Accessories
BONA DCS25 is delivered with a complete set of accessories including tubes, hose and all the necessary nozzles.
You can reorder the accessories using the following product numbers:
1. Accessories set XX.XX.XXXX
2. Kunststoffschlauch – 7,5 m XX.XX.XXXX
3. Crevice nozzle 80.34.4007
4. Floor nozzle B-370 84.38.3620
5. Straight tube (two pcs. per set) 80.52.3651
6. Bent tube 80.52.2150
1
2
4
3
6
5

DCS25 Manual
10
Applications
BONA DCS25 is a vacuum cleaner in accordance with DS/EN
60335-2-2 and CEI/IEC 60335-2-69 Annex AA class H and
may only be used as such.
BONA DCS25 may be used for collection of dust hazardous to
health according to CEI/IEC 60335-2-69 Annex AA dust class.
BONA DCS25 may not be used for collection of uids or moist
dust.
BONA DCS25 may not be used for collection of ammable,
explosive, poisonous or other dust, uids or gasses hazardous
to health.
BONA DCS25 may only be used in dry environments and
may not be used or stored outdoors or indoors under wet
conditions.
The capacity of a vacuum cleaner to suck vacuum depends
on the air. Theoretically, the suction capacity will fall when the
vacuum cleaner is used at altitudes. The suction capacity of
the vacuum cleaner will be constant from 0 to approx. 800
m above sea level. From 800 to 2000 m the suction capacity
will theoretically fall to approx. 75%. It is not recommended to
use the vacuum cleaner at more than 2000 m above sea level,
as the cooling and the suction capacity will be considerably
reduced.
BONA DCS25 is designed as a handy and compact industrial vacuum cleaner for collection of fine dust and dust
hazardous to health.
The motor top is equipped with suction motor, an integrated handle, switches for the suction
motor and the built-in automatic start-/stop.
Description of the Main Parts
Motor Top with Suction Motor and HEPA Filter

DCS25 Manual
11
EN
Description of the Main Parts
The powerful suction motor of BONA DCS25 is placed in the motor top.
The lter block the ne and smallest dust particles, which have not been held back by the
membrane lter. The lter holds back the particles larger than 0.3m (0.0003 mm). Filter
surface: 1.1 m².
To get to the HEPA lter, the pre-lter / membrane lter must be removed.
The motor top is equipped with a shock valve for cleaning the pre-lter, and an acoustic
alarm, which will beep when the air ow is too low (<20 m/sec).
Electrical hand tools can be connected directly to the BONA DCS25.
(MAX 2000 W)
Motor Top with Alarm and Shock Valve

DCS25 Manual
12
Description of the Main Parts
Collection Container and Collection Bag

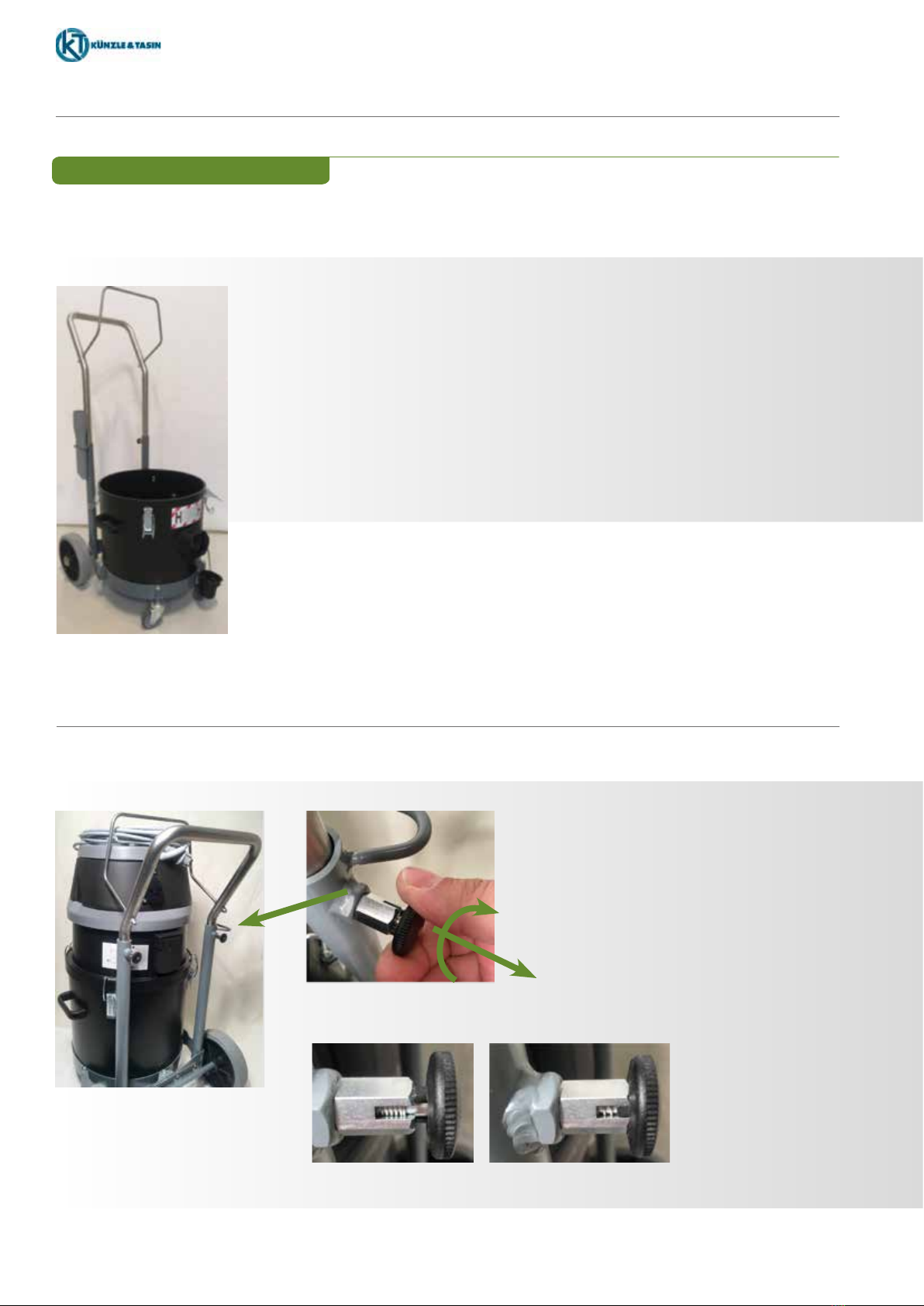

The collection container is equipped with a telescopic steering handle and 2 swivel wheels.
The collection container contains the collection bag where the material is collected, which
facilitates the emptying and disposal of the material collected.
The collection bag cannot be lled entirely when very ne dust is collected (eg. cement, stone
grinding etc.).
When collecting dust hazardous to health you must pay attention to the requirements as to
disposal of the collected material (Closed container; plastic bag or container). The demands as
to packing of the material collected may vary.
To use the telescopic handle – pull and turn
to release the position bolts on the rear side
of the frame. The handle can be adjusted –
pulling up-wards or pushing down-wards.
To lock the position bolt, and lever – turn the
bolt-head until it “clicks” into locked position,
then adjust the handle until it “clicks”.
Open Locked
Adjustment of the Telescopic handle

DCS25 Manual
13
EN
Mounting the Collection Bag

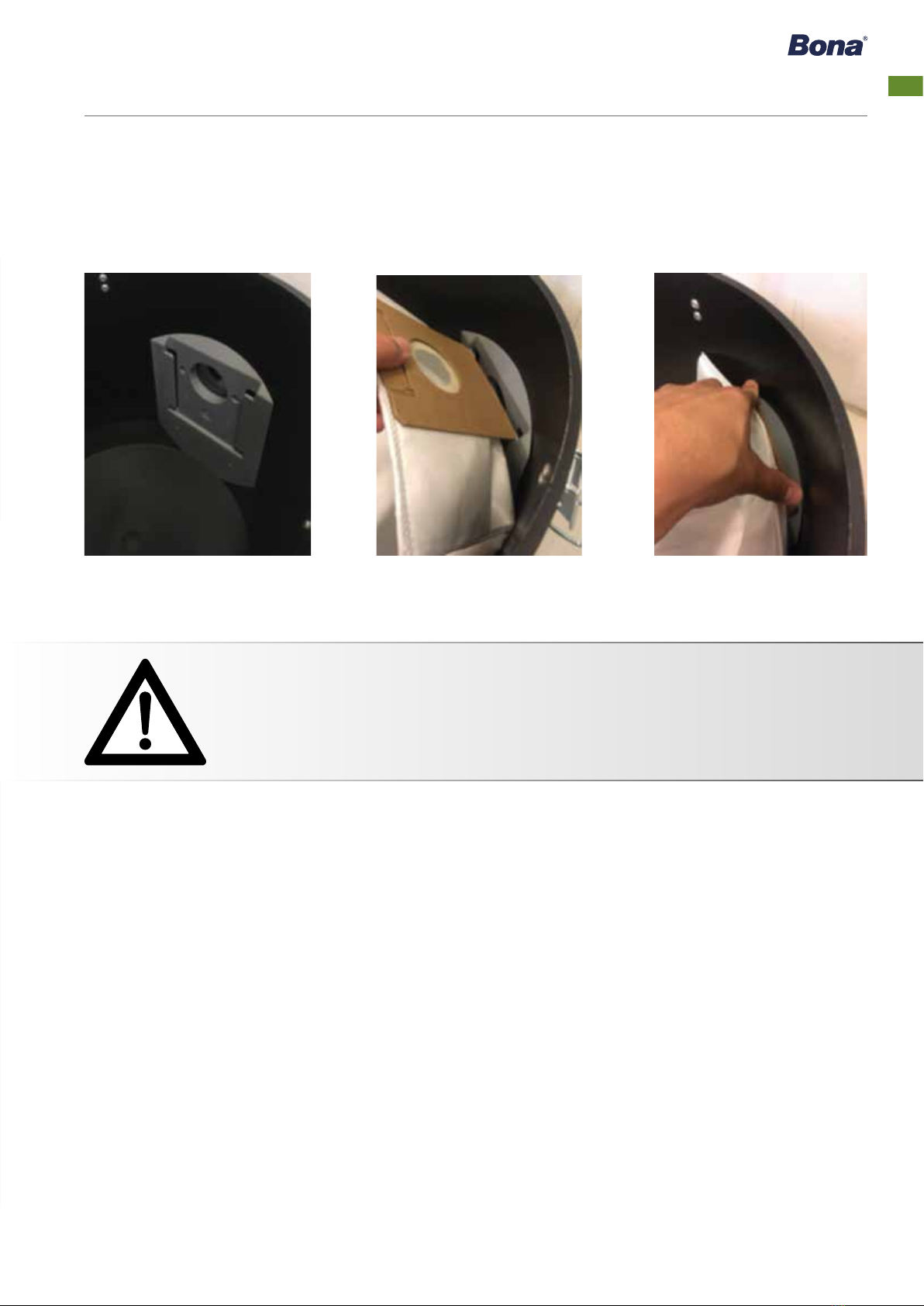

The collection bag is easily mounted into the bag holder by pushing the flange of the collection bag into the
slot of the bag holder.
IMPORTANT!
DO NOT USE THE VACUUM CLEANER WITHOUT COLLECTION BAG!

DCS25 Manual
14
Mode of Operation
When the suction motor of the machine is on, the air will be led
through the machine and will collect the dust particles near the
nozzle mounted.
The dust particles will be sucked through the hose into the
collection container, where the majority of the particles will
be held back in the collection bag and/or the pre-lter /
membrane lter.
The air ow and the remaining particles, which have not been
held back inside the collection bag or the pre-lter / membrane
lter, will be carried forward to the HEPA lter.
From the HEPA lter the puried air ow will continue through
the suction pump (blow through) and will be led out of the
vacuum cleaner through the exhaust and noise reduction
lters.
IMPORTANT!
As the motor leads the cooling air through the machine,
all filters MUST be mounted and intact
IMPORTANT!
Never cover up the motor top when the machine is in use.
IMPORTANT!
Never collect warm or glowing materials.
IMPORTANT!
Never collect warm or glowing materials.

DCS25 Manual
15
EN
Assembling
Starting the BONA DCS25 and Collecting Dry Dust
• Unpack BONA DCS25 and check that all the ordered parts
are there.
• Unpack BONA DCS25 and check that all the ordered parts
are there.
• Make sure that the collection container is empty, and that
the pre-lter / membrane lter is correctly tted into the
motor top. Check that the lters of the machine are intact
and undamaged (see the chapter:“Change of Filter”)
• Check that a collection bag is mounted in the container.
• Before the plug is connected to the electrical main
supply you must make sure that the plug and the cord
are undamaged. If the cord or the plug is damaged, a
professional must replace the parts. Only an original cord
may be mounted.
When the machine has been correctly assembled and

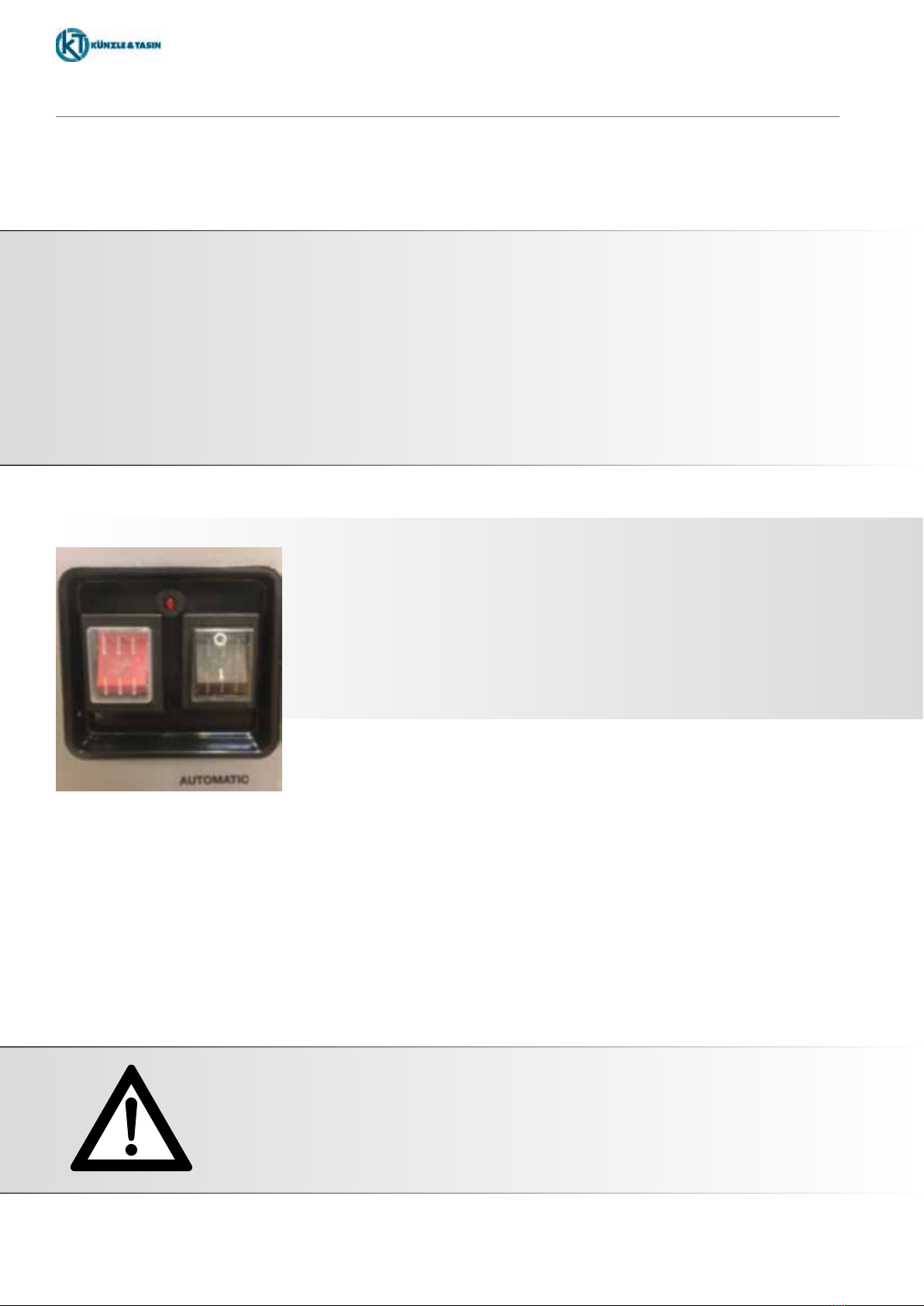

connected, it can be switched on and off at the red start/stop
switch of the motor top. The machine has been equipped with
an acoustic and a visual alarm indicating when the air ow is
too low for collection.
BONA DCS25 is equipped with an automatic start/stop and electrical outlet. If you
connect electrical hand tools directly to the power outlet of the motor top, the BONA
DCS25 will automatically be switched on and off when the hand tools are switched on
and off.
The automatic start/stop is programmed with a post-suction cycle. Therefore, the
suction will continue for some seconds after the tool has been switched off.
The electrical tool is connected to the electrical outlet at the back of the motor top.
• Connect the machine to 230 V power supply with a reliable
earth connection.
• Remember to place the label onto the H-label, if the
language of the user is not German.
• BONA DCS25 is now ready for use. The collection is
described in details in the following chapter.
This alarm has to be checked before use: Block the intake at
the end of the hose, and the machine will start beeping, and
the LED will ash. Unblock, and the alarm will stop.
Electrical Outlet with Automatic Start/Stop

DCS25 Manual
16
Starting the BONA DCS25 and Collecting Dry Dust
NOTE:
If hand tool with a power consumption of more than 1500 W is
connected, the total current consumption will exceed approx.
13 A, which is often the normal fuse size.
ALWAYS turn off the hand tool before you turn off the machine on the switch.
Automatic start/stop “O” = the automatic start/stop is not activated. The vacuum cleaner will start when you set the main switch
(red) on “I”.
Automatic start/stop “O” = the automatic start/stop is not activated. The vacuum cleaner will start when you set the main switch
(red) on “I”.
When the automatic start/stop is activated “I” and a hand tool is connected to the electrical outlet, the machine will start when
the hand tool is started.
BONA DCS25 can be used with tools with a power
consumption of 2000 W (Country code EU). 1450 W
corresponds to a current consumption of approx. 6,3A.
Information can be found on the data plate of the
machine.
The automatic start/stop is activated with the black switch on the motor top. When
the automatic start/stop is activated, the machine will not start when you push the
red switch. The machine will not start until the connected hand tool is started.
Set the red switch on “I” to start the vacuum cleaner (when “Automatic” is not
needed or no tool connected).

DCS25 Manual
17
EN
17
Starting the BONA DCS25 and Collecting Dry Dust
1. Block the intake / Block the hose.
Take hold of the ap of the shock valve.
2. While the machine is blocked and running, pull the ap of the
shock valve (do not tug the valve).
3. When the power grows bigger than the inuence from the
vacuum, the valve will automatically open with a “puff”. Let go
of the valve.
Cleaning the Pre-Filter / Membrane Filter during Operation (as needed, or when the alarm beeps)
Block the intake / hose so that full vacuum is made in the machine.
Repeat the steps 1-3 approx. 2-3 times when cleaning.
The difference in pressure / the shock effect will clean the
surface of the lter, when air is drawn through the valve in
order to equalize the negative pressure in the collection
container and the hose, and will reject possible deposits from
the pre-lter and release collected media from the inside
surface of the collection bag.
This method gives an effective cleaning of the pre-lter /
membrane lter.
We recommend to always leave the machine for a few
minutes before emptying it. The dust will fall to the bottom
of the collection bag, and the risk of swirling dust into the
surroundings during the emptying is reduced.
If – by mistake – the machine has been used without collection
bag, use PPE when emptying the machine.
NOTE:
Do not ”tap” on the intake as this will swirl up the dust in the
container and result in blocking of the pre-lter and damaging
the collection bag.

DCS25 Manual
1818
Emptying
The BONA DCS25 collects the material in a collection bag (if collecting dust hazardous to health, a collection bag with a plastic
sack must be used)
REMEMBER:
Disposal of dust hazardous to health must take place in accordance with the national regulations.
REMEMBER:
Always empty the machine after use.
You must make sure that the dust and material collected cannot fall out of the machine during transport.
Reordering collection bags:
Reordering collection bags:……………………………………………………………xx.xx.xxxx
Has the machine been used for dust hazardous to health you MUST wear personal protection equipment (PPE) when emptying
and handling the machine.
Always empty the machine after use.
• Loosen the four container clips attaching the motor top to
the collection container and remove the motor top.
• Place the motor top upon a dry and clean surface.
• Close the collection bag.
• Now you can dispose of the collection bag.

DCS25 Manual
19
EN
19
Emptying
Asbestos and Dust Hazardous to Health
Always check up on the local/national regulations in the area
where the work is performed.
Always examine how the disposal is to be packed/wrapped
up. It might be different from place to place. Usually the
following is mentioned:
Close-tting packing, Drum/vat with cover
Plastic bag min. 100 μm.
Collection of dust hazardous to health must always take place
in collection bag. The collection bag must be removed from
the machine and disposed of in accordance with the national
regulations.
Always mark the materials and waste according to the national
regulations.
If the machine has been used for asbestos, the machine must
be disassembled and cleaned before it is used in a clean
environment.
The machine must be emptied, cleaned and packed before
transport. Mark the packing according to the national
regulations.
The machine must be transported in a min. 120 μm plastic bag
or other tight-tting packing.

DCS25 Manual
2020
Cleaning and Maintenance
Read the chapter about safety precautions before cleaning and maintenance.
The easiest way to clean the machine is as follows:
• The Pre-lter is cleaned as required.
• Wipe the machine on the outside with a dry or damp cloth.
The motor top is made of maintenance-free parts and
therefore needs no daily maintenance, apart from external
cleaning and check that the cords and plugs are undamaged.
The easiest way to clean the motor top is with a damp cloth.
Do not aim jets of water directly at the motor top.
In order to avoid stop in operation and also to make sure that
the safety of the vacuum cleaner is intact, it is recommended
that the electrical parts are inspected annually by an
authorized technician.
It is recommended to have an authorized service centre
inspect the motor bushings of the brushes after approx. 800
working hours, and if necessary, replace them. In this way the
life of the suction motor is prolonged.
If the brushes are not replaced before being completely
worn out, the motor may seize up, and this may require a
replacement of the motor.
Check / maintenance of the machine
The machine must always be emptied after use. If the
machine is left with dust, there is a risk of self-ignition.
Reordering of filters and service parts
IMPORTANT!
The machine must not be connected to the
power supply during service and cleaning.
Maintenance of the Motor Top
Description Before/After use Month/year Hours
Check/replacement of brushes 750–800
Check of HEPA lter and machine yearly
Emptying and cleaning After use (as required)
Check of lters and machine, generally Before use
Check of cord, plugs and outlet for tools Before use
Check of alarm (beeper) Before use
Brushes XX.XX.XXXX
Pre-lter / membrane lter 84.67.xxxx
HEPA lter 84.67.5006
Collection bags 84.64.0333
