INTRODUCTION
1
THESE INSTALLATION INSTRUCTIONS ARE INTENDED
FOR USE BY QUALIFIED TNS1I"ALLERS.
I
a Inthe United States, in accordance with the National Electric
CodejState and Municipal codes and/or local codes.
In Canada, in accordance with the Canaclian Electric Code
C22.1 -latest edition/Provincial and Muniicipal codes and/or
local codes.
Pfeiase read these ins&Ifation instmcrtions csmp~ktefyandc;arefut~lp.
They will save you timeandeffortandhelptoensurec~ptimumdishwasher
performance.
Be sure to observe all ltisted
warningsandcautions. (Lookfor
--
thetriangles with exclamation marks
inside.)
*. NEWITNSTALLPImON - If thedishwasher is a newinstallation, most of thework
must
be done before the dishwasher is: movediktto place,
*
REPLACEMENT - Ifthedishwasher isreplacinganotherdishwasher;the
connections for thedishwasher beingreplaced
mus'rl:be check(leafor
compatiItiIi~withthenewdishwasherandreplacedas necessary.
INSPECT THE DISHWASHIER
After unpacking the dishwasher and prior to installatioin, thoroughly inspect the
dishwasherfor possiblefreightor cosmeticdefects. Reportany defectsimmediately.
Cosmetic defects mustbereportedwithin
30 daysofinst:;$ilation.
NOTE: Please do not discard any bags or items thatcome withthe
originalpackageuntilaftertheentireinstallation
has beencompleted!
2 - ENGLISH

TOOLS & MATERIALS NEEDED
Took Needed far f nstalfation
Pipe wrench, 2 reqd.
Adjustable wrench,
(size
med., 2 reqd.)
Hammer
Tape Measure
Wire Cutter
Hale saw or I" hole cutter
Sliottcxl screwdriver (#2)
c=z2zz=<3
Phillips screwdriver (#2)
-==>
Tax screwdriver, #20
I
Figure I
Materials Needed
Electric anne~on a- 2 conductor, I ground
1
insulatedelectricalsupply cable (30" or
sufficientlength
for ytr~rrinstaltation).
Hot Water Supply Line - Minimum 3/8"
O.D. coppertubingor nnetal braided
. .
dishwashersupply tine.
I
-.
3
;@:\j 2,
_
Shut-offvalveandfittiin~gsfor hotwater
C supplyline.
Z
,'"->*
90° elbow with 3/8" N.F!T, externa t threads
4 py
ononeendand sized tcr fit your water
.% 1
supply lineontheotherend.
Teflontapeorother
pipe threadcompound
which helpsealptumbii~gconnections.
6
3 twist-onwireconnectl~t-sfor 16 AWG
wire.
7
UL listedconduitconnectoror strain relief.
I Additional mat&& may ire required to cOmprf with local codes*
/
Figure 2
ENGLISH - 3

MATERIALS SUPPLIED
Acessory Parts Suppltied
Accessory Parts for your model dishwasher
will come inone or more plastic bags. Check
to make sure that th parts suppliedfor your
model are all there. See Figure
3. Ifany
parts are missing contact your dealer
immediately.
KB MODEL Dishwasher
lnstallatiavl Ki%
B. Toe Panel Screws (8mm) (2)
C. Mounting Brackets (1L & 1R)
D. Mounting Bracket Screws (2)
E. Rubber Connection Hose (1)
and Drain Hose Clamps (2)
A. Cap (2 Blk)
I. Wood Screws (2)
6. MountingDoor Brackets (2 plastic)
w/Screws (4) and;
MountingDoor Brackets
(2 metal)
w/Screws (4)
F. SpringTension Screw (2)
Manual Bag
All Dishwasherscome with a manual bag.
The following contents are located in every
bag:
e Use & Care Manual
e InstallationInstructions
3. Tall ItemSprinkler (I)
M SHV InstallationTemplate
I
Nofez ~i~tues are not to sc&e,
Figure 3

CHOOSING 14 LOCATION
Choosing the Location
Select a location as close to the sink as
possiblefor ready access to water anddrain
lines.
Mostof the installationwork is done
before
the dishwasher is moved into place. 3 ,b
,I crl"(102mm)
Any built-in dishwasher must be fully Ftgure4
enclosed on the lop, both sides and back.
'Therefore the cabinet space below your
NOTE: mis ,c[imension will vary by model
counter is probably the best facation. due to contra! panel differences.
imensians
I --
Table 1 - see Figure 4
Cabinet Opening Dimensions - c
Figure 5
I
23 518" - 24 118"
(600-61 3 mm) min.
C 1 Depth 1 24 " (610 rnmf min. I
Tabre 2 - see Figure 5
For properoperationandappearance ofthe
dishwasher, the cabinet opening should be
square and have dimensions as shown
in
Figure 5.
Ifthe dishwasher is to be installed in a
----I----
.:-
1 .:: .:
::.
; .:< ..:
1 '.!:*.:
Dishwasher I:<<;
I ..: :....
1,:. .
' .:*
....
, 5:.*-
I ..::..;
- - .. --- - --
I I::....
position
corner, make sure there is adequate clea-
L--
t
-- -
rance to open the door. See Figure 6.
Figure €5
ENGLISH - 5

PLUMBING PREPA ION
* ATTENTION withthe Kt3 Dishwasher
Danger of tipping when opening thedoor,
ifthe dishwasher is not an undermunter
model. Only remove the coloredstyrofoarn
pieces on thefront side of the dishwasher,
when
it has been safely pushed into place,
Drain Hose
The dishwasher comes with a seven (7)
foot drain hose.
A 1.25" access hole must be madeto
allow
the drain hose to be runto the
drain connection location.
Not Water Supply
-- -
*
The hotwater linetothe dishwasher
mustprovide between5
- 120 psi (0.3-
8.27 bars) water pressure.
The hot water heater should besetto
deliver 140°F (60°6) water
temperature tothe dishwasher.1
A 3/8" minimum O.D. copper tubing
inlet line is recommended.
All solder connections w)ust be made
befoe water line is nonnectedtothe
dishwasher's inletwater valve.
DCP nu&
sofder within 6 inches {25Zs4mmf
af the dishwasher% inlet water
vaIve.
Drill a 1" (25.4 mm) diameter access
holeinthe cabinetfor thewater supply
line (Figure 9A).
Run the line to the approximate fill
valve location, as shown in Figure 9A.
It is recommendedthatashut-offvalve (not
supplied) be installed in the hot water
supply line in a readily accessible location,
see Figure 9.
To protect against possibleruptureof
the
fifl valv~e,water lines leading to
the dishwaslher, as well as water lines
inthe dishwasher MUST be protected
againstfreezing.
IF the vaive or water
tinefreezes, ,Floodingmay occur. Such
ruptures
ar-e not covered by the
Ifae fs sura iuata e sin$ or disposes,
the drain Ifna must be dewat& to
---
NOTE: Ifconnection to an air gap is
required
by local code, air gap kits are
available fronrl
local plumbing sources.
Install the air gap according
to the
manufacturer?;instructions.
4
line Electr~~cal supply cable
Figure7
1. In order tu reduce runningtime, Kiiippersbuschuecamma,nds 140" F waterInlet
tmperaturk, Your dishwasher will perform equaliy as lwell at 120' F water
temperature,
but the runtime wnll be extended.
6 - ENGLISH

-- -- -- --- --- -
----
- ---
Electrical Supply
It is the custornerrsresponsibilityto insure
that the dishwasher installation is
in
compliance with all national and local
eIectrical codes and ordinances. The
dishwasher is designed to operate with
a
120V, GOHz, AC only electrical supply.
Connect to a separateelectricalcircuitwith
afuse or circuitbreaker ratedfor
15 Amps.
A 20 Amp fuse or circuit breaker may be
used ifthe dishwasher
is connectedwith a
faod disposer, but not morethan 2!O Amps.
Electricalsupply conductorsshall be copper
Table
and shall be minimum 16." The dishwasher
should
be properly grounded, positioned
--- --
, as shown inFigure 9, andshould beinstalled
I by a qualified electrician. No other
Opningsfor eiectrieal lines must be
appliances or outlets should be connected
installed iri the marked areas as
to this circuit.
shown in Filgures 8 and 9 to avoid
interference with the dishwasher
frame or other components.
Cut a 1 " (25.4mm) diameter hole inthe
cabinet(in area of Figure
9 B). Farwood
cabinets, sand the hole until smooth.
For metalcabinets, cover the
edge with
a grommet.
9 Runflexiblecable(as codes permit)from
junction through hole in cabinet. Cable
should extend
30 (762 mm) from back
wall.
7-
/ Hot water supply line Eledric supply cable 1
. ---- ---
Figure 9

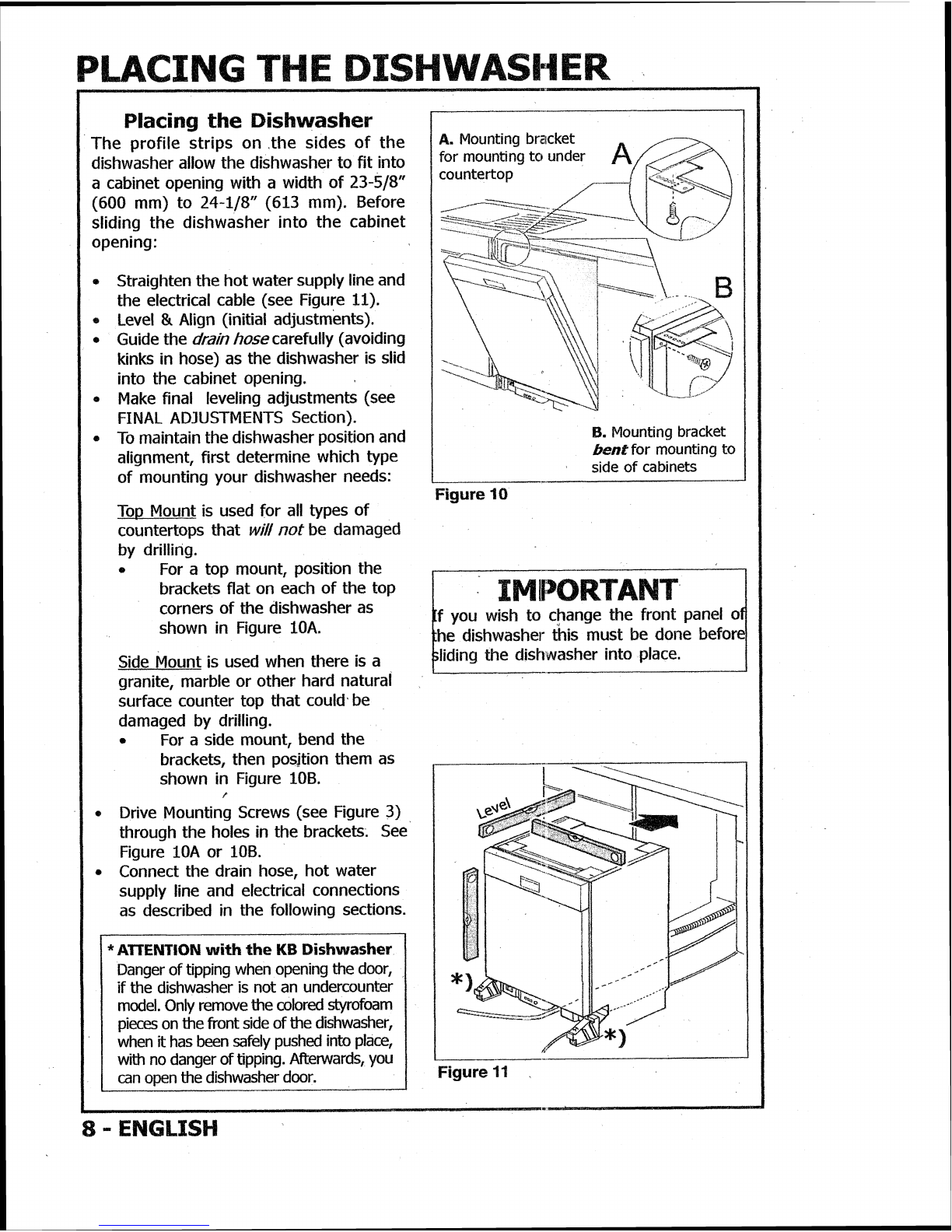

PLACING THE DISHWASHER
Placing the Dishwasher
The profile strips on the sides of the
dishwasher allow the dishwasher to
fit into
a cabinet opening with a width of
23-5/8"
(600 mm) to 24-1/8" (613 mm). Before
sliding the dishwasher into the cabinet
opening:
Straightenthe hotwater supplylineand
the electrical cable (see Figure
11).
Level & Align (initial adjustments).
0 Guide the drain hose carefully (avoiding
kinks in hose) as the dishwasher is slid
into the cabinet opening.
o Make final leveling adjustments (see
FINAL ADJUSTMENTS Section).
To maintainthe dishwasherpositionand
alignment, first determine which type
of mounting your dishwasher needs:
TODMount is used for ail types of
countertops that
wig not be damaged
by drilling.
0
For a top mount, position the
brackets flat on each of the top
corners of the dishwasher as
shown
in Figure 1OA.
Side Mount is used when there is a
granite, marble or other hard natural
surface counter top that could-be
damaged by drilling.
0 For a side mount, bend the
brackets, then positionthem as
shown
in Figure 109.
f
Drive Mounting Screws (see Figure 3)
through the holes in the brackets. See
Figure IOA or
1OB.
Connect the drain hose, hot water
1
supply line and eiectricai connections
1
as described in the following sections.
* ATTENTION with %he KB Dishwasher
Danger of tipping when opening the door,
if the dishwasher
is not an undercounter
model. Only removethecolored styrofoam
pieces on the front side of the dishwasher,
when
it has been safely pushed into place,
with no danger oftipping. Afterwards, you
an open the dishwasher door.
-- i
A. Mountingbracket
B. Mounting bracket
befit for mounting
side of cabinets
Figure 3 O
f you wish to change the front panel
he dishwashel. this must be done befo
into place.
Figure 11
8 - ENGLISH

fN HOSE CONNECnON
b
Sesm to fo//owyorsrna%210na/
and focaf codis at a# time,
Drain Hose
Before beginning, turn off the water
supply!
Theaccess holeforthedrainhoseshould
be
1.25" (32 mm) diameter.
* Use the hose clamps and rubber
connection hose (Figure
3) to connect
the drain hose to the sink, disposer or
air gap (Figure
14).
Openings for drain lines must be
installed in the marked areas as
shown in
Figures 8 and 9 to avsid
interferencewith the dishwasher
frame
or other components.
-
Figure13
Drain Hlose
Connected
to Sink
Failure to provide the proper drain
connection height,
20" (508mm)
abcrve floor level with high loop or
air gap, will result in improper
draining of the dishwasher.
Improper draining
may cause
damage to
the dishwasher.
Figure 14
ENGLISH - 9

HOT WATER CONNECTION
ConnezGting the Hot Water
Supply Line
Ifusing a solder joint instead of a com-
pression fitting;
be sure to make a//
so/der connections before connecting
the wafer line to the disf7washer.
Make sure there are.no sharp bends or
kinks in the water line which might
restrict water flow.
When connecting threaded pipeuse pipe
thread compound or Teflon tape to seal
the connection.
Before connecting the copper hot water
supply line to the dishwasher,
it should
be flushed with hot water to clear any
foreign material.
* Apply Teflon tape or other pipe sealant
ta 9Q0 elbow fitting and connect
directly to water inlet valve (located at
the bottom front of the dishwasher)
0 Turn on the water supply to check for
leaks after making connections.
Openings for water lines must be
installedin the marked areas as shown
in Figures 8 and 9 ts avoid
interference with the dishwasher
frame or other components.
* See Figure 15 and 16- wafer inlet
vak and 90° elbow
(located at the bottom front left-
hand side of the, Dish washer.)
Water
inIet
valve
DO NOT SOL.DER WITHIN 6 INCHES
(152.4 MM) OF THE DISHWASHER'S
INLET VALVE!.
TEMPERATCiiRES REQUIRED FOR
SOLDERING WILL DAMAGE THE
VALVE!
Figure 16
10- ENGLISH "

.ELECTRICAL SUPPLY C:ONNECTION
Connecting EIectrica! SuppBy
Be stcre to fo//owaf/ focal and nab%-
na/ e/ectrica/codesand ordinancesS
Instatl strain relief or conduit connector
into opening on J-box.
(I Strip the insulatedwires, beingextremely
careful not to strip too much insulation.
Insert and securely fasten into strain re-
lief, two-conductor supply cable with
ground.
Twist wire connectors
fiqhfly onto the
wires, ensuring that no bare wiring is
exposed (from insulated wires).
* Press wires back into J-box
Securely fasten the J-box cover or toe
panel (depending on model) with
screw(s) provided from accessories
package.
Graunding Irsstruclti~las
This appliance must be connected to a
grounded metal permanent wiring system;
or
an equipment grounding conductor
must be run with the circuit conductors
and connectedto the equipment grounding
terminai or lead on the dishwasher. The
dishwasher must be properly grounded
before operating.
Make sure that the
dishwasher is connected to a suitable
ground in compliance with the NATIONAL
ELECTRICAL CODE, in the United States,
or the CANADIAN ELECTRIC CODE
C22.1-
latest edition, inCanada as well as any pro-
vincial/state or municipalor localcodesthat
apply.
* DIS@ONl"dEGTELECTRICAL POWER
AT THE (I:IRCUIT BREAKER BOX OR
FUSE
BliX BEFORE INSTALLINGTHE
DISHWASHER.
* ELECiRI ZACLY GROUND DISH-
WASHEl,..
* USE COIPPER CONDUCTTQRSONLY
FAILURE. TO FOLLOW THESE
INSTRUl TIONS COULD RESULT IN
SERIOU! INJURY OR DEATH.
Correct C:;3nnection in Juncfigbsr BOX
Black to Black
Wh~te toWhite
Green or
Bare
U.L. Lsted
Connector
r--. - -- ----*,A
!__ - - I
Figure 17
Incorrect l2onnection in Junction BOX
I--
-- -. .
Figure 18

DOOR PANEL INSTALLAT
Accessory Panel Installation
If you have have ordered an accessory pa-
nel kit
it must be installed prior to sliding
the dishwasher into place. Dimensions
of
panel size that may be used is shown ina
Figure 19.
Panel Installation,
IGWSti69
Figure 19
For the integrated Kuppersbusch model,
you wilt have mounting hardware and a
folded template sheet with installation
instructions comprised of pictograms.
Use thetemplate provided
to mountthe
panel. Be sure
of what type installation
you want before proceeding with the
installation.
RefertoFigure
20 andTable 3 for guide-
linesoncustom door panelselections.
IW PORTANT
Do NOT Drill Completelythrough
your custom door panel.
Figure 20
KB MODEL F
/I6 - 23 318"
81'9 - 594 mm)
Table 4

FINAL AE jJUSTMENTS
DoorTension Adjustment
After installation of the dishwasher, open
and close the door several times to make
sure that it does so with ease. Ifthe door
closes too quickly or if the door falls open,
the springtension needs to be adjusted.
To Adjust the Spring Tension
Obtain Spring Tension Screws (2) out
of the parts bag (see Figure
3).
e
Insert the screws in the right and left
sides andadjustspringtensionasshown
(see Figure
21).
bgular Toe Pane!
Snstallation
* Obtain the Toe Panel Bracketsand the
Screws Toe panel Bracketfrom the
Dishwasher Installation Kit
bag
(see figure 3).
* Insert screwsthrough the Toe Panel
Bracket.
* With a Tom, screwdriver, fastenscrews
and the
Toe Panel Bracket ontothe
dishwasher base.
Obtain Tbe Panel Screws from the
Dishwasher Installation Kit bag (see
Figure
3).
Figure 21
Insert screws through the Toe Panel.
]-_I
Figure 22
With a TOM screwdriver, fasten screws
and toe panel into dishwasher base.
Leveling the Dishwasher
Raising the Rear
The rear levelingleg is adjustedby turning
the center screw at the front of the
dishwasher.
Raising the Fr0Pr.e
The front leveling legs are adjusted by
rotating the leveling legs on the front left
and right sides of
the dishwasher.
- Use a screwdriver and tap the end lightly
with a hammer to turn the legs (see
Figure
23). -I
Figure 23
i Noti: If additionat height is needed.-
Shims may be added "her the /eveler feek
I
I IUL ULLCI I IVL LU I Cud11 ~rlt: UIJIJII~~IL~ ~0ur5elt. firiy WO~K perrurmea oy unautnorrzea personnet may
I .... . . -.. s. .. .. .. ..... . .
,. . . . , . . . . . .
.. . t
