VKS-H Service Manual
EKE 854.1 / EKE 804.2 / EKE 604.2
H1-50-01-02
Glass ceramic hob unit with
sensor touch control
EKE 854.1
EKE 804.2 / 604.2
GB

VKS-H Service Manual
1
H1-50-01-02
Fax: [phone]
Contents
Your appliance at a glance / Technical data
- EKE 854.1 2
- EKE 804.2 3
- EKE 604.2 4
Using the cooking zones 5
Disassembling the hob 10
Changing the Touch Control unit 11
Installing the Touch Control unit 13
Returning the Touch Control unit 14
Aligning the glass ceramic hob 15
Electrical connection 15
Demonstration setting 17
Troubleshooting and remedies 17
Terminal connection diagram EKE 854.1 19
Terminal connection diagram EKE 804.2 20
Terminal connection diagram EKE 604.2 21
Serial interface 22
Responsable: Rutz Tel.: [phone]
EKE 854.1 / EKE 804.2 / EKE 604.2
Date: 26.05.1998

VKS-H Service Manual
2
H1-50-01-02
234
5
1
6
5 cooking zones
Total connected load: 8.2 kW
1 dual-circuit cooking zone 12 cm / 700 W or 18 cm / 1700 W
2 cooking zones 14.5 cm / 1200 W each (can also be used as frying zone 2400 W)
2 cooking zones 18 cm / 1800 W each
1 Dual-circuit cooking zone
2 Sensor keys for cooking zones
3 Off sensor
4 Sensor standby switch
5 Childproof lock (sensor lock)
6 Frying zone
Your appliance at a glance / Technical data EKE 854.1
EKE 854.1

VKS-H Service Manual
3
H1-50-01-02
EKE 804.2
1234
5
6
4 cooking zones
Total connected load: 7.2 kW
1 dual-circuit cooking zone 12 cm / 750 W or 21 cm / 2200 W
1 cooking zone 14.5cm / 1200 W
1 dual-circuit frying zone 14 cm / 1100 W or 24.0 cm/ 2000 W
1 cooking zone 18 cm / 1800 W
1 Dual-circuit cooking zone
2 Sensor keys for cooking zones
3 Off Sensor
4 Sensor standby switch
5 Childproof lock (sensor lock)
6 Frying zone
Your appliance at a glance / Technical data EKE 804.2

VKS-H Service Manual
4
H1-50-01-02
1234
5
6
4 cooking zones
Total connected load: 6.7 kW
1 dual-circuit cooking zone 12 cm / 700 W or 18 cm / 1700 W
1 cooking zone 14.5cm / 1200 W
1 dual-circuit frying zone 14 cm / 1100 W or 24.0 x 14.0 cm/ 2000 W
1 cooking zone 18 cm / 1800 W
1 Dual-circuit cooking zone
2 Sensor keys for cooking zones
3 Off Sensor
4 Sensor standby switch
5 Childproof lock (sensor lock)
6 Frying zone
Your appliance at a glance / Technical data EKE 604.2
EKE 604.2

VKS-H Service Manual
5
H1-50-01-02
You have 9 cooking settings available.
Select the required cooking setting with the plus or minus
pad. The setting will be indicated in the display.
The "0" position is visible for about 2 seconds after the
appliance switches off.
Touch the sensor pad for approx. 2 seconds. The LED display
above the pad will then light up and the appliance will go
into operation (standby mode).
The standby mode automatically switches itself off, if
- no cooking zone is activated within 20 minutes (after 10
seconds an acoustic signal will indicate that the appliance
will switch itself off after a further 10 seconds)
or if
- the appliance is not used for 10 minutes after starting
operation.
Using the cooking zones
The cooking setting
If you touch the plus pad, the cooking zone starts at cooking
setting 5, without boost.
When the minus pad is touched the cooking zone will start at
setting 9 and the automatic boost is automatically switched
on.
Switching off a cooking zone:
Touch the plus and minus pads simultaneously.
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
6
H1-50-01-02
Operating time in seconds
The temperature of the cooking zones is time-adjusted, in the same way as the energy control
unit. Depending on the cooking setting, the corresponding cooking zone will be switched on or
off as described in the following table.
This means, for instance, that at cooking setting 6 the control unit is switched on for 14 seconds
and is then switched off for 33 seconds. Thus the total amount of time is 47 seconds. Then the
process starts again.
Operating time in seconds
OFF in secs.
ON in secs.
1,18
3,53
5,88
8,7
11,28
14,1
21,15
28,2
47
45,83
43,48
41,13
38,31
35,72
32,9
25,85
18,8
0
0 5 10 15 20 25 30 35 40 45 50
1
2
3
4
5
6
7
8
9
Cooking setting 1 2 3 4 5 6 7 8 9
ON in secs. 1 4 6 9 11 14 21 28 47
OFF in secs. 46 43 41 38 36 33 26 19 0
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
7
H1-50-01-02

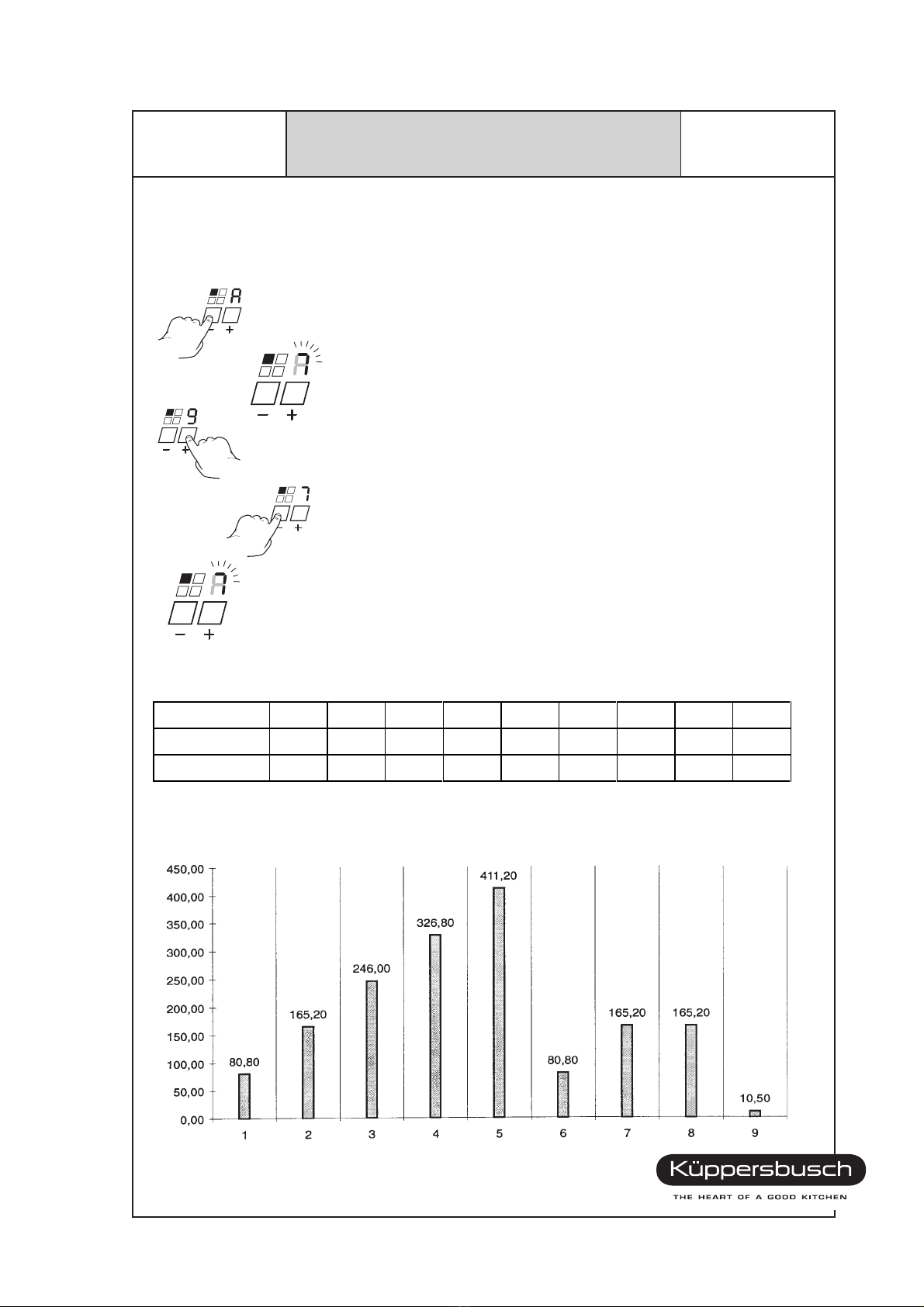

The automatic boost function
All cooking zones are equipped with an automatic boost function.
Maximum power is used for the boost. The time period of the
boost depends on the selected cooking setting. After the time
has elapsed the cooking zone automatically switches back to the
selected cooking setting.
When you select the respective cooking setting by touching the
minus pad, the boost function will switch on automatically.
During automatic operation an "A" lights up in the display
alternately with the selected cooking setting.
When you select the required cooking setting by pressing the
plus pad, it is necessary to press the plus pad again after reaching
cooking setting 9 if the automatic boost function is to be activated.
Then select the required cooking setting.
"A" lights up in the display alternately with the selected cooking
setting until the boost has finished.
Time in seconds
The automatic boost works at full power and for the time specified in the table (depending on the
cooking setting):
Cooking setting 1 2 3 4 5 6 7 8 9
Seconds 80 165 246 326 411 80 165 135 10
Minutes 1,3 2,7 4,1 5,4 6,8 1,3 2,7 2,2 0,0
After this time, the automatic boost switches off and cooking continues as specified in the table.
At setting 9 the cooking zone functions at full power, thus obviating the need for the boost function.
Length of initial boost
Cooking setting
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
8
H1-50-01-02
Dual-circuit cooking zones and frying zones
Usually the cooking zone with the smaller diameter
heats up.
Switch on the outer cooking zone circuit for bigger
saucepans or frying pans.
Press the cooking zone symbol next to the plus/
minus pad. A dot at the bottom right of the display
for the cooking level indicates that the function has
been switched on.
Pressing the cooking zone symbol again deactivates
the dual circuit cooking zone or frying zone.
All the cooking zones can be switched off quickly with
the OFF sensor.
Time limit function (holiday function)
The rapid switch-off function
Cooking setting Appliance switches off
after
9 to 6 2 hours
5 3 hours
4 4 hours
3 to 2 5 hours
1 10 hours
Depending on which cooking setting has been set
for a cooking zone, the appliance will switch of
automatically after a certain time if it is not used.
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
9
H1-50-01-02
Residual heat indicators
The lock is indicated by 3 flashing control indicators.
Be careful: Switching off the hob does not deactivate the lock!
Operating the sensor lock prevents unauthorised
persons from using the appliance. In order to activate
this lock the hob has to be in operation.
Activating the lock:
Press the sensor lock for 2 seconds. You may also
switch on the lock while cooking. Then, however, you
can only reduce the heat or switch off the hob.
Deactivating the lock:
after 3 secs. max.
Simultaneously touch the pads under the two flashing control indicators on the left. After not
more than 3 seconds touch the pad for the sensor lock.
Note: When the power supply has been interrupted the childproof lock is no longer active.
As long as the cooking zone is still hot, an "H" will appear in
the display when the cooking zone has been switched off.
Childproof lock (sensor lock)
together
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
10
H1-50-01-02
Disassembling the electric hob
Slide the lifter as far as it
will go under the back or
the sides of the hob (never
under the front).
Remove the hob and put
it onto the worktop. Do
not forget to put an
intermediate layer
between the hob and the
worktop to prevent the
worktop from being
scratched.
Press the lifter onto the
worktop, the hob is lifted
off the clips.
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
11
H1-50-01-02
To exchange the Touch
Control unit, you must
remove the glass ceramic
top. To do this unscrew the
screws on both sides of the
hob.
(In case of EKE 854.1 three
screws have to be loosened
at the front.)
Then the glass ceramic top
can be removed by lifting it
upwards.
Changing the Touch Control unit
Electronic components and electronic modules are always sensitive to high voltage. The Touch
Control unit is equipped with C-MOS-components which are very sensitive to electrostatic charging.
Equipotential bonding should be performed by simultaneously taking hold
of the conductive protection bag of the Touch Control unit and the metal
case of the hob. Do not move with it afterwards.
For this reason the Touch Control unit should be ready at hand!
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
12
H1-50-01-02
To exchange the
connectors, remove the
Touch Control unit, rotate
it by 180° and place it on
the assembly board as
shown in the diagram.
Insert the AMP plugs into
the slots on the new Touch
Control unit, making sure
that they are in the right
order.
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
13
H1-50-01-02

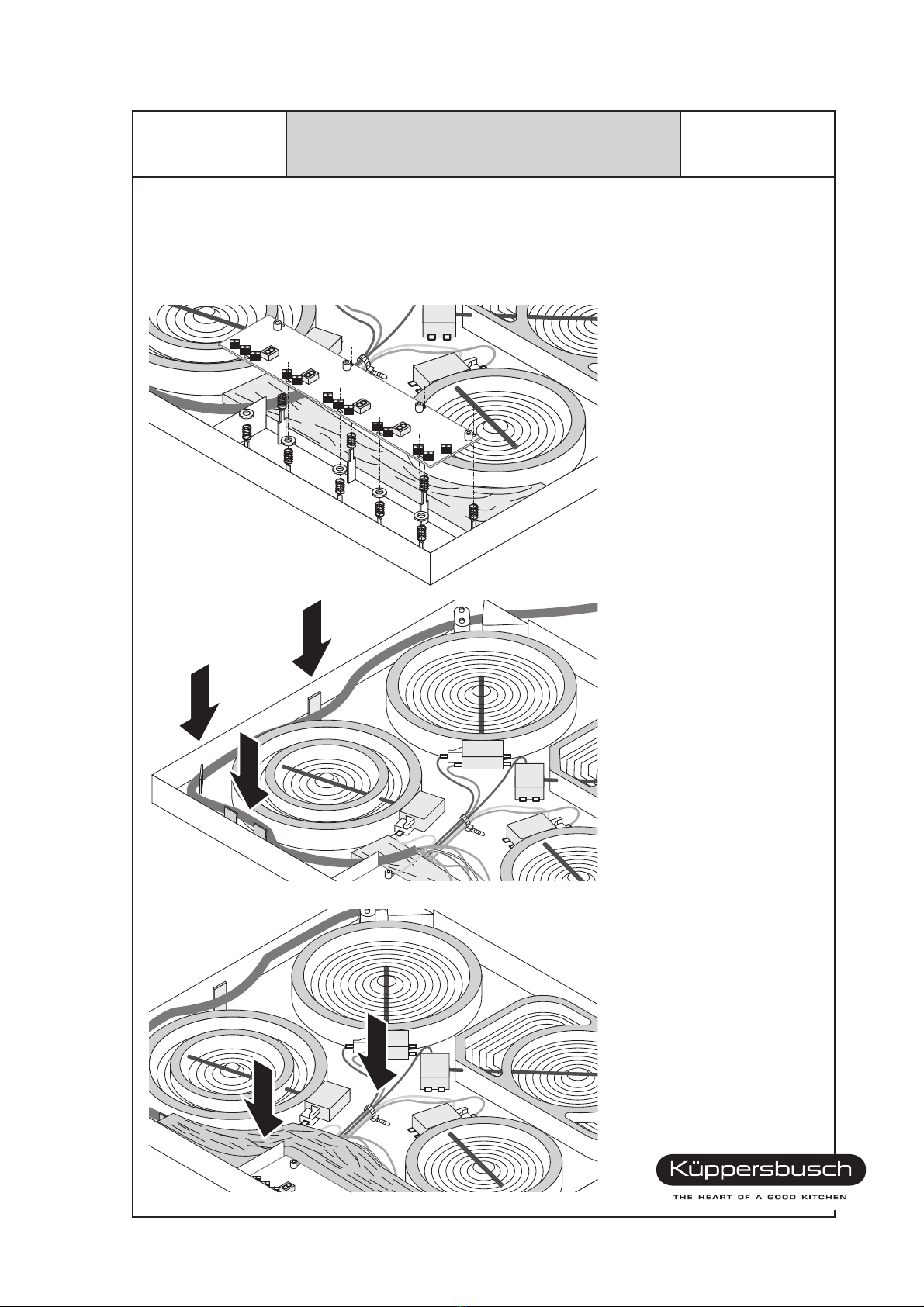

Installing the Touch Control unit
Before the Touch Control
unit is installed, align the
metal brackets. Make
sure that all the springs
are on the metal parts.
Install washers in addition
to the front springs.
Be certain that the cables
are led around the metal
parts provided for them,
as shown in the diagram,
and press them onto the
base of the hob.
If assembly makes it
necessary to loosen some
of the cable binders, it is
essential that these are
replaced.
It is also important to
make sure that the
insulation material is put
back into the correct
positions.
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
14
H1-50-01-02
Returning the Touch Control unit
Electronic components must always be treated with care and specially protected during transport.
Furthermore, we request you to be very careful when disassembling the components as they
are recycled to save costs.
For this reason the following packing instructions must be observed:
Each electronic component must be packed separately in a cardboard box lined
with nap foam.
When returning electronic components, use only the original packaging in which
they have been supplied. This packing material can also be obtained via our
Spare Parts Department.
Even if they have been properly packed, electronic components must not be
thrown around.
Packing:
1. Put the unit into an antistatic flat bag, roll up the bag up and close it.
2. Put the unit with the bag onto the nap foam of the box in such a way that the
printed circuit boards are in a vertical position.
3. Assemble the cardboard box, close it and seal with scotch tape.
4. It is very important that the box is marked with the green "R" sticker.
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
15
H1-50-01-02
Electrical connection
Aligning the glass ceramic hob
By skilfully tightening the
screws (one screw, then
the screw on the opposite
side and so on) you can
slightly adjust the position
of the marked cooking
zones on the glass
ceramic top in relation to
the heating spirals.
In the example illustrated
the glass ceramic top
would shift in the direction
of the arrow if the screws
are tightened in the
specified sequence.
· The built-in hob must be connected to the mains supply by a qualified electrician who is
authorized to carry out such work.
· Both legal wiring regulations and the requirements of your local electricity supply board
must be fully complied with.
· When connecting the hob, a device must be provided which enables all-pole disconnection
of the hob from the supply with a gap construction of at least 3 mm. Circuit breakers, fuses
and contactors are considered to be suitable disconnecting units.
· When connecting and repairing the appliance disconnect it from the electricity supply with
one of these devices.
· Overall protection against electric shock must be ensured by the installation.
· The earthed conductor lead must be sufficiently long so that, in the event of failure of the
strain relief, it is not subjected to strain until after the live wires of the connection cable.
· Any superfluous cable must be removed from the installation area beneath the appliance.
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
16
H1-50-01-02
Connection from the oven
connection socket
Floor
At the factory the electronic hob has been
equipped with a temperature-proof cable
with a connecting box for the oven
connection cable.
The connecting box is fastened to the
kitchen wall behind the built-in furniture.
If there is no built-in oven below the hob,
the connecting box can also be fastened
to the furniture below the hob.
· When assembling the connecting box remember that it must be at least 300 mm from the
floor, as shown in the drawing.
· The connecting box must not come into contact with any hot appliance parts.
· The connecting box must not be used as a voltage distributor for other appliances.
· The fitted connection cable must be replaced by the Küppersbusch Customer Service if
it becomes damaged.
· The appliance is connected to the mains at the connecting box as shown in the wiring
diagram.
Electrical connection
Permanent connection by means of an oven connection socket.
Connection diagram
Is depicted on the connecting box of the appliance, suitable for the various types of mains.
Connection data
Permanent connection 400 V 3 N ~ 50 Hz (AC 230 V in UK).
Voltage of heating elements: 230 V
Total connected load 6.7kW
400 V 3 N ~ fuse rating 16 A
400 V 2 N ~ fuse rating 20 A
230 V 1 N ~ fuse rating 25 A
230 V 3 ~ fuse rating 16 A
Connection cable
Use H 05 RR-F or H 07 RN-F.
Cable length as required.
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
17
H1-50-01-02
Turn to left
NORMAL
FUNCTIONING
Troubleshooting and remedies
DE-ENERGIZE THE APPLIANCE PRIOR TO REPAIR!
Problems
- Horizontal lines running from
the top to the bottom in the
displays
- Circumferencial symbol lines
in all 4 LED displays
Cause
- Too intensive incident light
radiation during sensor self-
testing after a power failure
- No failure; normal display
after failure of circuit
On-the-spot measures
- Remove light source.
Briefly disconnect
the cooking zone from
the source of current
(via fuse).
- Acknowledge by
contacting the Off
sensor
Demonstration setting
When the demonstration setting is activated, the glass ceramic hob can be operated normally,
but all the heating elements will remain cold.
To activate the
demonstration setting
carefully turn the rotary-
type switch on the side of
the hob base with a
screwdriver as far as it
will go to the right.
For normal operation
carefully turn the switch
as far as it will go to the
left.
Turn to right
DEMONSTRATION
SETTING
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
18
H1-50-01-02
Cause
- LED display defective
- Electronic component
defective
- Childproof lock not
deactivated
- Household fuse defective
- Cooking zone defective
- Inner circuit of a dual-circuit
cooking zone defective
- Sudden change of incident
heat radiation
- Slight relocation of the
Touch Control due to impact
On-the-spot measures
- Call After-Sales Service
(danger of being burned,
as warning about
temperature is not
ensured)
- Switch off fuse and call
After-Sales Service
- Deactivate childproof lock
- Check fuse and replace
it, if required
- Call After-Sales Service
- On no account continue
to operate the outer
circuit that is still working
and immediately call
the After-Sales Service
- Remove source of heat
- Briefly disconnect
the cooking zone from
the source of current
(via fuse)
Problems
- LED display for cooking
settings and heat indicator
do not or only partially light
up
- It is not possible to switch
off the hob
- The hob does not heat up
- Individual/all sensors do no
longer react to contact
- Circumferencial symbol
lines in all 4 LED displays
Troubleshooting and remedies
EKE 854.1 / EKE 804.2 / EKE 604.2

VKS-H Service Manual
19
H1-50-01-02
Terminal connection diagram 854.1
EKE 854.1
