Kuppersbusch FK2545.0i Operation manual

BEDIENUNGSANWEISUNG
mit Montageanweisungen
INSTRUCTIONS FOR USE
and installation
Lesen Sie unbedingt die Gebrauchsanleitung
und den Montageplan vor Aufstellung,
Installation sowie Inbetriebnahme.
Please read the users and installation
instructions carefully before installation
of the appliance and before starting to use it.
Service und Kundendienst
Telefon: 0209 – 401 631
Email: [email protected]
EN DE ES PT FR IT NL EL PL TR
FK2545.0i

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
A
A
A
C
SUPPLIER’S NAME MODEL IDENTIFIER (*)
INFORMATION
C
The model information as stored in the product data base
can be reached by entering following website and searching
for your model identifier (*) found on energy label.
https://eprel.ec.europa.eu/

EN
5
1 Your refrigerator 6
2 Safety and environment
instructions 7
General safety ...................................7
HC warning ......................................8
For models with water dispenser ......9
Intended use .....................................9
Child safety........................................9
Compliance with WEEE Directive and
Disposing of the Waste Product.........9
Compliance with RoHS Directive .......9
Package information........................10
3 Installation 11
Points to be paid attention to when the
relocation of the refrigerator .............11
Before you start the refrigerator,.......11
Changing the illumination lamp .......12
Disposing of the packaging .............12
Disposing of your old refrigerator .....12
Placing and Installation ....................12
Reversing the doors ........................13
4 Preparation 14
5 Using your refrigerator 15
Thermostat setting button................15
Cooling............................................15
Freezing...........................................16
Defrost ............................................16
Stopping your product.....................17
6 Maintenance and cleaning 18
Protection of plastic surfaces ..........18
7 Troubleshooting 19
CONTENTS

6EN
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

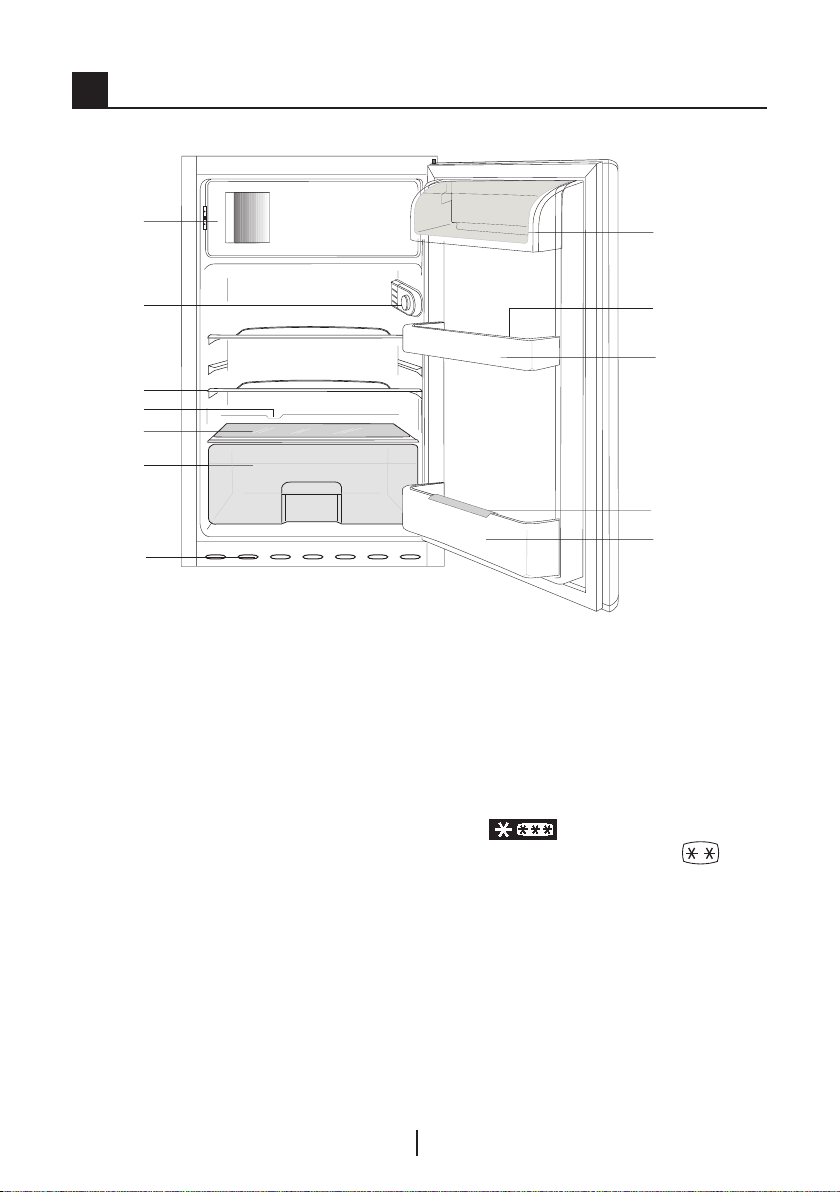

1Your refrigerator
1. Dairy compartment
2. Egg tray (1 pcs.)
3. Door shelves
4. Bottle shelf
5. Bottle gripper
6. Air grill
7. Crisper
8. Crisper cover
9. Defrost water collection channel -
Drain tube
10. Movable shelves
11. Interior light & Thermostat knob
12. a.) Freezing compartment & ice tray
(for models) b.) Frozen food
compartment & ice tray (for
models)
11
10
8
7
9
12
64
1
2
3
5
*

EN
7
This section provides the safety
instructions necessary to prevent the
risk of injury and material damage.
Failure to observe these instructions will
invalidate all types of product warranty.
Intended use
A
WARNING:
Keep ventilation openings,
in the appliance enclosure or
in the built-instructure, clear
of obstruction.
A
WARNING:
Do not use mechanical
devices or other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
A
WARNING:
Do not damage the
refrigerant circuit.
A
WARNING:
Do not use electrical
appliances inside the food
storage compartments of the
appliance, unless they are of
the type recommended by
the manufacturer.
This appliance is intended to be used
in household and similar applications
such as
– staff kitchen areas in shops, offices
and other working environments;
– farm houses and by clients in hotels,
motels and other residential type
environments;
–bedandbreakfasttypeenvironments;
– catering and similar non-retail
applications.
General safety
• This product should not be used
by persons with physical, sensory
and mental disabilities, without
sufficient knowledge and experience
or by children. The device can only
be used by such persons under
supervision and instruction of a
person responsible for their safety.
Children should not be allowed to
play with this device.
• In case of malfunction, unplug the
device.
• After unplugging, wait at least 5
minutes before plugging in again.
• Unplug the product when not in use.
• Do not touch the plug with wet
hands! Do not pull the cable to plug
off, always hold the plug.
• Do not plug in the refrigerator if the
socket is loose.
• Unplug the product during
installation, maintenance, cleaning
and repair.
• If the product will not be used for
a while, unplug the product and
remove any food inside.
• Do not use the product when the
compartment with circuit cards
located on the upper back part of
the product (electrical card box
cover) (1) is open.
2Safety and environment instructions

8EN
1
1
• Do not use steam or steamed
cleaning materials for cleaning
the refrigerator and melting the
ice inside. Steam may contact the
electrified areas and cause short
circuit or electric shock!
• Do not wash the product by
spraying or pouring water on it!
Danger of electric shock!
• In case of malfunction, do not use
the product, as it may cause electric
shock. Contact the authorised
service before doing anything.
• Plug the product into an earthed
socket. Earthing must be done by a
qualified electrician.
• If the product has LED type lighting,
contact the authorised service for
replacing or in case of any problem.
• Do not touch frozen food with wet
hands! It may adhere to your hands!
• Do not place liquids in bottles and
cans into the freezer compartment.
They may explode.
• Place liquids in upright position after
tightly closing the lid.
• Do not spray flammable substances
near the product, as it may burn or
explode.
• Do not keep flammable materials
and products with flammable gas
(sprays, etc.) in the refrigerator.
• Do not place containers holding
liquids on top of the product.
Splashing water on an electrified
part may cause electric shock and
risk of fire.
• Exposing the product to rain,
snow, sunlight and wind will cause
electrical danger. When relocating
the product, do not pull by holding
the door handle. The handle may
come off.
• Take care to avoid trapping any part
of your hands or body in any of the
moving parts inside the product.
• Do not step or lean on the door,
drawers and similar parts of the
refrigerator. This will cause the
product to fall down and cause
damage to the parts.
• Take care not to trap the power
cable.
HC warning
If the product comprises a cooling
system using R600a gas, take care
to avoid damaging the cooling system
and its pipe while using and moving the
product. This gas is flammable. If the
cooling system is damaged, keep the
product away from sources of fire and
ventilate the room immediately.
C
The label on the inner left
side indicates the type of gas
used in the product.

EN
9
For models with water
dispenser
• Pressure for cold water inlet shall
be maximum 90 psi (620 kPa). If
your water pressure exceeds 80 psi
(550 kPa), use a pressure limiting
valve in your mains system. If you
do not know how to check your
water pressure, ask for the help of a
professional plumber.
• If there is risk of water hammer
effect in your installation, always
use a water hammer prevention
equipment in your installation.
Consult Professional plumbers if you
are not sure that there is no water
hammer effect in your installation.
• Do not install on the hot water inlet.
Take precautions against of the
risk of freezing of the hoses. Water
temperature operating interval shall
be 33°F (0.6°C) minimum and
100°F (38°C) maximum.
• Use drinking water only.
Intended use
• This product is designed for
home use. It is not intended for
commercial use.
• The product should be used to store
food and beverages only.
• Do not keep sensitive products
requiring controlled temperatures
(vaccines, heat sensitive medication,
medical supplies, etc.) in the
refrigerator.
• The manufacturer assumes no
responsibility for any damage due to
misuse or mishandling.
• Original spare parts will be provided
for 10 years, following the product
purchasing date.
Child safety
• Keep packaging materials out of
children’s reach.
• Do not allow the children to play
with the product.
• If the product’s door comprises a
lock, keep the key out of children’s
reach.
Compliance with WEEE
Directive and Disposing of
the Waste Product
This product complies with
EU WEEE Directive (2012/19/EU). This
product bears a classification symbol
for waste electrical and electronic
equipment (WEEE).
This product has been
manufactured with high
quality parts and materials
which can be reused and
are suitable for recycling.
Do not dispose of the
waste product with normal
domestic and other wastes at the end
of its service life. Take it to the collection
center for the recycling of electrical and
electronic equipment. Please consult
your local authorities to learn about
these collection centers.
Compliance with RoHS
Directive
• This product complies with EU WEEE
Directive (2011/65/EU). It does
not contain harmful and prohibited
materials specified in the Directive.

10 EN
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.

EN
11
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged, shelves,
accessories, crisper, etc. inside your
refrigerator should be fixed with
adhesive tape and secured against
impacts. Package should be bound
with a thick tape or sound ropes
and the transportation rules on the
package should be strictly observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the
refrigerator,
Check the following before you start
to use your refrigerator:
1. Attach 2 plastic wedges as illustrated
below. Plastic wedges are intended
to keep the distance which will ensure
the air circulation between your
refrigerator and the wall. (The picture
is drawn up as a representation and it
is not identical with your product.)
2. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
3. Connect the plug of the refrigerator
to the wall socket. When the fridge
door is opened, fridge internal lamp
will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is
not running and this is quite normal.
5. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.

12 EN
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is the risk of electric
shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the packing
materials out of the reach of children or
dispose of them by classifying them in
accordance with the waste instructions
stated by your local authorities. Do not
throw away with regular house waste,
throw away on packaging pick up spots
designated by the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal of
your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on
the materials such as rug or carpet.
4. Place your refrigerator on an even
floor surface to prevent jolts.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in
a safe and comfortable way.The lamps
used in this appliance have to withstand
extreme physical conditions such as
temperatures below -20 °C.
(only chest and upright freezer)
CThis product is equipped with a
lighting source of the "G" energy class.
The lighting source in this product
shall only be replaced by professional
repairers.

EN
13
Reversing the doors
3
5
2
1
6
4
D
B
A
C
7
11
10
9
8
E
F
G

14 EN
4Preparation
• Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
• The ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating
your refrigerator under cooler
conditions is not recommended with
regard to its efficiency.
• Please make sure that the interior
of your refrigerator is cleaned
thoroughly.
• If two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
• When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
• The door should not be opened
frequently.
• It must be operated empty without
any food in it.
• Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.

EN
15
5Using your refrigerator
Thermostat setting button
The operating temperature is regulated
by the temperature control.
Warm Cold
1 2 3 4 5
(Or) Min. Max.
1 = Lowest cooling setting
(Warmest setting)
5 = Highest cooling setting
(Coldest setting)
(Or)
Min. = Lowest cooling setting
(Warmest setting)
Max. = Highest cooling setting
(Coldest setting)
The average temperature inside the
fridge should be around +5°C.
Please choose the setting according
to the desired temperature.
Please note that there will be different
temperatures in the cooling area.
The coldest region is immediately
above the vegetable compartment.
The interior temperature also depends
on ambient temperature, the frequency
with which the door is opened and the
amount of foods kept inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
The interior temperature of your
refrigerator changes for the following
reasons;
• Seasonal temperatures,
• Frequent opening of the door and
leaving the door open for long
periods,
• Food put into the refrigerator
without cooling down to the room
temperature,
• The location of the refrigerator in the
room (e.g. exposing to sunlight).
• You may adjust the varying interior
temperature due to such reasons
by using the thermostat. Numbers
around the thermostat button
indicates the cooling degrees.
• If the ambient temperature is higher
than 32°C, turn the thermostat
button to maximum position.
• If the ambient temperature is lower
than 25°C, turn the thermostat
button to minimum position.
Cooling
Food storage
The fridge compartment is for the
short-term storage of fresh food and
drinks.

16 EN
Freezing
Freezing food
The freezing compartment is marked
with this symbol.
You can use the appliance for freezing
fresh food as well as for storing pre-
frozen food.
Please refer to the recommendations
given on the packaging of your food.
Storing frozen food
The frozen food compartment is
marked with symbol.
The frozen food compartment is
suitable for the storage of pre-frozen
food. The recommendation for storage,
as stated on the food packaging,
should be observed at all times.
Defrost
A) Fridge compartment
Fridge compartment performs full-
automatic defrosting. Water drops and
a frosting up to 7-8 mm can occur
on the inner rear wall of the fridge
compartment while your refrigerator
cools down. Such formation is normal
as a result of the cooling system.
The frost formation is defrosted by
performing automatic defrosting with
certain intervals thanks to the automatic
defrosting system of the rear wall. User
is not required to scrape the frost or
remove the water drops.
Water resulting from the defrosting
passes from the water collection groove
and flows into the evaporator through
the drain pipe and evaporates here by
itself.
Check regularly to see if the drain
pipe is clogged or not and clear it with
the stick in the hole when necessary.
Deep freezer compartment does not
perform automatic defrosting in order
to prevent decaying of the frozen food.

EN
17
Stopping your product
If your thermostat is equipped with
“0” position:
- Your product will stop operating
when you turn the thermostat button to
“0” (zero) position. Your product will not
start unless to you turn the thermostat
button to position “1” or one of the
other positions again.
If your thermostat is equipped with
“min” position:
- Unplug your product to stop it.
B) Freezer compartment
Defrosting is very straightforward
and without mess, thanks to a special
defrost collection basin.
Defrost twice a year or when a frost
layer of around 7 (1/4”) mm has formed.
To start the defrosting procedure,
switch off the appliance at the socket
outlet and pull out the mains plug.
All food should be wrapped in several
layers of newspaper and stored in a
cool place (e.g. fridge or larder).
Containers of warm water may be
placed carefully in the freezer to speed
up the defrosting.
Do not use pointed or sharp-edged
objects, such as knives or forks to
remove the frost.
Never use hair dryers, electrical
heaters or other such electrical
appliances for defrosting.
Sponge out the defrost water
collected in the bottom of the freezer
compartment. After defrosting, dry the
interior thoroughly.
Insert the plug into the wall socket and
switch on the electricity supply.

18 EN
6Maintenance and cleaning
ANever use gasoline, benzene or
similar substances for cleaning
purposes.
BWe recommend that you unplug the
appliance before cleaning.
BNever use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish for
cleaning.
CUse lukewarm water to clean the
cabinet of your refrigerator and wipe it
dry.
CUse a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
BMake sure that no water enters the
lamp housing and other electrical
items.
BIf your refrigerator is not going to be
used for a long period of time, unplug
the power cable, remove all food,
clean it and leave the door ajar.
CCheck door seals regularly to ensure
they are clean and free from food
particles.
ATo remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
ANever use cleaning agents or water
that contain chlorine to clean the
outer surfaces and chromium coated
parts of the product. Chlorine causes
corrosion on such metal surfaces.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-cooked
meals in your refrigerator in unsealed
containers as they damage the
plastic surfaces of your refrigerator. In
case of spilling or smearing oil on the
plastic surfaces, clean and rinse the
relevant part of the surface at once
with warm water.

EN
19
7Troubleshooting
Please review this list before calling the service. It will save your time and
money. This list includes frequent complaints that are not arising from defective
workmanship or material usage. Some of the features described here may not
exist in your product.
The refrigerator does not operate.
• The plug is not inserted into the socket correctly. >>>Insert the plug into the
socket securely.
• The fuse of the socket which your refrigerator is connected to or the main fuse
have blown out. >>>Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL
CONTROL and FLEXI ZONE).
• Ambient is very cold. >>>Do not install the refrigerator in places where the
temperature falls below 10 °C.
• Door has been opened frequently. >>>Do not open and close the door of
refrigerator frequently.
• Ambient is very humid. >>>Do not install your refrigerator into highly humid
places.
• Food containing liquid is stored in open containers. >>>Do not store food with
liquid content in open containers.
• Door of the refrigerator is left ajar. >>>Close the door of the refrigerator.
• Thermostat is set to a very cold level. >>>Set the thermostat to a suitable level.
• Compressor is not running
• Protective thermic of the compressor will blow out during sudden power
failures or plug-out plug-ins as the refrigerant pressure in the cooling system
of the refrigerator has not been balanced yet. The refrigerator will start running
approximately after 6 minutes. Please call the service if the refrigerator does not
startup at the end of this period.
• The fridge is in defrost cycle. >>>This is normal for a full-automatically defrosting
refrigerator. Defrosting cycle occurs periodically.
• The refrigerator is not plugged into the socket. >>>Make sure that the plug is fit
into the socket.
• Temperature settings are not made correctly. >>>Select the suitable temperature
value.
• There is a power outage. >>>Refrigerator returns to normal operation when the
power restores.
The operation noise increases when the refrigerator is running.

20 EN
• The operating performance of the refrigerator may change due to the changes in
the ambient temperature. It is normal and not a fault.
The refrigerator is running frequently or for a long time.
• New product may be wider than the previous one. Larger refrigerators operate
for a longer period of time.
• The room temperature may be high. >>>It is normal that the product operates
for longer periods in hot ambient.
• The refrigerator might be plugged in recently or might be loaded with food.
>>>When the refrigerator is plugged in or loaded with food recently, it will take
longer for it to attain the set temperature. This is normal.
• Large amounts of hot food might be put in the refrigerator recently. >>>Do not
put hot food into the refrigerator.
• Doors might be opened frequently or left ajar for a long time. >>>The warm air
that has entered into the refrigerator causes the refrigerator to run for longer
periods. Do not open the doors frequently.
• Freezer or fridge compartment door might be left ajar. >>>Check if the doors are
closed completely.
• The refrigerator is adjusted to a very low temperature. >>>Adjust the refrigerator
temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not
properly seated. >>>Clean or replace the seal. Damaged/broken seal causes
the refrigerator to run for a longer period of time in order to maintain the current
temperature.
Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low value. >>>Adjust the freezer
temperature to a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature is adjusted to a very low value. >>>Adjust the fridge
temperature to a warmer degree and check.
Food kept in the fridge compartment drawers is frozen.
• The fridge temperature is adjusted to a very high value. >>>Adjust the fridge
temperature to a lower value and check.
Temperature in the fridge or freezer is very high.

EN
21
• The fridge temperature is adjusted to a very high value. >>>Fridge compartment
temperature setting has an effect on the temperature of the freezer. Change the
temperatures of the fridge or freezer and wait until the relevant compartments
attain a sufficient temperature.
• Doors are opened frequently or left ajar for a long time. >>>Do not open the
doors frequently.
• Door is ajar. >>>Close the door completely.
• The refrigerator is plugged in or loaded with food recently. >>>This is normal.
When the refrigerator is plugged in or loaded with food recently, it will take longer
for it to attain the set temperature.
• Large amounts of hot food might be put in the refrigerator recently. >>>Do not
put hot food into the refrigerator.
• Vibrations or noise.
• The floor is not level or stable. >>> If the refrigerator rocks when moved slowly,
balance it by adjusting its feet. Also make sure that the floor is strong enough to
carry the refrigerator, and level.
• The items put onto the refrigerator may cause noise. >>>Remove the items on
top of the refrigerator.
There are noises coming from the refrigerator like liquid flowing, spraying, etc.
• Liquid and gas flows occur in accordance with the operating principles of your
refrigerator. It is normal and not a fault.
Whistle comes from the refrigerator.
• Fans are used in order to cool the refrigerator. It is normal and not a fault.
Condensation on the inner walls of refrigerator.
• Hot and humid weather increases icing and condensation. It is normal and not a
fault.
• Doors are opened frequently or left ajar for a long time. >>>Do not open the
doors frequently. Close them if they are open.
• Door is ajar. >>>Close the door completely.
Humidity occurs on the outside of the refrigerator or between the doors.
• There might be humidity in the air; this is quite normal in humid weather. When
the humidity is less, condensation will disappear.
Bad odour inside the refrigerator.

22 EN
• No regular cleaning is performed. >>>Clean the inside of the refrigerator regularly
with a sponge, lukewarm water or carbonate dissolved in water.
• Some containers or package materials may cause the smell. >>>Use a different
container or different brand packaging material.
• Food is put into the refrigerator in uncovered containers. >>>Keep the food in
closed containers. Microorganisms spreading out from uncovered containers
can cause unpleasant odours.
• Remove the foods that have expired best before dates and spoiled from the
refrigerator.
The door is not closing.
• Food packages are preventing the door from closing. >>>Replace the packages
that are obstructing the door.
• The refrigerator is not completely even on the floor. >>>Adjust the feet to
balance the refrigerator.
• The floor is not level or strong. >>>Make sure that the floor is level and capable
to carry the refrigerator.
Crispers are stuck.
• The food is touching the ceiling of the drawer. >>>Rearrange food in the drawer.
If The Surface Of The Product Is Hot.
• High temperatures may be observed between the two doors, on the side panels
and at the rear grill while the product is operating. This is normal and does not
require service maintenance!Be careful when touching these areas.
