Chapter 1 Front Panel
(1) Voices button
Select among the 20 voices with the [Voices] button.
Piano
(4) Rhy button
Select among the 12 rhythms or metronome beat.
(5) Layer button
You can layer two voices and play them simultaneously to
create a thicker and richer sound.
(6) Split button
For playing different voices on the left-hand and right-hand
section of the keyboard.
(7)Demobuttonpair
Press together to select among the 50 demonstration songs.
(8) Func button pair
Press together to set functions like Tune, Touch, Effect, etc.
(9) Record button
For recording your keyboard performance.
(10) Play/Stop button
These control playback of or stop the demonstration songs
and your recorded song.
(2) button
Always selects "Grand Piano" sound.
(3) Dual button (Duo mode)
This function allows two different players to play.
Metro/
(11) Next button
Select the next higher Voice, Rhythm, or Demo Song, etc.
(12) Previous button
Select the next lower Voice, Rhythm, or Demo Song, etc.
8Front Panel
6

■
USB MIDI
■
■
■
■
■
■
■
■
■
■
■
3 Pedals (Sustain, Sostenuto, Soft)
4 Touch sensitivity settings
Stereo audio Input, Output
2 Headphone jacks
7 Segment LED display
20 Voices
Layer, Split, Dual(Duo) mode
Transpose, Tune functions
MP3 Aux In
Recording function

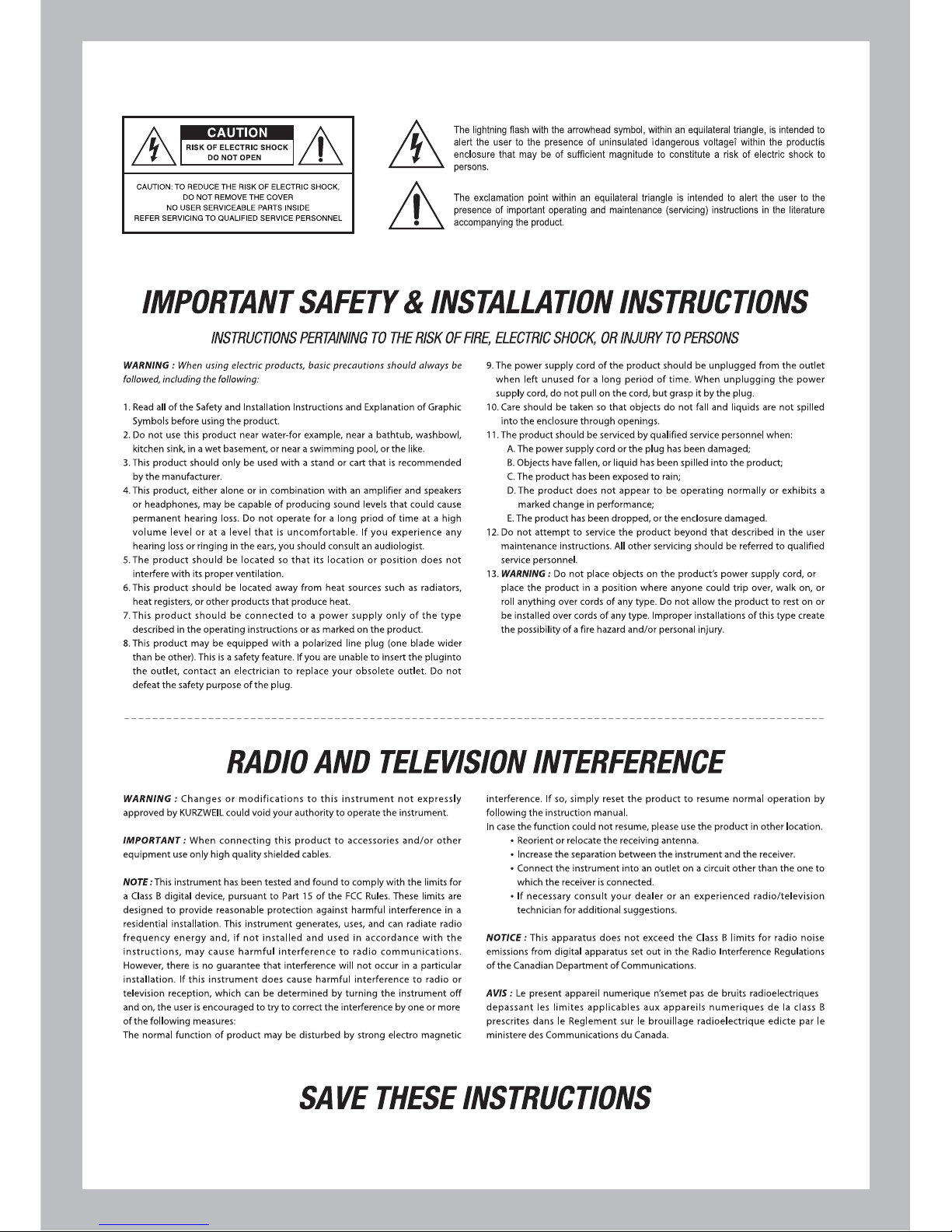

Thank you for purchasing a KURZWEIL Digital Piano. We recommend that you
read this manual carefully so that you can fully take advantage of the advanced
and convenient functions of your KURZWEIL Digital Piano.
Main Features
Chapter 2 Main Features
Main Features 7
■
12 Rhythms with accompaniment
88 Dynamic Touch Graded Hammer action keys with the feel of real Grand Piano

①
1 EA
⑥
EA
②
1 EA
⑦
4 EA
③
1 EA
⑧
4 EA
④
1 EA EA
678 9 10
⑨
4
4
Chapter 3 Piano Assembly
8Piano Assembly
8

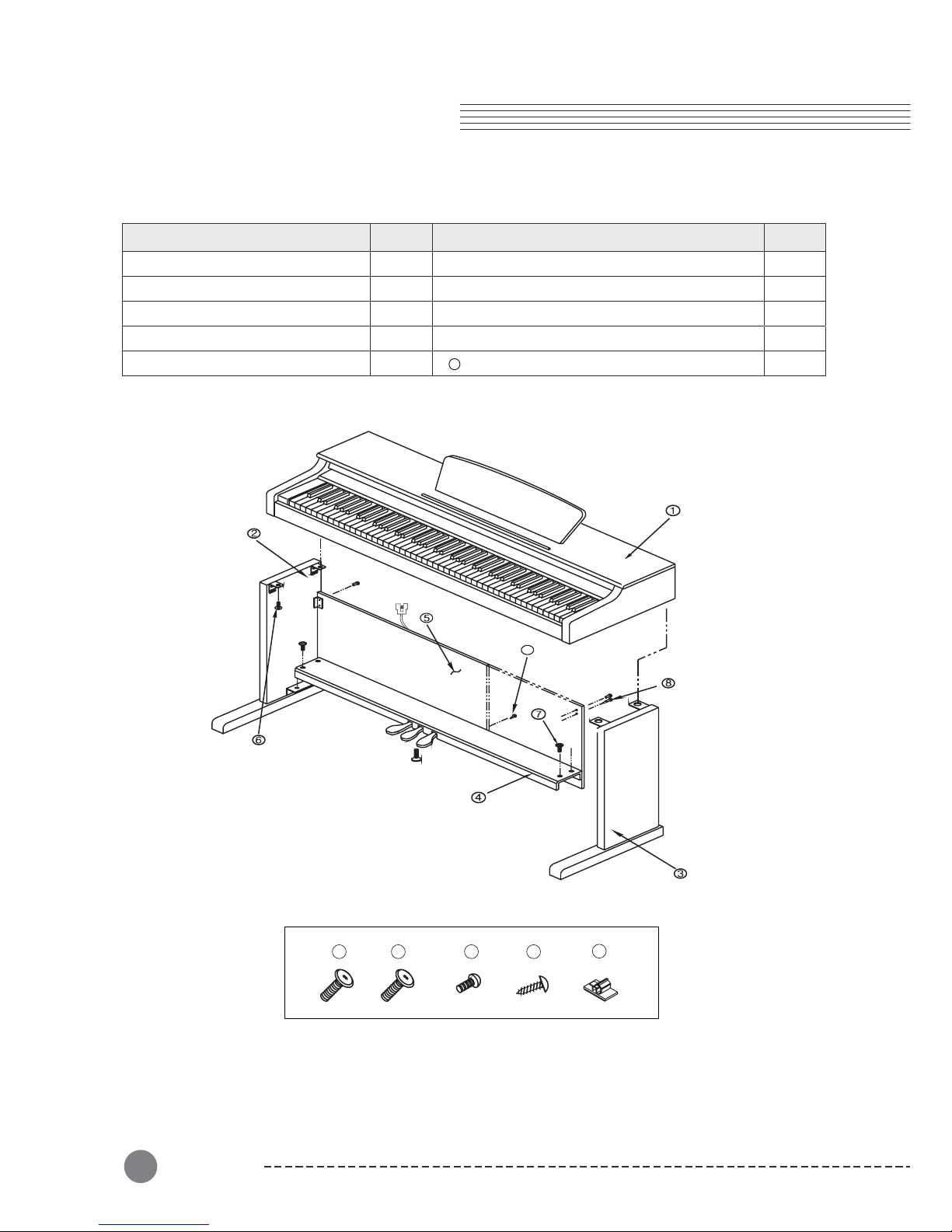

Check that all of the following items are present.
Keyboard
Side panel of stand (Left)
Side panel of stand (Right)
Pedal box
Screws for side panel and keyboard (25mm)
Screws for side panel and pedal box (25mm)
Screws for side panel and rear panel
Screws for rear panel
Please check the quantity of related part.
Part Name Part Name
Q'ty Q'ty
2
⑤
1 EA EA
Rear panel Cord holder
10
9

④
2
4
8
7
3
9
Chapter 3 Piano Assembly
Piano Assembly 9
- Assembly should be carried out by at least two persons.
- Assemble the stand on a hard and flat floor with ample space.
- Be sure to use the included screws, and insert screws of the correct size in the correct
hole locations. Use of incorrect screws can damage the product.

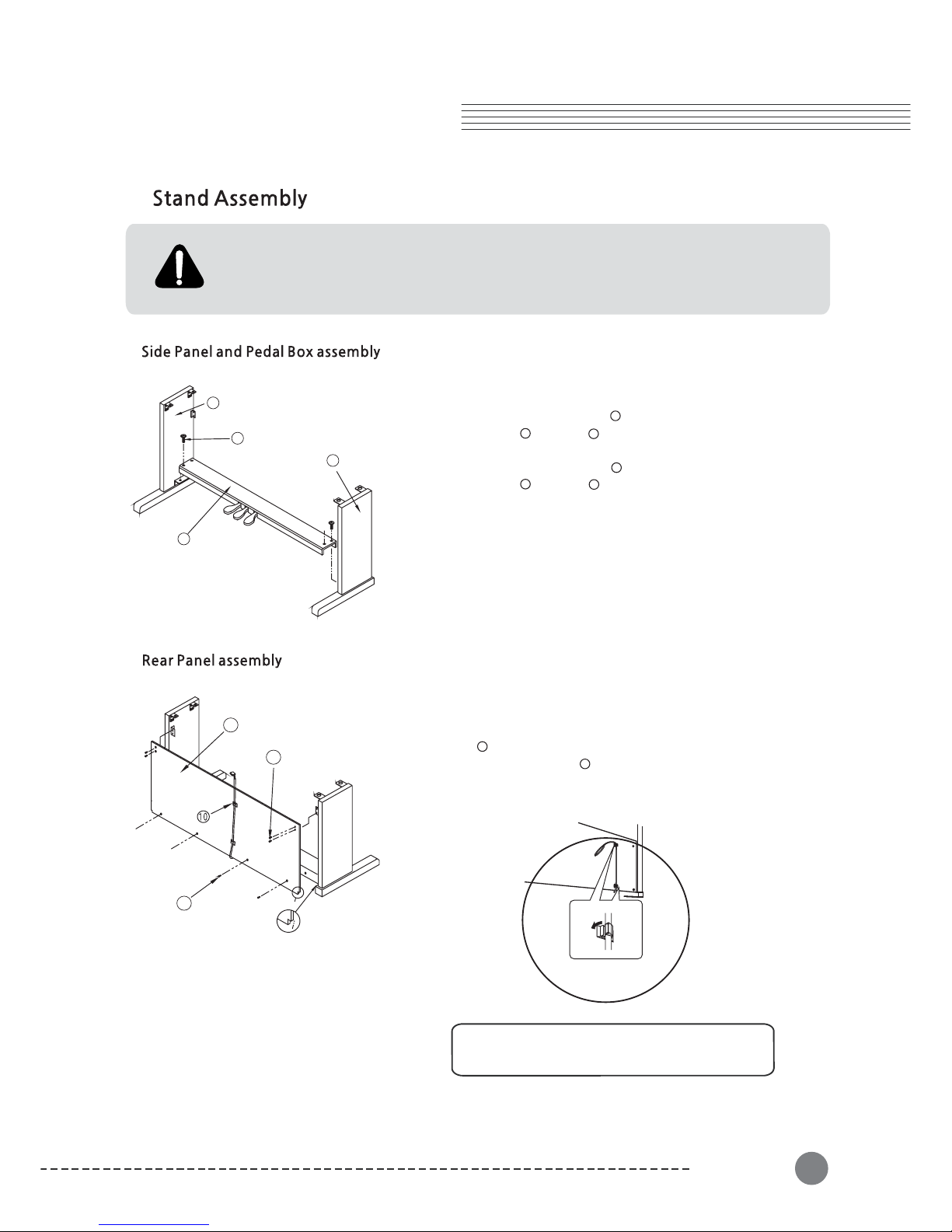

1.
Attach the pedal cord holders to the rear panel
as shown, then clip the cord into the holders
1)
2)
1. Place the pedal box on the left side
panel and use screws to fasten
the side panel.
2. Place the pedal box on the right side
panel and use screws to fasten
the side panel.
3. You can find the pedal cable in the
pedal box . Untie and straighten out
the bundled pedal cable.
4
7
1. Fit into the rear panel's hole in the side
panel brackets and then use the screws
to fasten the rear panel.
2. Use the screws to fasten the bottom
of the rear panel.
2
4
3
7
5
8
9

8Piano Assembly
10
3)
1. Place the keyboard on the stand and fit into the holes in the side panel brackets.
2. Fasten the keyboard to the side panel using screws .
CAUTION : Have a second person hold the keyboard steady until the side panel
screws are installed.
3. Insert the pedal cable plug into the pedal jack located on the bottom of the keyboard.
4. Rotate the pedal adjuster until it comes in firm contact with the floor surface.
If the adjuster is not in firm contact with the floor, the pedals will wobble and may
malfunction.
6
Insert the pedal
cord plug to the
pedal jack from
the rear.
6
6

Power
2.
1) Connecting the power cord
3) Turn the power on
First insert the plug of the AC power cord into the AC connector on the Adaptor, then plug
the other end of the cord into the proper AC outlet on the wall. In some areas a plug ada-
ptor may be provided to match the pin configuration of the AC wall outlets in your area.
Press the power switch located on the right of the front panel to turn the power on. The
display located in the center of the front panel should light with various patterns and after a
short time display "U11"(OS Version) and "n01"(Grand Piano).
Even when the instrument is turned off, AC power is still flowing to the adapter at a minimum
level. When you are not using the instrument for a long time or during electrical storms,
unplug the AC power cord from the wall outlet.
CAUTION
2) Plug the thin DC power cord into the DC Power Jack on the back of the piano.
3.
To adjust the volume, use the [Volume] knob located at the right of
front panel. Play the keyboard while you adjust the knob to a comfortable
and realistic volume.
Adjusting the [Volume] knob also affects the output level of the Phones
jacks and the output level of the Audio Out jacks.
NOTE
Power 11

Chapter 4 Selecting Sounds
8Selecting Sounds
12
1.
There are two ways of selecting one of the 20 voices :
with the [Voices] button and the [Piano] button.
Press the [Voices] button.
Then use the [Next] or [Previous] button to select
different voices in sequence.
"01"
Please refer to the table on the next page which
contains the list of all available voices and their
assigned keys.
If you want to play the Grand Piano voice immediately,
press the [Piano] button to set current voice to "n01,
Grand Piano".
"n" means that Main(primary) sound.
means that voice number (page 13).
If you press and hold the [Next] or [Previous] buttons,
the voice numbers will begin to change quickly.
If you press the [Next] and [Previous] buttons together,
it will skip to the first voice in the next category of
voices.

Selecting Sounds 13
2.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Grand Piano
Bright Piano
Elec Piano 1
Elec Paino 2
Harpsichord
Vibraphone
Organ 1
Organ 2
Steel Guitar
Jazz Guitar
Acoustic Bass
Slap Bass
Violin
Cello
Strings
Choir
Trumpet
Brass
Flute
Drum Sets
Voice
No.
3.
1Fast Funcky
2
Techno
Slow Rock
Soul Beat
Break Beat
Funcky Pop
80's Pop
Pop Disco
Country Rock
Waltz
Polka
3
4
5
6
7
8
9
10
11
12
Big Band
No.Rhythm

Chapter 5 Layering
8Layering
14
This function lets you layer and play two different
sounds at the same time. You can layer voices of two
different voices in the same category, and create a
composite voice of greater richness and texture.
The primary(main) voice is "Grand Piano" by default.
"L" means that Layer(secondary) sound.
"15" means that voice number (page 13).
t can be set to any number between 0 and 127.
By default, the Layer Volume is setting to 70, which
results in the secondary sound being a little softer than
the primary(main) sound.
You can not change the primary sound volume. It is
always setting to max 127.
The sustain pedal can be enabled or disabled while
you are in layer or split mode. While holding down
the [Layer] button or [Split] button, press the sustain
pedal.

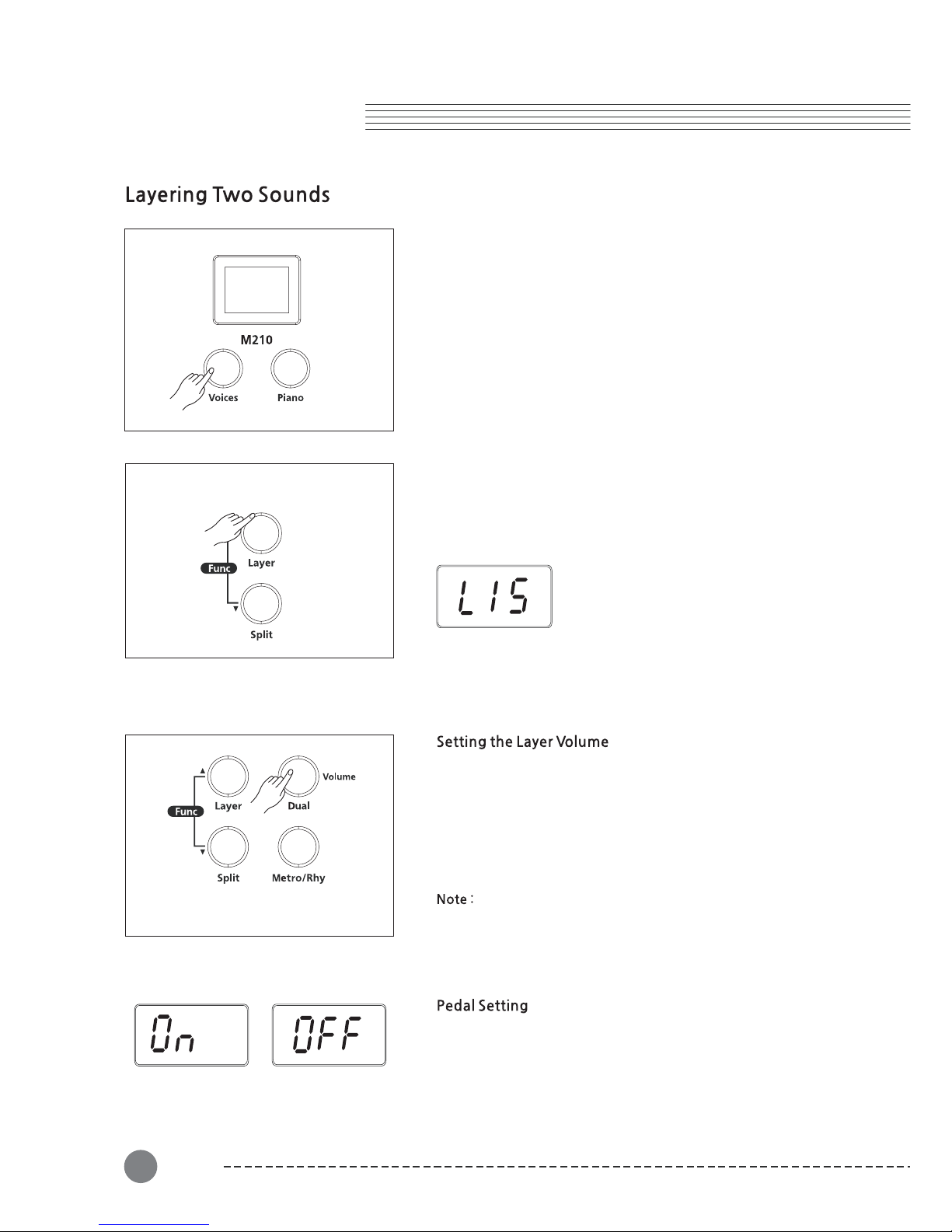

Select the main voice in the usual way with the [Voices],
the [Next] or the [Previous] button if needed.
Then press the [Layer] button and use the [Next] or
the [Previous] button to select a voice to be layered
with the first one.
The secondary(layered) voice is "Strings" by default.
If you want, use the [Volume] button to adjust the
volume balance between two voices in layer mode.
I

1.
Chapter 6 Splitting
Splitting
15
Split mode enables you to play two different voices on
the keyboard - one with the left hand and another with
the right hand. For example, you can play a bass part
using the Bass voice with the left hand and a melody
voice with the right hand.
Select the primary voice in the usual way with the [Voices],
the [Next] or the [Previous] button if needed.
The primary(right hand) voice is "Grand Piano" by default.
Then press the [Split] button and use the [Next] or
the [Previous] button to select a split voice.
The secondary(left hand) voice is "Acoustic Bass" by
default.
It is transposed one octave up automatically.
By default the split point is just below "F 3". To change
the split point, use the [Split] button.
While the keyboard is split, hold down the [Split] button
about 3 second and the LED will display "F 3" which is
the default.
To change, press a key on the keyboard until the LED
shows the desired split point.
If you want, use the [Volume] button to adjust the
volume balance between two voices in split mode.
It can be set to any number between 0 and 127.
By default, the Split Volume is setting to 100, which
results in the secondary sound being a little softer than
the primary(main) sound.
You can not change the primary sound volume. It is
always set to max 127.
"P" means that sPlit(secondary) sound.
"11" means that voice number (page 13).

The Dual(Duo) mode allows two different players to
play the instrument, one on the left and one in the
right, over the same octave range.
The keyboard is divided into two sections with the E3
key as Split Point.
The Split Point cannot be changed from E3.
Since Dual(Duo) is designed for two player piano
performance, different voice cannot be assigned to
Left and Right voice.
1) Sustain pedal : Applies sustain to the right section.
2) Sostenuto pedal : Applies sostenuto to both sections.
3) Soft pedal : Applies sustain to the left section.
8Splitting
16
2.

Chapter 7 Function s
Functions 17
To go to Function Mode, press the [Func] button pair (press [Layer] and [Split] button together).
The LED will show "55" which indicates the style volume setting. The number displayed is the
current setting of the parameter. To change the parameter setting, use the [Next] button
and the [Previous] button. Press the [Layer] or [Split] button to move to the next or the previous
parameter. When you want to quit Function Mode, press the [Voices] or [Piano] button.
1) Style Volume
2) Accompaniment
3) Reverb
4) Chorus
5) Effect Level
6) Tune
7)
8) Demo Loop
9) Temperaments
10) Local Control

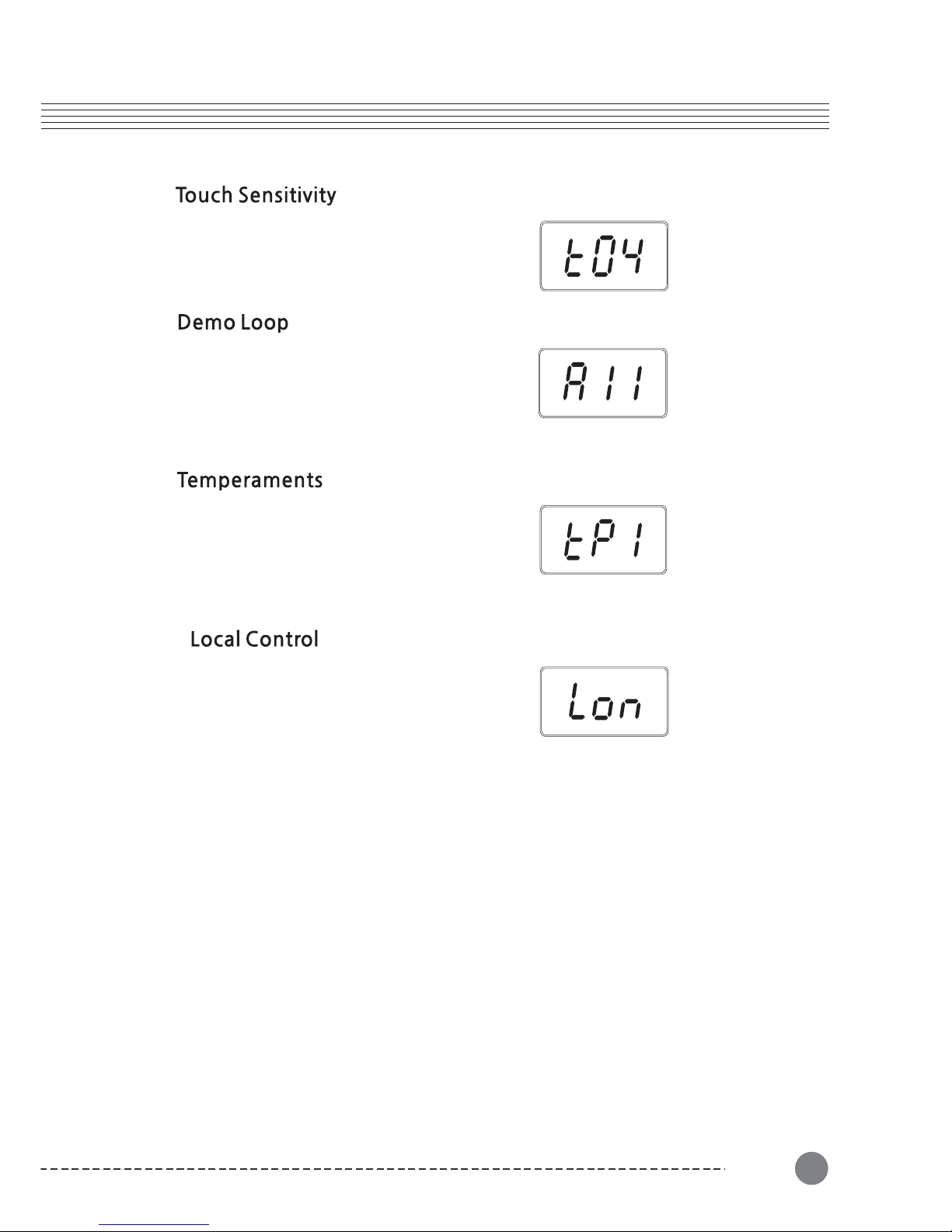

Touch Sensitivity

1)
8Functions
18
You can adjust the volume level of the style.
The range is between 1 to 100 and the default
setting is 55.
5)
You can adjust the intensity of the reverbration
or other effect used by each voice. Normal is 60
but that can be adjusted by using the [Next] and
[Previous] buttons. The range is from 0(no effect)
to 127(max).
3)
The appropriate Reverb type and Level(depth)
are called up automatically when you select each
of the voices. This is why the Reverb need not be
selected, however, you can select a reverb type.
Available reverbs are Off, Room, Hall 1, Hall 2,
Stage.
2)
You can change the Accompaniment mode
of the style. If you select "Aon", you can hear
the Drum, Bass and Accompaniment of the
style. If you select "AoF", you can only hear
the Drum pattern sound.
4)
You can select a chorus type. Available chorus
types are Off, Chorus, Phaser, Tremolo.
6)
You can finely tune the pitch up or down in about
0.5Hz steps. This function is useful when you play
or record with another instrument that is slightly
out of tune or can't be easily retuned. The default
setting is "40.0" (440Hz). The range is -427.0Hz to
453.0Hz. The LED will display from 27.0 to 53.0, but
not displayed the dot. The [Jump] button pair will
restore the default setting.
1. rE0 : Off
2. rE1 : Room
3. rE2 : Hall 1
4. rE3 : Hall 2
5. rE4 : Stage
1. cH0 : Off
2. cH1 : Chorus
3. cH2 : Phaser
4. cH3 : Tremolo

9)
Various historical temperaments other than
the modern "Equal" can be selected. Available
temperaments are Equal, Pythagorean, Pure
Major, Pure Minor, Mean Tone, Werckmeister III,
Kirnberger III.
10)
You can set Local Control on or off here.
Local Control is the connection between
keyboard and internal sound producing
circuitry (engine). When Local Control is set
to "On", the keyboard delivers your performance
information to the sound engine, so you can
hear the sounds you play. At the same time,
the instrument transmits MIDI information via
its USB port.
There are, however, cases you need to set
Local Control to "Off". When using the
instrument with an external MIDI sequencer
or computer via MIDI, the instrument may
play the same note twice-once by the direct
sound engine connection and once by the
"echo" through the sequencer and coming
back. You can eliminate the echoing of notes
by setting Local Control to "Off" which interrupts
the direct connection. The default setting is
"On".
8)
You can set a playback mode for demo repeat.
The default setting is "All"
1) Off : Demo songs only play once.
2) One : Repeat playing of one song.
3) All : Repeat playing of all songs.
7)
You can adjust how the keyboard responds to
your playing. Available touch sensitivity is Flat,
Hard, Normal, Soft. The default setting is Soft.
Functions 19
1. to1 : Flat
2. to2 : Hard
3. to3 : Normal
4. to4 : Soft
1. Equal
2. Pythagorean
3. Pure Major
4. Pure Minor
5. Mean Tone
6. Werckmeister III
7. Kirnberger III

Chapter8 Metronome/Rhythm
This instrument features a variety of rhythmic backing patterns with accompaniment (called )
in a variety of different musical genres including pop, waltz and many others.
"Style"
1) Pressing the [Metro/Rhy] button will start the style
playback when a style is selected. Pressing the same
button again will stop the style playback.
2) To select a style, hold the [Metro/Rhy] button down. The
LED will show the currently selected style number.
3) Choose different preset styles with the [Next] and
[Previous] buttons. (Refer to the rhythm list on page 13)
Change the style tempo by pressing the [Tempo] button.
The [Next] and [Previous] buttons will speed up or slow down
the tempo. The range is 30 to 250.
Use the [Volume] button then the [Previous] and [Next]
buttons to adjust the volume level of the style. The range is
from 1 to 100 and the default setting is 55.
1) Pressing the [Metro/Rhy] button will start the metronome
when a metronome signature is selected. Pressing the
same button again will stop the metronome.
2) To select a metronome signature, hold the [Metro/Rhy]
button down. The LED will show the currently selected
metronome signature.
3) Choose different metronome signatures with the [Next]
and [Previous] buttons.
4) Available signatures are 1/4, 2/4, 3/4, 4/4, 6/4, 6/8.
8Rhythms
20
