Kusch + Co Papilio 9200 Series User manual

Series 9200 Design: Justus Kolberg
Papilio

Papilio.
Take a seat and experi-
ence the pleasant
sensation of floating.
Discover this new light-
ness with these ergo-
nomic swivel chairs

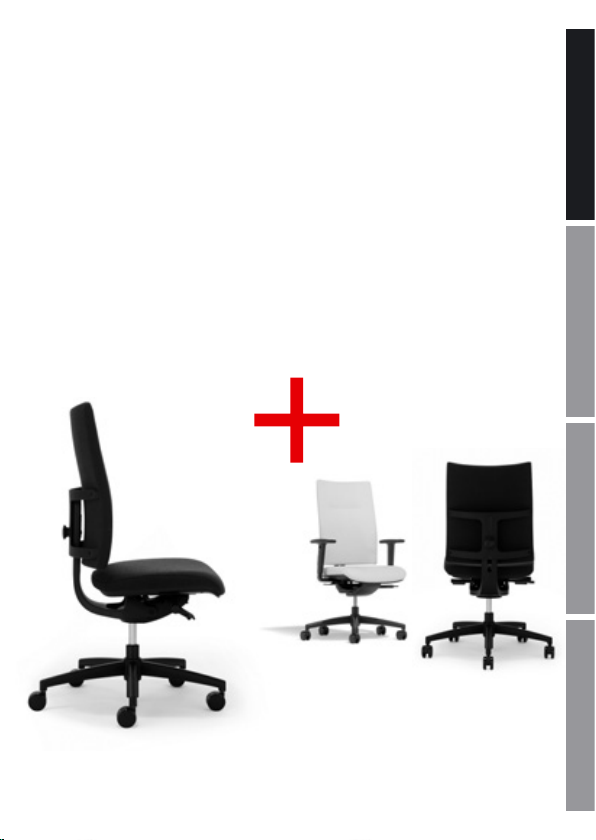

for the office. In three
design variants for dif-
ferent working areas,
complemented by visi-
tor’s and conference
cantilevers.
Papilio.
Sitzen mit dem Gefühl,
beschwingt zu schwe-
ben. Entdecken Sie die
neue Leichtigkeit mit
diesen ergonomischen
Bürodrehstühlen. In
drei Modellvarianten
für unterschiedlichste
Arbeitsbereiche, ergänzt
durch Besucher- und
Konferenz-Freischwinger.
Papilio.
Neem plaats en u krijgt
het aangename gevoel
dat u zweeft. Ontdek
de nieuwe lichtheid van
deze ergonomische
bureaustoelen. Met drie
verschillende varianten
voor verschillende
werkhoogtes, passend
aangevuld door bezoe-
kers- en vergaderstoelen
met sledeframe.
Papilio.
Prenez place, et vous
aurez la sensation de
flotter. Découvrez la
nouvelle légèreté de
ces sièges de bureau
pivotants ergono-
miques. Trois variantes
de modèles pour les
espaces de travail les
plus divers, complétés
par les sièges luge
pour les visiteurs et
les réunions.
2

3

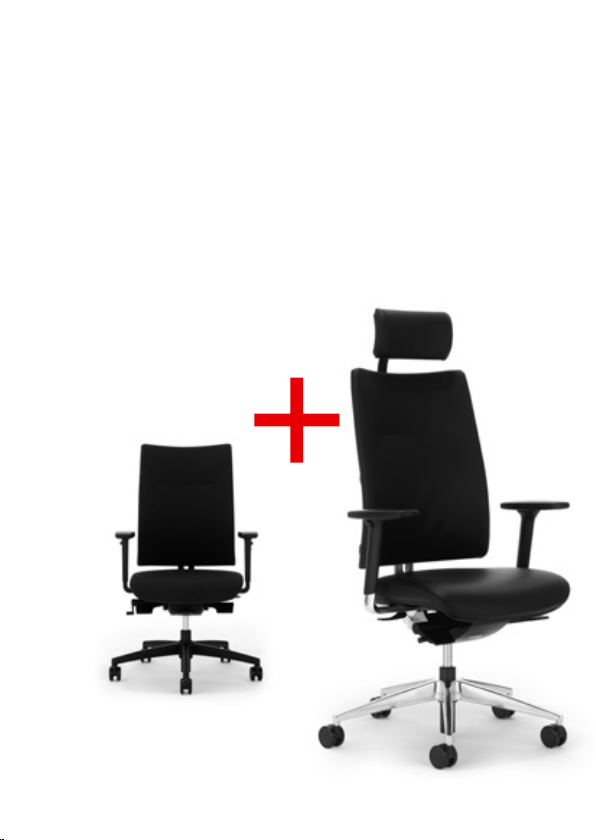

9200 Papilio Congratulations to
Papilio, your new swivel
chair. With its up to
date ergonomic design,
Papilio boasts all the
functions to guarantee
a comfortable and
healthy sitting posture.
While supporting the
back and hips, this
swivel chair stimulates
you to adapt a dynamic
sitting posture with fre-
quent changes of your
working position, keep-
ing your circulation and
metabolism in motion.
If you wish to adapt this
swivel chair to your lik-
ing – stature and height
are different for every-
one – please read this
manual carefully. After
having read it, you will
be able to enjoy all the
advantages of this
modern swivel chair.
4

Deutsch EnglishFrançais Nederlands
5

420 mm
550 mm
You have found the
optimum seat height
when your thigh and
lower leg make a right
angle.
To lower the seat
While seated, lift up the
right lever underneath
the seat – the pressure
of your weight will
lower the seat – release
the lever when the
seat is in the desired
position.
To raise the seat
Lift the lever up while
reducing the load on
the seat – the seat will
be raised – release the
lever when the seat is
in the desired position.
Seat height
6

40 mm
1 2 3 4 5
To move seat for-
wards or backwards
Pull out the flat handle
underneath the seat –
while seated push the
seat in the desired
position – release the
handle.
7
Deutsch EnglishFrançais Nederlands
Seat depth
(models 9257 and
9207)
The seat depth can be
adjusted to your stature
in 5 different positions.
The seat depth has
been correctly adjusted
when there is a 2 finger
gap between the front
edge of the seat and
your lower legs while
you are leaning back.

3°
8
Seat inclination
(optional for all
designs)
Reduces the inclination
of the seat and backrest
when synchronised in
the front position.
Forward tilt
With the dual synchro-
nized mechanism in its
free-floating position,
lean on the back and
pull out the left knob
underneath the seat.
When you lean forward,
the seat and back will
change to a forward-tilt-
ing position (additional
3° forwards).
Horizontal position
Push the knob back.
With the next move-
ment of the dual syn-
chronized mechanism,
the seat will return to
the 0° position.

1
2
3
4
5
6
7
90 mm
9
Deutsch EnglishFrançais Nederlands
Backrest height The backrest can be
adjusted to support the
lower back. The curve
in the backrest should
be in the lumbar region
– approximately at belt
height – and you should
feel it supporting your
weight.
To adjust
Turn the knob of the
back clasp to the left as
far as it will go. While
seated, push the back-
rest up- or downwards
in the desired position.
Then turn the knob back
to the right.

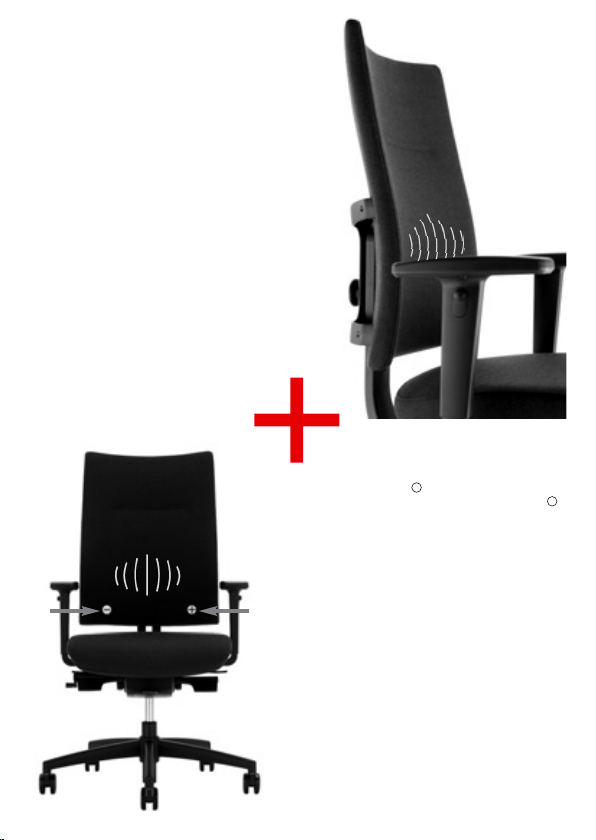

Pneumatic
lumbar support
(optional for all
models)
The pneumatic lumbar
support will comfortably
support your lumbar
vertebra. The amount
of lumbar support is
adjusted by means of
an integrated, ergo-
nomically shaped pneu-
matic air cushion.
To inflate the lumbar
support
Press the plus sign +
several times to fill
the cushion with air.
To deflate the lumbar
support
Let air out by press-
ing the minus sign –
several times.
10

100 mm
35 mm
Deutsch EnglishFrançais Nederlands
11
Width
The armrest width
depends on your
stature. Push the
release handle
underneath the arm
support down – now
you can position the
armrests into the
desired lateral posi-
tion – lift the release
handle up.
2-D armrests
(models 9250/3 and
9257/3)
The armrests will
support the weight of
your arms not only
when relaxing, they
are also extremely
comfortable when you
are working at your
computer.

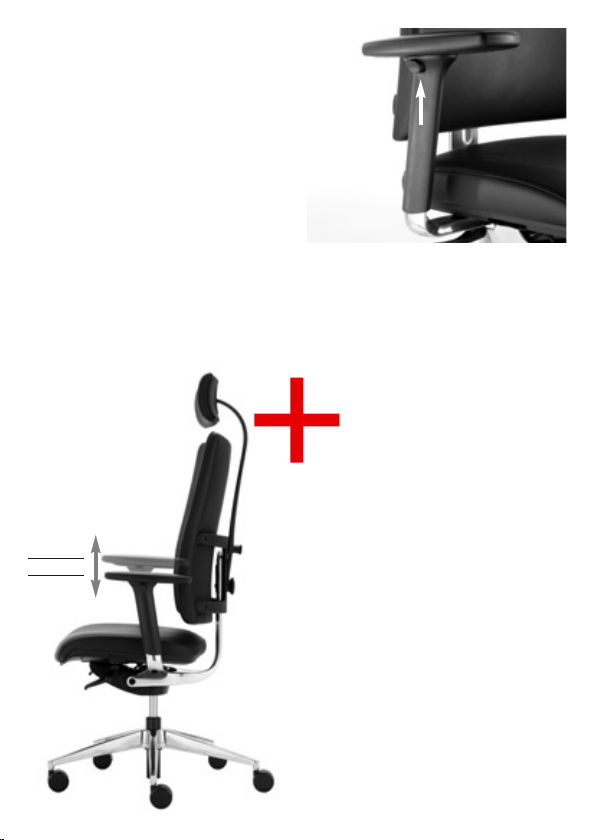

Height
When your fingers are
on the keyboard, the
armrests must support
your elbows.To raise
or lower the armrests,
press the button under-
neath the arm pad and
push the armrests up
or down to the desired
position – then release
the button.
11

12
3-D armrests
(model 9207/3 or
optional)
The armrests will
support the weight of
your arms not only
when relaxing, they
are also extremely
comfortable when you
are working at your
computer.
Height
When your fingers are
on the keyboard, the
armrests must support
your elbows.To raise or
lower the armrests,
press the button under-
neath the arm pad and
push the armrests up
or down to the desired
position – let the arm-
rest lock in place, then
release the button.
100 mm

60 mm
60°
35 mm
EnglishFrançais Nederlands
Angle
Getting the angle
right will help support
different types of work.
Swing the armrests
inwards while using
a keyboard. When you
are using your mouse,
swing the right (or
left) armrest outwards.
Grasp your arm pad
and pivot it to the left
or right – let the arm
pad lock into place and
release it.
Depth
The armrest depth
can be adapted to your
working position. When
you are working intently
in an upright position,
push the armrests for-
ward. Grasp the arm
pad and push it for- or
backwards into the
desired position – let
the arm pad lock into
place and release it.
Width
The armrest width
depends on your stat-
ure. Push the release
handle underneath the
arm support down –
now you can position
the armrests into the
desired lateral posi-
tion – lift the release
handle up.
13
Deutsch

Dual
synchronized
mechanism
Thanks to the dual syn-
chronized mechanism,
the seat and the back-
rest follow the natural
movements of the
body when you change
your working position,
going from an upright
position (for instance,
working intently at your
computer) or leaned
back (for instance when
reading documents) to
a relaxed position (for
instance when making
a phone call). Seat and
back will synchronize
at a ratio of 1:2.8. The
flexible connection of
the backrest to the
back clasp provides
supple comfort while
leaning back, a very
comfortable feature
of this swivel chair.

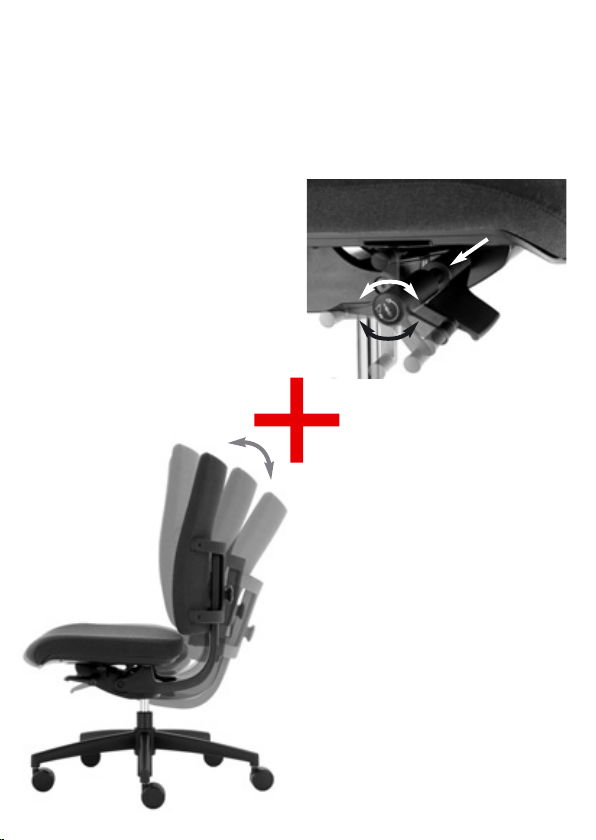

Tilt tension
The tilt tension of the
backrest can be adjust-
ed to your weight and
personal preference.
With the adjustment
knob, you can adjust
the tilt tension to a
body weight between
40 and 120 kg.
To increase
Pull the right operat-
ing lever underneath
the seat out (1) and
turn it clockwise (2).
To decrease
Turn the operating lever
counterclockwise until
the tilt tension is to
your liking – keep trying
by leaning back- and
forwards until you feel
comfortable – press the
operating lever back in.
Safety
Use the operating
lever only when the
backrest is unloaded.
Press the operating
back in when the tilt
tension is adjusted.
1
2
14

15
Deutsch EnglishFrançais Nederlands
To lock the dual syn-
chronized mechanism
The position of the
seat/backrest can be
locked in 4 positions.
To lock
While seated, lean
back until the backrest
is in the desired posi-
tion. Tilt the left lever
underneath the seat up
to lock the mechanism.
To release
Lean against the
locked backrest –
push the lever down –
remove the load
from the backrest –
the dual synchronized
mechanism is now
back in its free float-
ing position.

60 mm 1
2
3
4
5
6
7

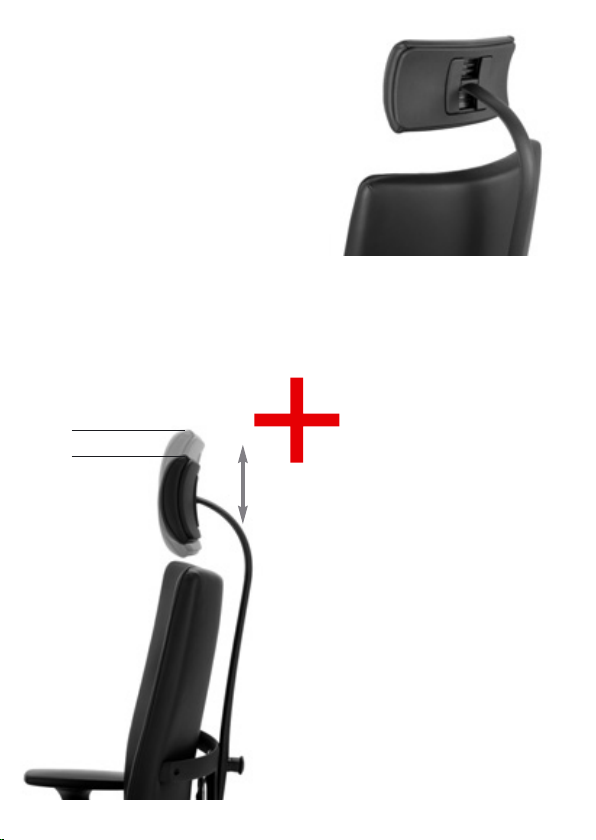

Headrest
(optional for models
9257 and 9207)
The headrest is height
and depth adjustable,
so you can adjust it to
your stature and height.
It will relieve the strain
on your shoulders and
neck muscles.
Height
Grasp the headrest and
raise or lower it into one
of the 7 locking posi-
tions – lock the headrest
into place when it is in
a comfortable position.
16

35 mm
30°
Deutsch EnglishFrançais Nederlands
Depth
The headrest can be
freely positioned by
turning the knob at the
rear of the headrest
support. The headrest
will move forwards
when you turn the knob
clockwise and back-
wards in the counter-
clockwise direction.
Dynamic headrest
The headrest will
automatically adapt
its angle to the move-
ments of your head.
It will return to its
starting position as
soon as the headrest
is unloaded.
17

18
Castors
The 5-prong base is
equipped with self-brak-
ing castors to prevent
the swivel chair from
rolling away when not
being used.
Hard castors
(standard)
Black, diameter 65 mm,
hard outer cover and
low rolling resistance.
Recommended for
carpeting.
Soft castors
Black with a grey
ring, diameter 65 mm,
soft outer cover and
a higher rolling resist-
ance. Recommended
for parquet, tiles or
synthetic floors.
Safety
The castors need to
be replaced when
the floor covering is
changed. Spare
castors are obtainable
from Kusch+ Co. The
swivel chair is design-
ed to be sat upon. Do
not climb on or stand
on a swivel chair/
armchair. Only skilled
personnel may service
the gas spring. Neither
heat the gas spring
nor open it.

19
Deutsch EnglishFrançais Nederlands

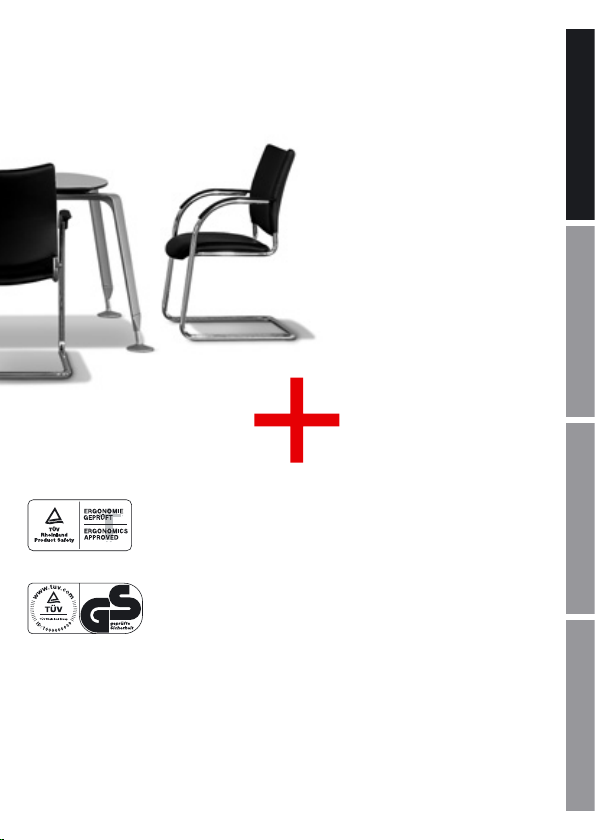

Standards Cleaning
instructions
Synthetic surfaces
Clean with a soft brush
or a cloth with some
mild detergent, soap or
fat-soluble washing-up
liquid.
Fabrics
Use a vacuum-cleaner
or dry foam. Always
check Kusch+ Co’s or
the manufacturer’s
care instructions first.
Always use environ-
mentally friendly
cleaning products.
Recycling
This product can be
recycled at the end
of its life cycle. This
service is not free of
charge.
Subject to technical
changes. We refer
to our general terms
and conditions.
Ergonomic design
GS (geprüfte Sicher-
heit = safety certificate)
BIFMA (USA)
DIN 1335 part 1–3
(Germany) Tests with
increased test cycles.

20
9200 Papilio Herzlichen Glück-
wunsch zu Ihrem
neuen Bürodrehstuhl
Papilio. Nach neuesten
Erkenntnissen ergono-
misch gestaltet, bietet
er Ihnen alle Voraus-
setzungen, komfortabel
und gesund zu sitzen.
Bei permanenter Ab-
stützung von Rücken
und Becken ermöglicht
er Ihnen ein dynami-
sches Sitzen mit häufi-
gem Wechsel der
Arbeitshaltung. Das hält
Kreislauf und Stoff-
wechsel in Schwung!
Um den Stuhl richtig
auf sich einzustellen –
denn Menschen sind in
Statur und Größe unter-
schiedlich – beachten
Sie bitte sorgfältig diese
Bedienungsanleitung.
So werden Sie alle Vor-
teile täglich für sich
nutzen können.
