KYLAND PTS-30 User manual

PTS-30
Time Server
WEB Manual
Kyland Technology (Shanghai) Co., Ltd.
Version Copyright
R7

Kyland Technology (Shanghai) Co., Ltd.
Room 802, Building 5, No.3000 Longdong Avenue
Pudong District, Shanghai, China
Tel: [phone]
Fax: [phone]

Kyland Technology (Shanghai) Co., Ltd PTS-30 Time Server
Contents
1. Basic Features ............................................................................................................ 2
1.1. Introduction................................................................................................. 2
2. Operations ................................................................................................................. 3
2.1. Login ............................................................................................................ 3
2.2. Logout.......................................................................................................... 3
2.3. Languages.................................................................................................... 4
3. Applications............................................................................................................... 5
3.1. Status........................................................................................................... 5
3.1.1. Source Status........................................................................................ 5
3.1.2. Clock Status .......................................................................................... 6
3.2. Configuration............................................................................................... 6
3.2.1. Sync Source Settings............................................................................. 7
3.2.2. Clock Settings ....................................................................................... 8
3.2.3. NTP Settings ....................................................................................... 10
3.2.4. PTP Settings (Optional)....................................................................... 10
3.2.5. Output Settings .................................................................................. 12
3.2.6. Network Settings................................................................................ 14
3.2.7. TMS Settings (Optional)...................................................................... 15
3.3. System ....................................................................................................... 18
3.3.1. Gateway.............................................................................................. 18
3.3.2. Route .................................................................................................. 19
3.3.3. Configuration...................................................................................... 19
3.3.4. Firmware ............................................................................................ 20
3.3.5. SNMP (Optional)................................................................................. 20
3.4. Management ............................................................................................. 21
3.4.1. Change Password ............................................................................... 21
3.4.2. Reboot ................................................................................................ 22
Table Index...................................................................................................................... 23
- 1 -

Kyland Technology (Shanghai) Co., Ltd PTS-30 Time Server
1. Basic Features
1.1. Introduction
The PTS-30 time server is a standard time synchronization server. Support GPS, BDS,
GLONASS, IRIG-B and PTP time source, internal built-in TCXO, OXCO, Rubidium
Oscillator and multiple sources time sync automatic selection algorithm and
Master/Slave clock redundant switch control logical, which will perform GPS, BDS,
GLONASS, IRIG-B, PTP and local clock System multiple time source auto selection,
sky/grounding and master/slave clock backup. PTS-30 time server provides flexible
time synchronization signal output slots which can help to configure different timing
output interface channel. The output timing channels include PPS, PPM, PPH, IRIG-B
(DC), IRIG-B (AC), Serial Time Signal (TOD etc.) etc. Both fiber and copper interfaces
are supported. Plus, PTS-30 supports network sync time protocols NTP/SNTP/EEE1588
v2.0. IEEE1588 works in several modes by the software configuration including
grandmaster clock, slave clock and boundary clock. PTS-30 time server also has alarm
contact output. PTS-30 time server provides 5.7 inch color touch screen as HMI and
the visualization interface is available for work status monitoring and parameters
setting. Meanwhile, PTS-30 time server is designed to send timing source status and
clock status to control center by IEC61850, IEC60870-5-104, IEC60870-5-101, DNP3.0,
and Modbus etc. PTS-30 time server also supports WEB and SNMP to manage system.
- 2 -

Kyland Technology (Shanghai) Co., Ltd PTS-30 Time Server
2. Operations
2.1. Login
Please connect PTS time server and PC by network cable. Open any WEB Browser of
PC and input http://192.168.0.111 and press enter, the login WEB screen of PTS will be
shown on your screen.
Figure 1 – Login Screen
The default user name is ‘admin’, the default password also is ‘admin’. PTS time server
supports user to modify the password of ‘admin’ after you login WEB management
system.
Before you access WEB management system of PTS time server, please confirm you
might access this Ethernet port, if find any problems you should check the network
whether or not is ready, maybe connection cable has some broken or something else.
Notes: The IP address is default IP address of eth0 of PTS time server, if you change
Ethernet port or Ethernet IP address, you might input the correct IP address again and
then go into the WEB management system of PTS time server.
2.2. Logout
After you submit your correct user name and password, the default screen of WEB
management system will be shown as:
- 3 -

Kyland Technology (Shanghai) Co., Ltd PTS-30 Time Server
Figure 2 – Default Screen
On the top right corner, system has a [Logout] option, if you want to logout system,
you might directly click this and then system will go to original login screen and wait
user to input login information again.
2.3. Languages
The default language is English, the WEB management system of PTS time server
supports English and Chinese. System can switch language to Chinese language by [中
文] option on login screen and default screen.
- 4 -

Kyland Technology (Shanghai) Co., Ltd PTS-30 Time Server
3. Applications
3.1. Status
The WEB management system supports to view time status by WEB. The status
information can help user to easy know the current status and help them to analyze
problems as soon as possible.
Press ‘Status’ to go to the status screen on the top of navigation bar. The status screen
will be shown as:
Figure 3 – Status Screen
3.1.1. Source Status
Press ‘Source Status’ on the left navigation bar to show time status screen. The source
status screen will be shown as:
Figure 4 – Source Status Screen
The time source status shows the work status of any time source. The PTS time server
supports 5 source channels including SAT1/SAT2/IRIG-B1/IRIG-B 2/ P T P.
- 5 -

Kyland Technology (Shanghai) Co., Ltd PTS-30 Time Server
Select different time source channel by manual and the time status of this source will
be shown on this screen. For example, if you select SAT1, you might see source status,
satellite number, antenna status, and source bump status and source priority. The
‘Normal’ means this status is OK, if it has some problems, maybe it will show ‘Alarm’
information.
3.1.2. Clock Status
Press ‘Clock Status’ on the left navigation bar to show clock status screen. The clock
status screen will be shown as:

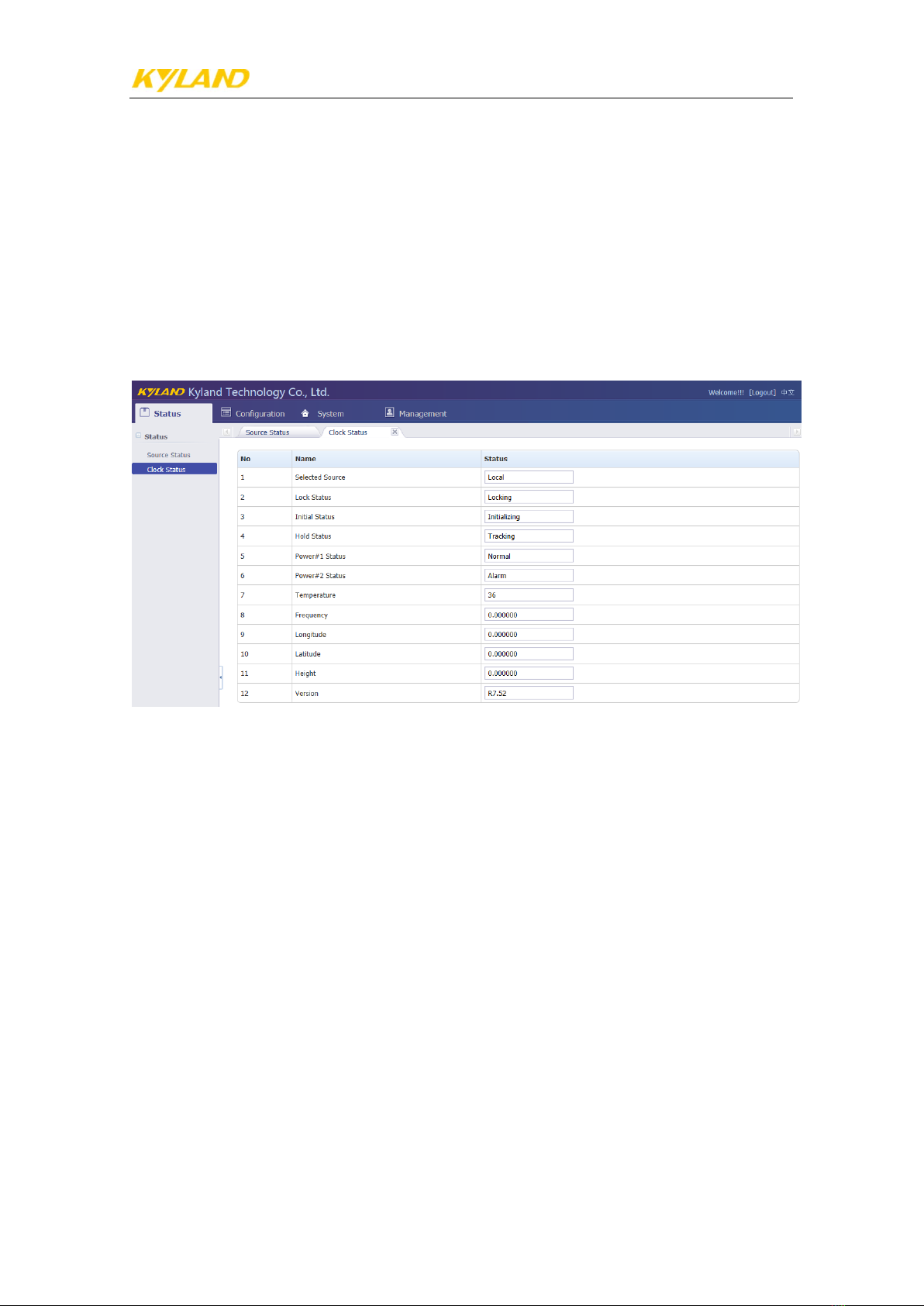

Figure 5 – Clock Status Screen
To show the current selected source, inside temperature, power grid measurement
frequency and the current work status including initial, lock, hold status, position
information and version information of PTS time server.
3.2. Configuration
The WEB management system supports to set configuration parameter by WEB. The
user does not need go to local place to set parameter when time server supports this
configuration interface. It is a good option for user to easy manage time server.
Press ‘Configuration’ to go to the configuration screen on the top of navigation bar.
The screen will be shown as:
- 6 -

Kyland Technology (Shanghai) Co., Ltd PTS-30 Time Server
Figure 6 – Configuration Screen
3.2.1. Sync Source Settings
Press ‘SYNC’ on the left navigation bar to show synchronization source setting screen.
The sync source setting screen will be shown as:

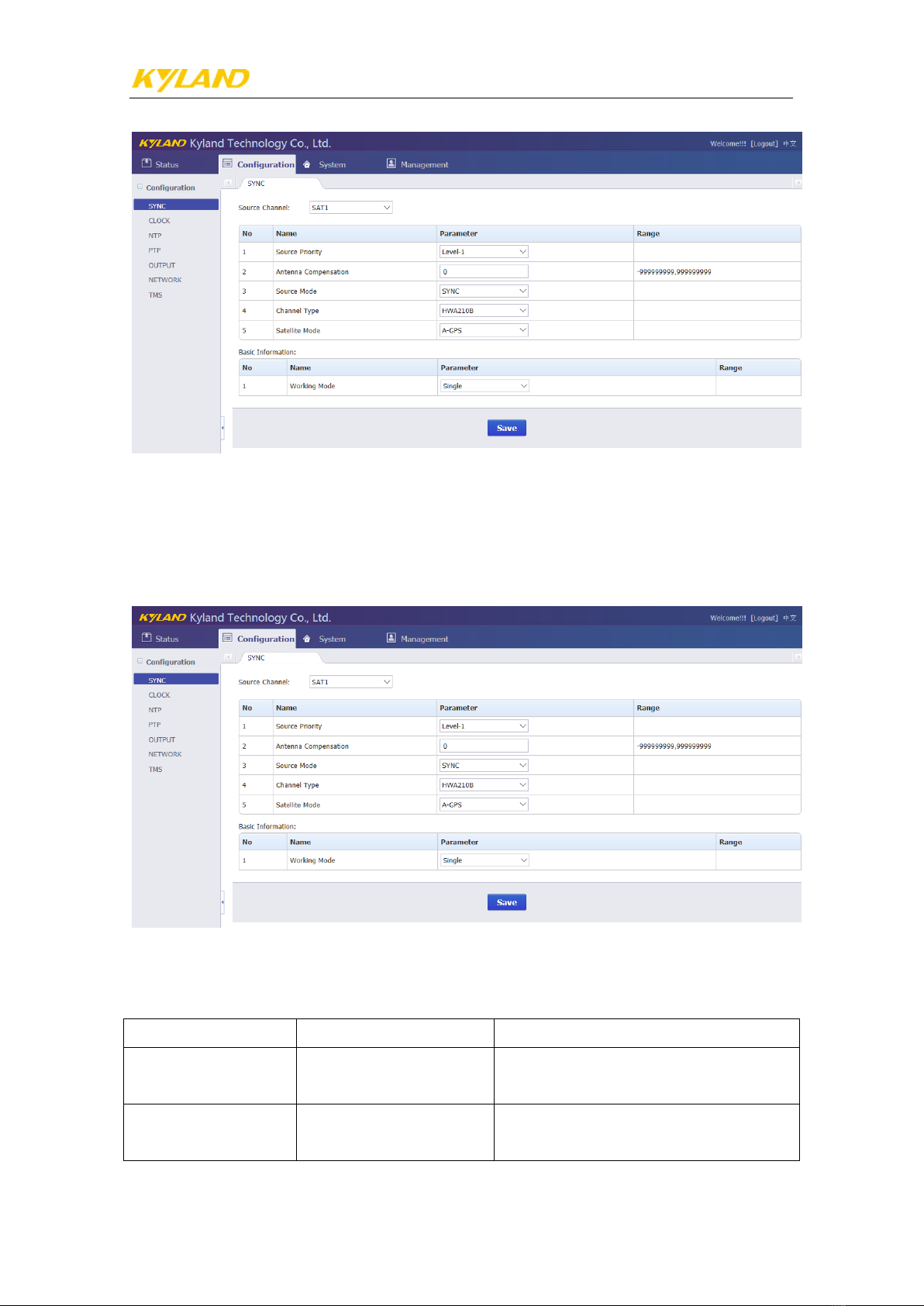

Figure 7 – Sync Source Setting Screen
Press ‘Save’ button to save the current setting when you change setting.
Items Parameters Description
Channel Type UBLOX5/UBLOX8/AT3340
/HWA210B/HWA210L
Select different module for each satellite
channel to receive satellite signal from sky.
Satellite Mode Auto/A-BDS/A-GPS/A-
GLN/F-BDS/F-GPS/F-GLN
When you select a multiple mode receiver
for each satellite channel, you might use
- 7 -

Kyland Technology (Shanghai) Co., Ltd PTS-30 Time Server
Items Parameters Description
this parameter to make it work at right
mode.
Antenna Compensation 0ns
According to different antenna types and
lengths, system implements time delay
compensation for each satellite channel.
Source Priority 1~10 Set the priority for external signal source. 1
is highest source and 10 is lowest source.
Source Mode SYNC/PEER/NONE
To set source working mode. SYNC is
individual sync source, PEER is redundancy
sync source and NONE is anything to do.
Input Channel FI1/FI2 To set IRIG-B1/B2 input time signal.
Time Format DC+/DC-
To set IRIG-B1/B2 input format, including
DC+ (positive polarity DC), DC-(negative
polarity DC) IRIG-B signal.
UTC Offset 0.00H Set time offset between IRIG-B and UTC.
Working Mode Single/Multiple
Single source enabled(only one good
external source can make clock
work)/Multiple source enabled(compare
with multiple good time sources in order to
select best one as the reference source)
3.2.2. Clock Settings
Press ‘CLOCK’ on the left navigation bar to show clock setting screen. The clock setting
screen will be shown as:
- 8 -
