ORIGINAL INSTRUCTIONS
WARNING! DO NOT DAMAGE THE REFRIGERANT CIRCUIT.
WARNING! DO NOT DAMAGE THE INNER OR OUTER WALLS OF THE APPLIANCE:
THE REFRIGERANT FLUID CIRCUIT MAY BE DAMAGED. IN CASE OF DAMAGE
TO THE WALLS, DO NOT START THE APPLIANCE AND CONTACT A QUALIFIED
SERVICE TECHNICIAN.
WARNING! THIS APPLIANCE MUST ONLY BE INSTALLED BY SUITABLY
QUALIFIED PERSONNEL IN ORDER TO REDUCE THE RISKS CONNECTED WITH
FLAMMABILITY.
WARNING! KEEP THE VENTILATION OPENINGS IN THE APPLIANCE CASING
OR IN THE RECESSED STRUCTURE CLEAR OF OBSTRUCTIONS.
WARNING! NEVER USE MECHANICAL DEVICES OR ANY OTHER MEANS TO
ACCELERATE THE DEFROSTING PROCESS, OTHER THAN THOSE RECOMMENDED
BY THE MANUFACTURER.
WARNING!DO NOT USE ELECTRICAL APPLIANCES INSIDE THE COMPARTMENTS
OF THE APPLIANCE FOR STORING FROZEN FOODS IF THESE ARE NOT THOSE
RECOMMENDED BY THE MANUFACTURER.
Propane is a natural gas that doesn’t aect the environment but is
inammable. It is therefore essential to ensure that all refrigerant pipes
are not damaged before connecting the appliance to the mains supply.
Every 8 gr. Of refrigerant, the installation room must have a 1 m³ minimum
volume. The amount of refrigerant of the appliance is indicated on the rating plate
of the device. In the event of leakage of the refrigerant, avoid using open ames
or sources of ignition in the vicinity of the area of the leak.
Be careful not to not damage the refrigerant circuit pipes during positioning,
installation and cleaning.
AVOID USING NAKED FLAMES OR SPARKS INSIDE THE APPLIANCE.
IN THE EVENT OF DAMAGE:
• Keep the appliance far from ames or ignition sources.
• Ventilate the room well for a few minutes.
• Switch o the equipment, remove the power supply plug.
• Inform customer service.
• The higher the refrigerant content in the equipment, the larger the room must be hosting the
equipment.
• In rooms that are too small, a mix of ammable air and gas can form in the event of a leak.
• ALWAYS KEEP THE INSTRUCTIONS MANUAL SAFE AND IF THE APPLIANCE IS
SOLD, HAND IT OVER TO THE NEW OWNER.
• THE UNIT MUST NEITHER BE EXPOSED OR USED OUTSIDE OF THE POINT
OF SALE. IT MUST BE SHELTERED FROM WEATHER CONDITIONS. THE UPPER
PART OF THE APPLIANCE MUST REMAIN FREE.
SAFETY ADVICE

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 4/20
N° DOC UM000495
• DO NOT EVER TOUCH OR HANDLE THE APPLIANCE WITH BARE FEET OR WITH
WET HANDS AND FEET.
• AFTER INSTALLING THE APPLIANCE MAKE SURE THAT IT IS NOT POSITIONED
ON THE POWER CABLE.
• TO DISCONNECT THE APPLIANCE FROM THE MAINS, TAKE OUT THE PLUG.
DO NOT PULL THE POWER CABLE OUT OF IT.
• DO NOT STORE EXPLOSIVES, SUCH AS PRESSURIZED CONTAINERS WITH
FLAMMABLE PROPELLANT, IN THIS APPLIANCE.
• CABINET MUST BE INSTALLED ON A PERFECTLY EVEN SURFACE.
• DO NOT APPLY POWER TO THE APPLIANCE IF IT IS DAMAGED. IN CASE OF
DOUBT, CONTACT THE SUPPORT SERVICE OR THE DISTRIBUTOR.
• IF THE POWER CABLE IS DAMAGED, DO NOT USE THE APPLIANCE OR ATTEMPT
A REPAIR: THIS MUST BE CHANGED BY THE MANUFACTURER OR THE SUPPORT
SERVICE.
• THE APPLIANCE MAY BE USED BY CHILDREN OF NOT LESS THAN 8 YEARS
OLD, AND BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL
CAPABILITIES, BY THOSE WITH NO EXPERIENCE OR THE NECESSARY
KNOWLEDGE, AS LONG AS THEY ARE UNDER SUPERVISION, OR AFTER THEY
HAVE RECEIVED INSTRUCTION ON THE SAFE USE OF THE APPLIANCE AND
OF THE DANGERS ASSOCIATED WITH IT. CHILDREN MUST NOT PLAY WITH
THE APPLIANCE. CLEANING AND MAINTENANCE CARRIED OUT BY THE USER
MUST NOT BE CARRIED OUT BY CHILDREN WITHOUT SUPERVISION.
• CHANGING OF ELECTRICAL COMPONENTS MUST EXCLUSIVELY BE CARRIED
OUT BY QUALIFIED PERSONNEL.
1. ENVIRONMENTAL PROTECTION AND REQUIREMENTS FOR
WASTE DISPOSAL AND TREATMENT
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH
EC DIRECTIVE 2012/19/UE
For reasons connected with the safeguard of the environment, and in compliance with what Directive 2011/65/EC and the
relevant local national laws that
establish, the cabinets for refrigerated products and frozens must be disposed of and recycled at the end of their life cycle.
Making sure that this is achieved, the user signicantly
helps prevent potential repercussions on the environment and on the public health.
Cabinets including a refrigerating circuit and a power plug (therefore ready to be installed) are dened WEEE: “Waste
Electrical and Electronic Equipment”. Certain requirements concerning
their treatment at the end of their life cycle must therefore be complied with:
• Deliver the cabinets to the appropriate centres specialising in WEEE recovery and recycling.
• Alternatively, return the cabinets to the seller or to the manufacturer.
• At any rate, collection of WEEE to be processed must be made following criteria that guarantee the protection of
the cast-o appliances during transportation and during their loading and unloading. Do not leave the appliances
unattended, not even for a few days.
• Avoid damaging the refrigeration circuit, as this contains uids that may potentialy be hazardous for the environment
and are subject to special prescriptions.
• Make sure that doors are closed and fasten mobile parts accordingly.
• Remove the power plug from the cast-o appliances and cut o their power cord in order for them to become unusable.

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 5/20
N° DOC UM000495
The symbol appearing on the rating plate of the appliance and on the documents attached indicates that:
• the product was issued after August 13, 2005;
• the product is subject to “separate collection”, and must not be treated as household waste and cannot be
delivered at a landll.
For further details on treatment, recovery and recycling of this product, contact the relevant local oce, the household
waste collection service or the seller that has sold the product.
WE DECLARE THAT THE CABINET IS CONFORMING TO RoHS 2011/65/EC DIRECTIVE.
The cabinet contains oil, inammable cooling gas, plastic and metallic components and glass.
WARNING!
Polyurethane insulation uses CICLOPENTHANE as expander, that doesn’t aect the environment but is
inammable.
To guarantee the same respect when it’s disposed of , never abandon the equipment outside.
Don’t throw the packaging material from your equipment in the rubbish but sort the various materials:
eg.polystyrene, cardboard, plastic bags.
The demolition of the cabinet and the recovery of the component materials must be carried out according
to the local regulations in force in this matter.
WARNING! For out of use equipment:
• Disconnect the power supply plug.
• Remove the power supply cable and eliminate it together with the plug.
• Do not remove the drawers and various components inside the tank, to make it more dicult for
children to enter the refrigerated chamber of the equipment.
• Children are forbidden from playing with the decommissioned equipment. Danger of suocation!
The equipment contains ammable gas inside the refrigeration circuit which must be appropriately
disposed.
You need to avoid damaging the refrigerating circuit when dismantling the equipment.
2. GENERAL INFORMATION
Take out packaging and clean all the cabinet using warm water together with 5% of neutral soap then dry it with a
soft cloth; for the glass parts only use specic products, avoiding the use of water which can leave on the glasses
limestone residues.
• It is necessary that the capacitor unit is in the free air exchange condition, therefore the ventilation zones
must not be obstructed by boxes or otherwise.
• Install and position the unit in such a way so as to allow easy access to the power socket.
• Never place containers of liquid on or immediately above the ticket counter; should the content spill out, it
would damage the counter.
• The measured sound pressure emanated A is below 70dB (A).
10 cm
It is fundamental to comply with the distances indicated (cm) for correct
installation of the equipment.
THE REFRIGERATOR IS NOT SUITABLE FOR WORKING IN
DANGEROUS ENVIRONMENT WITH RISK OF FIRE, EXPLOSIONS
OR RADIATIONS.
Operation is regular with ambient temperature indicated on technical data plate.
CLIMATE CLASS ENVIRONMENT OPERATING TEMPERATURE
0 20
1 16
2 22
3 25
4 30
6 27
5 40
7 35
8 23,9
10 cm

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 6/20
N° DOC UM000495
3. LOADING
Warning! It’s absolutely forbidden to place the product in the tanks over the max load level.
It is fundamental not to exceed the load limits indicated to avoid altering correct air circulation and thereby
avoid a higher product temperature.
Warning!
Don’t put bottles or other glass containers when the refrigerrator is in negatic temperatura, they might
crack or break when the contents are defrosted.
Attention!
It is strictly necessary to comply with the max loads indicated (Kg) for each shelf to avoid deformation
or breakage.
Max 49 Kg
Max 49 Kg
Max 49 Kg
Max 49 Kg
4 cm
WARNING:
• The product must not obstruct the display area completely.
• Avoid leaving shelves empty so as not to create turbulence
wich may prejudic refrige-rated air ow, and cause needless
energy consumption.
For the corect air circulation necessary to leave 4 cm free
space between the product and the bottom of each internal
shelf.
4. TRANSPORTATION
The display cabinet is contained in a specially crated package that enables
transportation by the use of fork-lift trucks.
For each subsequent handling of the cabinet, the use of the wooden platform is
recommended.
The unit is shipped anchored onto a wooden base and protected by corner posts,
cardboard top and nylon wrapping.
It must only be handled using a fork lift truck with adequate power to the load.
Positioning the appliance horizontally or on its side or upside down is to be strictly
avoided.
Handling is reserved to the authorised after-sales service.
The equipment MUST be kept vertical.
The appliance, equipped or not with its packaging, must be carefully stored inside
warehouses or premises protected from bad weather, atmospheric agents and direct
exposure to sunlight at a temperature between 0 and +40 °C.

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 7/20
N° DOC UM000495
5. STORAGE AND DISMANTLING
WARNING! Use protective gloves during unpacking and installation operations.
During unloading and movement operations, avoid tilting the machine and avoid sudden manoeuvres.
The unit is shipped anchored onto a wooden base and protected by corner posts, cardboard top and nylon wrapping.
Keep all packaging away from children.
For each subsequent handling of the cabinet, the use of the wooden platform is recommended. Carefully remove the packaging,
taking care not to damage the components and not to throw away those that will be needed for assembly.
ATTENTION! After unpacking, check that the appliance has not suered damage during
transportation.
To unpack the bench proceed as follows:
1. Unscrew the screws and remove the wooden cage
2. Remove the plastic cover
3. Unscrew the reinforcement and remove the part of the base indicated in the
gure.
4. Using forklift the bench.
5. Remove the wooden base.
6. Position the bench adjusting the feet.
2
WOODEN BASE
CARDBOARD CORNERS
POLYSTYRENE
CAGE WOODEN PACKAGING
CARDBOARD CORNERS
NYLONE COVERING
NYLONE COVERING
3
4
5
6
1
Pay attention to
feet and wheels

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 8/20
N° DOC UM000495
6. CHOICE OF THE INSTALLATION SITE
In selecting the place of installation, ensure that the following instructions are observed, this being vital for proper
and troublefree working of the cabinet:
• Do not install the cabinet in the vicinity of heating radiators or other heat sources.
• Do not install the cabint where it is exposed to direct sun light (e.g. through windows).
• Do not expose the refrigeration unit to air currents from fans, open doors, conditioning units.
• Keep the air intake and outlet area around the plinth area of the cabinet clear of cartons and other obstacles.
• It is necessary taht the condensing unit obtains a good circulation of air around it; also the area around the
condensing unit should not be obstructed by boxes or other objects; keep a distance from the wall of 10 cm.
at least.
Air-Condion
8. NOTES AND WARNINGS
The appliance described in this manual conforms with Machine Directive 2006/42/CE.
The content of this manual is technical and the property of EPTA s.p.a. It is forbidden to reproduce, distribute or
modify entirely or partially its content without written authorisation.
The owner company safeguards its rights pursuant to legislation in force.
Read the manual carefully and adhere to the contents before installing and using the appliance.
The company cannot be held in any way liable for any damage to people, animals or the product conserved in the event of:
• Improper use of the equipment or use by unsuitable or unauthorised sta.
• Incorrect installation or power supply not suitable for the appliance.
• Non-compliance with this manual.
• Non-compliance with the maintenance program.
• Unauthorized modications to the appliance.
• Installation of non-original spare parts on equipment.
• Installation and use of the equipment for aims diering from those specied in this manual.
• Tampering with or damage to the power supply cable.
Responsibility for application of the safety provisions outlined below is the responsibility of the technical sta responsible for
the activities planned on the equipment, who must ensure the authorised sta:
• Are qualied to perform the task requested
• Know and strictly comply with the provisions contained in this document
• Know and apply the general safety standards applicable to the equipment.
Tampering with or unauthorised replacement of one or more parts of the equipment, use of
accessories that change its use and use of spare parts diering from those recommended can cause
risks of accidents.
Any intervention on the equipment strictly requires disconnection of the power socket and however
no guard (grids, casings) should be removed by unqualied sta; strictly avoid operating the freezer
with these guards removed.
7. USE
THE APPLIANCE IS INTENDED FOR THE SOLE STORAGE OF PRE-PACKAGED
PRODUCTS.
THIS APPLIANCE IS ONLY DESIGNED FOR USE AT A MAXIMUM ALTITUDE OF 2000
METRES ABOVE SEA LEVEL.
THE APPLIANCE CANNOT BE USED FOR THE PRESERVATION OF PHARMACEUTICALS.
The manufacturer cannot be held liable for damage caused by people, property or the equipment itself due to display of
products other than the afore-specied.

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 9/20
N° DOC UM000495
9. EQUIPMENT IDENTIFICATION
• Located on the plate axed to the machine to detect the technical data.
• Check the model and power supply voltage before carrying out any operation.
• If discrepancies are found, immediately contact the manufacturer or the company that supplied the equipment.
1. Manufacturer
2. Code
3. Conformity marking
4. Power supply voltage (V)
5. Power supply frequency (Hz)
6. Absorbed electrical power (W)
7. Absorbed electrical power in
defrosting (W)
8. Light max. power (W)
9. Gross volume
10.Type and quantity of refrigerant
11.Climate class
It is strictly forbidden to remove, tamper with the plate and change or alter the
data contained in it.
1
2
3
45
6
7
89
10
11
11

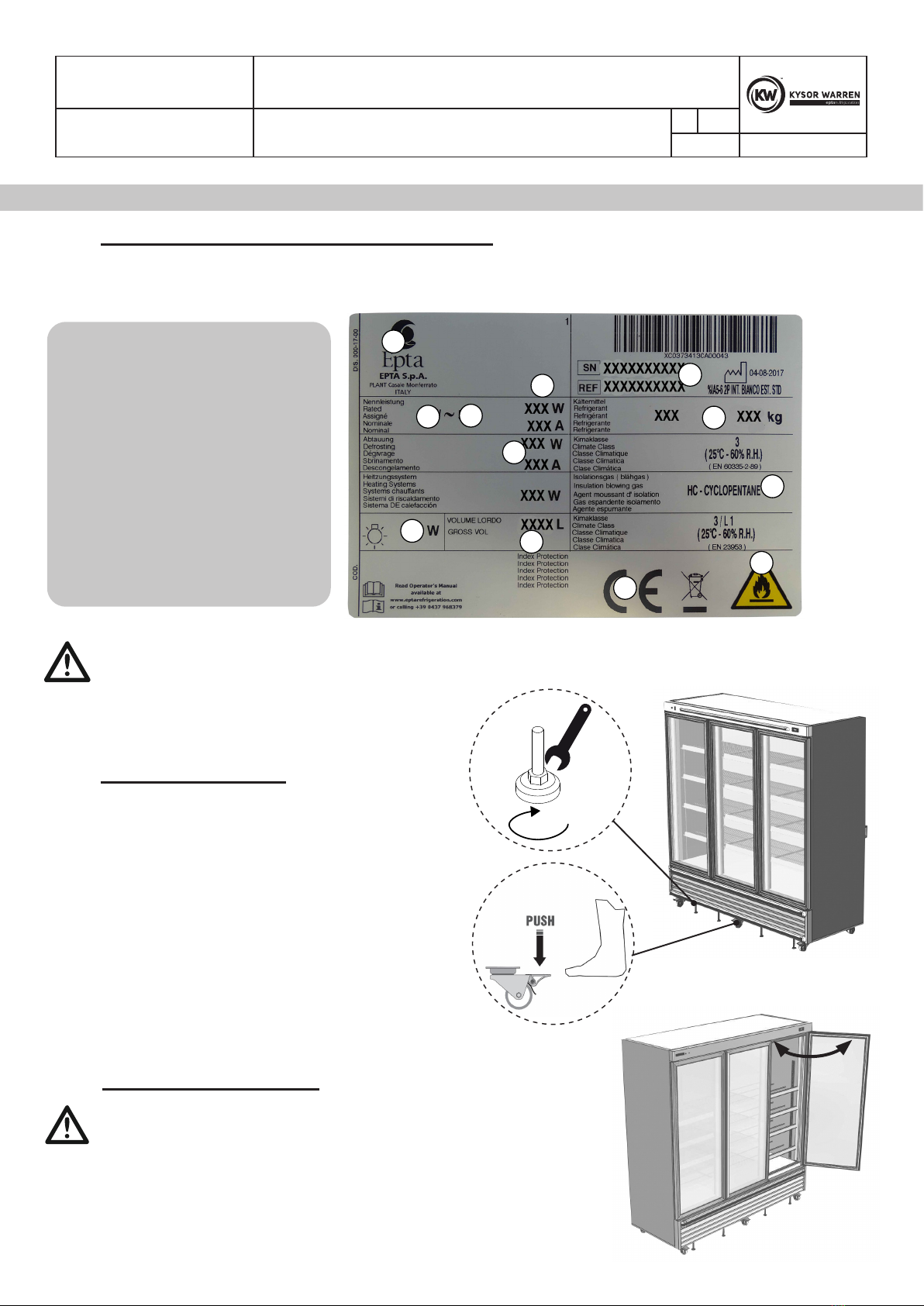

*Example of data plates
10. POSITIONING
The equipment is tted with 6 swivel wheels (3 with
a brake) and adjustable feet for movement and
positioning.
It is strictly necessary after positioning to
stabilise the equipment on the ground.
11. DOOR OPENING
Warning!
MAXIMUM ANGLE OF DOOR OPENING = 120°
For correct working of the torsion bar and to avoid any break of the door or
of the hinge do not exceed the maximum angle of door opening i.e. 120°.
MAX
120°

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 10/20
N° DOC UM000495
12. COMPULSORY ADJUSTMENT ON EACH INSTALLATION
13. SHELVING ASSEMBLY
✓✓
CORRECT
Where present, adjust the front feet (using a pliers) to align the doors; the
equipment should be arranged on a at surface.
XX
WRONG
Never try to adjust the position of a shelf with products
on it.
Check the shelf is stable before placing objects on it.
Attach the shelf supports
14. PROLONGED SWITCH OFF
When the unit is not used for a long time, please take note of the following procedures:
• Unplug the unit.
• Clean and dry the tank well.
• Leave the glass door open to avoid possible formation of bad odours.
• Cover the unit with a curtain, place it in a dry room and sheltered from the atmospheric agents.

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 11/20
N° DOC UM000495
15. PUTTING INTO OPERATION
If the cabinet has been sharply tilted while being sited or for mounting of accessories, it must be left to stand for
at least three hours before being started to allow the lubricating oil to settle in the compressor.
Failure to do so can cause total destruction of the compressor refrigerating system.
Check that the voltage on the identication plate is the same as that of the network.
THE ELECTRICAL SUPPLY LINE TO WHICH THE REFRIGERATOR WILL HAVE TO BE
CONNECTED IS TO BE PROTECTED BY A VERY SENSITIVE DIFFERENTIAL SWITCH
(Rc=16A,Dc=30mA); IT IS ALSO TO BE LINKED TO THE GENERAL EARTHING PLANT.
Earthing is necessary and compulsory by law.

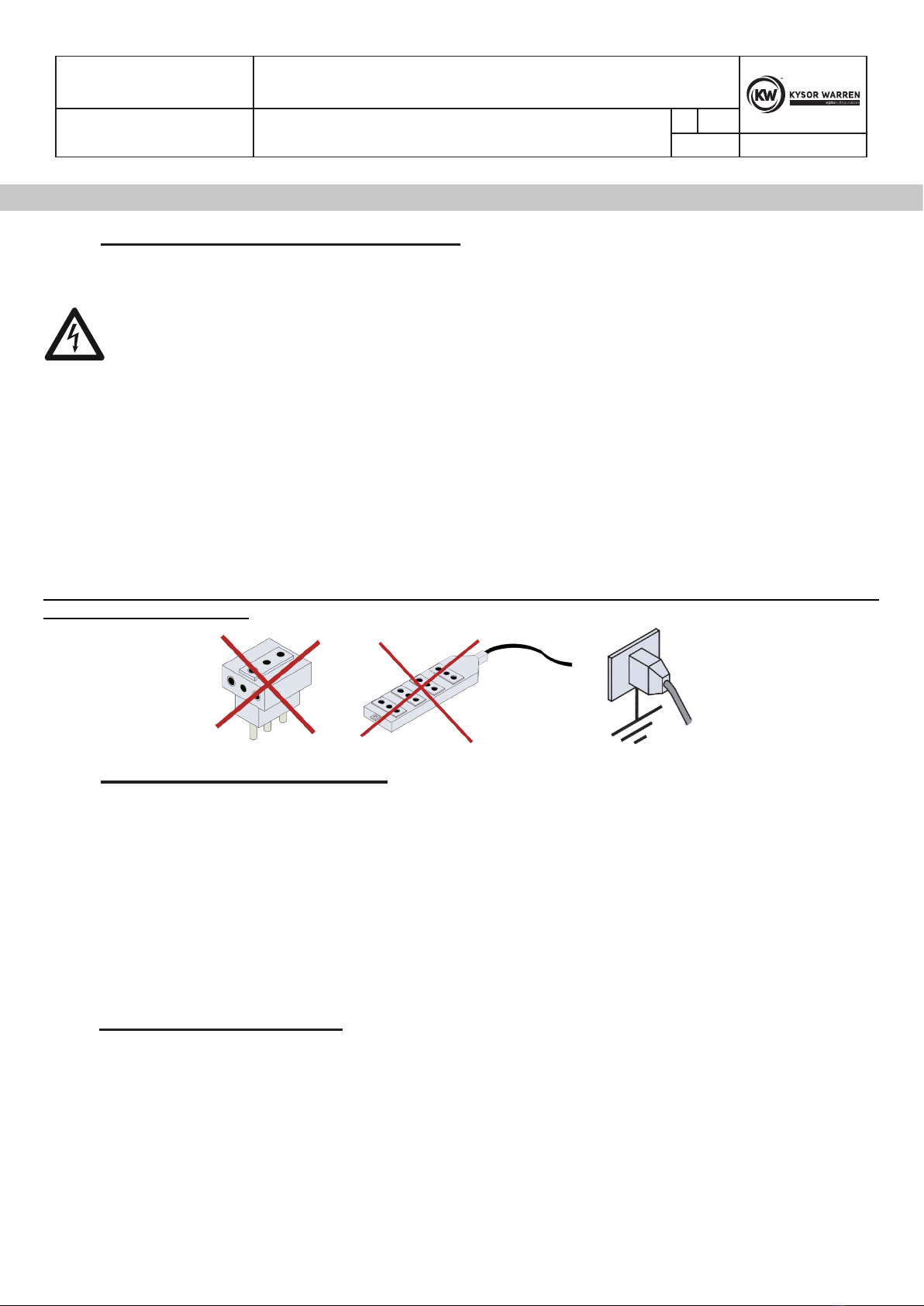

Absolutely never use reduction units, patch cords, adapters or multiple socket outlets
to connect the counter.
DIRECTLY connect the equipment to the mains.
The cable should be fully extended and located where it is unilikely to be struck, caught or stepped on,
away from water and the other liquids and heat sources and must not be damaged.
In case of breakage of the power cable of the cabinet, it must be replaced by the manufacturer or by
instruction it change of it.
Follow the manufacturer’s instructions to install the unit, using qualied personnel and complying with the electrical
regulations for the specic country.
Incorrect installation may cause injury and damage; the manufacturer is not liable for this.
The manufacturer disclaims all responsability for any damage to people or things due to incorrect
observance of this rule.
16. ENERGY SAVING TIPS
• Install the appliance in a dry, well-ventilated room away from heat sources (radiator, cooking surface
and so on) and in a position out of direct sunlight.
• Follow the installation instructions to ensure adequate ventilation. Insucient ventilation to the back of
the appliance causes an increase in energy consumption and reduces cooling eciency.
• The internal temperature of the appliance depends on the room temperature, how often the doors are
opened and where the appliance is placed. These factors have to be taken into account when setting the
thermostat. Only open the doors when strictly necessary.
• Let hot food and drink cool down before placing them in the appliance.
• The positioning of the shelves in the fridge has no eect on energy eciency.
• The fridge compartment light system uses a LED light, which at the same time ensures more ecient
lighting and reduced energy consumption.
17. OUTER CLEANING
WARNING! TURN OFF POWER SUPPLY TO THE CABINET BY DISCONNECTING THE POWER
PLUG BEFORE CLEANING.
For a good preservation of the cabinet’s body a periodical cleaning is necessary.
1. EXTERNAL BODY: When necessary, the external body should be cleaned with a cloth and a neutral soap and
water solution.
Use also mop for cleaning under the unit and vacuum cleaner for removing dirt or dust.
2. STAINLESS STEEL SURFACES: Wash with warm water and mild detergent, rinse well and dry with soft cloth.
Avoid scouring pads etc. which will spoil the nish of the stainless steel.
3. SURFACES IN PLASTIC MATERIAL: Wash with warm water and mild detergent, rinse well and dry with soft
cloth; under no circumstances should alcohol, methylated spirits or solvents be used.
4. GLASS SURFACES: Only use products specically designed for glass cleaning; It is not advisable to use
ordinary water which can leave a lm of calcium on the surface of the glass.

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 12/20
N° DOC UM000495
18. TANK CLEANING
WARNING! TURN OFF POWER SUPPLY TO THE CABINET BY DISCONNECTING THE POWER
PLUG BEFORE CLEANING.
By tank cleaning, proceed as follows:
1. Place the goods in special refrigerated containers, kept at the same temperature and remove the shelves.
2. Before cleaning the tank the inside temperature must be equal to the ambient temperatur.
3. Leave the doors open and begin the operation of tank washing when the tank temperature is the same as the ambient
temperature.
4. Proceed with washing and drying the internal chamber with a cloth using neutral PH detergent and fresh water.
5. Clean the surfaces with a cloth, using neutral PH detergent, rinse and dry.
6. Clean the height adjusters supporting the levels with a jet of air.
7. Avoid water entering into the appliance lighting units.
8. Then plug the unit and wait till the appliance reaches the right temperature before lling it again.
Do not use any aggressive or abrasive cleaning agents.
Never use a water hose or a high-pressure jet to clean the cabinet.
WARNING! Do not use jet of water to clean the cabinet: electrical wiring could be
damaged. Never use mechanical devices or any other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
20. MAINTENANCE
WARNING! Maintenance must be carried out by technical sta trained and enabled for intervention on the
ammable refrigerants.
WARNING! Any work carried out on the appliance by the user strictly requires the power plug being
disconnected from the mains socket.
ATTENTION! Use protective shoes and gloves during maintenance operations.
OPERATION FREQUENCY
ORDINARY /
EXTRAORDINARY
MAINTENANCE
AUTHORISED
STAFF
Cleaning the outer surface Based on use Ordinary User
Cleaning the accessible inner parts (do not use tools) Based on use Ordinary User
Checking the power supply, electrical plugs and/or sockets Six-monthly Ordinary User
Seals intactness check Six-monthly Ordinary User
Check the acceptable condition of warning plates Six-monthly Ordinary User
Water collection tank cleaning Based on use Ordinary Technical support
Fridge system tubing intactness check Six-monthly Ordinary Technical support
Inspecting the cables and inner power connections Six-monthly Ordinary Technical support
Replacing the led lights -Extraordinary Technical support
Replacing the power supply cable -Extraordinary Technical support
Control panel replacement (electronic control unit) -Extraordinary Technical support
Any other maintenance operation not planned in the previous points should be carried out by the
support centres authorised by our dealers or by qualied sta.
Check and clean periodically the water tray sucking any dirt and/or
remnants with a properly powerful aspirator suitable for liquids.
19. WATER TRAY CLEANING

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 13/20
N° DOC UM000495
21. TEMPERATURE SETTING AND CONTROLS
Each refrigerating appliance is provided with an electronic control for automatic maintenance of the appropriate
pre-established temperature inside the tank.
This temperature adjuster is gauged by the factory and should not be touched by the user.
Only if the average internal temperature is too cold or not cold you can increment or decrement the temperature:
• Press the (Set)key in order to see on display the temperature set point.
• Press the () key or the () key in order to increment or decrement the temperature set point.
• Press the (Set) key in order to store the new temperature set point.
Internal motor fan
microswitch
(with door open: internal motor fan
disconnetted)
Electronic control unit
Negative/positive temperature switch
OFF = The refrigerator is set to positive temperatue
ON = The refrigerator is set to negative temperature
Negative temperature yellow lights
(the light is on when the refrigerator is set to set to negative temperature)
Main Switch

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 14/20
N° DOC UM000495
22. ELECTRONIC CONTROL UNIT CONTROLS
1
2
3
4
5
1. Light switch
2. Automatic defrosting button (press
for defrosting start)
3. Button to show set temperature
4. Button to decrease temperature
5. Button to increase temperature
LED MODE Meaning
ON Active compressor
Flashing Delay against close starts
ON Defrosting in progress
Flashing Dripping in progress
ON Fans on
Flashing Fans start delay in progress
ON A temperature alarm activated
ON Continuous cycle in progress
LED MODE Meaning
ON Energy saving in progress
ON Light on
ON Auxiliary active
ON Unit of measurement
Flashing Programming
ECO ON Energy saving in corso
°C
23. MALFUNCTION AND REMEDIES
Most of the functioning inconveniences are generally due to defective electrical connections.
These problems can usually be solved on the place.
THE UNIT DOES NOT START
CAUSE SOLUTION AUTHORISED STAFF
Check that the unit is properly plugged Insert the plug User
Check that the unit is properly plugged Insert the plug correctly User
Check that the plug cord is broken Replace the plug cable Technical support
If power failure is not due to any of the above causes, call the nearest after-sales service immediately, empty the cabinet and store the foods
in coldrooms or refrigerators that may ensure their preservation temperature.
THE INTERNAL TEMPERATURE IS NOT COLD ENOUGH
CAUSE SOLUTION AUTHORISED STAFF
Check door is perfectly closed Close correctly User
Make sure that the cabinet has been filled correctly Load the product correctly User
Check that the unit is not adjacent to sources of heat Position the equipment correctly User
Check that behind the cabinet air can properly circulate. Position the equipment correctly Technical support
Check the temperature setting Set the correct temperature User
Check that there is not too much ice on the evaporator Defrost the equipment User
If failure to cool should is not due to any of the above reasons it it persists on even after the above checks, resort to the nearest after-sales service.
THE UNIT IS NOISY
CAUSE SOLUTION AUTHORISED STAFF
Check that all the bolts and nuts are properly fastened Screw in the screws User
Check that the unit is placed on an even surface Position the equipment correctly User
Check if any pipe or fan is in contact with any other part of the body
Switch off the counter and distance the parts
in contact in the event the problem persists,
contact the support service.
Technical support
Should the inconvenience persist, contact the nearest after-sales service.

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 15/20
N° DOC UM000495
General description
Command panel
Negative/Positive temperature switch
Identification data plate
Front glass
Adjustable shelving
Rear spacer
Main switch
Power cord
Rear grid
Adjustable feet
Swivel wheels without brake
Bumper
Front grid
Adjustable feet
Swivel wheels with brake

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 16/20
N° DOC UM000495
Technical specicationTechnical specicationTechnical specicationTechnical specication
A A
A-A
1:10
B BB-B
1:10
D
D
1:3
0,63 BUMPER0,6
1,5
1,8 30 133 MAX DIMENSION
161111,41111
78,4* CABINET
4,3
12,5 63 3,7
16,3
79,3 MAX DIMENSION
25,9 DOOR
25,9 DOOR
25,9 DOOR
25 TANK 32
74,2 TANK
23,2 SHELF 26,1 SHELF 23,2 SHELF
19,7 SHELF
58,8* GLASS
22,5* GLASS
76 BUMPER
27,8* CABINET
32,8 MAX DIMENSION
62,5 DOOR
83,5 MAX DIMENSION
62,2 TANK
53,9 LOAD LEVEL

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 17/20
N° DOC UM000495
Technical specication
External dimensions (Width x depth x High) (inch) 79,3 x 33 x 83,5
Gross volume (ft3)62,82
Net volume (ft3)44,78
Refrigeration Fan
Defrosting Automatic
Climate class 3
Temperature classifiation
Negative temp. L1 (-13°F / 0°F)
Positive temp. M1 (30°F / 41°F)
Refrigerant R290

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 18/20
N° DOC UM000495

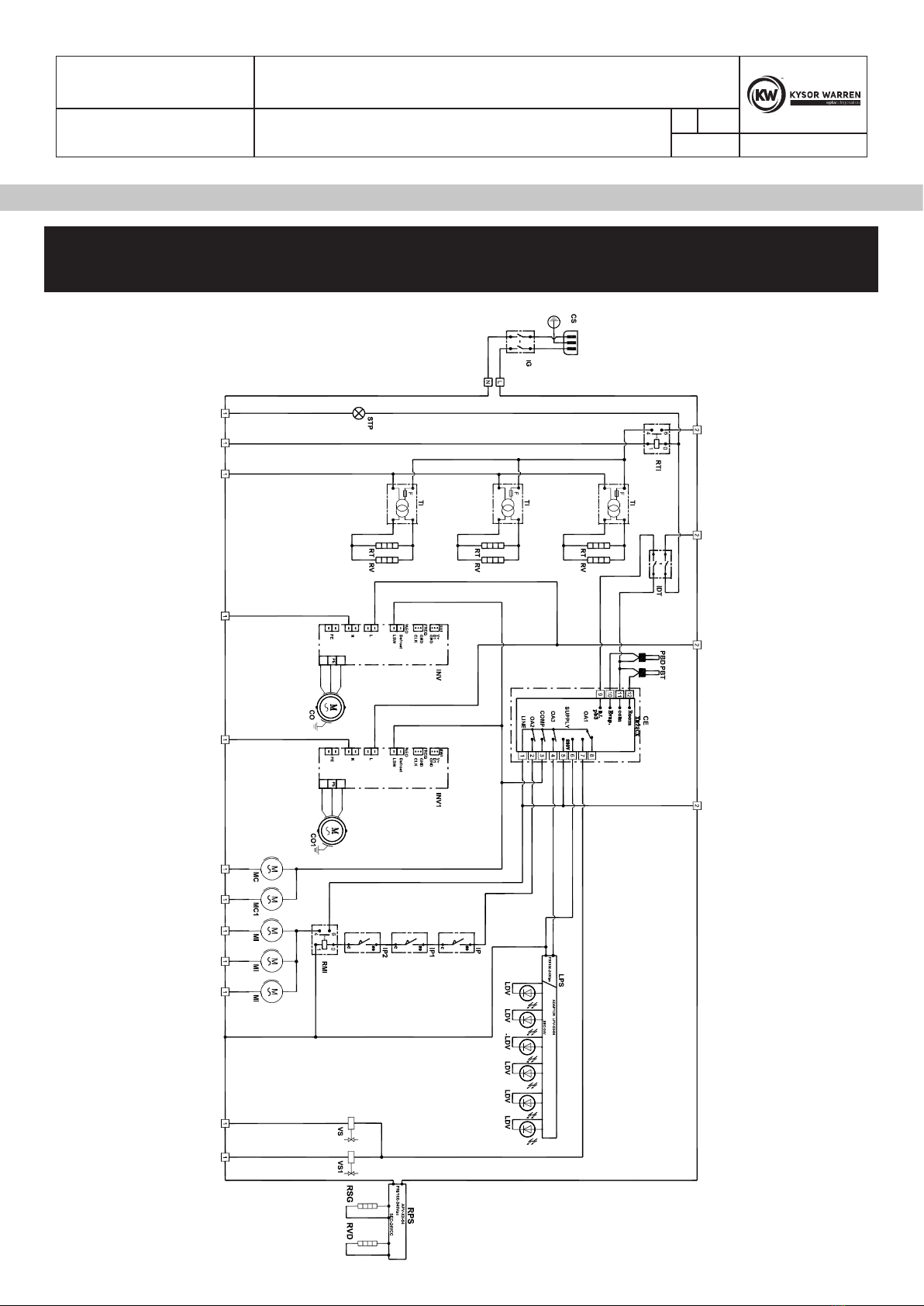

Wiring diagram

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 19/20
N° DOC UM000495
Wiring diagram legend
REF DEVICE
CE ELECTRONIC CONTROL
CO / CO1 COMPRESSOR
CS POWER SUPPLY CORD
FTRANSFORMER FUSE
IG GENERAL SWITCH
IDT POSITIVE TEMP. RANGE SWITCH
INV / INV1 INVERTER
IP / IP1 / IP2 EVAPORATOR MOTOR FAN SWITCH
LDV INNER TANK LED LIGHT
LPS LOD POWER SUPPLY
MC / MC1 CONDENSING MOTOR FAN
MI EVAPORATOR MOTOR FAN
PBD DEFROSTING PROBE
PBT TEMPERATURE PROBE
RMI EVAPORATOR MOTOR FAN RELAY
RTI TRANSFORMER RELAY
RPS HEATER POWER SUPPLY
RSG DRAINAGE PIPE HEATER
RT DOOR FRAME HEATER
RV DOOR GLASS HEATER
RVD DECOMPRESSION VALVE HEATER
STP POSITIVE TEMP. RANGE LIGHT
TI ISOLATION TRANSFORMER
VS / VS1 DEFROSTING VALVE

Model SHUFFLE KW
Manufacturer
EPTA S.p.A. - Sede legale
Via Mecenate, 86 - 20138 Milano – Italy
Capitale € 68.515.000 - R.E.A./MI – 1730229
Registro delle Imprese e Cod.Fiscale n. 04160730968
Partita IVA 04160730968
PAGE 20/20
N° DOC UM000495
www.kysorwarren.com
www.eptarefrigeration.com
EN ISO 9001
20 100 52000877
EN ISO 14001
20 104 141373322
TÜV AUSTRI A CERT GMBH
CERTIFIED
For support please call:
1-800-866-5596

