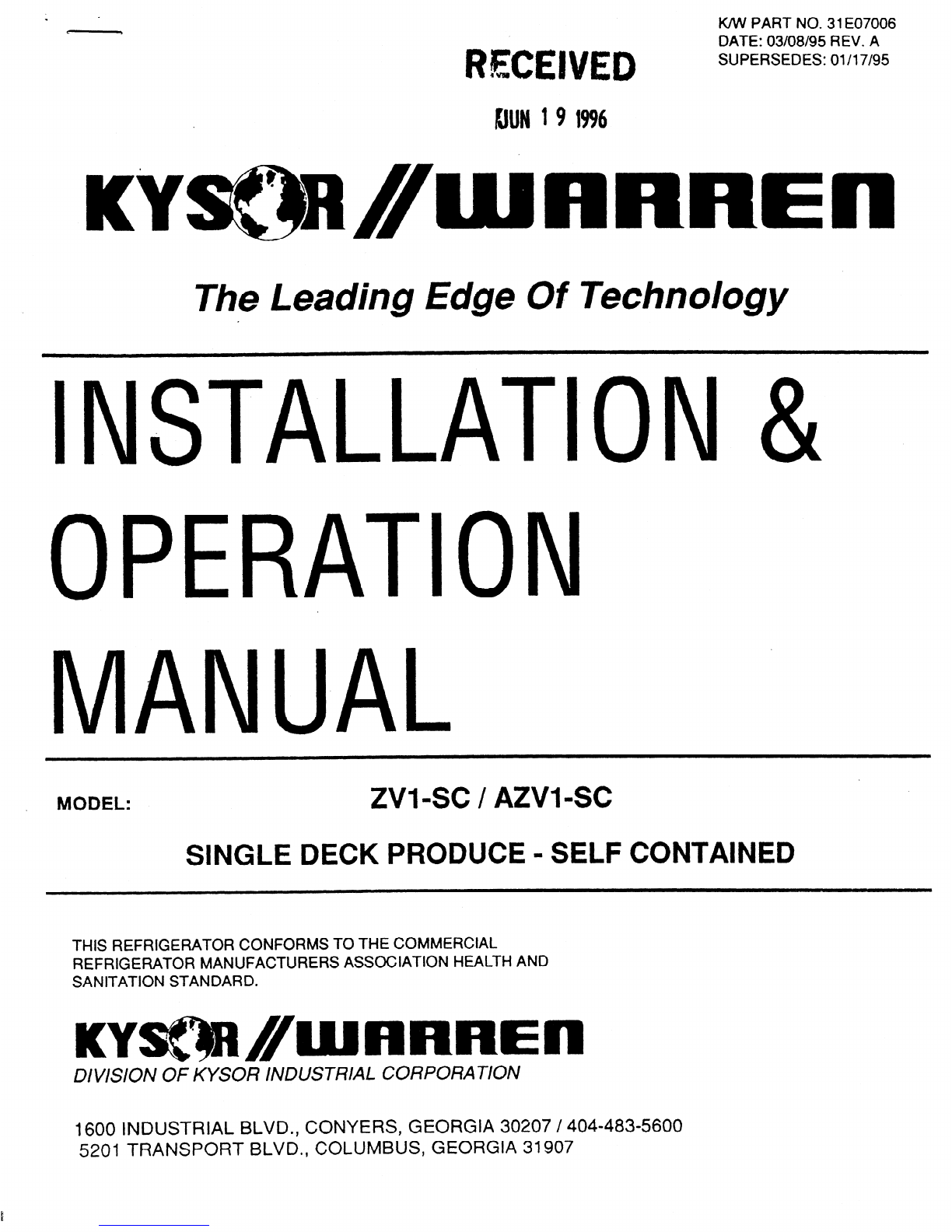

RECEIVED
KM/ PART NO. 31 EO7006
DATE: 03/08/95 REV. A
SUPERSEDES: 01/l 7195
The Leading Edge Of Technology
INSTALLATION&
OPERATION
MANUAL
MODEL:
ZVI-SC I AZVI-SC
SINGLE DECK PRODUCE - SELF CONTAINED
THIS REFRIGERATOR CONFORMS TO THE COMMERCIAL
REFRIGERATOR MANUFACTURERS ASSOCIATION HEALTH AND
SANITATION STANDARD.
DIVISION OF KYSOR INDUSTRIAL CORPORATION
1600 INDUSTRIAL BLVD., CONYERS, GEORGIA 30207 / 404-483-5600
5201 TRANSPORT BLVD., COLUMBUS, GEORGIA 31907

. INSTALLATION AND OPERATING INSTRUCTIONS
FOR
ZVl-SC AND A-ZVl-SC
SEW-SERVICE PRODUCEMERCHANDISERS
APPLICATION:
The Kysor//Warren self-contained single produce cases are designed
to merchandise bulk or packaged vegetables. These cases should be
installed and operated according to the instructions contained in
this manual to insure proper performance. They are designed for
display of products in an air-conditioned store where temperature
and humidity are maintained at a maximum of 75-degree F dry bulb,
55% relative humidity.
MODELS DESCRIPTION
ZVl-SC Single Deck Self-Contained Produce Case
on 4 Swivel Casters
48 3/4" High Without Canopy
A-ZVl-SC * Same as Above, Except Dual Temp
(2 Thermostats)
Jan. 17, 1995
Rev. 3/g/95

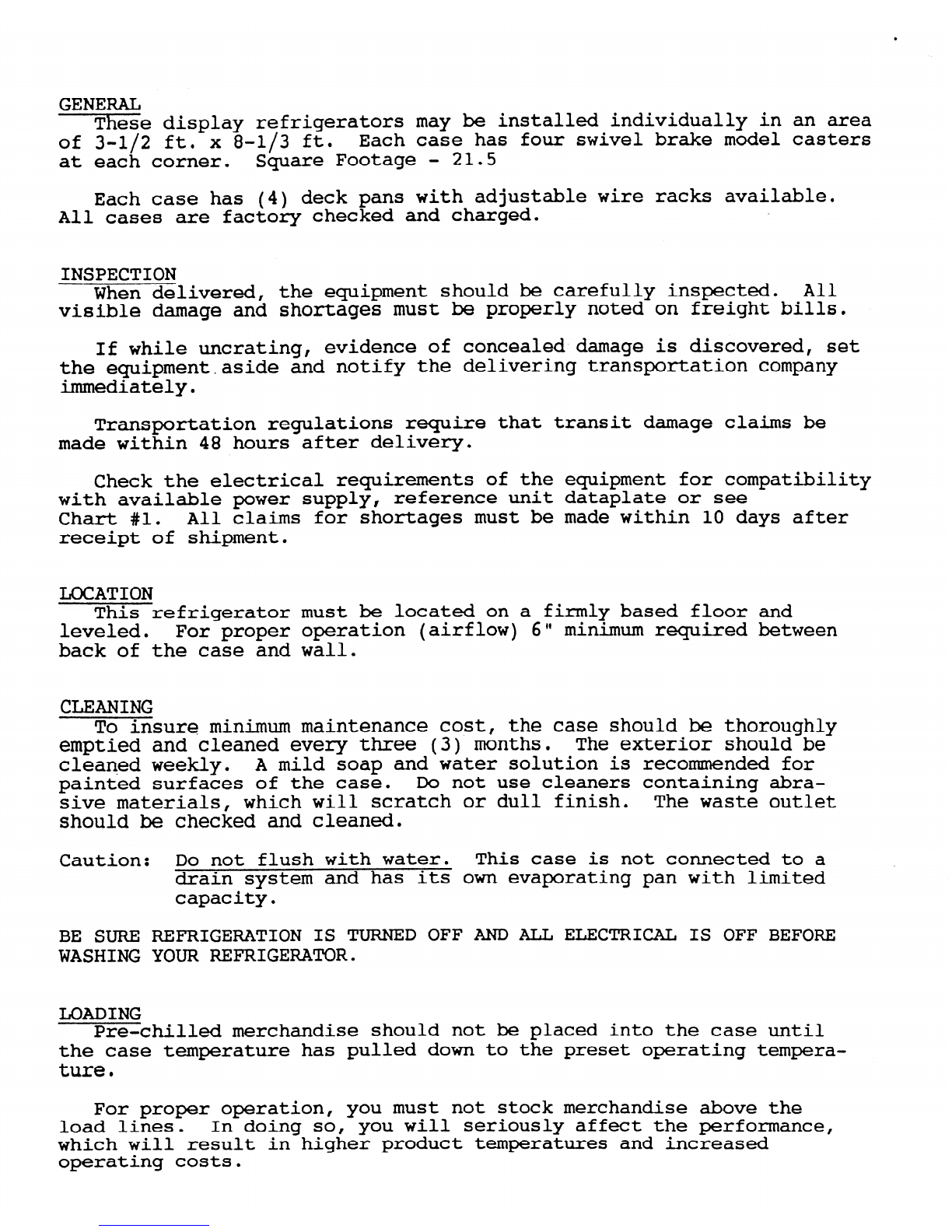

GENERAL
These display refrigerators may be installed individually in an area
of 3-l/2 ft. x 8-l/3 ft. Each case has four swivel brake model casters
at each corner. Square Footage - 21.5
Each case has (4) deck pans with adjustable wire racks available.
All cases are factory checked and charged.
INSPECTION
When delivered, the equipment should be carefully inspected. All
visible damage and shortages must be properly noted on freight bills.
If while uncrating, evidence of concealed damage is discovered, set
the equipmentaside and notify the delivering transportation company
immediately.
Transportation regulations require that transit damage claims be
made within 48 hours after delivery.
wi
Ch
Check the electrical requirements of the equipment for compatibility
th available power supply, reference unit dataplate or see
art #l. All claims for shortages must be made within 10 days after
receipt of shipment.
LOCATION
This refrigerator
leveled. For-proper
back of the case and
must be located on a firmly based floor
operation (airflow) 6" minimum required
wall.
and
between
CLEANING
To insure minimum maintenance cost, the case should be thoroughly
emptied and cleaned every three (3) months. The exterior should be
cleaned weekly. A mild soap and water solution is recommended for
painted surfaces of the case. Do not use cleaners containing abra-
sive materials, which will scratch or dull finish. The waste outlet
should be checked and cleaned.
Caution: Do not flush with water. This case is not connected to a
drain system and has its own evaporating pan with limited
capacity.
BE SURE REFRIGERATION IS TURNED OFF AND ALL ELECTRICAL IS OFF BEFORE
WASHING YOUR REFRIGERATOR.
LOADING
Pre-chilled merchandise should not be placed into the case until
the case temperature has pulled down to the preset operating tempera-
ture 0
For proper operation, y ou must not stock merchandise above the
load lines. In doing so, you will seriously affect the performance,
which will result in higher product temperatures and increased
operating costs.

ELECTRICAL
~11 field installed wiring must comply with the NATIONAL ELECTRICAL
CODE AND LOCAL CODES.
ELECTRICAL CONNECTIONS
All cases are supplied with 8' cord and P-20 electrical plug. A
20 amp outlet with a S-20 socket is required.
NOTE: ALL REFRIGERATORS MUST BE GROUNDED
Make sure that proper wire size and branch circuit protection are
employed for safe operation.
Chart #l shows the electrical ratings for your refrigerator. This
is the same information that appears on your unit dataplate.
EVAPORATOR FANMOTOR
The fan motor employed is permanently oiled for the life of the
motor and requires no periodic maintenance. The
motor is wired
according to the enclosed wiring diagram and MUST RUN CONTINUOUSLY
when the case is operating.
ANTI-SWEAT HEATER
This heater is in the fixture to eliminate sweat and frost from
forming on the back cap.
EXPANSION VALVE
The expansion valve furnished with your refrigerator has been
sized for maximum coil efficiency. The superheat on this
expansion valve has been preset at the factory. Should it be
necessary to adjust superheat, place a thermocouple under the
expansion valve bulb. Read the suction line pressure as near coil
as possible. (If at the condensing unit, estimate suction line
loss at 2 PSIG).
Convert coil suction pressure to temperature.
The difference between coil temperature and the thermocouple
temperature is superheat. (Use average superheat when expansion
valve is hunting). Do not set superheat until the case has pulled
down to operating temperature and never open or close valve over
l/2 turn between adjustments and allow 10 minutes or more between
adjustments. Superheat should be set to 1042Dg.
F.
REFRIGERANT
This case has an operating refrigerant charge of 2.75 lbs - R-22.
OPERATION
Each case contains thermostat(s) for temperature control (preset
temperature). The thermostat bulb(s) are located in the discharge
air. Chart #2 shows approximate settings for the control. Since
many variables are present in each installation, such as store
temperature,
temperature desired in refrigerator, etc., Chart #2
is only a guide for the installer.
OFF-CYCLE DEF'ROST
Off-cycle defrost is standard on these models. The evaporator
fan runs continuously during refrigeration and defrost. Termination
is by time (fail safe).
See Chart #2 for defrost settings.

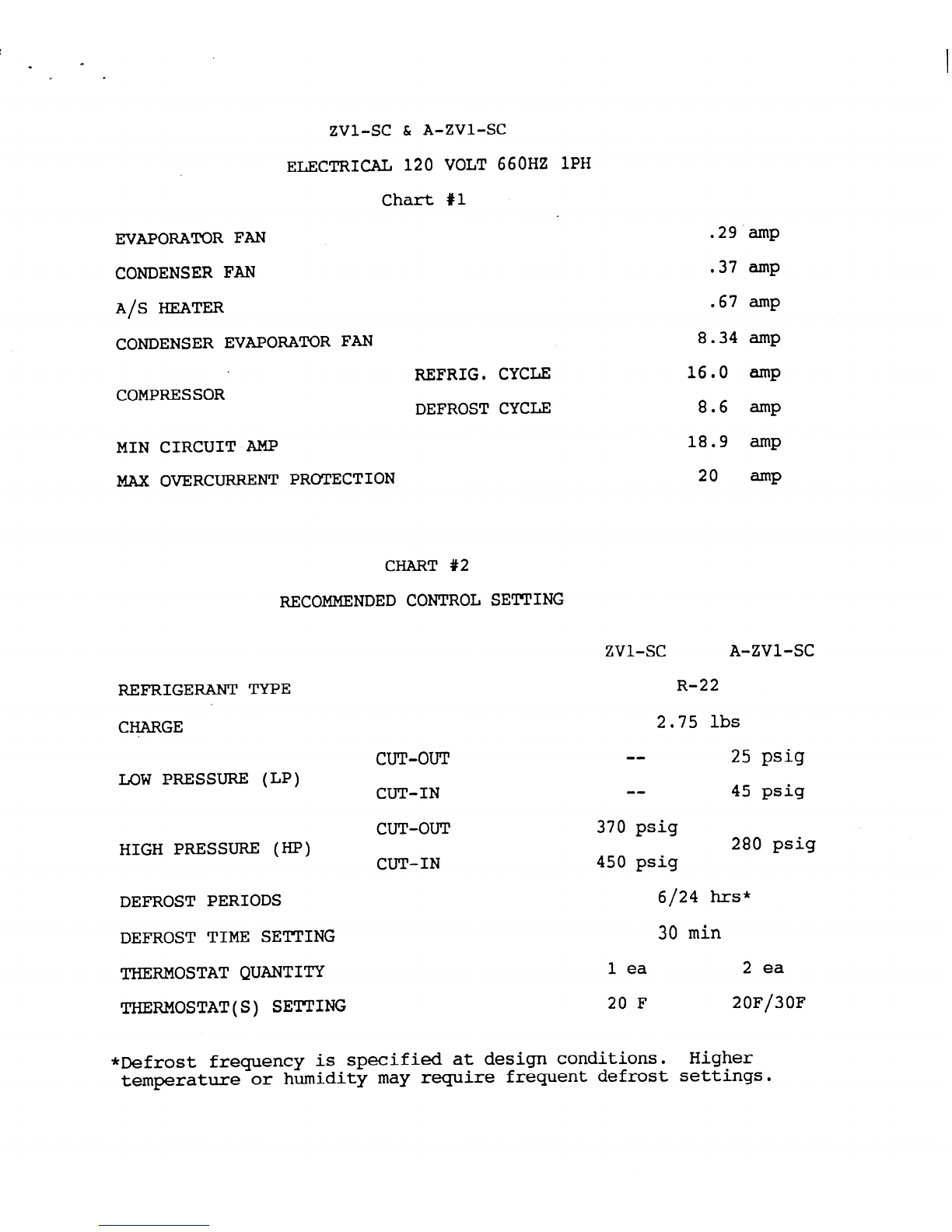

ZVl-SC & A-ZVl-SC
ELECTRICAL 120 VOLT 660HZ 1PH
Chart #l
EVAPORATORFAN
CONDENSER FAN
A/S HEATER
CONDENSER EVAPORATOR FAN
.
REFRIG. CYCLE
COMPRESSOR DEFROST CYCLE
MIN CIRCUIT AMP
MAX OVERCURRENT PROTECTION
.29knp
.37 amp
.67 amp
8.34 amp
16.0 amp
8.6 amp
18.9 amp
20 amP
CHART #2
RECOMMENDED CONTROL SETTING
REFRIGERANT TYPE
CHARGE
Low PRESSURE (LP)
HIGH PRESSURE (HP)
DEFROST PERIODS
DEFROST TIME SETTING
THERMOSTAT QUANTITY
THERMOSTAT(S) SETTING
ZVl-SC
A-ZVl-SC
R-22
2.75 lbs
CUT-OUT
CUT-IN
CUT-OUT
CUT-IN
-- 25 psig
-- 45 psig
370 psig 280 psig
450 psig
6/24 hrs*
30 min
1 ea 2 ea
20 F 20F/3OF
*Defrost frequency is specified at design conditions. Higher
temperature or humidity may require frequent defrost settings.

PARTS LIST
Description
Compressor
Valve - Expansion Sporlan
Coil - Evaporator
Clock - Defrost Control
Thermostat - Electronic
.
Control - Dual Pressure Penn
Motor - Evaporator Fan
Motor - Condenser Fan
Blade - Evaporator Fan
Blade - Condenser Fan
Switch - Toggle
Control - High Pressure
Breaker
- 2 Pole 25 amp
Heater
- 8Ow Epoxy
Harness - A/S '
Honey&rib - Plastic
Part No.
02310-022
03A25-034
05A20-167
08AlO-086
08All-077
08Al2-138
09AlO-055
09AlO-069
09BlO-059
09BlO-064
10510-024
10510-045
10514-172
lOK12-062
lOMlO-193
13A15-012
Casters - Swivel Plt. Brk. Model 17BlO-014
Heater - Condensate (Evapoway)
Condenser - Coil Assy.
Panel - Upper Front
Panel - Lower Front Perf.
Panel - Back Upper
Panel - Back Lower Perf.
Kickplate -
/ Front/Rear Brt.
Kickplate - End Hinge Assy Brt.
28H12-029
32A16-145
5lA12-224
5lA12-339
5lBl2-110
51B12-122
55A32-555
55A32-557
ZVl-SC A-ZVl-SC
1
1
1
1
1
0
1
1
1
1
-
1
1
1
1
2
4
1
1
1
1
1
+l
2
2
1'
1
1
1
2
1
1
1
1
1
1
I
1
1
1
2
4
1
1
1
1
1
1
2
2

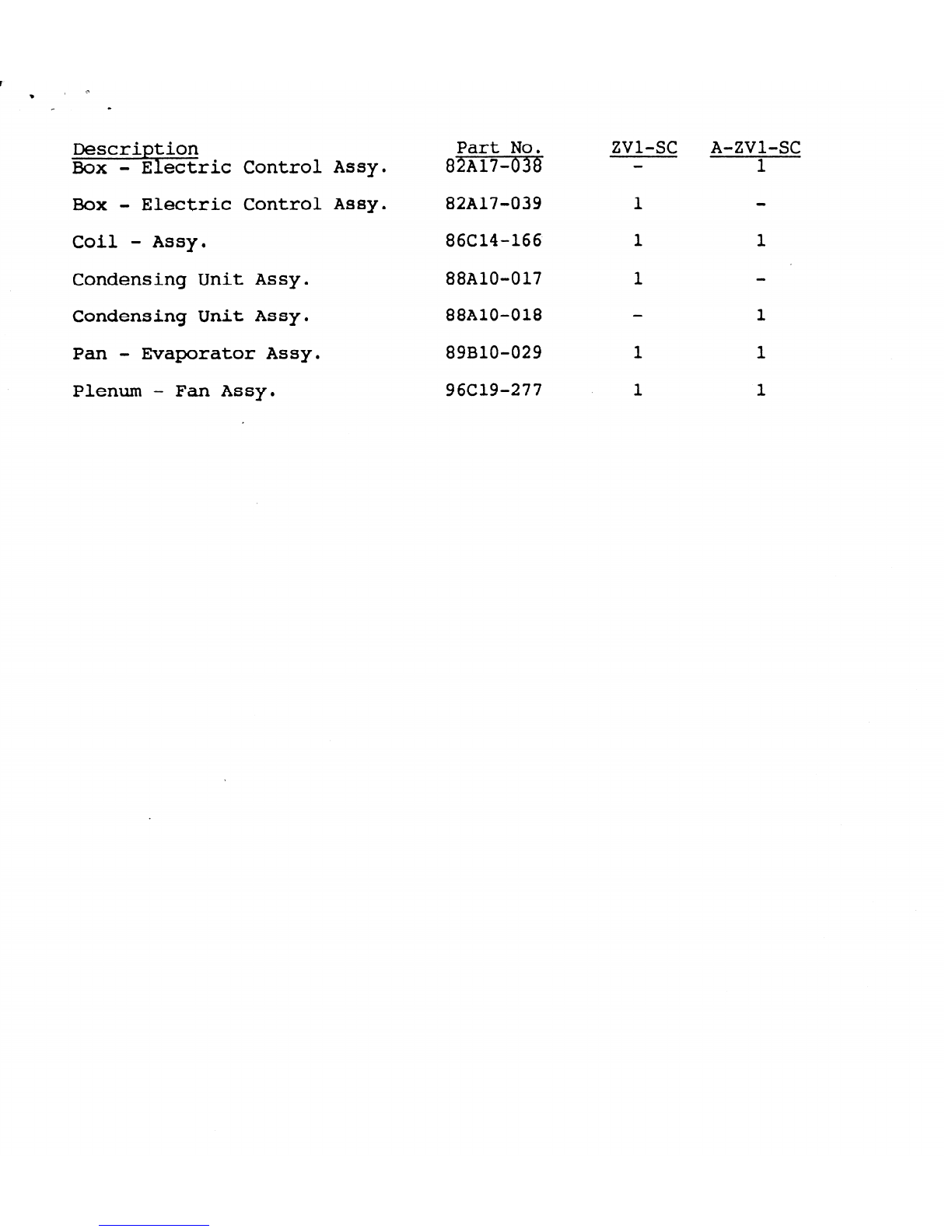

$ric Control Assy.
Part No. ZVl-SC A-W&SC
82A17-03tf - 1
Box - Electric Control Assy. 82A17-039 1 -
Coil - Assy. 86C14-166 1
1
Condensing Unit Assy. 88AlO-017 1 -
Condensing Unit Amy. EEAlO-018 - 1
Pm - Evaporator Assy.
89810-029 1 1
Plenum - Fan Assy.
96Cl9-277 1 1

IN THE CONSTANT EFFORT TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO CHANGE AT ANY
TIME SPECiFlCATIONS, DESIGN, OR PRICES WITHOUT INCURRING OBLIGATION.
DIVISION OF KYSOR INDUSTRIAL CORPORATION
P.O. Box c
1600 Industrial Blvd.
Conyers, Georgia 30207
404 483-5600

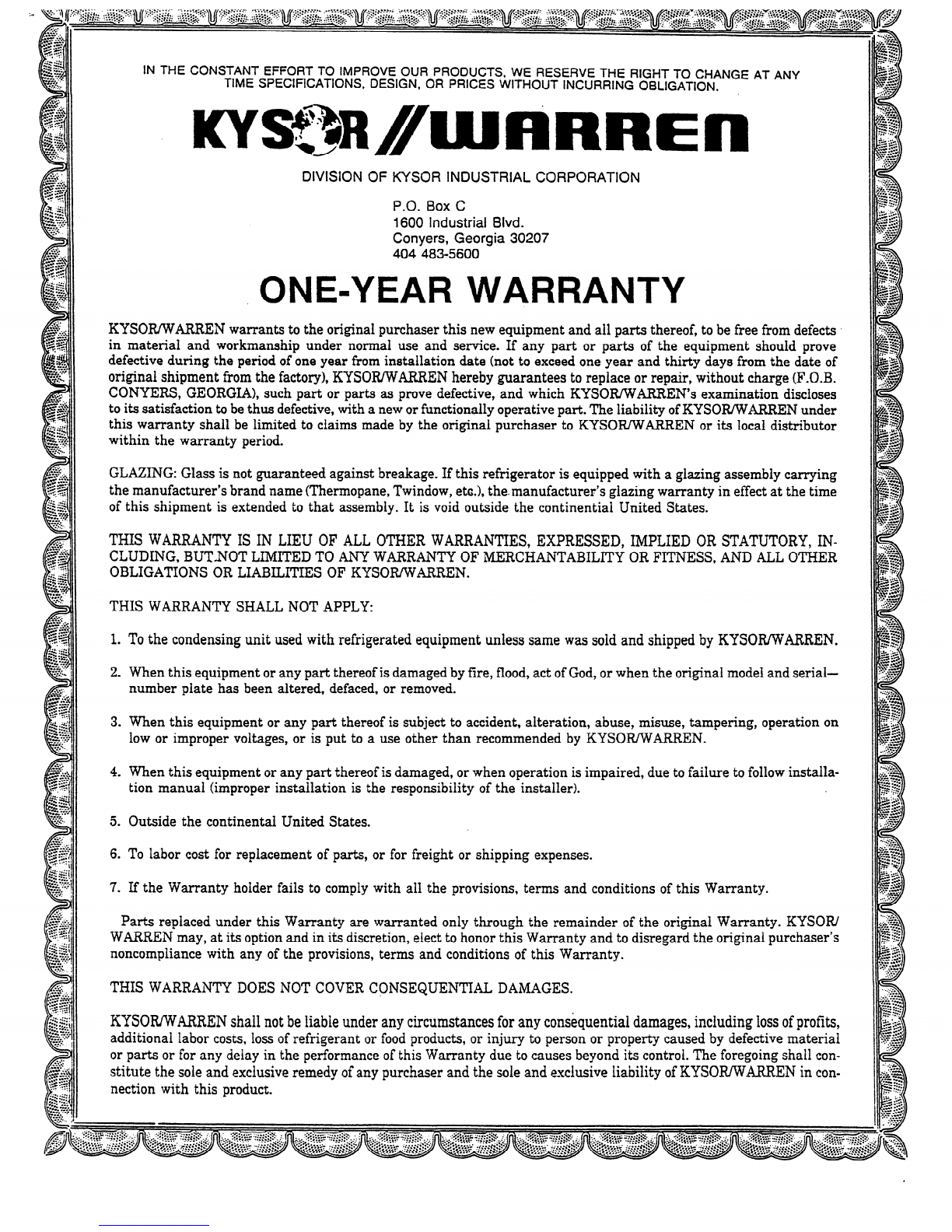

ONE-YEAR WARRANTY
KYSORlVVARREN warrants to the original purchaserthis newequipmentandall parts thereof, to befree from defects
in material and workmanshipunder normal useand service. If any part or parts of the equipmentshould prove
defective during the periodof oneyear from installation date(not to exceedoneyear andthirty daysfrom the date of
original shipmentfrom the factory), KYSORIWARREN herebyguaranteesto replaceor repair, without charge(F.O.B.
CONYERS, GEORGIA), suchpart or parts asprove defective, and which KYSORWARREN’s examination discloses
to itssatisfactionto bethusdefective,with aneworfunctionally operativepart. The liability ofKYSORWARREN under
this warranty shall belimited to claimsmadeby the original purchaserto KYSORNVARREN or its local distributor
within the warranty period.
GLAZING: Glassisnot guaranteedagainstbreakage.If this refrigerator isequippedwith a glazing assemblycarrying
the manufacturer’sbrandname(Thermopane,Twindow,etc.),the.manufacturer’sglazing warranty in effectat the time
of this shipmentis extendedto that assembly.It isvoid outsidethe continential United States.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED OR STATUTORY, IN-
CLUDING, BUTNOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY ORFITNESS, AND ALL OTHER
OBLIGATIONS OR LIABILITIES OF KYSORJWARREN.
THIS WARRANTY SHALLNOTAPPLY:
1.
2.
3.
4.
5.
6.
7.
To the condensingunit usedwith refrigerated equipmentunlesssamewassoldandshippedby KYSOIUWARREN.
Whenthis equipmentor any part thereofisdamagedby fire, flood,actof God,or whentheoriginal modelandserial-
numberpiate hasbeenaltered, defaced,or removed.
Whenthis equipmentor any part thereofis subjectto accident,alteration, abuse,misuse,tampering, operationon
low or impropervoltages,or is put to a useother than recommendedby KYSORDVARREN.
Whenthis equipmentor any part thereofisdamaged,or whenoperationisimpaired,dueto failure to follow instalfa-
tion manual (improperinstallation is the responsibility of the installer).
Outsidethe continental United States.
To labor costfor replacementof parts, or for freight or shippingexpenses.
If the Warranty holderfails to complywith all the provisions,terms andconditionsof this Warranty.
Parts replacedunder this Warranty are warranted only through the remainder of the original Warranty. KYSOW
WARREN may, at its optionandin its discretion,electto honorthis Warranty andto disregardthe original purchaser’s
noncompliancewith any of the provisions,terms andconditionsof this Warranty.
THIS WARRANTY DOES NOT COVER CQNSEQUENTIAL DAMAGES.
KYSOIUWARREN shallnot beliable underany circumstancesfor any consequentialdamages,including lossof profits,
additional labor costs,lossof refrigerant or foodproducts,or injury to personor property causedby defective material
or partsor for any delay in the performanceof this Warranty dueto causesbeyondits control. The foregoingshallcon-
stitute the soleandexclusiveremedyof any purchaserandthe soleandexclusive liability of KYSORJWARREN in con-
nection with this product.
