Kystar KS604 User manual

Sending box
Version: v1.2
Release Date: November 2021
Manual

version number
Change details
release time
V1.0
first release
2014.07.01
V1.1
change cover
2021.10.25
V1.2
Correct size data
2021.11.18

Statement
Thank you for using our company's products.
The copyright of this manual belongs to our company, and any content of this document is strictly
prohibited to be reproduced, transmitted, distributed and stored in any form without the written
permission of our company. The company reserves the right to modify and improve any product
features described in this document without prior notice.
This product may come with related control software, the software is for your use only, and the
ownership of the software belongs to our company. You may make copies, but only for personal use. If
you use this software for other purposes, especially commercial purposes, please contact our company.
The company reserves the right to pursue legal responsibility for infringement.
Please read this manual carefully before use. Improper operation may cause damage to the product;
this product is a live work product, please pay attention to the safety of electricity. If you do not follow
the instructions in this manual and take inappropriate operations, the company will not be responsible
for the resulting property damage and personal injury. In the event of any conflict between this article
and local laws and regulations, the local laws and regulations shall prevail.
If you use this product, it means that you agree with the above statement. If you do not agree with
the above statement, please contact the seller and go through the corresponding return procedures.
Certification Instructions
“CE”Certification
EN 55022：2010
EN 55024：2010
EN 61000-3-3：2013
EN 61000-3-3：2014
EN 0950-1：2006+A11：2009+A1：2010+A12：2011+A2:2013
“FCC”Certification
FCC Part 15
ANSI C63.4：2014
“ROHS”Certification
EPA 3050B：1996，EN1122:2001
EPA 3052：1996，EPA 3060A
EPA 7196，EPA 3540C，EPA 8270C
Version Information
Version: v1.2
Release Date: November 2021

Safety Precautions
For your safety, please read this section carefully.
Power supply
The power supply for normal operation of this device is 100~220V
AC, please make sure to use this product within this voltage range.
High voltage
This equipment contains high voltage components.
Non-professionals do not disassemble
This device is not equipped with maintenance parts for users to
maintain and use by themselves, please do not open the case to operate
by yourself. Self-disassembly may cause irreparable damage to the
device. If there is a need for maintenance, please contact the after-sales
personnel.
Make sure the ground is good
In order to protect the personal safety of users, please ensure that the
power cable is well grounded before use.
Keep away from strong magnetic fields, motors and transformers
In order to ensure the normal use of the equipment, please keep away
from strong magnetic fields, motors and transformers.
Pay attention to moisture
Keep the use environment dry. If the device is accidentally damp,
please do not connect to the power supply, and the device should be
dried before use.
Keep away from explosives
Do not use this product in flammable and explosive environments.
Prevents liquid or conductive debris from entering the interior of
the case
It is necessary to strictly prevent conductive substances such as liquid
or metal debris from entering the inside of the equipment chassis.

Catalog
1. Product introduction................................................................................................................ 1
2.Panel introduction............................................................................................................................ 1
3.Port Specifications...................................................................................................................... 2
4.Installation Notes..............................................................................................................................3
4.1Sending card installation........................................................................................................3
4.2 Connect method.................................................................................................................... 4
5.debug step.........................................................................................................................................4

Sending box KS604 manual
1
1. Product introduction
KS604 is a management end device for sending cards. It is an independent management unit, which is
convenient for the management of power supply and signals on the site of multiple sending cards, and conforms to
international and industry standards.
Comes with two one-to-two splitter, supports free copying within 2.6 million resolutions.
This product has the following features:
Independent power supply and installation of 4 small sending cards
Two independent DVI splitters, split in two
1.5U chassis for easy installation
2.Panel introduction
2.1Front panel Introduction
The red switch is the power switch button, ON is the power-on state, OFF is the power-off state

Sending box KS604 manual
2

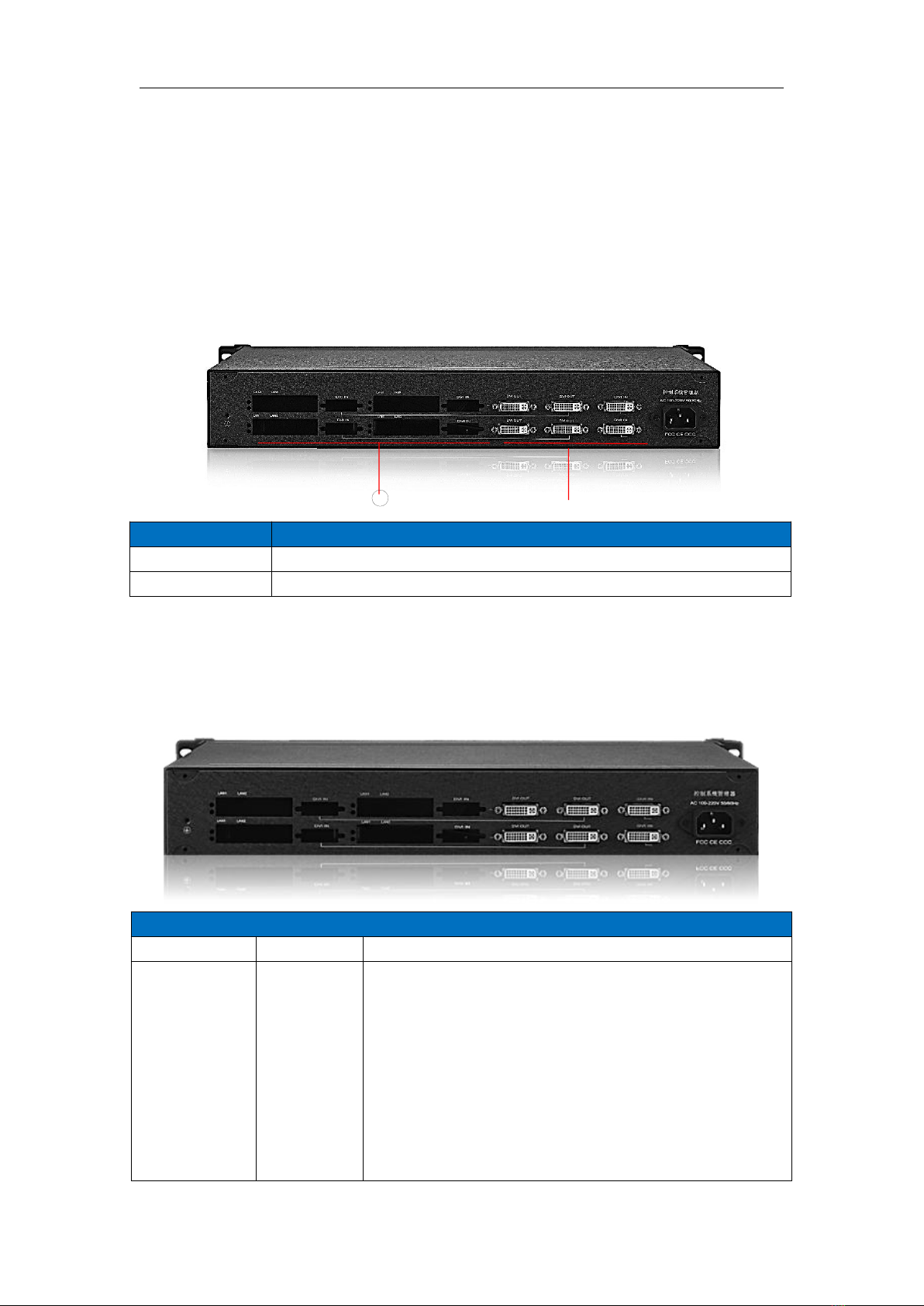

2.2 Back panel introduction
KS604 comes with two one-to-two DVI splitters, which can be used to cascade sending cards. Two
distributors can cascade 4 two-network port sending cards into two 4-network port sending cards for use
KS604 can be compatible with 4 two network port sending cards of mainstream brands on the market, and
has an independent power supply unit, which is convenient for on-site power supply and signal management of
multiple sending cards.
3.Port Specifications
Input port
Type
Quantity
specification
DVI
2
Standard DVI-D socket, 18+1 pinhole; DVI1.1; TMSD level, single pixel
input, 165MHz bandwidth;
Support resolution:
2560×1024 @60Hz 1536×1536 @60Hz
2048×1152 @60Hz 1920×1200 @60Hz
1920×1080 @60Hz 1680×1050 @60Hz
1600×1200 @60Hz 1440×900 @60Hz
1400×1050 @60Hz 1366×768 @60Hz
1360×768 @60Hz 1280×1024 @60Hz
Serial number
Function Description
①
Sending card installation area
②
Comes with two one-to-two DVI splitter
②
1

Sending box KS604 manual
3
1280×800 @60Hz 1024×768 @60Hz
And custom resolution in the range of 2560×1024 @60Hz
Output port
Type
Quantity
specification
DVI-D
4
Standard DVI-D socket, 18+1 pinhole; DVI1.1; TMSD level, single pixel
input, 165MHz bandwidth;
Support resolution:
2560×1024 @60Hz 1536×1536 @60Hz
2048×1152 @60Hz 1920×1200 @60Hz
1920×1080 @60Hz 1680×1050 @60Hz
1600×1200 @60Hz 1440×900 @60Hz
1400×1050 @60Hz 1366×768 @60Hz
1360×768 @60Hz 1280×1024 @60Hz
1280×800 @60Hz 1024×768 @60Hz
And a custom resolution in the range of 2560×1024 @60Hz
Machine specification
Input power
100-240V AC~50/60Hz 1.0A
Operating temperature
-20℃~85℃
Working humidity
0℃~40℃
Dimensions
483×340×67mm（L×W×H）
net weight
5KG
Machine power consumption
50W
4.Installation Notes
4.1Sending card installation
Remove the screws on the left and right sides of the KS604, remove the hexagonal screws of the sending
card, remove the front cover of the sending card, and then put ES2 into the KS604 box. After the installation is
complete, insert the small 4P 5V power supply cable on the sending card.

Sending box KS604 manual
4
Install sending card
4.2 Connect method
The out of Video Processor is connected to the DVI input of the sending card box, and the
DVI output is connected to the DVI input of the sending card.
Note: 3 pcs DVI in the horizontal direction on the sending box are a group of DVI spliter
5.debug step
1、Confirm parameters before commissioning
The topology diagram is shown in the figure: the display content is basically the same as that of
the sending device, and the device model, version number, and receiving card model and version
number can be detected.

Sending box KS604 manual
5
It is recommended to use expert screen adjustment for debugging. The wizard screen adjustment
will cause slow debugging due to the large number of network ports and receiving cards.
2、Receiving card interface:
①Enter the module selection to see if there is a file matching the unit board, if not, select the
smart setting
②Single card loading: Input the loading points of each receiving card. If the on-site module
wiring is multi-open, select it in the multi-open setting, and the cascading method is the same.
③Effect debugging: In the case of normal large screen display, increase the refresh rate to adjust
the data clock frequency and multiplier
3、Display connection:
Facing the LED screen, input the number of card rows and card columns, and then route the cables
in sequence according to the load order of the network cables.
Or do smart stringing. After application, click to cure all

Sending box KS604 manual
6
