L-Acoustics LC16D User manual

LC16D
owner's manual (EN)

Document reference: LC16D owner's manual (EN) version 1.0
Distribution date: November 30, 2023
© 2023 L-Acoustics. All rights reserved.
No part of this publication may be reproduced or transmitted in any form or by any means without the
express written consent of the publisher.

Contents
Safety................................................................................................................................................................ 5
Important safety instructions....................................................................................................................... 5
Introduction........................................................................................................................................................ 7
LC16D Network audio converter................................................................................................................ 7
How to use this manual............................................................................................................................ 7
Revision history.........................................................................................................................................8
System components.............................................................................................................................................8
Technical description........................................................................................................................................... 9
Main features........................................................................................................................................... 9
Front and rear panels......................................................................................................................9
Power supply................................................................................................................................ 10
Signal processing....................................................................................................................................10
Signal inputs and outputs...............................................................................................................10
Mapping...................................................................................................................................... 11
Monitoring and control............................................................................................................................12
User interface............................................................................................................................... 12
Remote control.............................................................................................................................. 12
Installation........................................................................................................................................................13
Mounting................................................................................................................................................13
Ventilation.............................................................................................................................................. 13
General Purpose I/O (GPIO)................................................................................................................... 14
Power over Ethernet................................................................................................................................ 15
Connecting to AC mains......................................................................................................................... 15
Electrical specications.................................................................................................................. 15
Power cord...................................................................................................................................16
Plugging LC16D............................................................................................................................16
Power consumption........................................................................................................................16
Audio and network cabling..................................................................................................................... 16
Connectors................................................................................................................................... 16
AES/EBU audio............................................................................................................................ 17
MADI audio................................................................................................................................. 18
Word clock...................................................................................................................................18
Milan-AVB.................................................................................................................................... 19
Cabling examples......................................................................................................................... 20
3

Operation........................................................................................................................................................ 21
Powering on/off..................................................................................................................................... 21
Interpreting the front panel LEDs...............................................................................................................21
LC16D embedded Web interface............................................................................................................. 26
Top bar........................................................................................................................................ 26
Audio overview.............................................................................................................................27
AVB input mapping.......................................................................................................................32
AVB output mapping..................................................................................................................... 33
GPIO........................................................................................................................................... 34
Settings........................................................................................................................................ 36
Additional actions......................................................................................................................... 39
Specications................................................................................................................................................... 40
LC16D................................................................................................................................................... 40
4

Safety
Safety
Important safety instructions
Inspect the product before operation.
If any sign of defect or damage is detected, immediately withdraw the product from use for maintenance.
Perform preventive maintenance at least once a year.
Refer to the preventive maintenance section for a list of actions and their periodicity.
Insufcient upkeep of the product can void the warranty.
Verify the electrical conformity and compatibility of the mains supply.
Only connect the product to an AC power outlet rated 100-240 V, 50-60 Hz.
The product draws 8 W (typical).
WARNING: The product is of Class 1 construction and shall be connected to a mains socket outlet with a
Protective Earth connection.
When the product is used in a three-phase circuit, verify the electrical conformity and
compatibility of the three-phase circuit.
Verify that the three phases work, and balance the loads between the three phases.
Verify that the neutral and earth work.
Never try to emulate a 230 V circuit connecting an apparatus to two live wires of a 120 V three-phase circuit.
Never try to emulate a 200 V circuit connecting an apparatus to two live wires of a 100 V three-phase circuit.
Electrical generator
You must power on the generator before powering on the product.
Verify that the product is turned off before powering on the generator.
Never incorporate equipment or accessories not approved by L-Acoustics.
Read all the related PRODUCT INFORMATION documents shipped with the products before
exploiting the system.
Intended use
This system is intended for use by trained personnel for professional applications.
As part of a continuous evolution of techniques and standards, L-Acoustics reserves the right
to change the specications of its products and the content of its documents without prior
notice.
Check www.l-acoustics.com on a regular basis to download the latest document and software updates.
Do not use the product outside its operating temperature range.
The product operates at a room temperature between -5 °C / 23 °F and 50 °C / 122 °F.
Do not expose the product to direct sun.
Do not expose the product to extreme conditions.
Do not expose the product to moisture (rain, mist, sea spray, steam, humidity, condensation…) or excessive heat
(direct sun, radiator…) for a long period of time.
For more information, refer to the Products weather protection document, available on the website.
Use the product in a conformed electro-magnetic environment.
The product can be used in the following environment: residential (class B).
Avoid radio interference.
This product has been tested and complies with the regulations of the EMC directive (Electro Magnetic
Compatibility). These regulations are designed to provide reasonable protection against harmful interference from
electrical equipment, but it cannot be guaranteed that interference will never occur.
Product disconnection
To completely disconnect this product from the mains, disconnect the power supply cord plug from the mains
socket outlet.
LC16D owner's manual (EN) version 1.0 5

Safety
Power supply cord and socket accessibility
The main plug of the power supply cord shall remain easily accessible.
The mains socket outlet shall be easily accessible.
Read the maintenance section of this document before servicing the product.
Contact L-Acoustics for advanced maintenance.
Any unauthorized maintenance operation will void the product warranty.
Shipping
Use the original packaging for shipping the product, unless it is mounted in a rack with the front xed to the rack,
as described in this manual.
Symbols on the product
Explanation of graphical symbols
The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of
sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance instructions in the literature accompanying the product.
Do not open unless authorized. This symbol indicates the presence of electrical shock hazards. It also
indicates that no maintenance performed by the end user requires access to internal components.
This marking indicates that this product should not be disposed of with other household waste
throughout the EU. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the retailer where the product
was purchased. They can take this product for environmentally safe recycling.
6 LC16D owner's manual (EN) version 1.0

Introduction
Introduction
LC16D Network audio converter
LC16D is a multichannel converter that bridges MADI and AES/EBU legacy digital formats bidirectionally with a Milan-
AVB network. Supporting up to 128 Milan-AVB inputs and outputs simultaneously, LC16D offers dynamic mapping of
channels, and comprehensive synchronization options, with remote control via a simple to use embedded web interface.
Flexible power options and seamless Milan-AVB network audio connections deliver robust redundancy features as
standard, all housed in a compact and rugged 1RU chassis.
Up to 16 AES/EBU inputs and outputs can be connected using standard DB25 connectors. Asynchronous sample rate
converters (ASRC) are implemented on each AES/EBU input. A pair of BNC connectors provide access to MADI. At a
sampling rate of 96 kHz, 32 input and 32 output channels are supported, and up to 64 at 48 kHz. Used together, up
to 80 input sources and 80 output destinations can be connected and dynamically mapped to and from a redundant
Milan-AVB network. The comprehensive clocking options facilitate the selection of a reference from any of six different
sources, which is then presented to all outputs, enabling clock distribution across a system. Up to three levels of power
redundancy are available using a combination of the internal PSU and the dual, PoE-supporting, Ethernet ports.
How to use this manual
The LC16D owner's manual is intended for all actors involved in the system design, implementation, preventive and
corrective maintenance of the LC16D product. It must be used as follows:
1. Read the technical description for an overview of all product elements, their features, and their compatibilities.
•Technical description (p.9)
2. Before installing the product, perform mandatory inspections and functional checks.
3. To deploy the product, follow the step-by-step installation instructions and refer to the cabling schemes.
•Installation (p.13)
•Audio and network cabling (p.16)
4. To congure the settings and parameters of the product, follow the step-by-step operation instructions.
•Operation (p.21)
As part of a continuous evolution of techniques and standards, L-Acoustics reserves the right to
change the specications of its products and the content of its documents without prior notice.
Check www.l-acoustics.com on a regular basis to download the latest document and software updates.
Contact information
For information on advanced corrective maintenance:
• contact your Certied Provider or your L-Acoustics representative
• for Certied Providers, contact the L-Acoustics customer service: customer.ser[email protected] (EMEA/APAC),
laus.ser[email protected] (Americas).
LC16D owner's manual (EN) version 1.0 7

System components
Symbols
The following symbols are used in this document:
This symbol indicates a potential risk of harm to an individual or damage to the product.
It can also notify the user about instructions that must be strictly followed to ensure safe installation or operation of
the product.
This symbol indicates a potential risk of electrical injury.
It can also notify the user about instructions that must be strictly followed to ensure safe installation or operation of
the product.
This symbol noties the user about instructions that must be strictly followed to ensure proper installation or
operation of the product.
This symbol noties the user about complementary information or optional instructions.
Revision history
version number publication date modication
1.0 Nov. 2023 Initial version.
This version of the Owner's Manual describes the LC16D rmware version 2.13.1.
As part of a continuous evolution of techniques and standards, L-Acoustics reserves the right
to change the specications of its products and the content of its documents without prior
notice.
Check www.l-acoustics.com on a regular basis to download the latest document and software updates.
System components
Network audio converters
LC16D Network audio converter
Software applications
LC16D embedded
Web interface
LC16D embedded Web interface
L-Acoustics Device
Scanner
L-Acoustics Device Scanner
USB Terminal USB Terminal
Hive AVDECC controller
8 LC16D owner's manual (EN) version 1.0

Technical description
Technical description
Main features
Front and rear panels
1 2 34
1. LEDs for the general status of the unit:
• single color LED for mains presence
• single color LED for PoE (Power over Ethernet) presence
• dual color LED for status of the remote control
• dual color LED for the general status of the unit
2. LEDs for clock references:
• single color LED for internal clock
• single color LED for word clock
• single color LED for network (Milan-AVB clock)
• single color LED for MADI clock
• single color LED for AES/EBU 1 clock
3. LEDs for status/signal/clip of the AES/EBU signals:
• 8 dual color LEDs for the AES/EBU inputs (one per pair)
• 8 dual color LEDs for the AES/EBU outputs (one per pair)
4. LEDs for status/signal/clip of the MADI signals:
• dual color LED for the MADI inputs
• dual color LED for the MADI outputs
1 2 3 4 5 6 7 8
1. IEC C13 V-Lock compatible socket
2. DB25 female connector (AES59 8-way pinout annex C) for 16 AES/EBU outputs
3. DB25 female connector (AES59 8-way pinout annex C) for 16 AES/EBU inputs
4. BNC connector for MADI inputs and BNC connector for MADI outputs (75 Ω terminated)
5. BNC connector for Word clock input and BNC connector for Word clock output (75 Ω terminated)
6. 10-point terminal block General Purpose I/O (GPIO)
7. Micro USB service port
8. 2 × 1 Gb/s Ethernet etherCON I/Os for Milan-AVB I/O, network I/O, and PoE (Power over Ethernet) inputs
LC16D owner's manual (EN) version 1.0 9

Technical description
Power supply
LC16D power supply offers three redundant possibilities.
LC16D is equipped with a universal Switched Mode Power Supply (SMPS) suitable for mains from 100 V AC - 240 V AC
(± 10%), 50 Hz - 60 Hz.
LC16D is a Class 3 Powered Device (PD) featuring seamless power redundancy between the mains input and PoE (Power
over Ethernet). In case of failure of the mains power supply, a third-party Power Sourcing Equipment (PSE) can power
LC16D through either of the 1 Gb/s Ethernet ports (PoE1 and PoE2). LC16D is compatible with any IEEE 802.3at-2009
PSE.
Refer to section Installation (p.13) for detailed operating instructions.
Signal processing
Signal inputs and outputs
Milan-AVB
LC16D can operate in normal network mode or in redundant network mode. In both modes, 16 Milan-AVB input streams
of up to 8 channels each can be connected to LC16D.
Input channels can be freely assigned to the 16 Milan-AVB output streams through a exible matrix in the LC16D
embedded Web interface.
Each Ethernet port uses a high speed data transfer protocol up to 1 Gb/s and supports the AAF PCM32 stream format
with stream frequencies at 48 kHz when the device is operating at 48 kHz or 96 kHz when the device is operating at 96
kHz.
AES/EBU (AES3)
LC16D can be fed with up to 16 AES/EBU (AES3) digital audio signals (transported in pairs) using the AES/EBU
INPUTS 1-16 DB25 female connector. There is no latency compensation and no bypass/link. The input signals can be
transmitted to the Milan-AVB output streams.
Each input signal has integrated ASRC (Asynchronous Sample Rate Converter) supporting a wide range of input formats
(44.1 kHz to 192 kHz). The ASRC converts the signals to the rate selected for LC16D (48 kHz or 96 kHz). The ASRC can
be disabled individually for each AES/EBU input.
LC16D can send up to 16 AES/EBU (AES3) digital audio signals (transported in pairs) coming from the Milan-AVB input
streams using the AES/EBU OUTPUTS 1-16 DB25 female connector. There is no latency compensation.
MADI (AES10-2003)
LC16D can be fed with up to 64 AES10 digital audio signals (at 48 kHz) or 32 AES10 digital audio signals (at 96 kHz)
using the MADI IN BNC connector. The input signals can be transmitted to the Milan-AVB output streams.
LC16D can send up to 64 AES10 digital audio signals (at 48 kHz) or 32 AES10 digital audio signals (at 96 kHz)
coming from the Milan-AVB input streams using the MADI OUT BNC connector.
10 LC16D owner's manual (EN) version 1.0

Technical description
Clocking
LC16D synchronizes its media clock according to the selection done by the user.
Mapping
LC16D has a default mapping of the inputs and outputs that can be modied using the LC16D embedded Web interface.
The same Milan-AVB input streams can be used several times in the mapping.
AES/EBU OUT
1-2
AES/EBU OUT
3-4
AES/EBU OUT
5-6
AES/EBU OUT
7-8
AES/EBU OUT
9-10
AES/EBU OUT
11-12
AES/EBU OUT
13-14
AES/EBU OUT
15-16
MADI IN
9 - 16
MADI IN
1 - 8
MADI IN
17 - 14
MADI IN
25 - 32
MADI IN
33 - 40
MADI IN
41 - 48
MADI IN
49 - 56
MADI IN
57 - 64
ASRC
ASRC
ASRC
ASRC
ASRC
ASRC
ASRC
ASRC
AES/EBU IN
1-2
AES/EBU IN
3-4
AES/EBU IN
5-6
AES/EBU IN
7-8
AES/EBU IN
9-10
AES/EBU IN
11-12
AES/EBU IN
13-14
AES/EBU IN
15-16
INPUT SOURCES*
*UP TO 80 SOURCES *UP TO 80 DESTINATIONS
MADI OUT
9 - 16
MADI OUT
1 - 8
MADI OUT
17 - 14
MADI OUT
25 - 32
MADI OUT
33 - 40
MADI OUT
41 - 48
MADI OUT
49 - 56
MADI OUT
57 - 64
OUTPUT DESTINATIONS*
S01 CH 01 - 08
S02 CH 09 - 16
S03 CH 17 - 24
S04 CH25 - 32
S05 CH 33 - 40
S06 CH 41 - 48
S07 CH 49 - 56
S08 CH 57 - 64
S09 CH 65 - 72
S10 CH 73 - 80
S11 CH 81 - 88
S12 CH 89 - 96
S13 CH 97 - 104
S14 CH 105 - 112
S15 CH 113 - 120
S16 CH 121 - 128
AVB OUT AVB IN
S01 CH 01 - 08
S02 CH 09 - 16
S03 CH 17 - 24
S04 CH25 - 32
S05 CH 33 - 40
S06 CH 41 - 48
S07 CH 49 - 56
S08 CH 57 - 64
S09 CH 65 - 72
S10 CH 73 - 80
S11 CH 81 - 88
S12 CH 89 - 96
S13 CH 97 - 104
S14 CH 105 - 112
S15 CH 113 - 120
S16 CH 121 - 128
OPEN MAPPINGDE F AU L T MAPPING
DYNAMIC
A VB
INPUT
MAPPING
DYNAMIC
A VB
OUTPUT
MAPPING
MADI
64 INPUTS @
48 kHz
32 INPUTS @
96 kHz
MADI
64 OUTPUTS @
48 kHz
32 OUTPUTS @
96 kHz
Mapping is possible from the Milan-AVB inputs to the AES/EBU and MADI outputs, and from the AES/EBU and MADI
inputs to the Milan-AVB outputs. Direct mapping between Milan-AVB inputs and outputs is not possible, neither is it
possible to map between AES/EBU and MADI.
LC16D does not feature any DSP and as such, cannot be used to apply EQ, gain, delay, or mute functionalities.
Use an AVDECC Controller (such as Hive) to connect the Milan-AVB input streams to LC16D.
LC16D owner's manual (EN) version 1.0 11

Technical description
Monitoring and control
User interface
The LED display on the front panel provides real-time monitoring functionalities:
• General status of the unit:
• mains presence
• PoE (Power over Ethernet) presence
• status of the remote control
• general status of the unit
• Clock references:
• internal clock
• word clock
• network (Milan-AVB clock)
• MADI clock
• AES/EBU 1 clock
• Status/signal/clip of the inputs:
• AES/EBU inputs (one per pair)
• MADI inputs
• Status/signal/clip of the outputs:
• AES/EBU outputs (one per pair)
• MADI outputs
Refer to section Operation (p.21) for detailed operating instructions.
Remote control
With its factory default settings, LC16D can be used out of the box to convert MADI and AES/EBU formats to Milan-AVB
streams ready to be connected to AVB-capable devices.
The IP settings, Milan-AVB mapping, and the GPIO conguration can be edited from the LC16D embedded Web
interface. Use an AVDECC Controller (such as Hive) to connect the Milan-AVB input streams to LC16D.
Once LC16D is congured, there is no need to continue remote control: it will continue to function. After a reboot or
being turned off and on again, LC16D continues to apply the last used conguration.
Refer to section Operation (p.21) for detailed operating instructions.
LC16D embedded Web interface
LC16D incorporates an embedded Web interface for remote control and monitoring which can be accessed by any
device with a Web browser and network connection.
To connect LC16D and the control computer, use either industry standard CAT5e U/FTP cables (or cables of higher
categories) tted with RJ45 connectors, or a micro USB cable.
The 10-point terminal block General Purpose I/O (GPIO) can be congured to store and recall up to 10 user
congurations. Refer to General Purpose I/O (GPIO) (p.14).
USB Terminal
USB Terminal is an interface available on the L-Acoustics website. To connect LC16D and the control computer, use a
micro USB cable.
Use USB Terminal to connect to devices and change their IP settings or reset them to factory settings.
12 LC16D owner's manual (EN) version 1.0

Installation
L-Acoustics Device Scanner
L-Acoustics Device Scanner is an application available on the L-Acoustics website. To connect LC16D and the control
computer, use industry standard CAT5e U/FTP cables (or cables of higher categories) tted with RJ45 connectors.
Use L-Acoustics Device Scanner to connect to devices even if their IP addresses are unknown, and:
• Solve IP address conict between devices.
• Update the rmware.
• Identify, reboot, congure a password.
• Retrieve the logs, nd the MAC Address and Serial Number.
Refer to the L-Acoustics Device Scanner Technical Bulletin for more information.
Installation
Mounting
LC16D is one rack units high (1U) and can be mounted in an EIA-standard 19" rack using the four points on the front
panel. Use the xing material provided by the rack manufacturer to mount the device to the rack front rails.
LC16D dimensions
483 mm / 19 in
44.45 mm / 1.75 in 32 mm / 1.25 in
465 mm / 18.3 in
135.9 mm / 5.35 in
435 mm / 17.13 in
124 mm / 4.88 in
LC16D is not compatible with L-CASE II.
Ventilation
LC16D is equipped with a fan and one grill on each side to ventilate the device.
Do not block the side ventilation grills.
Install LC16D with the side panels at a minimum distance of 5 cm / 1.9 in from any external object or structure.
When rack-mounted, the same distance must be guaranteed on both sides of the rack: make sure airow is not
reduced.
LC16D owner's manual (EN) version 1.0 13

Installation
General Purpose I/O (GPIO)

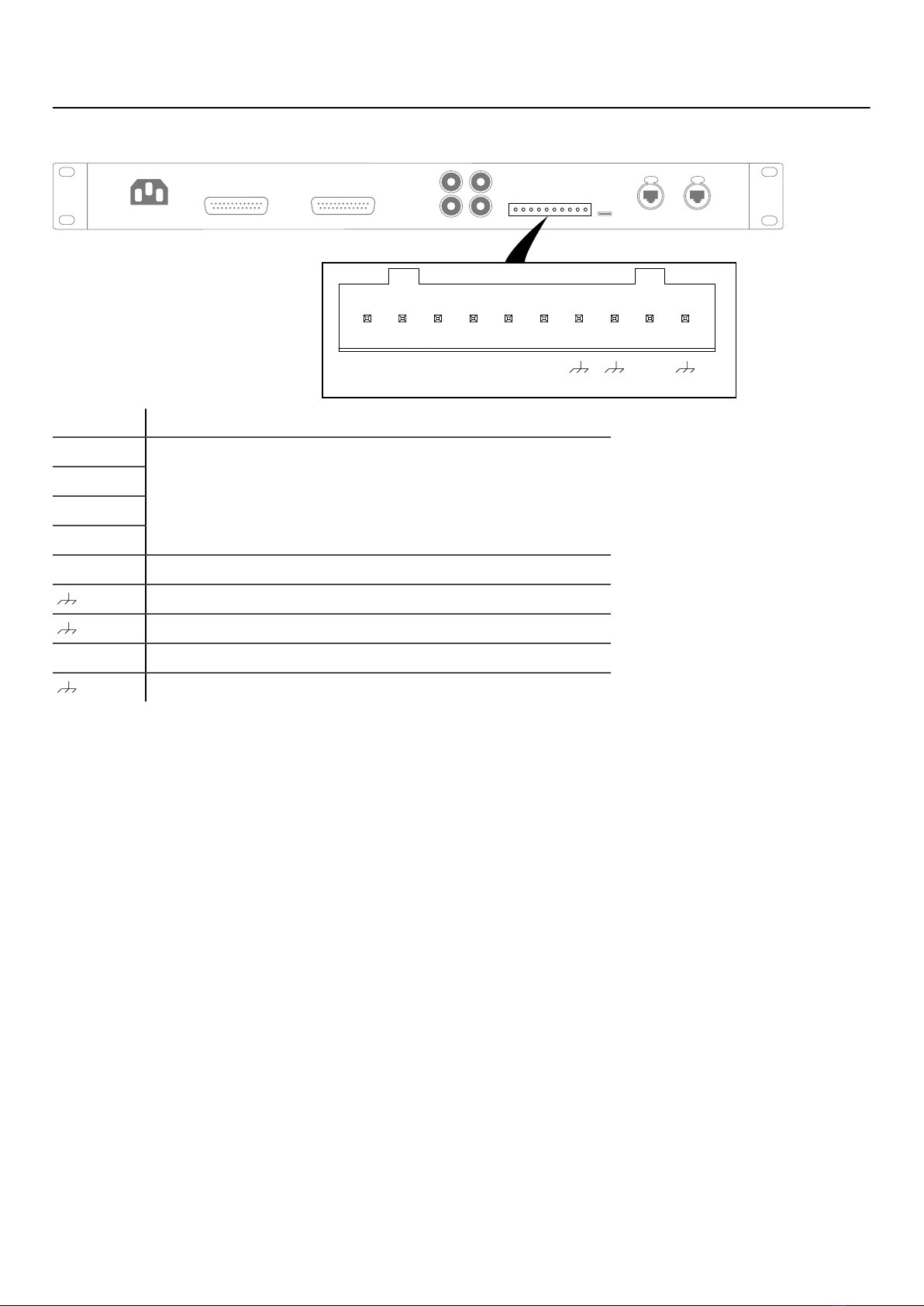

LC16D features a 10-point terminal block General Purpose I/O (GPIO) connector.
+12V
OUT
GND
GPIO
1 2 3 4 NC
GND GPIO ground
1
2
3
4
input or output
NC not connected
chassis ground
chassis ground
+12V OUT for powering a contact relay (45 mA maximum)
chassis ground
GPIO can be congured using the LC16D embedded Web interface. For more information, refer to Operation (p.21).
14 LC16D owner's manual (EN) version 1.0

Installation
Power over Ethernet
LC16D is a Class 3 Powered Device (PD) featuring seamless power redundancy between the mains input and PoE (Power
over Ethernet). In case of failure of the mains power supply, a third-party Power Sourcing Equipment (PSE) can power
LC16D through either of the 1 Gb/s Ethernet ports (PoE1 and PoE2). LC16D is compatible with any IEEE 802.3at-2009
PSE.
When LC16D is connected to three power supplies (mains and two PSEs), it is powered by the mains power supply in
priority. In case of failure of the mains power supply, LC16D is powered through the rst PoE1 (second priority after the
mains). In case of a failure of the PSE connected to PoE1 during a failure of the mains power supply, LC16D is powered
through PoE2 (third priority). LC16D automatically switches back to PoE1 or the mains as available.
The PSE can be a PoE injector, or a PoE switch. PoE switches should be AVB-capable switches if LC16D is used in an
Milan-AVB network.
Use CAT6A U/FTP patch cables (straight-through), AWG24, 50 m / 164 ft min to 100 m / 328 ft max.
LC16D
PoE injectors
Power outlets
Power cable
Power cable
Ethernet cable
Milan-AVB
Power
LS10
Milan-AVB
Power
AVB-capable PoE switch
LC16D
Power outlets
Power cable Power cable
Ethernet cable
LS10
With two PoE injectors and LS10 With an AVB-capable PoE switch and LS10
L-Acoustics LS10 is an AVB-capable switch but is not a PSE device. Refer to the LS10 Owner's Manual.
Connecting to AC mains
Electrical specications
AC mains specications
Verify the electrical conformity and compatibility of the mains supply.
Only connect the product to an AC power outlet rated 100-240 V, 50-60 Hz.
The product draws 8 W (typical).
WARNING: The product is of Class 1 construction and shall be connected to a mains socket outlet with a
Protective Earth connection.
Three-phase circuit
When the product is used in a three-phase circuit, verify the electrical conformity and
compatibility of the three-phase circuit.
Verify that the three phases work, and balance the loads between the three phases.
Verify that the neutral and earth work.
Never try to emulate a 230 V circuit connecting an apparatus to two live wires of a 120 V three-phase circuit.
Never try to emulate a 200 V circuit connecting an apparatus to two live wires of a 100 V three-phase circuit.
LC16D owner's manual (EN) version 1.0 15

Installation
Power cord
The removable power cord is tted with a V-Lock compatible IEC connector at one end, and a country-specic plug at the
other end.
type plug cable ratings live neutral ground
CE CEE7/VII, earthed
CN GB 2099, earthed
INT bare ends (local powerplug to be tted)
10 A / 250 V brown blue green/yellow
US NEMA 5-15, earthed 10 A / 125 V black white green
Strictly apply the specic safety regulations of the country of use.
Do not defeat the ground connection of the supplied power cord using an adaptor or any other method.
A suitable plug must be wired to the INT power cord.
If the power plug does not match the local power outlet, have a qualied electrician wire a suitable plug.
Plugging LC16D
How to plug LC16D to the AC mains.
Procedure
— First, connect the IEC connector to the LC16D IEC C13 socket.
Make sure the cable is properly locked.
— Then, connect the power plug to the mains socket.
LC16D features a power LED. LC16D is operational in less than 8 seconds.
To power off LC16D, unplug the power cord from the mains socket.
Power consumption
LC16D power requirement is 12 W maximum.
Audio and network cabling
Connectors
The rear panel of LC16D features connectors for audio and network cabling:
1. For the connection of the digital AES/EBU audio sources inputs and outputs.
2. For the connection of the MADI AES10-2003 audio sources inputs and outputs, and input and output clocks.
3. For the connection of the Milan-AVB network, and to be remotely controlled through the LC16D embedded Web
interface.
LC16D audio and network connection panels
1 2 3
16 LC16D owner's manual (EN) version 1.0

Installation
AES/EBU audio
Use the two DB25 female connectors for AES/EBU signal cabling.
AES/EBU OUT 1-16 AES/EBU IN 1-16
The connectors are wired according to the AES59 8-way pinout annex C standard.
25 24 23 22 21 20 19 18 17 16 15 14
out 3/4
out 1/2
out 7/8
out 5/6
out 11/12
out 9/10
out 15/16
out 13/14
13 12 11 10 9 8 7 6 5 4 3 2 1
25 24 23 22 21 20 19 18 17 16 15 14
in 3/4
in 1/2
in 7/8
in 5/6
in 11/12
in 9/10
in 15/16
in 13/14
13 12 11 10 9 8 7 6 5 4 3 2 1
DB25 female connectors
Pin 1 15/16 + Pin 7 7/8 + Pin 14 15/16 - Pin 20 7/8 -
Pin 2 15/16 shield Pin 8 7/8 shield Pin 15 13/14 + Pin 21 5/6 +
Pin 3 13/14 - Pin 9 5/6 - Pin 16 13/14 shield Pin 22 5/6 shield
Pin 4 11/12 + Pin 10 3/4 + Pin 17 11/12 - Pin 23 3/4 -
Pin 5 11/12 shield Pin 11 3/4 shield Pin 18 9/10 + Pin 24 in/out 1/2 +
Pin 6 9/10 - Pin 12 1/2 - Pin 19 9/10 shield Pin 25 1/2 shield
Pin 13 not used
AES/EBU IN 1-16 can receive up to 16 AES/EBU digital audio signals (transported in pairs). The default mapping is
to Milan-AVB output streams 1 and 2.
AES/EBU OUT 1-16 can transmit up to 16 AES/EBU digital audio signals (transported in pairs). The default mapping
is from input streams 1 and 2.
LC16D owner's manual (EN) version 1.0 17

Installation
MADI audio

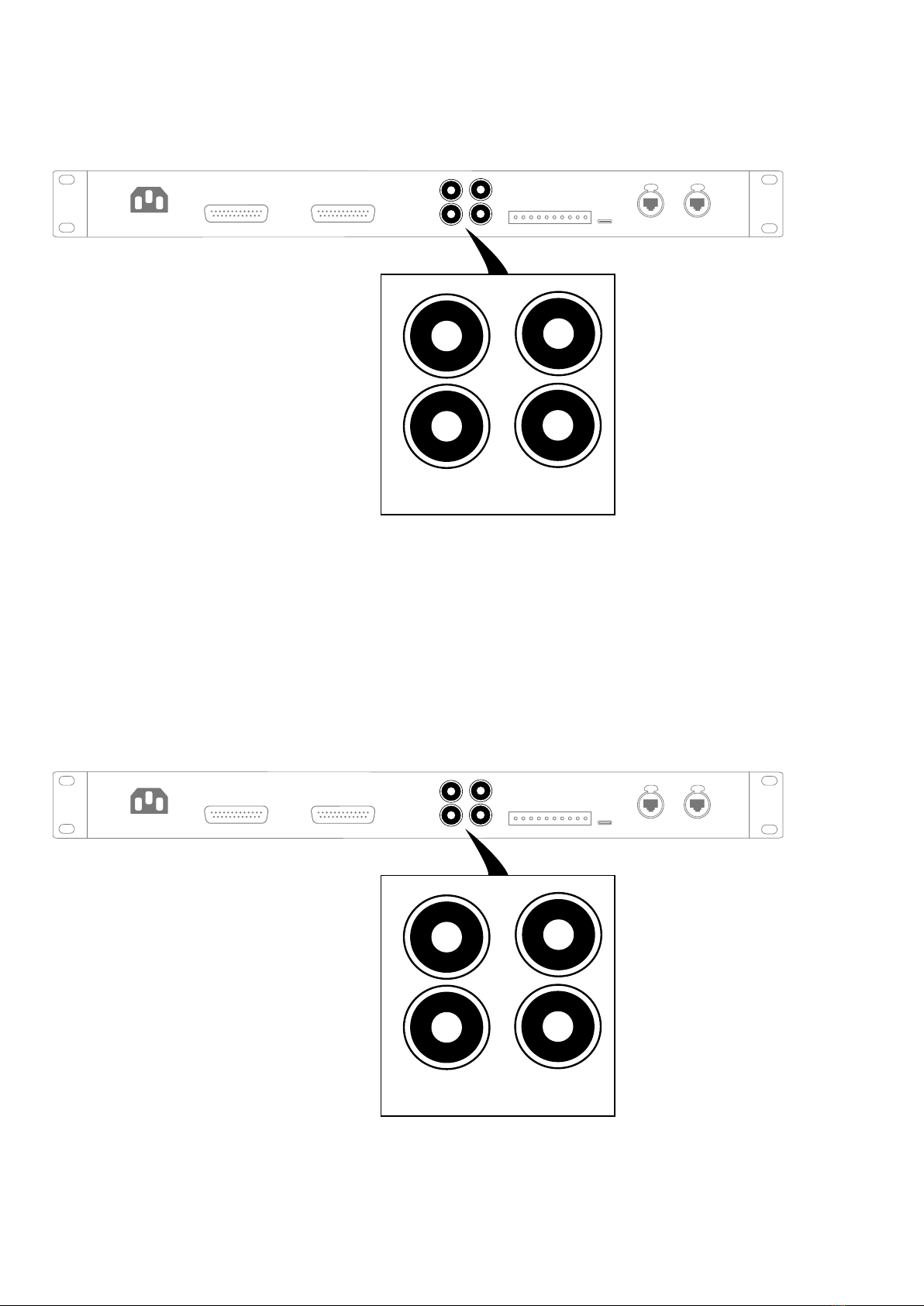

Use the two MADI BNC connectors for AES10-2003 signal cabling.
Both connectors are 75 Ω terminated.
IN
OUT
MADI WORD
MADI IN can receive up to 64 AES10 digital audio signals at 48 kHz or 32 AES10 digital audio signals at 96 kHz.
There is no sample rate conversion. The default mapping is to output streams 3 to 10 (at 48 kHz) or to output streams 3
to 6 (at 96 kHz).
MADI OUT can transmit up to 64 AES10 digital audio signals at 48 kHz or 32 AES10 digital audio signals at 96 kHz.
There is no sample rate conversion. The default mapping is from input streams 3 to 10 (at 48 kHz) or from input streams
3 to 6 (at 96 kHz).
Word clock
Use the two WORD BNC connectors for word clock cabling.
Both connectors are 75 Ω terminated.
IN
OUT
MADI WORD
The supported input frequency is 48 kHz or 96 kHz. WORD IN accepts input levels from 1 Vpp to 5 Vpp, and is
protected from overvoltage. WORD OUT output level is 5 Vpp into open load.
18 LC16D owner's manual (EN) version 1.0

Installation
Milan-AVB
Use the two etherCON connectors for the remote control of LC16D using the LC16D embedded Web interface and an
AVDECC Controller (like Hive). The etherCON connectors are AVB-capable. Real-time audio trafc and control trafc
are automatically managed by Milan-AVB on the same network.
LINK/ACT 1 LINK/ACT 2
In normal network mode, the two etherCON connectors are part of an internal Milan-AVB switch.
In redundancy mode, the two etherCON connectors are independent. The LINK/ACT 1 connector is used for the primary
network, and the LINK/ACT 2 connector is used for the secondary network.
LC16D can receive and send up to 16 streams in normal and in redundant mode, with up to 8 channels per stream, at
48 kHz or 96 kHz (depending on the unit setting).
Do not create loops in the network setup.
In daisy-chain networks, always place LA4X with hardware version* ID1, ID2 or ID3, LA4,
and LA8 after any other type of amplied controller.
These amplied controllers are equipped with former generation 100 Mb/s Ethernet ports that cannot
communicate with Ethernet ports of different capabilities, creating detection issues in LA Network Manager.
*The LA4X hardware version is visible in the MONITORING & INFO menu (HARDWARE INFO section).
LC16D owner's manual (EN) version 1.0 19

Installation

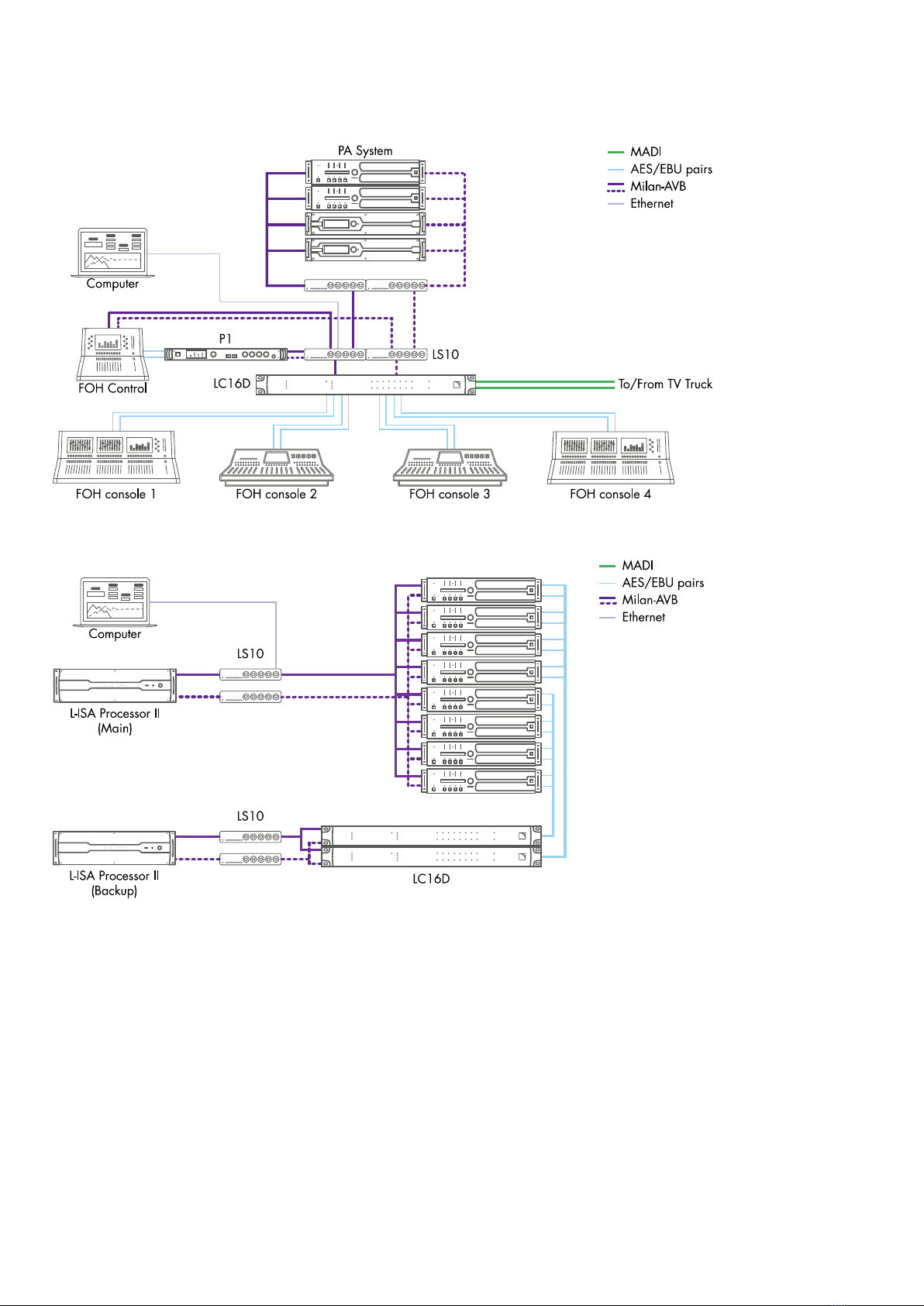

Cabling examples
Festivals - LC16D as an AES/EBU to Milan-AVB converter
L-ISA Immersive events - LC16D as an Milan-AVB to AES/EBU converter for the fallback system
20 LC16D owner's manual (EN) version 1.0
