L-Acoustics A10i User manual

A10i
owner's manual (EN)

Document reference: A10i owner's manual (EN) version 1.0
Distribution date: September 1, 2020
© 2020 L-Acoustics. All rights reserved.
No part of this publication may be reproduced or transmitted in any form or by any means without the
express written consent of the publisher.

Contents
Safety................................................................................................................................................................ 5
Instructions................................................................................................................................................5
Introduction........................................................................................................................................................ 7
A10i family..............................................................................................................................................7
How to use this manual............................................................................................................................ 8
System components.............................................................................................................................................9
Loudspeaker cables.................................................................................................................................10

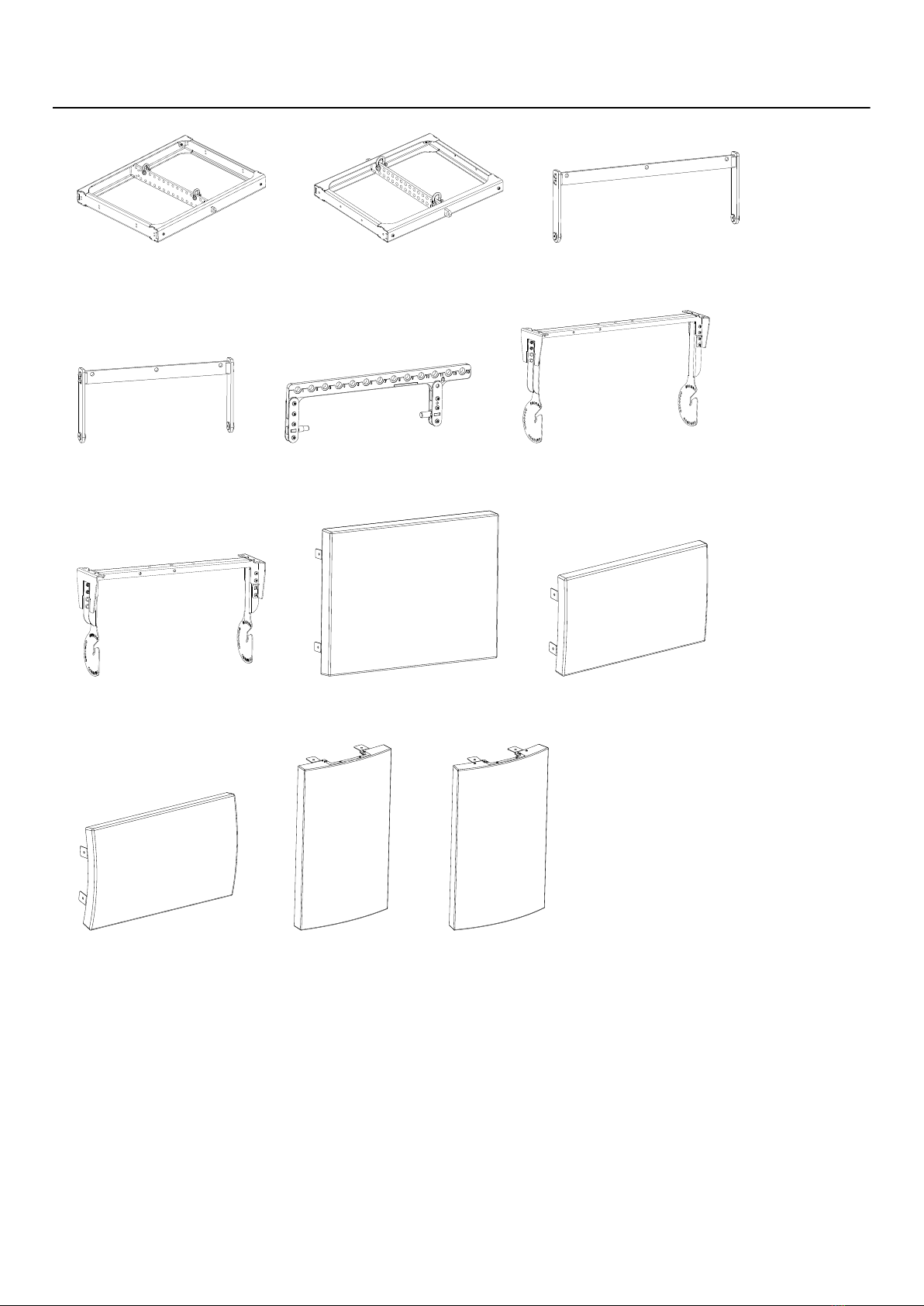

Rigging elements.....................................................................................................................................11
Rigging plates...............................................................................................................................12
Electro-acoustical description..............................................................................................................................14

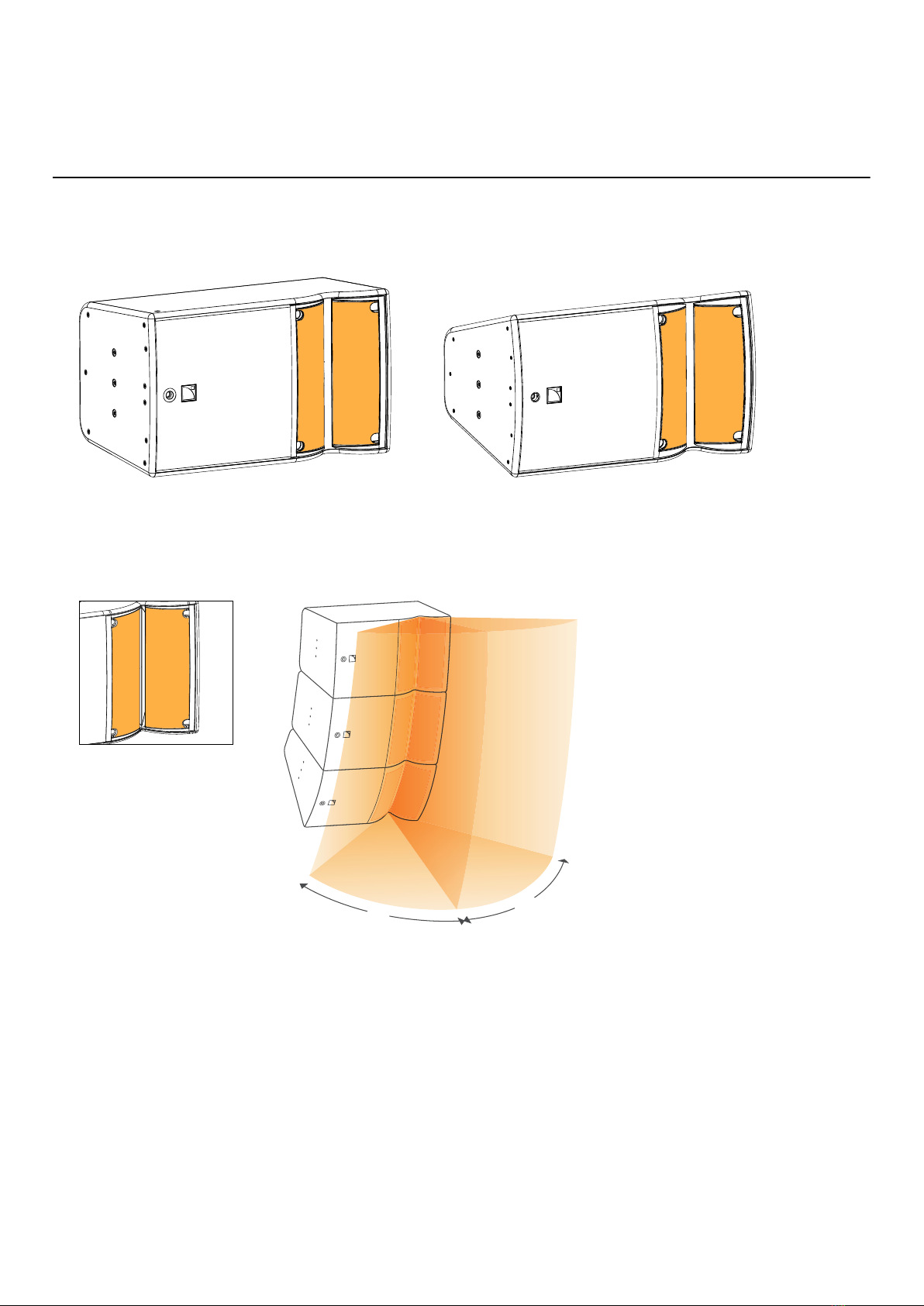

Adjustable ns........................................................................................................................................ 14
Directivity............................................................................................................................................... 17
Symmetrical congurations.......................................................................................................................19
Preset description.................................................................................................................................... 20
Connectors............................................................................................................................................. 21
Rigging system description.................................................................................................................................22
A10i system rigging................................................................................................................................22
Enclosures.............................................................................................................................................. 23
A10i Wide/Focus......................................................................................................................... 23
KS21i...........................................................................................................................................25
Rigging elements for own arrays............................................................................................................ 27
A10i-BUMP...................................................................................................................................27
A10i-RIGBAR................................................................................................................................ 28
A10i-LIFT...................................................................................................................................... 30
A15i-BUMP...................................................................................................................................32
A15i-RIGBAR................................................................................................................................ 34
Rigging elements for other congurations.................................................................................................. 37
A-U10i......................................................................................................................................... 37
Ai-FIXBRACKET / A10i-TILTBRACKET............................................................................................... 39
A10i-TILT.......................................................................................................................................41
A-U15i......................................................................................................................................... 42
Front screens.......................................................................................................................................... 45
3

Mechanical safety.............................................................................................................................................48
Loudspeaker congurations................................................................................................................................ 51
A10i Wide/Focus line source.................................................................................................................. 51
With low-frequency element........................................................................................................... 52
A10i Wide/Focus line source element...................................................................................................... 53
With low-frequency element........................................................................................................... 53
Rigging procedures...........................................................................................................................................55
General principles...................................................................................................................................55
Tools...................................................................................................................................................... 58
Flying.....................................................................................................................................................59
Flying a vertical array with A10i-BUMP or A15i-BUMP..................................................................... 59
Flying a vertical array with A10i-RIGBAR or A15i-RIGBAR................................................................ 71
Adding a pullback with A10i-RIGBAR or A15i-RIGBAR..................................................................... 73
Flying a radial array with A10i-LIFT................................................................................................75
Wall-mounting or ceiling-mounting............................................................................................................ 79
Mounting an assembly with a U-bracket..........................................................................................79
Mounting an assembly on a ceiling with Ai-FIXBRACKET / A10i-TILTBRACKET......................................89
Stacking................................................................................................................................................. 97
Stacking A10i Wide/Focus on KS21i with A10i-TILT........................................................................ 97
Stacking A10i Wide/Focus with A10i-TILTBRACKET........................................................................103
Securing a screen................................................................................................................................. 106
Connection to LA amplied controllers..............................................................................................................109
Cabling................................................................................................................................................111
Specications................................................................................................................................................. 114
APPENDIX A: Authorized congurations with A10i-LIFT...................................................................................... 124
APPENDIX B: Congurations with A-U15i / A-U10i........................................................................................... 126
APPENDIX C: Recommendation for speaker cables............................................................................................ 129
APPENDIX D: Specications for custom rigging systems......................................................................................130
4

Safety
Safety
Instructions
Inspect the system before any deployment.
Perform safety related checks and inspections before any deployment.
Perform preventive maintenance at least once a year.
Refer to the preventive maintenance section for a list of actions and their periodicity.
Insufcient upkeep of the product can void the warranty.
If any safety issue is detected during inspection, do not use the product before performing
corrective maintenance.
Check for issues. A rigging system part or fastener is missing or loose. A rigging system part exhibits: bends,
breaks, broken parts, corrosion, cracks, cracks in welded joints, deformation, denting, wear, holes. A safety cue
or label is missing. A loose part is not adequately secured.
Never incorporate equipment or accessories not approved by L-Acoustics.
Read all the related PRODUCT INFORMATION documents shipped with the products before
exploiting the system.
Do not store the product on an unstable cart, stand, tripod, bracket, or table.
Beware of sound levels.
Do not stay within close proximity of loudspeakers in operation.
Loudspeaker systems are capable of producing very high sound pressure levels (SPL) which can instantaneously
lead to permanent hearing damage to performers, production crew and audience members. Hearing damage
can also occur at moderate level with prolonged exposure to sound.
Check the applicable laws and regulations relating to maximum sound levels and exposure times.
Work with qualied personnel for rigging the system
Installation should only be carried out by qualied personnel that are familiar with the rigging techniques and
safety recommendations outlined in this manual.
Ensure personnel health and safety
During installation and set-up personnel must wear protective headgear and footwear at all times. Under no
circumstances is personnel allowed to climb on a loudspeaker assembly.
Respect the Working Load Limit (WLL) of third party equipment.
L-Acoustics is not responsible for any rigging equipment and accessories provided by third party manufacturers.
Verify that the Working Load Limit (WLL) of the suspension points, chain hoists and all additional hardware
rigging accessories is respected.
Respect the maximum congurations and the recommended safety precautions.
For safety issue, respect the maximum congurations outlined in this manual. To check the conformity of
any conguration in regards with the safety precautions recommended by L-Acoustics, model the system in
Soundvision and refer to the warnings in Mechanical Data section.
Be cautious when ying a loudspeaker conguration.
Before installing/raising the product, check each individual element to make sure that it is securely fastened to the
adjacent element. Always verify that no one is standing underneath the product when it is being installed/raised.
Never leave the product unattended during the installation process.
As a general rule, L-Acoustics recommends the use of secondary safety at all times.
Be cautious when ground-stacking a loudspeaker array.
Do not stack the loudspeaker array on unstable ground or surface. If the array is stacked on a structure, platform,
or stage, always check that the latter can support the total weight of the array.
As a general rule, L-Acoustics recommends the use of safety straps at all times.
A10i owner's manual (EN) version 1.0 5

Safety
Risk of falling objects
Verify that no unattached items remain on the product or assembly.
Risk of tipping
Remove all rigging accessories before transporting a product or an assembly.
Take into account the wind effects on dynamic load.
When a loudspeaker assembly is deployed in an open air environment, wind can produce dynamic stress to the
rigging components and suspension points.
If the wind force exceeds 6 bft (Beaufort scale), lower down and/or secure the product or the assembly.
Intended use
This system is intended for use by trained personnel for professional applications.
As part of a continuous evolution of techniques and standards, L-Acoustics reserves the right
to change the specications of its products and the content of its documents without prior
notice.
Check www.l-acoustics.com on a regular basis to download the latest document and software updates.
Do not expose the product to extreme conditions.
Do not expose the product to moisture (rain, mist, sea spray, steam, humidity, condensation…) or excessive heat
(direct sun, radiator…) for a long period of time.
For more information, refer to the Product protection ratings document, available on the website.
Read the maintenance section of this document before servicing the product.
Contact L-Acoustics for advanced maintenance.
Any unauthorized maintenance operation will void the product warranty.
6 A10i owner's manual (EN) version 1.0

Introduction
Introduction
A10i family
Part of the A Series, A10i is a medium throw product line designed for installation applications up to 35 m. The highly
multifunctional family includes A10i Focus and A10i Wide, passive 10'' systems with distinct coverage patterns. A10i
products can be own or stacked in combinations to form vertical or horizontal line sources or used individually as
congurable directivity point sources.
A10i can adapt to virtually any audience geometry with two enclosure coverage options (10° or 30°), Panex for user
adjustable waveguide directivity (70°, 110° or 90° asymmetrical) and a range of accessories for vertical or horizontal
deployment.
A10i deployment requires a single preset that is optimized to provide amazing plug-and-play performance for both A10i
models regardless of Panex conguration. Performance can be further enhanced with L-Acoustics software optimization
tools.
On its own A10i provides ideal bandwidth for vocal reinforcement or music with light LF requirements and produces an
exceptional SPL-to-size ratio to complement a larger system as lls. The acoustically compatible subwoofer KS21i can be
associated with A10i to extend the frequency bandwidth and reinforce the low-frequency contour.
The compact and lightweight A10i is an ideal solution as mains or ll systems for integration applications that require
intelligibility and aesthetics.
A10i owner's manual (EN) version 1.0 7

Introduction
How to use this manual
The A10i owner's manual is intended for all actors involved in the system design, implementation, preventive and
corrective maintenance of the A10i system. It must be used as follows:
1. Read the technical description for an overview of all system elements, their features, and their compatibilities.
•Electro-acoustical description (p.14)
•Rigging system description (p.22)
2. Prepare the system conguration. Consider the mechanical limits and the available acoustical congurations.
•Mechanical safety (p.48)
•Loudspeaker congurations (p.51)
3. Before rigging the system, perform mandatory inspections and functional checks.
4. To deploy the system, follow the step-by-step rigging instructions and refer to the cabling schemes.
•Rigging procedures (p.55)
•Connection to LA amplied controllers (p.109)
As part of a continuous evolution of techniques and standards, L-Acoustics reserves the right to
change the specications of its products and the content of its document without prior notice. Please
check www.l-acoustics.com on a regular basis to download the latest document and software updates.
Contact information
For information on advanced corrective maintenance:
• contact your Certied Provider or your L-Acoustics representative
• for Certied Providers, contact the L-Acoustics customer service: customer.ser[email protected]
Symbols
The following symbols are used in this document:
This symbol indicates a potential risk of harm to an individual or damage to the product.
It can also notify the user about instructions that must be strictly followed to ensure safe installation or operation of
the product.
This symbol noties the user about instructions that must be strictly followed to ensure proper installation or
operation of the product.
This symbol noties the user about complementary information or optional instructions.
8 A10i owner's manual (EN) version 1.0

System components
System components
Loudspeaker enclosures
A10i Focus 2-way passive constant curvature WST® 10° enclosure: 10" LF + 2.5" HF diaphragm
(installation version)
A10i Wide 2-way passive constant curvature WST® 30° enclosure: 10" LF + 2.5" HF diaphragm
(installation version)
KS21i High power compact subwoofer: 1 x 21" (installation version)
Powering and driving system
LA2Xi / LA4X / LA8 /
LA12X
Amplied controller with DSP, preset library and networking capabilities
Refer to the LA2Xi / LA4X / LA8 / LA12X owner's manual for operating instructions.
Loudspeaker cables
speaker cable 2.5mm2 cable
Speaker cable used to connect enclosures in parallel. Adapt the cable length to the installation.
custom 2-point
speakON cable
2-point speakON cable (2.5mm2 gauge) to bare wire cable
This cable needs to be custom made.
Information about the connection of the enclosures to the LA amplied controllers is given in
this document.
Refer to the LA2Xi / LA4X / LA8 / LA12X owner's manual for detailed instructions about the whole cabling
scheme, including modulation cables and network.
Rigging elements
A10i-BUMP Flying frame for vertical deployment of A10i
A15i-BUMP Flying frame for vertical deployment of A15i and KS21i
A10i-LIFT Rigging element for horizontal deployment of A10i
A10i-RIGBAR Rigging bar and pullback for A10i
A15i-RIGBAR Rigging bar and pullback for A15i and KS21i
A-U10i U-bracket for A10i
A-U15i U-bracket for A15i and KS21i
Ai-FIXBRACKET Fastening bracket for A15i, A10i and KS21i
A10i-TILTBRACKET Fastening bracket with angles for A10i
A10i-TILT Rigging elements with angles for A10i onto or under KS21i
A10iFOCUS-LINK Rigging plates for A10i Focus
A10iWIDE-LINK Rigging plates for A10i Wide
A10iFOCUS-ENDLINK End rigging plates for A10i Focus
A10iWIDE-ENDLINK End rigging plates for A10i Wide
A10i-ULINK Rigging plates for ying two A10i with A-U10i
A10iKS21i-ULINK Rigging plates for ying A10i under KS21i with A-U15i
A10i owner's manual (EN) version 1.0 9

System components
Transportation accessories
KS21i-SCREEN Acoustically transparent front screen for KS21i
A10iFOCUS-SCREEN Acoustically transparent front screen for A10i Focus
A10iWIDE-SCREEN Acoustically transparent front screen for A10i Wide
A10iFOCUS-SCREEN-
LIFT
Acoustically transparent front screen for A10i Focus with A10i-LIFT
A10iWIDE-SCREEN-
LIFT
Acoustically transparent front screen for A10i Wide with A10i-LIFT
Software applications
Soundvision 3D acoustical and mechanical modeling software
LA Network Manager Software for remote control and monitoring of amplied controllers
Refer to the Soundvision help.
Refer to the LA Network Manager help.
Loudspeaker cables
+
-
+
-
+
-
2.5mm2 cable 2-point speakON
cable (2.5mm2 gauge)
to bare wire cable
This cable needs to
be custom made.
10 A10i owner's manual (EN) version 1.0

System components
Rigging elements
A15i-BUMP A10i-BUMP A15i-RIGBAR
A10i-RIGBAR A10i-LIFT A-U15i
A-U10i KS21i-SCREEN A10iFOCUS-SCREEN
A10iWIDE-SCREEN
A10iFOCUS-
SCREEN-LIFT
A10iWIDE-
SCREEN-LIFT
A10i owner's manual (EN) version 1.0 11

System components
Rigging plates
On enclosure
x2 x2 x2x2 x2 x2 x2 x2
A10iFOCUS-LINK
Rigging plates
for A10i Focus
A10iFOCUS-
ENDLINK
End rigging plates
for A10i Focus
A10iWIDE-LINK
Rigging plates
for A10i Wide
A10iWIDE-ENDLINK
End rigging plates
for A10i Wide
x2 x2 x4 x2 x2 x2 x2
KS21i-LINK
Rigging plates
for KS21i
KS21i-
ENDLINK
End rigging
plates for
KS21i
KS21i-SLINK
Rigging plates for A10i
under KS21i with A10i-TILT
KS21i-ENDSLINK
End rigging plates for
A10i under KS21i
x4 x2 x2
Ai-
FIXBRACKET
Fastening
brackets
for A10i
and KS21i
A10i-TILTBRACKET
Fastening brackets
with angles for A10i
12 A10i owner's manual (EN) version 1.0

System components
Inter-enclosure
x2 x2 x2 x2
KS21i-ULINK
Rigging plates
for ying
two KS21i
with A-U15i
A10iKS21i-ULINK
Rigging plates for ying A10i
under KS21i with A-U15i
A10i-ULINK
Rigging plates
for ying
two A10i
with A-U10i
A10i-TILT
Rigging elements with angles
for A10i above or under KS21i
A10i owner's manual (EN) version 1.0 13

Electro-acoustical description
Electro-acoustical description
Adjustable ns
A10i Focus and A10i Wide feature L-Fins to adjust the waveguide directivity to one of four settings: 110° / 70°
symmetric or 90° asymmetric (35°/55° or 55°/35°).
The same [A10] preset drives all directivity settings of both enclosures.
Within a line source, combine A10i Focus and A10i Wide with custom directivity settings to improve SPL mapping and
throw capability.
110° setting
55°
55°
14 A10i owner's manual (EN) version 1.0

Electro-acoustical description
70° setting
Setting the ns in the 35° position offers an additional 2 dB on-axis (> 2 kHz).
35°
35°
90° settings
Setting the ns in the 90° position offers an additional 1 dB on-axis (> 2 kHz).
35°
55°
A10i owner's manual (EN) version 1.0 15

Electro-acoustical description
55°
35°
35°
55°
Mixed settings
55°
55°
35°
35°
16 A10i owner's manual (EN) version 1.0

Electro-acoustical description
Directivity
A10i Focus
A10i Focus generates an enclosure directivity pattern of 10° and a waveguide directivity pattern of 70° / 110°
symmetric or 90° asymmetric (-6 dB) depending on the ns settings.
100 1 000 10 000
Frequency (Hz)
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
Angle (°)
Dispersion angle diagram of one upright A10i Focus,
using lines of equal sound pressure at -3 dB, -6 dB, -12 dB.
100 1 000 10 000
Frequency (Hz)
-180
-160
-140
-120
-100
-80
-60
-40
-20
0
20
40
60
80
100
120
140
160
180
Angle (°)
Dispersion angle diagram of one A10i Focus with 110° ns
setting, using lines of equal sound pressure at -3 dB, -6 dB, -12 dB.
100 1 000 10 000
Frequency (Hz)
-180
-160
-140
-120
-100
-80
-60
-40
-20
0
20
40
60
80
100
120
140
160
180
Angle (°)
Dispersion angle diagram of one A10i Focus with 70° ns setting,
using lines of equal sound pressure at -3 dB, -6 dB, -12 dB.
A10i owner's manual (EN) version 1.0 17

Electro-acoustical description
A10i Wide
A10i Wide generates an enclosure directivity pattern of 30° and a waveguide directivity pattern of 70° / 110°
symmetric or 90° asymmetric (-6 dB) depending on the ns settings.
100 1 000 10 000
Frequency (Hz)
-9
-8
-7
-6
-5
-4
-3
-2
-1
0
10
20
30
40
50
60
70
80
90
Angle (°)
10
20
30
40
50
60
70
80
90
Dispersion angle diagram of one upright A10i Wide,
using lines of equal sound pressure at -3 dB, -6 dB, -12 dB.
100 1 000 10 000
Frequency (Hz)
-180
-160
-140
-120
-100
-80
-60
-40
-20
0
20
40
60
80
100
120
140
160
180
Angle (°)
Dispersion angle diagram of one A10i Wide with 110° ns
setting, using lines of equal sound pressure at -3 dB, -6 dB, -12 dB.
100 1 000 10 000
Frequency (Hz)
-180
-160
-140
-120
-100
-80
-60
-40
-20
0
20
40
60
80
100
120
140
160
180
Angle (°)
Dispersion angle diagram of one A10i Wide with 70° ns setting,
using lines of equal sound pressure at -3 dB, -6 dB, -12 dB.
18 A10i owner's manual (EN) version 1.0

Electro-acoustical description
Symmetrical congurations
The A10i rigging system is designed to enable a completely symmetrical setup for stereo applications.
A10i owner's manual (EN) version 1.0 19

Electro-acoustical description
Preset description
[A10]
outputs channels routing gain delay polarity mute
OUT 1 PA IN A 0 dB 0 ms + ON
OUT 2 PA IN A 0 dB 0 ms + ON
OUT 3 PA IN A 0 dB 0 ms + ON
OUT 4 PA IN A 0 dB 0 ms + ON
[A10_FI]
outputs channels routing gain delay polarity mute
OUT 1 PA IN A 0 dB 0 ms + ON
OUT 2 PA IN A 0 dB 0 ms + ON
OUT 3 PA IN B 0 dB 0 ms + ON
OUT 4 PA IN B 0 dB 0 ms + ON
[KS21_100]
outputs channels routing gain delay polarity mute
OUT 1 SB IN A 0 dB 0 ms + ON
OUT 2 SB IN A 0 dB 0 ms + ON
OUT 3 SB IN A 0 dB 0 ms + ON
OUT 4 SB IN A 0 dB 0 ms + ON
[KS21_100_C] [KS21_100_Cx]
loudspeaker elements outputs channels routing gain delay polarity mute
SR OUT 1 SR ON
SB OUT 2 SB ON
SB OUT 3 SB ON
SB OUT 4 SB
IN A 0 dB 0 ms +
ON
20 A10i owner's manual (EN) version 1.0
