L2 Microwave BPA00T10W500-1 User manual

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 1 -
User Manual
[BPA00T10W500-1]
Please read this manual before using the equipment.
And keep this manual with the equipment.

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 2 -
- Contents -
1. GENERAL............................................................................................................................... 3
1.1. Information about this User Manual..................................................................................................................... 3
1.2. Purpose of Operation............................................................................................................................................ 3
1.3. Responsibility of the Operator .............................................................................................................................. 4
1.4. Specifications........................................................................................................................................................ 5
2. SAFETY..................................................................................................................................7
2.1. Basic Safety Instructions ....................................................................................................................................... 7
2.2. Product-specific Safety Instructions ...................................................................................................................... 7
2.2.1. Safety Instruction for Amplifier System and Equipment.......................................................................................7
2.2.2. Hazards from Supply Voltage................................................................................................................................7
2.2.3. Power Supply ........................................................................................................................................................7
2.2.4. High energy electrical circuits...............................................................................................................................8
2.2.5. Hazards from high-frequency currents .................................................................................................................8
2.2.6. Hazards from RF Radiation ...................................................................................................................................8
2.2.7. Occupational safety from RF shielding .................................................................................................................8
2.2.8. Flue gases..............................................................................................................................................................8
2.2.9. Rules for amplifier services...................................................................................................................................9
2.3. Operator (Personnel/User) ................................................................................................................................... 9
2.4. Safety Devices....................................................................................................................................................... 9
2.4.1. Protective Covers ..................................................................................................................................................9
2.4.2. Instructions for Protection against Electrostatic Discharge (ESD).........................................................................9
3. INSTALLATION ..................................................................................................................... 10
3.1. Installation Position Selection............................................................................................................................. 10
3.2. Transport and Moving......................................................................................................................................... 10
3.3. Power supply ...................................................................................................................................................... 10
3.4. Load Condition for System Output ...................................................................................................................... 10
4. OPERATION METHOD .......................................................................................................... 12
4.1. Equipment operating sequence. ......................................................................................................................... 12

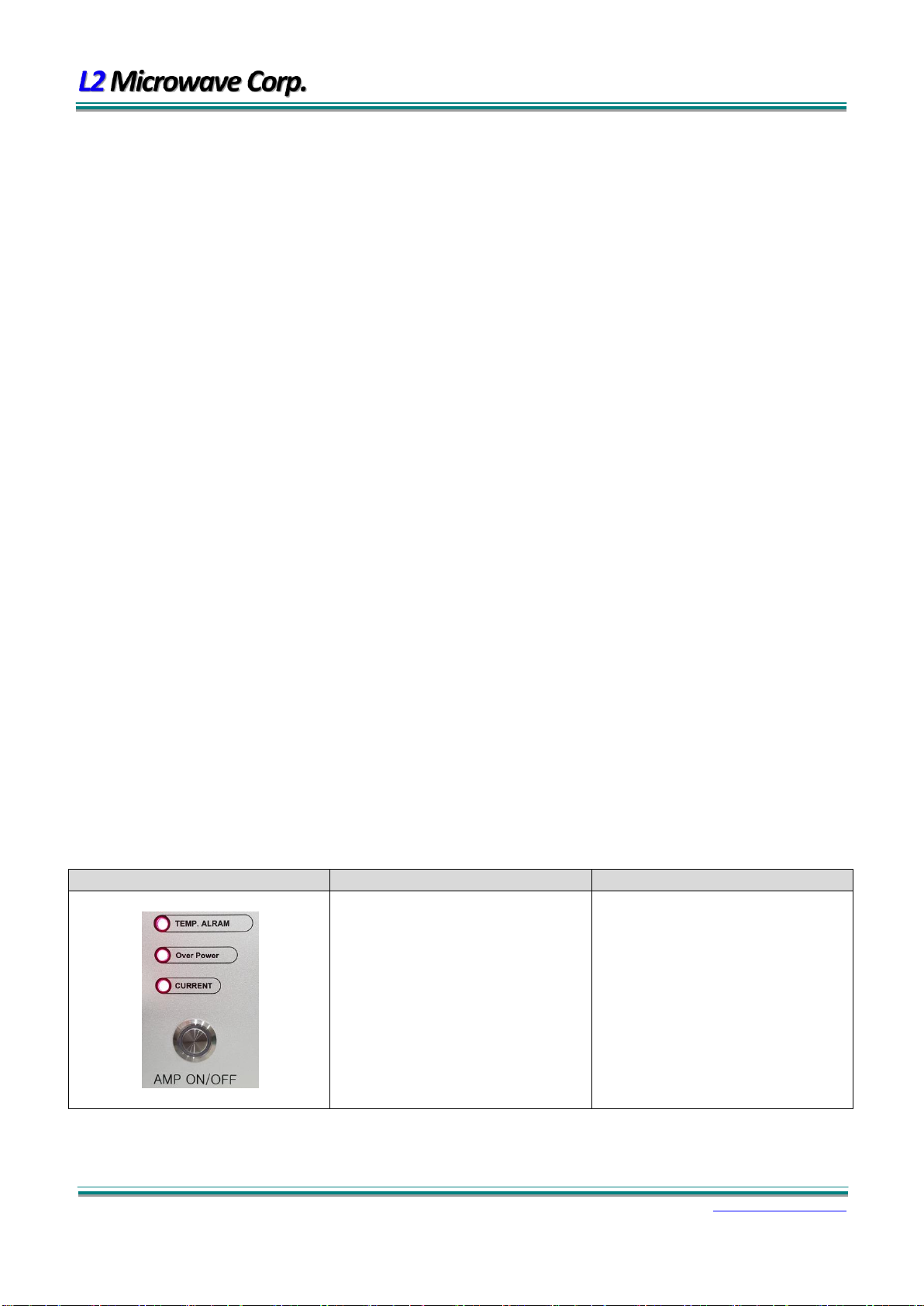

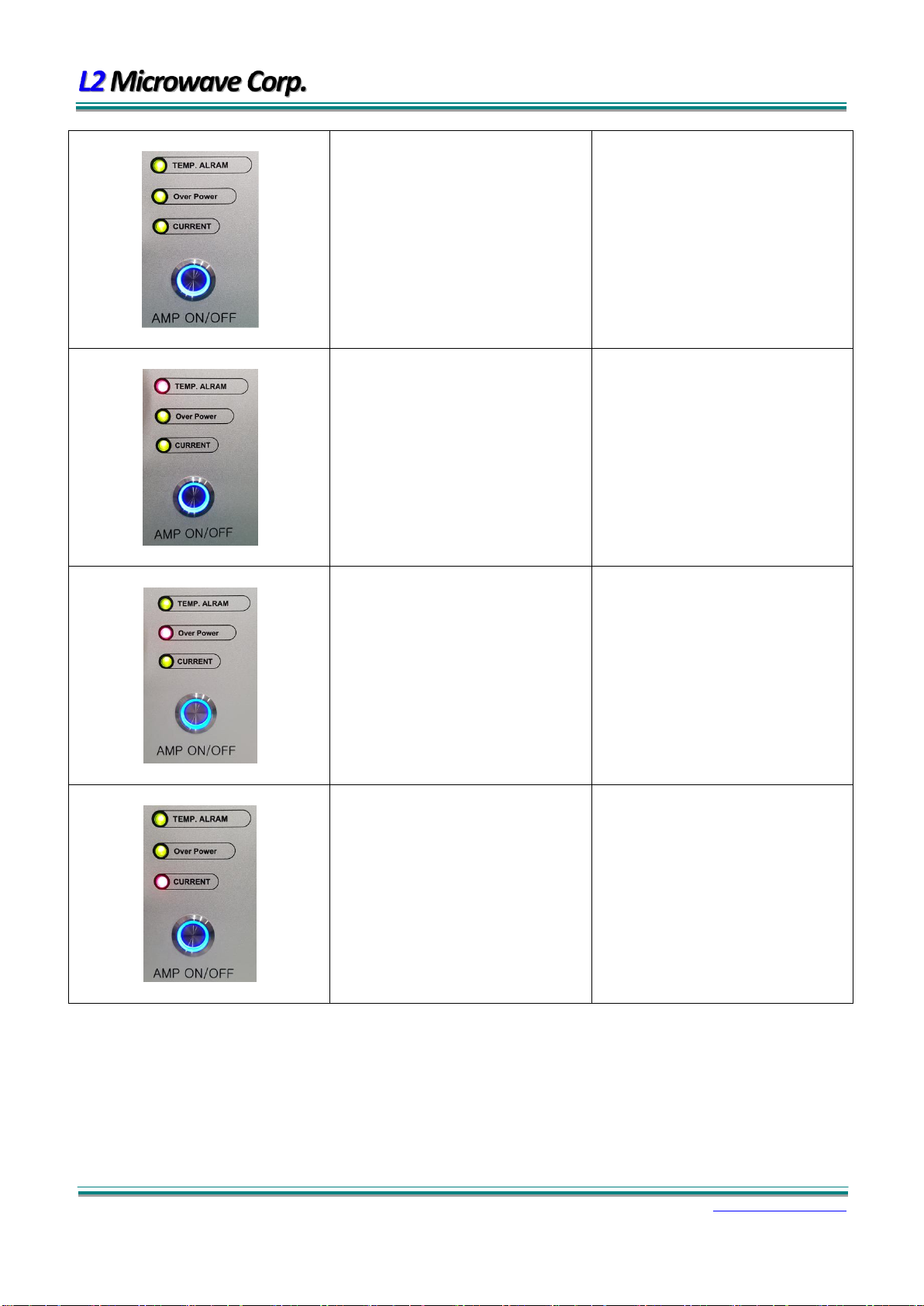

4.2. Alarm and Description for Status LED.................................................................................................................. 12

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 3 -
1.General
1.1. Information about this User Manual
This user manual is a part of the BPA00T10W500-1 broadband amplifier system of L2 Microwave
Corporation and describes the design, function, operation and components of the broadband amplifier system.
The terms of the model BPA00T10W500-1, broadband amplifier, and broadband amplifier system are used as
synonyms in this user manual.
Contents
The user manual for the broadband amplifier system describes all the required activities for the installation,
operation, and diagnostic procedures of the broadband amplifier.
Safety
All skilled personnel working with the broadband amplifier system or its components must read the relevant
information and follow the safety instructions outlined in the user manual. The broadband amplifier must be
used according to the operational purposes and regulations, and all operations associated with the broadband
amplifier or individual components must be performed by skilled personnel. Any additional skills and
qualifications are referenced in the appropriate sections in the manual.
Symbol
This triangle symbol means danger. Caution should be exercised if you do not follow this manual
correctly or do not comply with it, this may damage the equipment. Do not proceed to the next step until you
fully understand and meet the indicated conditions.
This triangle symbol means caution. This equipment is a Class 1 safety ground product (provided the
protective earth included in the power cord). Only the line power plug should be inserted into the outlet
provided with the protective earthing contact. Damage to the protective conductor inside or outside may
expose the product to hazards and should not intentionally damage the protective conductor.
If you have specific instructions, they are numbered and contain additional information for easier handling
and processing of the broadband amplifier system.
1.2. Purpose of Operation
•The BPA00T10W500-1 is used to amplify electrical input signals with frequencies and powers that meet the
limits specified in the technical specifications.
•All interfaces are used to connect external devices, the inputs and outputs of which correspond to the
requirements of the respective interface specifications provided in the technical specifications, please refer
to the data sheet of the BPA00T10W500-1.
•The BPA00T10W500-1 should only be used under the environmental conditions specified in the technical
specifications.
This type of system should only be operated by qualified personnel and require a high level of accountability
to ensure proper operation, understanding of technical complexity, and the ability to safely cope with potential
risks. Examples of applications that can be used include.

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 4 -
•RF amplifiers that produce high field strength through radiation antennas for EMC measurements, materials,
and device testing in fully shielded chambers.
•RF amplifier for energy generation for particle acceleration.
•RF amplifiers for feeding magnetic field coils.
1.3. Responsibility of the Operator
Operator
The operator is the company/institution that operates the instrument for its own commercial or scientific
purposes or makes it available for use/usage to third parties and holds the legal product liability for protecting
the user, personnel or third party during operation.
Obligations of the operator
The broadband amplifier is used in commercial applications, and operators of the broadband amplifier are
subject to legal obligations for industrial safety. In addition to the safety instruction in this manual, the
regulations for safety, accident prevention, hygiene and environmental protection must be observed. In
particular, the following applies.
•The operator shall be familiar with their workplace safety regulations and risk assessment to identify the risks
that may arise from the specific operating conditions of the site where the broadband amplifier is used.
Appropriate operating instruction for operating the broadband amplifier should also be prepared to prevent
hazards.
•The operator shall periodically check that operational instructions created in accordance with the rules
during the entire operating time of the broadband amplifier meet current regulatory requirements. The
operator shall modify the operating instructions when any changes are made.
The operator shall also be responsible for ensuring that the broadband amplifier and all systems connected
to the instrument are always in perfect working order. Therefore, the following applies.
•The operator shall be obligated to have all safety devices that are connected to the system checked regularly
for proper function and completeness.
•The operator of broadband amplifier system is responsible for ensuring the safe working conditions of the
personnel.
•The operator must comply with the maintenance period described in this manual.
When an operator enters or exits a room where high field strengths occur, the RF interlock system and
personal RF warning devices must be used to protect against the risk of radiated RF power.

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 5 -
1.4. Specifications
ELECTRICAL SPECIFICATIONS @ 220VAC, 25C, 50
Parameter
Symbol
Min
Typ
Max
Unit
Operating Frequency
BW
80
1000
MHz
Output Power @ PSAT, CW
PSAT
500
600
Watt
Power Gain @ Psat
GS
57
60
dB
Input Power for Rated PSAT
PIN
0
dBm
Gain Flatness @ Rated PSAT
G
±1.5
dB
Input Return Loss
S11
-10
dB
In/Out Impedance
Z
50
ohm
Third Order Intercept Point
2-Tones @ 47dBm/Tone, = 100 kHz
IP3
+62
dBm
Harmonics @ Pout =250W
2nd / 3rd
-20
-16
dBc
Spurious Signals
Spur
-70
-60
dBc
Power consumption @ PSAT
VAC
2800
3500
Watt
MECHANICAL SPECIFICATIONS
Parameter
Value
Units
Note
Dimensions ( H x W x D)
310.5 x 441 x 606.9
mm
7U
Weight
60
kg
Max
RF Connectors Input/Output
N type, Female
Front
Primary Power
88~264 VAC, 50/60Hz
3 pin Single phase
Cooling
Air cooling
Self-contained fans & Heat sink
ENVIRONMENTAL CHARACTERISTICS (Design to Meet)
Parameter
Symbol
Min
Typ
Max
Unit
Operating Case Temperature
Tc
-10
+60
°C
Storage Temperature
Tstg
-40
+85
°C
Relative humidity (non-condensing)
RH
95
%
Altitude ( MIL-STD-810F Method 500.4)
ALT
30,000
Feet
Vibration/Shock
MIL-STD-810F-Method 514.5/516.5-Proc I
VI/SHI
Airborne
FUNCTION
Parameter
Condition
Note

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 6 -
Input RF drive level without damage
+3dBm
Shut Down
Over Power @ typ. Psat + 2dB
TBD
Over Current Shutdwon
Indication LED
Over Temperature 70°C Shutdown
Indication LED
AMP on / off
Push Button
Front

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 7 -
2.Safety
2.1. Basic Safety Instructions
Chapter 1 "General" of this manual contains "Basic Safety Instructions" that apply to all products produced
and supplied by L2 Microwave. The BPA00T10W500-1 broadband amplifier system and its ancillary equipment
must only be operated by qualified technicians.
Compliance with all legal provisions is a prerequisite for operating the broadband amplifier. The operator or
agent authorized by the operator is responsible for complying with these instructions. And training for
authorized representatives must meet local requirements.
2.2. Product-specific Safety Instructions
2.2.1. Safety Instruction for Amplifier System and Equipment
•Only trained personnel can perform electrical installation and connection tasks.
•When installing an operating area and installing or operating electrical equipment, always comply with the
relevant national and international safety rules and regulations.
•When installing an amplifier rack, it is important to comply with national special accident prevention.
2.2.2. Hazards from Supply Voltage
Risk of fatal injury from electrical voltage
•When working with voltages that constitute a shock hazard, appropriate measures must be taken to prevent
exposure to danger.
2.2.3. Power Supply
Risk of property damage
Operation without protection against overloads and short circuits can lead to damage to the instrument, fire,
or arcing.
•Before connecting the power supply, it is important to ensure that the system or the power supply
specifications applied to the equipment comply with the general specifications of the local power supply
network.
•The power supply device must be protected at all times through a fuse or an earth leakage power breaker to
prevent overload and short circuit.
•If the equipment is permanently connected to the power supply without a power plug, install a device that
will power off the power supply circuit at all poles.

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 8 -
2.2.4. High energy electrical circuits
Electrical circuits carrying high amounts of energy pose a risk of injury.
This equipment has a low voltage circuit that can be supplied from an extremely low impedance voltage
source (e.g. amplifier operating voltage). These circuits carry dangerously high levels of energy.
These electrical circuits are considered circuits with hazardous contact voltages. Therefore, the user should
always be careful about electrical contacts.
2.2.5. Hazards from high-frequency currents
Burn hazard from arcing
All of the power-conducting RF plug connectors and RF modules require attention to contact current. Arcing
may occur if high-frequency cables are plugged in or unplugged while the amplifier is in operation. This can
cause burns and eye injuries. At open high-frequency interfaces with active gain there is a burn hazard in the
high-frequency range and risk of electric shock in the low-frequency range.
•Operate the amplifier system after firmly fixing the antenna or load.
•Never disconnect the high frequency cable while the amplifier system is in operation.
•Never open the amplifier system while it is in operation.
•Never operate the amplifier system if the RF cables are exposed.
2.2.6. Hazards from RF Radiation
Risk of injury from high-frequency electromagnetic radiation
High frequency electromagnetic radiation during operation of the broadband amplifier can be generated in
the beam portion of the antenna with a specific absorption rate that is higher than the human exposure limits.
Prolonged exposure may cause eye damage and metabolic disorders.
Operate the amplifier system only in such a way that the beam area of the antenna is located in a shielded,
access-restricted room or area.
2.2.7. Occupational safety from RF shielding
The BPA00T10W500-1 broadband amplifier system is shielded from all RF cables, shielding covers and case
components to ensure that they are not exposed to RF radiation even if they are close together for extended
periods of time. This industrial safety clause is based on Korean legislation.
2.2.8. Flue gases
Severe health damage may be caused by flue gas formation.
In general, any flue gases produced by burning of casing parts, cables, insulation materials, batteries, etc.
can result in serious harm to a person's health.

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 9 -
•Use personal protective equipment in the event of smoke formation. Use breathing protection in the danger
zone that is independent of the ambient air.
2.2.9. Rules for amplifier services
Do not operate the amplifier system (equipment) unless the case is closed.
Risks when reconnecting the power supply
Do not reconnect the power supply until the amplifier is fully installed. Failure to observe this may result in
electric shock or RF radiation.
•Ensure that all case components are securely installed.
•Ensure that all cables and grounding lines are properly connected.
2.3. Operator (Personnel/User)
Risk of injury from insufficient qualification of personnel
All work (operation, maintenance, troubleshooting, repair, etc.) should be performed only by qualified
personnel. Failure to do so may result in serious injury or property damage.
2.4. Safety Devices
2.4.1. Protective Covers
Risk of injury due to removed protective covers
This symbol indicates a protective cover for electrical circuits at risk due to large amounts of energy,
RF current or supply voltage. The protective cover prevents unintentional contact with these electrical circuits.
•Pay attention to the cover marked with this symbol.
•Do not remove the protective cover with this symbol.
•Any work that requires accessing the inside of the system may be carried out by the manufacturer's service
personnel only.
2.4.2. Instructions for Protection against Electrostatic Discharge (ESD)
Risk of damage to electronic components
To avoid damage to electronic components, all work on the equipment and components must be performed
in a location protected against electrostatic discharge (ESD). The following items can be used individually or in
combination to protect against electrostatic discharge.
•Protective armband with grounding cable
•Wearing antistatic shoes and antistatic clothes

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 10 -
3.Installation
This chapter describes the installation of the BPA00T10W500-1 broadband amplifier and the requirements
for the peripheral infrastructure.
3.1. Installation Position Selection
RF Radiation
The BPA00T10W500-1 is a broadband amplifier that generates electromagnetic waves and may affect other
sensitive equipment; therefore, should only be operated in an industrial environment.
Installation position
This equipment uses air circulation cooling method using FAN to release heat by high power operation.
Therefore, we recommend installation in a spacious space with no dust or other contaminants.
Others
The operator of the BPA00T10W500-1 should not be disturbed during operation of the broadband amplifier
system. The recommended power of the BPA00T10W500-1 is 3.5kW or more. We recommend installation only
in places where breakers and electric power facilities are 3.5kW or more.
3.2. Transport and Moving
Avoid product damage (damage) caused by improper transportation. Improper transport can cause
the product to fall or fall, causing serious damage to the equipment.
• Broadband amplifiers must be installed with L2 Microwave or qualified personnel, although they may vary
depending on the equipment.
• Do not disassemble or move the installed broadband amplifier arbitrarily.
• When moving with forklifts and other lifting machines, the broadband amplifier should not tilt to one side
and move carefully to avoid affecting the internal parts. If it is tilted to one side, it may fall over, causing
internal or external damage to the rack.
3.3. Power supply
The BPA00T10W500-1 wideband amplifier system operates with the following AC voltages.
-Acceptance input voltage : AC 220V single phase
-Maximum power consumption : 3.5 kW
-Power frequency : 47 Hz ~ 64 Hz
3.4. Load Condition for System Output
In general, the most defects in broadband amplifier operation are caused by high VSWR of load. Be sure to
check the conditions for the amplifier load as shown below.
• Check for deficiency between amplifier output and load
-. It is recommended that VSWR of RF cable applied between amplifier output and load is less than 1.22: 1.

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 11 -
-. Check the VSWR of the load before connecting the amplifier and load.
Check the VSWR of the antenna connected to the output of the amplifier during the radiation experiment.
The minimum required VSWR for the antenna should be used under 2.3: 1.
If the operator wants to use it under high VSWR conditions, the amplifier's output can be used at a lower level.
The following table shows VSWR condition of Load vs. Output Power of BPA00T10W500-1.
Output power
VSWR Condition of Load
500W
Under 2.3:1
250W
Under 3.0:1
100W
Under 5.84:1

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 12 -
4.Operation method
This chapter describes the operation and condition of the amplifier.
The AMP ON / OFF button on the front panel operates the amplifier and checks the condition of the amplifier.
If an error occurs in the amplifier, the Alarm LED on the front panel will change to RED and the amplifier will go off.
To reactivate the amplifier, remove the cause of the alarm and operate by pressing the AMP ON / OFF button again.
4.1. Equipment operating sequence.
To control the amplifier, follow by below sequence for system operation.
①Plug in rear power switch ON.
-Use power cable that can supply more than 3.2~3.5kW.
-Connect to ground wire between amplifier and installation site using M5 Nut.
-Turn on the power breaker.
②Check the status of the front panel of amplifier.
(Refer to “4.2 Alarm and Description for Status LED”)
③Press the “AMP ON/OFFf” push button. From Off mode to ON mode.
④Input the RF input signal.
-Slowly increase the input value from the -30 dBm input to the target output.
The system is off in reverse order.
4.2. Alarm and Description for Status LED
이chapter는전면부 상태 LED에대한 설명입니다.
LED Status
Description
Note
-. State when the initial power is
supplied to the amplifier.
-. Unchecked for each state of the
amplifier.
If you turn off the power breaker
on the back, it will return to the
initial state.

BPA00T10W500-1 Broadband System User Manual
E-Mail: [e-mail]
www.l2microwave.com
- 13 -
-. Normal operation of the
amplifier through “AMP ON / OFF”.
-. Status when there is no problem
inside the amplifier
-. The condition that can supply RF
signal to amplifier.
It is On mode and it shows that
there is no problem.
-. Indicates when there is a
temperature related problem.
-. Excessive heat is accumulated in
the module inside the system, so
the system is automatically
switched to the shutdown state.
-. After the temperature of the
amplifier drops, check the status
via the AMP ON / OFF button.
-. The static operating temperature
is -20 ~ + 65 degrees inside the
amplifier.
-. Indicates when there is a RF
power related problem.
-. Occurs when the RF input signal
to the amplifier exceeds the
proper standard.
In the case of the BPA00T10W500-
1, the amplifier switches off mode
by an internal protection function
when it is more than 2 ~ 4dB
higher than the output 57dBm (=
500W).
If the input returns to the normal
range again, operate AMP ON /
OFF again.
-. This indicates a problem with the
RF module inside the system.
-. If a module inside the system is
damaged or there is a power
problem, the corresponding LED
on the front panel turns red.
The problem is illuminated if the
internal module is damaged or if
the applied PSU is in an abnormal
state. Please contact the
manufacturer if you encounter this
problem.
