MODEL NUMBER: 79400
BACKYARD
WIND + WEATHER STATION
SETUP GUIDE
Important
This station does not support connected features and will not connect to WiFi. Some of
the on-screen elements may not apply.
Please disregard the following items and messages:
• WiFi Icon
• SEE APP TO CONNECT
• LOST WIFI
• CONNECT TO WIFI
• WAIT FOR WEATHER
• CHECK APP
Most of these are temporary, and will only show for a limited time.

Table of Contents
WINDBASICS
TEMP. & HUMIDITY (TH) FORECAST
APPENDIX
EXTRA SENSORS
SUPPORT
Viewing Your Wind Data
History Records
Wind Speed Alert
Initial Setup
Station Settings
Settings Menu Order
Buttons
LCD Display Brightness
Auto-Dim Settings
Viewing Your Temperature
and Humidity Data
History Records and Alerts
“Feels Like” Temp.
Seasonal Trees
Forecast Icons
Relative Pressure
Specifications
Warranty
Recycling & Disposal
Cautions/Statements
Add-On TH Sensor
Additional Add-On
Sensors
Adding Sensors to your
Station
Factory Reset
Stay in Touch
We’re Here to Help
02
02
03
03
04
04
09
09
10
13
13
14
14
11
11
12
12
12
12
10
10
11
07
08
08
POSITION BREEZE SENSOR
Positioning Your Sensor
Mounting Accessories
Basic Installation Options
Advanced Installation
05
05
06
06

Initial Setup
Power Up
Note: It may take up to 10 minutes for your sensor data to appear on your station’s screen.
BASICS
1. Remove the Insulation Tab from the
Battery Compartment of your Breeze Pro
Sensor, and make sure the power switch
is turned ON.
2. Insert the 5V Power Adapter into an
outlet, and then plug it into the Power
Jack on the back of the station. Next,
remove the Insulation Tab from your
station’s Battery Compartment.
Bottom of Breeze Pro Sensor
Model No. LTV-WSDTH01
Back of Station
Model No. 79400
Station Settings
Use the +/- buttons on the
top of the station to adjust
the values.
Press the SET button to
confirm selection and move
to next step.
You may exit the Settings
Menu at any time by pressing
the LIGHT button.
1.
2.
When the station is first powered on, it will begin searching for your outdoor sensor, which should
connect shortly. Disregard the SEE APP TO CONNECT message.
Hold the SET button to enter the Settings Menu for adjusting your time, date, and other settings.
2

Settings Menu Order
• Language
• Greeting
• 12/24 Hour Time
• Hour
• Minutes
• Year
• Month
• Date
• Fahrenheit/Celsius
• Pressure Units (InHg/hPa)
• Pressure Number Setting*
• Wind Speed Units (MPH or KMH)
• Wind Direction (Letters or Degrees)
* Pressure: The default pressure reading is 29.92
INHg (1013 hPa). The station will acclimate on
it’s own if the pressure number is not adjusted
manually.
Weekday: Weekday will set automatically after year,
month, & date settings are adjusted.
3

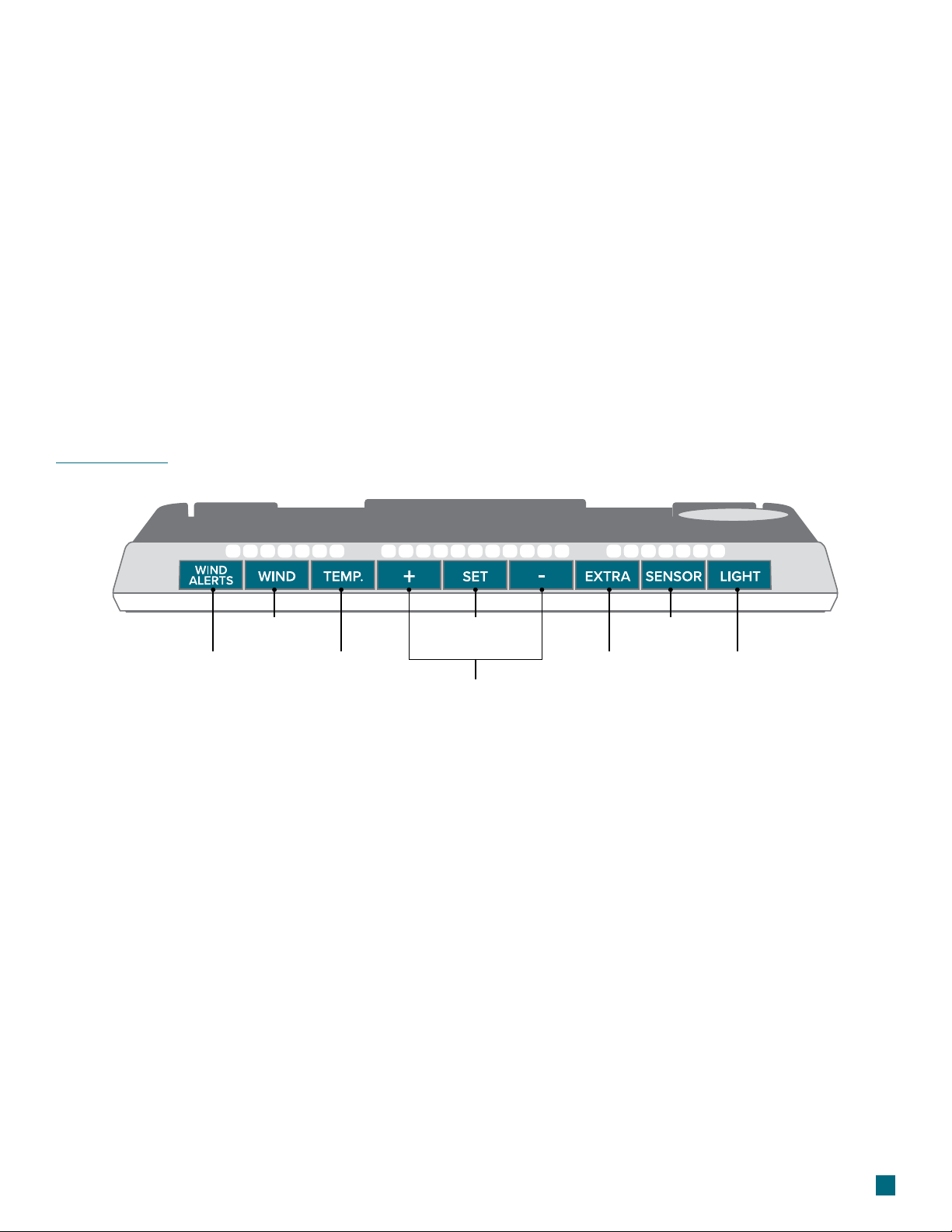

Buttons
1. WIND ALERTS
Hold to enter Wind Alert
Settings. Press to turn Wind
Alert on/o.
2. WIND
Press to view Wind Speed
History. While viewing,
hold the MINUS button to
delete the history reading.
3. TEMP.
Press to view Temperature
and Humidity History.
While viewing, hold
MINUS button to delete
the history reading.
6. EXTRA
Press to toggle through
extra sensors and pressure.
Hold to add sensors. While
viewing, hold the MINUS
button delete the sensor.
4. SET
Hold to enter Settings
Menu.
7. SENSOR
Press to view sensor ID
numbers. While viewing,
hold the MINUS button to
delete the sensor.
5. PLUS/MINUS (+/-)
Use to adjust values.
8. LIGHT
Press to adjust backlight.
Hold to enter Auto-Dim
settings.
13
2
6 8
7
4
5
Language Options: English, Spanish, French,
and German (Translation Available for Menus &
Calendar)

4

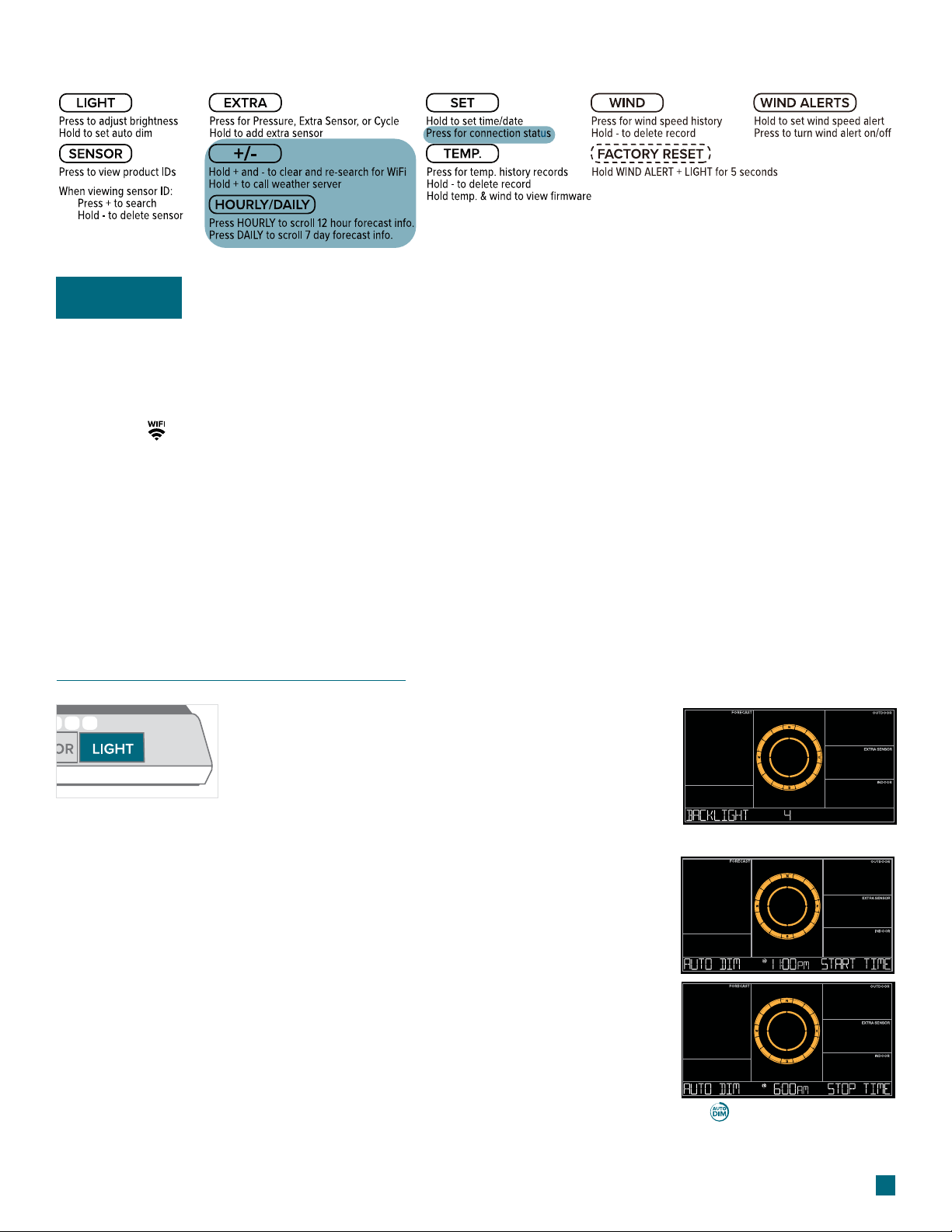

Please disregard these highlighted button functions on the back of your display:
Important
LCD Display Brightness
Adjusting the LCD Display Brightness
Auto-Dim Settings
Press the LIGHT button to adjust the backlight
intensity. There are 4 levels, plus an o option.
1.
2.
3.
4.
Hold the LIGHT button to enter the Auto-Dim Settings Menu.
Program your display to automatically dim during preselected times.
Press the +/- buttons to turn the Auto-Dim feature on or o. Press
LIGHT to confirm.
Press the +/- buttons to adjust the starting hour. Press LIGHT to
confirm.
Press the +/- buttons to adjust the stopping hour. Press LIGHT to
confirm and exit. The icon will appear on the
LCD when the Auto-Dim feature
activated.
This station does not support connected features and will not connect to WiFi. Some of the on-screen
elements may not apply.
Please disregard the following items and messages:
• WiFi Icon
• SEE APP TO CONNECT
• LOST WIFI
• CONNECT TO WIFI
• WAIT FOR WEATHER
• CHECK APP

BASICS
 Ensure the sensor is mounted level with the Solar Panel facing
directly to the south. This will help optimize battery life and transmit
correct wind direction readings.
 Ideally, the Breeze Pro Sensor should be mounted on the tallest
object in your area. Avoid positioning the sensor in line with or
below eaves, rooflines, trees, or other objects that may obstruct
wind readings.
 Make sure all screws on the Mounting Bracket, Winds Cup, Wind
Vane, and Battery Compartment are securely fastened.
 The sensor should be mounted with the Wind Cups on top.
 The Breeze Pro sensor has a transmission range of 330 feet from
sensor to display.
Positioning the Breeze Pro Sensor
For Accurate Measurements
5
Included Mounting Accessories
The horizontal conduit
where the sensor attaches.
This piece will connect to
either the Adjustable Base
or the Pole Adapter.
Mast:
The main bracket used for mounting
onto flat surfaces or with added U-bolts
(sold seperately). The grooves and Hand
Screw allow the bracket to secure to
angled surfaces while still ensuring the
Mast and sensor are level.
Adjustable Base:
Used to lock down and
secure the Mast to the
Adjustable Base or Pole
Adapter.
Hand Screw:
These Arrows provide exact 90 or
180 degree angles when aligned
with the arrow on the Mast.
Alignment Arrows:
Used in place of the Adjustable
Base for mounting on top of
cylindrical conduits.
1-Inch Maximum Pole Diameter
Pole Adapter

6

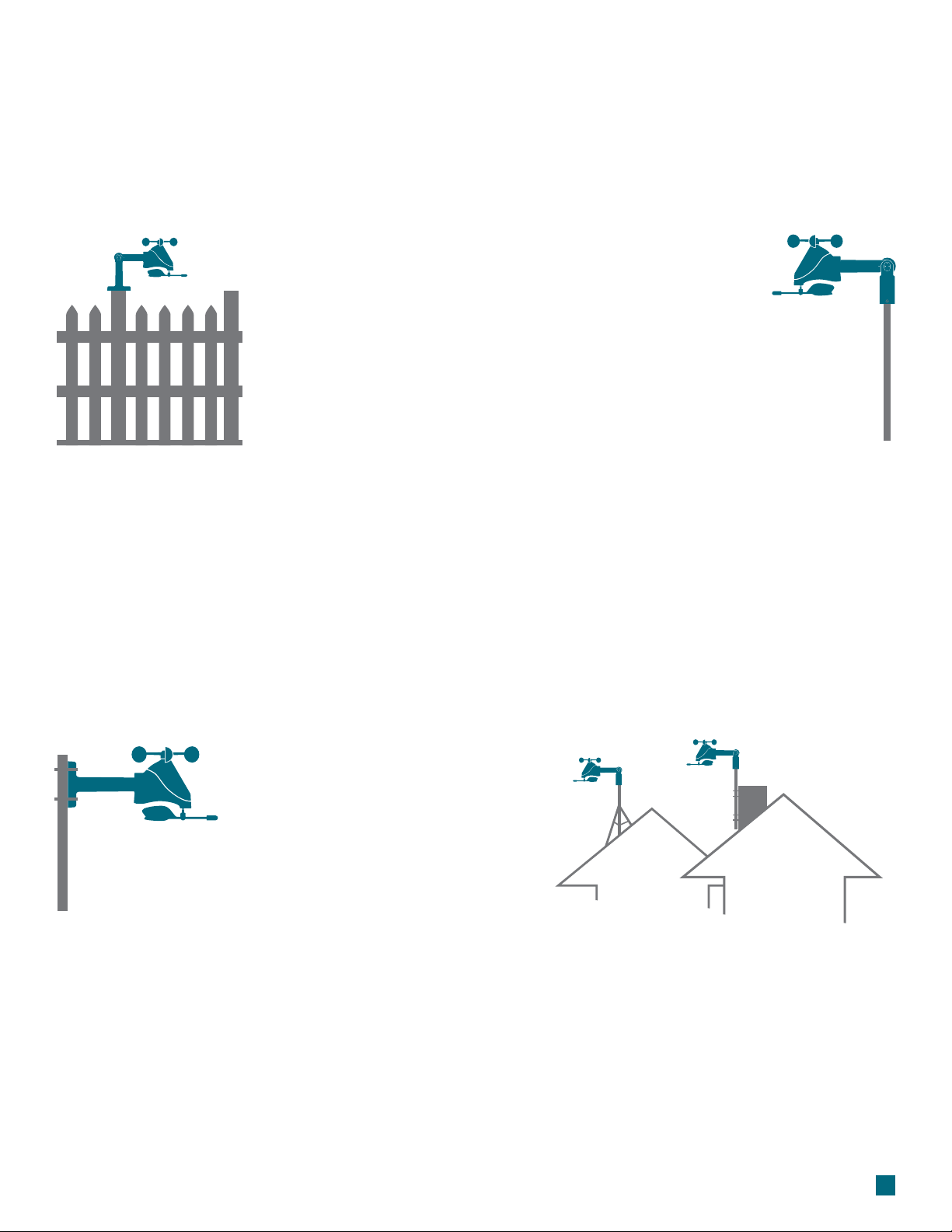

Basic Installation Options
1A Adjustable Base
1B Pole Adapter
Fence posts, poles, decks, and even mailboxes are all common mounting options due to their
convenience. Many users prefer these types of locations as the data they provide is accurate from their
ground level perspective. However, because wind in these spots is often aected by obstructions, the
readings may dier compared to local reporting stations.
1A. Mount the Adjustable Base onto a flat surface using the four provided
screws.
1B. Secure the Pole Adapter to a cylindrical conduit using the two
provided screws.
2. Insert the Mast into the Breeze Pro Sensor and tighten the provided
screws on the sides.
3. Use the Hand Screw to attach the Mast to either the Adjustable Base
or Pole Adapter. Ensure the sensor is level, facing south, and securely
fastened at all mounting points.
Advanced Installation Options
Some advanced installation options include tripods, wall mounts, eave cross mounts, chimney mounts,
and many others. Any of these can be combined with U-bolts for attachment onto a tall cylindrical
conduit using our Adjustable Base. Please note that these advanced options will require additional
equipment and possibly professional help for best results.
U-bolt Adapters
Tripod Setup
Chimney Mount
The illustrations above are not to scale and are for informative purposes only.
La Crosse Technology is not responsible for any damages or injury that may occur during installation.

Viewing Your Wind Data
WIND
1. WIND SPEED TREND
INDICATOR
Shows wind speed trends
over the past 60 minutes
2. COMPASS ROSE
Displays cardinal direction
with animated arrows
(16 directions total)
5. RECEPTION INDICATOR
Indicates if the station is
receiving data from the
sensor
8. TOP WIND SPEED
The top wind speed in
the past 60 minutes
3. LOW BATTERY ICON
Appears when the sensor
battery needs to be
replaced
6. “NOW” WIND SPEED
The top wind speed in the
past 31 seconds
4. WIND DIRECTION
Choose between cardinal
points (letters) or degrees
in the Settings Menu
7. WIND SPEED ALERT
Appears if a wind speed
alert is set & active
7
1
2
3
4
5
6
7
8

Wind Speed History and Alerts
WIND
Viewing Wind Speed History Records
Activate/Deactivate Wind Speed Alert
Important Notes:
Press the WIND button to toggle through Wind Speed
History Records with time and date stamps.
The wind speed records include:
past 24 hours, 7 days, 1 month, & 1 year.
Press and release the WIND ALERTS button to activate/
deactivate the alert. WIND SPEED ALERT ON or OFF will
appear on the bottom of the LCD.
•The alert is defaulted to be o.
•When the armed alert value is reached, the Alert Icon will flash and your station will beep five times
each minute until the value moves out of the alert range. Press any button to stop the alert sound.
•The Alert Icon will remain flashing until out of the alert range.
1. Hold the WIND ALERTS button for to enter the Alert Settings Menu.
2. Use the +/- buttons to turn alerts ON/OFF and adjust wind speed settings. Press
the WIND ALERTS button to confirm your selection.
3. Your Wind Speed Alert is active when the icon on.
Setting the Wind Speed Alert
Monthly Wind Speed Record Example
8

7. INDOOR TEMPERATURE
Current Indoor Temperature
8. INDOOR HUMIDITY
Current Indoor Humidity
1. OUTDOOR RECORDS 2. “FEELS LIKE”
TEMPERATURE
3. WIND SENSOR ICON
4. OUTDOOR TEMPERATURE 5. OUTDOOR HUMIDITY 6. TH SENSOR ICON
Daily HI & LO temperature
records from your outdoor
sensor
9
Viewing Your Temperature & Humidity Data
Based on current temp. &
wind speed (heat index &
wind chill)
Indicates TH readings are
provided by the Breeze Pro
Sensor.
Indicates readings are
provided by an add-on
Temperature/Humidity
sensor
Current Outdoor Temperature Current Outdoor Humidity
Temperature & Humidity History and Alerts
Viewing History Records
Press the TEMP button to toggle through indoor/outdoor temperature &
humidity records with time and date stamps.
History Records Viewing Order
•Outdoor High Temperature
•Outdoor Low Temperature
•Outdoor High Humidity
•Outdoor Low Humidity
•Indoor High Temperature
•Indoor Low Temperature
•Indoor High Humidity
•Indoor Low Humidity
•“Feels Like” High Temperature
•“Feels Like” Low Temperature
•Dew Point
Resetting Individual Temperature & Humidity
Records
1. Press the TEMP button to view the individual
temperature and humidity values you’d like to
reset.
2. Next, hold the MINUS (-) buttons until dashes
appear on the LCD.
3. This reading is now reset to your current
temperature or humidity value.
1
3
4
5
6
78
2

Viewing Your Forecast Data
FORECAST
Seasonal Trees
The foliage scene in the forecast section changes seasonally.
The dates are pre-programmed in your station.
Foliage Scenes
Spring (March 20th to June 20th)Summer (June 21st to Sept. 20th)
Fall (Sept. 21st to Dec. 20th)Winter (Dec. 21st to March 19th)
The display will use changes in barometric pressure to predict your weather to come in the next 12
hours. This is represented by the 6 forecast scenes below.
Forecast Icons
Please Note: The Forecast Icons may not represent your current weather. They are a future prediction of
the weather to come over the next 12 hours.
Sunny Clouds T-StormPartly Sunny Rain Snow
10
“Feels Like” Temperature
This reading indicates both Wind Chill and Heat Index values when conditions are met.
•Wind Chill: When the temperature is below 50F and there is 5 MPH sustained wind speed.
•Heat Index: When temperature is above 80F.
•Current Temperature: When the temperature is between 51F and 79F, the reading will remain the
same as the outdoor value regardless of humidity or wind speed.

Relative Pressure
Add-On Temperature & Humidity Sensor
PRESSURE
EXTRA SENSORS
•Your Relative Pressure reading will come from your station’s internal
barometer.
•Please allow up to 10 days for automatic calibration, or program your
local pressure value in the Settings Menu.
•The arrows located to the left of the values represents Pressure
Tendency (rising/falling).
2. Hold the MINUS (-) button to delete these Temperature & Humidity readings.
3.
Adding a Separate Temperature & Humidity Sensor
Pressure Reading Example
If you feel the temperature & humidity is not reading correctly from your Breeze Pro
Sensor, you can add a separate sensor to your system.
1. Press the SENSOR button until you see the Outdoor Temperature and Humidity
section light up on screen. “ID WTH 123” and “TWH SENSOR” will appear below.
4.
5.
Install new batteries into the add-on sensor and press the TX button inside its battery
compartment. The LED light on the sensor will flash.
Press the SENSOR button until this Outdoor Temp. and Humidity section lights up
again. Then hold the PLUS (+) button until the blue Sensor Reception Indicator starts
to animate.
Additional Add-On Sensors
Rain Data Example
Need a Rain reading? Want an additional Temperature/Humidity
sensor?
This station can display data for up to 4 extra sensors. This data will
appear in the green EXTRA SENSOR section on the LCD.
Find compatible sensors at:
www.lacrossetechnology.com/sensor-finder/
11
The sensor should connect almost instantly with its data appearing on screen. The
icon will remain solid on screen when an add-on TH sensor is being used.

Model Number LTV-R3 Rain Sensor
www.lacrossetechnology.com/R3RainSensor
2. Install batteries into your sensor. If the sensor
has a TX button, press it to force a transmission
signal. This button is usually located in or near
the sensor’s battery compartment. The LED light
on the sensor will flash once.
3. Your sensor should connect within the next 3
minutes, briefly displaying its ID and type on the
LCD. The Sensor Reception Indicator will show
solid on the screen when a sensor is connected.
Adding Sensors to Your StationWould you like backyard rain data as well?
1. Hold the EXTRA button until you see the Sensor
Reception Indicator start to animate.
Note: When first powering up, or after a factory
reset, extra sensors should automatically connect
to your station.
4. Press the EXTRA button to cycle through the
data you’d like displayed on the LCD. The
Auto Scroll Icon ( ) will appear if activated.
Follow La Crosse Technology on Youtube,
Facebook, Twitter, and Instagram.
Factory Reset Stay in Touch
If you’re still experiencing issues, press and
hold the WIND ALERTS and LIGHT buttons
down together until the display beeps.
You do not need to remove the button cell
battery to restart the station.
Ask questions, watch set up videos, and
provide feedback on our social media outlets.
SUPPORT
12
Having Trouble? We’re here to help.
For detailed product videos, manuals, and more, visit our support website:
www.lacrossetechnology.com/support/
Make sure you have your product’s model number handy (79400)
Online: bit.ly/contact_techsupport
Phone Number: 1.608-782-1610
Representatives are available Monday-Friday, 8:00am to 6:00pm CST
If you need additional support, get in touch with our friendly customer support team:
Model Number LTV-TH2 Temp/Humidity Sensor
www.lacrossetechnology.com/ltv-th2
Model Number LTV-WL1 Water Leak Sensor
www.lacrossetechnology.com/ltv-wl1

Specifications
APPENDIX
STATION (79400)
• Indoor Temp. Range: 32°F to 122°F (0°C to 50°C)
• Indoor Humidity Range: 10 to 99%RH
• Relative Pressure Range: 23.62 to 32.48 InHg
(800 to 1100 hPa)
• Power Requirements:
• Primary Power: 5.0V AC Adapter (included)
XH0500-0600W
• Battery Backup: 1 “CR2032” Coin Cell Battery (included)
• Station Dimensions: 8.22” L x 1.18” W x 5.83” H
(20.90cm L x 3.22cm W x 14.81cm H)
• LCD Brightness: 4 Intensity Levels + OFF
(Programmable Auto-Dim Backlight Option)
• Language Options:
English, Spanish, French, and German
(Translation Available for Menus & Calendar)
SENSOR (LTV-WSDTH01)
• Wind Speed Range: 0 to 111 mph (0 to 178 kMh)
• Degrees of Wind Direction: 360° with 16 Cardinal
Directions
• Outdoor Temp. Range: -4°F to 140°F (-20°C to 60°C)
• Outdoor Humidity Range: 10 to 99%RH
• Transmission Range: 330 Feet (100 Meters)
• Update Interval: Every 31 Seconds
(Once every minute for temps below freezing)
• Power Requirements:
1 “ML2032” Coin Cell Battery (included)
• Sensor Dimensions:
• With Bracket: 6.21” L x 12.28” W x 9.87” H
(15.77cm L x 31.19cm W x 25.07cm H)
• Without Bracket: 6.21” L x 8.25” W x 6.67” H
(15.77cm L x 20.96cm W x 16.94cm H)
WARNING: KEEP BATTERIES OUT OF REACH OF
CHILDREN
Swallowing may lead to serious injury in as little as 2
hours or death, due to chemical burns and potential
perforation of the esophagus.
If you suspect your child has swallowed or inserted
a button battery, immediately seek urgent medical
assistance.
Examine devices and make sure the battery
compartment is correctly secured, e.g. that the screw or
other mechanical fastener is tightened.
Do not use if compartment is not secure.
Dispose of used button batteries immediately and
safely. Flat batteries can still be dangerous.
Tell others about the risk associated with button
batteries and how to keep their children safe.
WARNING
This product contains a button battery.
If swallowed, it could cause severe injury or death in just
2 hours.
Seek medical attention immediately.
1.
2.
3.
4.
5.
6.
1.
2.
3.
Warranty
La Crosse Technology, Ltd. provides a 2-year limited time
warranty (from date of purchase) on this product, relating
to manufacturing defects in materials and workmanship.
For full warranty details, you can visit:
www.lacrossetechnology.com/support
La Crosse Technology, Ltd
2830 S. 26th Street
La Crosse, WI 54601
Warning
13

Recycling & Disposal Caution!
Please consider the environment when deciding to dispose of
this product. Although household electronics are generally safe
to use on a daily basis, incorrect disposal can cause negative
and potentially irreversible impacts on our environment.
Check with local donation centers to see if your product can
be donated for future use. If disposal is the only option, federal
agencies, local governments, and certified retailers may have
electronic recycling programs in place. Programs may vary
based on location.
Please Recycle
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized changes or modifications to
this equipment. Such changes or modifications could void the user
authority to operate the equipment.
All rights reserved. This manual may not be reproduced in any
form, even in part, or duplicated or processed using electronic,
mechanical or chemical process without the written permission of
the publisher.
This booklet may contain errors or misprints. The information
it contains is regularly checked and corrections are included
in subsequent editions. We disclaim any responsibility for any
technical error or printing error, or their consequences. All
trademarks and patents are recognized.
La Crosse Technology® Patents
Visit www.lacrossetechnology.com/patents for patent information.
APPENDIX
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
CAUTION!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic, mechanical
or chemical process without the written permission
of the publisher.
This booklet may contain errors or misprints. The information it contains is regularly checked and corrections are included in subsequent
editions. We disclaim any responsibility for any technical error or printing error, or their consequences. All trademarks and patents are
recognized.
California Residents
DC 123019
This product can expose you to chemicals including styrene, which is known in the State of California to cause cancer.
For more information, go to: www.P65Warnings.ca.gov
WARNING:
14
