La Crosse Technology CA87092 Operating and maintenance manual

Model: CA87092
Instructional Manual
DC: 100317
Table Of Contents
Wind Speed Weather Station
For online video support:
http://bit.ly/327-1414W_QuickTips
Button Location ............................................
Initial Setup and Assembly .........................
Button Functions ...........................................
LCD Layout ...................................................
Backlight .......................................................
Settings ..........................................................
Color Wind Speed Graph ...........................
Top Wind Speed Number ...........................
Wind History .................................................
Current Wind Speed ....................................
Wind, Temperature, Humidity Alert ............
Arm and Disarm Alerts .................................
Heat Index and Dew Point ...........................
Forecast Information .....................................
Forecast Indicator .........................................
1
2
5
6
7
7
9
9
9
10
10
11
11
12
12
Atomic Time Signal ..................................
24 Hour MAX/MIN Temp/Humidity ...
Additional Temp/Humidity Sensors .......
Channel Indicators ..................................
Position Wind Sensor ..............................
Position Add On Sensors ........................
Position Weather Station .........................
Restart .......................................................
Change Batteries .....................................
Care and Maintenance ..........................
Warranty and Support Information .......
Specifications ..........................................
FCC Statement .........................................
Canada Statement ..................................
12
13
13
13
14
15
15
16
16
17
17
18
19
19

Back View
Front View
1
History
Front Buttons
2
Alerts
Button Location
1
Heat/Dew
Top Buttons
2
Up
Light
(HI/LOW-OFF)
3
Time Set
4
Down
5
1 2
Page | 1 www.lacrossetechnology.com/ca87092 Model: CA87092
51 2 3 4
AC 5.0V

Initial Setup and Assembly - TX141W Sensor
Outdoor Sensor
TX141W
3 “AAA”
Batteries
Back View
AAA
AAA
AAA
C
C

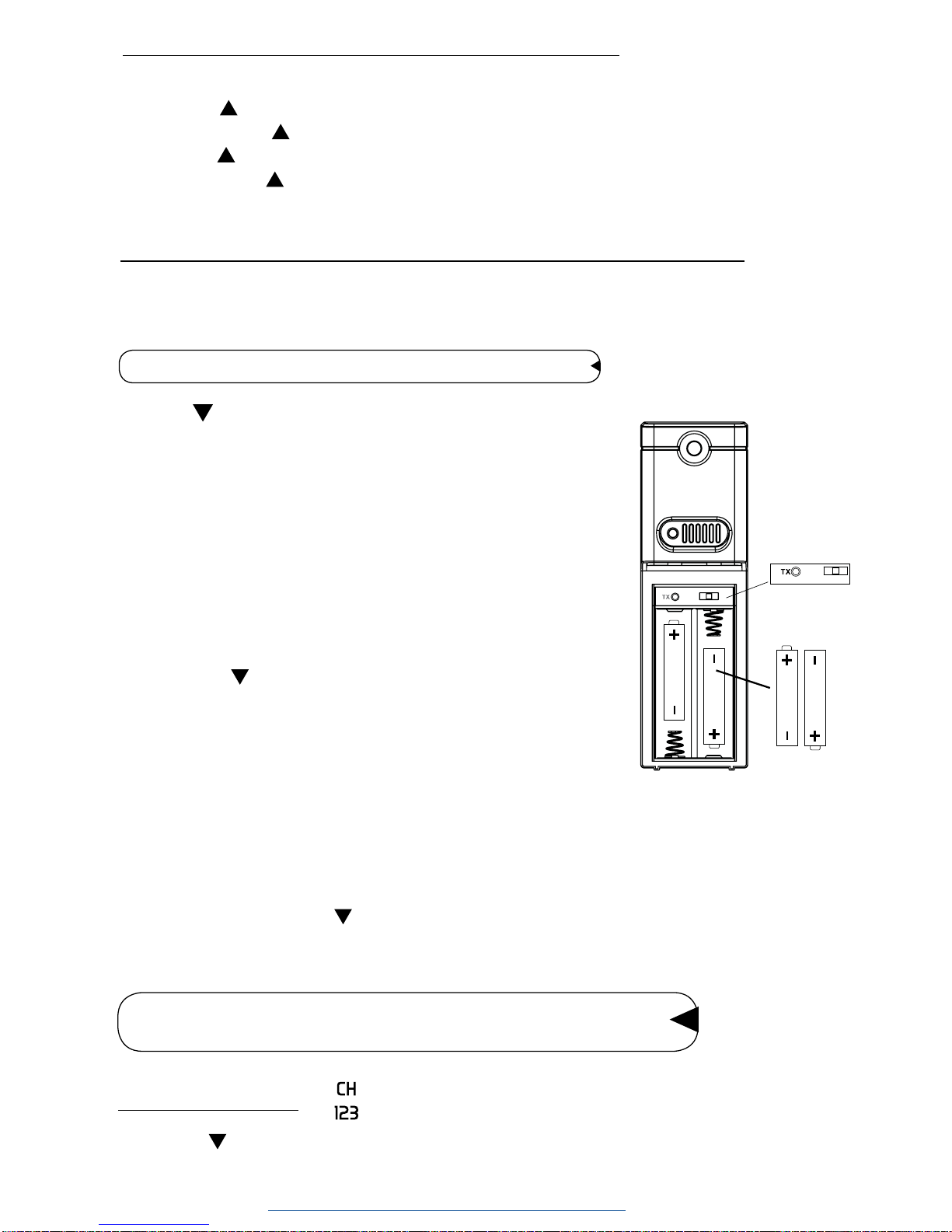

1. Twist battery cover left to remove from sensor.
Twist
Left
Power the Weather Station:
1. Insert AC adapter into the outlet
and into the weather station
2. Insert three AAA batteries into
the weather station (optional).
3. After 15 minutes, mount the sensor
outside (position Wind Sensor).
Power
Adapter
Model: CA87092 www.lacrossetechnology.com/ca87092 Page | 2
AC

C
C
2. Install two “C” batteries according to polarity.
3. The red LED light will flash when transmitting.
4. Replace the battery cover
5. Insert pole into bottom of sensor and secure with two screws.
Do not
over tighten
screws
Turn right
to
tighten
Connect
Connect
the sensor to
the base
Screws into
designated
holes
Insert screws
on each side
of the sensor
Page | 3 www.lacrossetechnology.com/ca87092 Model: CA87092

6. Align the square opening on the pole over the square of the mounting bracket.
7. Turn the knob to tighten the bracket to the pole.
Note: You can attach to a different pole (1.2 inches, 3.1 cm diameter) into the
sensor, instead of using the mounting bracket.
Screw until tight.
Do not over tighten.
Sensor Dimensions
(Top View)
Full Sensor and Bracket (with cup) Dimensions:
18.57” T x 7.10” W x 7.10” D (inch dimensions)
4.67
6.74 1.23
2.84 3.54
6.08
2.88
2.42
2.32
18.57
1.43
7.10
Model: CA87092 www.lacrossetechnology.com/ca87092 Page | 4

ALERTS
• Hold ALERTS button to enter
alerts settings
• or to adjust value
• Press ALERTS to confirm
ALERT ACTIVATION
• Press ALERTS button to toggle
between alerts
• Press to arm alerts
• Press to disarm alerts
• Press ALERTS to confirm
Button Functions
LIGHT
HI-LOW-OFF
(Down)
• Press to view channels
• Hold to search for sensors
• Will disarm alert
TIME SET
• Press to search for WWVB
Atomic time signal
• Hold to enter setting mode
LIGHT (HI-LOW-OFF):
• Press to adjust backlight
• Press to exit setting mode
HEAT/DEW
• Press to view Heat Index/Dew Point
(UP)
• Press to view MAX/MIN values
• Hold to reset MAX/MIN values
• Will arm alert
Top Buttons
Front Buttons
TIME SET HEAT/DEW UP
DOWN
HISTORY
• Press to view top wind speed history
Page | 5 www.lacrossetechnology.com/ca87092 Model: CA87092

A
B
D
E
F
Sensor Reception Icon
-
Feels Like,
Heat Index and Dew Point
-
Current Speed
(30 second average)
-
Top Speed Reading
(past 60 minutes)
-
Color Wind Speed Graph
(based on current speed)
-
Wind Cup Icon
(spins with wind speed)
-
Wind Speed Unit
(MPH or KMH)
Wind Speed Alert
-
-
A
B
C
DE
G
H
A
B
D
E
Atomic Time/Date
Atomic Signal Icon
-
-
Indoor Humidity Alert Icon
HI and LOW
-
Indoor Humidity
-
Indoor Temperature
-
I
I
Wind Speed History
LCD layout
A
B
D
E
-
F
C
C
C
G
H
Model: CA87092 www.lacrossetechnology.com/ca87092 Page | 6

• Hold the TIME SET button to enter settings menu.
• Move through settings with the TIME SET button.
• The and buttons will adjust settings.
• Exit at anytime with the LIGHT button.
Settings:
I
A
B
D
E
F
H
C
Forecast Icon
Forecast Trend Indicator
-
-
-
-
Outdoor Humidity
Humidity Trend Icon
-
-
Outdoor Temperature
Channel Indicator
Outdoor Temperature
HI/LO Alert Icon
-
-
-
Outdoor Temperature
Trend Indicator
Low Battery Indicator
A
B
C
D
E F
G
H
I
Outdoor Temperature
G
Page | 7 www.lacrossetechnology.com/ca87092 Model: CA87092
Backlight Adjustments
Use AC power for constant backlight:
• Press the LIGHT button on the top of the weather station to adjust the backlight
(HI-LOW-OFF) when using AC power.
When using battery power only:
• Press the LIGHT button for a 10 second backlight (It will not stay on).

1. Beep ON (default) or OFF 2. Atomic ON (default) or OFF
3. Select Time Zone (EST Default)
CST
MST
Time Zone
Atlantic
Eastern
Central
Mountain
Pacific
Alaska
Hawaiian
AST
EST
PST
AKT
HAT
4. Select DST ON (default) or OFF
5. Choose 12 (default) or 24 hour time 6. Set Hours 7. Set Minutes
8. Set Year 9. Set Month 10. Set Date
12. Select Fahrenheit / Celsius11 Select MPH or KMH
Note: When Atomic OFF is selected, steps 3 & 4 will not show and you
will automatically move to step 5.
Model: CA87092 www.lacrossetechnology.com/ca87092 Page | 8

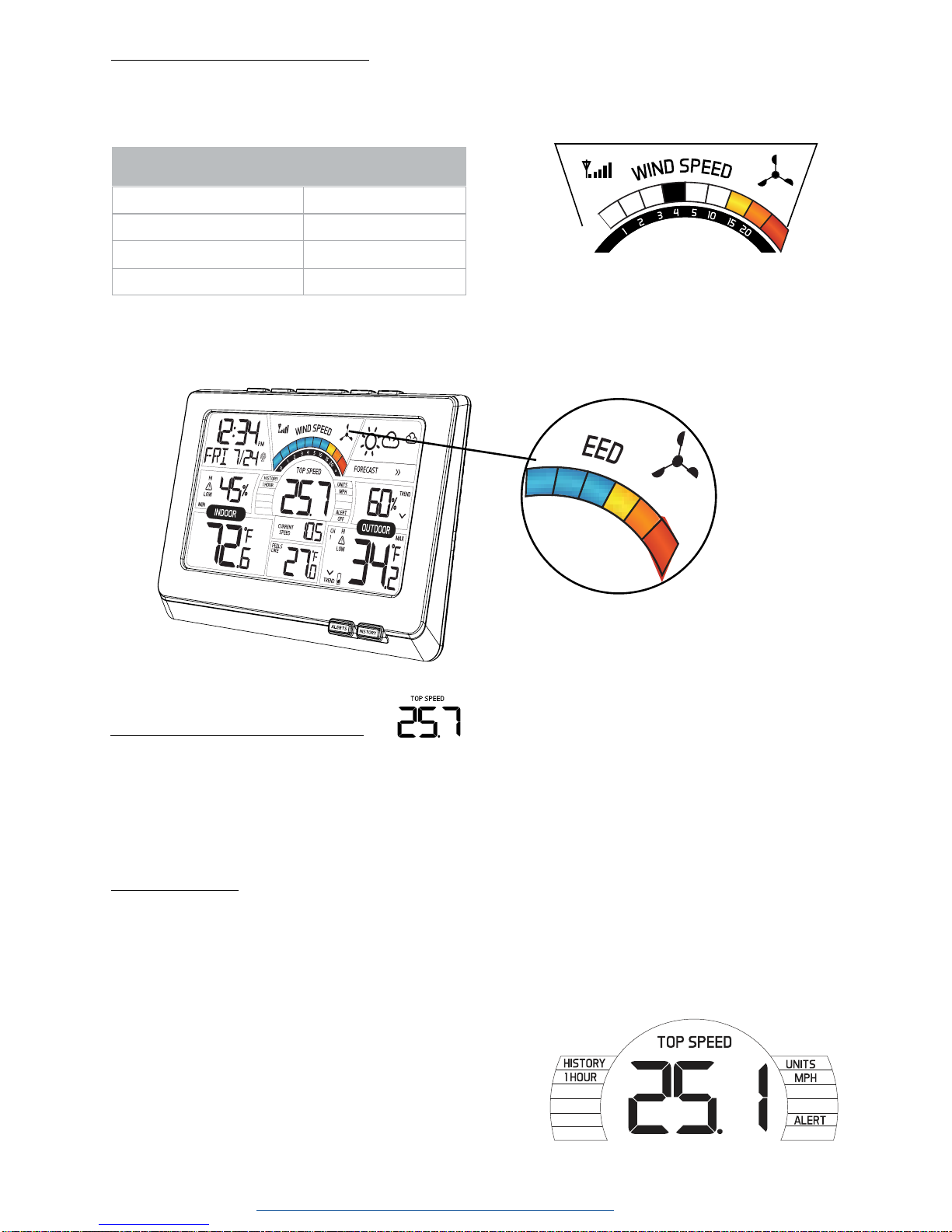

Color Wind Speed Graph
The wind speed graph with color sections is based on current wind speed. One
segment will flash indicating current wind speed.
Orange
Red
Color
0 - 14
15 - 19
20 - 24
over 25
Blue
Yellow
Speed
The wind cup icon will spin at varying speeds according to the current speed.
Top Wind Speed Number
Wind Cup Icon
Press and release the HISTORY button to view the past top wind speeds with time and
date of occurrence. The 1 hour top speed is the default reading shown on the display.
Wind History
COLOR WIND
SPEED ICON
• Highest instantaneous wind speed recorded in the past 60 minutes.
• Updates when a higher wind speed has occurred.
• Last number will remain if there is no wind for 60 minutes.
• 24-hour: Past 24 hour period, from last record.
• Week: Past 7-day period, from last record.
• Month: Defined by Calendar Month
i.e. January 1 - January 31.
• Year: Defined by Calendar Year
i.e. January 1 - December 31.
Page | 9 www.lacrossetechnology.com/ca87092 Model: CA87092

Setting alert value and arming individual alerts are separate functions.
Set alert value:
1. Hold the ALERTS button for 3 seconds to enter alert set mode.
2. The high wind speed alert value will blink in set mode.
3. Press the or buttons to adjust the values.
4. Press the ALERTS button to confirm and move to the next alert.
The alert setting order:
• High Wind Speed (channel 1 only)
• Outdoor Humidity HI
• Outdoor Humidity LOW
• Outdoor Temperature HI
• Outdoor Temperature LOW
• Indoor Humidity HI
• Indoor Humidity LOW
• Indoor Temperature HI
• Indoor Temperature LOW
Note: When using multiple temperature/humidity sensors, press the button
to select the channel (1, 2, or 3) before setting alerts for a sensor.
Wind, Temperature & Humidity Alerts
Outdoor HI Temperature
Indoor LOW Humidity
Wind Speed High Alert Outdoor HI Humidity
Outdoor LOW Temperature
Indoor HI Temperature
Outdoor LOW Humidity
Indoor LOW Temperature
Indoor HI Humidity
Current Wind Speed
The current wind speed which represents a 30 second average of wind speed samples
taken. This should correspond to the wind graph above.
Model: CA87092 www.lacrossetechnology.com/ca87092 Page | 10

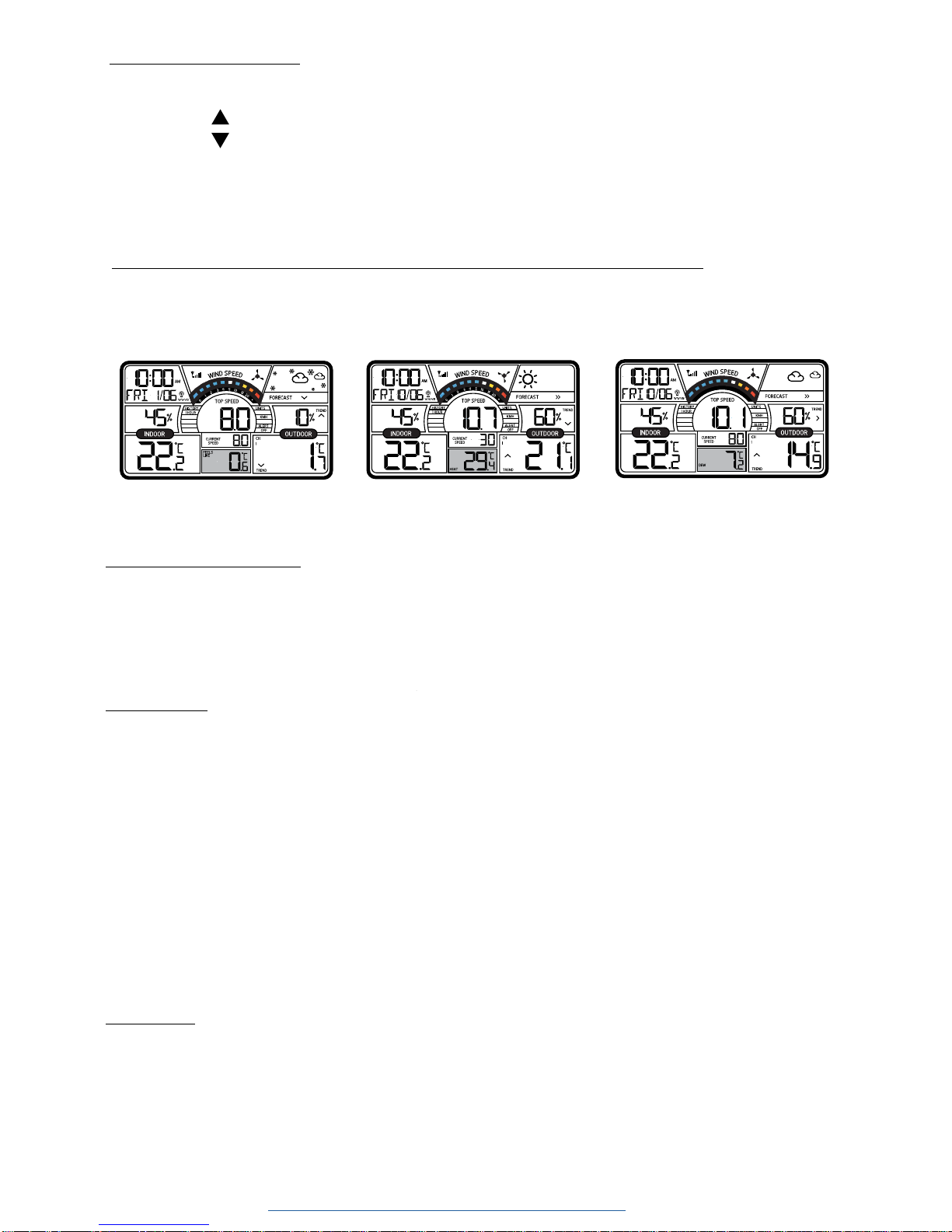

Press the HEAT/DEW button repeatedly to toggle between Feels Like, Heat Index and
Dew Point Temperatures.
Arm/Disarm Alerts:
1. Press and release the ALERTS button to select an alert. HI and LO will flash.
2. Press the button to arm the alert.
3. Press the button to disarm the alert.
4. The HI or LO alert icon appears when armed.
Active Alert: Beeps once per minute with flashing alert icon.
Feels Like Temperature, Heat Index, Dew Point Temperature
Page | 11 www.lacrossetechnology.com/ca87092 Model: CA87092
Feels Like Dew PointHeat Index
Feels Like Temperature: is the perceived outdoor temperature. If Outdoor Temperature
is below 50F/10C, will measure the effect of wind. The result is a wind chill effect and
this will be reflected as the “Feels Like” temperature outside.
Example: Outdoor temperature is 35.2F/1.7C and wind is 5.0 mph/8.0 kMh; Feels
Like temperature will be 30.8F/0.6C.
Heat Index: If outdoor temperature is above 70F/21.1C, the heat index will be used to
register the “Feels Like” temperature. The Heat index takes into consideration the effect
of humidity.
Example: Outdoor temperature is 82.4F/28C and humidity 60%RH; Heat Index
will be 85.0F/29.4C.
Note: If outdoor temperature is between 51F/10.6C and 69F/20.6C, the unit will use
the outdoor temperature as for Feels Like and Heat Index.
Example: Outdoor temperature is 60.4F/15.7C Both Feels Like and Heat Index will
be the same 60.4F/15.7C
Dew Point: A measure of atmospheric moisture. The temperature where water vapor
condenses into liquid water as frost or dew. Dew Point is calculated at any temperature
and will be the same or lower than outdoor temperature.
Example: Outdoor temperature is 58.2F/14.9C and humidity 60%RH; Dew Point
will be 45.0F/7.2C

Forecast Information
Intelligent Weather Forecast:
Note: Snowy icon will appear in place of rainy and stormy icons when the
outdoor temperature is below 32°F.
Sunny Partly Sunny Cloudy
Rainy Stormy Snowy
Forecast Tendency Indicators (Up, Right and Down Arrows)
Rising
Pressure Steady
Pressure
Falling
Pressure
Weather is
expected to
improve
Weather is
expected to stay
the same
Weather is
expected to
worsen
Atomic Icon
• The wind station will automatically search at UTC 7:00, 8:00, 9:00, 10:00, 11:00. If
no WWVB reception, the station will search for the WWVB time signal every 2 hours
until the WWVB time is received. After reception, this station will only search for the
atomic signal after midnight.
• To perform a manual search for the atomic time signal, first make sure the Atomic
feature is set to ON within the settings menu.
• Then press and release the TIME SET button to manually start or stop a WWVB
atomic time signal search.
• The Atomic Time Icon will flash while searching and remain solid on screen when
connected.
• The atomic signal is engineered for use in the USA. The signal strength in Canada is
not very strong. We recommend that you set the time and date of this unit manually if
the atomic signal does not register after 24 hours.
• For information about WWVB, visit: http://bit.ly/AtomicTime
Atomic Time Signal
This station learns: Please allow 7-10 days for barometric calibration. This
will ensure an accurate personal forecast for your location.
Six animated forecast icons use changing atmospheric pressure to predict weather
conditions for the next 12 hours with 70-75% accuracy.
Model: CA87092 www.lacrossetechnology.com/ca87092 Page | 12

The wind station will accommodate up to two additional
thermo-hygro sensors (TX141TH-BCH ) on channels 2 and 3.
Note: The TX141W sensor must be on channel 1.
Press the button to view sensors on other channels.
Setup additional sensors to the wind station:
1. Remove the battery cover from all the sensors
(leave battery covers off until all sensors are received
by the wind station).
2. Set the first additional sensor to Channel 2 and insert
2 AA batteries.
3. Set the second additional sensor to Channel 3 and insert
2 AA batteries.
4. Hold the button on the wind station for 5 seconds to
search for sensors.
5. Press the TX button on each sensor.
6. When connection is established, the temperature &
humidity for each of the selected channels will appear.
7. Install the battery covers on each sensor.
8. Keep sensors and the wind station 5-10 feet apart for 15
minutes to establish a solid connection.
9. After 15 minutes, place the remote sensors in appropriate
shaded locations.
10. Press and release the button to view channels 1, 2 or 3
on the wind station when multiple sensors are used.
Note: If only one sensor is connected, the other channels will
show dashes for temperature and humidity.
Setup Add On Temperature/Humidity Sensors (sold separately)
Channel Indicator
• Press the button to toggle between remote sensor channels when multiple
sensors are used.
AA
1 2 3
AA
AA
AA
The station automatically resets MAX and MIN values daily at midnight (12:00 AM).
• Press the button once to view MAX indoor/outdoor temperatures.
• Then, hold the button to manually reset MAX temperatures to current values.
• Press the button again to view the MIN indoor/outdoor temperatures.
• Then, hold the button to manually reset MIN temperatures to current values.
24 hour MAX/MIN Temperature/Humidity records
Page | 13 www.lacrossetechnology.com/ca87092 Model: CA87092

Position Wind Sensor
• For the most accurate wind speed readings, mount the TX141W sensor as the
highest object for 50 feet in all directions.
• Cups should be on the top of the sensor. Mount vertically.
• The maximum wireless transmission range to the wind station is over 300 feet
(91 meters) in open air, not including walls or trees.
1. Insert mounting pole into sensor.
2. Tighten screws
3. Insert bottom of pole into mounting bracket
4. Tighten knob to secure
5. Use screws through the bottom of the
mounting bracket to attach.
6. The sensor can be mounted from
the bottom or side. (the picture is
of the sensor mounted from the side)
Alternatively:
1. Insert your own mounting pole into
the sensor.
2. Tighten screws
3. Mounting bracket would not be used.
Note: Do not attempt to insert a pole into the hollow back of the mounting bracket.
Model: CA87092 www.lacrossetechnology.com/ca87092 Page | 14

Position Optional Add On Sensors
• Mount the outdoor sensor on a north-facing wall or in any well shaded area.
Under an eave or deck rail is preferred.
• The maximum wireless transmission range to the weather station is over 300
feet (91 meters) in open air, not including walls or floors.
• Be sure the outdoor sensor is mounted vertically
Option 1:
• Install one mounting screw into a wall leaving some extended.
• Place the transmitter onto the screw.
• Gently pull the transmitter down to lock the screw into place.
Option 2:
• Insert the mounting screw through the front of the transmitter and into the wall.
• Tighten the screw to snug (do not over tighten).
Position Weather Station
• Pull out the stand and place on a flat surface.
• Use the three hanging holes on the back to mount on the wall.
1. Choose a location 6 feet or more away from electronics such as cordless
phones, gaming systems, televisions, microwaves, routers, etc.
2. Place within range of the outdoor sensors (300 ft, 91 meters open air).
3. Obstacles such as walls, windows, stucco, concrete, and large metal objects
can reduce the range.
4. For best WWVB reception, orientate the weather station with the front or back
of the station facing Ft. Collins, Colorado (facing south if you live in Canada).
Mount sensor on a
north-facing wall
(under an eave or
deck rail is preferred)
Note: Mount 18” below the eave
to avoid venting from your attic
causing inaccurate readings.
WALL
ROOF
Page | 15 www.lacrossetechnology.com/ca87092 Model: CA87092

Add on Sensor(s):
1. Slide battery cover down and lift off sensor.
2. Remove old batteries and install fresh “AA” batteries.
3. Hold the button on the weather station for 5 seconds to search for the sensor.
TX141W Sensor mounted:
1. Grab the vented portion of the sensor and turn counter clockwise.
2. Remove old batteries and install fresh “C” batteries.
3. Carefully align and turn clockwise to tighten.
4. Hold the button on the weather station for 5 seconds to search for
the sensor.
Restart
1. Remove batteries from the sensor and batteries and AC adapter from the
weather station.
2. Press any button 20 times.
3. After 15 minutes insert batteries into the sensor, then insert batteries (optional
in the weather station) and plug AC adapter into the weather station.
4. Wait 15 minutes to establish a strong connection. Place sensor outside.
Change Batteries
C
C
Press the Down Button
on the wind station to
search for sensors
TX141W Sensor Add-On Sensor
AA
1 2 3
AA
AA
AA
Model: CA87092 www.lacrossetechnology.com/ca87092 Page | 16

Care and Maintenance
• Do not mix old and new batteries
• Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries
• Always purchase the correct size and grade of battery most suitable for
the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from equipment which is not to be used for an extended period of
time.
• Remove expired batteries promptly.
• Do not expose to extreme temperature, vibration or shock.
• Clean with a soft damp cloth. Do not use solvents or scouring agents.
• The product is not a toy. Keep it out of reach of children.
• The product is not to be used for medical purpose or for public information.
It is intended for home use only.
• The specs of this product may change without prior notice.
• Improper use or unauthorized opening of housing voids warranty.
• If the product is not working properly, change the batteries and/or check
the AC adapter connection.
Springfield provides a 1-year limited warranty (from date of purchase) on this
product relating to manufacturing defects in materials & workmanship.
Before returning a product, please contact our friendly customer support with ques-
tions or visit our online help (FAQS):
Phone: [phone]
Online Product Support: www.lacrossetechnology.com/CA87092
Product Registration: www.lacrossetechnology.com/support/register
View full warranty details online at:
www.lacrossetechnology.com/warranty_info.pdf
Warranty Address:
Springfield Instruments Inc.
104 Barr Street
Ville St.-Laurent, Quebec H4T 1Y4
Email: [email protected]
Warranty and Support Information
Page | 17 www.lacrossetechnology.com/ca87092 Model: CA87092

Indoor
• Temperature Range: 32°F to 122°F (0°C to 50°C)
• Humidity Range: 10% - 99% (RH)
Outdoor
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Humidity Range 10% - 99% (RH)
• Wind Speed Range: 0 - 99 mph (0-159 kMh)
Power
• Wind Station Primary AC Power:
5-volt AC power adapter
• AC6 Adapter NO.:
GPU280500150WA00 5VAC 150mA
• Optional/Battery Backup:
3-AAA, IEC, LR3 batteries (not included)
Battery
Life
• Wind/TH Sensor:
2-C, IEC, LR14 batteries (not included)
• Wind Station Battery Backup:
Battery life is over 12 months when using the AC adapter
for primary power
Dimensions
• Wind Station: 5.48” H x 8.34” L x 1.03” W
(139.19 x 211.84 x 26.12 mm)
• TX141W Sensor: 18.57” H x 7.10” W x 7.10” D
( 471.68 x 180.34 x 180.34 mm)
Specifications
• Wind/TH Sensor:
Battery life is over 24 months when using reputable
battery brands
• Interval: about every 30 seconds
• Distance: Over 300ft. (91 meters) RF 433MHz (open air)
Model: CA87092 www.lacrossetechnology.com/ca87092 Page | 18

FCC Statement
Caution!
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The FCC statement is found inside the battery compartment.
This device must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or
modifications to this equipment. Such changes or
modifications could void the user authority to operate the equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or pro-
cessed using electronic, mechanical or chemical process without the written permission of the publisher.
This booklet may contain errors or misprints. The information it contains is regularly checked and
corrections are included in subsequent editions. We disclaim any responsibility for any technical error or
printing error, or their consequences.
All trademarks and patents are recognized.
Canada Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Page | 19 www.lacrossetechnology.com/ca87092 Model: CA87092
