For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
2011 OWNER’S MANUAL
The Dream | Fantasy | Imagine | Soul Mate
La-Z-Boy®Spas - Sales & Marketing Division
4411 Bee Ridge Road. # 299
Sarasota, Florida 34233
1.800.465.2933
www.lazboyspas.com

2
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Important: La-Z-Boy Spas is dedicated to offering you the best in customer
satisfaction and service. Be sure to read, complete, sign, and send in the guarantee
card within 30 days of purchase to ensure you understand what you are entitled to
in terms of service. If you have any questions, you can call your local dealer for more
information.
Version 1.0
Copyright © 2010 La-Z-Boy®Spas. All rights reserved. No portion of this manual may be reproduced in
any manner without express written permission from La-Z-Boy Spas.
La-Z-Boy®is a registered trademark of La-Z-Boy Incorporated and is used under license to 2217044
Ontario Inc.
La-Z-Boy Spas may make product modifications and enhancements. Specifications may change without
notice. International products may be configured differently to meet local electrical requirements.
Dimensions are approximate.
La-Z-Boy®Premier Spas
Owner’s Manual
Table of Contents
03
07
09
10
14
16
19
25
28
41
44
45
46
47
48
49
52
58
61
62
63
78
Safety Information………………………………………………………………………….
Guarantee..……………………………………………………………………………….…
Introduction………………………………………………………………………………….
Model Overview…………………………………………………………………………….
Location and Installation…………………………………………………………………...
Electrical Specifications……………………………………………………………………
Startup……………………………………………………………………………………….
Water Quality………………………………………………………………………………..
In-Touch 3000 Electronic Control………………………………………………………..
AquaFlex Massage Control………………………………………………………………..
Premium AquaCoustics Surround Sound Stereo……………………………………….
IR Remote Control………………………………………………………………………….
AquaVision LCD Video System…………………………………………………………...
Color Coordinated Cover…………………………………………………………………..
Water Management………………………………………………………………………...
Frequently Asked Questions………………………………………………………………
Troubleshooting…………………………………………………………………………….
Maintenance and Care…………………………………………………………………….
Shutdown / Winterizing…………………………………………………………………….
Glossary……………………………………………………………………………………..
Parts and Specifications…………………………………………………………………...
Notes…………………………………………………………………………………………

3
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Safety Information
SAVE THESE INSTRUCTIONS
IMPORTANT USER SAFETY INSTRUCTIONS
Your physiological response to hot water is subjective and depends on your age,
health, and medical history. If you don’t know your tolerance to hot water, or if you get
a headache, or become dizzy or nauseous when using your spa / hot tub, get out and
WARNINGS
1. Children should NOT use a spa / hot tub without alert adult supervision.
2. Children should not enter a spa / hot tub where water temperature exceeds body temperature (37˚C /
98.6˚F).
3. Prolonged immersion in water temperatures in excess of 38˚C (100˚F) may be injurious to your
health. We recommend establishing lower temperatures and shorter use periods for young children and/
or those users potentially affected by hot temperatures. Always confirm water temperature with an
accurate thermometer before entering your hot tub.
4. Do not allow children to submerge their head under water.
5. Do not use a spa / hot tub unless all suction guards are installed to prevent body and hair entrapment.
Do not sit in front of, or on top of the suction fittings or skimmer, as this will obstruct proper circulation
and may result in personal injury.
6. Never operate the spa / hot tub pump at high speed without having all suction and return lines open.
7. Always keep the hardcover installed and locked when the hot tub is not in use.
8. People using medications and/or having any adverse medical history should consult a physician
before using a spa / hot tub.
9. People with infectious diseases should not use a spa / hot tub.
10. Exercise caution when entering or exiting a spa / hot tub. Where practical, install a safety grab bar
or handrail. Turn off the jets before entering the hot tub to improve visibility of the steps or flat entry ar-
ea.

4
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Hyperthermia
Since your spa / hot tub can be set to reach temperatures of 40˚C (104˚F), users should be aware that
extended submersion in water that exceeds normal body temperature can lead to hyperthermia.
The causes, symptoms and effects of hyperthermia may be described as follows:
Hyperthermia occurs when the internal temperature of the body reaches several degrees above the
normal body temperature of 37˚C (98.6˚F). The symptoms of hyperthermia include drowsiness, lethargy,
and an increase in the internal temperature of the body.
The effects of hyperthermia include:
• Unawareness of impending hazard
• Failure to perceive heat
• Failure to recognize the need to exit the hot tub
• Physical inability to exit the hot tub
• Fetal damage in pregnant woman
• Unconsciousness resulting in the danger of drowning
If you sense any of the symptoms of hyperthermia, safely exit the spa / hot tub immediately.
11. To avoid unconsciousness and possible drowning, do not use drugs or alcohol before or during the
use of a spa / hot tub.
12. Pregnant women should consult a physician before using a spa / hot tub.
13. Do not use a spa / hot tub immediately following strenuous exercise.
14. Do not permit or use electric appliances (such as a light, telephone, radio or television) within 1.5 m
(5 ft) of this hot tub, unless such appliances are rated at 12VDC or less.
15. Test the GFCI (Ground Fault Circuit Interrupter) monthly.
16. Post emergency phone numbers for Police, Fire Dept. and Ambulance at the nearest phone.
17. Maintain water chemistry/balance in accordance with manufacturer’s instructions.
THE USE OF ALCOHOL, DRUGS OR MEDICATION CAN SIGNIFICANTLY INCREASE
THE RISK OF FATAL HYPERTHERMIA.
WARNING

5
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

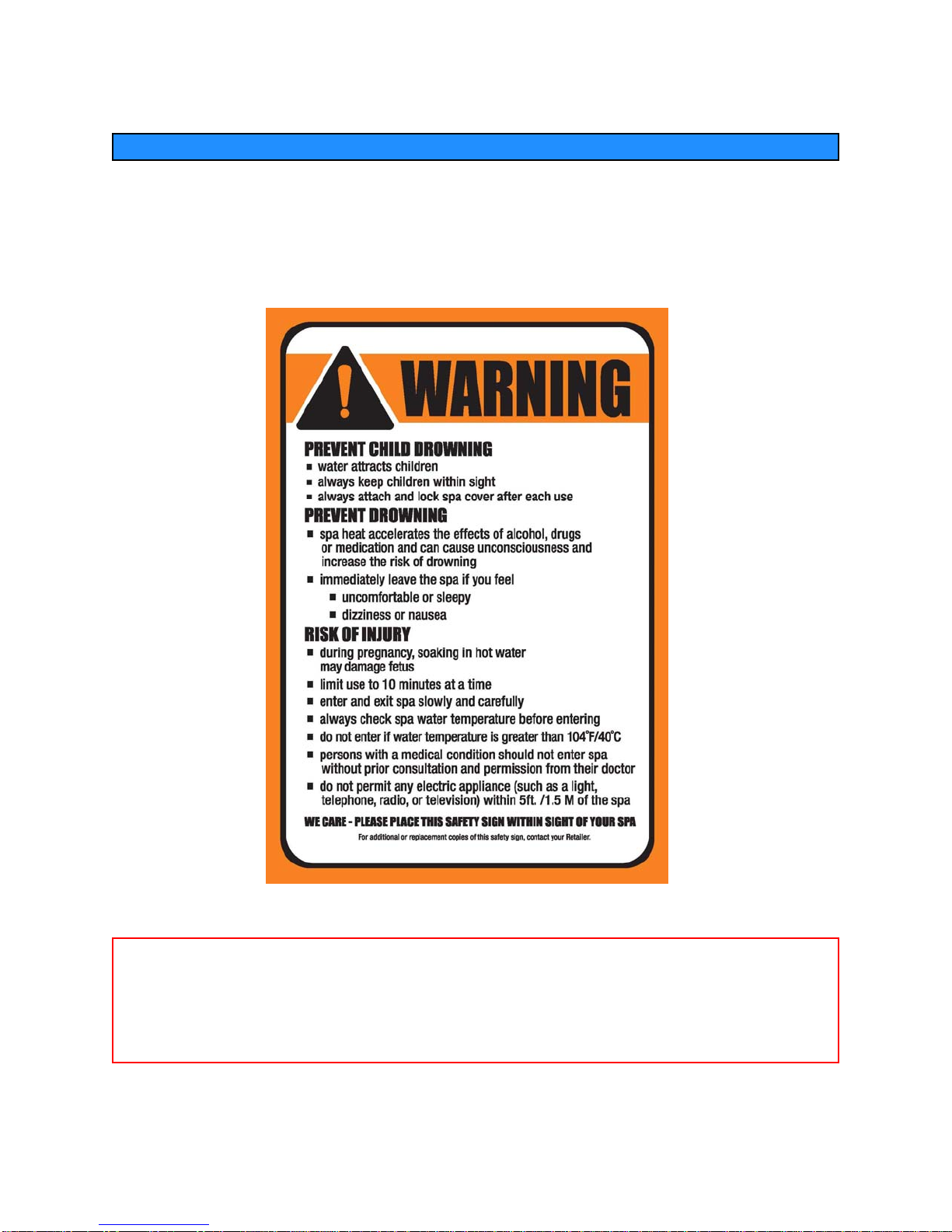

Warning Sign
Warning Sign Must Be Posted – The orange WARNING sign like the one shown is
packed with your new spa / hot tub. This sign must be posted in a prominent place in
close proximity to the spa installation site immediately upon completion of spa
installation.
Important: It is extremely important that this sign be permanently placed in clear view
of persons using the spa / hot tub. Occasional spa / hot tub users may not be aware of
some of the dangers hot water poses to pregnant women, small children, seniors, and
people under the influence of alcohol. If you did not receive a warning sign or your
sign has become damaged, please call your local dealer for a replacement.

6
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Dealer:
Installer:
Spa:
Date Purchased: ___________________________________________________________________
Company: ___________________________________________________________________
Address: ___________________________________________________________________
Telephone: ___________________________________________________________________
Date Installed: __________________________________________________________________
Company: __________________________________________________________________
Address: __________________________________________________________________
Telephone: __________________________________________________________________
Date Delivered: ___________________________________________________________________
Model: ___________________________________________________________________
Color: ___________________________________________________________________
Serial Number: ___________________________________________________________________

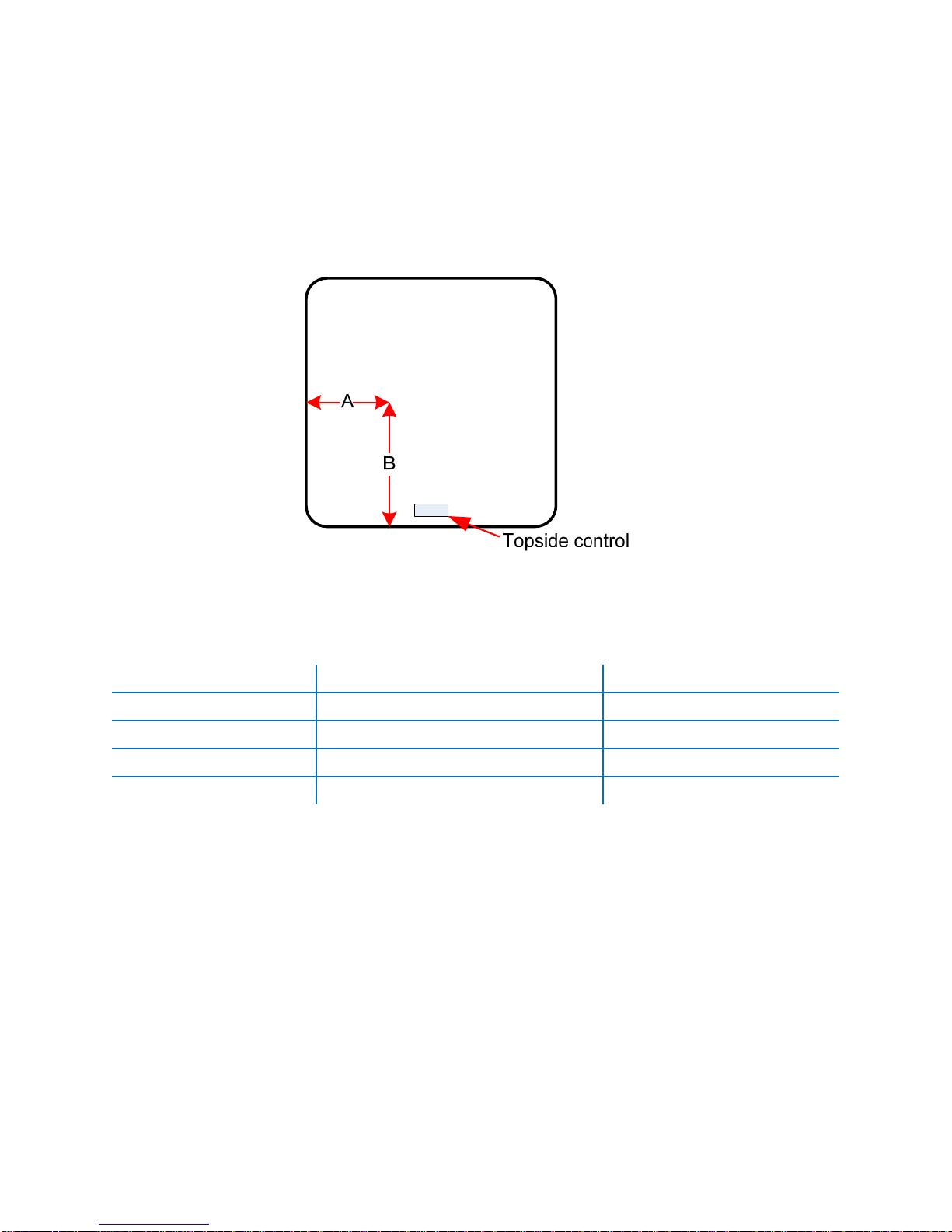

Your unique spa / hot tub serial number is located on a data plate outside the cabinet
at ground level directly below the topside control panel. When calling for service,
please have your serial number in hand.

7
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

8
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

9
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Introduction
Your choice of a La-Z-Boy®Premier Spa indicates that you are devoted to excellence.
The management and staff appreciate your patronage and take pride in the tradition of
quality spas / hot tubs that our company represents.
To properly acquaint yourself with your spa / hot tub, we suggest that you take time to
read through this manual before hook up and operation. Doing so will familiarize you
with important operating and safety procedures, thereby ensuring an enjoyable
experience right from the start.
If you need any more information than this manual provides, feel free to call your local
dealer or visit our web site at www.lazboyspas.com.
WARNING: This manual was written to ensure the proper use and
installation of your spa / hot tub. Any modifications to the
procedures outlined in this manual may result in voiding your
guarantee.
This manual and its contents are subject to change without notice. Although we have
prepared this manual as accurately as possible, we are not liable for errors or
omissions; loss, injury, or damages caused by improper installation; or use of spa / hot
tub (improper or otherwise).
Notes:_______________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________

10
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

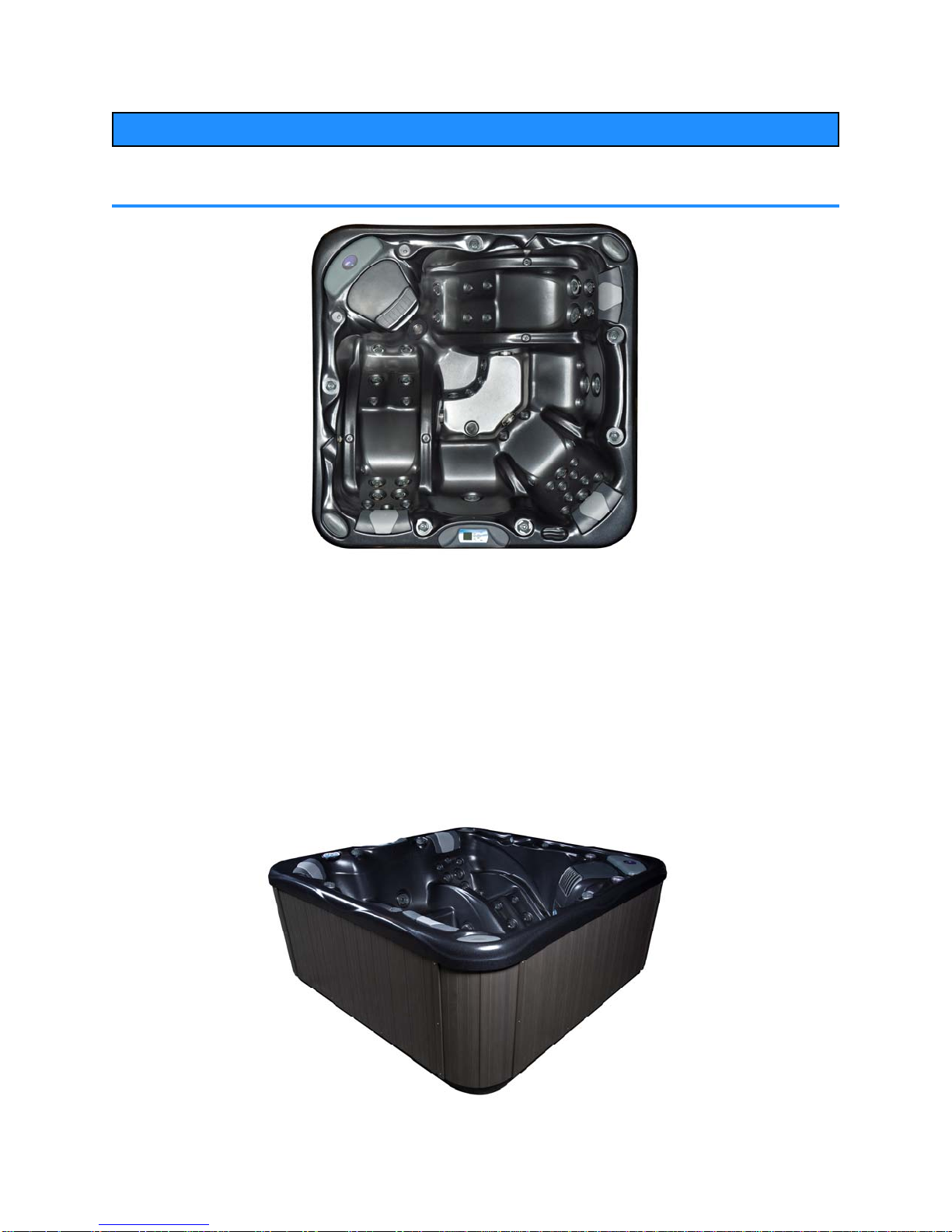

Model Overview
Dream
Dimensions: 93”L x 93”W x 37”D
Seats: 5
Water Jets: 56
Capacity: 425 USG /1608 L
Dry Weight: 915 Lbs/ 416 Kg
Filled Weight: 4455 Lbs/ 2024 Kg
Electrical: 240VAC 40A 60Hz
GFCI: 50A

11
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

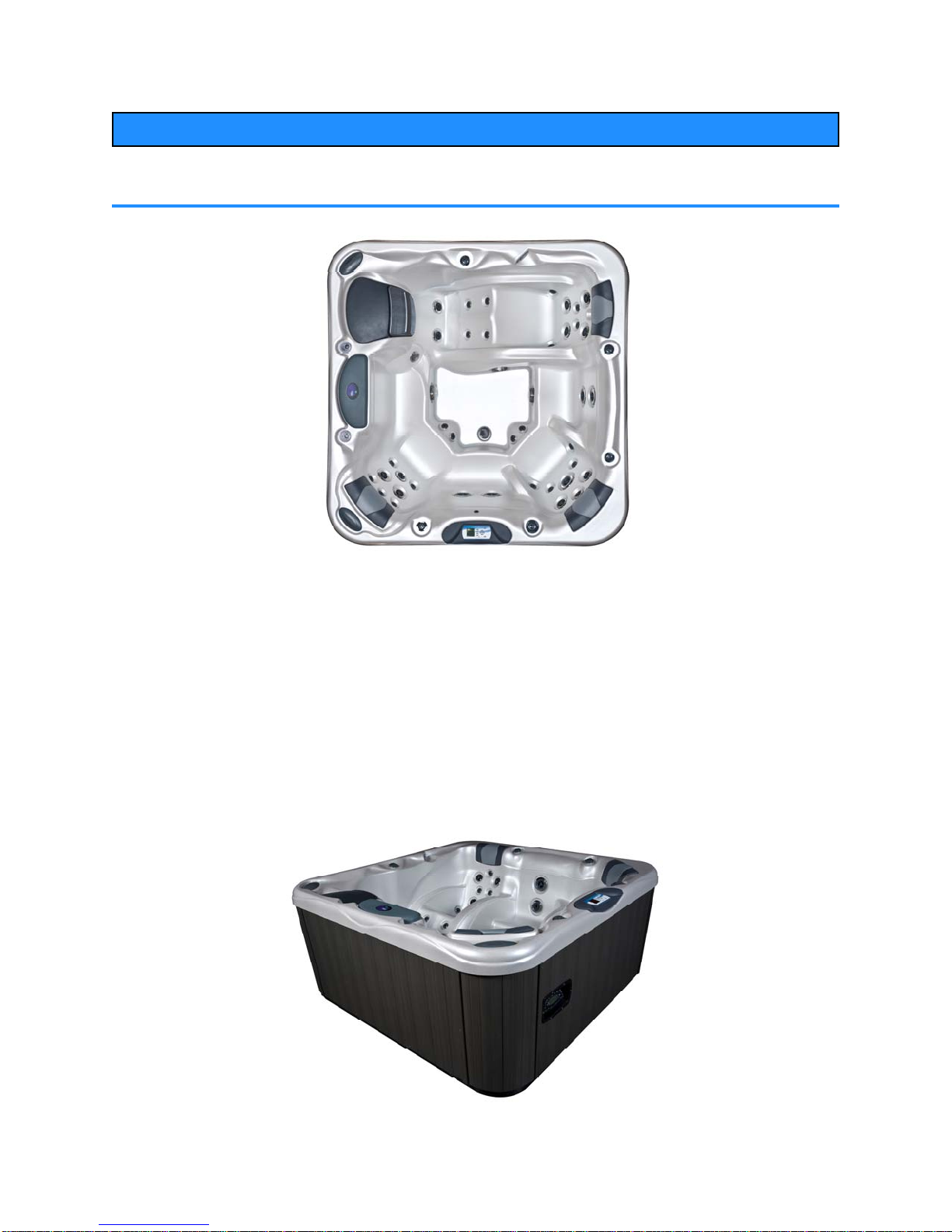

Model Overview
Fantasy
Dimensions: 86”L x 86”W x 37”D
Seats: 6
Water Jets: 39
Capacity: 360 USG /1362 L
Dry Weight: 755 Lbs/ 343 Kg
Filled Weight: 3753 Lbs/ 1706 Kg
Electrical: 240VAC 40A 60Hz
GFCI: 50A

12
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

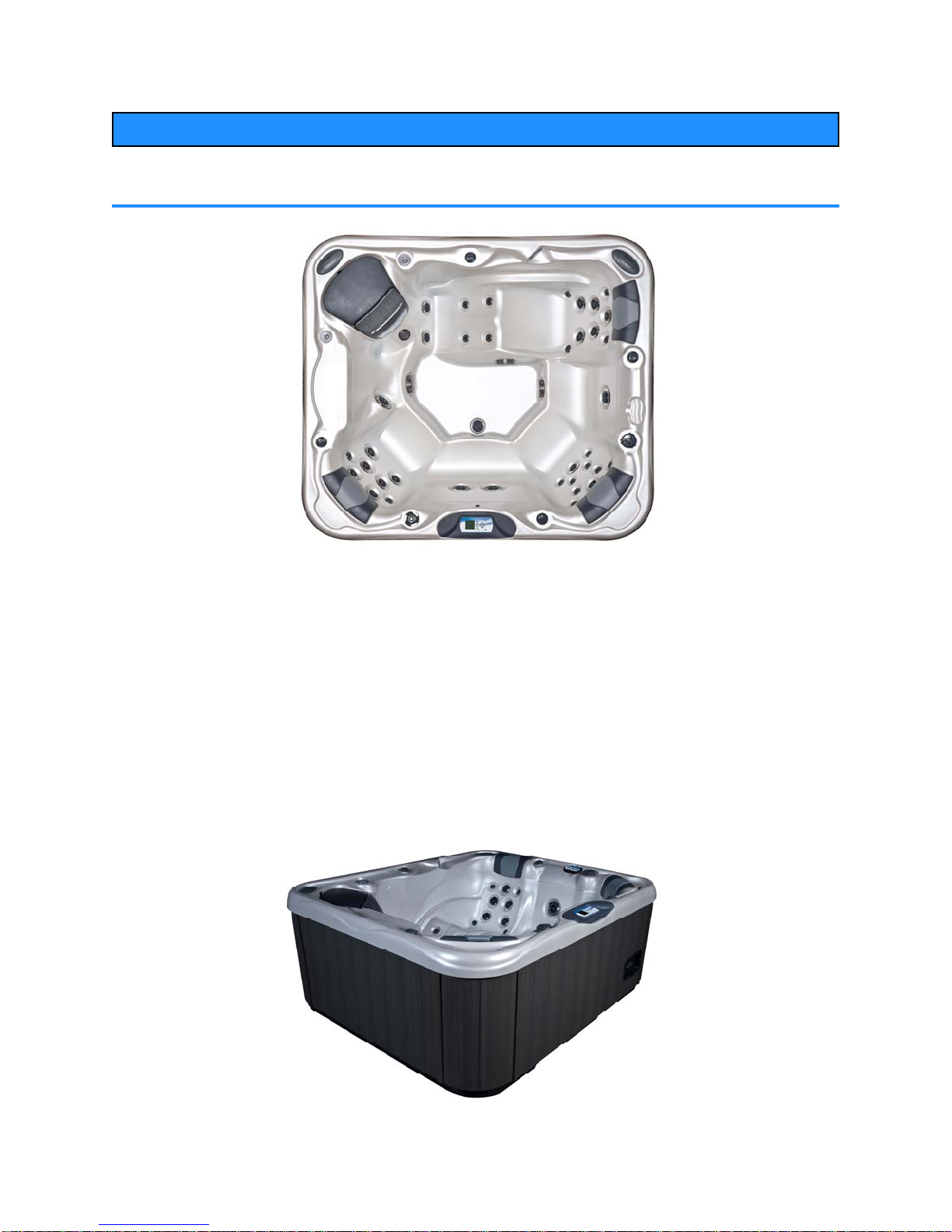

Model Overview
Imagine
Dimensions: 90”L x 78”W x 35”D
Seats: 5
Water Jets: 36
Capacity: 325 USG /1230 L
Dry Weight: 730 Lbs/ 332 Kg
Filled Weight: 3437 Lbs/ 1562 Kg
Electrical: 240VAC 40A 60Hz
GFCI: 50A

13
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Model Overview
Soul Mate
Dimensions: 87”L x 65”W x 35”D
Seats: 2
Water Jets: 31
Capacity: 210 USG /795 L
Dry Weight: 665 Lbs/ 302 Kg
Filled Weight: 2414 Lbs/ 1097 Kg
Electrical: 240VAC 40A 60Hz
GFCI: 50A

14
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Location and Installation
Proper planning is an important consideration when installing your new spa / hot tub.
Site selection is a critical step and requires serious thought. Planning ahead makes the
installation process easier. The following information is provided to assist you in site
preparations.
1. Always comply with local building codes and obtain any necessary permits. You
may also need to consult with an engineer to address your specific design
needs.
2. Contact an electrician to assess your electrical needs, install wiring, and assure
a safe operation.
3. Position your spa / hot tub with proper access to water, drainage, and electricity.

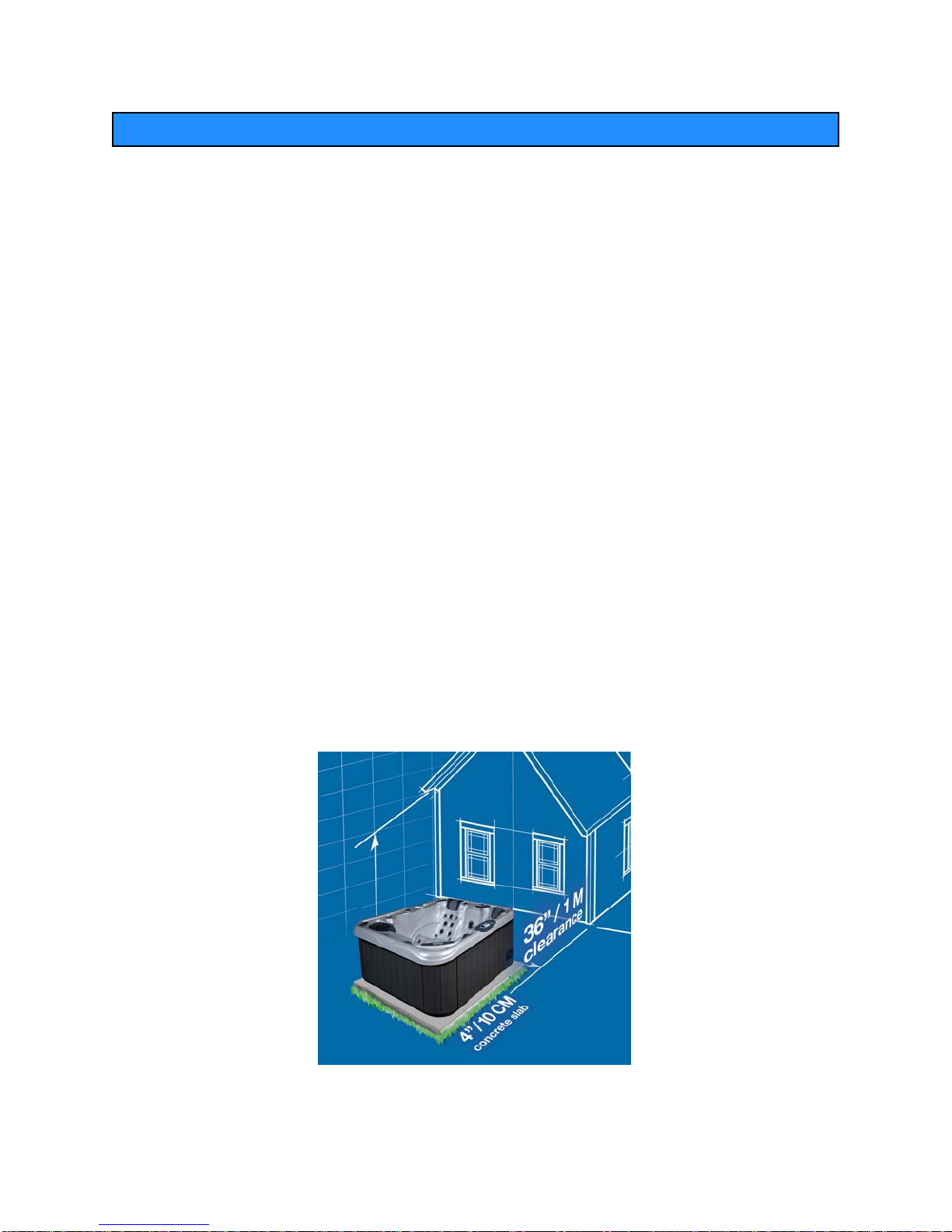

4. Place your spa / hot tub on a uniform solid, flat surface designed to properly
support its weight. For external installations, a 4-inch (10 cm) thick cement pad
suffices. See page 15 for conduit entry locations for your model spa.
5. For internal installations, check the load carrying capabilities of the floor on
which the spa will reside. Most homes meet the requirement of 80 pounds per
square foot.
6. Assure that your spa / hot tub will fit into the space you have chosen and the
delivery route will accommodate its large size.
7. Provide adequate ventilation for the humidity created by your spa / hot tub. In
most cases, the Color Coordinated Cover is sufficient.
8. Protect the pump and all equipment from the weather by ensuring the cabinet
panels are secure at all times.
9. Allow 36 inches (1 meter) of unobstructed access to all sides of your spa / hot
tub for normal servicing. Your spa / hot tub is not designed to be recessed in the
ground or in a deck.
Figure 1 – Clearances and Support

15
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
The following dimensions can be used to determine the proper location of submerged
conduits in concrete slab installations. All dimensions are made from the outside of the
spa / hot tub frame with the access panels removed. The topside control panel is
shown at bottom of diagram for reference.
Figure 2 – Conduit Entry Location Reference Points
Model Dimension A Dimension B
The Dream 13” (33 cm) 28” (71 cm)
Fantasy 16” (41 cm) 15” (38 cm)
Imagine 16” (41 cm) 26” (66 cm)
Soul Mate 16” (41 cm) 18” (46 cm)
Table 1 – Conduit Entry Location Dimensions
10.Consider positioning your spa / hot tub out of or adequately protecting it from
the wind. Just as people can get cold on cool/windy days so can your spa / hot
tub. Windy environments can significantly increase operating costs.
11.Consider using an insulating pad. In cold climates, the ground can rob heat from
the spa / hot tub and increase your operating costs. Consider using a suitable,
outdoor insulating pad in such environments.

16
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Electrical Specifications
Important: Qualified and licensed electricians must perform all electrical hookups.
The following specifications must be followed in order to ensure proper performance
and safety.
WARNING:Starting an incorrectly wired spa / hot tub could cause
severe damage to the mechanical equipment or even
bodily harm. Have your licensed electrician verify GFCI
wiring with the schematics on pages 17 - 18 prior to
starting the spa / hot tub or call your local dealer.
CAUTION: Failure to abide by specifications listed may result in
damage to the equipment and will void the warranty.
All spa / hot tubs must be wired with a 50 Ampere (A) breaker (or according to IEE wire
regulations for export models). Failure to do so will cause equipment damage and will
not be covered under your guarantee.
All spa / hot tubs must be protected with an over current protective device with built-in
GFCI in the service panel.
Volts
(V) Freq. (Hz) Phase Rating (A) GFCI (A) Wire size from GFCI to Main Panel*
# of
Terminals
on plug
240 60 1 40 50
6-3 plus ground (up to 130’)
4-3 plus ground (up to 230’)
2-3 plus ground (up to 360’) 4
Table 2 – Wire Size Chart
CAUTION: Test the GFCI before each use of the spa / hot tub.
* Use only solid copper wire.

17
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Parts with extra low voltage (not exceeding 12V) must be inaccessible to a person in
the spa / hot tub. Earthed appliances must be permanently connected to fixed wiring.
Parts incorporating electrical components must be located or fixed so that they
cannot fall into the spa / hot tub.
Means for disconnection must be used with fixed wiring configurations in accordance
with local wiring rules.

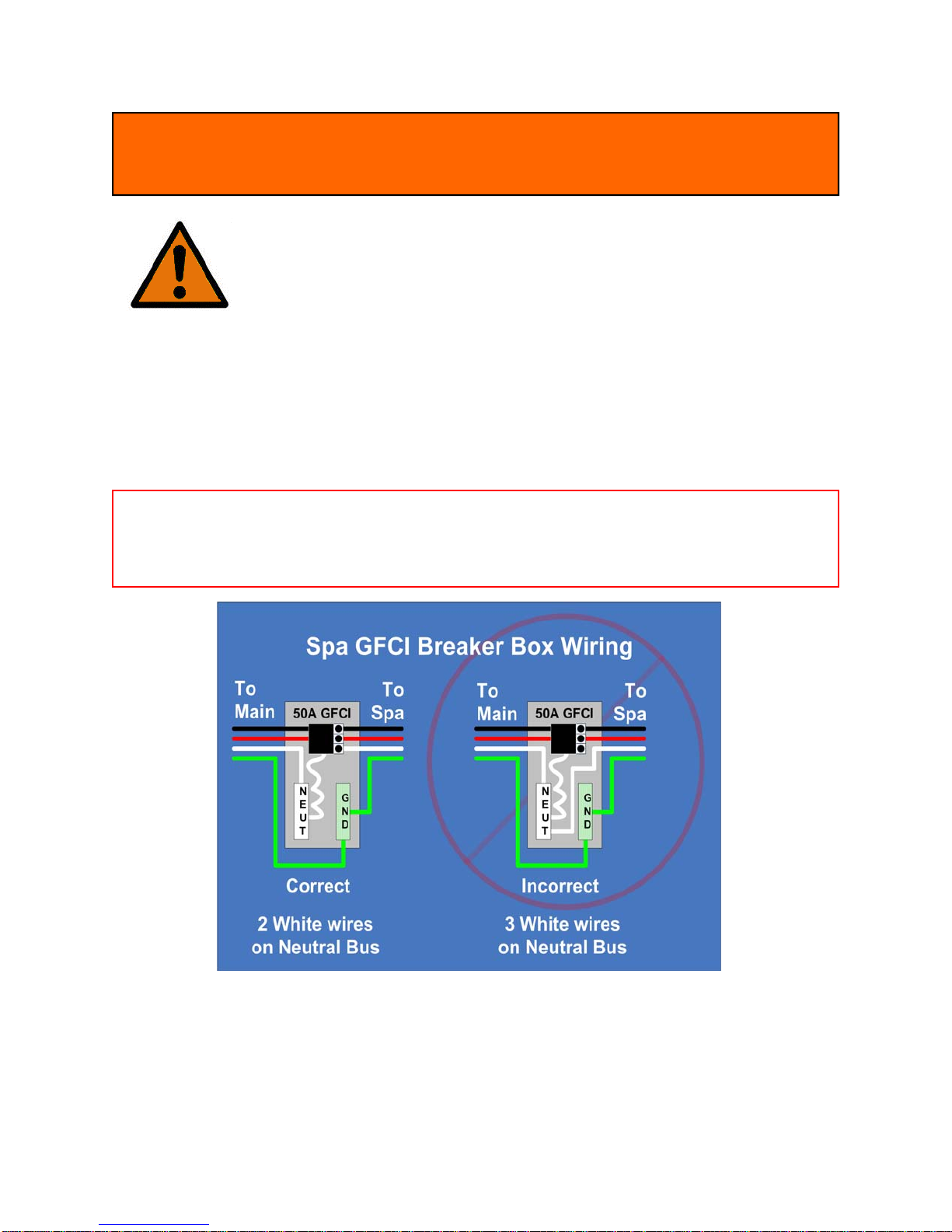

IMPORTANT: To allow the GFCI to function properly, connect the white Neutral wire
from the spa / hot tub to the Neutral terminal on the GFCI breaker, not the Neutral bus
in the GFCI breaker box. An improperly connected Neutral causes the GFCI breaker
to trip.
Figure 3 - GFCI Wiring
WARNING: Disconnect the electrical power before servicing.
Before obtaining access to terminals, all supply circuits
must be disconnected.
WARNING

18
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Figure 4 - U.S. and Canada Wiring Diagram
See wire size chart on page 16.

19
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Startup
Important: Read these step-by-step startup procedures before using your spa / hot
tub. Failure to do so may result in damage to the equipment and may void your
guarantee
Note: If you are unsure of any of the below startup procedures, please call your local
dealer for assistance. For best results, read each step in its entirety before proceeding.
CAUTION: Running the spa / hot tub pump dry (without water running
through it) can cause IMMEDIATE damage and will void the
guarantee. Be sure that the spa / hot tub is installed properly
in accordance with the instructions in this manual.
Refer to the following picture for an explanation of your spa / hot tubs controls,
components, and technical terms.
Note:Not all models have all features and components.
Figure 5 - Callouts

20
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

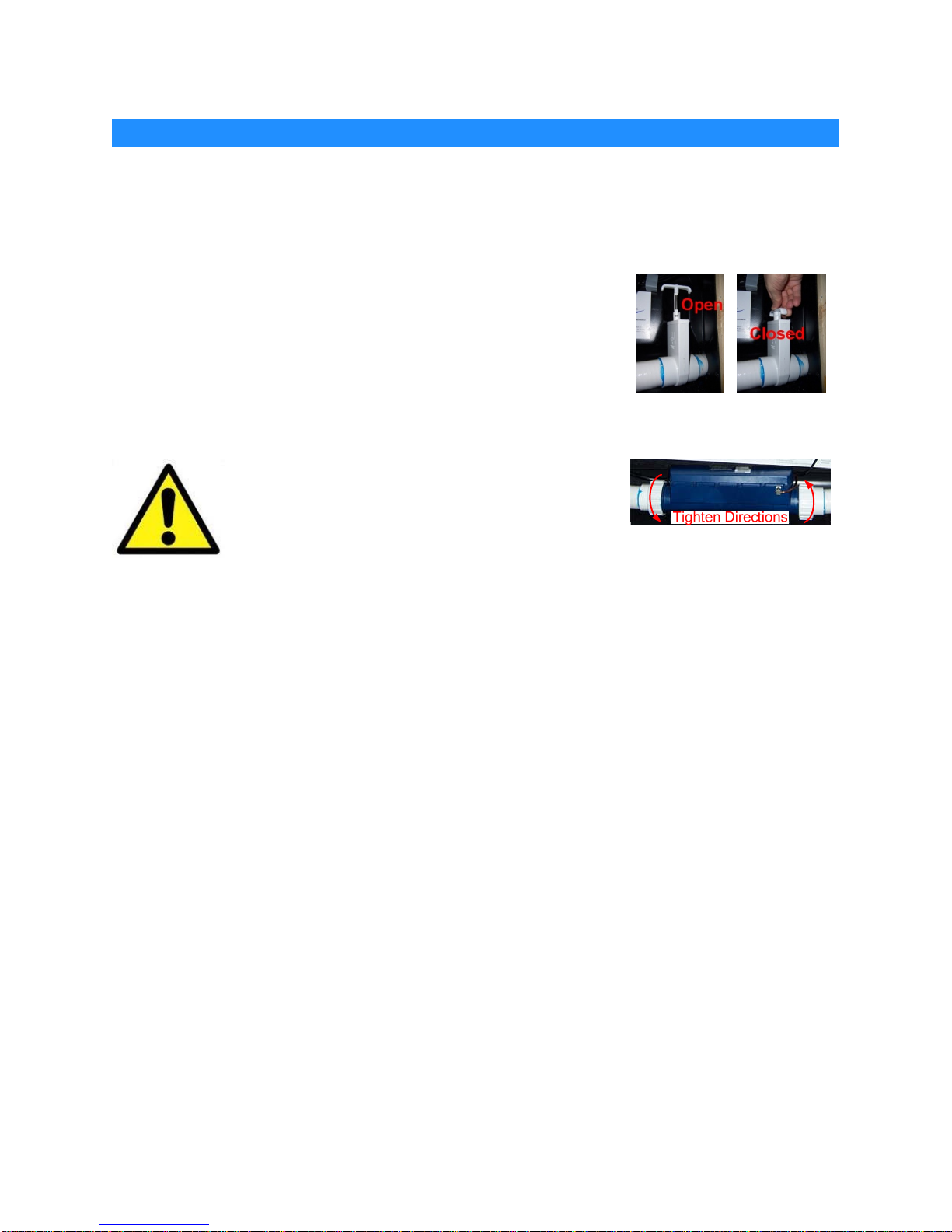

Before Adding Water
Before adding water, go through these simple steps now to prevent common issues
when setting up your spa / hot tub for the first time. Verify that the following have all
been rechecked.
1. Turn off all power at the main breaker panel.
2. Open the side panels to access the internal components.
3. Check that all slide valves are opened (service T-handles
pulled out) to the heater and all pumps.
4. Check that there are no obvious signs of loose wires or
broken pipes.
5. Check that the two heater unions are tight. Figure 6 - Valve Open/Closed
6. Check that the unions on all pumps are tight.
7. Clean out any foreign debris from within the service access area or inside of the
spa / hot tub itself.
8. With the drain open and filters removed, thoroughly rinse out the spa / hot tub with
warm water until the drained water runs clear. Run water through the filtration
canister and jet lines to remove any incidental dust, dirt, and debris that may have
accumulated during shipment or installation. Drain all water completely.
9. Make sure that the spa / hot tub drain valve is closed and the cap is on tight (see
page 59).
10.Install the filter(s) in the filtration canister.
11.Check that all of the jets are open (turned full counter-clockwise – except for 5”
spinner jets which open clockwise).
12.Now is the best time to clean and polish the surfaces of your spa (see page 60).
Figure 7 - Unions Tight
CAUTION: Do not use a wrench. Over-
tightening may cause damage to un-
ions and gaskets, which will not be
covered the Guarantee.
