La-Z-Boy Spas Premier User manual

For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
OWNER’S MANUAL
La-Z-Boy®Spas - Sales & Marketing Division
4411 Bee Ridge Road. # 299
Sarasota, Florida 34233
1.800.465.2933
www.lazboyspas.com
99399
Please go to www.lazboyspas.com in the Customer Corner section
to register your hot tub online within 30 days of your purchase
Contents subject to change without notice
BJAC

2
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Version 1.0
Copyright © 2010 La-Z-Boy®Spas. All rights reserved. No portion of this manual may be reproduced in
any manner without express written permission from La-Z-Boy Spas.
La-Z-Boy®is a registered trademark of La-Z-Boy Incorporated and is used under license to 2217044
Ontario Inc.
La-Z-Boy Spas may make product modifications and enhancements. Specifications may change without
notice. International products may be configured differently to meet local electrical requirements.
Dimensions are approximate.
La-Z-Boy®Premier Spas
Owner’s Manual
Table of Contents
Safety Information…………………………………………………………………………. 03

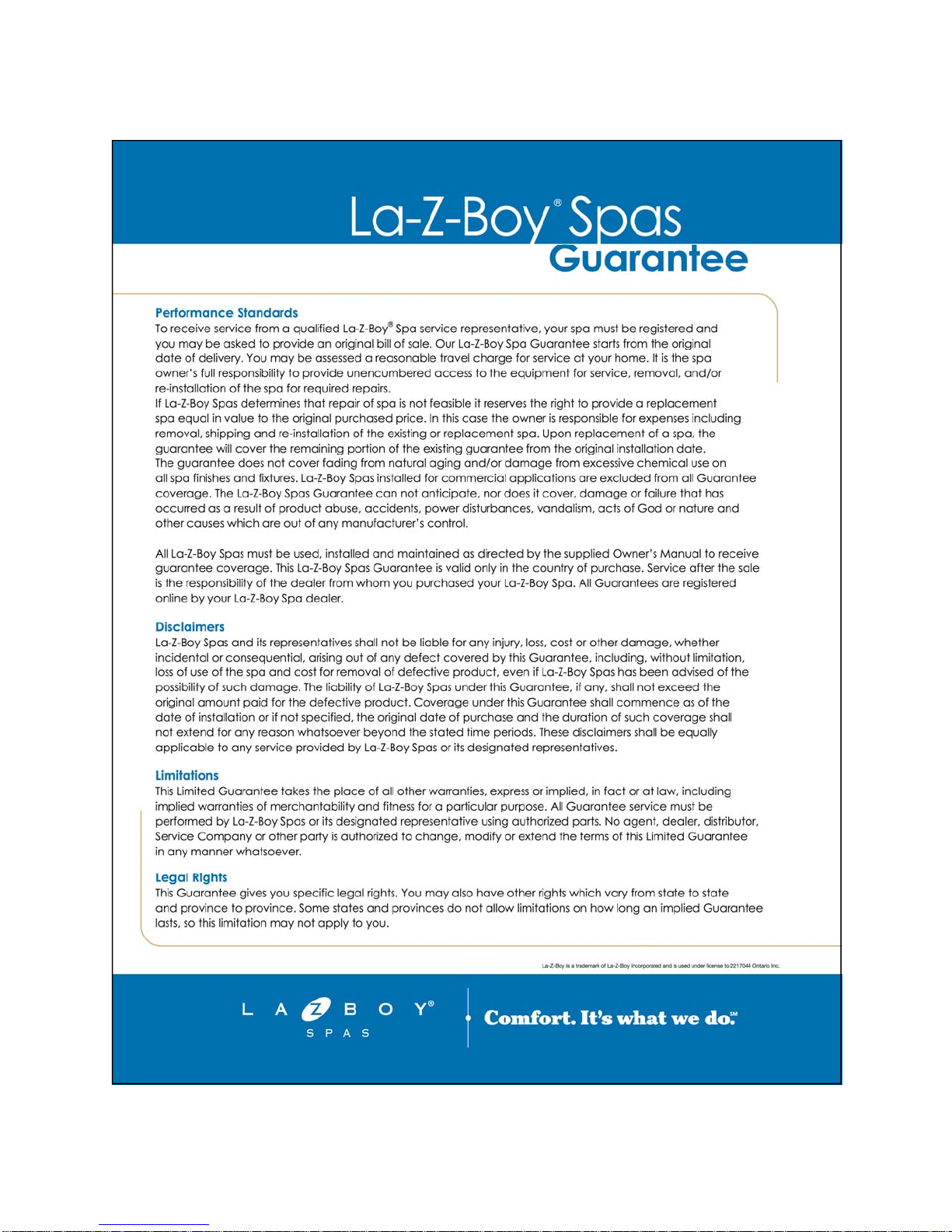

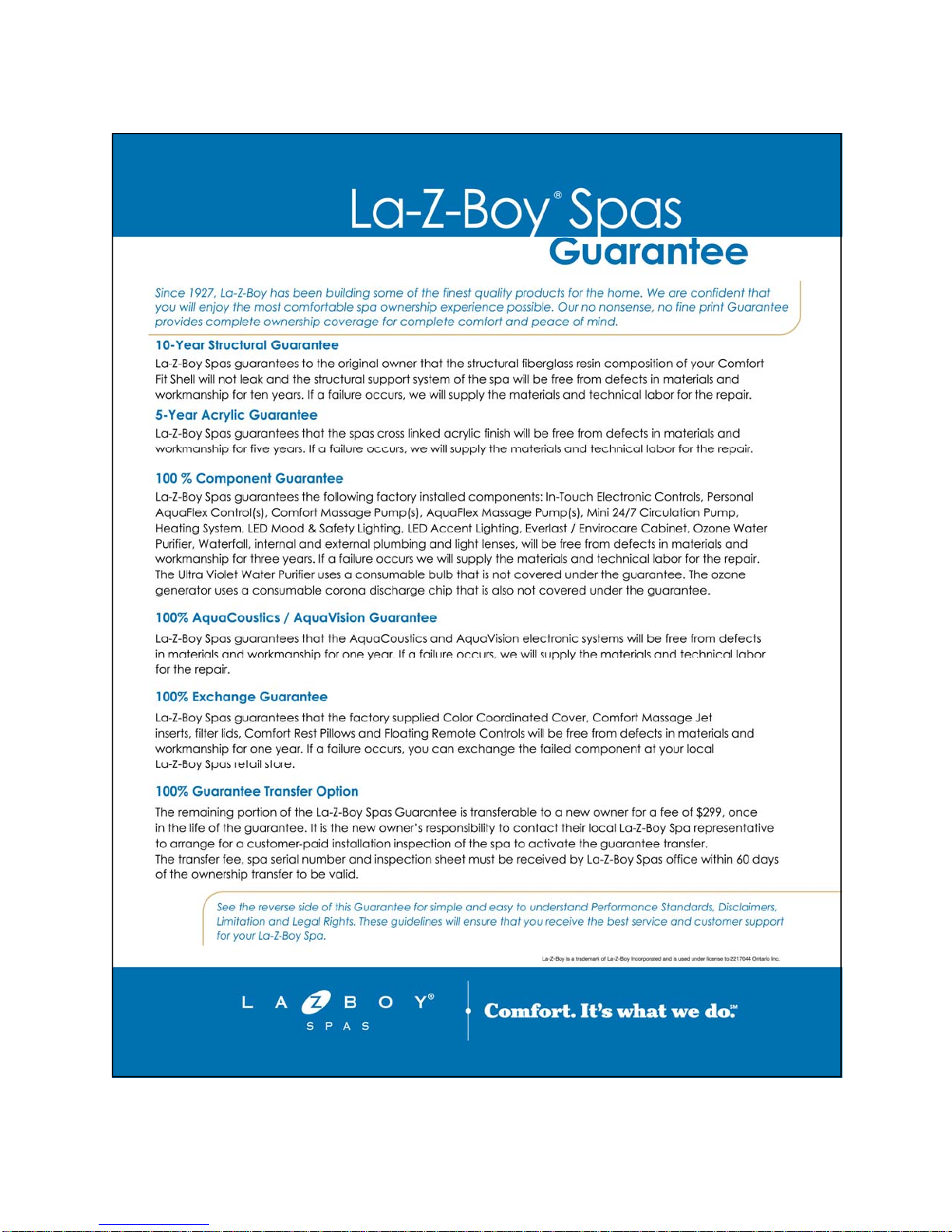

Guarantee..……………………………………………………………………………….… 08
Introduction…………………………………………………………………………………. 10
Location and Installation…………………………………………………………………... 11
Electrical Specifications…………………………………………………………………… 12
Startup………………………………………………………………………………………. 15
Water Quality……………………………………………………………………………….. 21
In-Touch 3000 Electronic Control……………………………………………………….. 24
AquaFlex Massage Control……………………………………………………………….. 31
Premium AquaCoustics Surround Sound Stereo………………………………………. 34
IR Remote Control…………………………………………………………………………. 35
AquaVision LCD Video System…………………………………………………………... 36
Color Coordinated Cover………………………………………………………………….. 37
Water Management………………………………………………………………………... 38
Frequently Asked Questions……………………………………………………………… 39
Troubleshooting……………………………………………………………………………. 42
Maintenance and Care……………………………………………………………………. 48
Shutdown / Winterizing……………………………………………………………………. 51
Glossary…………………………………………………………………………………….. 52
Notes………………………………………………………………………………………… 53

3
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
SAFETY INFORMATION
WARNING
SAVE THESE INSTRUCTIONS
IMPORTANT USER SAFETY INSTRUCTIONS
Your physiological response to hot water is subjective and depends on your age, health, and
medical history. If you don’t know your tolerance to hot water, or if you get a headache, or be-
come dizzy or nauseous when using your spa / hot tub, get out and cool off immediately.
1. CHILDREN SHOULD NOT USE SPAS OR HOT TUBS WITHOUT ADULT SUPERVISION.
2. DO NOT USE SPAS OR HOT TUBS UNLESS ALL SUCTION GUARDS ARE INSTALLED TO PREVENT
BODY AND HAIR ENTRAPMENT.
3. PEOPLE USING MEDICATIONS AND/OR HAVING ANY ADVERSE MEDICAL HISTORY SHOULD CON-
SULT A PHYSICIAN BEFORE USING A SPA OR HOT TUB.
4. PEOPLE WITH INFECTIOUS DISEASES SHOULD NOT USE A SPA OR HOT TUB.
5. TO AVOID INJURY, EXERCISE CARE WHEN ENTERING OR EXITING THE SPA OR HOT TUB.
6. DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING THE USE OF A SPA OR HOT TUB, TO AVOID
UNCONSCIOUSNESS AND POSSIBLE DROWNING.
7. PREGNANT OR POSSIBLE PREGNANT WOMEN SHOULD CONSULT A PHYSICIAN BEFORE USING A
SPA OR HOT TUB.
8. WATER TEMPERATURE IN EXCESS OF 38°C (100°F)MAY BE INJURIOUS TO YOUR HEALTH.
9. BEFORE ENTERING THE SPA OR HOT TUB, MEASURE THE WATER TEMPERATURE WITH AN ACCU-
RATE THERMOMETER.
10. DO NOT USE A SPA OR A HOT TUB IMMEDIATELY FOLLOWING STRENUOUS EXERCISE.
11. PROLONGED IMMERSION IN A SPA OR HOT TUB MAY BE INJURIOUS TO YOUR HEALTH.
12. DO NOT PERMIT OR USE ELECTRIC APPLIANCES (SUCH AS LIGHT, TELEPHONE, RADIO OR TELEVI-
SION) WITHIN 1.5M (5FT) OF THIS SPA OR HOT TUB.
13. CHILDREN SHOULD NOT ENTER A HOT TUB WHERE THE WATER TEMPERATURE EXCEEDS BODY
TEMPERATURE (37°C / 98.6°F).
14. DO NOT ALLOW CHILDREN TO SUBMERGE THEIR HEAD UNDER WATER.
15. NEVER OPERATE THE HOT TUB PUMP AT HIGH SPEED WITHOUT HAVING ALL SUCTION AND RE-
TURN LINES OPEN.
16. ALWAYS KEEP THE HARDCOVER INSTALLED AND LOCKED WHEN THE HOT TUB IS NOT IN USE.
17. TEST THE GFCI (GROUND FAULT CIRCUIT INTERRUPTER) MONTHLY.
18. POST EMERGENCY PHONE NUMBERS FOR POLICE, FIRE DEPARTMENT, AND AMBULANCE AT THE
NEAREST PHONE.
19. TO REDUCE THE RISK OF INJURY
• THE WATER IN A SPA SHOULD NEVER EXCEED 40°C (104°F). WATER TEMPERATURES BETWEEN
38°C (100°F) AND 40°C (104°F) ARE CONSIDERED SAFE FOR A HEALTHY ADULT. LOWER WATER
TEMPERATURES ARE RECOMMENDED FOR YOUNG CHILDREN AND WHEN SPA USE EXCEEDS
10 MINUTES.
• SINCE EXCESSIVE WATER TEMPERATURES HAVE A HIGH POTENTIAL FOR CAUSING FETAL
DAMAGE DURING THE EARLY MONTHS OF PREGNANCY, PREGNANT OR POSSIBLY PREGNANT
WOMEN SHOULD LIMIT SPA WATER TEMPERATURES TO 38°C (100°F).
• BEFORE ENTERING A SPA, THE USER SHALL MEASURE THE WATER TEMPERATURE SINCE THE
TOLERANCE FOR WATER TEMPERATURE-REGULATING DEVICES VARIES.
• THE USE OF ALCOHOL, DRUGS, OR MEDICATION BEFORE OR DURING SPA USE MAY LEAD TO
UNCONSCIOUSNESS, WITH THE POSSIBILITY OF DROWNING.
• OBESE PERSONS AND PERSONS WITH A HISTORY OF HEART DISEASE, LOW OR HIGH BLOOD
PRESSURE, CIRCULATORY SYSTEM PROBLEMS OR DIABETES SHOULD CONSULT A PHYSICIAN
BEFORE USING A SPA.
• PERSONS USING MEDICATION SHOULD CONSULT A PHYSICIAN BEFORE USING A SPA SINCE
SOME MEDICATION MAY INDUCE DROWSINESS WHILE OTHER MEDICATION MAY EFFECT
HEART RATE, BLOOD PRESSURE AND CIRCULATION.

4
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
SAVE THESE INSTRUCTIONS
IMPORTANT SAVE THESE INSTRUCTIONS
Your physiological response to hot water is subjective and depends on your age, health, and medical history. If you
don’t know your tolerance to hot water, or if you get a headache, or become dizzy or nauseous when using your hot
tub, get out and cool off immediately.
CAUTION
1. MAINTAIN WATER CHEMISTRY IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS.
DANGER
1. RISK OF ACCIDENTAL DROWNING. EXTREME CAUTION MUST BE EXERCISED TO PREVENT UNAU-
THORIZED ACCESS BY CHILDREN. TO AVOID ACCIDENTS, ENSURE THAT CHILDREN CAN’T USE THE
SPA UNLESS THEY ARE SUPERVISED AT ALL TIMES.
2. RISK OF INJURY. THE SUCTION FITTINGS IN THIS SPA ARE SIZED TO MATCH THE SPECIFIC WATER
FLOW CREATED BY THE PUMP. SHOULD THE NEED ARISE TO REPLACE THE SUCTION FITTINGS OR
THE PUMP, BE SURE THAT THE FLOW RATES ARE COMPATIBLE. NEVER OPERATE THE SPA IF THE
SUCTION FITTINGS ARE BROKEN OR MISSING. NEVER REPLACE A SUCTION FITTING WITH ONE
RATED LESS THAN THE FLOW RATE MARKED ON THE ORIGINAL SUCTION FITTING.
3. RISK OF ELECTRIC SHOCK. INSTALL AT LEAST 1.5M (5FT) FROM ALL METAL SURFACES. AS AN AL-
TERNATIVE, A SPA MAY BE INSTALLED WITHIN 1.5M (5FT) OF METAL SURFACES IF EACH METAL
SURFACE IS PERMANENTLY CONNECTED BY A MINIMUM 8 AWG (8.4 mm2) SOLID COPPER CONDUC-
TOR TO THE WIRE CONNECTOR ON THE TERMINAL BOX THAT IS PROVIDED FOR THIS PURPOSE.
4. RISK OF ELECTRIC SHOCK. DO NOT PERMIT ANY APPLIANCE, SUCH AS A LIGHT, TELEPHONE, RA-
DIO, OR TELEVISION, WITHIN 1.5M (5FT) OF THE SPA.
HYPERTHERMIA
Since your hot tub can be set to reach temperatures of 40°C (104°
F), users should be aware that extended submersion in water that
exceeds normal body temperature can lead to hyperthermia.
The causes, symptoms and effects of hyperthermia may be de-
scribed as follows:
Hyperthermia occurs when the internal temperature
of the body reaches several degrees above the normal
body temperature of 37°C (98.6°F). The symptoms of
hyperthermia include drowsiness, lethargy, and an increase in the
internal temperature of the body. The effects of hyperthermia in-
clude:
• Unawareness of impending hazard
• Failure to perceive heat
• Failure to recognize the need to exit the hot tub
• Physical inability to exit the hot tub
• Fetal damage in pregnant woman
• Unconsciousness resulting in the danger of drowning
If you sense any of the symptoms of hyperthermia, safely
exit the hot tub immediately.
WARNING
THE USE OF ALCOHOL, DRUGS OR
MEDICATION CAN SIGNIFICANTLY
INCREASE THE RISK OF FATAL
HYPERTHERMIA.

5
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
IMPORTANT ELECTRICAL SAFETY INSTRUCTIONS
SAFETY COMES FIRST WHEN INSTALLING & USING THIS ELECTRICAL EQUIPMENT, BASIC
SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED!
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Electrical installation must be completed by a qualified electrician in accordance with all National,
Regional and Local Codes and Regulations in effect at the time of installation.
3. Connect only to a dedicated circuit protected by a class “A” two-pole ground fault circuit in-
terrupter (GFCI).
4. Use copper conductors only.
5. The hot tub equipment and all electrical plugs, outlets and lights within 1.5m (5 ft) of the unit must be
GFCI protected. Consult your electrician or local electrical authority for further details.
6. A green colored terminal or a terminal marked “G”, “GR”, “Ground”, or “Grounding” is located inside
the supply terminal box or compartment. To reduce the risk of electric shock, this terminal must be
connected to the grounding means provided in the electric supply service panel with a continuous
copper wire equivalent in size to the circuit conductors supplying the equipment.
7. At least two lugs marked “BONDING LUGS” are provided on the external surface or on the inside
of the supply terminal box or compartment. To reduce the risk of electric shock, connect the local
common bonding grid in the area of the hot tub to these terminals with an insulated or bare copper
conductor not smaller than No. 6 AWG (Canada/Europe) / No. 8 AWG (USA).
8. All field installed metal components such as rails, ladders, drains or other similar hardware within 3m
(10 ft) of the hot tub shall be bonded to the equipment grounding bus with copper conductors not
smaller than No. 6 AWG.
9. SAVE THESE INSTRUCTIONS
NORTH AMERICA
• The minimum wire size for systems that require a 40A SIEMENS GFCI is #8/3 conductor with
ground. (also referred to as #8 gauge / 4 conductor).
• The minimum wire size for systems that require a 50A or 60A SIEMENS GFCI is #6/3 conductor
with ground (also referred to a #6 gauge / 4 conductor).
IMPORTANT NOTE:
• This guide is for standard installations where the wire run is 15m (50 ft) or less. For longer runs, con-
sult a qualified electrician.
WIRE SIZES

6
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
SAFETY SIGN
Safety Sign Must Be Posted – The orange WARNING sign like the one shown is
packed with your new spa / hot tub. This sign must be posted in a prominent place in
close proximity to the spa installation site immediately upon completion of spa
installation.
Important: It is extremely important that this sign be permanently placed in clear view
of persons using the spa / hot tub. Occasional spa / hot tub users may not be aware of
some of the dangers hot water poses to pregnant women, small children, seniors, and
people under the influence of alcohol. If you did not receive a warning sign or your
sign has become damaged, please call your local dealer for a replacement.

7
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Dealer:
Installer:
Spa:
Date Purchased: ___________________________________________________________________
Company: ___________________________________________________________________
Address: ___________________________________________________________________
Telephone: ___________________________________________________________________
Date Installed: __________________________________________________________________
Company: __________________________________________________________________
Address: __________________________________________________________________
Telephone: __________________________________________________________________
Date Delivered: ___________________________________________________________________
Model: ___________________________________________________________________
Color: ___________________________________________________________________
Serial Number: ___________________________________________________________________
Your unique spa / hot tub serial number is located on a data plate outside the cabinet
at ground level directly below the topside control panel. When calling for service,
please have your serial number in hand.

8
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

9
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

10
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
INTRODUCTION
Your choice of a La-Z-Boy®Premier Spa indicates that you are devoted to excellence.
The management and staff appreciate your patronage and take pride in the tradition of
quality spas / hot tubs that our company represents.
To properly acquaint yourself with your spa / hot tub, we suggest that you take time to
read through this manual before hook up and operation. Doing so will familiarize you
with important operating and safety procedures, thereby ensuring an enjoyable
experience right from the start.
If you need any more information than this manual provides, feel free to call your local
dealer or visit our web site at www.lazboyspas.com.
This manual was written to ensure the proper use and installation of
your spa / hot tub. Any modifications to the procedures outlined in
this manual may result in voiding your guarantee.
This manual and its contents are subject to change without notice. Although we have
prepared this manual as accurately as possible, we are not liable for errors or
omissions; loss, injury, or damages caused by improper installation; or use of spa / hot
tub (improper or otherwise).
Notes:_______________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
NOTICE

11
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
LOCATION AND INSTALLATION
Proper planning is an important consideration when installing your new spa / hot tub.
Site selection is a critical step and requires serious thought. Planning ahead makes the
installation process easier. The following information is provided to assist you in site
preparations.
1. Always comply with local building codes and obtain any necessary permits. You
may also need to consult with an engineer to address your specific design
needs.
2. Contact an electrician to assess your electrical needs, install wiring, and ensure
a safe operation.
3. Position your spa / hot tub with proper access to water, drainage, and electricity.
4. Place your spa / hot tub on a uniform solid, flat surface designed to properly
support its weight. For external installations, a 4-inch (10 cm) thick cement pad
suffices.
5. For internal installations, check the load carrying capabilities of the floor on
which the spa will reside. Most homes meet the requirement of 250 pounds per
square foot.
6. Ensure that your spa / hot tub will fit into the space you have chosen and the
delivery route will accommodate its large size.
7. Provide adequate ventilation for the humidity created by your spa / hot tub. In
most cases, the Color Coordinated Cover is sufficient.
8. Protect the pump and all equipment from the weather by ensuring the cabinet
panels are secure at all times.
9. Allow 36 inches (1 meter) of unobstructed access to all sides of your spa / hot
tub for normal servicing. Your spa / hot tub is not designed to be recessed in the
ground or in a deck.
10.Consider positioning your spa / hot tub out
of or adequately protecting it from the
wind. Just as people can get cold on cool/
windy days so can your spa / hot tub.
Windy environments can significantly in-
crease operating costs.
11.Consider using an insulating pad. In cold
climates, the ground can rob heat from
the spa / hot tub and increase your oper-
ating costs. Consider using a suitable,
outdoor insulating pad in such environ-
ments.
Figure 1 – Clearances and Support

12
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
ELECTRICAL SPECIFICATIONS
Important: Qualified and licensed electricians must perform all electrical hookups.
The following specifications must be followed in order to ensure proper performance
and safety.
Starting an incorrectly wired spa / hot tub could cause severe damage
to the mechanical equipment or even bodily harm. Have your licensed
electrician verify GFCI wiring with the schematics on page 13-14 prior to
starting the spa / hot tub or call your dealer.
Failure to abide by specifications listed may result in damage to the
equipment and will void the warranty.
Test the GFCI before each use of the spa / hot tub.
All spa / hot tubs must be wired with a Siemens breaker (or according to IEEE wire
regulations for export models). Failure to do so will cause equipment damage and will
not be covered under your guarantee. All spa / hot tubs must be protected with an over
current protective device with built-in GFCI in the service panel.
Volts
(V) Freq. (Hz) Phase Rating (A) GFCI (A) Wire size from GFCI to Main Panel*
# of
Terminals
on plug
240 60 1 40 50
8-3 plus ground (less than 130’)
6-3 plus ground (up to 130’)
4
240 60 1 48 60 6-3 plus ground 4
Table 1 – Wire Size Chart
* Use only solid copper wire.
WARNING
CAUTION

13
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Parts with extra low voltage (not exceeding 12V) must be inaccessible to a person in
the spa / hot tub. Earthed appliances must be permanently connected to fixed wiring.
Parts incorporating electrical components must be located or fixed so that they
cannot fall into the spa / hot tub.
Means for disconnection must be used with fixed wiring configurations in accordance
with local wiring rules.
IMPORTANT: To allow the GFCI to function properly, connect the white Neutral wire
from the spa / hot tub to the Neutral terminal on the GFCI breaker, not the Neutral bus
bar in the GFCI breaker box. An improperly connected Neutral causes the GFCI
breaker to trip.
Figure 2 - GFCI Wiring
Disconnect the electrical power before servicing. Before obtaining
access to terminals, all supply circuits must be disconnected.
WARNING

14
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Figure 3 - U.S. and Canada Wiring Diagram
See wire size chart on page 12
IMPORTANT: Use only a Siemens GFCI Circuit Breaker. Installation, including se-
lection of conductor size and type, must be performed by a qualified electrician in ac-
cordance with the National Electrical Code or the Canadian Electrical Code, and all
federal, state and local codes and regulations in effect at the time of installation.
NOTE: The white neutral wire from the
edge of the GFCI must be connected
to the incoming line neutral. The inter-
nal mechanism of the GFCI requires
this neutral connection. The GFCI will
not work without it.

15
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
STARTUP
Important: Read these step-by-step startup procedures before using your spa / hot
tub. Failure to do so may result in damage to the equipment and may void your
Guarantee
Note: If you are unsure of any of the startup procedures below, please call your local
dealer for assistance. For best results, read each step in its entirety before proceeding.
Running the spa / hot tub pump dry (without water running through
it) can cause IMMEDIATE damage and will void the Guarantee. Be
sure that the spa / hot tub is installed properly in accordance with
the instructions in this manual.
Refer to the following picture for an explanation of your spa / hot tubs controls,
components, and technical terms.
Note:Not all models have all features and components.
Figure 4 - Callouts
CAUTION

16
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
BEFORE ADDING WATER
Before adding water, go through these simple steps now to prevent common issues
when setting up your spa / hot tub for the first time. Verify that the following have all
been rechecked.
1. Turn off all power at the main breaker panel.
2. Open the side panels to access the internal components.
3. Check that all slide valves are opened (service T-handles
pulled out) to the heater and all pumps.
4. Check that there are no obvious signs of loose wires or
broken pipes.
5. Check that the two heater unions are tight. Figure 5 - Valve Open/Closed
6. Check that the unions on all pumps are tight.
7. Clean out any foreign debris from within the service access area or inside of the
spa / hot tub itself.
8. With the drain open and filters removed, thoroughly rinse out the spa / hot tub with
warm water until the drained water runs clear. Run water through the filtration
canister and jet lines to remove any incidental dust, dirt, and debris that may have
accumulated during shipment or installation. Drain all water completely.
9. Make sure that the spa / hot tub drain valve is closed and the cap is on tight (see
page 49).
10.Install the filters in the filtration canister.
11.Check that all of the jets are open (turned full counter-clockwise – except for 5”
spinner jets which open clockwise).
12.Now is the best time to clean and polish the surfaces of your spa (see page 50).
Figure 6 - Unions Tight
Do not use a wrench. Over-tightening may cause damage to union and
gaskets, which will not be covered the Guarantee.
CAUTION

17
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
FILLING YOUR SPA
Now it's time to fill your spa / hot tub with water. Do not turn
on the electricity yet, until the spa / hot tub is completely
filled. To properly fill your spa / hot tub:
1. Make sure that the filters (in the filtration canister) are
gently screwed into place. Turn them clockwise until
they stop, being careful not to over-tighten them (this
avoids cracking the filter).
2. Connect a standard garden hose to a faucet with regular
cold tap water (not softened water or hot water). Figure 7 - Filtration Canister
The water from your hot water tank should not be used to fill the
spa / hot tub.
3. Put the pre-filter* on the other end of the hose, point the pre-filter into a suitable
drain, turn on the water, and allow any sediment to be flushed down the drain.
Once the water stream runs clear, turn off the hose.
4. Put the pre-filter (if equipped) into the filtration canister and turn on the hose.
5. Fill slowly. If too much water pressure is used, foaming water can force air into
the pipes and cause startup problems.
* Pre-filters are available at most dealers
Important: To ensure that the pump is properly primed, fill the spa / hot tub through
the filter area only.
6. Fill the spa / hot tub until the water level is about 6” below the top lip of the spa /
hot tub. Do not over fill.
Note: Every person entering a spa / hot tub displaces a given volume of water, so
adjust water level to the number of people regularly using the spa / hot tub.
Turn off the hose and check again for any small leaks.
CAUTION

18
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
OPERATIONAL CHECKS
By now you have rechecked your spa / hot tub mechanical connections and filled it
with water through the pre-filter (if equipped). Turn on power to the spa / hot tub at the
main breaker panel and test the operation of the electrical system. If you encounter a
problem, please reference the troubleshooting guide on page 42.
1. Turn on the breaker and test the operation of the Ground-Fault Circuit Interrupter
(GFCI) breaker by pushing the small button. This should automatically trip the spa /
hot tub circuit breaker. Only if pushing this button successfully trips this circuit
breaker should you reset this breaker and proceed to the next step.
If this breaker does not trip, immediately call your electrician.
Do not use your spa / hot tub!
2. Go to the topside control panel and look at
the display. The system goes through a brief
startup sequence after which Pump 1 starts
in filtration mode and the panel displays the
current water temperature.
3. Press the Pump 1 button . You should hear the first AquaFlex Massage
pump turn on a higher speed, see water circulating in the spa, see the icon swirl on
the display, and see CO in the AquaFlex Massage Control (see page 31).
Figure 8 – Topside Control Panel
CAUTION
DANGER
INITIAL START UP PROCEDURE
Do not turn on any pump until your spa is properly filled with
water. Running any pump without water in your spa can cause
IMMEDIATE damage, which is not covered by the guarantee!

19
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
If water does not flow from the jets after 2 minutes, turn power off
at the main panel and bleed air from the system (see page 41).
Turn power on again. Sometimes momentarily turning a pump off/
on will prime it. Only do this four times.
4. Press again. You should hear the first pump turn on a higher speed and
the icon swirl faster.
Note: Repeatedly pressing the button raises the speed each time (40%, 60%, 100%,
and OFF*).
5. If the water is running smoothly through the lines, open the air control valve, you
should see an increase in jet pressure. Check and adjust the water/airflow of every
jet if necessary. Do this for all pumps to ensure proper operation. Each jet** in your
spa / hot tub can be adjusted for directional flow. Turn the outer jet dial fully
counterclockwise to permit water flow from a jet and allow the AquaFlex Massage
control the intensity. Pivot the angle of a jet to achieve an optimal massage. Adding
an air mixture intensifies the level of your massage. Turn the air control valve
counterclockwise to increase the air mixture and clockwise to turn it off.
Note: To minimize heat loss, close the air control valve when your spa / hot tub is not
in use.
6. Continue pressing until Pump 1 slows.
Note: When programmed for continuous filtration and when temperature limits allow,
Pump 1 and the ozone generator run continuously to help keep your water clean (see
page 27).
7. Press the Pump 2 button (if equipped). You should hear the second pump
(fixed-speed) turn on, see water circulating in the spa / hot tub, and see the icon
swirl on the display. If Pump 2 has not primed after 3 minutes repeat same priming
procedure of step 3 above for Pump 1. Check and adjust the water and airflow of
every jet from Pump 2 if necessary.
8. Press again. You should hear the second pump turn on a higher speed
and see the icon swirl faster.
9. Press a third time to turn off Pump 2. A built-in timer automatically turns
Pump 2 off after 20 minutes, unless you turn it off first.
* If the spa is in filtration mode, the pump slows to 20% and does not turn OFF.
**The 3” spinner jets and the constant filtration jets are not adjustable.
CAUTION

20
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
10. Press the Pump 3 button (if equipped). You should hear the second
AquaFlex pump turn on, see water circulating in the spa / hot tub, and see the icon
swirl on the display. If Pump 3 has not primed after 3 minutes repeat same priming
procedure of step 3 above for Pump 1. Check and adjust the water and airflow of
every jet from Pump 3 if necessary.
Note: Repeatedly pressing the button raises the speed each time (40%, 60%, 100%,
and OFF).
11. Continue pressing until Pump 3 turns off. A built-in timer automatically
turns Pump 3 off after 20 minutes, unless you turn it off first.
12. Press the Light button to turn the light on. Press this button again to cycle
through the many available colors. Once a desired color is found, pressing this
button again stays on this color.
13. Press again to turn the light off. A built-in timer automatically turns the light
off after two hours, unless you turn it off first.
