Laars SUMMIT SMB-200 Operation manual

User's Information Document 1141A
User's Information for
SUMMIT
Modulating Condensing Boiler
Models SMB-200
SMB-250
H2211300A
WARNING
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
nearby phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed by a
qualified installer, service agency, or gas
supplier.
FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician,
qualified in hot water boiler installation and maintenance. Improper installation and/or operation could
create carbon monoxide gas in flue gases which could cause serious injury, property damage, or death.
Improper installation and/or operation will void the warranty.
AVERTISSEMENT
Assurez-vous de bien suivres les instructions
données dans cette notice pour réduire au
minimum le risque d’incendie ou d’explosion ou
pour éviter tout dommage matériel, toute
blessure ou la mort.
Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d’allumer d’appareils.
• Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones dansle bâtiment où vous
vous trouvez.
• Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le sservice des incendies.
L’installation et l’entretien doivent être assurés par
un installateur ou un service d’entretien qualifié ou
par le fournisseur de gaz.

LAARS HEATING SYSTEMS
Page 2
Table of Contents
SECTION 1.
Caring For Your Summit
1A. General Care ................................................ 5
1B. Annual Inspection of Flues and Vents ........... 5
1C. Shutting Down the Summit ........................... 5
1D. To Restart Summit........................................ 5
1E. Annual Inspection of Condensate
Drain System ................................................ 6
1F. In the Event of Power Failure ........................ 6
1G. Full Service Every 3 Years ............................ 6

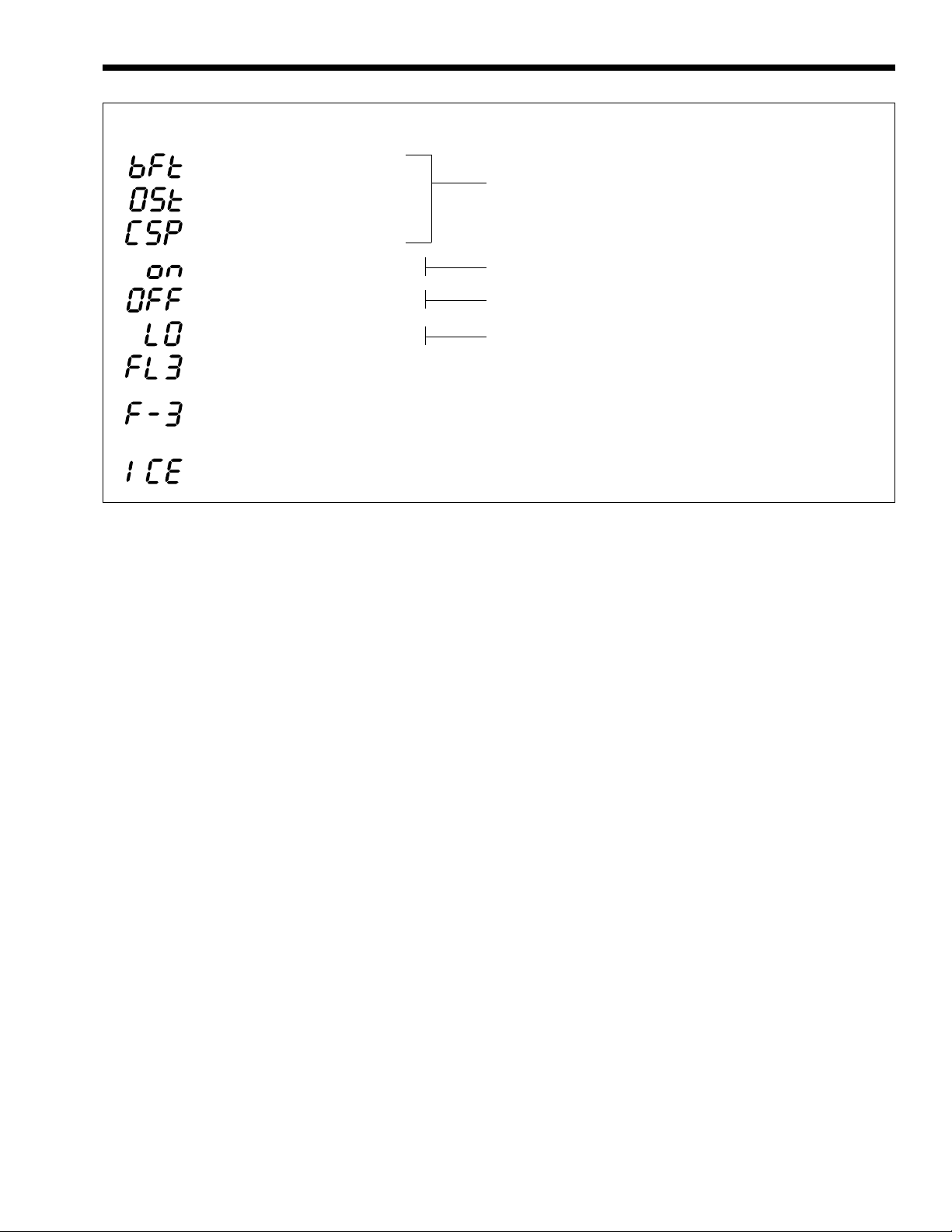

1H. Trouble Shooting - Fault Codes .................... 7
1H-1. Fault Code Identification ............................... 7

SUMMIT Page 3
4. This appliance is equipped with an ignition
device which automatically lights the burner.
Do not try to light the burner by hand.
5. Remove front cover.
6. Turn gas shutoff valve to “off”. Handle will be
aligned across gas pipe. Do not force.
7. Wait five (5) minutes to clear out any gas. If
you then smell gas, STOP! Follow “B” in the
safety information above on this label. If you
don't smell gas, go to next step.
8. Turn gas shutoff valve to “on”. Handle will be
aligned along gas pipe.
9. Turn on all electric power to appliance,
depress on/off button on control panel,
depress black button on top of control panel.
10. Replace front cover.
11. Set thermostat to desired setting.
12. If the appliance will not operate, follow the
instructions “To Turn Off Gas To Appliance”
and call your service technician or gas
supplier.
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING
If you do not follow these instructions exactly, a fire or explosion
may result, causing property damage, personal injury or loss of life.
A. This appliance does not have a pilot. It is
equipped with an ignition device which
automatically lights the burner. Do not try to
light the burner by hand.
B. BEFORE OPERATING smell all around the
appliance area for gas. Be sure to smell next
to the floor because some gas is heavier
than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
C. Turn off gas shutoff valve (located above the
combination gas control) so that the handle
is aligned across the gas pipe. If the handle
will not turn by hand, don't try to repair it, call
a qualified service technician. Force or
attempted repair may result in a fire or
explosion.
D. Do not use this appliance if any part may
have been under water. Immediately call a
qualified service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
may have been under water.
OPERATING INSTRUCTIONS
1. STOP! Read the safety information above on
this label.
2. Set the thermostat to lowest setting.
3. Turn off all electric power to the appliance.
TO TURN OFF GAS TO APPLIANCE
1. Set the thermostat to lowest setting.
2. Turn off all electric power to the appliance if
service is to be performed.
3. Remove front cover.
4. Turn gas shutoff valve “off”. Handle will be
aligned across gas pipe. Do not force.
5. Replace front cover.
H2013100A

LAARS HEATING SYSTEMS
Page 4
5. Retirez le couvercle avant.
6. Mettez la soupape d’arrêt de gaz à «off». La
poignée se trouvera perpendiculaire au tuyau de
gaz. N’employez pas de force.
7. Attendez cinq (5) minutes afin que le gaz se
dissipe. Si vous croyez sentir une odeur de gaz,
ARRÊTEZ ! Reportez-vous aux instructions B ci-
dessous, sur cette étiquette. S’il n’y a pas
d’odeur de gaz, passez à la prochaine étape.
8. Mettez la soupape d’arrêt de gaz à «on». La
poignée sera parallèle au tuyau de gaz.
9. Rétablissez l’alimentation électrique à l’appareil,
appuyez sur le bouton «on/off» qui se trouve sur
le panneau de commande, appuyez sur le
bouton noir qui se trouve sur le panneau de
commande.
10. Replacez le couvercle avant.
11. Réglez le thermostat à la température désirée.
12. Si l’appareil ne fonctionne pas, suivez les
directives relatives à la fermeture de
l’alimentation en gaz et communiquez avec votre
technicien de service ou le fournisseur de gaz.
PAR MESURE DE PRUDENCE, LISEZ CE QUI SUIT AVANT
DE FAIRE FONCTIONNER L’APPAREIL
MISE EN GARDE
Si vous ne suivez pas ces instructions à la lettre, un incendie ou une
explosion pourrait se produire et causer des dommages matériels,
des blessures personnelles ou même la mort.
A. Cet appareil n’est pas doté d’une veilleuse. Il est
équipé d’un dispositif d’allumage qui allume
automatiquement le brûleur. Ne tentez pas
d’allumer le brûleur manuellement.
B. AVANT D’UTILISER, vérifiez s’il n’y a pas
d’odeur de gaz près de l’appareil. Vérifiez s’il n’y
a pas d’odeur de gaz près du plancher, car le
gaz est plus lourd que l’air et peut se déposer
sur le plancher.
QUE FAIRE EN CAS D’ODEUR DE GAZ
• N’essayez pas d’allumer n’importe quelque
appareil que ce soit.
• Ne touchez pas à un commutateur électrique.
N’utilisez pas le téléphone de votre résidence.
• Appelez immédiatement votre fournisseur de
gaz en utilisant le téléphone de votre voisin.
Suivez les instructions de votre fournisseur de
gaz.
• Si vous ne pouvez joindre votre fournisseur
de gaz, appelez le service des incendies.
C. Fermez la soupape d’arrêt de gaz (située au-
dessus de la commande de gaz multifonctions)
de sorte que la poignée soit perpendiculaire au
tuyau de gaz. Si vous ne pouvez tourner la
poignée à la main, n’essayez pas de la réparer.
Communiquez avec un technicien de service
qualifié. Le fait de forcer ou de tenter de réparer
la poignée pourrait causer un incendie ou une
explosion.
D. N’utilisez pas cet appareil si l’une des pièces a
été plongée sous l’eau. Communiquez
immédiatement avec un technicien de service
qualifié afin qu’il inspecte l’appareil et remplace
toute pièce du système de commande et toute
commande de gaz qui aurait été plongée sous
l’eau.
NOTICE D’UTILISATION
1. ARRÊTEZ ! Lisez l’information de sécurité ci-
dessus, sur cette étiquette.
2. Réglez le thermostat au réglage le plus bas.
3. Coupez l’alimentation électrique à l’appareil.
4. Cet appareil est doté d’un dispositif d’allumage
qui allumera automatiquement le brûleur.
Ne tentez pas d’allumer le brûleur manuellement.
FERMETURE DE L’ALIMENTATION EN GAZ
1. Réglez le thermostat au réglage le plus bas.
2. Coupez toute alimentation électrique à l’appareil
si celui-ci doit faire l’objet d’un entretien.
3. Retirez le couvercle avant.
4. Mettez la soupape d’arrêt de gaz à «off». La
poignée se trouvera perpendiculaire au tuyau de
gaz. N’employez pas de force.
5. Replacez le couvercle avant. H2013100A

SUMMIT Page 5
SECTION 1.
Caring For Your Summit
Your Summit will require very little
maintenance. However, as with any fine appliance,
there are certain steps you should take to insure
continuing optimum performance.
1A. General Care
Keep your Summit area clean and free from
combustible materials, gasoline and other flammable
vapors and liquids.
If you desire, clean the jacket surfaces with a
damp cloth and mild soap. Do not use flammable
cleaning materials.
Keep vent terminal free of obstructions — do
not pile snow against vent terminal.
1B. Annual Inspection of Flue and Vents
You should visually inspect the vent pipe once a
year. Should any deterioration exist, have the affected
parts replaced.
1C. Shutting Down the Summit Boiler
If the need arises to shut down your boiler, the
following steps are required.

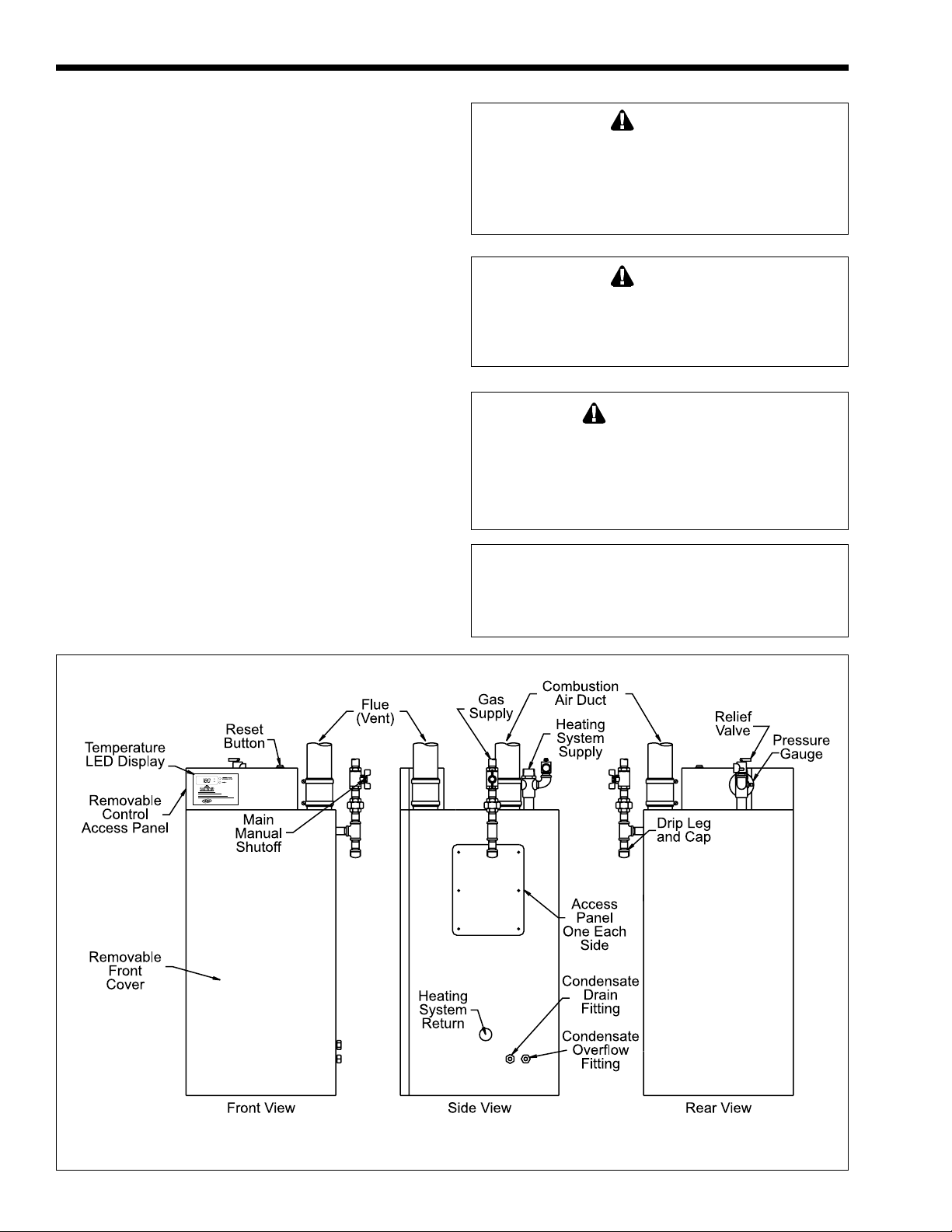

1. Switch off main disconnect switch (located on
left side of unit).
2. Close manual gas shutoff valve above
combination gas control valve (inside unit).
3. Close main manual gas valve.
4. If freezing is anticipated, drain Summit and be
sure to also protect building piping from
freezing.
The above steps may require qualified service
personnel.
1D. To Restart Your Summit
Should the need arise, you may have to restart
your Summit. Follow these steps:
1. Momentarily depress reset button on top of
control panel
2. Turn up the thermostat to call for heat.
3. In approximately 2 seconds, the blower will
operate and ignition will occur after 35-40
seconds. It may take as long as 2½ minutes.
4. If it does not occur, wait 5 minutes and then
repeat steps 1 through 3.
5. If, after three attempts, you still do not get
ignition, shut down your Summit and call your
service man.
If drained, follow these steps:
1. Follow “Installation Manual” for proper filling
and purging.
2. Turn on main manual gas valve.
3. Remove front cover and turn on manual gas
shutoff valve, above combination gas control
valve.
4. Switch on main disconnect switch, depress on/
off button on front of control panel, and depress
black reset button on top of control panel (pump
and blower will start and igniter will be
energized, after 35 seconds the gas valve will be
energized, and ignition will occur). If ignition
does not occur within 2½ minutes switch “off”
main disconnect switch, wait 5 minutes and
switch “on” again. If after three attempts ignition
does not occur, initiate shutdown procedure and
call for service.
Figure 1. Cutaway View of Appliance.

LAARS HEATING SYSTEMS
Page 6
1E. Annual Inspection of Condensate
Drain System
Visually inspect the condensate drain lines. If
either clear plastic line appears to be full of
condensate (water), loosen the nut on the jacket that
retains the line and remove the line from the jacket
and clear any obstruction from the line. Replace line
and tighten nut.
1F. In the Event of Power Failure
The Summit cannot be operated during an
electrical power outage. If there is an extended power
outage with danger of freezing, then the Summit (and
all other water systems) should be completely drained.
When draining the Summit, turn off gas and turn off
main power switch. When replacing in service, refer
to start-up instruction for proper filling and purging.
1G. Full Service Every Three Years
In addition to the annual visual inspections by
the owner, a qualified service agency should conduct
a detailed inspection of all flue product carrying areas
of the boiler and vent system. This should be done in
accordance with the service instruction in the
“Installation and Operating Instructions Manual” for
the Summit.
Figure 2. Components Identification.
WARNING
Do not use this boiler if any part may have been
under water. Immediately call a qualified service
technician to inspect the boiler and to replace any
part of the control system and any gas control which
may have been under water.
WARNING
Should overheating occur or the gas supply fail to
shut off, do not turn off or disconnect the electrical
supply to the pump. Instead, shut off the gas supply
at a location external to the appliance.
AVERTISSEMENT
En cas de surchauffe ou si l’admission de gaz ne
peut être coupée, ne pas couper ni débrancher
l’alimentation électrique de la pompe. Fermer plutôt
le robinet d’admission de gaz à l’extérieur de
l’appareil.
FOR SERVICE
Contact your installing contractor, gas utility, Laars
dealer or call Laars for the nearest authorized
representative in your area.

SUMMIT Page 7
Identifies
Appliance Flow Temp (Supply)
Outdoor Air Temp
Calculated Set Point
On
Off
Lock Out
Third Failure (Failure Level)
Fault Code (Three) There are 7
different Fault Codes defined.
Freeze Protection
To read or change mode
During operation display will default to supply
temperature. Press temperatures button repetitively.
To sequence through three temperature indicators.
Appliance in standby mode: will change to bFt on call
for heat.
Appliance switched OFF. Press ON/OFF button for “ON”.
After three trials for ignition, will stand in lockout. Press
reset on top of panel to retry.
To monitor, press and hold temperature button for five
seconds. Display will indicate first of eight fault memories
(FL1). Then display one of seven fault conditions that
occurred previously. Display will sequence through the
eight memories.
Sensor has detected return temperature below 39°F (4°C).
Figure 3. Typical Display Identification Codes.
Message
1H. Trouble Shooting - Fault Codes
The Summit boiler is controlled by a Pactrol
integrated boiler control (PCB) which provides seven
fault codes with eight memories. To obtain fault
messages press-in on the message center fault button
until the first fault code (FL1) is displayed. The last
recorded fault will appear e.g. F-4 (flow thermistor
faulty - open or shorted). The control will then
sequence through all eight memories, indicating
alternately the fault number and the fault code (FL1,
F-?; FL2, F=?; …, FL8, F=?). The fault number in
fault code FL1 is the most recent fault.
1H-1. Fault Code Identification
The following seven fault codes may be observed:
F- Error corrected, control in auto reset period
(10 seconds)
F-0 No fault has occurred
F-1 Error occurred while reading fault logic of
main control
F-2 Over heat thermostat (Boiler or Flue) has
operated (open circuit)
F-3 Fan fault
F-4 Flow thermistor faulty (open or short-
circuited)
F-5 Differential Pressure Switch Contacts
opened

H2211300A
800.900.9276 • Fax [phone] (Customer Service, Service Advisors)
20 Industrial Way, Rochester, NH 03867 • 603.335.6300 • Fax [phone] (Applications Engineering)
1869 Sismet Road, Mississauga, Ontario, Canada L4W 1W8 • 905.238.0100 • Fax [phone]
www.Laars.com Litho in U.S.A. © Laars Heating Systems 0810 Document 1141A
