Lab-T Grand i10 User manual

Copyright ⓒ2019. Lab-T, Inc.
User Manual

RADIO MAP SETUP
PHONE MEDIA USB/AUX
POWER
PUSH
FILE
MIC
VOL
TUNE
ENTER
Connectivity Display Audio
with Navigation System
Grand i10

English
Please read this manual carefully before operating your set and retain it for future reference.
Designs and specications are subject to change without prior notice.
Contents

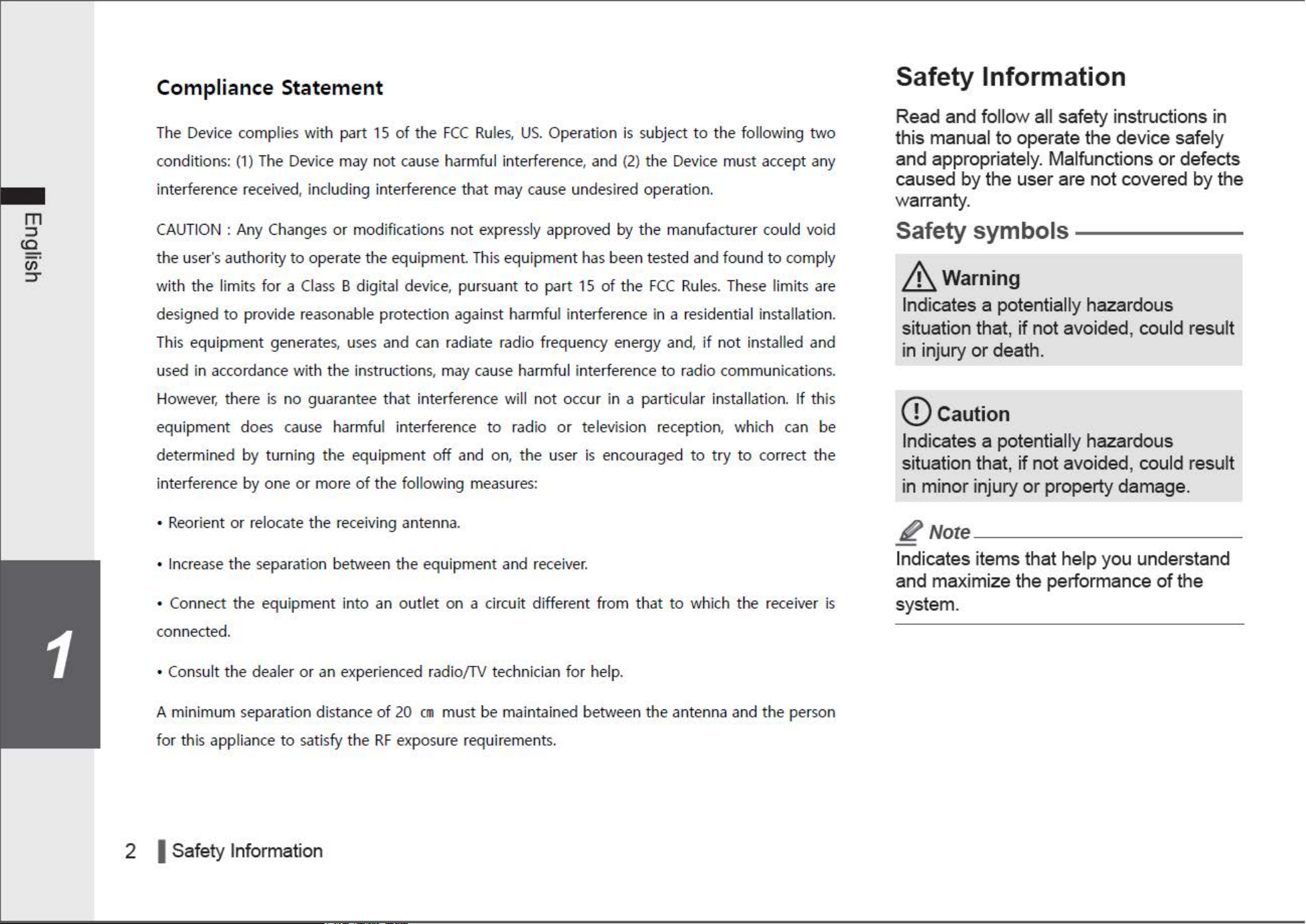

1 Safety Information
Safety symbols.............................. 2
Safety warnings ............................ 3
Safety cautions ............................. 3
2 Getting Started
Overview....................................... 4
Basic operation ............................. 6
Using the rearview camera screen 7
Media Home menu screen............ 8
Using the touch screen ................. 9
3 Connectivity Display Audio
Radio........................................... 10
USB/iPod Music player ............... 12
USB Video player........................ 14
USB Image player....................... 15
AUX player.................................. 16
Bluetooth Audio player ................ 17
4 Apple CarPlay (optional)
About Apple CarPlay................... 18
Apple CarPlay Home screen....... 18
5 Bluetooth Connectivity
About Bluetooth feature .............. 22
Bluetooth connection .................. 22
Phone functions .......................... 24
Bluetooth settings ....................... 27
6 Settings
Setting the Sound ....................... 28
Setting the Display ...................... 29
Setting the System...................... 30
7 Appendix
Troubleshooting .......................... 32
Specications.............................. 33
Contents▐1

English
Safety warnings
Warning
• Do not use the unit if there are audio
or screen problems. Operating the unit
in an abnormal state may cause
electric shock, injury, or fire.
• Do not disassemble or modify the unit.
Incorrect procedures can cause
electric shock, injury, fire, and
equipment malfunction.
• Do not use the unit at high volume
while driving. Listening at high volume
can reduce your ability to hear external
sounds and may cause an accident.
• Do not block the vent. Restricting
airflow traps heat inside the unit and
may cause malfunction or fire.
• Do not adjust the unit while driving.
Entering information or adjusting the
controls on the unit can distract your
attention while driving and may cause
an accident. Stop your vehicle in a
safe location before adjusting the unit.
• Do not use your phone in private mode
while you are driving. You must stop at
a safe location before using the phone
in private mode.
Safety cautions
Caution
• Some countries have laws restricting
the use of video screens while driving.
Use the unit only where it is legal to do
so.
• Do not operate the unit for a long
period while the engine is not
operating. This may cause the battery
to discharge.
• The recommended operating
temperature range for the unit is from
-20°C to 65°C. Operating the unit
outside the recommended range can
cause malfunction.
• Do not use unauthorized accessories.
Unauthorized accessories may cause
the unit to malfunction. Use authorized
accessories only.
• Do not allow the unit to come in
contact with moisture. Moisture can
damage the unit and cause
malfunction.
• When cleaning the screen, turn off the
unit and use a soft dry cloth. Do not
use abrasive cleaning products.
Abrasive products can damage the
screen or affect color and image
quality.
Safety Information▐3
• Do not apply excessive force to the
unit's screen. Doing so may damage
the screen.
• Do not use sharp objects to operate
the screen. Using a sharp object may
cause damage or malfunction.
1

English
Getting Started
Overview
This unit can be controlled by using the buttons on the unit or the
controls on the steering wheel. It also provides connections for
media devices.
This section explains the buttons and functions that are available
on the unit and the steering wheel and provides information
about connecting media devices.
►A/V system unit
RADIO MAP SETUP
PHONE MEDIA USB/AUX
POWER
PUSH
FILE
MIC
VOL
TUNE
ENTER
RADIO MAP SETUP
PHONE MEDIA USB/AUX
POWER
PUSH
FILE
MIC
VOL
TUNE
ENTER
➊
➋
➍
➌
➎
➏ ➐ ➑
➓
➒
󱁁
No./Name Description
➊POWER/
VOL Turns power on or mute function o󰀨/on (press);
turns power o󰀨 (press and hold); adjusts volume
(rotate).
➋RADIO Enters/changes Radio mode (press: FM1 → FM2 →
AM → FM1 → ... ).
➌MAP Enters Map screen for the current vehicle location
and the direction of travel (press).
For more information about how to use the map
feature, refer to the separate Navigation manual.
No./Name Description
➍PHONE Switches to Bluetooth Phone mode (optional: press).
➎MEDIA Enters Media home mode (press).
➏MIC Detects voice during phone conversations.
➐Reset Resets System settings (press).
• If the unit fails to operate properly, press this button
with a pen tip or another pointed instrument. (Preset
radio channels and other data will not be deleted)
➑When your iPhone is connected to the unit, activates
Siri function (option: press).
➒SETUP Enters Setup menu screen (press).
➓USB/AUX
port with
cover
Opens cover and connects USB/iPod or AUX device.
USB: Connect USB devices,
iPods, and iPhones.
AUX: Connect other external
devices.
󱁁FILE/TUNE
ENTER Changes/selects item for setting/searching (press);
nds a station manually, moves cursor for menu/
item selection or zoom in/out on Map screen (rotate).
Note
• The actual feature in the vehicle may di󰀨er from the illustration.
• Apple CarPlay may not be supported depending on your vehicle’s
options and which region the unit is being used in.
▌Getting Started
4
2

English
►Steering wheel remote control
MODE
MUTE
VOL
VOL
TRIP
RESET
➊➋
➎
➏
➌
➍
No./Name Description
➊VOL +/
VOL
-
Adjusts volume level (press/press and hold).
➋MUTE Mutes/unmutes audio/call sound (press)
➌MODE Changes unit's mode in the order: FM1 →FM2 →AM
→USB or iPod →AUX →Bluetooth Audio or Apple
CarPlay → FM1 → ... or turns power on unit (press)
• When your iPhone is connected to the unit for Apple
CarPlay feature, activates Siri function (optional:
press and hold).
➍/ Moves to previous/next le, track, or preset station
(press: except for AUX); automatically searches for
available stations or fast-forward/rewind the media le
(press and hold: except for AUX and Bluetooth audio).
➎
(option)
Enters Bluetooth Phone mode or receives an incoming
call (press); makes a call via last call (press and hold).
➏
(option)
Rejects or ends a call (press).
Getting Started▐5
2
Note
• USB, iPod, AUX, Bluetooth Audio, Apple CarPlay modes are not
available if there is no device connected.
• Apple CarPlay may not be supported depending on your vehicle’s
options and which region the unit is being used in.
• When your iPhone is connected to the unit for Apple CarPlay
feature, deactivates Bluetooth Audio

Basic operation
This section explains basic operations
such as switching to standby mode,
adjusting the volume, quickly muting the
sound, and using the touch screen.
►Turning the system on
Press the smart ignition [ENGINE START/
STOP] button or place the ignition switch
in the ACC or IGN (ON) position.
The unit will turn on and the following
screen will appear.
Tap Agree to start the system.
The previously selected radio station or
file is played.
To agree automatically, activate the
checkbox.
English
Note
• You can also change the language by
referring to "Selecting the language" on
page 31.
►Switching to the power off
(Standby) mode
To turn the unit off (standby) mode while
using the unit's functions, press and hold
the POWER button.
When the unit is turned off, the clock and
date screen appears, which means that
the unit is in standby mode.
You can change the Power off mode by
referring to “Setting the power-off
display type”on page 30.
To start for using the unit's functions,
press POWER button on the unit or
MODE or button on the steering
wheel.
Note
• When a call is made to a Bluetooth-
connected phone, the unit also turns on
automatically for incoming call. Rejected
an incoming call or end a call, the unit also
turns o󰀨.
►Adjusting the volume
Rotate the VOL dial on the unit or press
the VOL + or VOL - buttons on the
steering wheel to increase or decrease
the volume.
When the volume is adjusted, the volume
level bar will appear as shown below.
The volume level has the different ranges for
each mode.
• Radio/Audio/Video: 0 to 35
• Phone: 0 to 15
• Navigation: 1 to 15
▌Getting Started
6
2

English
Using the rearview camera
screen (optional)
If equipped, a rearview camera will
display the area behind the vehicle on the
screen when power is turned on and the
reverse gear is selected.
The rearview camera display is not a
substitute for proper and safe driving
procedures. Always drive safely and use
caution when backing up. The rearview
camera display may not detect all objects
behind the vehicle.
Caution
• The rearview camera's purpose is to
prevent accidents or injuries. Do not use
this function for entertainment purpose.
• Objects in the rearview camera's images
may be closer or more distant than they
actually appear.
Note
• The edges of images may di󰀨er slightly
depending on whether full-screen images
are displayed when reversing.
►Muting the sound quickly
Press the POWER button on the unit or
the MUTE button on the steering wheel to
activate the mute function.
When the mute function is activated, the
mute icon ( ) will appear next to the
volume control bar.
To deactivate the mute function, press the
POWER button or rotate the VOL dial on
the unit, or press the MUTE button on the
steering wheel.
Getting Started▐7
2

English
Media Home menu screen
This section explains each menu on the Media Home screen.
To open Media Home, press the MEDIA button on the unit.
The following screen will be displayed. Select the desired menu
from this screen.
➊➍➋
➎
➌
➏ ➐
No./Name Description
➊USB Music Plays music from an external USB device (tap).
➋USB Video Plays video from an external USB device (tap).
➌USB Image Shows images stored on an external USB device
(tap).
➍iPod When iOS device is connected to the USB port
for iPod feature, the iPod music player feature
opens (tap).
Plays music from an iPod connected to the unit.
➎Bluetooth
Audio
Plays audio from a Bluetooth-enabled device
paired with the unit.
No./Name Description
➏AUX Plays an external device's output audio or video
signal on the unit (tap).
➐Connectivity
> Apple
CarPlay
When iPhone connects to the USB port for Apple
CarPlay, the Apple CarPlay feature opens (tap).
Provides directions, makes calls, send and
receive messages, and, plays music from an
iPhone connected to the unit.
Note
• Whe you connected iOS device to USB port, you can select the iOS
device connectivity feature to iPod or CarPlay by referring to
"Setting the Connectivity"on page 31.
▌Getting Started
8
2

English
Using the touch screen
►Touch gestures for built-in applications
Gesture Description
[Tapping]
PWR ENT
VOL
MIC
TUNE
HOME FM
AM
NAVI
x 2 →
Open an application, select a menu item,
or activate an on-screen button.
[Tapping and holding]
PWR ENT
VOL
MIC
TUNE
HOME FM
AM
NAVI
x 2 →
Tap and hold the preset station shortcut to
store the current station. You can also
quickly change a value by tapping and
holding + or - when setting the time and
date.
►Touch gestures for Apple CarPlay (optional)
Gesture Description
[Tapping]
PWR ENT
VOL
MIC
TUNE
HOME FM
AM
NAVI
x 2 →
Open an application, select a menu item, or
activate an on-screen button.
[Tapping and holding]
PWR ENT
VOL
MIC
TUNE
HOME FM
AM
NAVI
x 2 →
To rewind or fast-forward in a track, tap
and hold or .
Gesture Description
[Dragging]
PWR ENT
VOL
MIC
TUNE
HOME FM
AM
NAVI
x 2 →
Rewind or fast-forward a track.
Drag the progress bar to the target
position to rewind or fast-forward a track.
[Double-tapping]
PWR ENT
VOL
MIC
TUNE
HOME FM
AM
NAVI
x 2
→
Double-tap on a page or an image to
zoom in. Double-tap again to return to the
previous view.
[Swiping]
PWR ENT
VOL
MIC
TUNE
HOME FM
AM
NAVI
x 2 →
Swipe left, right, upwards or downwards
on the screen to scroll through pages or a
list of items.
Note
• Touch gesture for Apple CarPlay such as double-tapping,
spreading, pinching, and swiping are not available with the built-in
applications.
Getting Started▐9
2

English
Connectivity Display Audio
Radio
This section explains how to use radio and access various radio
frequencies (FM1, FM2, and AM). Also, it covers automatically or
manually locating and storing your favorite radio stations.
►Radio screen
To turn on the radio, press the RADIO button on the unit or press
the MODE button on the steering wheel several times until the
Radio screen appears.
➊
➌
➍➎
➏
➐ ➑ ➒
➋
No./Name Description
➊Mode Shows currently operating radio mode
➋Preset
station
shortcuts
Shows stored Presets for user selection.
Recall the indicated frequency (tap); store the
current station to Preset list (tap and hold).
• Up to 6 Preset frequencies can be stored for each
mode (FM1, FM2, and AM).
➌Stereo Indicates when FM stereo reception is available.
➍Frequency Shows current station's radio frequency.
No./Name Description
➎Indicates station search mode is activated.
➏Frequency
gauge
Indicates position of the current radio frequency in
the frequency band.
➐/ Automatically search for radio stations above or
below the current frequency (tap).
➑/ Fine-tune above and below the current frequency
(tap); quickly adjust the frequency (tap and hold).
➒PRESET Opens list of preset stations (tap).
▌Connectivity Display Audio
10
3

English
►Listening to radio stations
Changing the frequency band
Press the RADIO button on the unit to
change the frequency band to FM1, FM2,
or AM.
The current frequency band is displayed at
the top left corner of the screen.
Searching for a radio station
automatically
Tap / to search for a radio station
automatically. When a station is detected,
the unit stops searching.
Searching for a radio station
manually
Tap / or rotate the TUNE dial to
manually tune in a desired frequency.
Storing radio stations manually
Up to six preset radio stations can be stored
for each frequency band (FM1, FM2, and
AM). Follow the instructions below to
manually store radio stations.
Tap and hold a Preset station shortcut
to save the current radio station.
Storing radio stations automatically
Tap PRESET from Radio screen, to show
the list of preset stations.
Tap Auto Store.
Connectivity Display Audio▐11
3
The stations with the strongest signals are
automatically stored in the list.
Note
• The selected radio station is stored to the
preset number. If a new station is stored
using an existing preset number, the
previously stored station will be deleted
and the new station will be stored.
Selecting a preset radio station
Tap PRESET from Radio screen, to show
the list of preset stations.
Tap a station in the list.
To recall a preset station on the radio
screen, tap the desired preset station
shortcut.

USB/iPod music player
This section explains how to use the USB or
iPod music player.
You can play MP3, WMA, WAV, OGG, and
M4A les that are stored on a USB device,
and any music les that are stored on an
iPod.
►Connecting a USB device or
iPod to the USB port
Connect a USB device or iPod to the iPod/
USB port as shown below.
Music, video, or image playback will start
automatically after the data on the USB
device or iPod is recognized.
Note
• If a USB device with no music, video, or
image les is connected, the USB music,
video and image players cannot be
opened.
• When using the iPod player, rstly check
the System Connectivity is selected to BT/
iPod for USB connection of iOS device,
refer to "Setting the Connectivity" on
page 31.
English
►USB/iPod Music player screen
1Press the MEDIA button on the unit to
display Media Home screen.
2Tap USB Music to open the USB music
player or iPod to open the iPod music
player.
➋
➍ ➎ ➏ ➐
➊
➌ ➌
No./Name Description
➊Progress
bars
Shows progress bar for the
current song; rewind or fast-
forward a track (tap or drag).
➋Song
information
Shows current album
thumbnail, album, artist,
song title, and file name.
➌/ Skips to previous/next file
(tap).
➍/ Pauses/resumes playback
(tap).
➎RPT Sets repeat mode (tap).
• : Repeats current le.
• : Repeats all les in the
current folder (USB only).
• : Repeats all les on a
device.
No./Name Description
➏ RDM Sets random mode (tap).
• : Plays randomly all les
within the current folder.
(only for USB)
• : Plays randomly all les
within the USB or iPod.
➐List Opens file list (tap).
►Selecting a file from a list
1From the music player screen, tap List.
For iPods:
When an iPod is connected, the
following category list will be displayed.
▌Connectivity Display Audio
12
3

English
For USB devices:
When a USB device is connected, the
following le list will be displayed.
➋
➌
➌
➎ ➏ ➐
➊
➍
No./Name Description
➊Music/
Video/
Indicates/selects media type
(tap).
➋File list Shows/selects les list (tap).
: currently playing le.
➌▲/▼ Navigates les in the playlist
(tap).
➍► Player Returns to Music playback
screen (tap).
➎Now
List
Returns to current playlist.
(tap).
➏Up
Folder
Moves to parent folder (tap).
➐Root
Folder
Moves to root folder (tap).
2Select the desired category and file to
start playback.
Caution
• When using a USB device or iPod,
make sure to disconnect the device
when it is not in use. Do not connect the
device until after you have started the
vehicle.
The device may be damaged if the
device is already connected when the
ignition is turned on.
• Do not allow the USB connector to come
into contact with body parts or foreign
substances.
• Repeatedly connecting or disconnecting
a USB device over a short period may
cause damage to the device.
• Abruptly disconnecting a USB device while
it is in use may cause the device to be
damaged or to function abnormally.
Make sure to disconnect the USB device
only when the unit is operating in a
different mode.
• Do not use the USB I/F to charge batteries
or USB accessories that generate heat.
Doing so may reduce performance or
damage the device.
• In some cases, iPods may be damaged if
the ignition is turned off while it is
connected to the unit. When the iPod is not
being used, disconnect it before turning the
ignition off.
Note
• Some USB devices may not operate
properly due to compatibility issues.
Check that the device is supported
before using it.
• When you format a USB device, the unit
may not recognize a byte/sector
selection other than 512 bytes or 2,048
bytes.
• The amount of time required to
recognize a USB device may differ
depending on the type, size, or file
formats stored on the USB device.
Such time differences are not the result
of any malfunction. Please wait while the
unit attempts to recognize the device.
• The unit supports only USB devices
designed to play music and video files
and images.
• When disconnecting a USB device, an
abnormal sound may occur.
• The unit may not recognize the USB
device if separately purchased USB
hubs and extension cables are used.
• If high capacity USB devices are used,
there may be situations that require the
logical drive to be partitioned for user
convenience. In these situations, it will
only be possible to play music on a USB
device from the top level of the drive.
When using partitioned drives, save
songs to play on the device only in the
top level of the logical drive.
Connectivity Display Audio▐13
3

English
Also, certain USB devices are
configured with a separate drive for
installing application programs, playing
music files from a separate drive may
not be possible for the reasons
described above.
• The unit may not operate properly when
accessing files from HDD, CF, or SD
memory.
• The unit will not support locked DRM
(Digital Rights Management) files.
• iPod is a registered trademark of the
Apple Corporation in the United States
and other countries.
• The unit supports iPod Nano, iPod
Touch, and iPhone models. Other
devices are not supported.
• Some iPod and iPhone models may not
be supported or provide compatible
connection.
• Only connect the iPod and the unit using
approved iPod cables. Other connection
cables cannot be used.
• The playback functions and the
displayed items on iPods may differ
when they are connected to the unit.
This can affect play order, method, and
information displays on the iPod.
USB Video player
This section explains how to use the USB
video player.
You can play AVI, MP4, WMV, and MKV les
that are stored on a USB device.
►USB Video player screen
1Connect a USB device to the iPod/USB
port.
2Press the MEDIA button on the unit to
display Media Home screen.
3Tap USB Video.
The USB video player screen will be
displayed.
➌
➋
➍ ➎ ➍ ➏ ➐ ➑
➊
No./Name Description
➊Progress
bars
Shows time elapsed and
duration of the le being
played; rewind or fast-forward
the video (drag the progress
bar to the target position).
➋File name Shows current le name.
No./Name Description
➌Video
screen
Hide/unhide Control panel on
the video screen (tap).
➍/ Skips to previous or next le
(tap).
➎/ Pause/resume playback (tap).
➏RPT Sets repeat mode (tap).
• : Repeats current le.
• : Repeats all les in the
current folder.
• : Repeats all les on a
device.
➐Sub. Activates/deactivates subtitles
(tap).
➑List Opens le list (tap).
►Selecting a file from a list
1From the video player screen, tap List.
The following file list will be displayed.
➊➋
➌
➌
➍
➎ ➏ ➐
▌Connectivity Display Audio
14
3

English
USB Image player
This section explains how to use the USB
image player.
You can view JPG, BMP, and PNG les that
are stored on a USB device.
►USB Image player screen
1Connect a USB device to the iPod/USB
port.
2Press the MEDIA button on the unit to
display Media Home screen.
3Tap USB Image to open the USB
image player.
The USB image player screen will be
displayed.
➊
➋➋
➌
➍
➐➏
➎
No./Name Description
➊ Slideshow
interval
Sets time interval between
slides (tap).
➋/ Skips to previous/next le
(tap).
➌Image
screen
Hide/unhide Control panel
on the image screen (tap).
No./Name Description
➍File name Shows current le name.
➎
Slideshow Runs slideshow in full screen
(tap).
➏/ Rotates image in a clockwise
or counterclockwise direction
(tap).
➐List Opens le list (tap).
►Selecting a file from a list
1From the image player screen, tap List.
The following file list will be displayed.
➊➋
➌
➌
➍
➎➏ ➐
No./Name Description
➊Music/
Video/
Indicates/selects media type
(tap).
➋File list Shows/selects les list (tap).
: currently playing le.
➌▲/▼ Navigates les in the playlist
(tap).
➍► Player Returns to Image playback
screen (tap).
No./Name Description
➊Music/
Video/
Indicates/selects media type
(tap).
➋File list Shows/selects les list (tap).
: currently playing le.
➌▲/▼ Navigates les in the playlist
(tap).
➍► Player Returns to Video playback
screen (tap).
➎Now
List
Returns to current playlist
(tap).
➏Up
Folder
Moves to parent folder (tap).
➐Root
Folder
Moves to root folder (tap).
2Select the desired file to start playback.
Connectivity Display Audio▐15
3

English
AUX player
This section explains how to use the AUX
player.
External audio devices can be connected to
the AUX port (stereo mini jack).
When a device is connected to the AUX port
and the source is selected, you can listen to
the device’s audio through your car
speakers. The volume level can be adjusted
to allow for di󰀨erences between the unit and
the device.
►Connecting an external audio
device to the AUX port
1Turn off the external audio device.
2Connect the audio output of the
external device to the AUX port.
►Using the AUX player
1 Make sure the volume is adjusted
properly both for the unit and for the
connected device before starting
playback.
2Press the MEDIA button on the unit to
display Media Home menu screen.
3Tap AUX to open the AUX audio
screen.
<AUX audio screen>
4Start playback at the external device.
5Set the desired volume at the unit and
the external device.
No./Name Description
➎Now
List
Returns to current playlist.
(tap).
➏Up
Folder
Moves to parent folder (tap).
➐Root
Folder
Moves to root folder (tap).
2Select the desired file to start playback.
▌Connectivity Display Audio
16
3

English
Bluetooth Audio player
This section explains how to use the
Bluetooth audio player.
This unit supports the A2DP (Advanced
Audio Distribution Prole). If your Bluetooth
mobile phone or music player supports this
prole, then music can be played through
this unit and the car's speakers.
Also, this unit supports the AVRCP (Audio
Video Remote Control Prole). If your
Bluetooth mobile phone or music player
supports this prole, then it is possible to
advance to the next track or replay previous
tracks by using the buttons on the unit or the
steering wheel (if tted).
►Pairing and connecting with a
Bluetooth device
For information on how to pair and connect
the unit with a Bluetooth device, refer to
"Bluetooth connection" on page 22.
►Bluetooth Audio player screen
To open the Bluetooth audio player screen:
Press the MEDIA button on the unit to
display Home and then tap Bluetooth
Audio.
The Bluetooth audio player screen will be
displayed.
➊
➋➌➋
No./Name Description
➊Song
information
• Shows album, artist, and
song details.
➋/ • Skips to previous/next le
(tap).
➌• Pause/resume playback
(tap).
Connectivity Display Audio▐17
3
