Hoppe AUDIO MINI Service manual

INSTALLATION INSTRUCTIONS / OWNER’S MANUAL:
AUDIO MINI
OFF-ROAD SOUND SYSTEM FOR POLARIS RZR / RZR 4 MODELS
www.hoppeindustries.com
22667 FM 15 Troup, TX 75789
(262) 552-2770

Revision - 2 of 18
Thank you for choosing the Hoppe Audio Mini off-road sound system. We hope you
enjoy the off-road sound system, and we ask that you follow these instructions very
closely. Doing so will save you time and ensure that your experience with the new Audio
Mini is a positive one.
We strongly suggest that you read the complete instructions before beginning the
installation process to eliminate the possibility of performing unnecessary work.
Having a safe and clean environment and using the proper tools is essential for a
successful installation.
It is critical that proper eye wear, ear protection, and protective clothing is worn
throughout the top installation.
When you receive your Audio Mini off-road sound system, please check to ensure that all
parts and hardware are included. If there are any parts missing or if you have any
questions concerning the system at this time call Hoppe at (262)-552-2770 Mon-Thur.
Hoppe reserves the right to change specifications, equipment, or designs at any time
without notice and without incurring obligation.

Revision - 3 of 18
TABLE OF CONTENTS
SECTION 1 –Tools Required............................................................................................ 4
SECTION 2 –About your Audio Mini sound system ......................................................... 4
2.1 Applicable Year Models:.......................................................................................... 4
2.2 Audio Equipment Details:......................................................................................... 4
2.3 Warranty: .................................................................................................................. 5
2.4 Care and Maintenance: ............................................................................................. 5
2.5 Warnings:.................................................................................................................. 6
SECTION 3 –Pre-Installation Inspection ......................................................................... 7
SECTION 4 –Installation.................................................................................................. 8

Revision - 4 of 18
SECTION 1 – Tools Required
Socket wrench set
Combination wrench set
Wire cutters
In addition to the above items, you may need shop supplies such as electrical tape, wire
ties, thread locking compound, etc.
SECTION 2 – About your Audio Mini sound system
2.1 Applicable Year Models:
This Audio Mini off-road sound system is designed to fit the following Polaris RZR /
RZR 4 models:
2015-2021 RZR 900 through 1000 (all versions excluding Turbo S, PRO XP, and
2021 Trail models)
2014 RZR XP 900
2014-2021 RZR 4 900 through 1000 (all versions excluding Turbo S and PRO
XP)
All versions means it includes sub models such as Turbo, Dynamix, Fox, EPS,
XP, High Lifter, Premium, Trails and Rocks, LE, and Sport.
Does NOT fit Turbo S, PRO XP, or any of the above names combined with Turbo
S or PRO XP models.
This system is compatible with most front full windshields and roofs.
Accessories that mount overhead near the front of the roll cage such as rear view
mirrors, wiper motors, etc. may not be compatible or may require modification.
Contact Hoppe customer service for questions.
2.2 Audio Equipment Details:
Your Audio Mini off-road sound system is powered by using
their marine series audio equipment. This equipment is designed to function in all
weather conditions with an IPX6 water resistance (powerful water jet) rating. The stereo
is specifically engineered to provide excellent sound quality and volume in an open air
enviroment so you can enjoy your music on the go.
To learn more details about your stereo system, you can access product information and
manuals for the stereo equipment here:
KMC2 receiver: https://www.kicker.com/46KMC2
Speakers: https://www.kicker.com/41KM604W
You can feel free to crank up the volume without much worry of harming your system.
However, it is wise to use a little common sense. If you hear any distortion, back off a
little.

Revision - 5 of 18
Use the equalizer settings in your KMC2 receiver to adjust the settings to your
preferences.
2.3 Warranty:
Your Audio Mini comes equipped with a 1 year limited warranty covering the light, the
stereo equipment, and the fiberglass enclosure. The date of warranty coverage will be
determined by the registration date of the warranty card or online warranty registration.
http://www.motortrike.com/TrikeAccWarranty.aspx
If the warranty is not registered with Hoppe, the warranty period will begin when the
Audio Mini was shipped from Hoppe's factory.
2.4 Care and Maintenance:
Your off-road sound system does not require any maintenance other than an occasional
cleaning. To clean your audio system, simply hose off or power wash from a distance. If
needed, use a mild automotive soap and sponge or brush. Use common sense. Do not use
a high pressure power washer up close where it could cut, scar, or force water beyond the
design intent of the enclosure, light, or stereo equipment.
There is an inline fuse, close to the end of the chassis harness where it connects to the
terminal posts. It can be accessed by pulling the cap off of the fuse holder. There is also a
mini 40 amp ignition relay built into the chassis harness next to the inline fuse. See
Figure 1.
Figure 1: Fuse location.
IGNITION
RELAY
INLINE
FUSE

Revision - 6 of 18
Fuse 1: 15 amp mini fuse for light / radio receiver power.
2.5 Warnings:
This off-road system adds up to 25 lbs. to your vehicle and is located up high on the roll
cage. This increases the vehicle’s center of gravity and changes the vehicle dynamics and
handling characteristics. Use extra caution as you learn the driving characteristics of your
vehicle with your new off-road sound system installed. High speed cornering, off camber
or side hill, acceleration, and braking performance will be negatively impacted by the
weight of the sound system.
Do not listen to your stereo at an uncomfortable volume for extended periods of time.
Potential hearing loss may result.

Revision - 7 of 18
SECTION 3 – Pre-Installation Inspection
Included in your off-road sound system are the following components:
Pre-assembled Audio Mini off-road sound system (All speakers and electronics
come preinstalled with interior wire harness.)
Chassis wire harness
Mounting brackets
Hardware bag
Zip ties
If any of the parts are missing, damaged, or you have any questions concerning them,
please call Hoppe at (262)-552-2770 Mon-Thur. 8am-5pm CST.
In addition to accounting for all of the parts that you should receive with the top, you
should inspect the vehicle in the following ways.
Ensure that the vehicle is equipped with the factory roll cage, and the roll cage has
not been bent out of shape in a roll over.
Make sure the vehicle does not have any aftermarket accessories that are
incompatible with the top.
Make sure the battery is in good condition and holds a charge.
Make sure the charging system is in good condition.

Revision - 8 of 18
SECTION 4 – Installation
1. If you have a roof installed, it will need to be removed for the installation of your
Audio Mini. Remove the roof, and then remove the screw shown in Figure 2 to
gain access to the front cross member bolts.
Figure 2: Remove screw to access cross member bolt.
2. Remove the factory bolt from the driver’s side of the front cross member as
indicated in Figure 3. The bolt will be reused.
Figure 3: Remove the factory cross member bolt.

Revision - 9 of 18

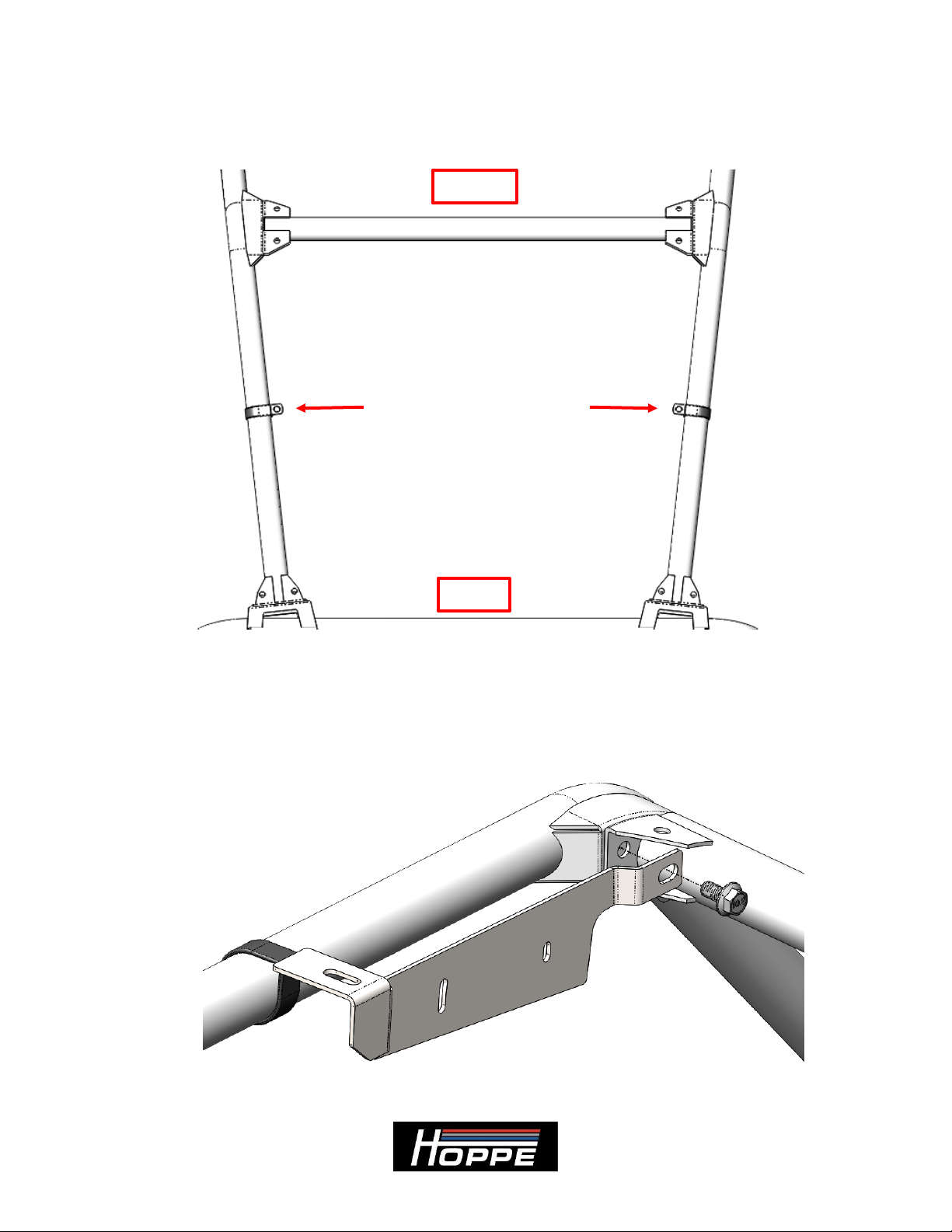

3. Place the provided loop clamps in the approximate mounting locations on the
outside roll bars. The Audio Mini brackets will rest on the loop clamps and be
tightened in the following steps. See Figure 4.
Figure 4: Approximate locations of the loop clamps.
4. Place the driver’s side bracket on the inside of the cross member. Use the factory
bolt and loosely tighten it until the bracket is secured to the loop clamp in the
following steps. Verify correct orientation of the mounting bracket. See Figure 5.
Note: Driver side bracket shown. (Passenger side similar)
Figure 5: Mounting location of the Audio Mini bracket.
FRONT
REAR

Revision - 10 of 18
5. Use the supplied 3/8”-16 x 1” bolts, washers, and nylock nuts to secure the loop
clamp to the mounting bracket. Tighten both the loop clamp bolt and the front
cross member bolt to secure to bracket to the roll cage. See Figure 6.
Figure 6: Hardware for mounting the loop clamps to the brackets.
6. Repeat Steps 1, 2, 4, and 5 for the passenger side bracket.
7. Remove the radiator hood access panel from the front of the vehicle by rotating
the ¼ turn clips, lifting, and sliding towards the front of the vehicle. See Figure 7.
Figure 7: Remove the radiator hood access panel.

Revision - 11 of 18
8. Remove the Torx screw on top of the driver’s side dash by the front frame tube.
The harness will route under this panel in later steps. See Figure 8.
Figure 8: Remove the dash Torx screw.
9. Install the chassis harness reusing the factory nuts on the terminal posts. Connect
the orange ignition wire to the terminal post labeled “ACC”, the black ground
wire to the black (negative) terminal post, and the red power wire to the red
(positive) terminal post. Be sure to connect the harness wires with any factory
cables or wires, and retighten the factory hardware. Run the connector under the
coolant tank, along the frame tube, toward the driver’s front fender well. See
Figure 9.
Figure 9: Connect the harness to the terminal posts.
RED (+)
TERMINAL
BLACK (-)
TERMINAL
ACC
TERMINAL
REMOVE
TORX SCREW
ROUTE UNDER
COOLANT TANK

Revision - 13 of 18

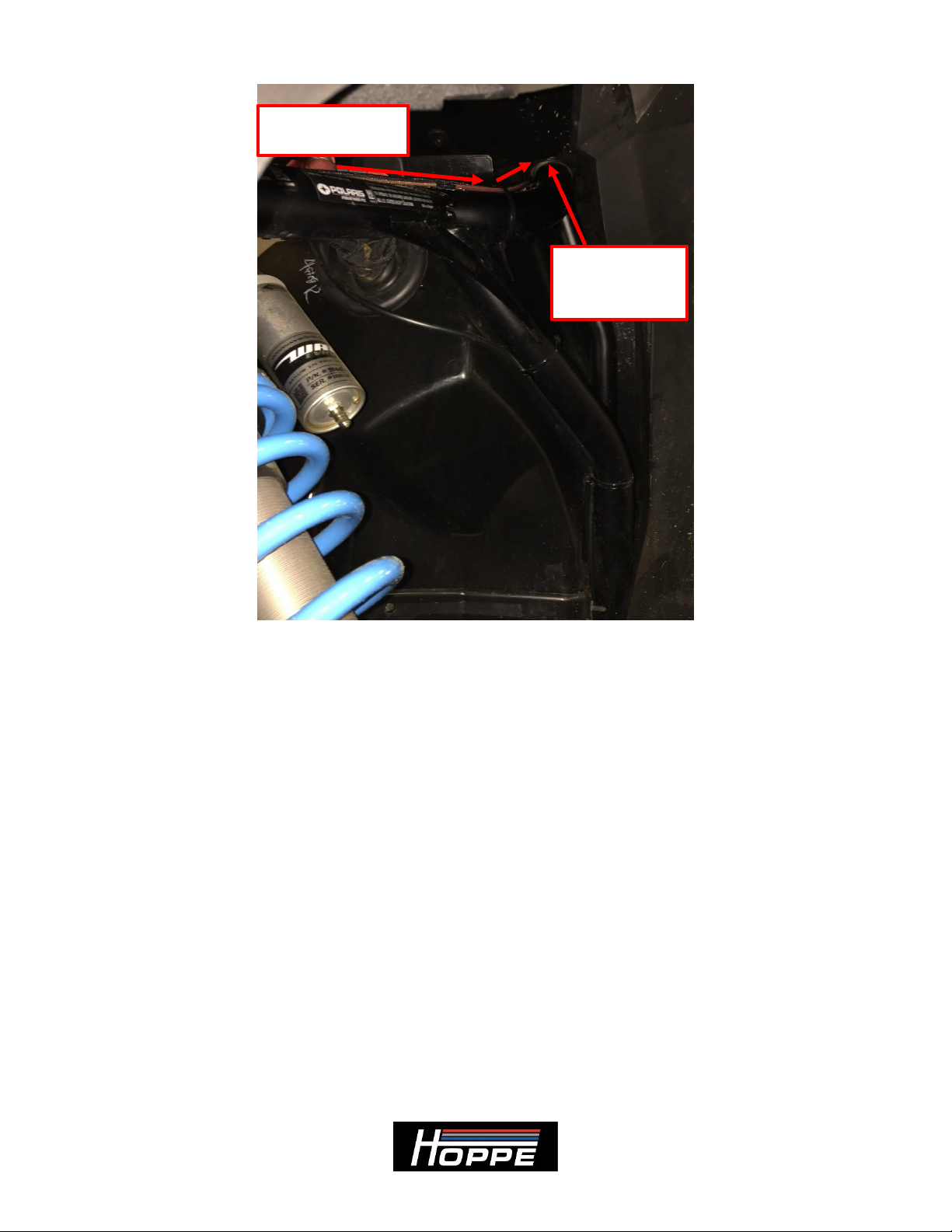

Figure 11: Chassis harness routing in driver’s front fender well.
11. Continue routing the harness under the driver’s side dash, and then route the
harness between the dash panels up toward the driver’s front frame tube. Gently
push the top dash panel upwards to push the connector through, pulling the slack
from the harness. See Figure 12 and Figure 13.
ALONG FRAME
TO OPENING
OPENING TO
UNDERSIDE
OF DASH

Revision - 14 of 18
Figure 12: Harness routing path from fender well through the dash.
FROM FRONT
FENDER WELL
THROUGH DASH
TO FRONT
FRAME TUBE

Revision - 15 of 18
Figure 13: Harness routing between dash panels.

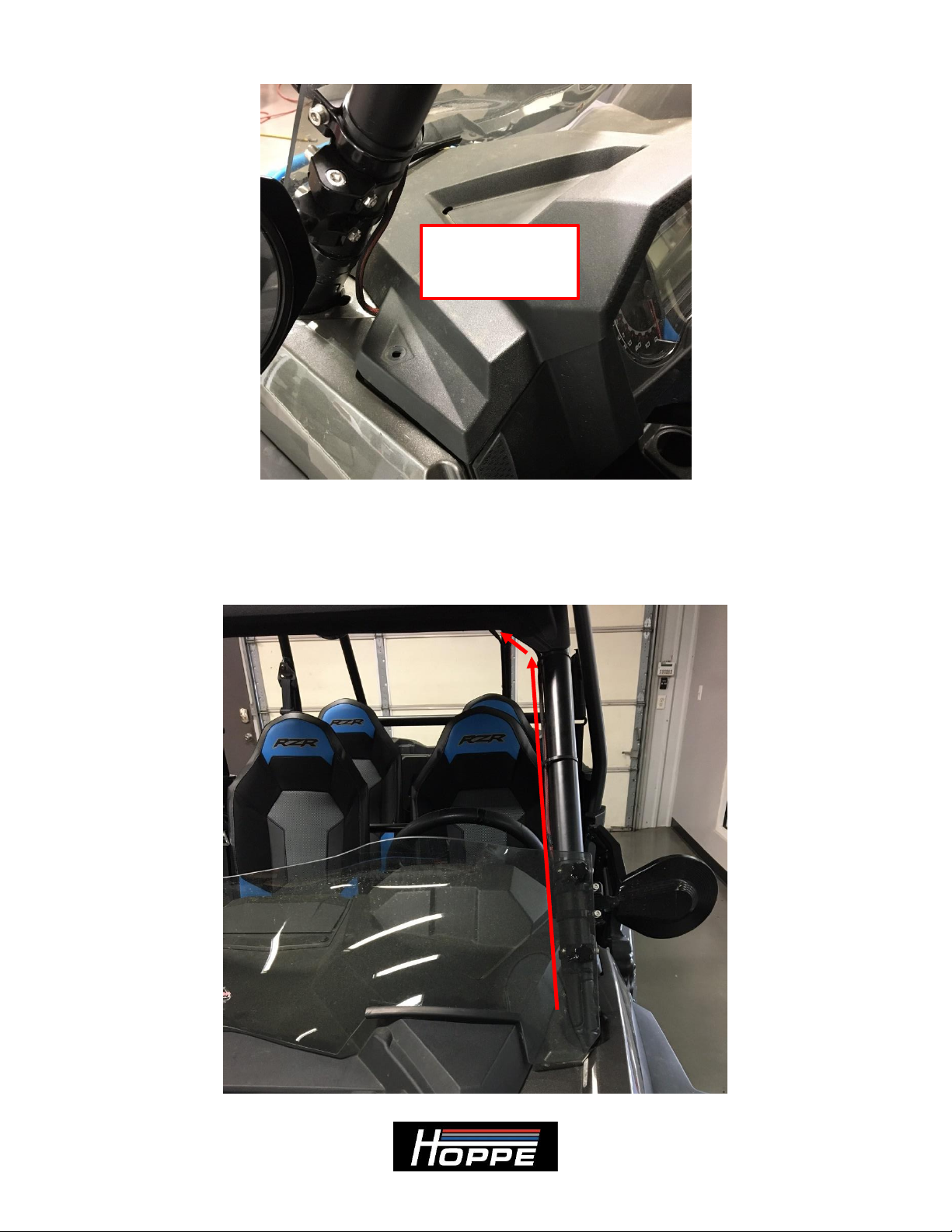

12. Route the harness up the front driver’s frame tube to the front cross member, as
shown in Figure 14. Loosely zip tie the harness to the frame tube, waiting to fully
tighten them until the Audio Mini is tightened in the desired position.
Figure 14: Harness route up the front frame tube.
ROUTING PATH
BETWEEN
DASH PANELS

Revision - 16 of 18

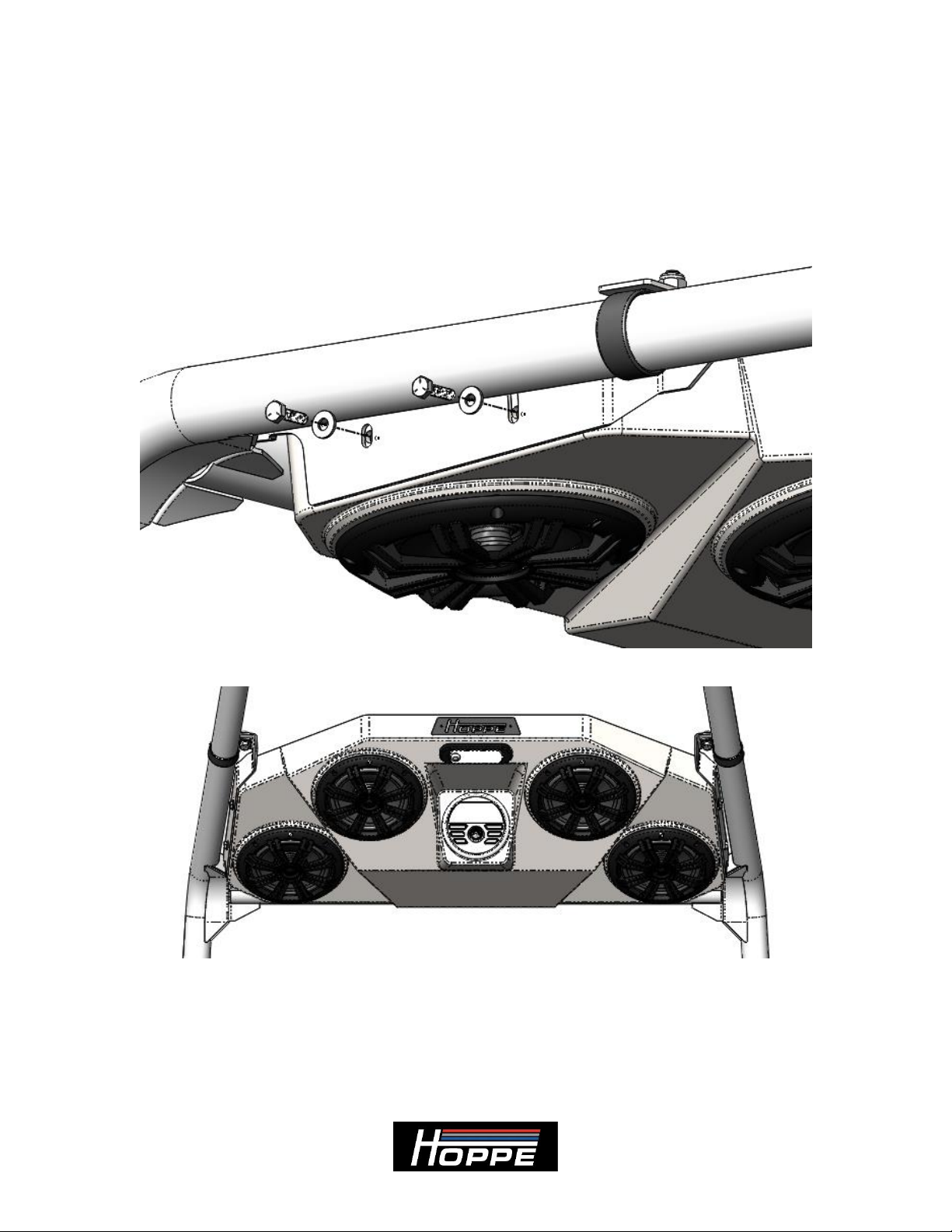

13. Using an assistant, connect the two mating connectors and hang the Audio Mini
off-road sound system on the brackets using the supplied ¼”-20 bolts and washers
(loosely tightened). Note: The sound system weighs up to 25 lbs. Since you will
have to lift and bolt each end, it is helpful to have an assistant for this step.
Note: The harness connector will not fit between the frame and the Audio
Mini once installed, so it is important to follow this step closely to not repeat
work. See Figure 15 and Figure 16.
Figure 15: Install the ¼”-20 bolts and washers to mount the Audio Mini to the brackets.
Figure 16: Loosely install the sound system on the mounting brackets.
14. Tighten the 4 mounting bracket bolts after achieving the desired viewing position
relative to the roof or roll cage. A slot in the front hole allows up-down
movement, while the rear hole allows the Audio Mini to pivot to achieve your
desired viewing position. See Figure 17.

Revision - 17 of 18
Figure 17: Adjustable positioning of the Audio Mini.
15. Tighten all zip ties, and secure the chassis harness to the roll cage under the hood.
Make sure the wires are secured away from any moving suspension components
and the radiator fan under the hood.
16. Reinstall the hood and Torx screws. See Figure 2, Figure 7, and Figure 8.
Reinstall your roof if it was removed.
17. You are now ready to enjoy the music and lighting provided by your Audio Mini
off-road sound system. Basic operation works as follows:
Turn the vehicle ignition switch on to power up the stereo system. (You
must press the power button for first time connections or if the power was
previously turned off manually.)
Press the source button on the stereo receiver to select the input source
from AM/FM radio or Bluetooth.
Press and hold the menu button to access the Device Settings menu.
oUse the Volume knob to change the values for each setting, and
press it to confirm the setting.
Press and hold the Volume knob to access the Audio Settings menu.
oUse the Volume knob to change the values for each setting, and
press it to confirm the setting.
The dome light can be used with or without the vehicle’s ignition switch
on. Press the on/off switch to activate the light. Warning: Extended use
of the dome light or stereo without the vehicle’s charging system
functioning will deplete the battery and the engine may not start.

Revision - 18 of 18
To learn about the more advanced features and operation of your stereo, visit the
Kicker website links found in SECTION 2 –About your Audio Mini sound system
of this document.
Thank you for choosing the Hoppe Audio Mini off-road sound system for your Polaris
RZR UTV. We hope you enjoy your new sound system and lighting. We invite you, in
your travels, to stop by our manufacturing plant in Troup, Texas, for a factory tour and to
meet the people who designed and manufactured your Audio Mini off-road sound system.
This will also give you an opportunity to check out our sister companies
,
and our extensive line of trike conversions, automotive, motorcycle, and power sports
accessories.
We believe you will be impressed by what you witness and the people you will meet.
Other manuals for AUDIO MINI
8
Table of contents
Other Hoppe Automobile Accessories manuals
Popular Automobile Accessories manuals by other brands

Scosche
Scosche DASHMOUNT HDM quick start guide

RANCHO
RANCHO RS66402B installation instructions

POOL-LINE
POOL-LINE 113081 Assembly instructions

Whispbar
Whispbar K317W Fitting instructions

EM-Pasher
EM-Pasher EM-FTF2 Installation & operating manual

FALCON RIDGE
FALCON RIDGE CF-UFORCE-DRW01 Instructions for Installation and Care
