For your personal safety, please read, understand and follow the information provided in this
instruction manual.
Congratulations on your new & Innovative 300 Watt, 12V Portable Folding Solar Blanket!
Designed to fold down to 350 x 350 x 70mm.
Features
• 12 X 25W Monocrystalline Cells In Series
With its efficient design, the Portable 300W, 12V Portable Folding Solar Blanket conveniently
folds up to fit into cargo areas.
• Easy folding for storage convenience
Dimensions Folded (mm): 350 x 350 x 70
• Dimensions Unfolded (mm): 1100 x 1500 x 7
Total Weight: 11.3kg
• 20A, 12V PWM Solar Controller included
Designed for charging a single battery. The solar controller is compatible with GEL, WET,
AGM, CALCIUM & LITHIUM Batteries. Controller features reverse polarity, short circuit and
over voltage protection.
• Includes leads & accessories with sealed 50A connectors
1 x 4.8m Lead, 50A Extension leads for easy connection to power
1 x Positive & Negative Alligator Clamps, 500mm Lead to Heavy Duty Connector
• Ideal for camping, 4WD & outdoor applications
Perfect for charging 12V batteries that power camping fridges, lighting, air-compressors &
other 12V devices.
USER MANUAL

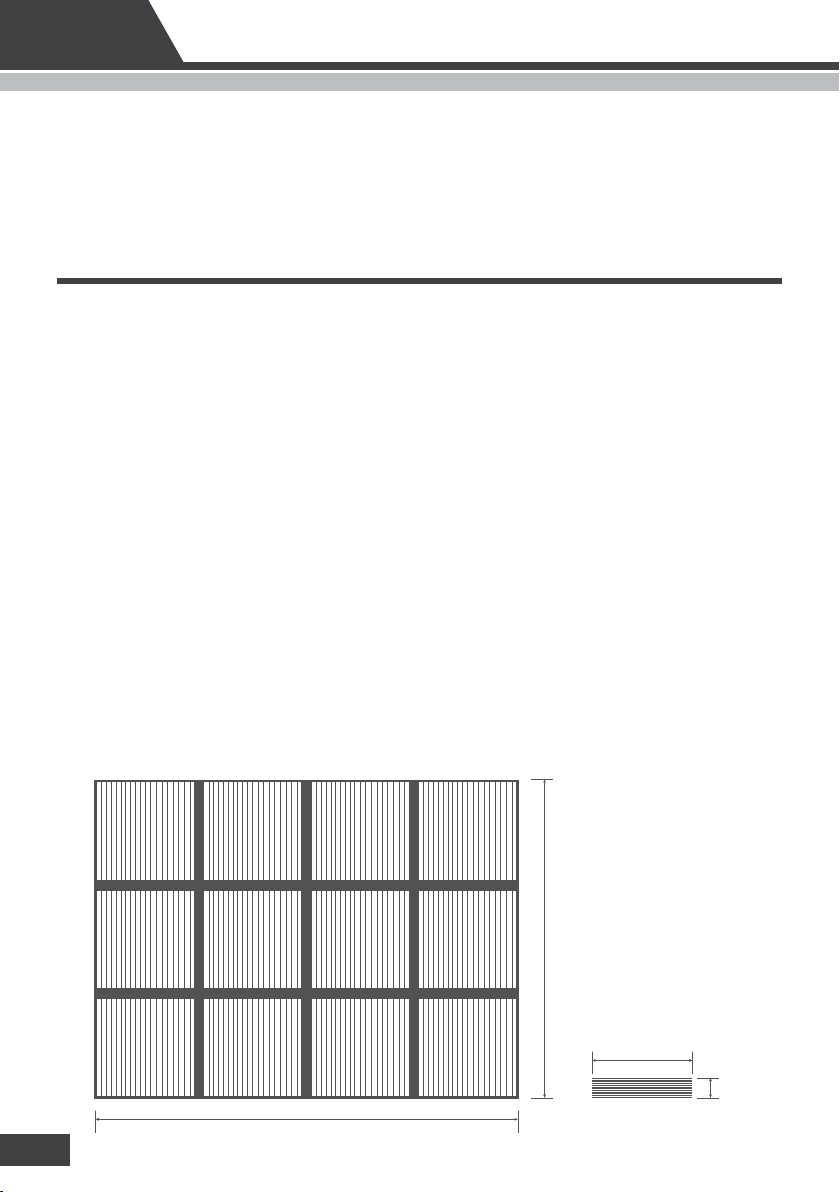

1500mm
1100mm
355mm
70mm

2

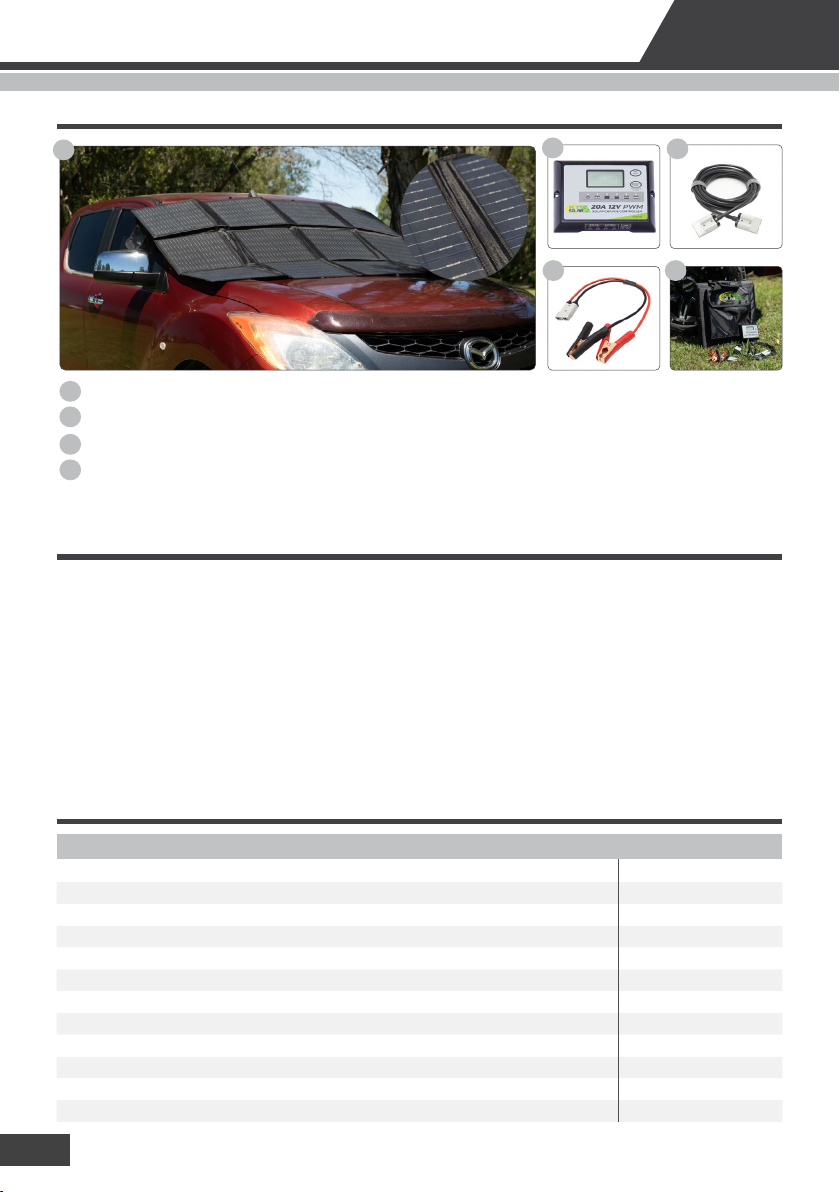

Components
300W Portable Folding Solar Blanket Operational Instructions
1. Step 1 - Unfold & position the blanket in the sun
Locate the blanket in a position where it is exposed to the sun for the majority of the day.
For best results use a northern orientation. The panel will function in the horizontal or hung
position, however for best performance tilt the panels so they directly face the sun.
2. Step 2 - Connect to the battery
Connect the 5m lead to the battery - red clamp to the positive ( + ) terminal and black
clamp to the negative ( - ) terminal. The solar blanket will now be charging the battery under
regulation.
12 x 25W monocystralline cells in series
20A, 12V PWM solar controller - can be programmed
1 x 4.8m, 50A extension lead
1 x Positive & Negative alligator clamps, 500mm lead to 50A, 12V connector
A
B
C
D
ABC
D
Solar Kit Specifications
E
3
USER MANUAL
SPECIFICATIONS
Type Monocrystalline
Maximum Power (Pmax) 300Wp
Power Tolerance ± 3%
Maximum Power Voltage (Vmp) 21.7V
Maximum Power Current (Imp) 13.8A
Rated Voltage 12V
Open Circuit Voltage (Voc) 26.5V
Short Circuit Current (Isc) 16.6A
Operating Temperature
45 ± 2°C
Product Application
Class A
Maximum System Voltage
1000V DC
Product Weight
11.3kg

4
USER MANUAL

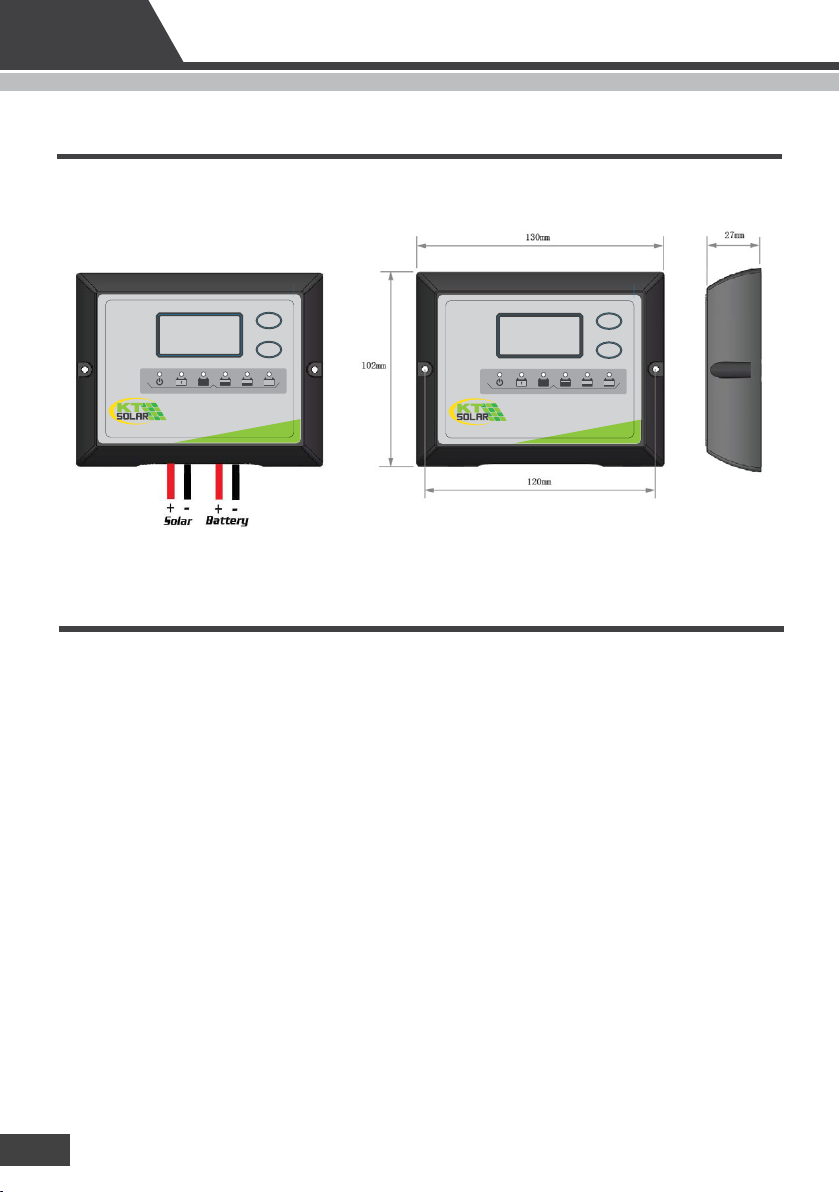

Solar Controller Diagram
Solar Controller Operation
Step 1: Connect the battery. If the connection is correct, the controller screen lights up; otherwise,
check whether the connection is correct.
Step 2: If sunlight is present and strong enough (the solar panel voltage is greater than battery
voltage), the sun icon on the LCD screen is on; otherwise, check whether the connection is correct.
20A 12V PWM
SOLAR CHARGE CONTROLLER
KT70757
AMP /
VOLT
BATTERY
TYPE
Hold for 3 seconds
for settings
LCD
20A 12V PWM
SOLAR CHARGE CONTROLLER
KT70757
AMP /
VOLT
BATTERY
TYPE
Hold for 3 seconds
for settings
LCD

45
USER MANUAL
Solar Controller Specifications
Type PWM
Operating Temperature -20°C to +80°C
Operating Voltage 12V
Rated to (Amps) 20A
Rated to (Voltage) 12V
Battery Voltage 12V
Dimensions (mm) 100 (H) x 130 (W) x 28 (D)
Product Weight 1.20kg
Manufactured from material Polycarbonate
Solar Charge Controller
• Advanced MCU control Pulse Width Modulated (PWM) technology, high efficiency operation.
• Suitable for Lithium, GEL, AGM, Conventional Lead-Acid (WET) and Calcium Batteries.
• Built in regulator to prevent your battery from being overcharged. Overcharging occurs when the
charge voltage is unregulated. This can result in premature battery failure.
• The regulator prevents your battery from being under charged, in the solar energy field, battery
undercharge always occurs, especially on some conventional lead-acid or calcium batteries. The
unit provides an automatic equalization feature for deeply drained conventional lead-acid battery or
calcium battery, as well as provides a cycling automatic equalizing feature every 28 days.
The KT 20A, 12V Solar Charge Controller is designed to charge Deep Cycle Batteries. Suited to charge
Lead Acid, Gel, AGM, Lithium & Calcium Battery types, this Solar Charge Controller prevents batteries
from becoming overcharged. The unit provides an automatic equalisation feature for all battery
chemistries.
The PWM Solar Charge Controller features a digital LCD to directly display battery voltage, charging
current, charging capacity, percentage present, battery type, fault codes. Coloured LED's indicate
the operational status and each battery conditions.
KT's range of solar regulators are PWM (Pulse Width Modulation) which are the most commonly
used, making them suitable for use on panels that are constantly being transported or moved eg; on
the roof of a caravan, fitted to the back of a transportable, folding solar panel etc. PWM solar
chargers use technology similar to other modern high-quality battery chargers. When a battery
voltage reaches the regulation set-point, the PWM algorithm slowly reduces the charging current
to avoid heating and gassing of the battery, yet the charging continues to return the maximum
amount of energy to the battery in the shortest time. The result is a higher charging efficiency,
rapid recharging, and a healthy battery at full capacity.

6
USER MANUAL
Wiring Connections
To protect the Battery and the Solar Panel, we strongly recommend that you place inline fuse on the
positive wire on both the “Solar” and “Battery” Circuits. 20A fuse for 10A controller, 30A fuse for 15A
controller, 40A fuse for 20A controller, (As close to the Battery / Panel as possible).
The Solar Controller has 4 terminals which are clearly marked ‘Solar’ and ‘Battery’. There is a (12V / 24V)
and earth (GND) terminal for each circuit.

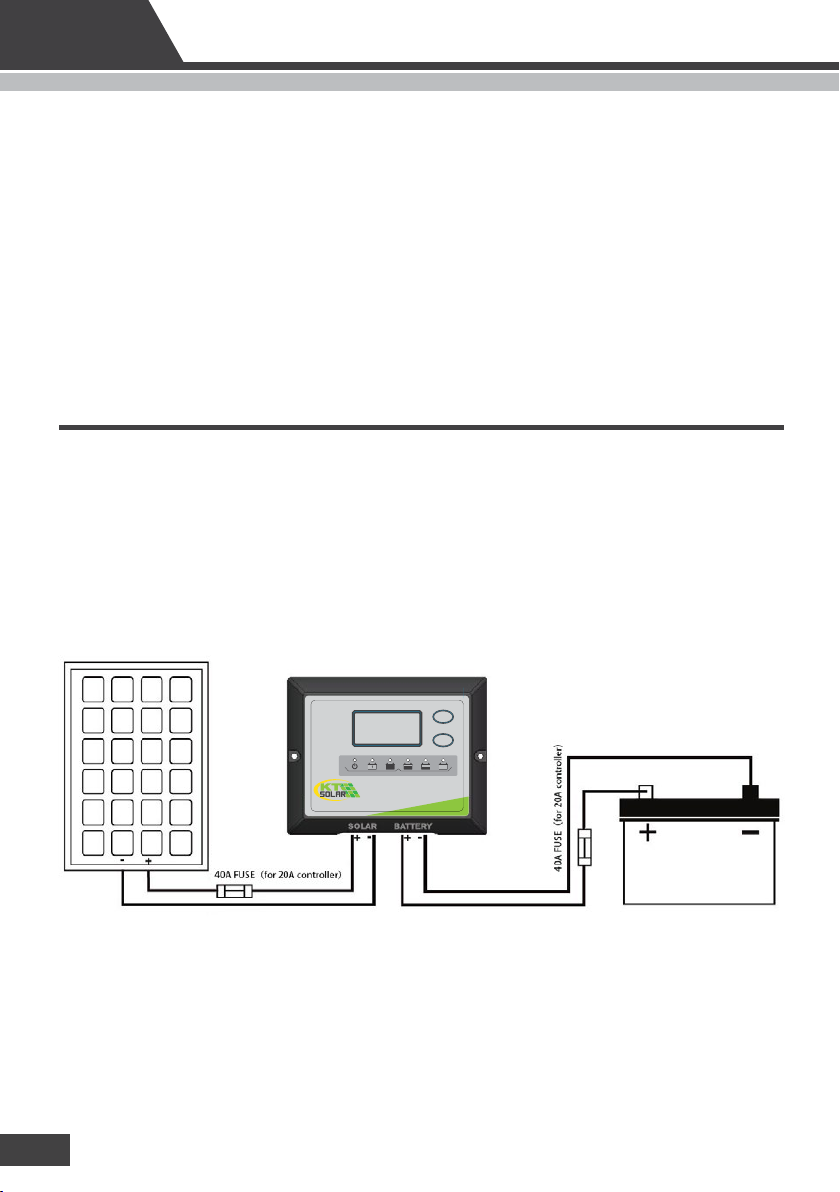

Refer to the wiring diagram below.
• Can be connected to the battery permanently to keep the battery fully charged by using a process
called "floating". This means the controller will stop charging when the battery is full and will
automatically start charging the battery as required. This process will also reduce water loss and help
prevent the battery from 'drying out'.
• Protects your battery from discharge at night. Under low light or no light conditions the solar panel
voltage could be less than the battery voltage. The unit contains a special circuit which prevents
current flowing back from the battery and into the solar panel.
• Coloured LED's to easily indicate the operational status and battery conditions.
• Digital LCD to directly display battery voltage, charging current, charging capacity (Amp hour),
battery types, full charge and faulty codes.
• Multi-charging protections against reverse polarity, short circuit, over temperature, over voltage, etc.
20A 12V PWM
SOLAR CHARGE CONTROLLER
KT70757
AMP /
VOLT
BATTERY
TYPE
Hold for 3 seconds
for settings
LCD

7
Display Features
Please check your battery manufacturer’s specifications to select correct battery type.
The unit provides 5 battery types for selections: Gel, AGM, WET (conventional lead
acid), Lithium and Calcium.
Press BATTERY TYPE button and hold for 3 seconds to go into your battery type
selection mode, the battery type you select will be shown on the LCD meter, the
default setting is AGM Battery; the controller will automatically memorize your battery
type setting.
Caution: Incorrect battery type setting may damage your battery.
When the controller powers on, the unit will run self-qualify mode and automatically
show below items on LCD before going into charging process.
Self-test starts, digital meter segments test
Software version test
V A Rated voltage and current test
ºC External battery temperature sensor test (if connected)
After going into charging process, the LCD displays the charging states as below:
Press VOLT / AMP button in sequence, the LCD will display in turn with
Battery Voltage, Charging Current, Charged capacity (Amp-hour) and Battery
Temperature (if external temperature sensor connected)
USER MANUAL
LITH

10
The VOLT / AMP button can be changed at any time during charging process.
The LCD also can be treated as an independent voltage meter or thermometer.
A voltage less than 11.5V Volts (for 12V battery) indicates that the battery is discharged and needs
re-charging.

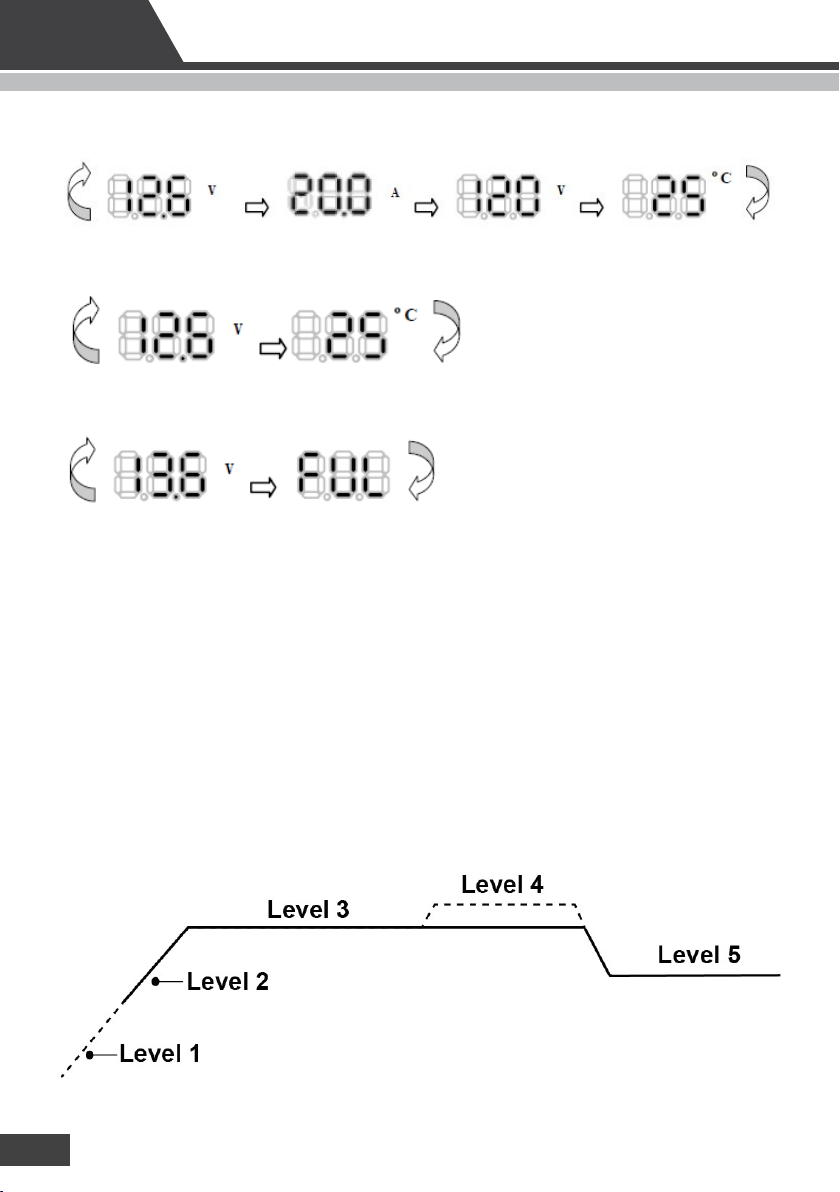

Display in the day time-
Display during the night
Alternatively Display voltage and FUL when battery is fully charged
CHARGING STAGES OPERATION - L.E.D. INDICATION
The unit has a 5 stage charging algorithm.
- Soft Charge (Level 1)
- Bulk Charge (Level 2)
-Absorption charge (Level 3)
- Equalizing Charge* (Level 4)
- Float Mode (Level 5)
8
USER MANUAL

9
USER MANUAL
CHARGING STAGES
Soft Charge - When batteries suffer an over-discharge, the controller will softly ramps the battery
voltage up to 10V for 12V battery.
Bulk Charge - Maximum current charging until batteries rise to Absorption level
Absorption Charge-Constant voltage charging and battery is over 85%.
Equalisation Charge - Only for WET battery or Calcium battery type, when the battery is deeply
drained below 10V (for 12V battery), it will automatically run this stage to bring the internal cells as an
equal states and fully complement the loss of capacity. (Gel and AGM battery do not run Equalization
charge)
Float Charge - Battery is fully charged and maintained at a safe level. A fully charged battery has a
voltage of more than 13.6 Volts (for 12V battery).
OPERATION - L.E.D. INDICATION
Values are for 12V use.

610
USER MANUAL

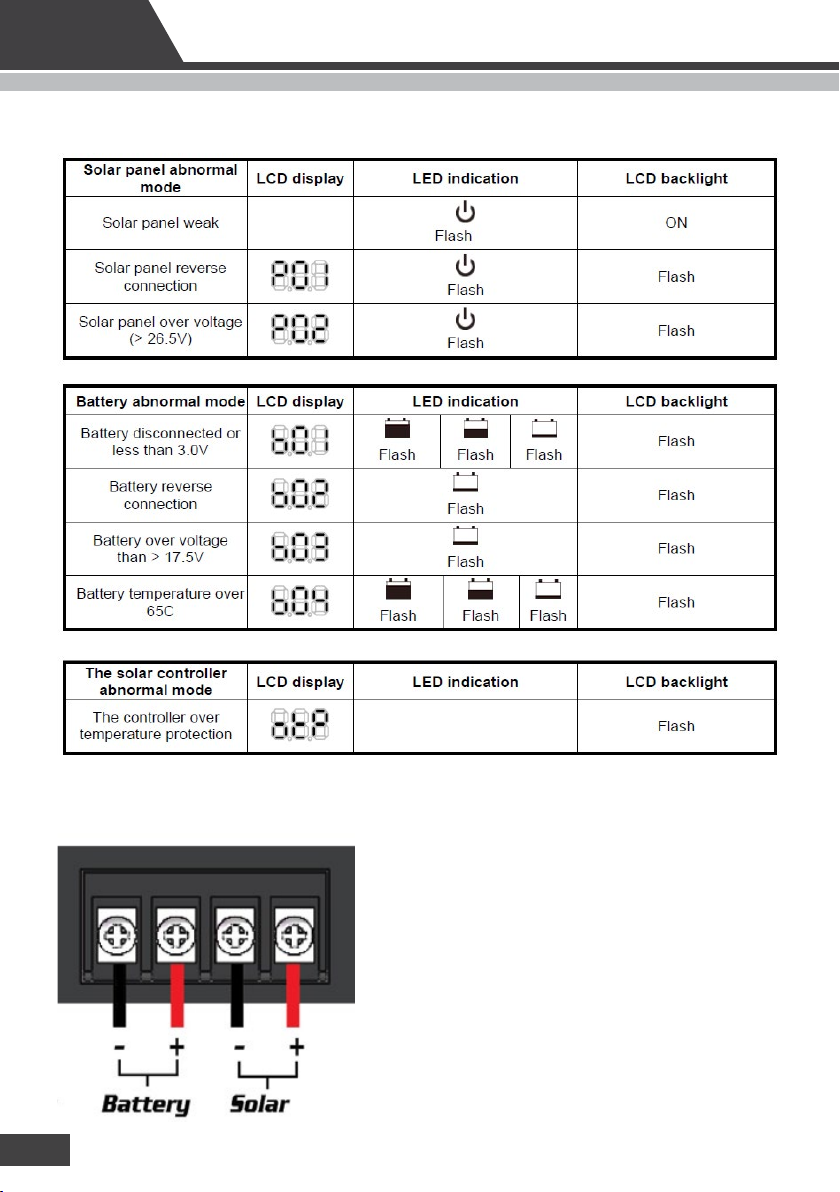

ABNORMAL OPERATION MODE
SOLAR CONTROLLER WIRING DIAGRAM

11
USER MANUAL
Values are for 12V use.
SPECIFICATIONS
8
1Electrical Parameters
1-1 Rated solar panel amps 10/15/20 Max. AMP
1-2 Normal input Solar cell array voltage 15-22 VDC
1-3 Max. solar cell array voltage (output has no load) 25 Max. VDC
1-4 The controller lowest operating voltage at solar or battery side 8V Min VDC
1-5 Standby current consumption at night 5 Max mA
1-6 Maximum voltage drop-Solar panel to battery 0.25 Max. VDC
2Charging characteristics
2-1 Minimum battery start charging voltage 3 Min VDC
2-2 Soft start charging voltage 3-10 +/-0.2 VDC
2-3 Soft start charging current (50% PWM duty) Up to 15 AMP
2-4 Bulk charge voltage 10-14.0 +/-0.2 VDC
2-5 Absorption charging voltage at 25*C
--Gel type battery 14.1 +/-0.2 VDC
--AGM type battery (default setting) 14.4 +/-0.2 VDC
--WET type battery 14.7 +/-0.2 VDC
--Calcium type battery 14.9 +/-0.2 VDC
2-6 Absorption transits to Equalizing or Float condition:
--Charging current drops to 0.5 +/0.1 AMP
-- or Absorption charging timer timed out 4 Hour
2-7 Equalization charging active
--Only for WET or Calcium battery
--Battery voltage discharged to less than 10 +/-0.2 VDC
--Automatic equalizing charging periodical 28 Day
2-8 Equalization charging voltage at 25*C 15.5 +/-0.2 VDC
2-9 Equalization charging timer timed out 2 Hour
2-10 Float charging voltage at 25°C 13.6 +/-0.2 VDC
2-11 Voltage control accuracy +/- 1%
2-12 Battery temperature compensation coefficient -24 mV/°C
2-13 Temperature compensation range -20 ~ +50
°C
3 Protection
3-1 Against reverse polarity or short circuit
3-2 No reverse current from battery to solar at night
3-3 Over temperature protection during charging 65 °C
4 Electrical parts
4-1 Input output terminal M5 terminals
4-2 Temperature sensor port (Press and Release type) DA 250-350 2P
5 Physical Parameters
5-1 Controller material Plastic, Standard ABS
5-2 Power terminal maximum stranded wire size #12 AWG stranded-3 mm
2
5-3 Mounting Vertical wall mounting
5-4 IP grade IP22 or IP65
5-5 Net weight Approx. 300g
6 Environmental characteristics
6-1 Operating temperature -25 ~ 50*C
6-2 Storage temperature -40 ~ 85*C
6-3 Operating Humidity range 100% no condensation
Remarks: Values are for 12V use, x 2 for 24V use
SPECIFICATIONS
20
8
1Electrical Parameters
1-1 Rated solar panel amps 10/15/20 Max. AMP
1-2 Normal input Solar cell array voltage 15-22 VDC
1-3 Max. solar cell array voltage (output has no load) 25 Max. VDC
1-4 The controller lowest operating voltage at solar or battery side 8V Min VDC
1-5 Standby current consumption at night 5 Max mA
1-6 Maximum voltage drop-Solar panel to battery 0.25 Max. VDC
2Charging characteristics
2-1 Minimum battery start charging voltage 3 Min VDC
2-2 Soft start charging voltage 3-10 +/-0.2 VDC
2-3 Soft start charging current (50% PWM duty) Up to 15 AMP
2-4 Bulk charge voltage 10-14.0 +/-0.2 VDC
2-5 Absorption charging voltage at 25*C
--Gel type battery 14.1 +/-0.2 VDC
--AGM type battery (default setting) 14.4 +/-0.2 VDC
--WET type battery 14.7 +/-0.2 VDC
--Calcium type battery 14.9 +/-0.2 VDC
2-6 Absorption transits to Equalizing or Float condition:
--Charging current drops to 0.5 +/0.1 AMP
-- or Absorption charging timer timed out 4 Hour
2-7 Equalization charging active
--Only for WET or Calcium battery
--Battery voltage discharged to less than 10 +/-0.2 VDC
--Automatic equalizing charging periodical 28 Day
2-8 Equalization charging voltage at 25*C 15.5 +/-0.2 VDC
2-9 Equalization charging timer timed out 2 Hour
2-10 Float charging voltage at 25°C 13.6 +/-0.2 VDC
2-11 Voltage control accuracy +/- 1%
2-12 Battery temperature compensation coefficient -24 mV/°C
2-13 Temperature compensation range -20 ~ +50
°C
3 Protection
3-1 Against reverse polarity or short circuit
3-2 No reverse current from battery to solar at night
3-3 Over temperature protection during charging 65 °C
4 Electrical parts
4-1 Input output terminal M5 terminals
4-2 Temperature sensor port (Press and Release type) DA 250-350 2P
5 Physical Parameters
5-1 Controller material Plastic, Standard ABS
5-2 Power terminal maximum stranded wire size #12 AWG stranded-3 mm
2
5-3 Mounting Vertical wall mounting
5-4 IP grade IP22 or IP65
5-5 Net weight Approx. 300g
6 Environmental characteristics
6-1 Operating temperature -25 ~ 50*C
6-2 Storage temperature -40 ~ 85*C
6-3 Operating Humidity range 100% no condensation
Remarks: Values are for 12V use, x 2 for 24V use
SPECIFICATIONS
--LITHIUM type battery 14 .25 +/-0 .2
VDC

8
Product Safety
Always follow user manual for operational and safety instructions.
1. For installations with all batteries, avoid sparks or flames near the batteries and always use
proper eye protection.
2. Given sufficient light, solar panels always generate energy even when they are
disconnected.
3. Accidental ‘shorting’ of the terminals or wiring can result in sparks causing personal injury
or a fire hazard.
4. Do not scratch or stand on solar cells.
5. Do not disassemble the Solar kit.
6. Do not attempt to increase module output by concentrating light on its surface with mirrors.
7. When storing the KT Solar Blanket - to avoid damage, do not pack heavy items on top.
8. Do not disassemble the controller. Take to a qualified electrician if the unit requires
repairing.
9. The solar regulator is IP65 rated, however solar blankets should not be left overnight during
rainfall. They should be folded up and put away each evening to ensure longevity. In the
event the blanket is completely saturated, simply hang up and dry just like a blanket.
Product Care
1. Periodically inspect the electrical and mechanical connections. Make sure they are all tight
and free from corrosion. If necessary clean the surface of the solar panels with a soft damp
cloth. Mild detergent can also be used. Any dirt or residue on the solar mat may effect
performance.
2. Always fold-away for storage when not in use
12
USER MANUAL

13
USER MANUAL

814
USER MANUAL

15
USER MANUAL
