Labtech VP30 User manual

VP30 - VP18 Plus - VP50 Plus
VACUUM PUMPS
USER MANUAL

VP SERIES –User Manual
2
Thank you for selecting our VP series vacuum pumps.
We are sure that you will be completely satisfied with the performance of
this new unit entering your laboratory. We invite you to read carefully this
user manual and to keep it close to the instrument for convenient and fast
consulting. For any possible clarification or any request for assistance
please contact either our local Representative or:
LabTech Srl
Via Fatebenefratelli, 1/5
24010 Sorisole (BG) Italy
Tel [phone]
Fax [phone]
Website www.labtechsrl.com
E-mail [e-mail]

VP SERIES –User Manual
3
INDEX
1. INTRODUCTION .............................................................................. 4
2. SAFETY RULES................................................................................. 7
3. OPERATION PROCEDURE................................................................ 9
4. TROUBLESHOOTING ..................................................................... 10
5. SOLVENTS TABLE .......................................................................... 11
6. SERVICE ........................................................................................ 12
The information contained in this document may be the object of patent applications by LABTECH.
The possession of this document does not confer any license rights in and to such patents.
The following names are LABTECH trademarks throughout the world:
LABTECH
VP30 –VP18 Plus - VP50 Plus
All Reproduction Rights Reserved

VP SERIES –User Manual
4
1. INTRODUCTION
Model
VP30
VP18 PLUS
VP50 PLUS
Voltage (V)
230V 50/60HZ
230V 50/60HZ
230V 50/60HZ
Power (W)
80
140
130
Pumping speed (L/min)
30
18
50
Vacuum Pressure (mbar)
250
20
150
Dimension (mm) (W×L×H)
315×180×240
315×180×240
315×180×240
Weight (kg)
6
7
8

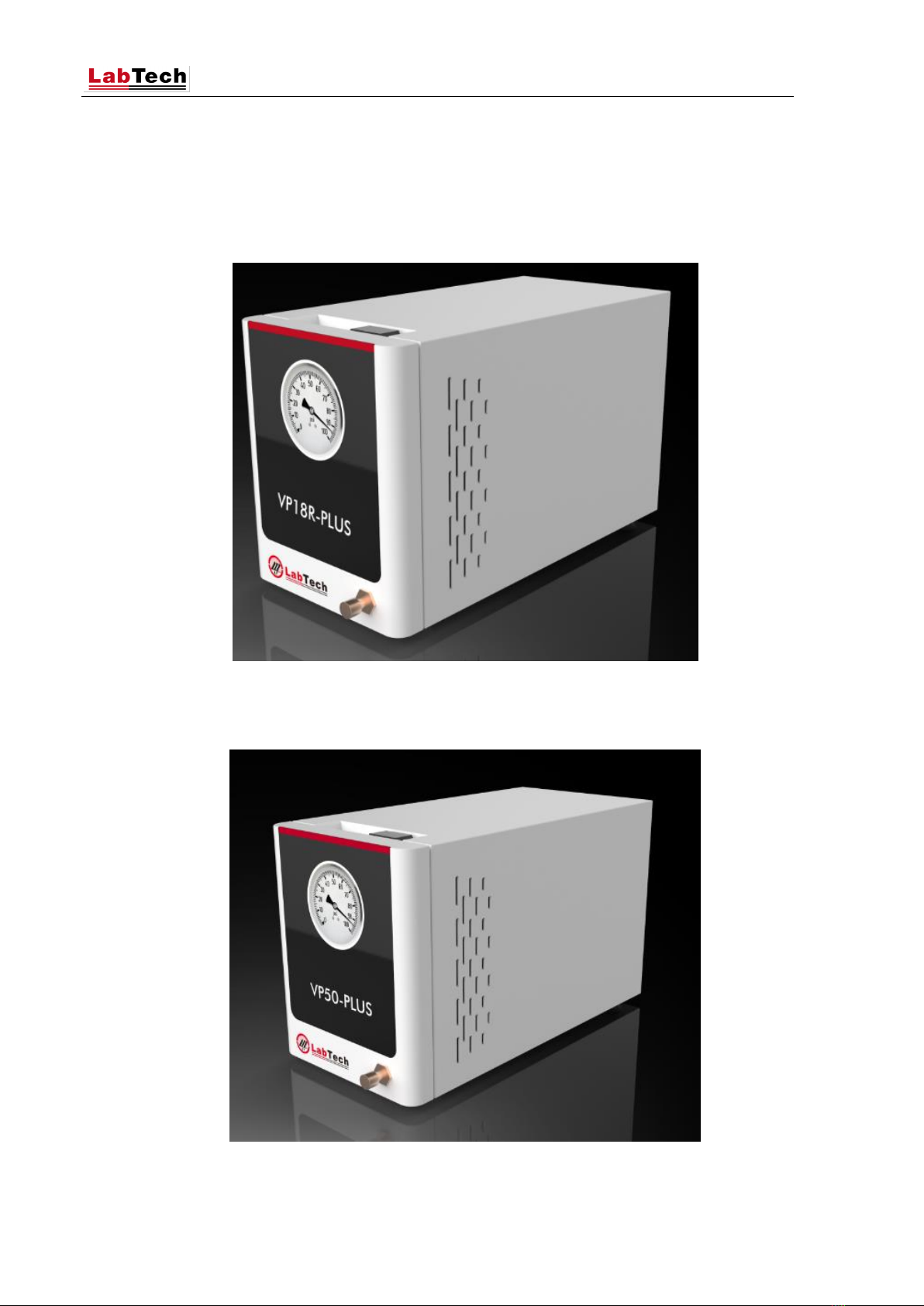

VP SERIES –User Manual
5

VP SERIES –User Manual
6

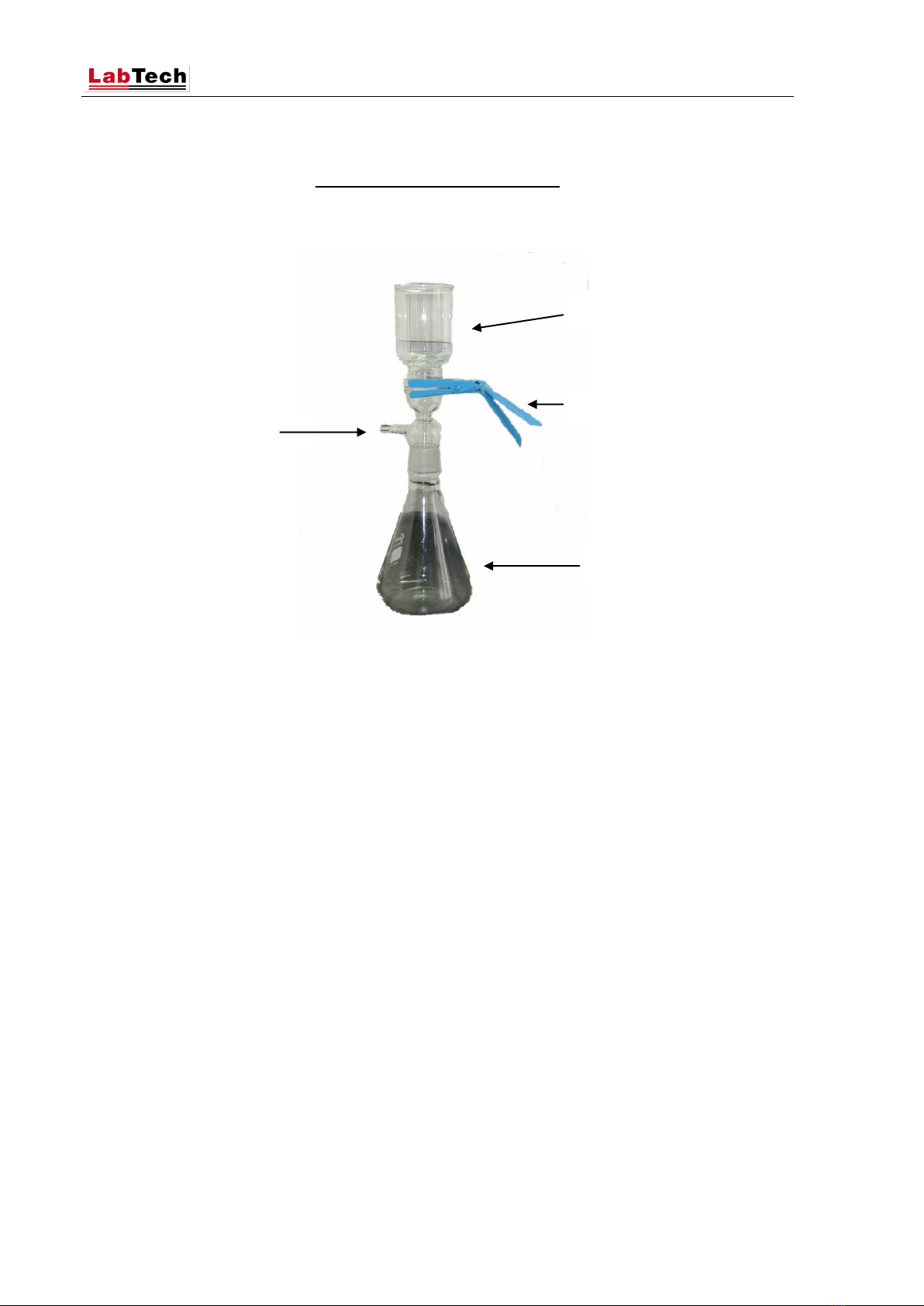

FILTER FLASK (ACCESSORY)
Beaker
Clamp
Filter Flask
Funnel

VP SERIES –User Manual
7
2. SAFETY RULES
General Information
Please read carefully this user manual before starting to use the instrument and follow its
prescriptions with the utmost care. This user manual is part of the delivery, hence must be
always kept together with the instrument on its working place.
It is imperative that every person operating with this system has read and fully understood this
manual. The non-observance of the instructions contained herein or improper use may involve
damages/injuries that are not covered by product liability.
Never place the unit in a location where excessive heat, moisture, or corrosive materials are
present.
The unit construction provides extra protection against the risk of electrical shock by grounding
appropriate metal parts. The extra protection may not function unless the power cord is
connected to a properly grounded outlet. It is the user’s responsibility to assure a proper
ground connection is provided.
Observe all warning labels and never remove therm.
Never operate damaged or leaking equipment.
Never operate the unit without fluid in the bath.
Never operate equipment with damaged power cords.
Pay attention to the thermal expansion of bath fluid during heating to avoid the risk of
overflowing.
Use suitable connecting tubes. Make sure that the tubes are securely attached.
Take care before drain the liquid out, be sure to cool it down below 40℃.
Always turn off the unit and disconnect the power cord from the plug source before performing
any service or maintenance procedure or before moving the unit.
It’s better to consult the Labtech Service Team before performing installation, operation,
maintenance, procedures other than those described in this manual may result in a hazardous
situation and may void the warranty.

VP SERIES –User Manual
8
Electrical safety
The instrument has to be used within the rated voltage. Prior to use, please check if the wire is
aged. In case of aged wires, please contact the after-sales service for inspection. It is
forbidden to disassemble the instrument and to connect internal circuit parts, in order
to avoid a short circuit or open circuit.
Fire safety
Numerous reagents are flammable and explosive. When the solvent vapor concentration
reaches a certain level, it would be flammable and could cause fire. The instrument
should be kept away from the sources of ignition and high temperature places. If there
is solvent pungent smell, carefully check whether there is gas or liquid leakage, and
turn off the power.
Chemical safety
The instrument is an instrument for organic chemical sample pretreatment. The involved
chemical solvents have harmful effects on the human health. Despite the instrument is
fully closed and features full vent design, it is recommended to pay attention to the
personal safety during the use. Regular check of liquid waste barrels as well as working
conditions of the vent fan are required to avoid the risk of leakage caused by corrosion and to
avoid the formation of organic solvent vapors affecting operators’ health. If there is a fault,
please contact the Labtech Service Team.

VP SERIES –User Manual
9
3. OPERATION PROCEDURE
Step 1: Use a rubber pipe to connect the instrument to the vacuum pump tightly after making
sure the in and out connectors are connected. Please make sure the whole system does not
leak and it is tightly connected. Then connect the power cord.
Step 2: Switch on the unit.

VP SERIES –User Manual
10
4. TROUBLESHOOTING
The Pump Does Not Start After Switching The Power On
Check the power cord and ensure it is plugged in.
Check whether or not the system has higher negative pressure. This can be judged from the
vacuum gauge. If negative the pressure is bigger than -0.05MPa the pump cannot start. The
pump will work again as long as release the atmospheric pressure inside the system and back
to regular level.
The Pressure Declines Rapidly
Check whether or not the liquid, volatile solvent vapours or particles are inhaled into the pump.
If so, please pull out the ”IN” connection pipe and then switch the power on, and make pump
working without loading for about 10 minutes to dry up or blow out the impurities inside the
pump.

VP SERIES –User Manual
11
5. SOLVENTS TABLE

VP SERIES –User Manual
12
8. SERVICE
The LABTECH worldwide technical support network consists of highly
trained Field Service Engineers, Technical Support Specialists and Service
Coordinators who are ready to quickly assist customers with answers and
solutions to service needs and application questions.
For any possible clarification or any request for assistance please contact
either our local Representative or:
LabTech Srl
Via Fatebenefratelli, 1/5
24010 Sorisole (BG) Italy
Tel [phone]
Fax [phone]
Website www.labtechsrl.com
E-mail [e-mail]
