Lacanche Cluny 1000 User guide

Page 1 of 21–US –
Fourneau
«Cluny»
INSTALLER'S MANUAL
Appliances must be installed in a workmanlike manner in
accordance with the instructions in this manual and locally
applicable regulations.
This manual will be handed over to the user after
installation.

Page 2 of 21–US –

Page 3 of 21–US –
Fig. 1
J
D
E
G
Place electrical and gas stub-out in this
shaded area behind drawer cavity
K
F
H
A
B
C
E
Range
Height
A
(min*)
B
C
D
E
F
(max)
G
(max)
H
I
J
K
Default
900mm
35 3/8’’
457mm
18’’
914mm
36’’
330mm
13’’
50mm
2’’
700mm
27 9/16’’
638mm
25 1/8’’
130mm
51/4’’
215mm
8 7/16’’
1005mm
399/16’’
457mm
18’’
Optional
930mm
36 5/8’’
*All final range height dimensions are variable with the use of the adjustable range feet.
Maximum added height for the Roller Feet: 16mm - 5/8’’, Extended Leveling Feet : 30mm –1 3/16’’
Range
Height
A
(min*)
B
C
D
E
F
(max)
G
(max)
H
I
J
K
Default
900mm
35 3/8’’
457mm
18’’
914mm
36’’
330mm
13’’
50mm
2’’
700mm
27 9/16’’
638mm
25 1/8’’
130mm
51/4’’
215mm
8 7/16’’
1410mm
551/2’’
857mm
33 3/4’’
Optional
930mm
36 5/8’’
*All final range height dimensions are variable with the use of the adjustable range feet.
Maximum added height for the Roller Feet: 16mm - 5/8’’, Extended Leveling Feet : 30mm –1 3/16’’

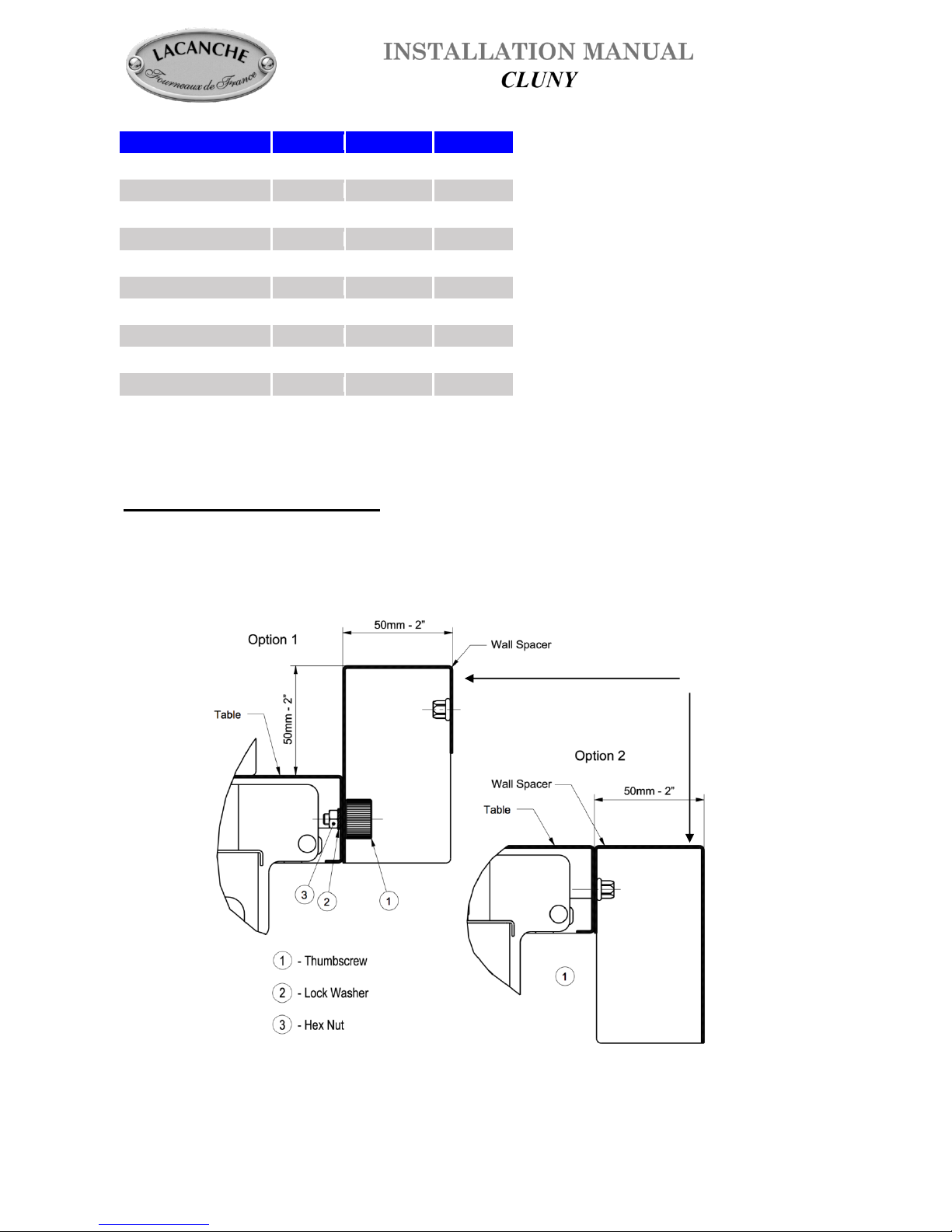

ALL DEPTH MEASUREMENTS BELOW ARE WITH A 50mm (2”) RANGE SPACER INSTALLED:
A flexible metal gas line, and a flexible power cord should be used to
attach the range to the gas and electrical utility connections behind
the range. When installed, the range wall spacer allows a 130mm (5
1/4”) deep gap to run the utility lines behind the range chassis.
Cabinet preparation (CLUNY 1000):
I
Cabinet preparation (CLUNY 1400) - Cupboard LEFT:

Page 4 of 21–US –
Range
Height
A
(min*)
B
C
D
E
F
(max)
G
(max)
H
I
J
K
L
Default
900mm
35 3/8’’
457mm
18’’
914mm
36’’
330mm
13’’
50mm
2’’
700mm
27 9/16’’
638mm
25 1/8’’
130mm
51/4’’
215mm
8 7/16’’
1410mm
55 1/2’’
457mm
18’’
400mm
15 3/4’’
Optional
930mm
36 5/8’’
*All final range height dimensions are variable with the use of the adjustable range feet.
Maximum added height for the Roller Feet: 16mm - 5/8’’, Extended Leveling Feet : 30mm –1 3/16’’
Range
Height
A
(min*)
B
C
D
E
F
(max)
G
(max)
H
I
J
K
L
Default
900mm
35 3/8’’
457mm
18’’
914mm
36’’
330mm
13’’
50mm
2’’
700mm
27 9/16’’
638mm
25 1/8’’
130mm
51/4’’
215mm
8 7/16’’
1810mm
71 1/4’’
857mm
33 3/4’’
400mm
15 3/4’’
Optional
930mm
36 5/8’’
*All final range height dimensions are variable with the use of the adjustable range feet.
Maximum added height for the Roller Feet: 16mm - 5/8’’, Extended Leveling Feet : 30mm –1 3/16’’
The range is a free standing unit. If the unit is to be placed next to cabinets, the clearances shown in Figure 1
& 2 are required.
The range cooktop surface must be no lower than the adjacent base cabinet countertop surface.
Min clearances to combustibles:
0’’ (0 mm) from rear (with spacer installed).
0’’ (0 mm) from sides below countertop surface height.
2’’ (51 mm) from sides above countertop surface height.
Cabinets 13’’ (330 mm) deep may be installed above the range at least 30’’ above the plane of the
cooking surface.
Use range only with factory supplied legs.
ALL DEPTH MEASUREMENTS BELOW ARE WITH A 50mm (2”) RANGE SPACER INSTALLED:
Cabinet preparation (CLUNY 1800):
Cabinet preparation (CLUNY 1400) –Cupboard Right:
Fig. 2
J
D
L
E
E
G
Place electrical and gas stub-out in this
shaded area behind drawer cavity
K
I
F
H
A
B
C

Page 5 of 21–US –

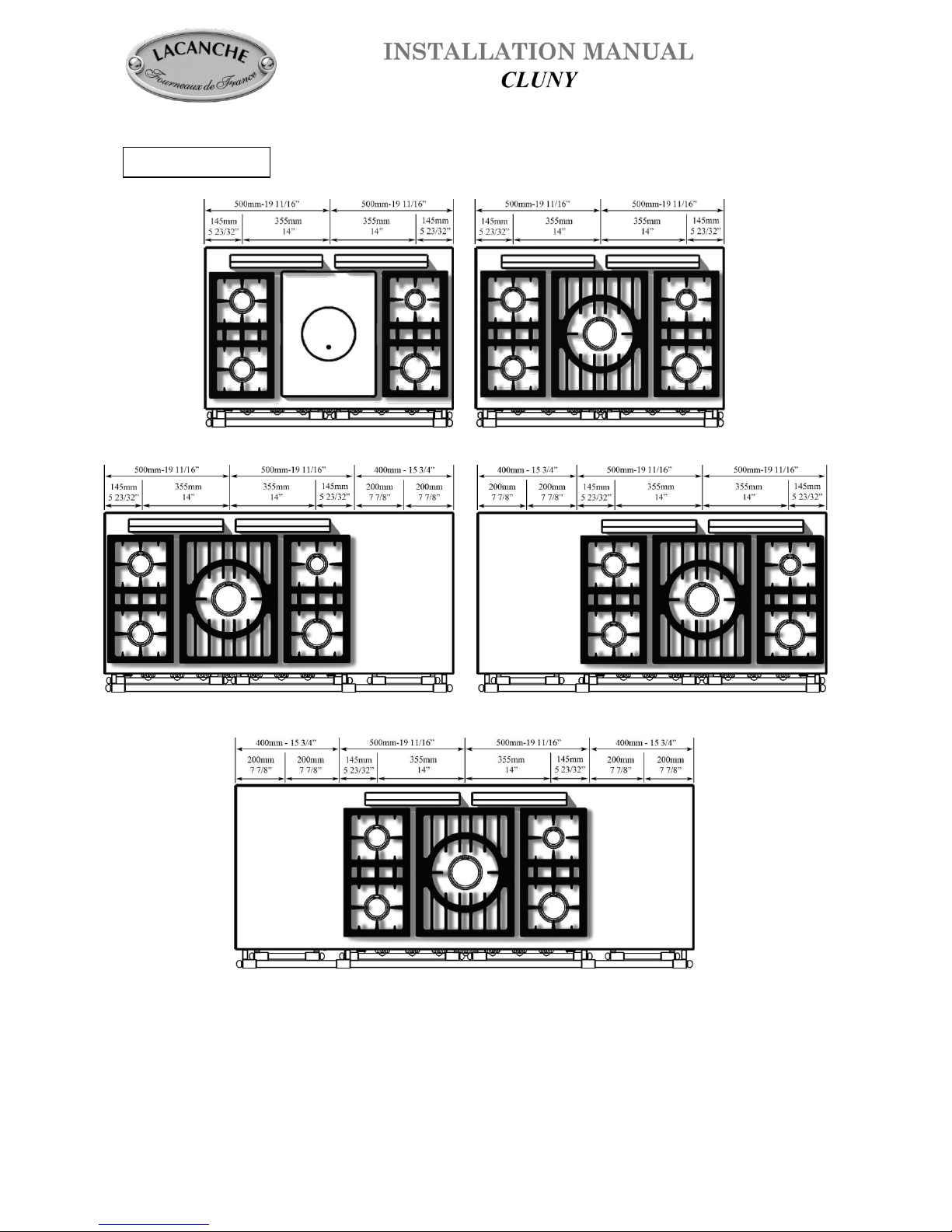

Potfiller Locations:

Page 6 of 21–US –

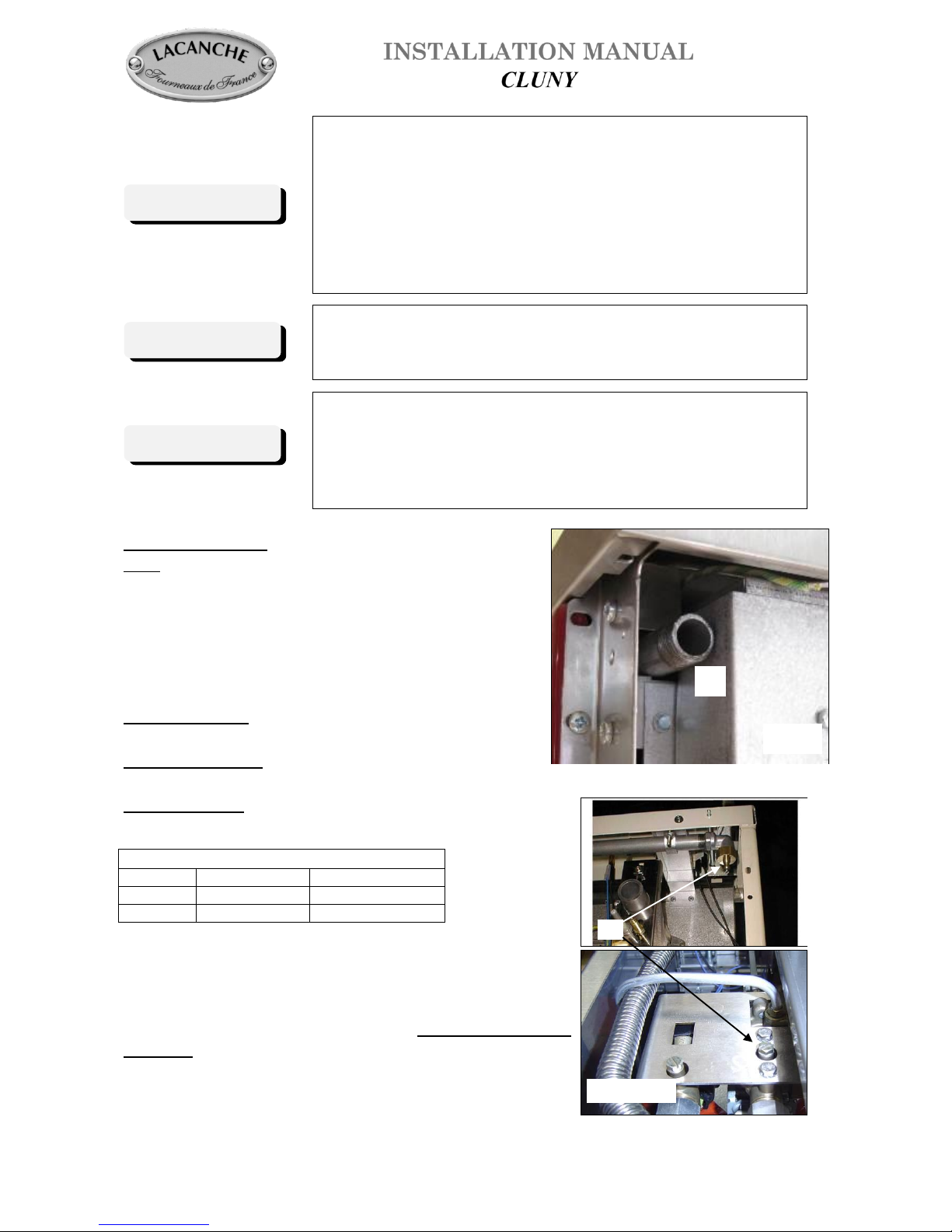

Fig. 4
Before connection:
Check:
- Pipework is perfectly clean in order to prevent the injectors
becoming blocked and malfunctioning of the magnetic heads.
- The gas for which the appliance was set up: Check rating plate and
markings.
- Cross-sectional area of gas supply pipework is compatible with the
appliance’s thermal output.
- Provide adequate air supply during use ofthe appliance.
Gas connection:
Female coupling Ø 15/21, 1/2” ID NPT on A (Figure 3).
After connection:
Check the manifold pressure on pressure connection Ø 15/21, 1/8” NPT on B (Figure 4).
Change of gas:
The appliance is designed to operate with the gases in Table 2.
Table 2
Country
GAS
Pressure (Pn)
U.S.
Natural gas
6’’ WC
U.S.
L.P. propane
10’’ WC
If specified at the time of the order, the appliance will be
built to use the specified gas type. No further work is
required.
IMPORTANT
Manual shut-off valve should be installed in an accessible
location in the gas piping external to the appliance for the
purpose of turning on or shutting off gas to the appliance.
A location at the back of an adjacent cabinet is
recommended.
THE APPLIANCE MUST BE INSTALLED IN
ACCORDANCE WITH THE LOCAL CODES OR
National Fuel Gas Code, ANSI Z223.1 or latest edition.
IMPORTANT
Recommended to be installed under an exhaust hood.
In the commonwealth of Massachusetts, the appliance must
be installed by a licensed plumber or gas fitter.
Do not install this unit near combustible walls, partitions,
pieces of furniture or decorative material unless these are
covered by adequate material of the non-combustible type.
Making sure the resulting installation meets fire
regulations.
IMPORTANT
Fig. 3
A
With gas oven
B

Page 7 of 21–US –
Unscrew the screws Cnear the burner openings (Figures 5 and 6). Pull and raise the top after having loosened the 2
screws D(Fig. 7), then prop up the cooking surface.
A pressure regulator (fig. 8) is located in the right rear corner under the hob, to gain access to the pressure regulator,
remove the top.
Convertible regulator (Fig. 8):
The reversible cap is labeled either « LP » or « NAT » and is easily recognized by the raised center screw slot (for
natural) or the center depth (for LP).
To change LP to Natural or vice versa, the seal screw in the regulator lid is unscrewed, reversed and reinstalled to
convert from one setting to another (Figure 9, 10).
NAT Setting
Fig. 5
C
C
Fig. 6
Fig. 7
D
Fig. 8
Fig. 9
LP Setting
Fig. 10

Page 8 of 21–US –
In case of use with a gas other than that for which the appliance was initially set up, it is crucial to replace the
orifices and modify the adjustments as defined below.
TOP BURNERS
Orifice
Lift the air ring E. Replace the injectors Fin accordance with
Table 3 and Figure 11 (Ø in 1/100 mm).
The side burner bodies are kept in place by a transversal bar
(H, fig. 13). In order to take them out, unscrew screws I(fig.
14) then G(fig. 12).

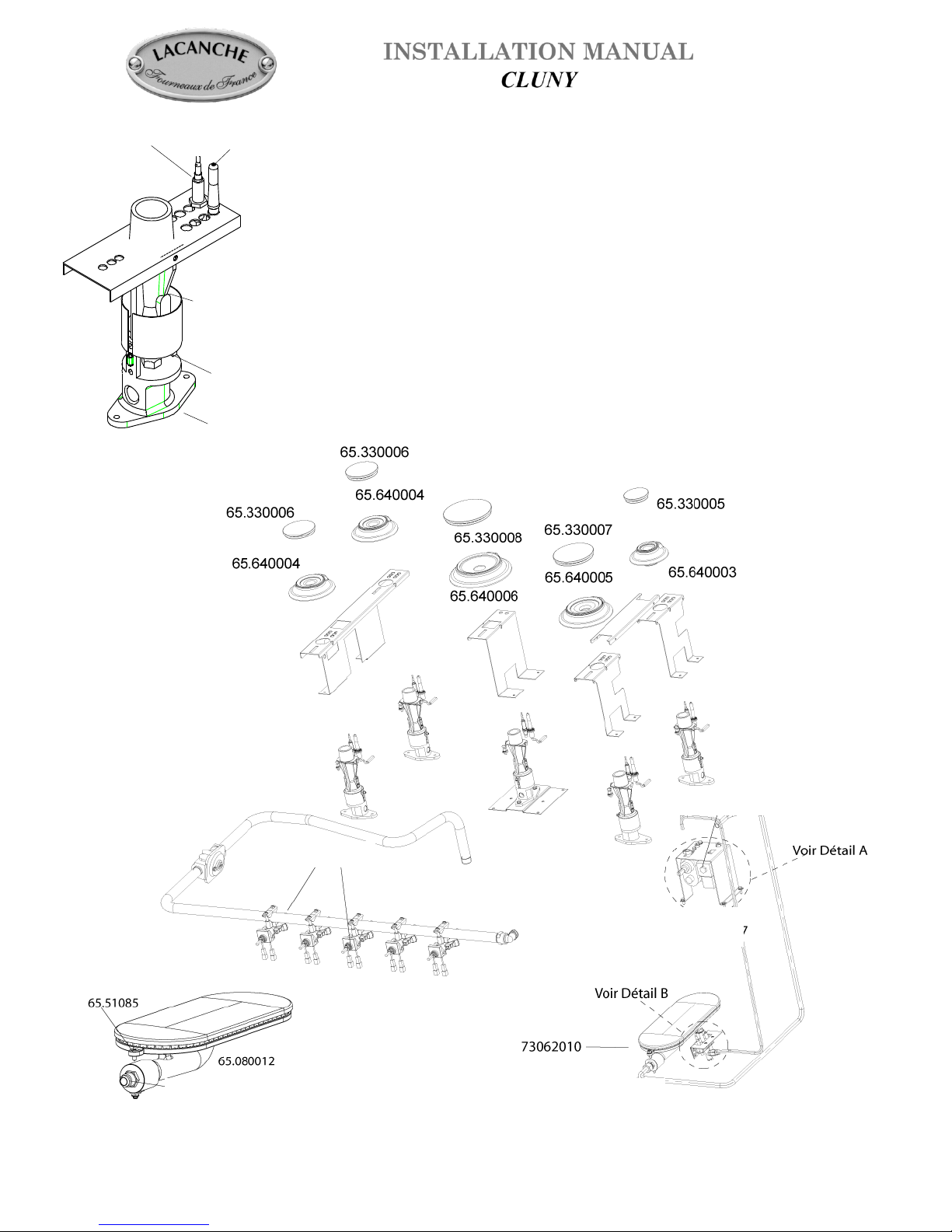

Note: When one or more nozzles are changed, the sealing ring
should be changed as well (see gas circuit diagram).
Adjustment of primary air
Put body & cap back on their respective burners, set air ring Eby
sliding it from bottom to top (fig. 11, Table 4).
Note: Normal flames are bluish green except for natural gas flames
which are violet.
Table 3
Top burners
5000
11000
15000
18000
GAS
Pressure
Natural gas
6" WC
0.90
1.30
1.45
1.70
L.P. propane
10" WC
0.65
0.90
1.05
1.20
Table 4
Top burners
5000
11000
15000
18000
GAS
Pressure
Opening / inches
Natural gas
6" WC
2,5 / 1/8
2,5 / 1/8
max
7 / 1/4
L.P. propane
10" WC
3,5 / 1/8
max
max
max
12mm Hex
(15/32)
Fig. 11
F
E
2mm Allen
Hex Screw
Fig. 12
G
I
Fig. 14
7mm Hex
(15/32)
H
Fig. 13
7mm Hex
(15/32)

Page 9 of 21–US –
Low Flame Adjustment (Figure 15):
After connection or change of gas type and burner air
adjustment, it is crucial to modify this adjustment.
- Remove the control knob. Light the burner, adjust to
minimum setting, then use a small screwdriver to set the
adjusting screw J.
Note: Flame is reduced to ¼ of its size in the minimum
setting, the burner must remain lit when changing from
maximum setting to minimum setting.
Refitting the cooking surface:
When refitting the cooking surface, it is vital to tighten
fastening screws C(figures 5 and 6). Failure to do so can
cause distortion of the cooking surface.
OVEN BURNERS:
Disassembling of the gas oven burner:
Withdraw the plate (Fig.16).
CAUTION: when refitting, place the base front underneath the groove on the fascia (fig.17).
Unscrew screw Kholding the burner (Fig.18).
Remove the drawer.
Unscrew the two flathead screws L(Fig.18). Remove screen under gas oven (Fig.19).
Unscrew screw Mon the orifice holder (Fig. 20).
Push the burner towards the back of the oven cavity and to raise it to release it.
Fig. 15
J
Fig. 18
K
Fig. 17
Fig. 16
Fig. 19
L

Page 10 of 21–US –
Oven Orifice:
To replace oven orifice:
Remove oven baseplate. CAUTION: when refitting place the
base underneath the groove on the fascia (Figures 16 and 17).
Remove screws L(Figure 18). Remove the screen below the
oven (Figure 19). Loosen screw Mthen slide open the burner air
collar towards the front of the oven (Figure 20). Replace the
orifice (Table 5).
Pilot burner orifice:
Change the pilot burner orifice:
Remove slotted cap at bottom of pilot burner assembly. Unscrew
pilot injector. Replace new injector (Table 5), screw in completely until injector bottoms out. Replace cap screw.
Gas pilot LP: 65.103032
Gas pilot NG: 65.103031




Adjustment of oven primary airflow:
Remove the base, unscrew the screw Mholding the burner (Fig.20).
Adjust the air ring (Table 6, Figure 21).
Table 6
Opening in mm / inches
GAS
Pressure
Oven
Natural Gas
6" WC
4 / 3/16
L.P. propane
10" WC
6 / 1/4

Adjusting pilot burner air supply
Turn ring Nto fully open for Butane/Propane, to half open for natural gas (Fig. 23)
Table 5
Ø
GAS
Pressure
Gas oven
Pilot burner
Natural gas
6" WC
1.40
0.45
L.P. propane
10" WC
0.95
0.25
Fig. 21
Air Adjustment
Fig. 23
N
Fig. 20
M
Fig. 22

Page 11 of 21–US –

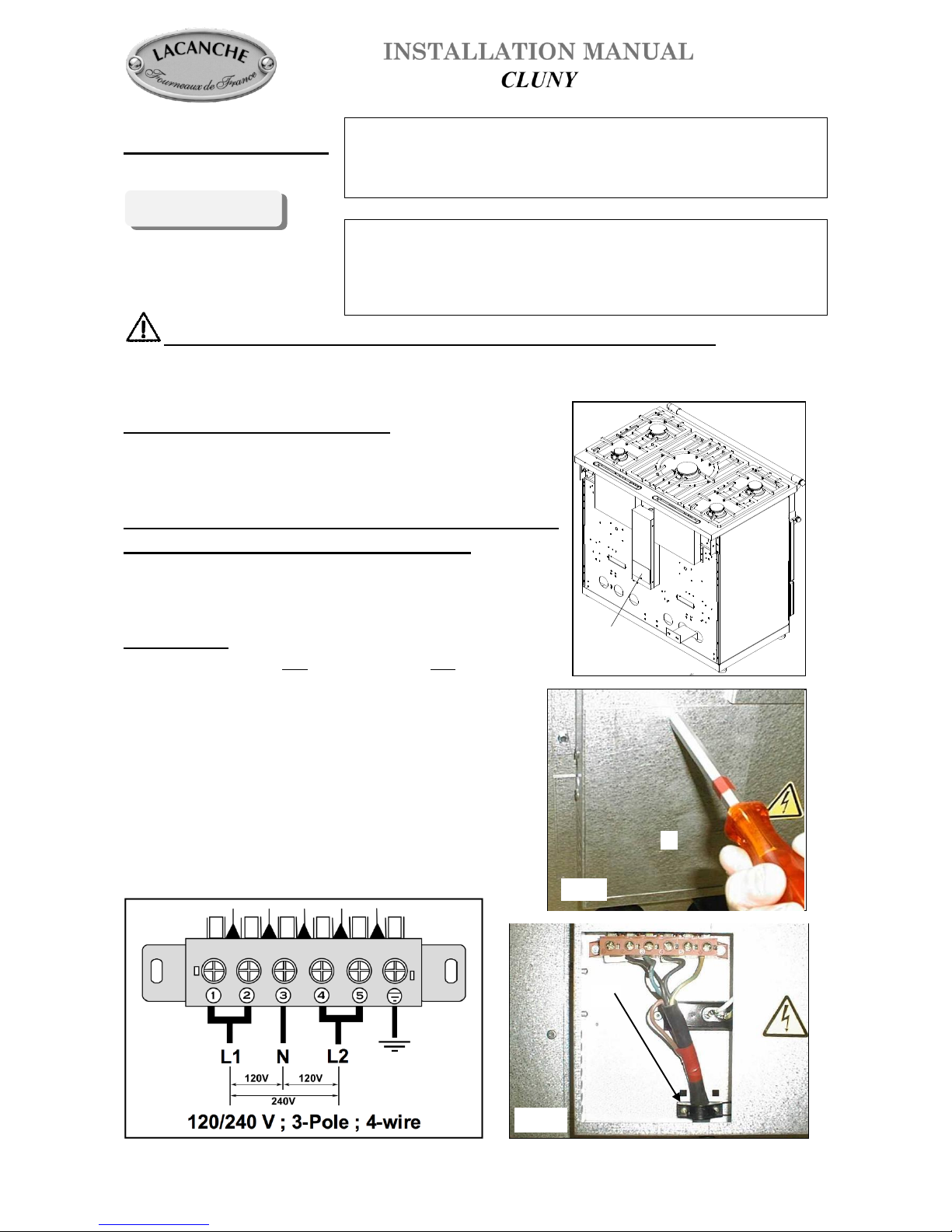

ELECTRICITY
It is hazardous to put the appliance into service without connecting it to suitable ground.
No liability can be accepted for accidents resulting from non-compliance with this requirement or incorrect
grounding.
Before connection, check that the:
Mains voltage is compatible with the appliance’s rated voltage and
thermal output.
A power cord has been installed by the importer /
distributer. DO NOT remove this cord.


Connection:
-Use a 4-wire rated for 30A(NEMA 14-30P) or 50A (NEMA 14-50P)
125 / 250 VAC, type SRD, SRDT, S, SO or ST.
-Where local Codes do not permit grounding through neutral, use
a 4-wire power supply cord or “pigtail” kit. Cord must be agency
approved for use with household ranges.
-Remove access door O(Fig.24: all gas range) or P(Fig. 25: gas
and electric range).

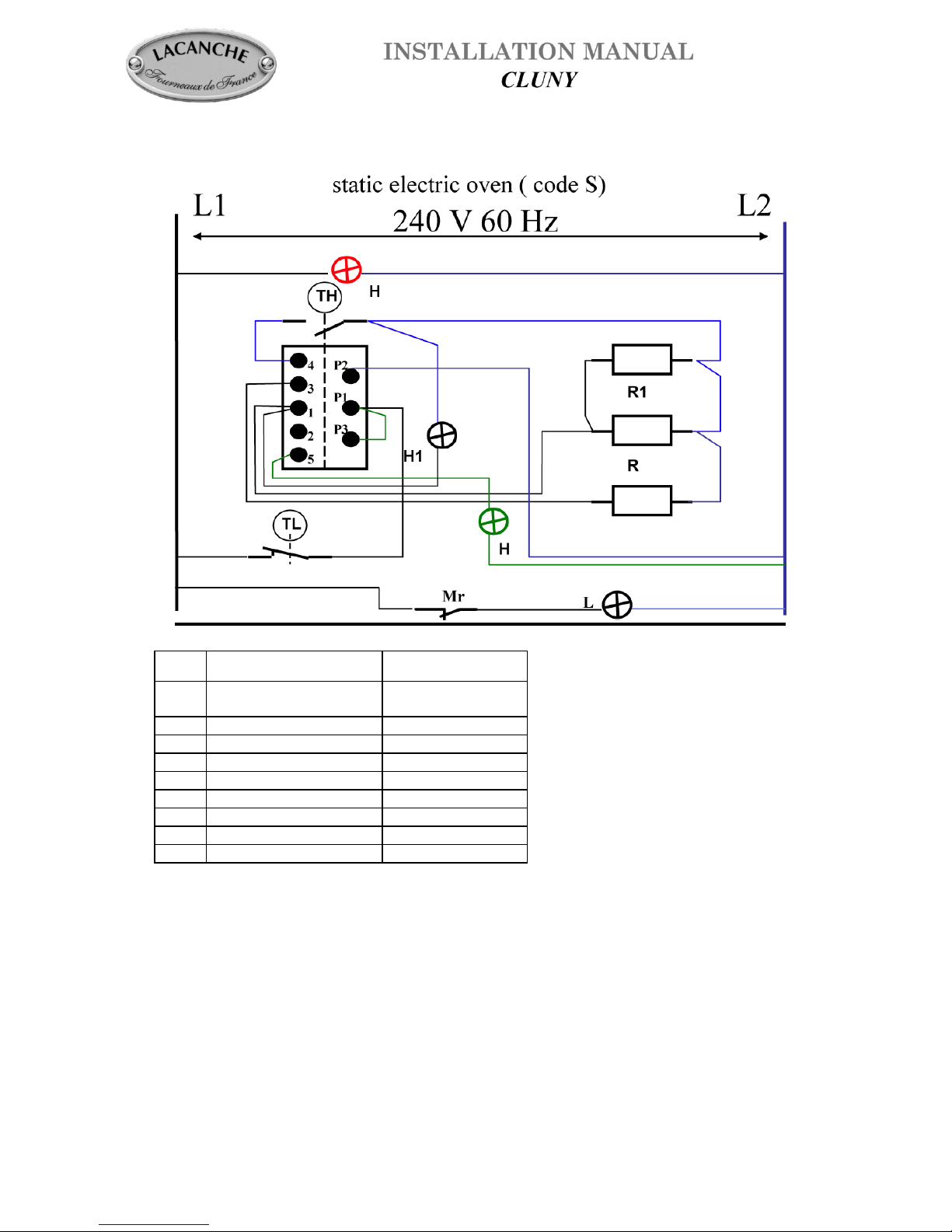

-Connect to terminal block in accordance with figure 26.
-Secure the cable by means of cable clamp, item Q (Fig. 27).
-Refit access door
THE APPLIANCE WHEN INSTALLED, MUST BE
ELECTRICALLY GROUNDED IN ACCORDANCE
WITH THE LOCAL CODES OR The National Electrical
Code, ANSI/NFPA 70-1996 or latest edition.
ALL WORK ON OR REPAIR OF AN APPLIANCE
MUST BE CARRIED OUT BY A QUALIFIED
INSTALLER.
IMPORTANT
O
Fig. 24
Fig. 25
P
Q
Fig. 27
Fig. 26

Page 12 of 21–US –
Range Amperages:
Power Specifications for Cluny, Cluny 1400, and Cluny 1800 (no Warming Cupboard) Ranges
CLUNY
CLUNY 1400
CLUNY 1800
Voltage (V)
Amperage (A)
Wattage (W)
ULG1052G
ULG1452G
ULG1852G
120 / 240
< 0.5
< 100
ULG1052GE
ULG1452GE
ULG1852GE
120 / 240
9.3
2222
ULG1052GCT
ULG1452GCT
ULG1852GCT
120 / 240
11.2
2672
ULG1052E
ULG1452E
ULG1852E
120 / 240
18.4
4402
ULG1052ECT
ULG1452ECT
ULG1852ECT
120 / 240
20.3
4852
ULCF1052G
ULCF1452G
ULCF1852G
120 / 240
< 0.5
< 100
ULCF1052GE
ULCF1452GE
ULCF1852GE
120 / 240
9.3
2222
ULCF1052GCT
ULCF1452GCT
ULCF1852GCT
120 / 240
11.2
2672
ULCF1052E
ULCF1452E
ULCF1852E
120 / 240
18.4
4402
ULCF1052ECT
ULCF1452ECT
ULCF1852ECT
120 / 240
20.3
4852
Ranges with Plancha cooktop option, add: 9.2 Amps, 2200 Watts
Ranges with Multicooker option, add: 14.6 Amps, 3500 Watts
Ranges with Induction option, add 16.2 Amps, 3700 Watts
Power Specifications for Cluny 1400 and Cluny 1800 (+ETL001*) Ranges
CLUNY 1400 +ETL001*
CLUNY 1800 +ETL001*
Voltage (V)
Amperage (A)
Wattage (W)
ULG1452G+ETL001
ULG1852G+ETL001
120 / 240
4.2
992
ULG1452GE+ETL001
ULG1852GE+ETL001
120 / 240
13.3
3172
ULG1452GCT+ETL001
ULG1852GCT+ETL001
120 / 240
15.1
3622
ULG1452E+ETL001
ULG1852E+ETL001
120 / 240
22.3
5352
ULG1452ECT+ETL001
ULG1852ECT+ETL001
120 / 240
24.2
5802
ULCF1452G+ETL001
ULCF1852G+ETL001
120 / 240
4.2
992
ULCF1452GE+ETL001
ULCF1852GE+ETL001
120 / 240
13.3
3172
ULCF1452GCT+ETL001
ULCF1852GCT+ETL001
120 / 240
15.1
3622
ULCF1452E+ETL001
ULCF1852E+ETL001
120 / 240
22.3
5352
ULCF1452ECT+ETL001
ULCF1852ECT+ETL001
120 / 240
24.2
5802
* ETL001 = one warming cupboard
Ranges with Plancha cooktop option, add: 9.2 Amps, 2200 Watts
Ranges with Multicooker option, add: 14.6 Amps, 3500 Watts
Ranges with Induction option, add 16.2 Amps, 3700 Watts

Page 13 of 21–US –
Power Specifications for Cluny 1800 (+2ETL001*) Ranges
CLUNY 1800+2ETL001*
Voltage (V)
Amperage (A)
Wattage (W)
ULG1852G+2ETL001
120 / 240
8.1
1942
ULG1852GE+2ETL001
120 / 240
17.2
4122
ULG1852GCT+2ETL001
120 / 240
19.1
4572
ULG1852E+2ETL001
120 / 240
26.3
6302
ULG1852ECT+2ETL001
120 / 240
28.2
6752
ULCF1852G+2ETL001
120 / 240
8.1
1942
ULCF1852GE+2ETL001
120 / 240
17.2
4122
ULCF1852GCT+2ETL001
120 / 240
19.1
4572
ULCF1852E+2ETL001
120 / 240
26.3
6302
ULCF1852ECT+2ETL001
120 / 240
28.2
6752
* 2ETL001 = two warming cupboards
Ranges with Plancha cooktop option, add: 9.2 Amps, 2200 Watts
Ranges with Multicooker option, add: 14.6 Amps, 3500 Watts
Ranges with Induction option, add 16.2 Amps, 3700 Watts
BACK SPACER VENT FITTING:
It is mandatory to mount the back spacer vent Rto the range supplied with the appliance.
Screw the wall spacer to the range according to figure, 28, with the thumbscrews and hardware provided. Then
move the range backwards into position. This spacer is reversible to provide a flush-mounted option to slide up
against a tile or stone backslash at countertop level.
R
Figure 28

Page 14 of 21–US –
STABILITY DEVICE INSTALLATION INSTRUCTIONS:
Anti-tip bracket is designed to fit into the seam formed at the bottom of the range chassis and base plinth as shown in
Figure 1.The bracket can be mounted anywhere along the seam that the bracket can be freely inserted (Figure 2).
Mounting screws are not provided.
This bracket is designed to be mounted to a load bearing support such as a wall stud. This anti-tip device is
designed to only prevent the accidental tipping forward of the range. Depending on the state or municipality, local
code may require additional strapping of the appliance to prevent movement in seismic events.
Figure 1

Page 15 of 21–US –
SERVICE INSTRUCTIONS:
- Lubricating gas valve.
If the gas taps tends to stick slightly, you may follow this procedure:
1 - Shut off the valve and / or the main electrical supply of the unit.
2 - Take out the knob corresponding to the gas valve to be greased.
3 - Unscrew the head from the body of the burner valve.
4 - Grease the tap shaft (High temperature lubricant, for example: SILICAL GEL ™ BARBAHL).
Caution! Any excess grease should be removed.
Reverse operation 3 to 1 (in that order) to put
valve and knob back on.
- Limiting thermostat:
To access internal components. Lift and secure
top.
Press pushbutton item U(Figure 34) in order to
reset the limiting thermostat.
Note: ALWAYS IDENTIFY the reason why
the thermostat tripped.

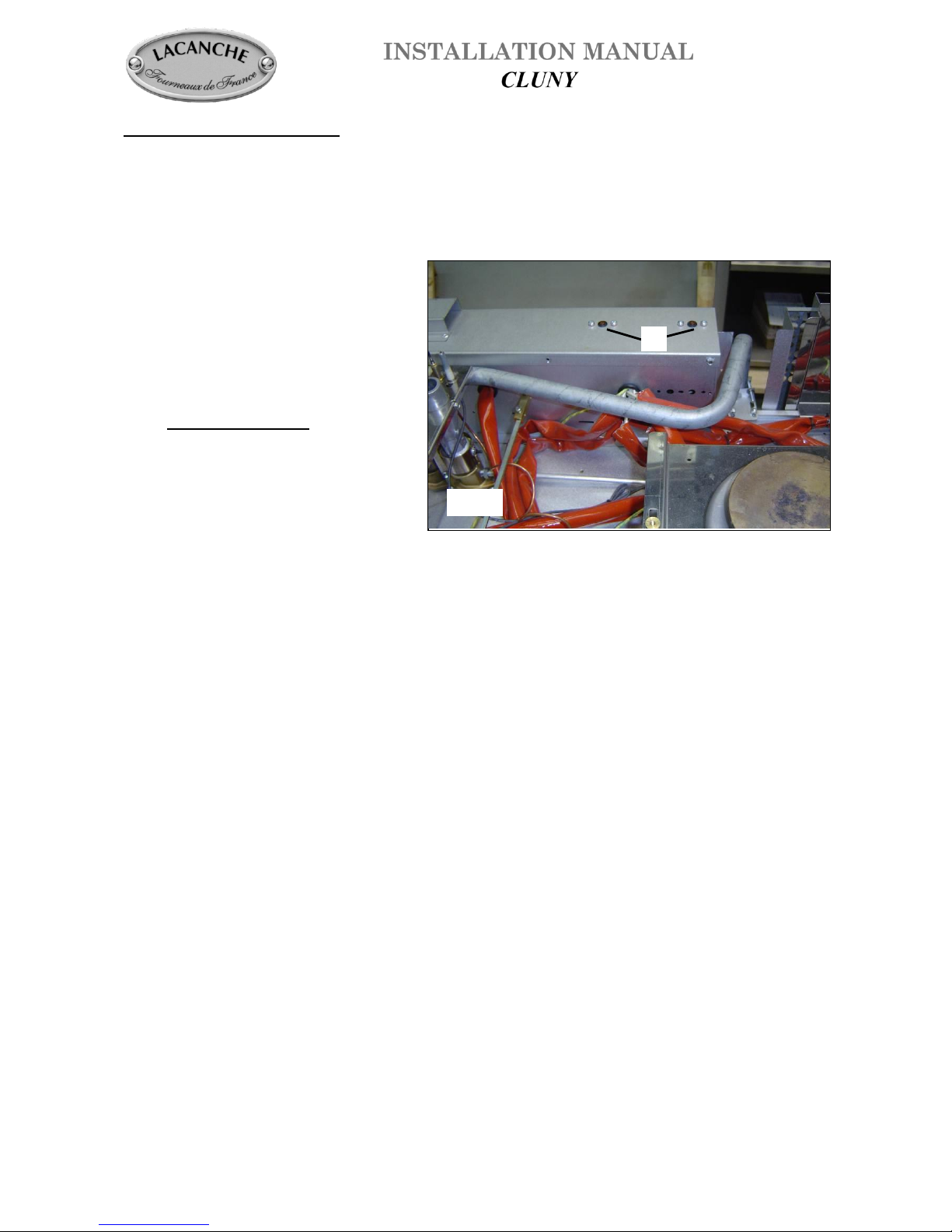

Fig. 34
U

Page 16 of 21–US –
GAS CIRCUIT DIAGRAMME
Designation
Part number
Burner cap 1,5 kW
65.330004
Burner cap 3,0 W
65.330005
Burner cap 4,0 kW
65.330006
Burner cap 5,0 kW
65.330007
Burner bowl 1,5 kW
65.640008
Burner bowl 3,0 kW
65.640004
Burner bowl 4,0 kW
65.640005
Burner bowl 5,0 kW
65.640006
Air Shutter
65.080005
Mixing tube (1,5-3,0-4,0 & 5,0 kW)
65.064007
Injector holder
65.033018
Sealing ring
65.430007
Injector Dia. 65
65.14964
Injector Dia. 90
65.14969
Injector Dia. 95
65.14970
Injector Dia. 105
65.52863
Injector Dia. 120
65.14973
Injector Dia. 130
65.14974
Injector Dia. 140
65.14975
Injector Dia. 145
65.27781
Injector Dia. 170
65.30546
Brass knob (Gas model)
65.044013
Chrome knob (Gas model)
65.044014
Brass knob (Elec. model)
65.044015
Chrome knob (Elec. model)
65.044016
Regulator
65.103023
All oven burner
73.062010
Injector holder
65.51764
Oven burner
65.080012
Screw
65.51085
Reducing fitting
65.129099
Thermocouple
65.103024
Pilot burner LP
65.103032
Pilot burner NG
65.103031
Oven electrode
65.103004
Switch
65.28979
Spiggott rod
59.907379
Oven thermostat
65.53670
Top burner valve
65.103029
Oven burner valve
65.103033
Whole extension shaft assy. for valve "PEL" range Westahl
90000543
Valve shaft extension for "PEL"
59.907379
Cardan coupling valve “U-joint”
90000853

Page 17 of 21–US –
GAS CIRCUIT DIAGRAMME
65.39895
65.226006
65.080005
65.033018
1,5 kW = 65.064007
3,0 kW = 65.064007
4,0 kW = 65.064007
5,0 kW = 65.064007
65.5111
4
65.103029
+ 4 screws 65.129101
+ 4 disc 65.30932
65.103033

Page 18 of 21–US –
ELECTRIC CIRCUIT DIAGRAMS
Detail A:
Detail B:
65.103032 (LP)
65.103031 (NG)
65.103033

Page 19 of 21–US –
Item n°
Designation
Part number
TH
Oven thermostat
6553670
S
Valve switch
65.222002
S1
Thermostat switch
65.222003
S3
Thermostat switch
65.28979
B
Top burner electrode
65.226006
B1
Oven electrode
65.103004
EV
Gas valve
65.103027

Page 20 of 21–US –
Item n°
Designation
TL
Three pole limiting
thermostat
65.224003
TH
Regulating thermostat
65.53670
S
Electric oven switch
65.52194
R
Lower heating element
65.211027
R1
Top heating broil element
65.211029
H
Red Lamp
65.231004
H1
Orange Lamp
65.231005
L
Oven lamp
65.232004
Mr
Switch oven lamp
65.222011
S
