LAEGENDARY LGD240 DUAL User manual

LGD240
DUAL
SCREEN
TOUCH
3.2 COLOR LCD
AC/DC
INPUT FAST
CHARGE
UP TO 3X FASTER

FAST
www.LAEGENDARY.com
TABLE OF CONTENTS
Introduction
Caution and Notes
Accesories
Specifications
Batteries Info and Max Charge Current
Program for LiPo/Lilo/LiFe/LiHV
Program for NiMH/NiCd
Program for PB(lead-Acid)

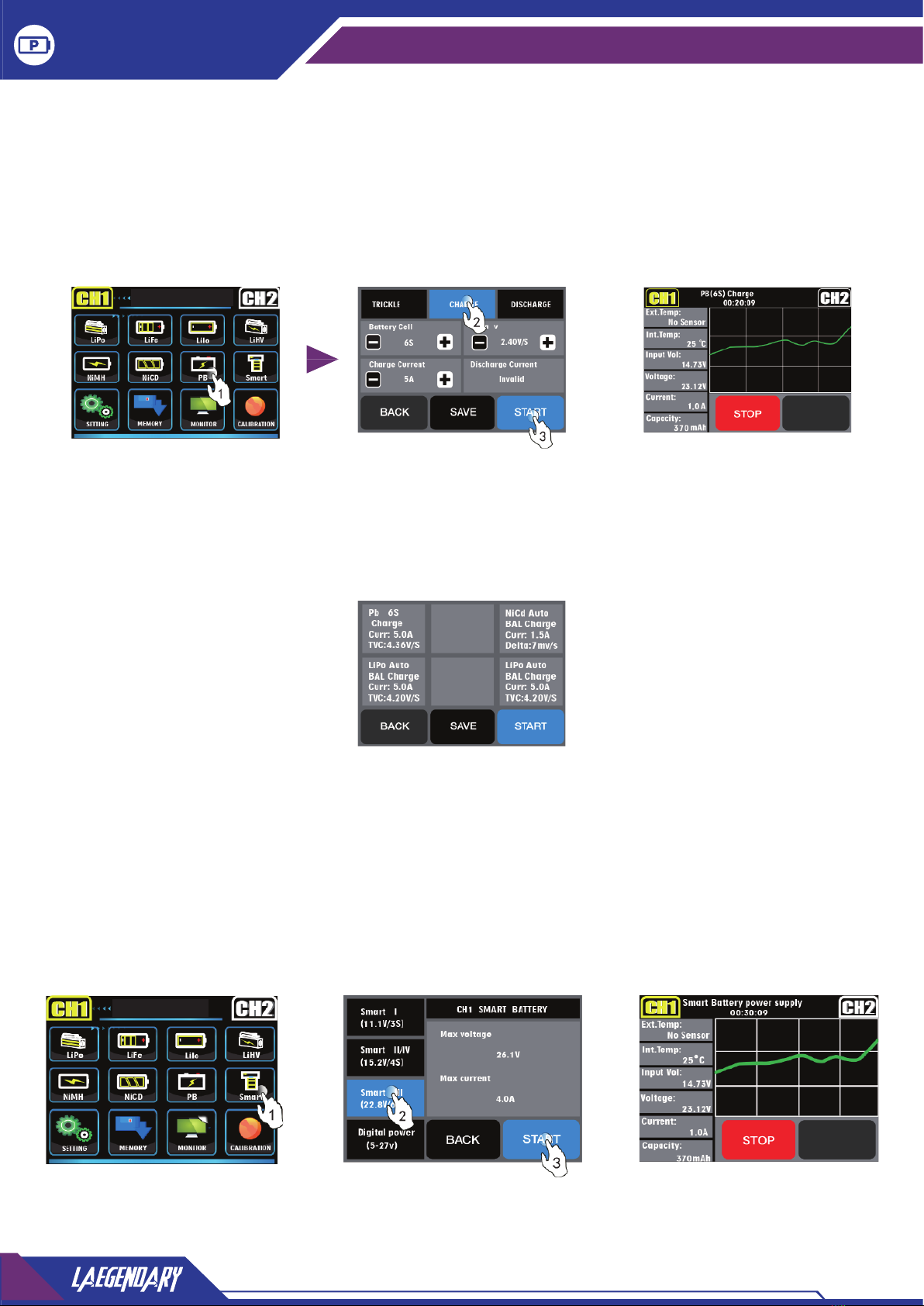

Program for Smart Batteries
Main Menu
Settings
Monitor/Calibration
Memory
Error Information
Warranty Information
..................................................................................................4
.....................................................................................5
.....................................................................................................7
..............................................................................................8
.............................................9
.......................................................10
..........................................................................11
....................................................................12
.................................................................12
....................................................................................................13
.........................................................................................................14
...................................................................................15
..........................................................................................................16
.......................................................................................17
..............................................................................18
2

3
www.LAEGENDARY.com
WARNING!
WHEN CHARGING, PLEASE ALWAYS PLACE THE BATTERY IN
THE INCLUDED FIREPROOF BAG, TO AVOID ANY FIRE HAZARD.
DO NOT LEAVE THE CHARGER UNATTENDED WHILE IN USE.
TERMS OF USE
This product is surrendered by LAEGENDARY to the purchaser with the understanding that
the purchaser accepts the responsibility that operating this model and using the enclosed
accessories in a careless, improper, or unsafe manner can result in serious injury or death.
Also, the purchaser assumes all liability resulting from any misuse, unsafe handling,
failure to follow instructions, or any action that constitutes a violation of any applicable laws
or regulations. LAEGENDARY shall not be liable for personal injury, loss of property,
or loss of life resulting from the use of this product under any circumstances, including
intentional, reckless, negligent, or accidental behavior.
LAEGENDARY shall also not be liable for any special, indirect, incidental, or consequential
damages arising out of the assembly, installation, or use of their products or any accessory
or chemical required to use their products. By the act of operating / using the product,
the user accepts all resulting liability and releases LAEGENDARY of any and all liability
associated with its use.
If you as the user do not accept liability of Usership, LAEGENDARY requests that you do
not use this product. Do not open any of the enclosed materials.
Return the model to LAEGENDARY but please be advised that we absolutely cannot
accept an item for return or exchange after it has been used or is otherwise no longer
in as-new condition.
All information contained in this User’s Manual is subject to change without notice.
For the most updated version of the User Manual, please visit our website.
LAEGENDARY reserves the right to make changes and improvements to products without
incurring any obligation to incorporate such improvements into products previously sold.
If you have any questions about your model or its operation, call LAEGENDARY
Customer Support at 646 859-1050 or E-mail: [e-mail].

3
Thank you for purchasing the LAEGENDARY LGD240 Dual charger.
This charger features innovations that make charging batteries easier and safer than ever.
If you have any questions or concerns about your charger, please contact our customer
support team for fast, friendly answers and solutions.
E-mail: [e-mail], Ph: [phone]
Introduction
4www.LAEGENDARY.com
INTRODUCTION
PC LINK
DC 11-18V POWER
SWITCH
AC 100-240V
PC LINK
3.2 TOUCH
COLOR SCREEN
TEMP.
BALANCE PORT
OUTPUT PORT

Caution and Notes
5
www.LAEGENDARY.com
WARNING! CAUTION! DANGER!
FIRE HAZARD! CHARGING AND DISCHARGING BATTERIES HAS THE POTENTIAL FOR FIRE, EXPLOSION,
SERIOUS INJURY, AND PROPERTY DAMAGE IF NOT PERFORMED AS PER THE INSTRUCTIONS. BEFORE USE,
READ AND FOLLOW ALL MANUFACTURER’S INSTRUCTIONS, WARNING, AND PRECAUTIONS. NEVER ALLOW
CHILDREN UNDER THE AGE OF 14 TO CHARGE OR USE BATTERIES WITHOUT THE SUPERVISION OF A
RESPONSIBLE, KNOWLEDGEABLE ADULT.
DO NOT LEAVE THE BATTERIES OR CHARGER UNATTENDED WHILE CHARGING.
Important warnings for users of Lithium Polymer (LiPo) batteries:
Lithium Polymer (LiPo) batteries are significantly more volatile than other rechargeable
batteries.
ONLY use a Lithium Polymer (LiPo) balance charger with a balance adapter port to
charge LiPo batteries. Never use NiMH or NiCad-type chargers or charge modes to charge
LiPo batteries. DO NOT charge with a NiMH-only charger. The use of a NiMH or NiCad charger
or charge mode will damage the batteries and may cause fire and personal injury.
Never charge LiPo battery packs in series or parallel. Charging packs in series or parallel
may result in improper charger cell recognition and an improper charging rate that may lead
to overcharging, cell imbalance, cell damage, and fire.
ALWAYS inspect your LiPo batteries carefully before charging. Look for any loose leads
or connectors, damaged wire insulation, damaged cell packaging, impact damage, fluid leaks,
swelling (a sign of internal damage), cell deformity, missing labels, or any other damage or
irregularity.
If any of these conditions are observed, do not charge or use the battery pack. Follow the
disposal instructions included with your battery to properly and safely dispose of the battery.
Do not store or charge LiPo batteries with or around other batteries or battery packs of
any type, including other LiPos.
Store and transport your LiPo batteries in a cool dry place. Do not store in direct
sunlight. Do not allow the storage temperature to exceed 140°F or 60°C such as in the trunk
of a car or the cells may be damaged and create a fire risk.
Do NOT disassemble LiPo batteries or cells.
Do NOT attempt to build your own LiPo battery pack from loose cells.
Charging and handling precautions for all battery types:
This charger is ONLY suitable for the following rechargeable battey types: LiPo, LiIo,
LiFe, LiHv, NiCd, NiMH, Smart and Pb batteries. Do not attempt to charge dry cells. Charging
other types of batteries may cause fire or explosion.
Strongly Recommend balancing Lithium packs. An unbalanced pack may damage
during discharging.
General default charging current is 1C. Read the manual of the battery and setup the
suitable current to charge the battery. Higher charge/discharge current will damage the
battery, even cause a fire.
ALWAYS proceed with caution and use good common sense at all times.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children require adult supervision while using this charger.
CAUTION and NOTES

5
Caution and Notes
6www.LAEGENDARY.com
DO NOT let any exposed battery contacts or wires touch each other. This will cause the
battery to short circuit and create the risk of fire.
While charging, ALWAYS place the battery in a fire retardant/fire proof container and
on a nonflammable surface such as concrete.
DO NOT operate the charger inside of an automobile.
NEVER charge batteries on wood, cloth, carpet or on any other flammable material.
ALWAYS charge batteries in a well-ventilated area.
REMOVE flammable items and combustible materials from the charging area.
DO NOT operate the charger in a cluttered space, or place objects on top of the charger
or batteries.
If any battery or battery cell is damaged in any way, do NOT charge, discharge, or use
the battery.
Keep a Class D fire extinguisher nearby in case of fire.
BEFORE you charge, ALWAYS confirm that the charger settings exactly match the
type (chemistry), specification, and configuration of the battery to be charged.
DO NOT exceed the battery manufacturer’s maximum recommended charge rate.
DO NOT disassemble, crush, short circuit, or expose the batteries or cells to flame or
any other source of ignition.
If a battery gets hot to the touch during the charging process, disconnect the battery
from the charger and discontinue charging immediately.
ALWAYS unplug the charger and disconnect the batteries when not in use.
DO NOT leave the charger and batteries unattended while charging, discharging, or any
time that the charger is ON with batteries connected. If there are any signs of a malfunction
or in the event of an emergency, unplug the charger from the power source and disconnect
the batteries from the charger.
Never attempt to charge more batteries than the charger was designed to charge.
DO NOT disassemble the charger.
REMOVE the batteries from your model or device before charging.
DO NOT expose the charger to water or moisture.
ALWAYS store battery packs safely out of the reach of children and pets.
If the charger power cord is damaged, it must be replaced by LAEGENDARY in order
to avoid a hazard.
DO NOT charge batteries under ANY of the following conditions:
- Batteries that are hot to the touch.
- Batteries that are not expressly stated by the manufacturer to be suitable to accept the
power output (voltage and amperage) the charger delivers during the charging process.
- Batteries that are damaged or defective in any way. Examples of damage or defects include,
but are not limited to, batteries with dented cells, damaged or frayed wires, loose connections,
fluid leaks, corrosion, plugged vents, swelling, cell deformity, impact damage, melted
components, or any other signs of damage.
- Battery packs that have been altered from original manufacturer configuration.
- Non-rechargeable batteries (explosion hazard).
- Batteries that have missing or unreadable labels, preventing you from properly identifying
the battery type and specifications.

Accessories
7
www.LAEGENDARY.com
ACCESSORIES
Balance Charging Place x1 Battery Case x1
Adaptor Board Set x2 Cable Set x2
AC Cord x1 Extra Cable x1

7
Specifications
8www.LAEGENDARY.com
SPECIFICATIONS
Product Model LGD240 DUAL Power Distribution
AC Input Voltage 100-240V
DC Input Voltage 11-18V
Charge power AC INPUT (CH1+CH2=150W)
DC INPUT (120W*2)
Charge current 0.1-10A*2
Discharge current 0.1-2A*2
Lipo/Lilo/LiFe/LiHV
NiCd/NiMH
1-6cells*2
1-15cells*2
PB 2-20V*2
Smart Battery I/II/III*2
Net weight 1.1lb
Dimension 5.7 x 4.2 x 2.5 in

Batteries Info
9
www.LAEGENDARY.com
Battery
Type
NiMh/
NiCd
No. of
Cells
1
2
3
4
5
6
1.2
2.4
3.6
4.8
6
7.2
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
7
8
9
10
11
12
8.4
9.6
10.8
12
13.2
14.4
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
13
14
15
15.6
16.8
18
0.1-10.0A
0.1-10.0A
0.1-10.0A
Rated
Voltage(V)
Charger
Current(A)
Pb
1
2
3
4
5
6
2
4
6
8
10
12
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
7
8
9
10
11
12
14
16
18
20
22
24
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
Battery
Type
LiHV
No. of
Cells
1
2
3
4
5
6
3.8
7.6
11.4
15.2
19.0
22.8
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
LiPo
1
2
3
4
5
6
3.7
7.4
11.1
14.8
18.5
22.2
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
LiIo
1
2
3
4
5
6
3.6
7.2
10.8
14.4
18
21.6
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
LiFe
1
2
3
4
5
6
3.3
6.6
9.9
13.2
16.5
19.8
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
0.1-10.0A
Rated
Voltage(V)
Charger
Current(A)
LiPo Voltage Level: 3.7V/cell
Max Charge Voltage:4.2V/cell
Discharge Voltage: Cut o Level: 3.0V/cell
or higher
LiIo Voltage Level: 3.6V/cell
Max Charge Voltage:4.1V/cell
Discharge Voltage: Cut o Level: 3.0V/cell
or higher
LiFe Voltage Level: 3.8V/cell
Max Charge Voltage:4.35V/cell
Discharge Voltage: Cut o Level: 3.2V/cell
or higher
LiHV Voltage Level: 3.3V/cell
Max Charge Voltage:3.8V/cell
Discharge Voltage: Cut o Level: 2.0V/cell
or higher
NiMH/
NiCd
Voltage Level: 1.2V/cell
Discharge Voltage: Cut o Level: 0.8V/cell
or higher
Pb Voltage Level: 2.0V/cell
Max Charge Voltage:2.45V/cell
Discharge Voltage: Cut o Level: 1.5V/cell
or higher
BATTERIES INFO AND MAX CHARGE CURRENT

9
Program For
10 www.LAEGENDARY.com
LiPo/Lilo/LiFe/LiHV Batteries
PROGRAM FOR LiPo/Lilo/LiFe/LiHV BATTERIES
Example 1: LiPo Battery Charge
Step1. Enter the Menu and select LiPo Battery Type (Image 1).
Step 3: If you often use the same battery, please touch Save icon (Image 5) to enter into Save
interface. Touch unused icon to save the batterty parameters for future use.
Step2. Select “BALANCE CHARGE” mode and set the correct battery parameters (Image 2).
Image 1 Image 2 Image 3
Image 4
1. Image 3 shows charging parameters and graphic
for LiPo charge current and voltage.
2. Image 4 shows each cell voltage and percent
during LiPo charging.
NOTE:
LGD240 DUAL
Image 5 Image 6

PROGRAM FOR NiMH/NiCd BATTERIES
Image 7 Image 8 Image 9
LGD240 DUAL
Example 2: NiMH Battery Charge
Step1. Enter the Menu and select NiMH Battery Type (Image 7)
Step2. Select “CHARGE” mode and set the correct battery parameters (Image 8)
Step 3: If you often use the same battery, please touch Save icon (Image 5) to enter into Save
interface. Touch unused icon to save the batterty parameters for future use.
Step 4: Select previously saved battery parameters to START (Image 10) the balance charging,
or touch BACK icon to return to previous step (Image 8), and touch START to balance charge.
NOTE: Image 9 shows charging parameters and graphic for NiMH charge current and voltage.
NiMH/NiCd Batteries Program For
11
www.LAEGENDARY.com
NiMH/NiCd Batteries
Image 10

Program For
12 www.LAEGENDARY.com 11
PROGRAM FOR PB(lead-Acid) BATTERIES
Pb(lead-acid)/Smart Batteries
Example 3: PB battery charge
Step1. Enter the Menu and select PB Battery Type (Image 11)
Step2. Select “CHARGE” mode and set the correct battery parameters (Image 12)
Step 3: If you often use the same battery, please touch Save icon (Image 5) to enter into Save
interface. Touch unused icon to save the batterty parameters for future use.
Step 4: Select previously saved battery parameters to START (Image 14) the balance charging,
or touch BACK icon to return to previous step (Image 8), and touch START to balance charge.
NOTE: Image 13 shows charging parameters and graphic for Pb charge current and voltage.
PROGRAM FOR SMART BATTERIES
Example 4: SMART battery charge
Step1. Enter the Menu and select SMART Battery Type (Image 15)
Step2. Select “SMART III” and then press “START” to begin charging (Image 16)
Image 15 Image 16 Image 17
LGD240 DUAL
NOTE: Image 17 shows charging parameters and graphic for smart charge current and voltage.
Image 11
LGD240 DUAL
Image 12
Image 14
Image 13

Main Menu
13
www.LAEGENDARY.com
LGD240 DUAL
MAIN MENU
3.2 Inch Touch Screen
Touch Screen
Controller
Security Settings
Setting
Battery Management, Checking Battery Capacity, Voltage, Balancer
Monitor
Calibrate Charger
Calibration
Memory: Save six operation data
Memory

13
Settings
14 www.LAEGENDARY.com
SETTINGS
Image 18
LGD240 DUAL Step 1. Enter the Menu. Select Settings (Image 18), into set
interface (Image 19-21)
In this menu you can set the cuto input voltage of the power
supply of the charger to protect your power supply. The
charger will cuto when input voltage is lower than the setting
value. Range from 11.0-18.0V. Default: 10.0V
In this menu you can set the charge power limit to meet your
power supply. The charge will work under the setting value.
Balance control of LiPo/LiIo/LiFe/LiHV – you can set the balance control to meet your
demand. Normal/Fast/Slow – optional. Default: Normal
*Fast: Fastest balance speed – less accurate.
*Slow: Lowest balance speed – more accurate.
*Normal: balance speed and accurateness between Fast and Slow.
Set the volume of the buzzer. Keep Beep default:
Middle, Low/Middle/High/O optional
Image 19
Image 20
In this menu you can set the cuto internal temperature to
protect your battery. The charger will stop working when the
internal temperature is higher than the setting value range
from 30-85°C. Default: 80°C.
In this menu you can set the cuto capacity to protect your
battery. The charger will stop working when the capacity is
more than the setting value.
Range from o – 65.0Ah. Default: 10.0Ah.
Image 21
In this menu you can set the cuto external temperature to
protect your battery. The charger will stop working when the
external temperature is higher than the setting value
(an external temperature sensor is needed). Range from
30-85°C. Default: 60°C.
In this menu you can set a safety time to protect your charger
and battery. The charger will stop working when the safety
time is over the setting value. On/O- optional. Range from
1 to 600 minutes. Default: 240 minutes.

Monitor/
Calibration
15
www.LAEGENDARY.com
In this menu you can set the cuto input voltage of the power
supply of the charger to protect your power supply. The
charger will cuto when input voltage is lower than the setting
value. Range from 11.0-18.0V. Default: 10.0V
MONITOR / CALIBRATION
Image 22
LGD240 DUAL
Image 24 Image 25
Image 23
LGD240 DUAL
ONE:
Enter into Menu, select Monitor (Image 22) and into BATTERY MONITOR (Image 23)
TWO:
1. Enter into Menu, select Calibration(Image 26), into “CHARGER CALIBRATION”(Image 27)
2. Select “RESET” to recover original settings (Image 27)
1) Meter LiXx(LiPo/LiIo/LiFe/LiHV) battery status (Image 24)
2) Meter LiXx(LiPo/LiIo/LiFe/LiHV) battery internal resistance (Image 24)
3) LiXx(LiPo/LiIo/LiFe/LiHV) battery balancer (Image 25)
Image 26 Image 27
LGD240 DUAL

15
Memory
16 www.LAEGENDARY.com
MEMORY
Image 28 Image 29 Image 30
LGD240 DUAL
1. Enter into Menu, select Memory (Image 28)
2. Select correct icon as exact battery type (Image 29) and select “Modify” icon (Image 30)
Image 28 Image 29 Image 31
Image 32
LGD240 DUAL

17
www.LAEGENDARY.com
Error
Information
ERROR INFORMATION
ERROR!
INPUT VOLTAGE ERROR
Error
Information
ERROR!
INPUT VOLTAGE ERROR
Input voltage is higher than 18V, check the power supply, then
restart the charger.
ERROR!
INPUT VOLTAGE TOO LOW
Input voltage is lower than the value of LOW INPUT VOLTAGE
CUT-OFF, check the power supply, then restart the charger.
ERROR!
REVERSE POLARITY CHECK
Reverse polarity, check the connection between the charger and
the battery, correct the connection, then restart the charger.
ERROR!
BATTERY CHECK DISCONNECT
Disconnect the battery, check the connection between the
charger and the battery, then restart the charger.
ERROR!
BATTERY CHECK OVER VOLTAGE
Total voltage of the battery is over the termination voltage
control (TVC), check the battery and the TVC setting, then restart.
ERROR!
BATTERY CHECK CELL COUNT ERROR
Cell count detected by the charger is dierent from the setting,
check the battery cell count and reset the cell count.
ERROR!
BATTERY CHECK LOWER CELL VOLT
Cell voltage of the battery pack is lower than the termination voltage
control (TVC), check the battery and the TVC setting, the restart.
ERROR!
BATTERY CHECK FULL BATTERY
Full battery, no need to charge.
ERROR!
OVER Ext. TEMP CUTOFF
External temperature is higher than the setting value, cuto.
ERROR!
OVER CAPACITY CUTOFF
Capacity is over the setting value, cuto.
ERROR!
SAFETY TIME OUT CUTOFF
Time is up to the setting value of Safety Timer, cuto.

Support
and Services
18 www.LAEGENDARY.com 17
SUPPORT AND SERVICES
WARRANTY
LIABILITY EXCLUSION
LAEGENDARY electronic components are warranted to be free from defects in materials and
workmanship for a period of 30 days from the date of purchase. Limitations: Any and all
warranty coverage does not cover replacement of parts and components damaged by abuse,
neglect, improper or unreasonable use, crash damage, water or excessive moisture, chemical
damage, improper or infrequent maintenance, accident, unauthorized alteration or
modification or items that are considered consumable. LAEGENDARY will not pay for the cost
of shipping or transportation of a defective component to us. This warranty is limited to the
charger only and does not cover batteries, vehicles and other accessories used in conjunction
with the charger.
This charger is designed and approved exclusively for charge the type of batteries stated in
this manual. LAEGENDARY does not accept any liability if the charger is used for any purpose
other than the one stated herein. We are not able to ensure that you follow the intructions
that come with this charger and we have no control over the methods you employ for using,
operating and maintaining this device. For this reason, we deny the liability for loss, damage
or costs which are incurred due to incompetent or incorrect use and operation of this product,
or which are connected with such operation in any way. Unless otherwise prescribed by law,
our obligation to pay compensation, regardless of the legal argument employed, is limited to
the invoice value of those products which were immediately and direclty involved in the event
in which the damage occurred.
PHONE: [phone]
E-mail: [e-mail]
Address: 1440 Falcon Lane, Homan Estates, IL 60192
www.laegendary.com

Phone: [phone]
E-mail: [e-mail]
Address: 1440 Falcon Lane, Homan Estates, IL 60192
www.laegendary.com
